1613-2. Opening, closing and locking the doors
3
Operation of each component
RX350/RX200t_EE_OM48F32E
WARNING
Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in death or seriousinjury.
■Before driving the vehicle
Before driving the vehicle, make sure that the power back door is fully closed. If the power back door is not fully closed, it may open unexpectedly while driving, causing an
accident.
■Caution while driving
●Keep the power back door closed while driving.
If the power back door is left open, it ma y hit nearby objects while driving or luggage may be unexpectedly thrown out, causing an accident.In addition, exhaust gases may enter the ve hicle, causing death or a serious health
hazard. Make sure to close the power back door before driving.
●Never let anyone sit in the luggage compartment. In the event of sudden braking, sudden swervi ng or a collision, they are susceptible to
death or serious injury.
■When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to play in the luggage compartment. If a child is accidentally locked in the luggage compartment, they could have heat
exhaustion or other injuries.
●Do not allow a child to open or close the power back door. Doing so may cause the power back door to move unexpectedly, or cause the child’s
hands, arms, head, or neck to be caught by the closing power back door. (The power back door will not operate when it is disabled: P. 115)

1623-2. Opening, closing and locking the doors
RX350/RX200t_EE_OM48F32E
WARNING
■Operating the power back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death or serious
injury.
●Remove any heavy loads, such as snow and ice, from the power back door before
opening it. Failure to do so may cause the power back door to suddenly shut again
after it is opened.
●When opening or closing the power back do or, thoroughly check to make sure the
surrounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them know that the power
back door is about to open or close.
●Use caution when opening or closing the power back door in windy weather as it may
move abruptly in strong wind.
●Do not pull on the back door spindle ( P. 165) to close the power back door, and
do not hang on the back door spindle.
Doing so may cause hands to be caught or the back door spindle to break, causing
an accident.
●If a bicycle carrier or similar heavy object is attached to the power back door, it may
suddenly shut again after being opened, causing someone’s hands, arms, head or
neck to be caught and injured. When installing an accessory part to the power back
door, using a genuine Lexus part is recommended.
●The power back door may suddenly shut if it is
not opened fully, while on a steep incline.
Make sure that the power back door is secure
before using the luggage compartment.
●When closing the power back door, take
extra care to prevent your fingers, etc., from
being caught.
●When closing the power back door, make
sure to press it lightly on its outer surface. If
the back door handle is used to fully close the
power back door, it may result in hands or
arms being caught.

1633-2. Opening, closing and locking the doors
3
Operation of each component
RX350/RX200t_EE_OM48F32E
WARNING
■Back door closer
●Use caution when using the back door closer as it still operates when the power back door system is disabled.
■Power back door
Observe the following precautions when operating the power back door. Failure to do so may cause death or serious injury.
●Check the safety of the surrounding area to make sure there are no obstacles or any-thing that could cause any of your belongings to get caught.
●If anyone is in the vicinity, make sure they are safe and let them know that the power
back door is about to open or close.
●If the power back door system is disabled ( P. 115) while the power back door is operating, the power back door will stop operating. The power back door must then
be operated manually. Take extra care in th is situation, as the power back door may open or close suddenly.
●If the operating conditions of the power back door (P. 156) are no longer met, a
buzzer may sound and the power back door may stop opening or closing. The power back door must then be operated manually. Take extra care on an incline in this situa-tion, as the power back door may move suddenly.
●On an incline, the power back door may suddenly shut after it opens. Make sure thepower back door is fully open and secure.
●In the following situations, the power back door may detect an abnormality and auto-
matic operation may be stopped. In this case, the power back door must then be operated manually. Take extra care in this situation, as the stopped power back door may suddenly open or close, causing an accident.
• When the power back door contacts an obstacle • When the battery voltage suddenly drops, such as when the engine switch isturned to IGNITION ON mode or the engine is started during automatic opera-
tion
●In the event that the power back door is left
slightly open, the back door closer will auto- matically close it to the fully closed position. Ittakes several seconds before the back door
closer begins to operate. Be careful not to get fingers caught or anything else in the powerback door, as this may cause bone fractures
or other serious injuries.

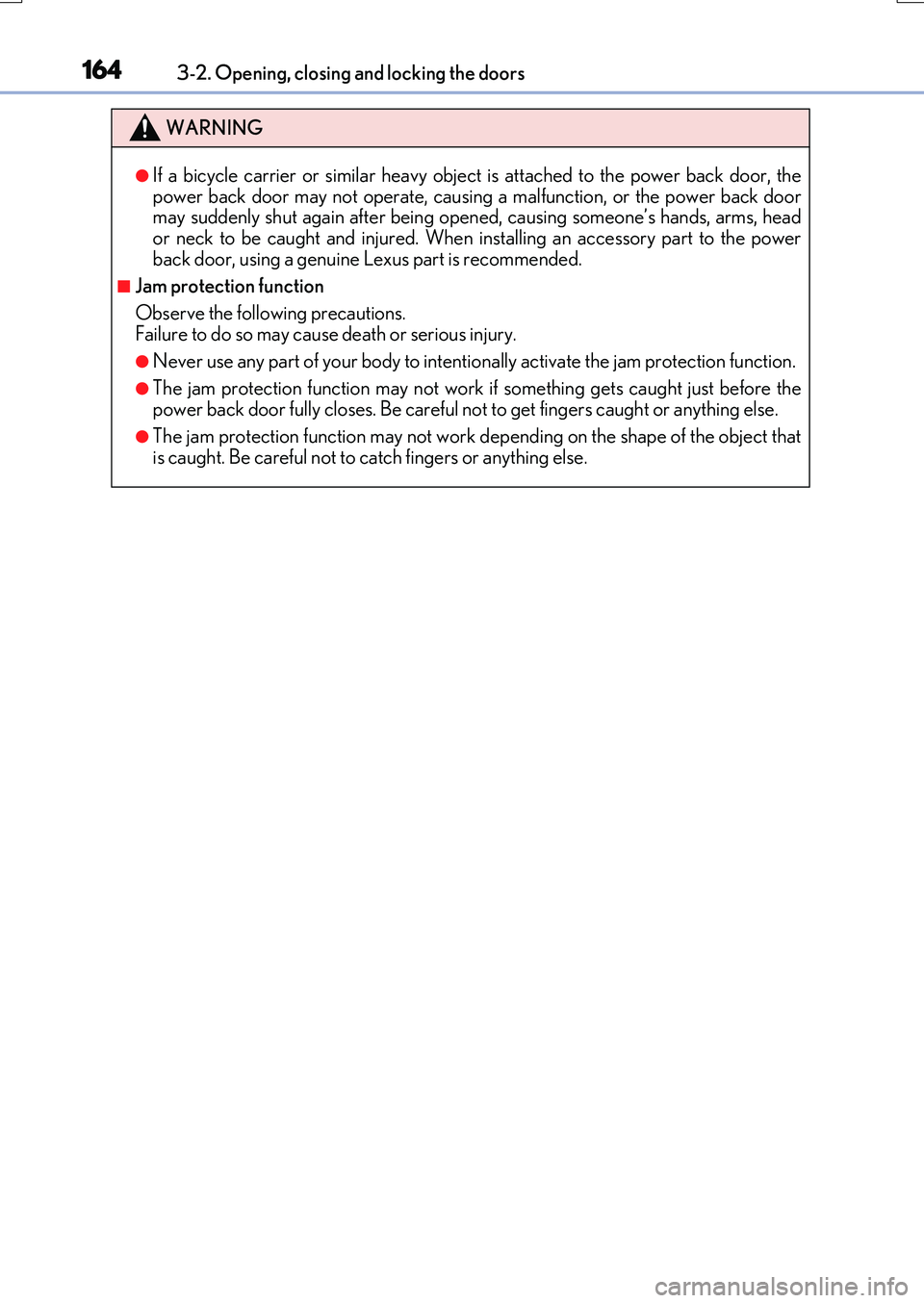

1643-2. Opening, closing and locking the doors
RX350/RX200t_EE_OM48F32E
WARNING
●If a bicycle carrier or similar heavy object is attached to the power back door, the power back door may not operate, causin g a malfunction, or the power back door may suddenly shut again after being opened, causing someone’s hands, arms, head
or neck to be caught and injured. When installing an accessory part to the power back door, using a genuine Lexus part is recommended.
■Jam protection function
Observe the following precautions. Failure to do so may cause death or serious injury.
●Never use any part of your body to intent ionally activate the jam protection function.
●The jam protection function may not work if something gets caught just before the power back door fully closes. Be careful not to get fingers caught or anything else.
●The jam protection function may not work depending on the shape of the object that
is caught. Be careful not to catch fingers or anything else.

1653-2. Opening, closing and locking the doors
3
Operation of each component
RX350/RX200t_EE_OM48F32E
NOTICE
■Back door spindles
The power back door is equipped with spindl es that hold the power back door in place. Observe the following precautions.
Failure to do so may cause damage to the back door spindle, resulting in malfunction.
■To prevent back door closer malfunction
●Do not apply excessive force to the back door while the back door closer is operat- ing. Applying excessive force may cause the back door closer to malfunction.
●If the power back door is opened and closed repeatedly in a short amount of time, the back door closer may stop operating. In this case, manually open the power back door once and wait for a while before attempting to close it again.
■To prevent malfunction of the power back door
●Make sure that there is no ice between the power back door and frame that wouldprevent movement of the power back door. Operating the power back door when
excessive load is present on the power back door may cause a malfunction.
●Do not apply excessive force to the power back door while the power back door is operating.
●Take care not to damage the sensors installed on the right and left edges of the powerback door ( P. 159) with a knife or other sharp object. If a sensor is disconnected, the power back door will not close automatically.
●Do not attach any foreign objects, such as
stickers, plastic sheets, or adhesives to the spindle rod.
●Do not attach any accessories other than
genuine Lexus parts to the power back door.
●Do not place your hand on the spindle or apply lateral forces to it.Spindles

1663-2. Opening, closing and locking the doors
RX350/RX200t_EE_OM48F32E
NOTICE
■Touchless sensor precautions (vehicles with a touchless power back door)
The touchless sensor is located behind the rear emblem. Observe the following to ensure that the touchless power back door function operates properly:
●Operate the touchless sensor while carrying an electronic key within the operationalrange.
●Keep the rear emblem clean at all times.
If the rear emblem is dirty or covered wi th snow, the touchless sensor may not oper- ate. In this situation, clean off the dirt or snow, move the vehicle from the current posi- tion and then check if the touchless sensor operates. If it does not operate, have the
vehicle inspected by any authorized Lexus dealer or repairer, or another duly quali- fied and equipped professional.
●Do not apply coatings that have a rain clea ring (hydrophilic) effect, or other coatings,
to the rear emblem.
●Do not park the vehicle near objects that may move and contact the rear emblem, such as tall grass or trees.
If the vehicle has been parked for a while near objects that may move and contact the rear emblem, such as tall grass or trees, th e touchless sensor may not operate. In this situation, move the vehicle from the current position and then check if the touchless
sensor operates. If it does not operate, have the vehicle inspected by any authorized Lexus dealer or repairer, or another du ly qualified and equipped professional.
●Do not subject the touchless sensor or its surrounding area to a strong impact.
If the touchless sensor or its surrounding ar ea has been subjected to a strong impact, the touchless sensor may not operate properly.
If the touchless sensor does not operate in the following situations, have the vehicle
inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
• The touchless sensor or its surrounding area has been subjected to a strong
impact. • The rear emblem is scratched or damaged.
●Do not disassemble the rear emblem.
●Do not attach stickers to the rear emblem.
●Do not paint the rear emblem.
●If a bicycle carrier or similar heavy object is attached to the power back door, disablethe touchless sensor. ( P. 115)

1673-2. Opening, closing and locking the doors
3
Operation of each component
RX350/RX200t_EE_OM48F32E
NOTICE
■To prevent unintentional operation (vehicles with a touchless power back door)
When the touchless sensor is not to be used, disable the touchless sensor operation using the multi-information display ( P. 115)

1683-2. Opening, closing and locking the doors
RX350/RX200t_EE_OM48F32E
●Locks and unlocks the doors (P. 140)
●Locks and unlocks the back door (P. 146, 151)
●Starts and stops the engine (P. 246)
■Antenna location
■Effective range (areas within which the electronic key is detected)
Smart entry & start system
The following operations can be performed simply by carrying the electronic
key (including the card key) on your person, for example in your pocket. The
driver should always carry the electronic key.
Antennas outside the cabin
Antennas inside the cabin
Antenna outside the luggage compartment
When locking or unlocking the doors
The system can be operated when the elec- tronic key is within about 0.7 m (2.3 ft.) of
an outside door handle. (Only the doors detecting the key can be operated.)
When starting the engine or changing
engine switch modes
The system can be operated when the elec- tronic key is inside the vehicle.
1
2
3

1693-2. Opening, closing and locking the doors
3
Operation of each component
RX350/RX200t_EE_OM48F32E
■Alarms and warning messages
A combination of exterior and interior alarms as well as warning messages shown on the multi-information display are used to prevent theft of the vehicle and accidents resulting
from erroneous operation. Take appropriate measures in response to any warning mes- sage on the multi-information display. ( P. 673)
The following table describes circumstances and correction procedures when only
alarms are sounded.
■If a warning message is displayed indicating that there is a malfunction in the smart
entry & start system
 P. 673
■Battery-saving function
The battery-saving function will be activated in order to prevent the electronic key bat- tery and the battery from being discharged while the vehicle is not in operation for a longtime.
●In the following situations, the smart entry & start system may take some time to unlockthe doors.
• The electronic key has been left in an area of approximately 2 m (6 ft.) of the outside
of the vehicle for 10 minutes or longer. • The smart entry & start system has no t been used for 5 days or longer.
●If the smart entry & start system has not been used for 14 days or longer, the doors can- not be unlocked at any doors except the driver’s door. In this case, take hold of thedriver’s door handle, or use the wireless remote control or the mechanical key, to
unlock the doors.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for 5 seconds
An attempt was made to lock
the vehicle while a door was open.
Close all of the doors andlock the doors again.
Interior alarm pingsrepeatedly
The engine switch was turned toACCESSORY mode while the
driver’s door was open (The driver’s door was opened whenthe engine switch was in
ACCESSORY mode).
Turn the engine switch off and close the driver’s door.

1703-2. Opening, closing and locking the doors
RX350/RX200t_EE_OM48F32E
■Electronic Key battery-Saving Function
When battery-saving mode is set, battery depl etion is minimized by stopping the elec- tronic key from receiving radio waves.
■Conditions affecting operation
The smart entry & start system, wireless re mote control and engine immobilizer system use weak radio waves. In the following si tuations, the communication between the elec- tronic key and the vehicle may be affected, preventing the smart entry & start system,
wireless remote control and engine immob ilizer system from operating properly. (Ways of coping: P. 710)
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display, airport or other facility that gene rates strong radio waves or electrical noise
●When the electronic key is in contact with, or is covered by the following metallic
objects
• Cards to which aluminum foil is attached • Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags •Coins• Hand warmers made of metal
• Media such as CDs and DVDs
●When other wireless keys (that emit radio waves) are being used nearby
●When carrying the electronic key together with the following devices that emit radio waves
• Portable radio, cellular phone, cordle ss phone or other wireless communication
devices • Another vehicle’s electronic key, another electronic key of your vehicle, or a wirelesskey that emits radio waves
• Personal computers or personal digital assistants (PDAs) • Digital audio players• Portable game systems
●If window tint with a metallic content or me tallic objects are attached to the rear win- dow
●When the electronic key is placed near a battery charger or electronic devices
Press twice while pressing and holding . Confirm that the electronic key indicator flashes
4 times.
While the battery-saving mode is set, the smart entry & start system cannot be used. To cancel
the function, press any of the electronic key but- tons.
