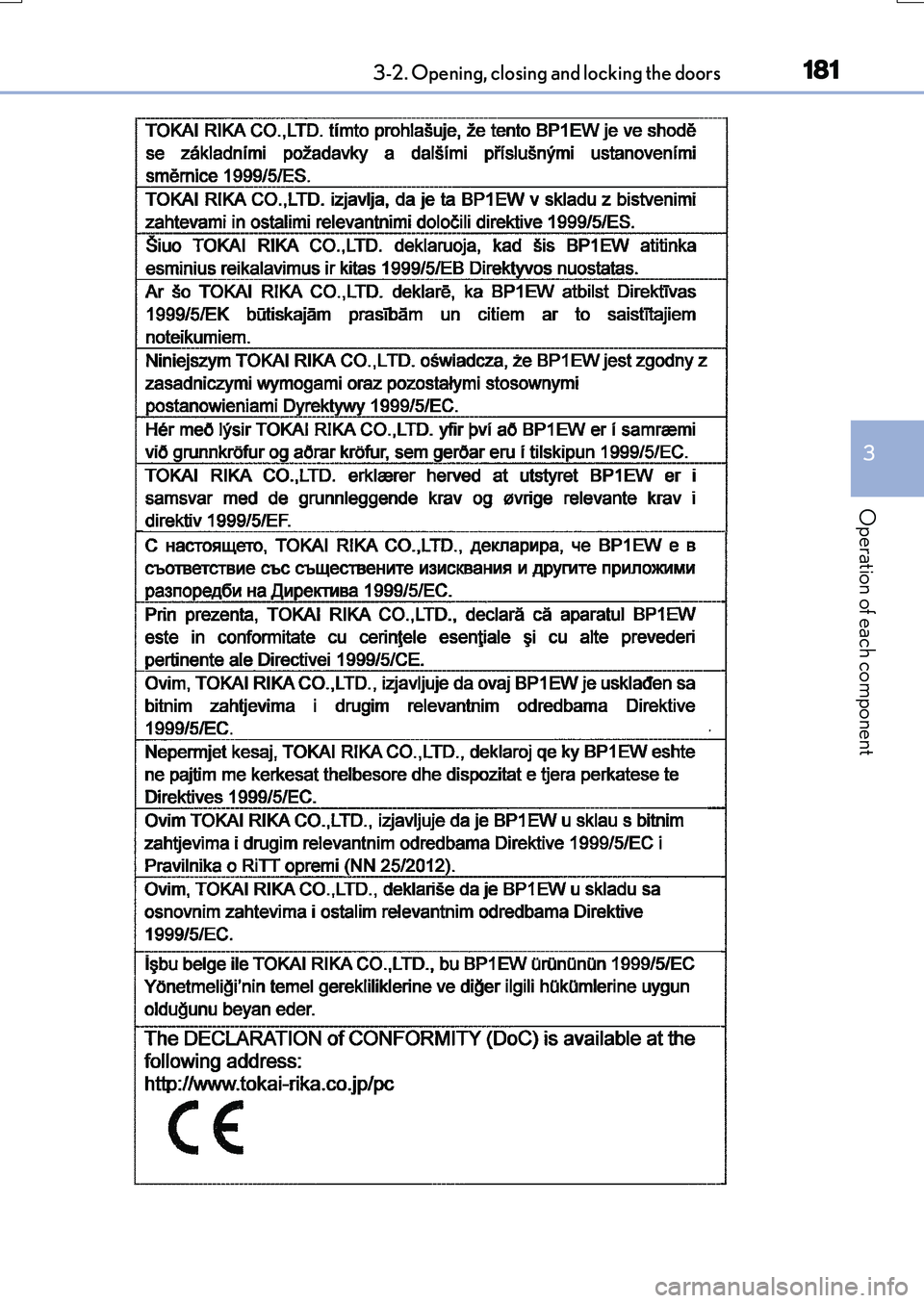

1813-2. Opening, closing and locking the doors
3
Operation of each component
RX350/RX200t_EE_OM48F32E

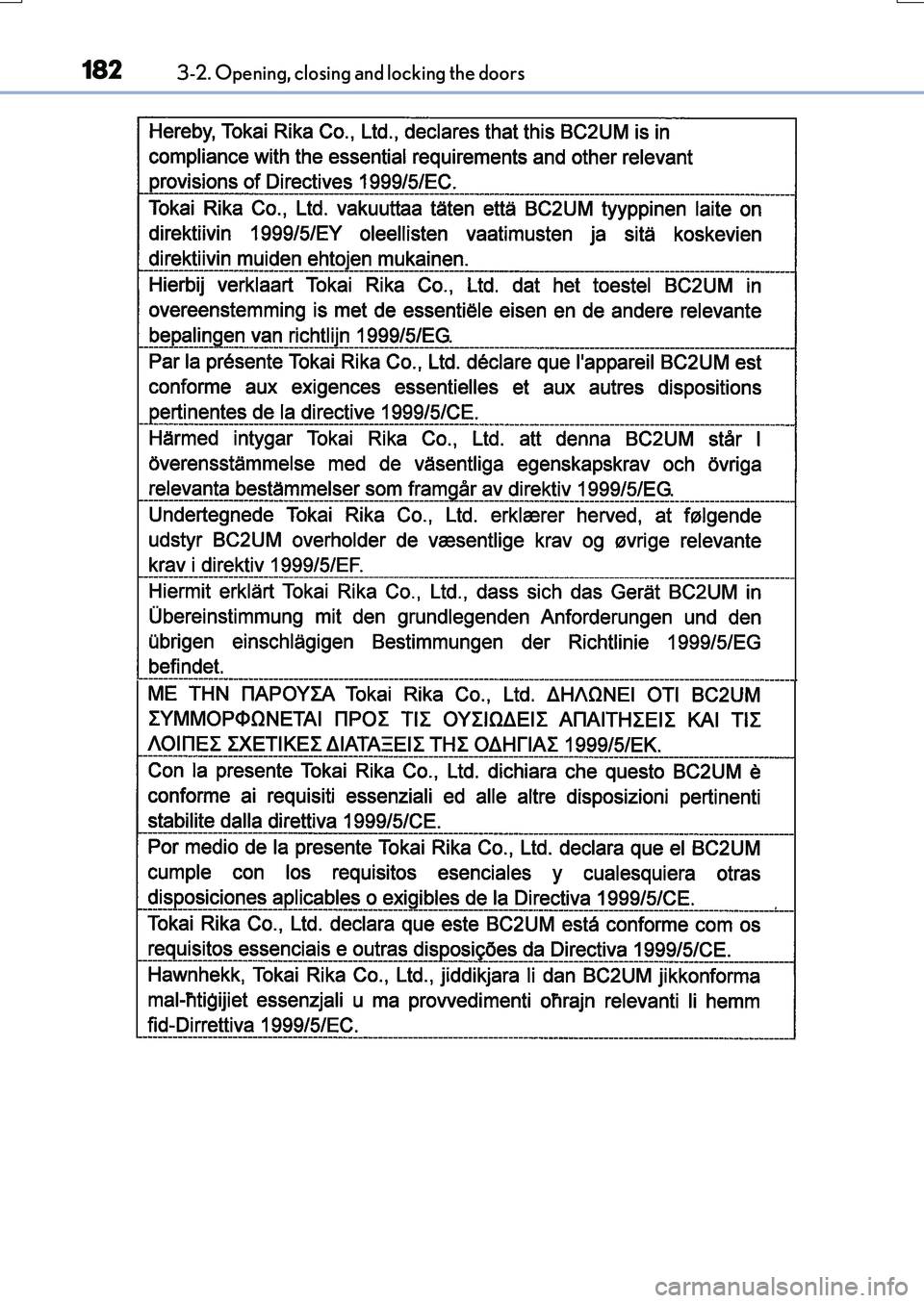

1823-2. Opening, closing and locking the doors
RX350/RX200t_EE_OM48F32E

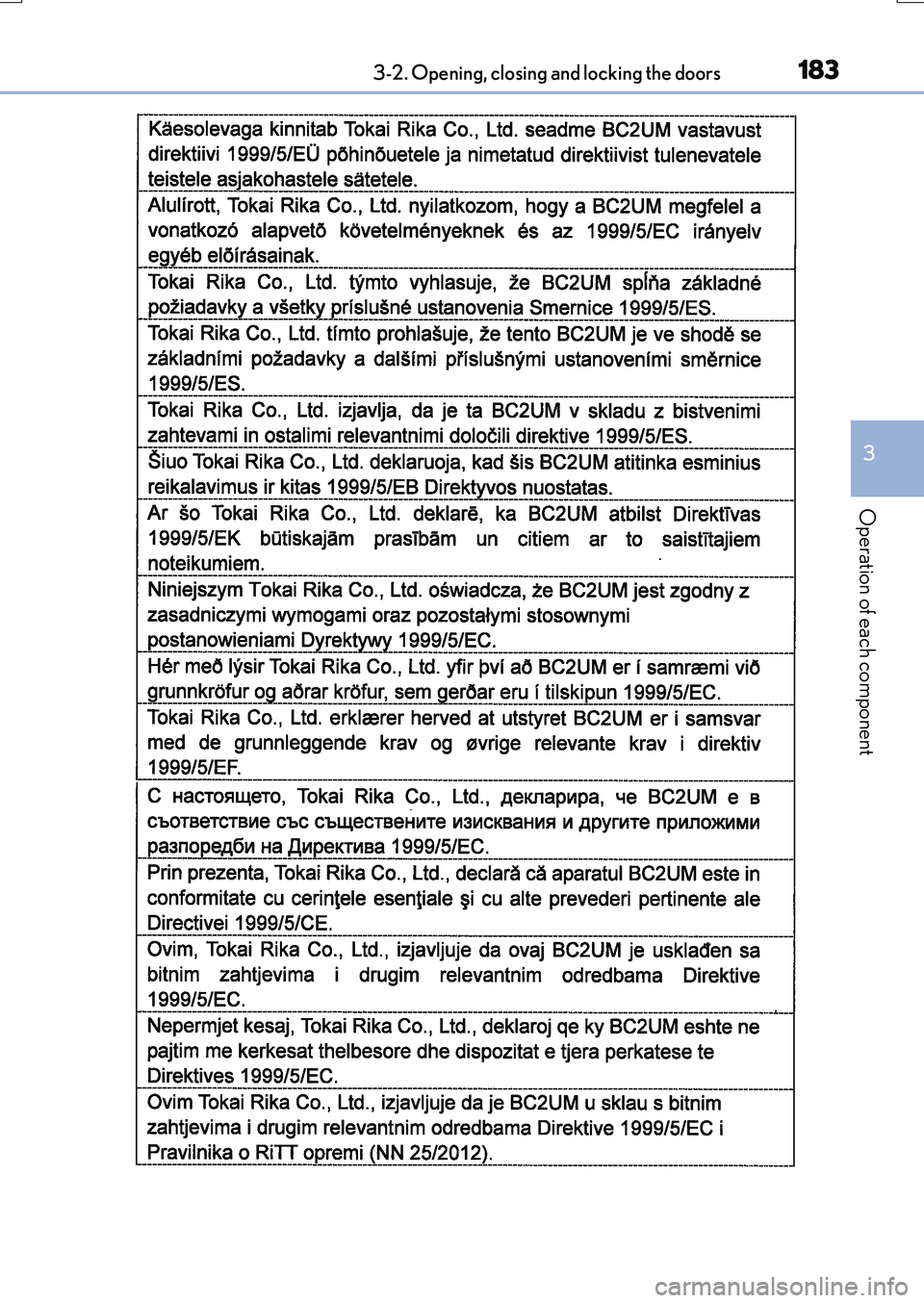

1833-2. Opening, closing and locking the doors
3
Operation of each component
RX350/RX200t_EE_OM48F32E

1843-2. Opening, closing and locking the doors
RX350/RX200t_EE_OM48F32E
WARNING
■Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization therapy- pacemakers or implantable cardioverter de fibrillators should maintain a reasonable
distance between themselves and the sm art entry & start system antennas. (P. 168) The radio waves may affect the operation of such devices. If necessary, the entryfunction can be disabled. Ask any authoriz ed Lexus dealer or repairer, or another
duly qualified and equipped professional for details, such as the frequency of radio waves and timing of the emitted radio waves. Then, consult your doctor to see if you should disable the entry function.
●Users of any electrical medical device other than implantable cardiac pacemakers,cardiac resynchronization therapy-pacemakers or implantable cardioverterdefibrillators should consult the manufacturer of the device for information about its
operation under the influence of radio waves. Radio waves could have unexpected effects on the operation of such medicaldevices.
Ask any authorized Lexus dealer or repairer, or another duly qualified and equipped professional for details on disabling the entry function.

185
3
Operation of each component
RX350/RX200t_EE_OM48F32E
3-3. Adjusting the seats
Seat position adjustment switch
Seat cushion (front) angle adjust-
ment switch
Vertical height adjustment switch
Seatback angle adjustment switch
Lumbar support firmness adjust-
ment switch
Lumbar support height adjustment
switch (if equipped)
Seat cushion length adjustment
switch (if equipped)
■Power easy access system
The driver’s seat (on some models) and steering wheel move in accordance with engine switch mode and the driver’s seat belt condition. ( P. 195)
Front seats
Adjustment procedure
1
2
3
4
5
6
7
WARNING
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury. Fingers or hands may become jammed in the seat mechanism.
●Make sure to leave enough space around the feet so they do not get stuck.
■Seat adjustment
To reduce the risk of sliding under the lap be lt during a collision, do not recline the seat more than necessary.
If the seat is too reclined, th e lap belt may slide past the hips and apply restraint forces directly to the abdomen, or your neck may contact the shoulder belt, increasing the riskof death or serious injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly move and cause the driver to lose control of the vehicle.

1863-3. Adjusting the seats
RX350/RX200t_EE_OM48F32E
Manual seat
Seatback angle adjustment lever
Seat position adjustment lever
Power seat
Seatback angle adjustment switch
Seat position adjustment lever
Rear seats
Adjustment procedure
1
2
1
2

1873-3. Adjusting the seats
3
Operation of each component
RX350/RX200t_EE_OM48F32E

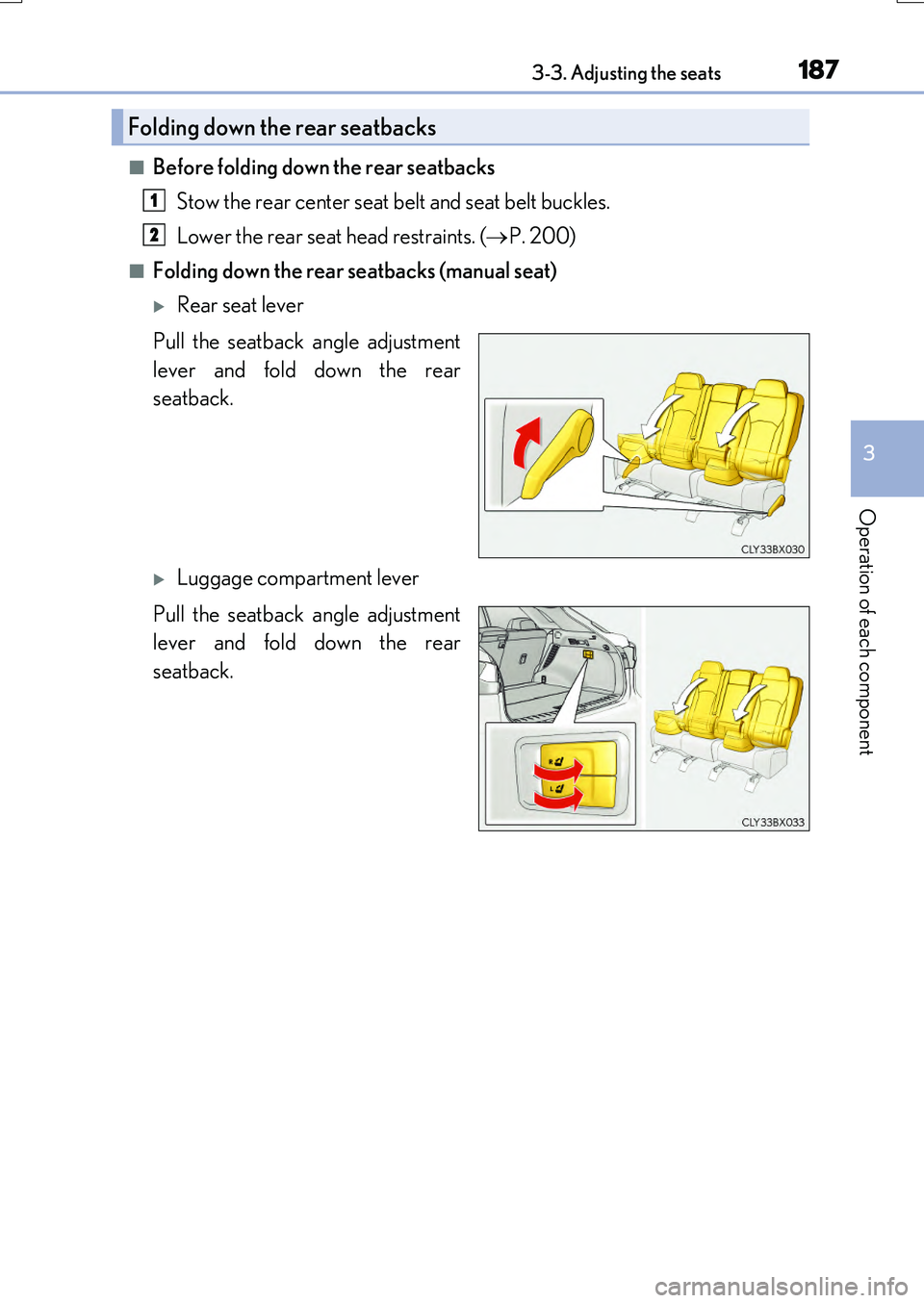

■Before folding down the rear seatbacks
Stow the rear center seat belt and seat belt buckles.
Lower the rear seat head restraints. ( P. 200)
■Folding down the rear seatbacks (manual seat)
Rear seat lever
Pull the seatback angle adjustment
lever and fold down the rear
seatback.
Luggage compartment lever
Pull the seatback angle adjustment
lever and fold down the rear
seatback.
Folding down the rear seatbacks
1
2

1883-3. Adjusting the seats
RX350/RX200t_EE_OM48F32E
■Folding down the rear seatbacks (power seat)
Press and hold the switch to fold down the rear seatback.
A buzzer will sound and then the operation will start. The buzzer will sound again when the operation is completed.
To stop the operation partway, press either side of the rear seat operation switch of
the operating seat. Any rear seat operatio n switch for the operating seat, regard- less of location, can be used to stop the operation. (A buzzer may sound depend-ing on the position that the rear seatback is stopped.)
■Folding down the rear center seatback
Pull the lock release lever behind the
rear seatback and fold the rear
seatback down.
To return the rear center seatback to
its original position, lift it up until it locks.
Rear seat operation switch
(rear seat)
Rear seat operation switch
(luggage compartment)
When using the rear seat operation switch (rear seat): If the rear seatback is
reclined, bring the rear seatback to the most upright position and press and
hold the switch again.

1893-3. Adjusting the seats
3
Operation of each component
RX350/RX200t_EE_OM48F32E

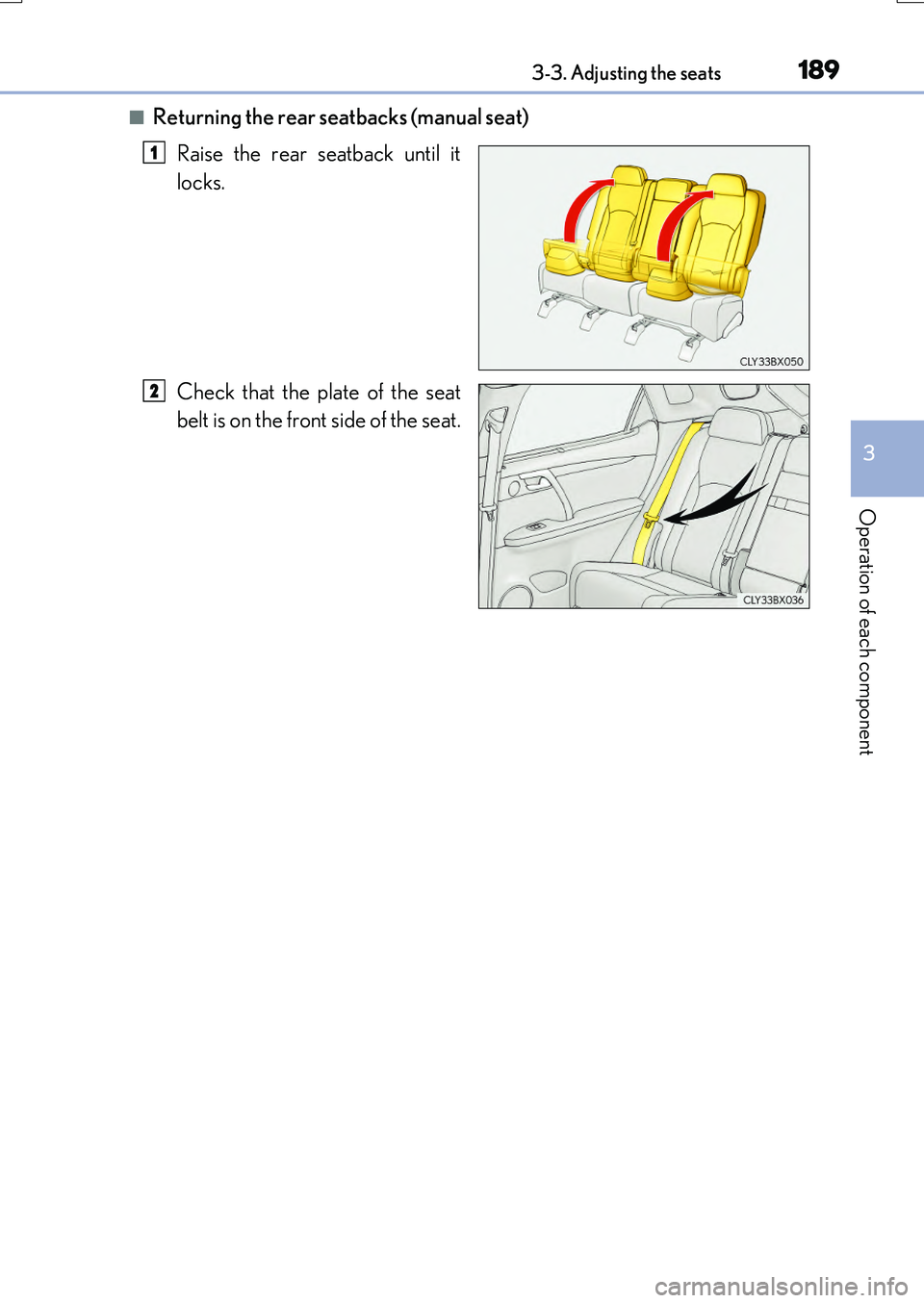

■Returning the rear seatbacks (manual seat)
Raise the rear seatback until it
locks.
Check that the plate of the seat
belt is on the front side of the seat.
1
2

1903-3. Adjusting the seats
RX350/RX200t_EE_OM48F32E
■Returning the rear seatbacks (power seat) Press and hold the switch to return the rear seatback.
A buzzer will sound and then the operation will start. The buzzer will sound again
when the operation is completed.
To stop the operation partway, press either side of the rear seat operation switch of
the operating seat. Any rear seat operation switches for the operating seat,
regardless of location, can be used to stop the operation. (A buzzer may sound
depending on the position that the rear seatback is stopped.)
Check that the plate of the seat
belt is on the front side of the seat.
1
Rear seat operation switch
(rear seat)Rear seat operation switch
(luggage compartment)
2
