5616-4. Using the storage features
6
Interior features
RX350/RX200t_EE_OM48F32E
Auxiliary boxes
Type AType B
Press in the lid. Lift the lid.
Type C (if equipped)
Pull up the lever to release the lock, and
lift the lid.
WARNING
Type A: Do not store items heavier than 200 g (0.44 lb.).
Doing so may cause the auxiliary box to open and the items inside may fall out, result-
ing in an accident.

5626-4. Using the storage features
RX350/RX200t_EE_OM48F32E
Pull down the hook to use.
The cargo hooks are provided for securing loose items.
To hang the cargo net, use the cargo
net hooks and rear cargo hooks.
Luggage compartment features
Cargo hooks
WARNING
To avoid injury, always return the hooks to their stowed positions when not in use.
Cargo net hooks

5636-4. Using the storage features
6
Interior features
RX350/RX200t_EE_OM48F32E

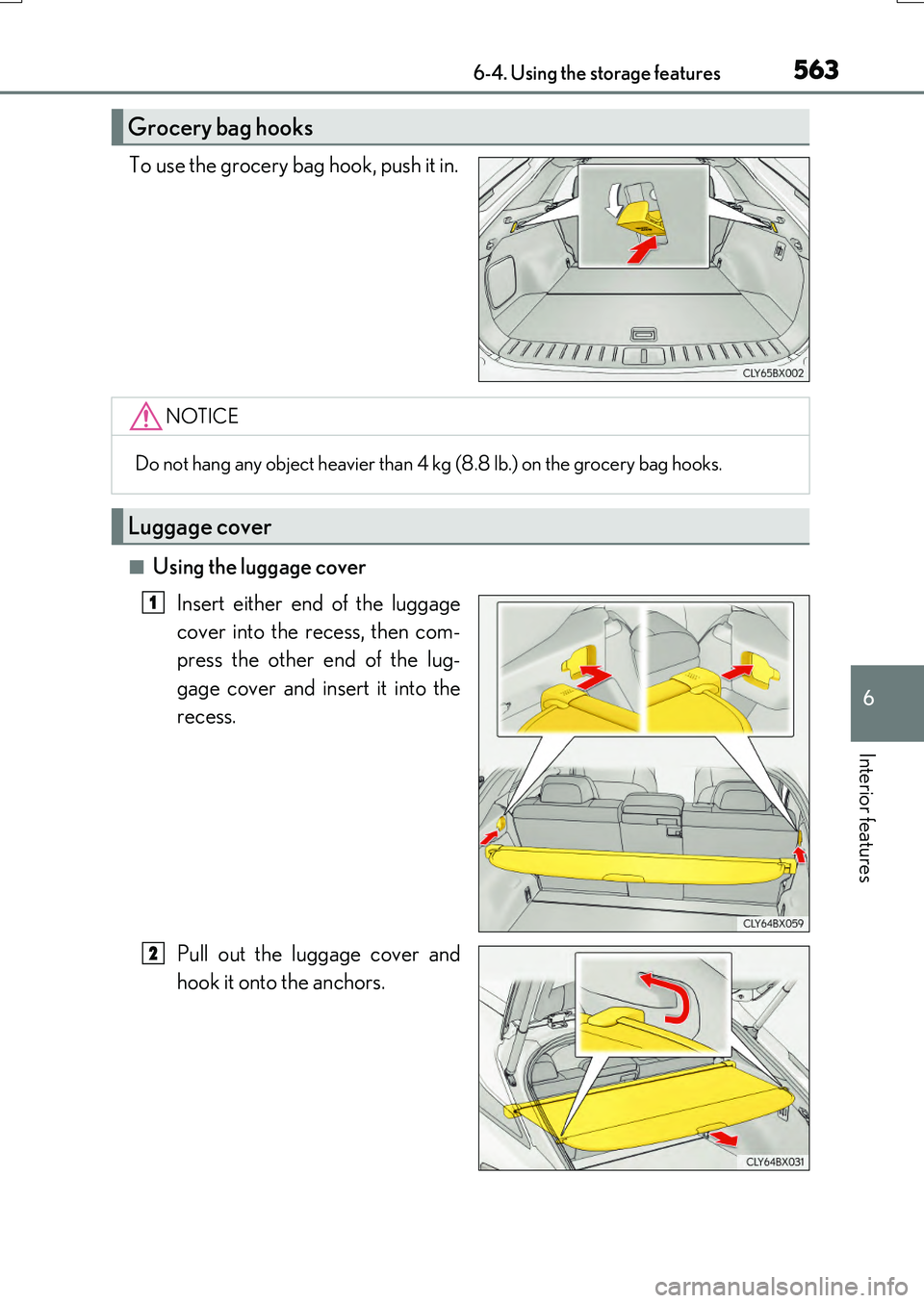

To use the grocery bag hook, push it in.
■Using the luggage cover
Insert either end of the luggage
cover into the recess, then com-
press the other end of the lug-
gage cover and insert it into the
recess.
Pull out the luggage cover and
hook it onto the anchors.
Grocery bag hooks
NOTICE
Do not hang any object heavier than 4 kg (8.8 lb.) on the grocery bag hooks.
Luggage cover
1
2

5646-4. Using the storage features
RX350/RX200t_EE_OM48F32E
■Removing the luggage cover
Release the cover from the left
and right anchors and allow it to
retract.
Compress the end of the luggage
cover and lift the luggage cover
up.
After removing the luggage cover, place it somewhere other than the
passenger compartment.
1
2
WARNING
●Do not place anything on the luggage cover. In the event of sudden braking or turn- ing, the item may go flying and strike an occupant. This could lead to an unexpectedaccident, resulting in death or serious injury.
●Do not allow children to climb on the luggage cover. Climbing on the luggage covercould result in damage to the luggage cove r, possibly causing death or serious injury to the child.

5656-4. Using the storage features
6
Interior features
RX350/RX200t_EE_OM48F32E

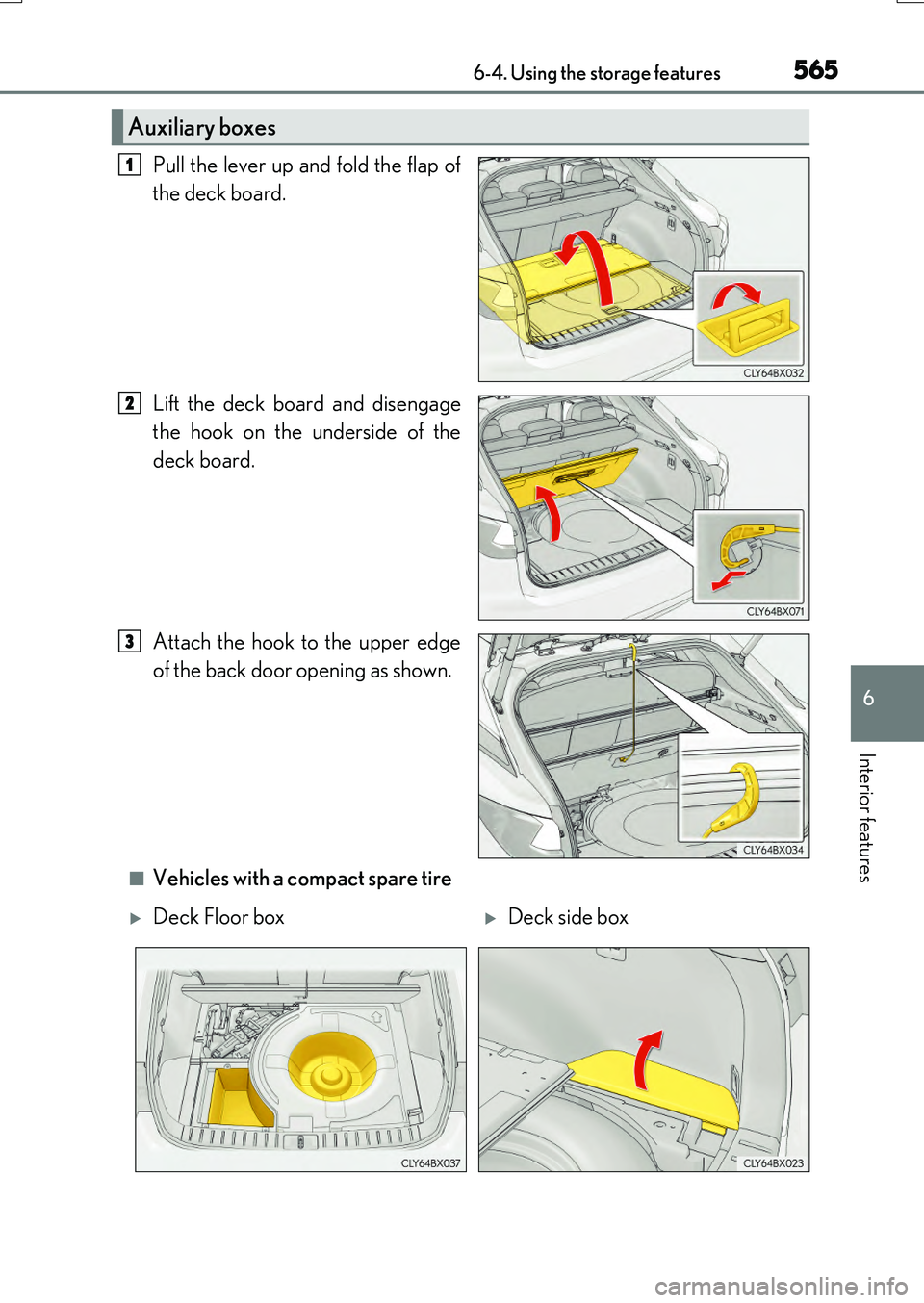

Pull the lever up and fold the flap of
the deck board.
Lift the deck board and disengage
the hook on the underside of the
deck board.
Attach the hook to the upper edge
of the back door opening as shown.
■Vehicles with a compact spare tire
Auxiliary boxes
1
2
3
Deck Floor boxDeck side box

5666-4. Using the storage features
RX350/RX200t_EE_OM48F32E
■Vehicles with a full-size spare tire
■Vehicles without a spare tire
Deck Floor boxDeck side box
Pull the strap upwards when lifting the
cover up.
Deck Floor boxDeck side box
WARNING
If the deck board is opened or removed, return it to its original position before driving.
In the event of sudden braking, an accident may occur due to an occupant being struck by the deck board or the items stored in the deck under tray.
NOTICE
When closing the back door, do not leave th e deck board hook hooked on the edge of
the back door. The deck board hook may get damaged.

567
RX350/RX200t_EE_OM48F32E
6
Interior features

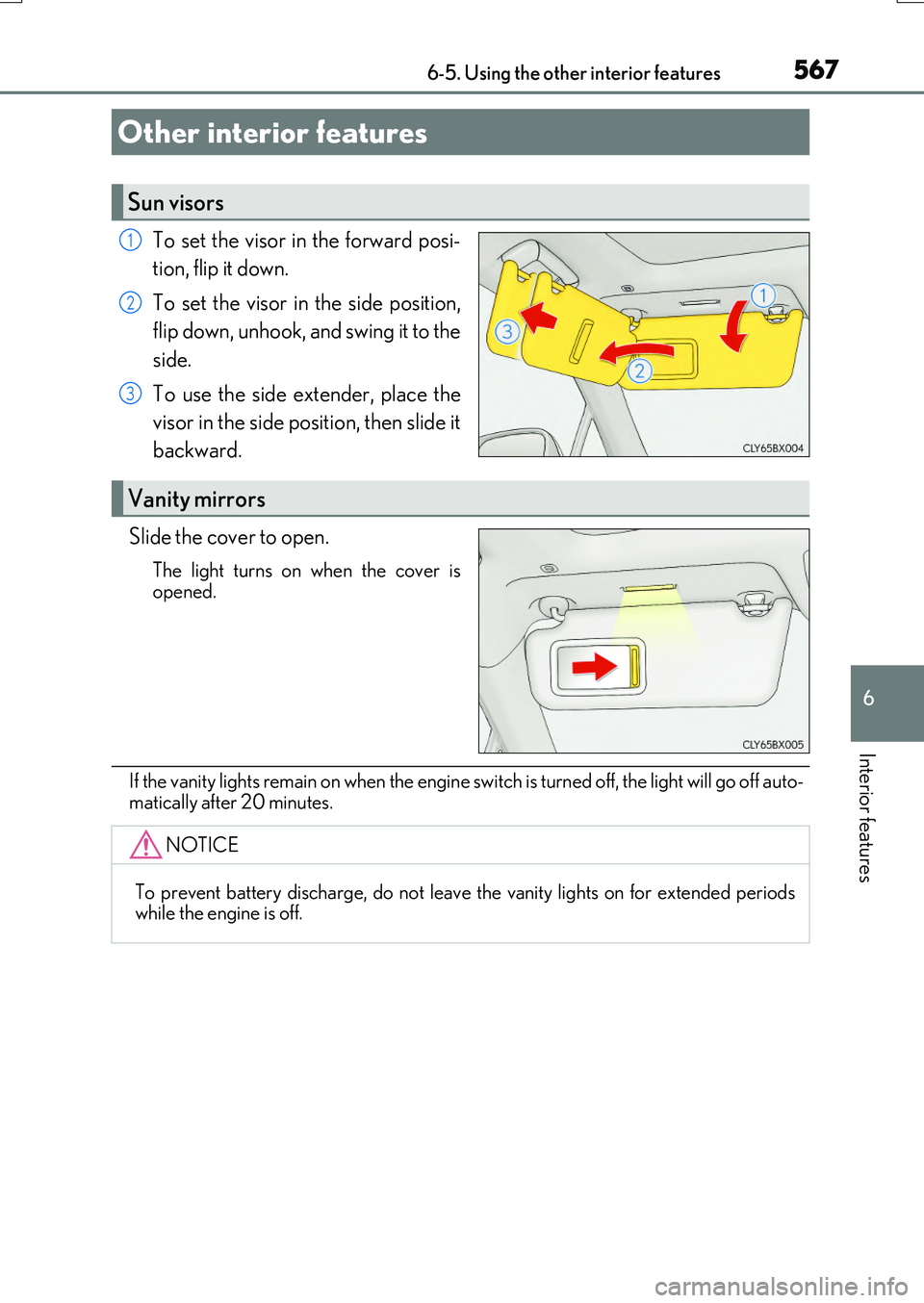

6-5. Using the other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
To use the side extender, place the
visor in the side position, then slide it
backward.
Slide the cover to open.
The light turns on when the cover is
opened.
If the vanity lights remain on when the engine sw itch is turned off, the light will go off auto-
matically after 20 minutes.
Other interior features
Sun visors
1
2
3
Vanity mirrors
NOTICE
To prevent battery discharge, do not leave the vanity lights on for extended periods while the engine is off.

5686-5. Using the other interior features
RX350/RX200t_EE_OM48F32E
Vehicles with a navigation system
The GPS clock's time is automatically
adjusted by utilizing GPS time informa-
tion.
For details, refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
Vehicles with a Lexus Display Audio system
The clock can be adjusted by pressing
the buttons.
Pressing and holding will move the
clock hands backward.
Pressing and holding will move the
clock hands forward.
A portable device, such as a smartphone or mobile battery, can be charged by
just placing it on the charging area, provided the device is compatible with the Qi
wireless charging standard created by the Wireless Power Consortium.
The wireless charger cannot be used with a portable device that is larger than
the charging area. Additionally, dependin g on the portable device, the wireless
charger may not operate properly. Refer to the operation manual of the portable
device.
■The “Qi” symbol
The “Qi” symbol is a trademark of the Wireless Power Consortium.
Clock
1
2
Wireless charger (if equipped)

5696-5. Using the other interior features
6
Interior features
RX350/RX200t_EE_OM48F32E
■Name for all parts
Power supply switch
Operation indicator light
Charge area
■Using the wireless charger
Press the power supply switch of
the wireless charger.
Pressing the switch again turns the wireless charger off.
When turned on, the operation indi-
cator light (green) comes on.
When the engine switch is turned off, the on/off state of the wireless char-
ger will be memorized.
Place a portable device on the
charging area with its charging
surface facing down.
While charging, the operation indi- cator light (orange) will be illumi-
nated.
If charging does not begin, move the portable device as close to the cen-
ter of the charging area as possible.
When charging is complete, the operatio n indicator light (green) will illuminate.
●Recharging function
• If a certain amount of time has elapsed since charging completed and
the portable device has not been moved, the wireless charger will
restart charging.
• If the portable device is moved within the charging area, charging will
stop temporarily then restart.
1
2
3
1
2

5706-5. Using the other interior features
RX350/RX200t_EE_OM48F32E
■Operation indicator light status
*: Depending on the portable device, the operation indicator light may stay illuminated
(orange) after charging has completed.
●If the operation indicator light blinks
If an error is detected, the operation indicator light will blink (orange). Take the
appropriate measures according to the table below.
■The wireless charger can be operated when
The engine switch is in ACCESSORY or IGNITION ON mode.
■Portable devices that can be charged
●Portable devices compatible with the Qi wireless charging standard can be charged by the wireless charger. However, compatibility with all devices which meet the Qi wire- less charging standard is not guaranteed.
●The wireless charger is designed to supply low power electricity (5 W or less) to a cel-lular phone, smartphone, or other portable device.
Operation indicator lightState
OffThe Wireless charger is off
Green (illuminated)Standby (charging is possible)
Charging is complete*
Orange (illuminated)
A portable device has been placed on the charging
area (identifying the portable device)
Charging in progress
Operation indicator lightSuspected causesMeasure
Blinks (orange) at a one second interval continu-ously
Vehicle to charger com-
munication failure.
Contact any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
Blinks (orange) 3 times
repeatedly
A foreign object exists
between the portable device and charging area. Remove the foreign object.
Portable device is not posi- tioned properly on the
charging area.
Move the portable device toward the center of the
charging area.
Blinks (orange) 4 times
repeatedly
The temperature of the wireless charger is exces-sively high.
Stop charging immediately and continue chargingafter a while.
