LEXUS RX200T 2017 Owners Manual

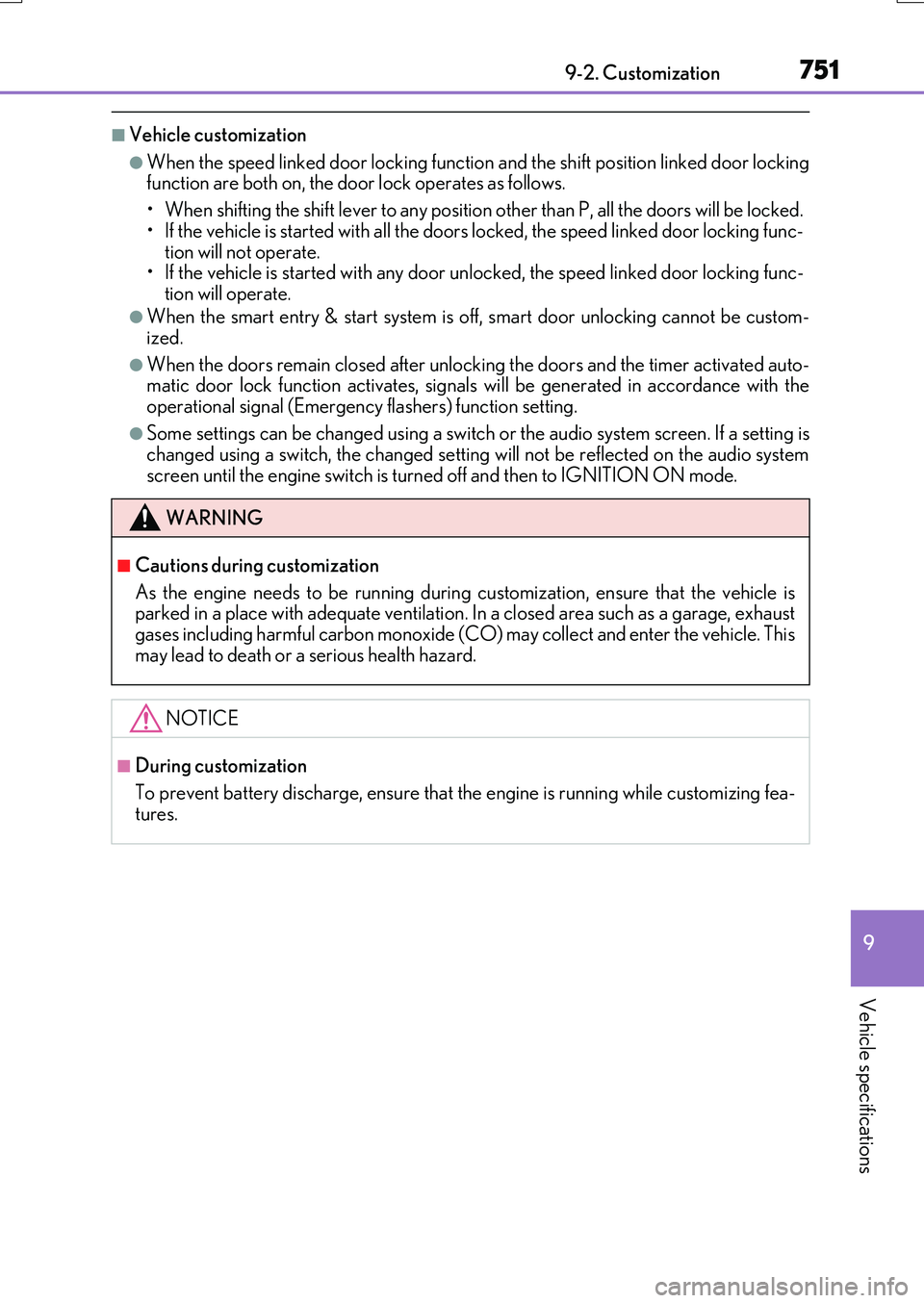

751
9
9-2. Customization
Vehicle specifications
RX350/RX200t_EE_OM48F32E
■Vehicle customization
●When the speed linked door locking function and the shift position linked door locking function are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will be locked.
• If the vehicle is started with all the doors locked, the speed linked door locking func- tion will not operate.• If the vehicle is started with any door un locked, the speed linked door locking func-
tion will operate.
●When the smart entry & start system is o ff, smart door unlocking cannot be custom-
ized.
●When the doors remain closed after unlock ing the doors and the timer activated auto- matic door lock function activates, signals will be generated in accordance with the
operational signal (Emergency flashers) function setting.
●Some settings can be changed using a switch or the audio system screen. If a setting is changed using a switch, the changed setting will not be reflected on the audio system
screen until the engine switch is turned off and then to IGNITION ON mode.
WARNING
■Cautions during customization
As the engine needs to be running during customization, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.

752
RX350/RX200t_EE_OM48F32E
9-3. Initialization
*: If equipped
Items to initialize
The following items must be initialized for normal system operation after such
cases as the battery being reconnected, or maintenance being performed on
the vehicle:
ItemWhen to initializeReference
Tire pressure warning system
• When changing the tire inflation
pressure by changing traveling speed• When changing the tire size
• When rotating the tires
P. 615
Oil maintenance• After the maintenance is per- formedP. 604
Intelligent Clearance Sonar(ICS)*
• After reconnecting or changingthe batteryP. 391
Power back door*• After reconnecting or changing
the batteryP. 159

753
Index
RX350/RX200t_EE_OM48F32E
What to do if...
(Troubleshooting)............................... 754
Alphabetical index................................. 758
For vehicles with a navigation system, refer to the “NAVIGATION SYSTEM OWNER’S MANUAL” for information regarding the
equipment listed below.
• Navigation system
• Audio/visual system
• Lexus parking assist monitor
•Panoramic view monitor

754
RX350/RX200t_EE_OM48F32E
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be made
by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional. ( P. 136)
●If you lose your electronic keys, the risk of vehicle theft increases significantly.
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional immediately. ( P. 138)
●Is the electronic key battery weak or depleted? (P. 638)
●Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 247)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on your
person.
●The function may not operate properly due to the condition of the radio wave.
( P. 170)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is set.
Open the rear door from outside and then unlock the child-protector lock.
( P. 143)
If you have a problem, check the following before contacting any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

755What to do if... (Troubleshooting)
RX350/RX200t_EE_OM48F32E
●Did you press the engine switch while firmly depressing the brake pedal?
( P. 246)
●Is the shift lever in P? (P. 248)
●Is the electronic key anywhere detectable inside the vehicle? (P. 168)
●Is the steering wheel unlocked? (P. 248)
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( P. 712)
●Is the battery discharged? (P. 714)
●Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode ( P. 256)
●It is locked automatically to prevent theft of the vehicle. (P. 248)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( P. 210)
●The auto power off function will be operated if the vehicle is left in
ACCESSORY or IGNITION ON mode (the engine is not running) for a
period of time. ( P. 248)
If you think something is wrong
The engine does not start
The shift lever cannot be shifted from P even if you depress the brake
pedal
The steering wheel cannot be turned after the engine is stopped
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically

756What to do if... (Troubleshooting)
RX350/RX200t_EE_OM48F32E
●The seat belt reminder light is flashing
Are the driver and the passengers wearing the seat belts? ( P. 669, 669)
●The parking brake indicator is on
Is the parking brake released? ( P. 259)
Depending on the situation, other types of warning buzzer may also sound.
( P. 666, 673)
●Did anyone inside the vehicle open a door or anything move inside the vehicle
during setting the alarm?
The sensor detects them and the alarm sounds. ( P. 83)
Do one of the following to stop the alarm:
• Unlock the doors using the entry fu nction or wireless remote control. • Start the engine.
●Is the message displayed on the multi-information display?
Check the message on the multi-information display. ( P. 673)
●When a warning light turns on or a warning message is displayed, refer to
P. 666, 673.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

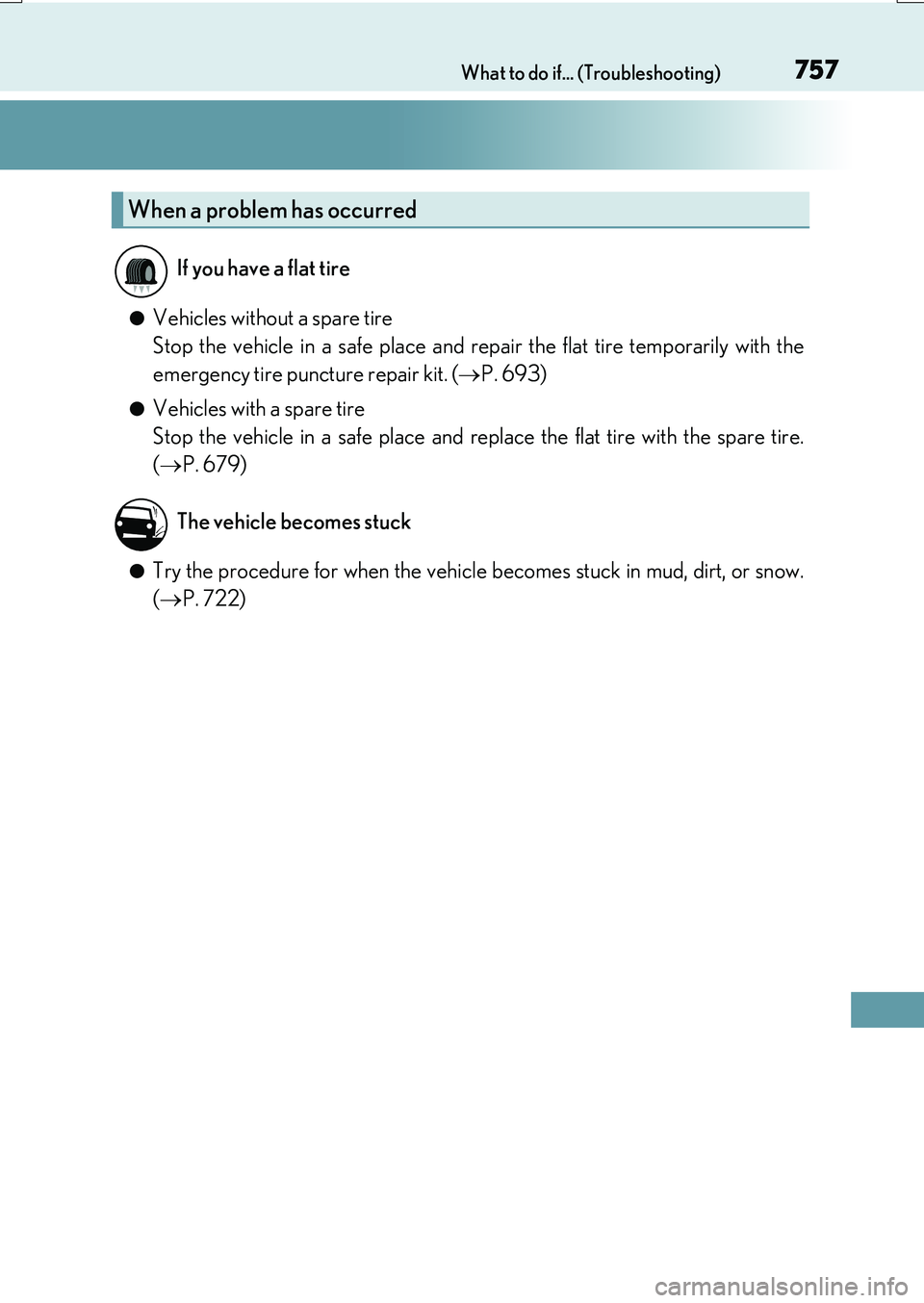

757What to do if... (Troubleshooting)
RX350/RX200t_EE_OM48F32E
●Vehicles without a spare tire
Stop the vehicle in a safe place and repair the flat tire temporarily with the
emergency tire puncture repair kit. ( P. 693)
●Vehicles with a spare tire
Stop the vehicle in a safe place and replace the flat tire with the spare tire.
( P. 679)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or snow.
( P. 722)
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

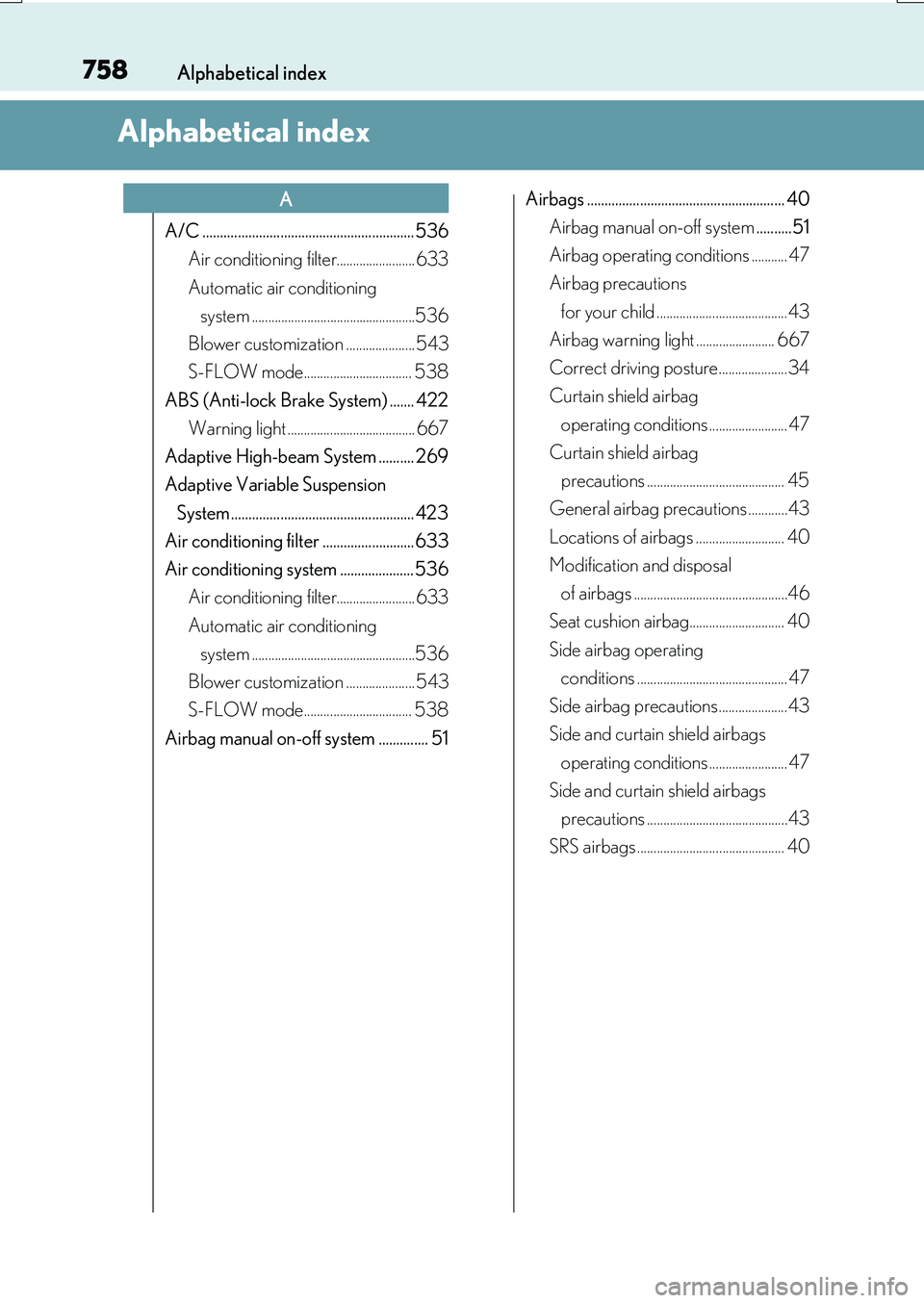

758
RX350/RX200t_EE_OM48F32E
Alphabetical index
Alphabetical index
A/C ............................................................ 536
Air conditioning filter........................ 633
Automatic air conditioning
system ..................................................536
Blower customization .....................543
S-FLOW mode................................. 538
ABS (Anti-lock Brake System) ....... 422
Warning light ....................................... 667
Adaptive High-beam System .......... 269
Adaptive Variable Suspension
System.................................................... 423
Air conditioning filter .......................... 633
Air conditioning system ..................... 536
Air conditioning filter........................ 633
Automatic air conditioning
system ..................................................536
Blower customization .....................543
S-FLOW mode................................. 538
Airbag manual on-off system .............. 51
Airbags ........................................................ 40
Airbag manual on-off system ..........51
Airbag operating conditions ........... 47
Airbag precautions
for your child ........................................43
Airbag warning light ........................ 667
Correct driving posture.....................34
Curtain shield airbag
operating conditions ........................ 47
Curtain shield airbag
precautions .......................................... 45
General airbag precautions ............43
Locations of airbags ........................... 40
Modification and disposal
of airbags ...............................................46
Seat cushion airbag............................. 40
Side airbag operating
conditions .............................................. 47
Side airbag precautions.....................43
Side and curtain shield airbags
operating conditions ........................ 47
Side and curtain shield airbags
precautions ...........................................43
SRS airbags ............................................. 40
A

759Alphabetical index
RX350/RX200t_EE_OM48F32E
Alarm ............................................................83
All-wheel drive lock mode................. 421
Anchor brackets ......................................58
Antenna
Radio ........................................................465
Smart entry & start system ............. 168
Anti-lock Brake System (ABS) ....... 422
Warning light ....................................... 667
Approach warning ............................... 336
Armrest ..................................................... 576
Assist grips .............................................. 577
Audio system (with Lexus
Display Audio System)....................438
Antenna ..................................................465
Audio input ........................................... 445
AUX port...............................................445
Bluetooth® audio ............................. 490
CD player ..............................................466
iPod........................................................... 472
MP3/WMA disc ...............................466
Optimal use ..........................................456
Portable music player....................... 481
Radio ........................................................ 464
Setup menu...........................................448
Steering wheel audio
switches............................................... 444
USB memory....................................... 476
Audio system
(with navigation system)*
Automatic air conditioning
system .................................................... 536
Air conditioning filter ....................... 633
Blower customization ..................... 543
S-FLOW mode ................................. 538
Automatic headlight leveling
system .....................................................267
Automatic High Beam ........................274
Automatic light control system....... 265
Automatic transmission .......................251
If the shift lever cannot be
shifted from P................................... 256
M mode.................................................. 253
Paddle shift switches............ 252, 253
AUX port................................................. 445
Auxiliary boxes ............................ 561, 565
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.

760Alphabetical index
RX350/RX200t_EE_OM48F32E
Back door
Back door................................................146
Power back door.................................. 151
Touchless power back door......... 153
Wireless remote control ................... 151
Back-up lights
Replacing light bulbs........................ 643
Wattage..................................................738
Battery
Battery checking ................................607
If the battery is discharged .............. 714
Preparing and checking
before winter .................................... 429
Warning light .......................................666
Blind Spot Monitor (BSM) ................355
Blind Spot Monitor function...........361
Rear Crossing Traffic
Alert function ....................................365
Bluetooth®............................................... 513
Audio system ...................................... 490
Hands-free system
(for cellular phone)........................ 492
Boost gauge ............................................. 107
Bottle holders .........................................560
Brake
Brake Hold ........................................... 263
Fluid .......................................................... 736
Parking brake ......................................259
Warning light .......................................666
Brake assist.............................................. 422
Brake Hold .............................................. 263
Warning light....................................... 667
Break-in tips............................................ 228
Brightness control
Instrument panel light control ........ 98
BSM (Blind Spot Monitor) ............... 355
Blind Spot Monitor function .......... 361
Rear Crossing Traffic
Alert function.................................... 365
Card key ....................................................134
Care
Aluminum wheels..............................585
Exterior ................................................... 584
Interior.....................................................589
Seat belts ...............................................590
Self-restoring coat ............................ 584
Cargo hooks .......................................... 562
Cargo net hooks................................... 562
CD player ................................................ 466
Chains ....................................................... 430
Child restraint system............................ 54
Child seats definition .......................... 54
Child seats installation ...............62, 69
Installing a CRS to the
passenger seat ................................... 59
Installing CRS with ISOFIX
rigid anchors ........................................ 74
Installing CRS with seat belts ......... 66
Installing CRS with top strap ...........75
B
C
