7218-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E

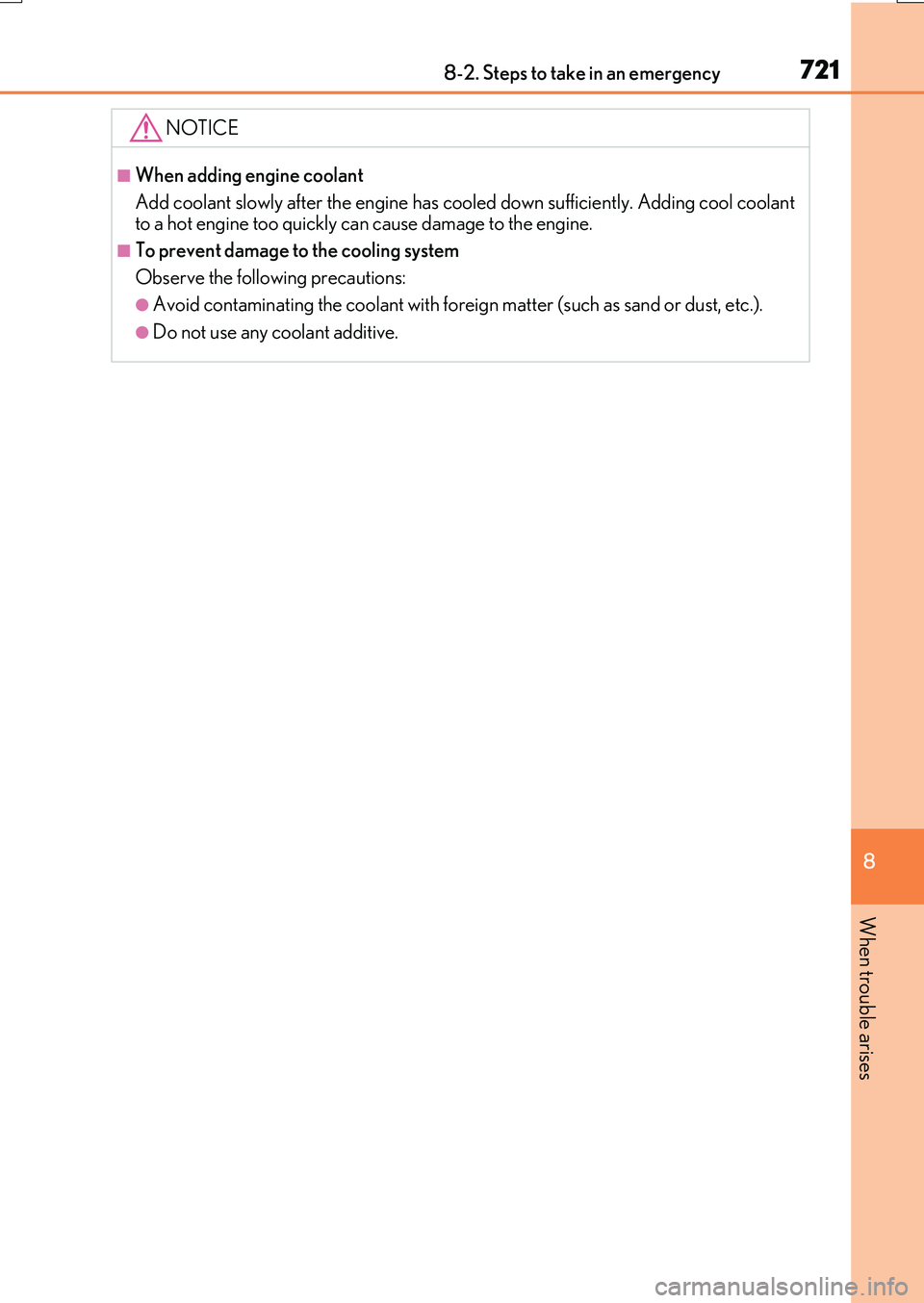

NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cool ed down sufficiently. Adding cool coolant to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust, etc.).
●Do not use any coolant additive.

7228-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
Stop the engine. Shift the shift lever to P and set the parking brake.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels to help pro-
vide traction.
Restart the engine.
AWD models: Activate all-wheel drive lock mode. ( P. 421)
Shift the shift lever to D or R and rele ase the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRC.
1
2
3
4
5
6

7238-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E

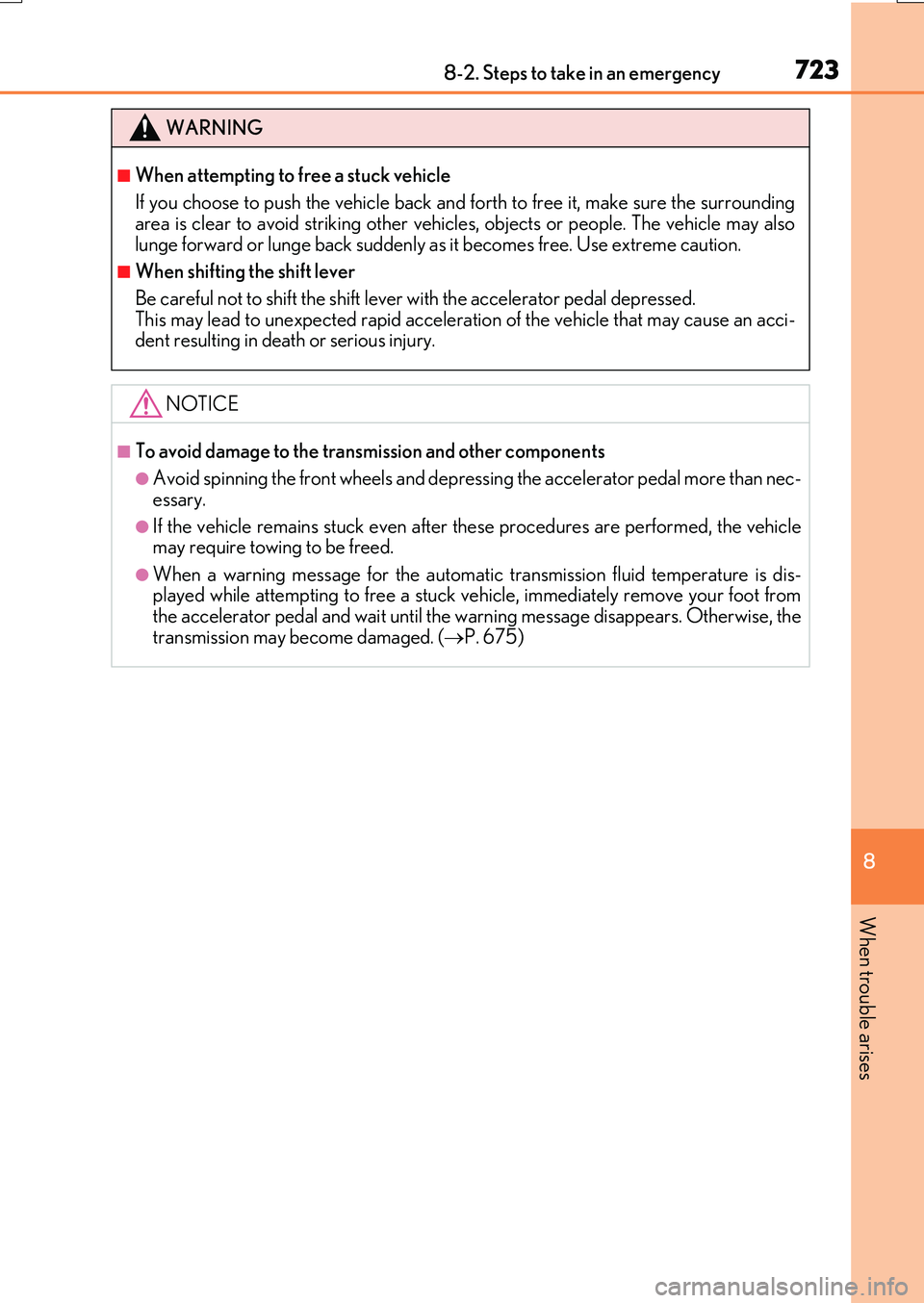

WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding area is clear to avoid striking other vehi cles, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci- dent resulting in death or serious injury.
NOTICE
■To avoid damage to the transmission and other components
●Avoid spinning the front wheels and depres sing the accelerator pedal more than nec-
essary.
●If the vehicle remains stuck even after these procedures are performed, the vehicle may require towing to be freed.
●When a warning message for the automatic transmission fluid temperature is dis-played while attempting to free a stuck ve hicle, immediately remove your foot from the accelerator pedal and wait until the warning message disappears. Otherwise, the
transmission may become damaged. ( P. 675)

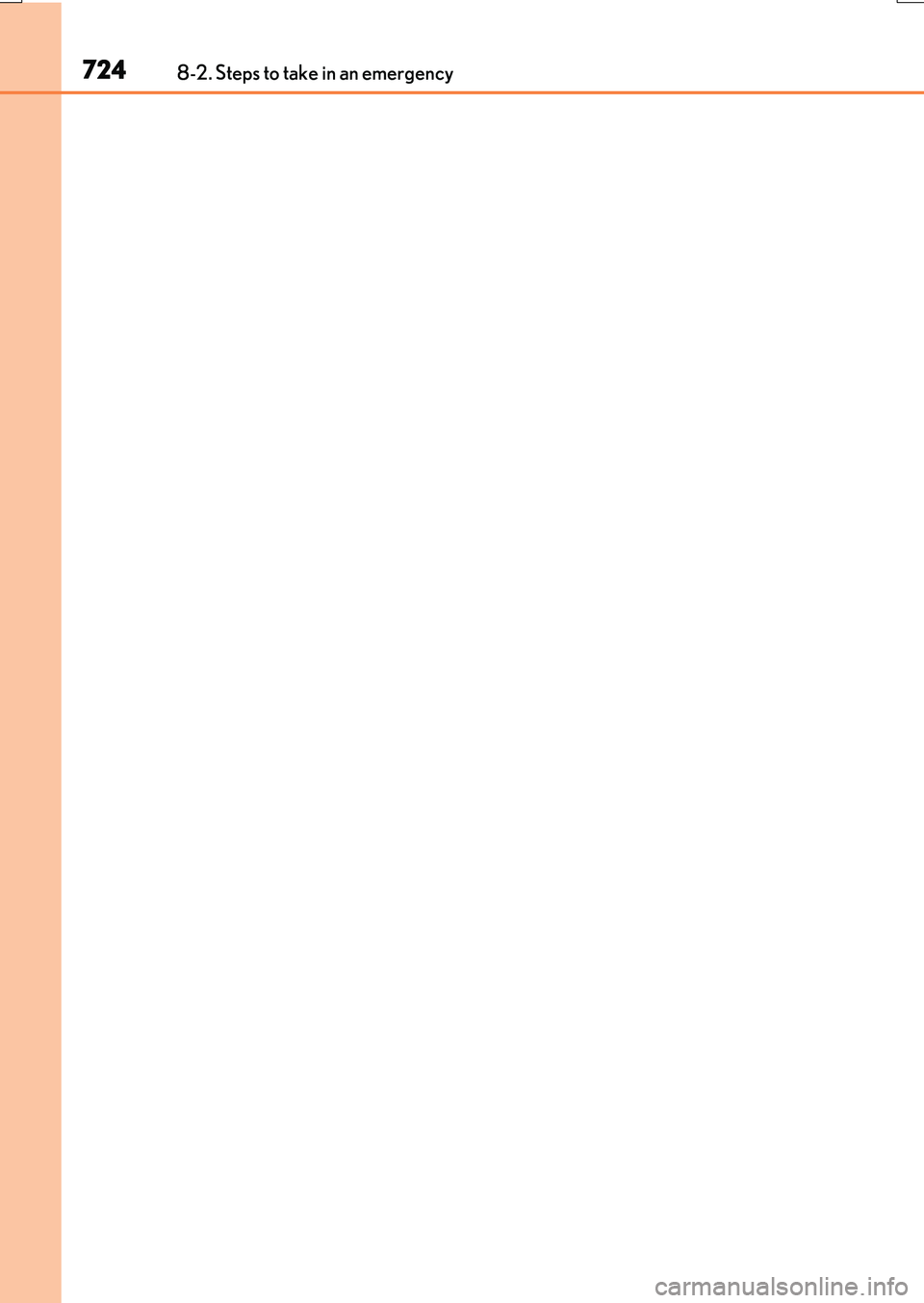

7248-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E

725

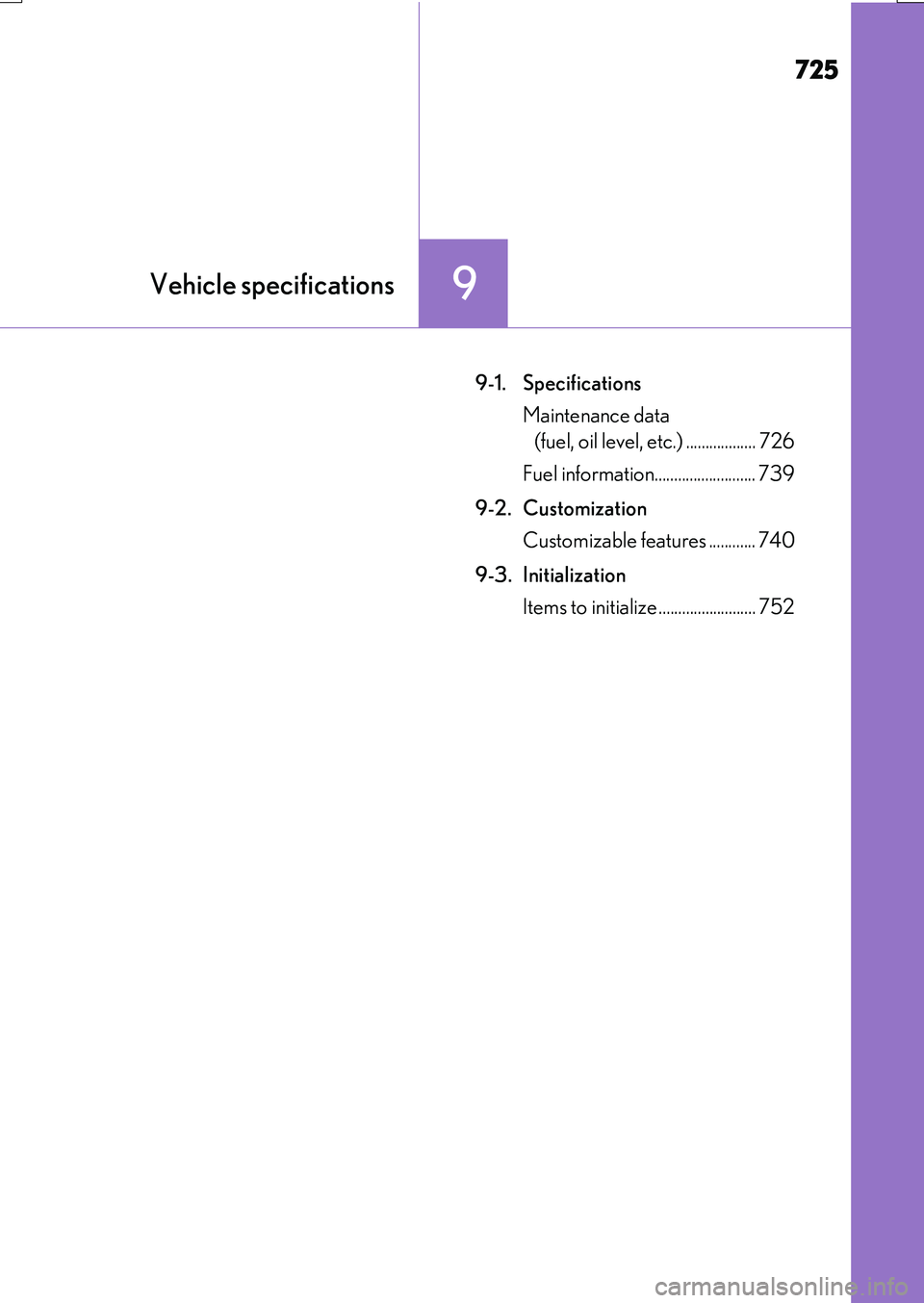

9Vehicle specifications
RX350/RX200t_EE_OM48F32E
9-1. Specifications
Maintenance data
(fuel, oil level, etc.) .................. 726
Fuel information.......................... 739
9-2. Customization
Customizable features ............ 740
9-3. Initialization
Items to initialize ......................... 752

726
RX350/RX200t_EE_OM48F32E
9-1. Specifications
*1: Unladen vehicle
*2: Vehicles without roof antenna
*3: Vehicles with roof antenna
*4: 2WD models
*5: AWD models
*6: Vehicles with towing package
*7:RX200t
*8:RX350
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length4890 mm (192.5 in.)
Overall width1895 mm (74.6 in.)
Overall height*11690 mm (66.5 in.)*2
1710 mm (67.3 in.)*3
Wheelbase2790 mm (109.8 in.)
TreadFront1640 mm (64.6 in.)
Rear1630 mm (64.2 in.)
Gross vehicle mass2500 kg (5511 lb.)*4
2575 kg (5676 lb.)*5
Maximum permissible axle
capacity
Front1360 kg (2998 lb.)
Rear1590 kg (3505 lb.)
Drawbar load*680 kg (176 lb.)
Towing capacity*6
Without brake750 kg (1653 lb.)
With brake1500 kg (3307 lb.)*7
2000 kg (4409 lb.)*8

727
9
9-1. Specifications
Vehicle specifications
RX350/RX200t_EE_OM48F32E

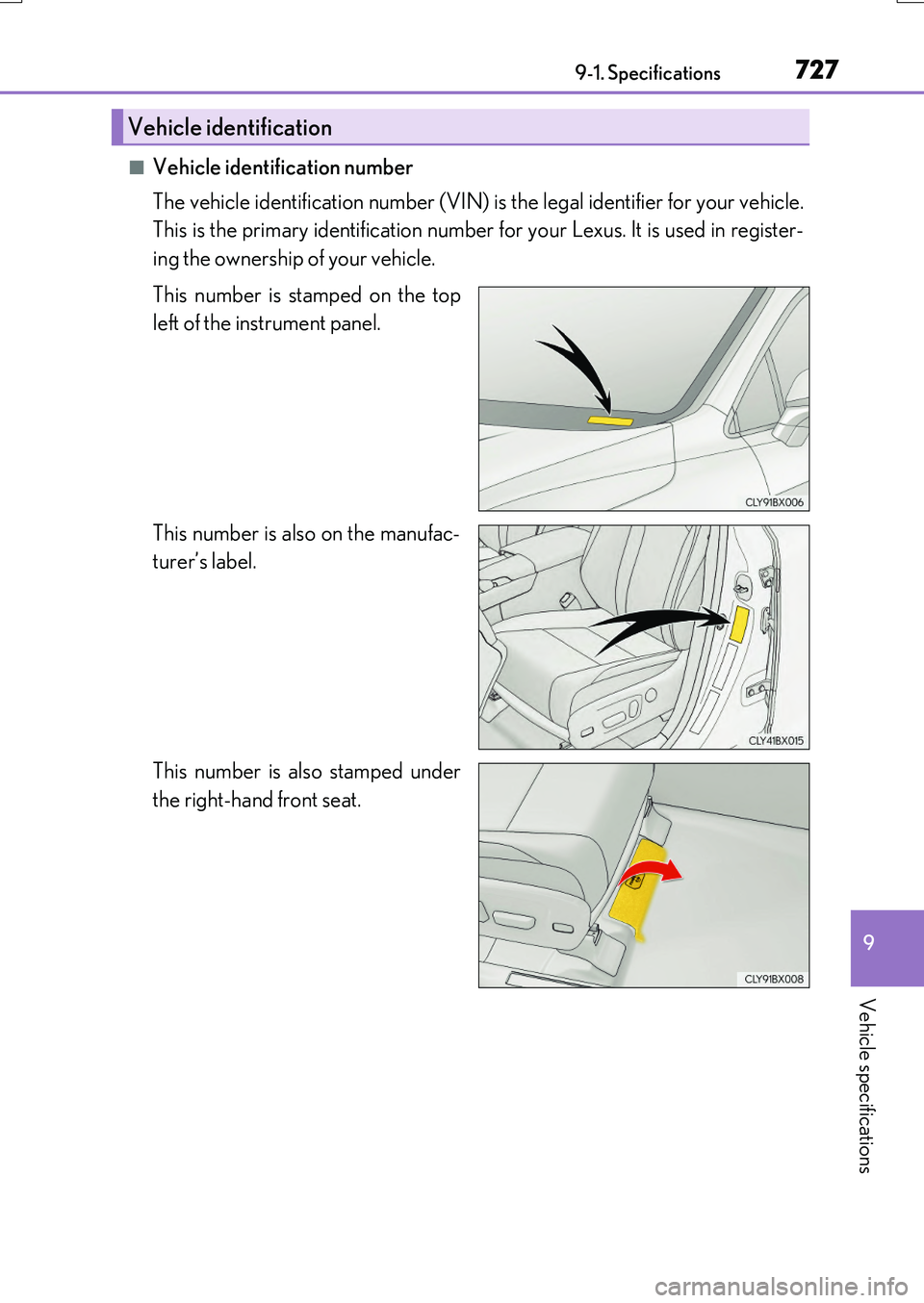

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.
This number is also on the manufac-
turer’s label.
This number is also stamped under
the right-hand front seat.
Vehicle identification

7289-1. Specifications
RX350/RX200t_EE_OM48F32E

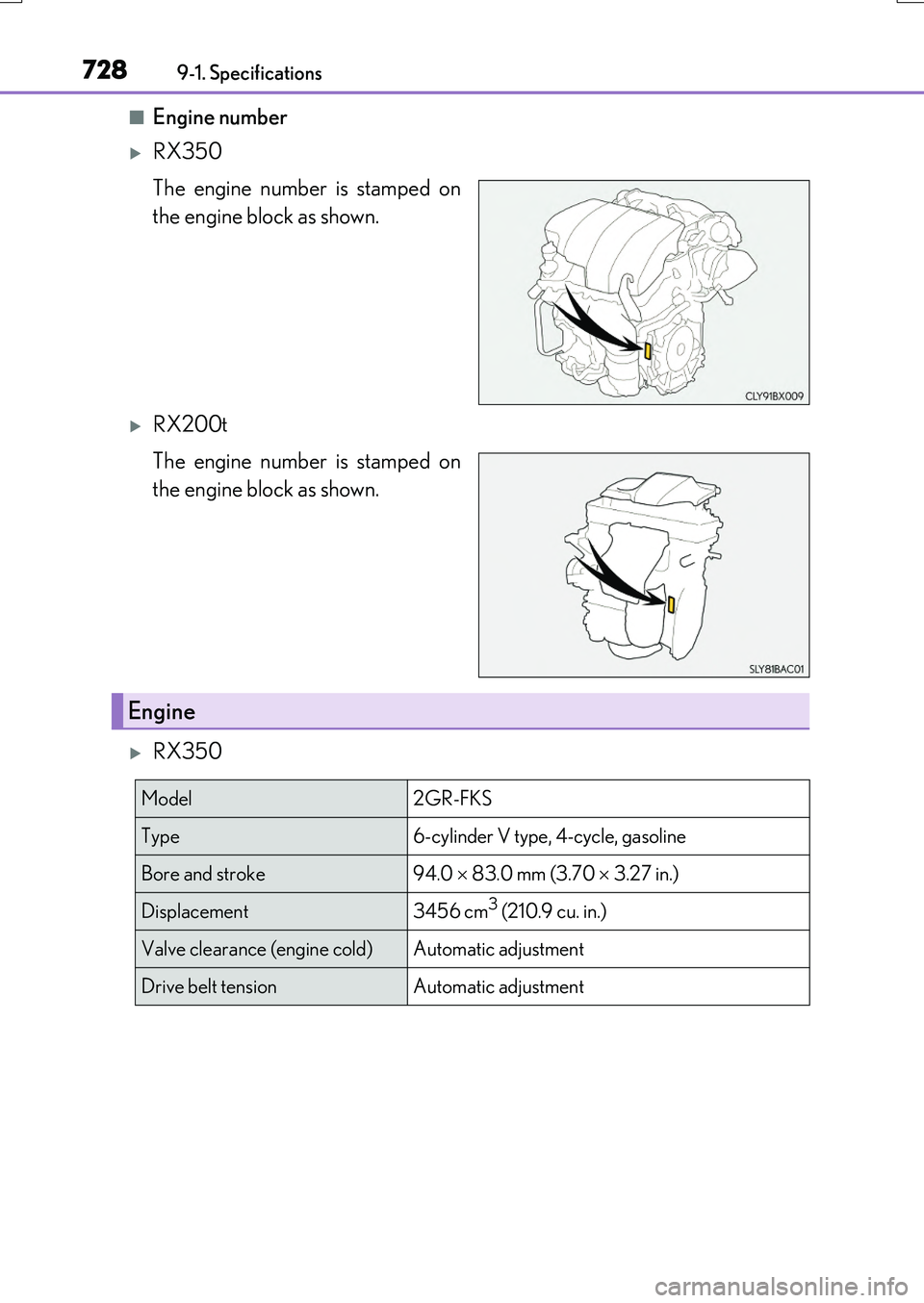

■Engine number
RX350
The engine number is stamped on
the engine block as shown.
RX200t
The engine number is stamped on
the engine block as shown.
RX350
Engine
Model2GR-FKS
Type6-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0  83.0 mm (3.70  3.27 in.)
Displacement3456 cm3 (210.9 cu. in.)
Valve clearance (engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment

729
9
9-1. Specifications
Vehicle specifications
RX350/RX200t_EE_OM48F32E
RX200t
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up the engine and turn off the engine, wait more than 5 minutes, and check
the oil level on the dipstick.
Model8AR-FTS
Type4-cylinder in line, 4-cycle, gasoline
(with turbocharger)
Bore and stroke86.0  86.0 mm (3.39  3.39 in.)
Displacement1998 cm3 (121.9 cu. in.)
Valve clearance (engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
EU area
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area
Unleaded gasoline only
Research octane number95 or higher
Fuel tank capacity (Reference)72 L (19.0 gal., 15.8 lmp. gal.)
Lubrication system
Oil capacity
(Drain and refill reference*)
With filter
Without filter
RX350
5.5 L (5.8 qt., 4.8 Imp. qt.)
RX200t
4.9 L (5.2 qt., 4.3 Imp. qt.)
RX350
5.3 L (5.6 qt., 4.7 Imp. qt.)
RX200t
4.7 L (5.0 qt., 4.1 Imp. qt.)

7309-1. Specifications
RX350/RX200t_EE_OM48F32E

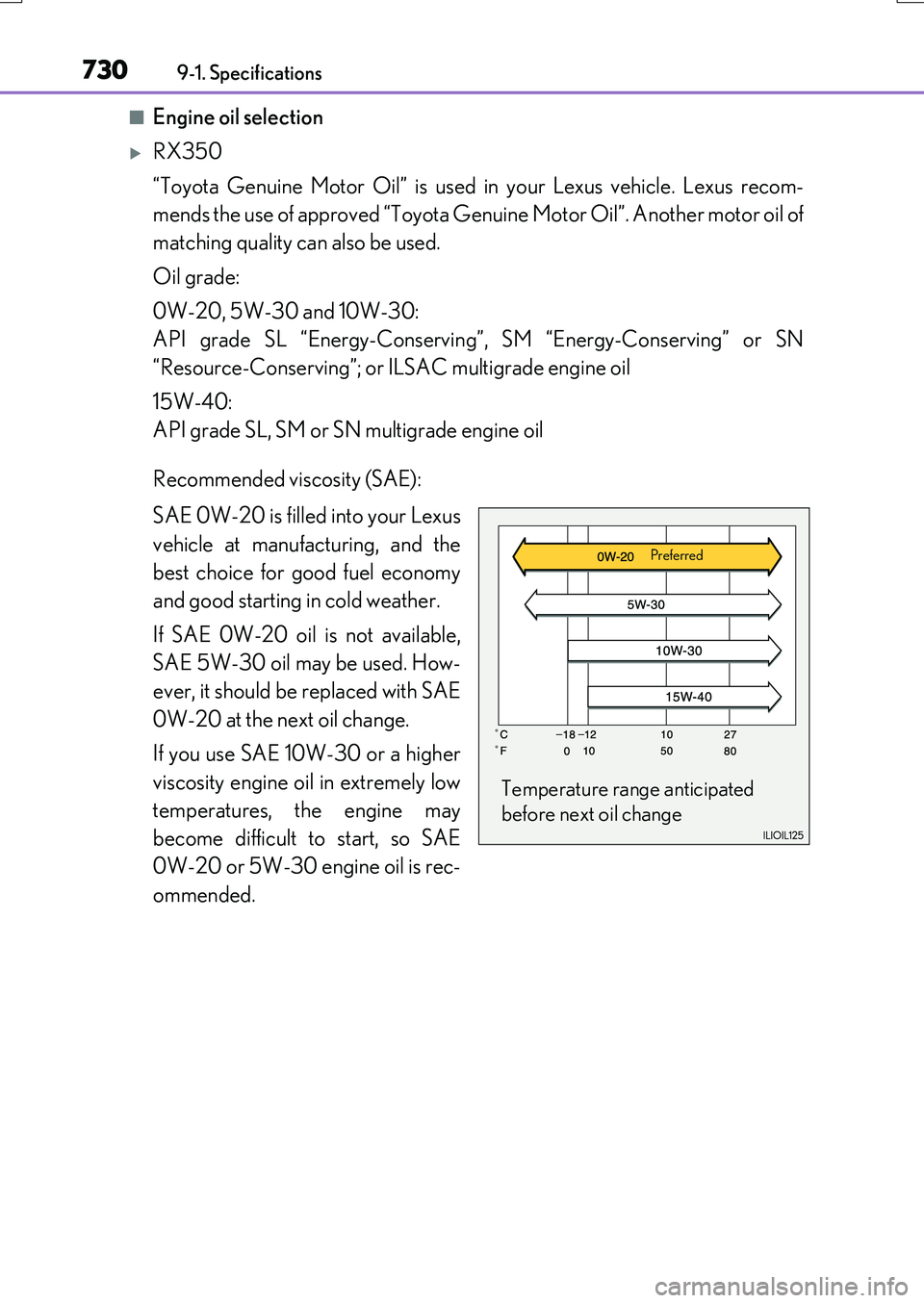

■Engine oil selection
RX350
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Genuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving ”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or IL SAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
0W-20 or 5W-30 engine oil is rec-
ommended.
Preferred
Temperature range anticipated
before next oil change
