LEXUS RX200T 2017 Owners Manual

731
9
9-1. Specifications
Vehicle specifications
RX350/RX200t_EE_OM48F32E
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to help
you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN” means the oil quality designation by
American Petroleum Institute (API).
Center portion: “SAE 0W-20” means the SAE viscosity grade.
Lower portion: “Resource- Conserving” means that the oil hasfuel-saving and environmental pro-
tection capabilities.
ILSAC Certification Mark
The International Lubricant Specificatio n Advisory Committee (ILSAC) Certifica- tion Mark is displayed on the front of the container.
1
2

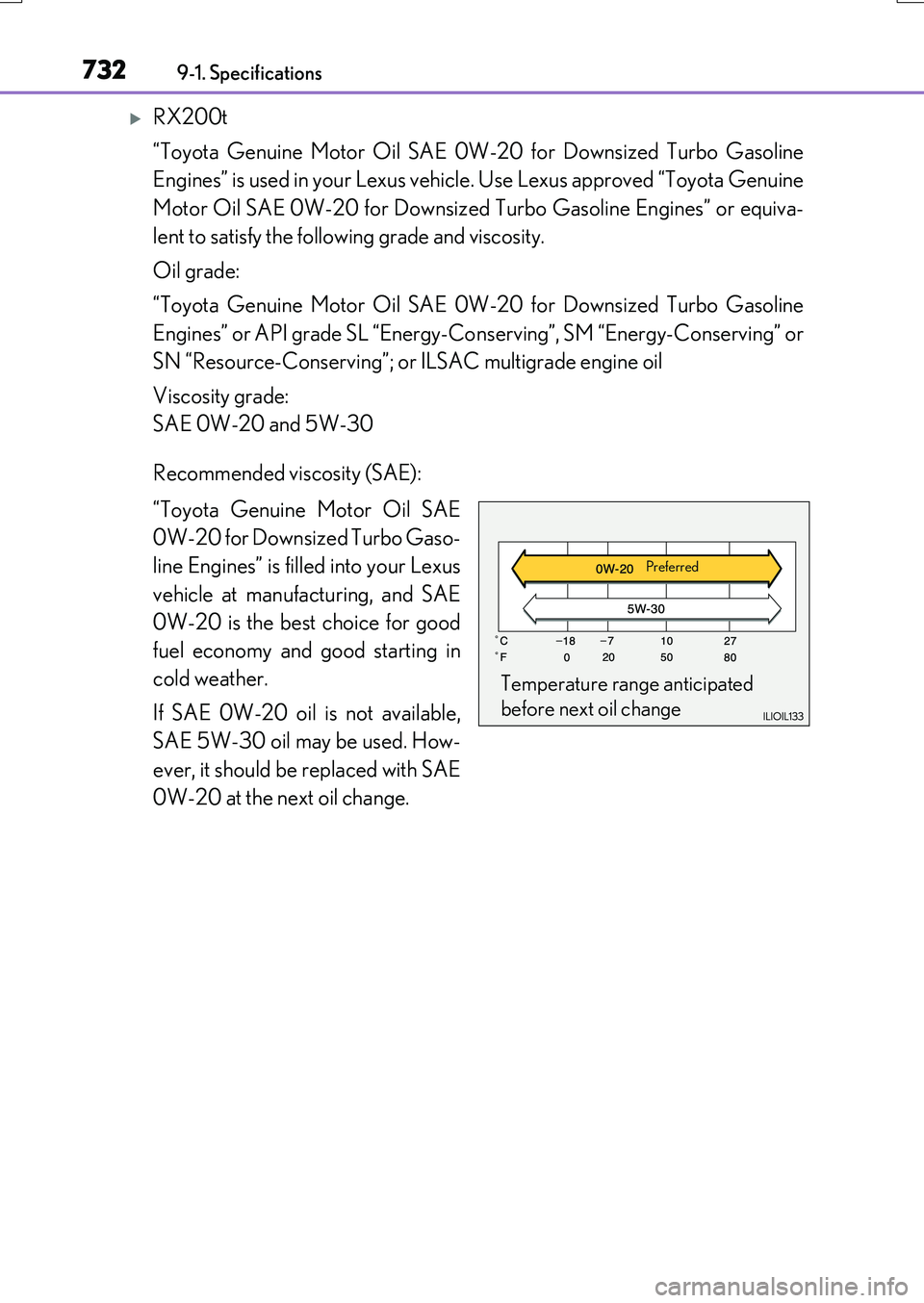

7329-1. Specifications
RX350/RX200t_EE_OM48F32E
RX200t
“Toyota Genuine Motor Oil SAE 0W -20 for Downsized Turbo Gasoline
Engines” is used in your Lexus vehicl e. Use Lexus approved “Toyota Genuine
Motor Oil SAE 0W-20 for Downsized Turbo Gasoline Engines” or equiva-
lent to satisfy the following grade and viscosity.
Oil grade:
“Toyota Genuine Motor Oil SAE 0W -20 for Downsized Turbo Gasoline
Engines” or API grade SL “Energy-Co nserving”, SM “Energy-Conserving” or
SN “Resource-Conserving”; or ILSAC multigrade engine oil
Viscosity grade:
SAE 0W-20 and 5W-30
Recommended viscosity (SAE):
“Toyota Genuine Motor Oil SAE
0W-20 for Downsized Turbo Gaso-
line Engines” is filled into your Lexus
vehicle at manufacturing, and SAE
0W-20 is the best choice for good
fuel economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
Temperature range anticipated
before next oil change
Preferred

733
9
9-1. Specifications
Vehicle specifications
RX350/RX200t_EE_OM48F32E
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to help
you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation by
American Petroleum Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil has
fuel-saving and environmental pro-
tection capabilities.
ILSAC Certification Mark
The International Lubricant Specificatio n Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the container.
1
2

7349-1. Specifications
RX350/RX200t_EE_OM48F32E
*: The coolant capacity is a reference quantity.
If replacement is necessary, contact any authorized Lexus dealer or repairer, or
another duly qualified an d equipped professional.
Cooling system
Capacity*
RX3509.9 L (10.5 qt., 8.7 Imp. qt.)
RX200t
Gasoline engine
8.7 L (9.2 qt., 7.7 Imp. qt.)
Intercooler
3.2 L (3.4 qt., 2.8 Imp. qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant” • Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non- borate coolant with long-life hybrid organicacid technology
Do not use plain water alone.
Ignition system (spark plug)
Make
RX350
DENSO FK20HBR8
RX200t
NGK DILFR7K9G
Gap
RX350
0.8 mm (0.03 in.)
RX200t
0.9 mm (0.04 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

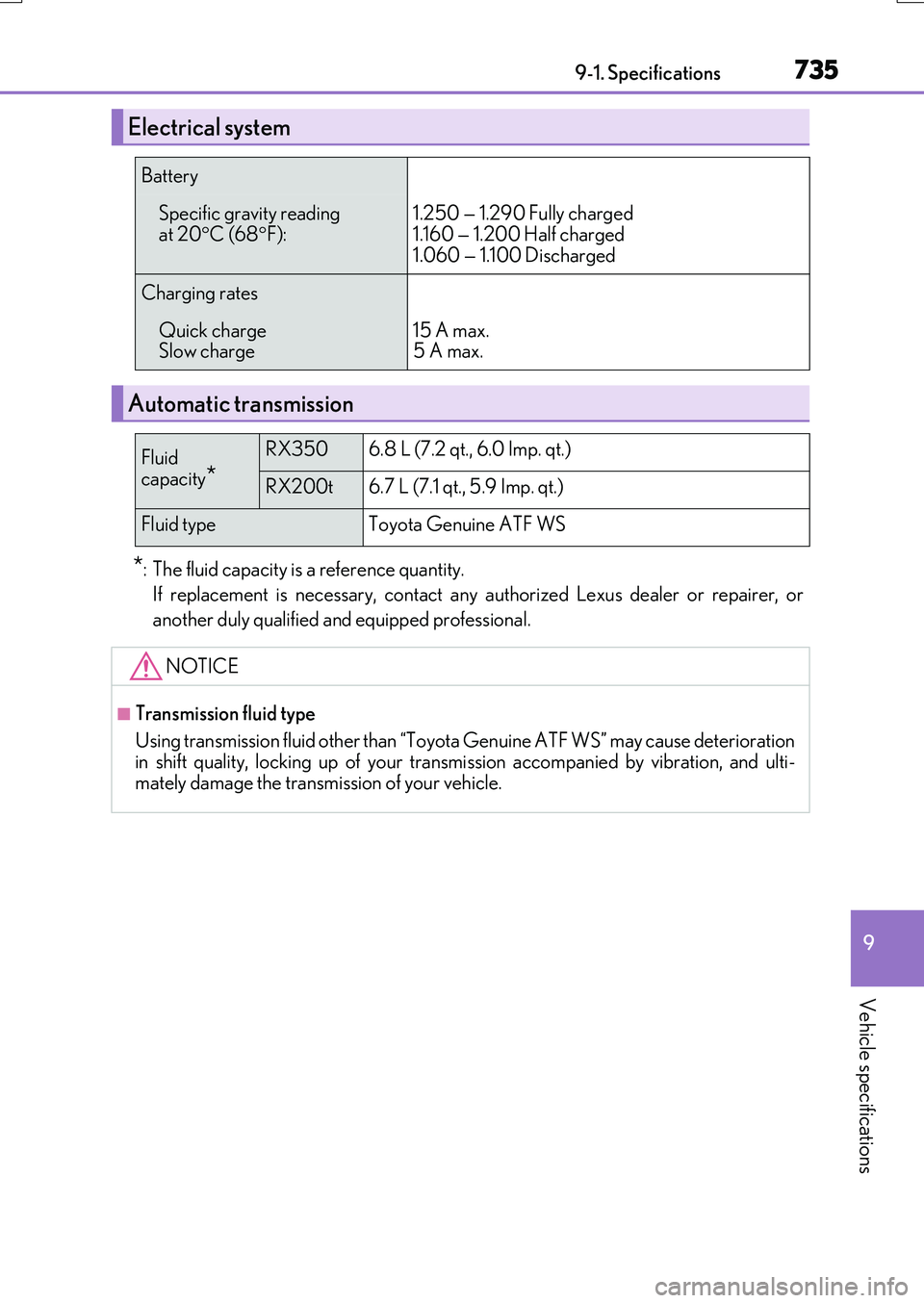

735
9
9-1. Specifications
Vehicle specifications
RX350/RX200t_EE_OM48F32E
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Lexus dealer or repairer, or
another duly qualified an d equipped professional.
Electrical system
Battery
Specific gravity reading
at 20 C (68F):
1.250 — 1.290 Fully charged
1.160 — 1.200 Half charged 1.060 — 1.100 Discharged
Charging rates
Quick chargeSlow charge15 A max.5 A max.
Automatic transmission
Fluid
capacity*
RX3506.8 L (7.2 qt., 6.0 Imp. qt.)
RX200t6.7 L (7.1 qt., 5.9 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyot a Genuine ATF WS” may cause deterioration in shift quality, locking up of your transm ission accompanied by vibration, and ulti-
mately damage the transmission of your vehicle.

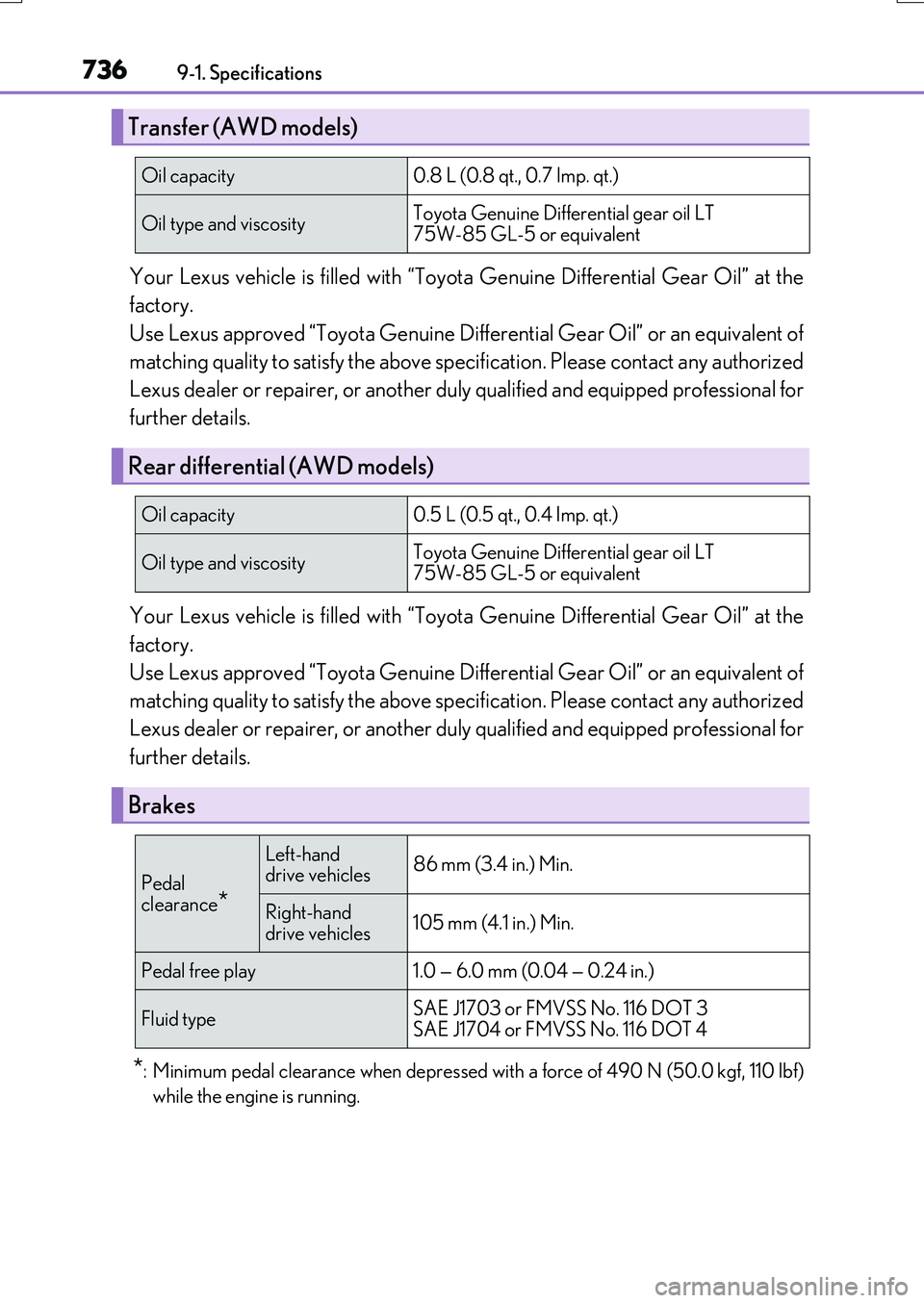

7369-1. Specifications
RX350/RX200t_EE_OM48F32E
Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional for
further details.
Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional for
further details.
*: Minimum pedal clearance when depressed with a force of 490 N (50.0 kgf, 110 lbf)
while the engine is running.
Transfer (AWD models)
Oil capacity0.8 L (0.8 qt., 0.7 Imp. qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Rear differential (AWD models)
Oil capacity0.5 L (0.5 qt., 0.4 Imp. qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Brakes
Pedal
clearance*
Left-hand drive vehicles86 mm (3.4 in.) Min.
Right-hand drive vehicles105 mm (4.1 in.) Min.
Pedal free play1.0 — 6.0 mm (0.04 — 0.24 in.)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
SAE J1704 or FMVSS No. 116 DOT 4

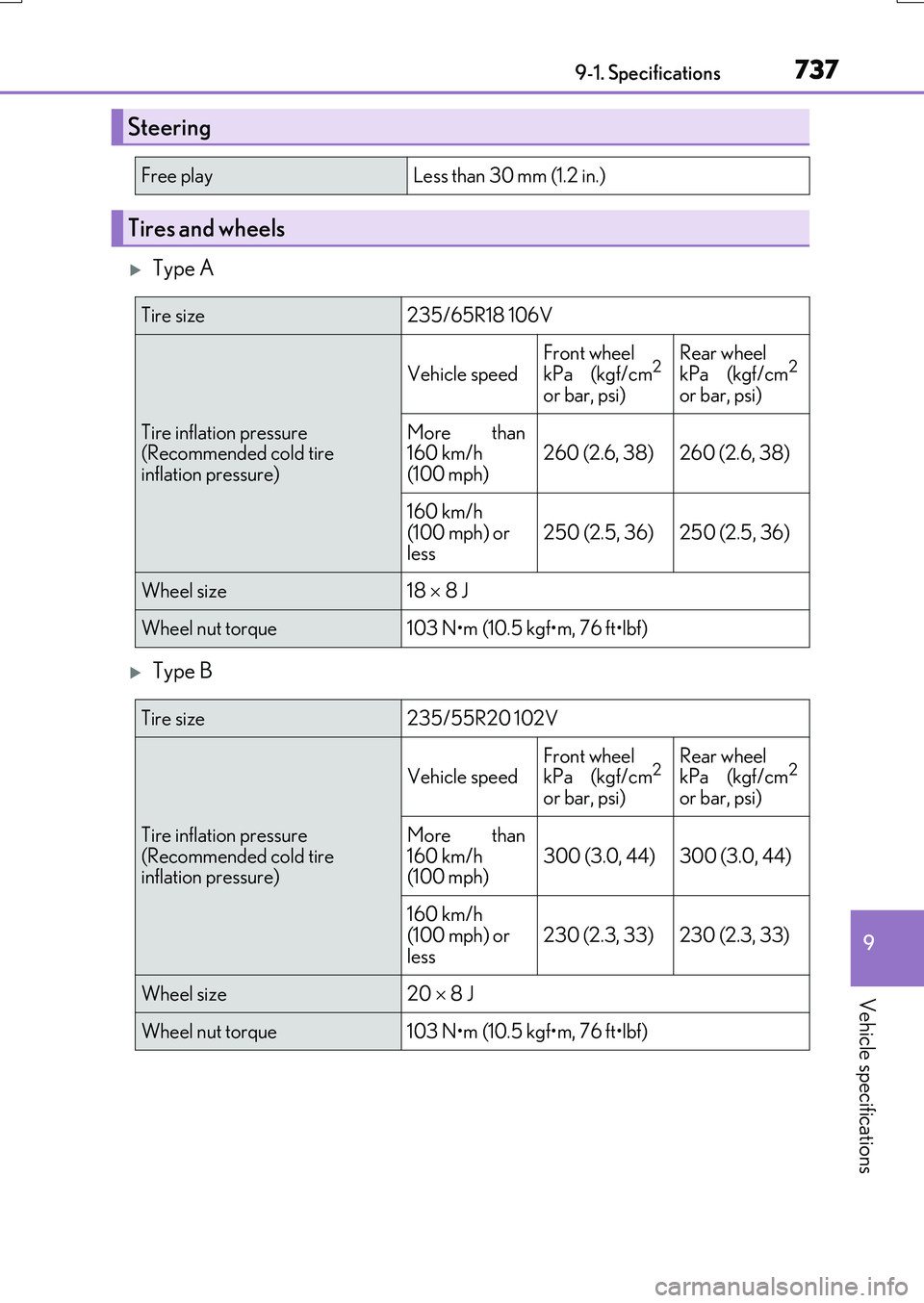

737
9
9-1. Specifications
Vehicle specifications
RX350/RX200t_EE_OM48F32E
Type A
Type B
Steering
Free playLess than 30 mm (1.2 in.)
Tires and wheels
Tire size235/65R18 106V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Vehicle speedFront wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(100 mph)
260 (2.6, 38)260 (2.6, 38)
160 km/h
(100 mph) or
less
250 (2.5, 36)250 (2.5, 36)
Wheel size18
 8 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size235/55R20 102V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Vehicle speedFront wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(100 mph)
300 (3.0, 44)300 (3.0, 44)
160 km/h
(100 mph) or
less
230 (2.3, 33)230 (2.3, 33)
Wheel size20  8 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

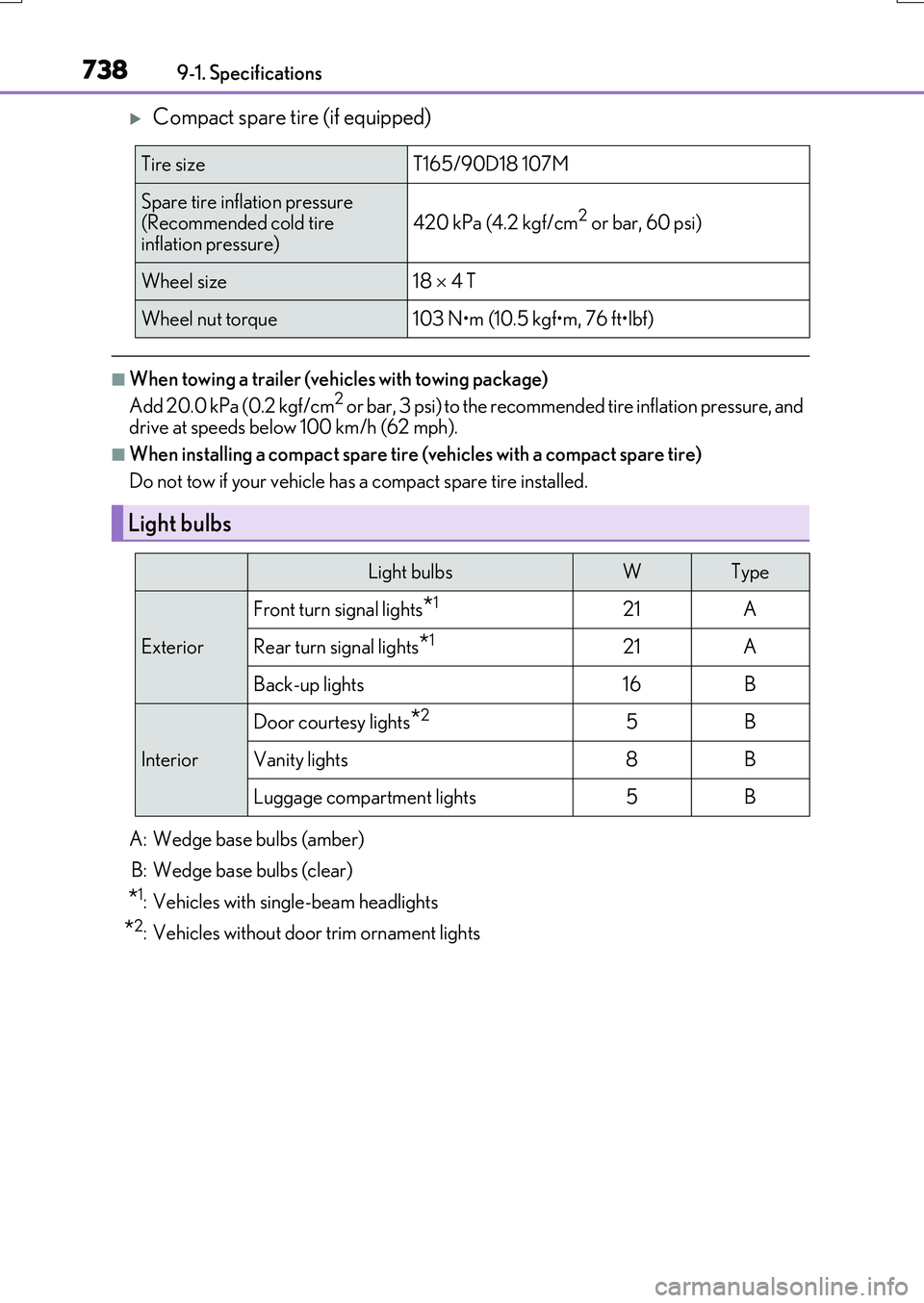

7389-1. Specifications
RX350/RX200t_EE_OM48F32E
Compact spare tire (if equipped)
■When towing a trailer (vehicles with towing package)
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommend ed tire inflation pressure, and drive at speeds below 100 km/h (62 mph).
■When installing a compact spare tire (vehicles with a compact spare tire)
Do not tow if your vehicle has a compact spare tire installed.
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
*1: Vehicles with single-beam headlights
*2: Vehicles without door trim ornament lights
Tire sizeT165/90D18 107M
Spare tire inflation pressure
(Recommended cold tire inflation pressure)420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size18  4 T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWType
Exterior
Front turn signal lights*121A
Rear turn signal lights*121A
Back-up lights16B
Interior
Door courtesy lights*25B
Vanity lights8B
Luggage compartment lights5B

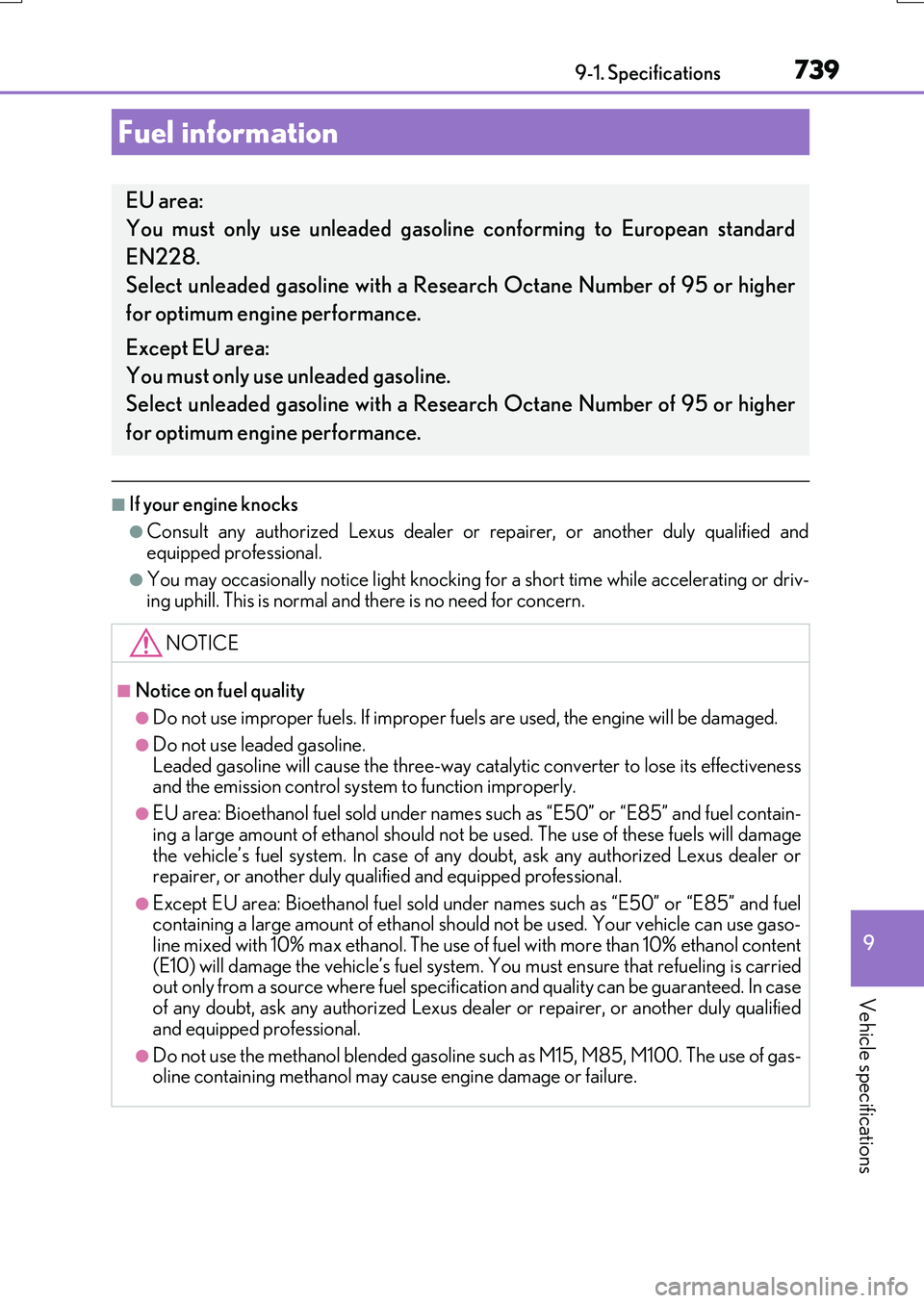

739
9
9-1. Specifications
Vehicle specifications
RX350/RX200t_EE_OM48F32E
■If your engine knocks
●Consult any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
●You may occasionally notice light knocking for a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.
Fuel information
EU area:
You must only use unleaded gasoline conforming to European standard
EN228.
Select unleaded gasoline with a Rese arch Octane Number of 95 or higher
for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Rese arch Octane Number of 95 or higher
for optimum engine performance.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline will cause the three-way cata lytic converter to lose its effectiveness and the emission control system to function improperly.
●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel contain-
ing a large amount of ethanol should not be used. The use of these fuels will damage the vehicle’s fuel system. In case of any doubt, ask any authorized Lexus dealer orrepairer, or another duly qualified and equipped professional.
●Except EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuelcontaining a large amount of ethanol should not be used. Your vehicle can use gaso-line mixed with 10% max ethanol. The use of fuel with more than 10% ethanol content
(E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried out only from a source where fuel specification and quality can be guaranteed. In caseof any doubt, ask any authorized Lexus deal er or repairer, or another duly qualified
and equipped professional.
●Do not use the methanol blended gasoline such as M15, M85, M100. The use of gas- oline containing methanol may cause engine damage or failure.

740
RX350/RX200t_EE_OM48F32E 9-2. Customization
When customizing vehicle features, ensure that the vehicle is parked in a safe
place with the shift lever in P and the parking brake set.
■Changing on the audio system screen
Vehicles with a navigation system
Press the “MENU” button on the Remote Touch.
Select on the “Menu” screen and select .
Various setting can be changed. Refer to the list of settings that can be
changed for details.
Vehicles with a Lexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing using the multi-information display
 P. 110
Customizable features
Your vehicle includes a variety of electr onic features that can be personalized
to suit your preferences. The settings of these features can be changed using
the multi-information display, on the au dio system screen, or at any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
Customizing vehicle features
