LEXUS RX270 2014 Owners Manual

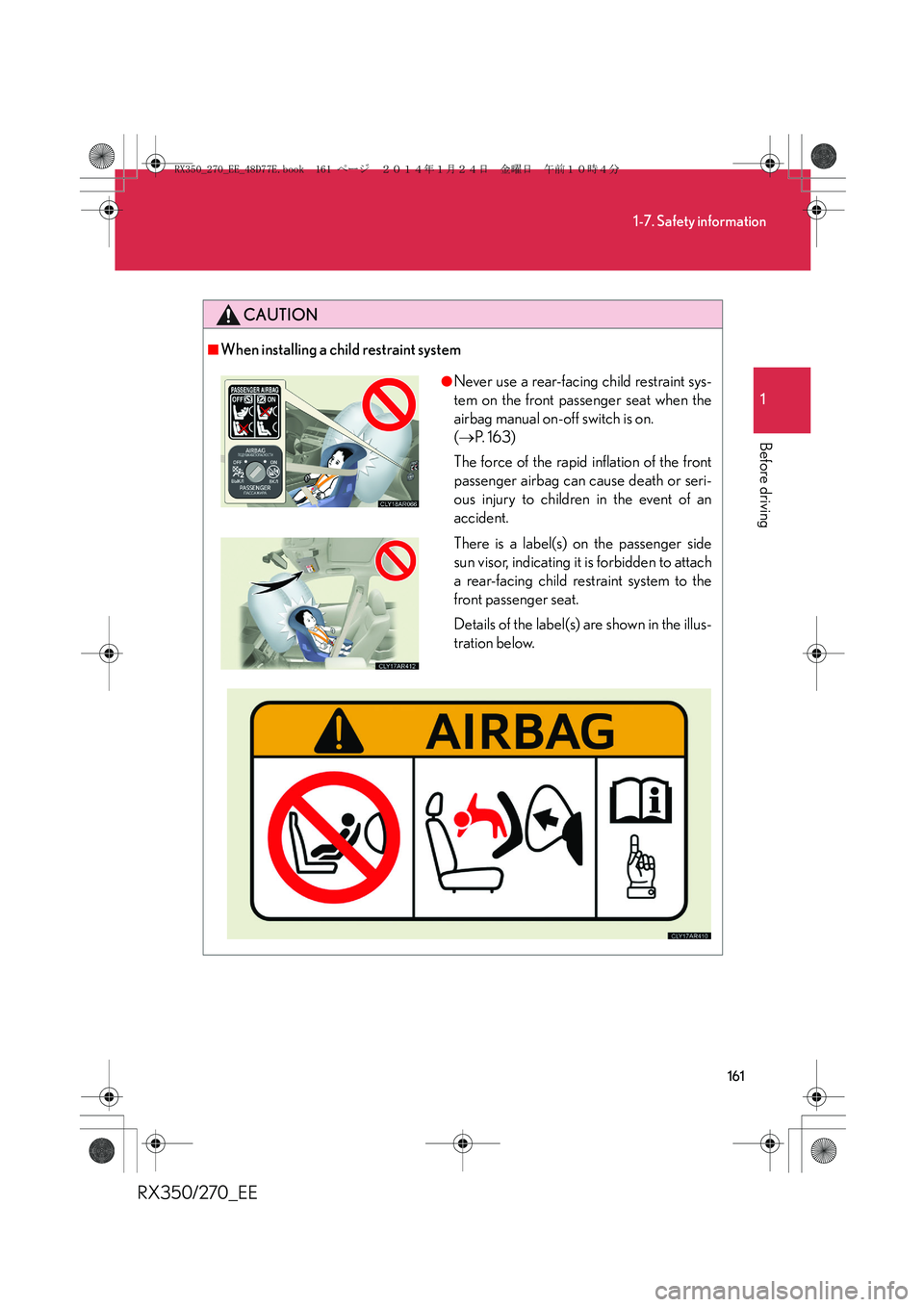

161
1-7. Safety information
1
Before driving
RX350/270_EE
CAUTION
■When installing a child restraint system
●Never use a rear-facing child restraint sys-
tem on the front passenger seat when the
airbag manual on-off switch is on.
(→P. 1 6 3 )
The force of the rapid inflation of the front
passenger airbag can cause death or seri-
ous injury to children in the event of an
accident.
There is a label(s) on the passenger side
sun visor, indicating it is forbidden to attach
a rear-facing child restraint system to the
front passenger seat.
Details of the label(s) are shown in the illus-
tration below.
RX350_270_EE_48D77E.book 161 ページ ２０１４年１月２４日　金曜日　午前１０時４分

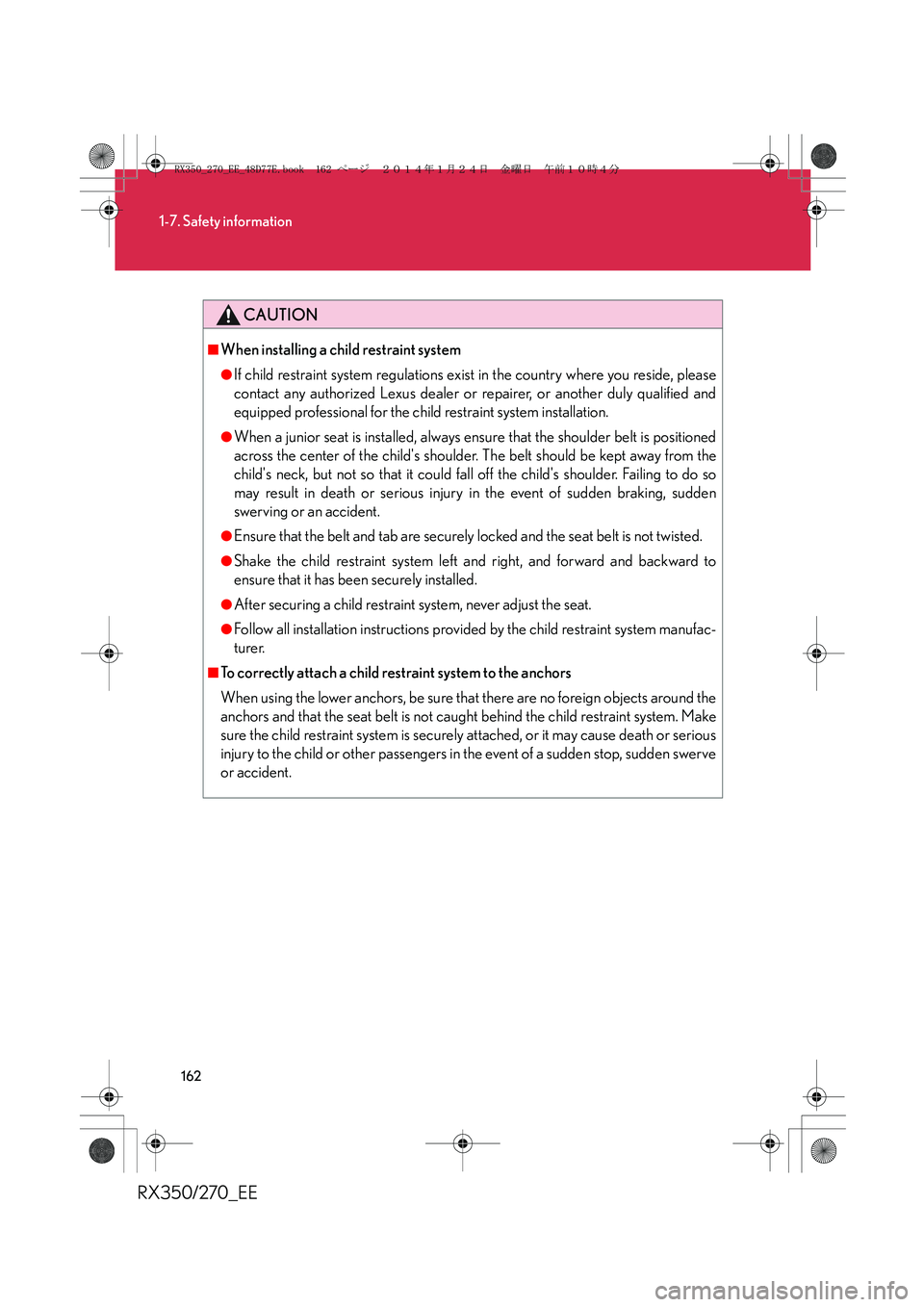

162
1-7. Safety information
RX350/270_EE
CAUTION
■When installing a child restraint system
●If child restraint system regulations exist in the country where you reside, please
contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional for the child restraint system installation.
●When a junior seat is installed, always ensure that the shoulder belt is positioned
across the center of the child's shoulder. The belt should be kept away from the
child's neck, but not so that it could fall off the child's shoulder. Failing to do so
may result in death or serious injury in the event of sudden braking, sudden
swerving or an accident.
●Ensure that the belt and tab are securely locked and the seat belt is not twisted.
●Shake the child restraint system left and right, and forward and backward to
ensure that it has been securely installed.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system manufac-
turer.
■To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects around the
anchors and that the seat belt is not caught behind the child restraint system. Make
sure the child restraint system is securely attached, or it may cause death or serious
injury to the child or other passengers in the event of a sudden stop, sudden swerve
or accident.
RX350_270_EE_48D77E.book 162 ページ ２０１４年１月２４日　金曜日　午前１０時４分

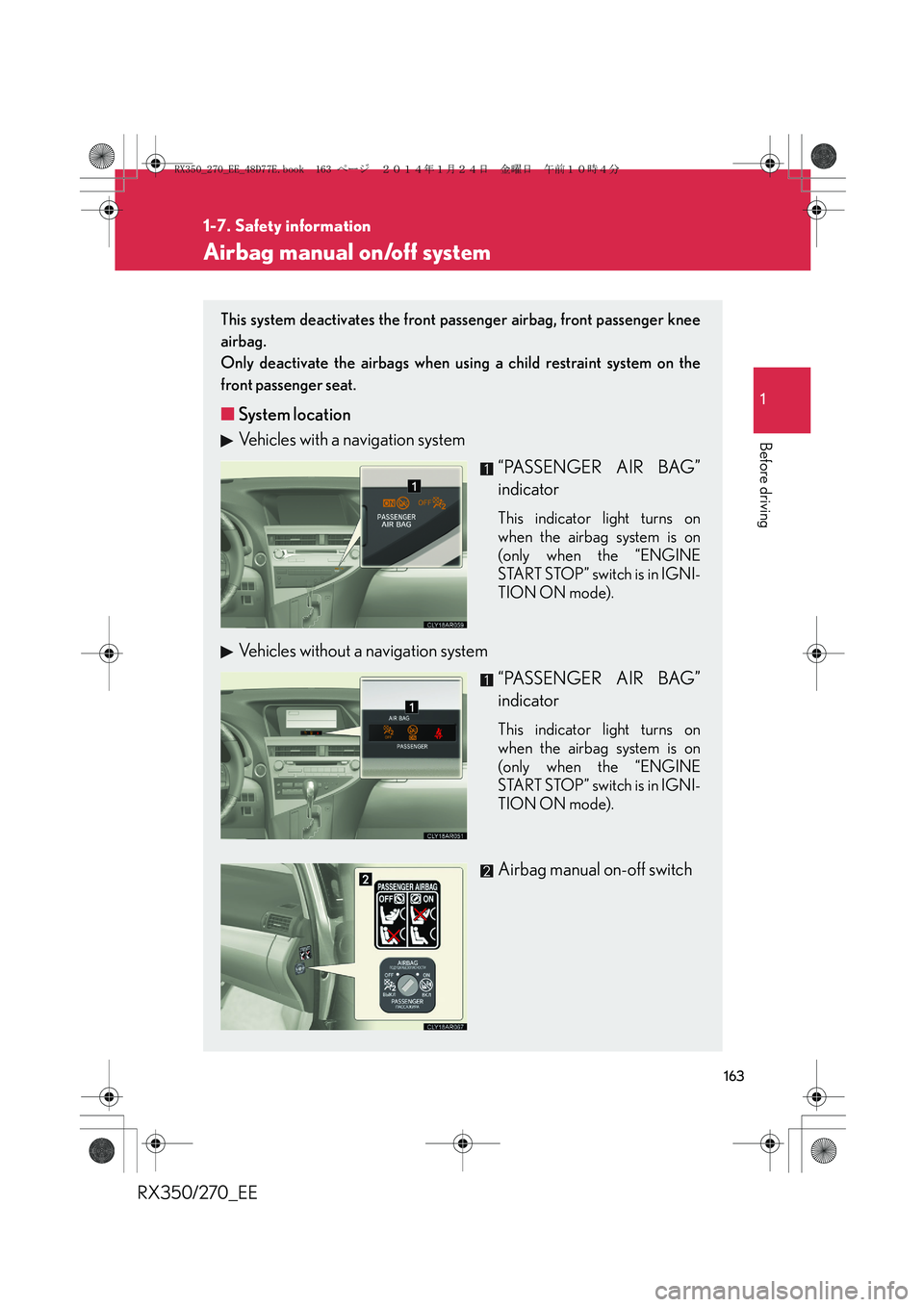

163
1
1-7. Safety information
Before driving
RX350/270_EE
Airbag manual on/off system
This system deactivates the front passenger airbag, front passenger knee
airbag.
Only deactivate the airbags when using a child restraint system on the
front passenger seat.
■System location
Vehicles with a navigation system
“PASSENGER AIR BAG”
indicator
This indicator light turns on
when the airbag system is on
(only when the “ENGINE
START STOP” switch is in IGNI-
TION ON mode).
Vehicles without a navigation system
“PASSENGER AIR BAG”
indicator
This indicator light turns on
when the airbag system is on
(only when the “ENGINE
START STOP” switch is in IGNI-
TION ON mode).
Airbag manual on-off switch
RX350_270_EE_48D77E.book 163 ページ ２０１４年１月２４日　金曜日　午前１０時４分

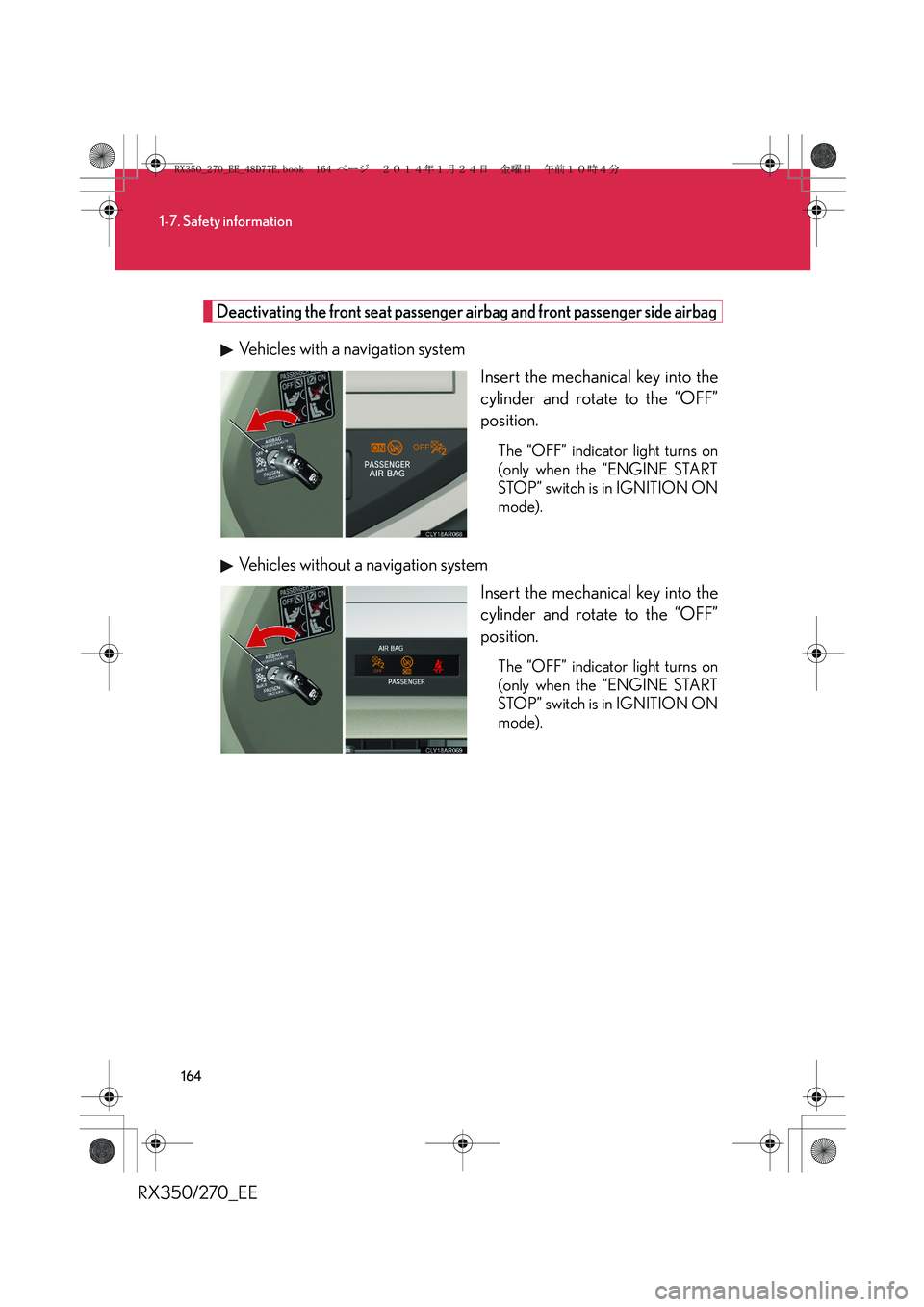

164
1-7. Safety information
RX350/270_EE
Deactivating the front seat passenger airbag and front passenger side airbag
Vehicles with a navigation system
Insert the mechanical key into the
cylinder and rotate to the “OFF”
position.
The “OFF” indicator light turns on
(only when the “ENGINE START
STOP” switch is in IGNITION ON
mode).
Vehicles without a navigation system
Insert the mechanical key into the
cylinder and rotate to the “OFF”
position.
The “OFF” indicator light turns on
(only when the “ENGINE START
STOP” switch is in IGNITION ON
mode).
RX350_270_EE_48D77E.book 164 ページ ２０１４年１月２４日　金曜日　午前１０時４分

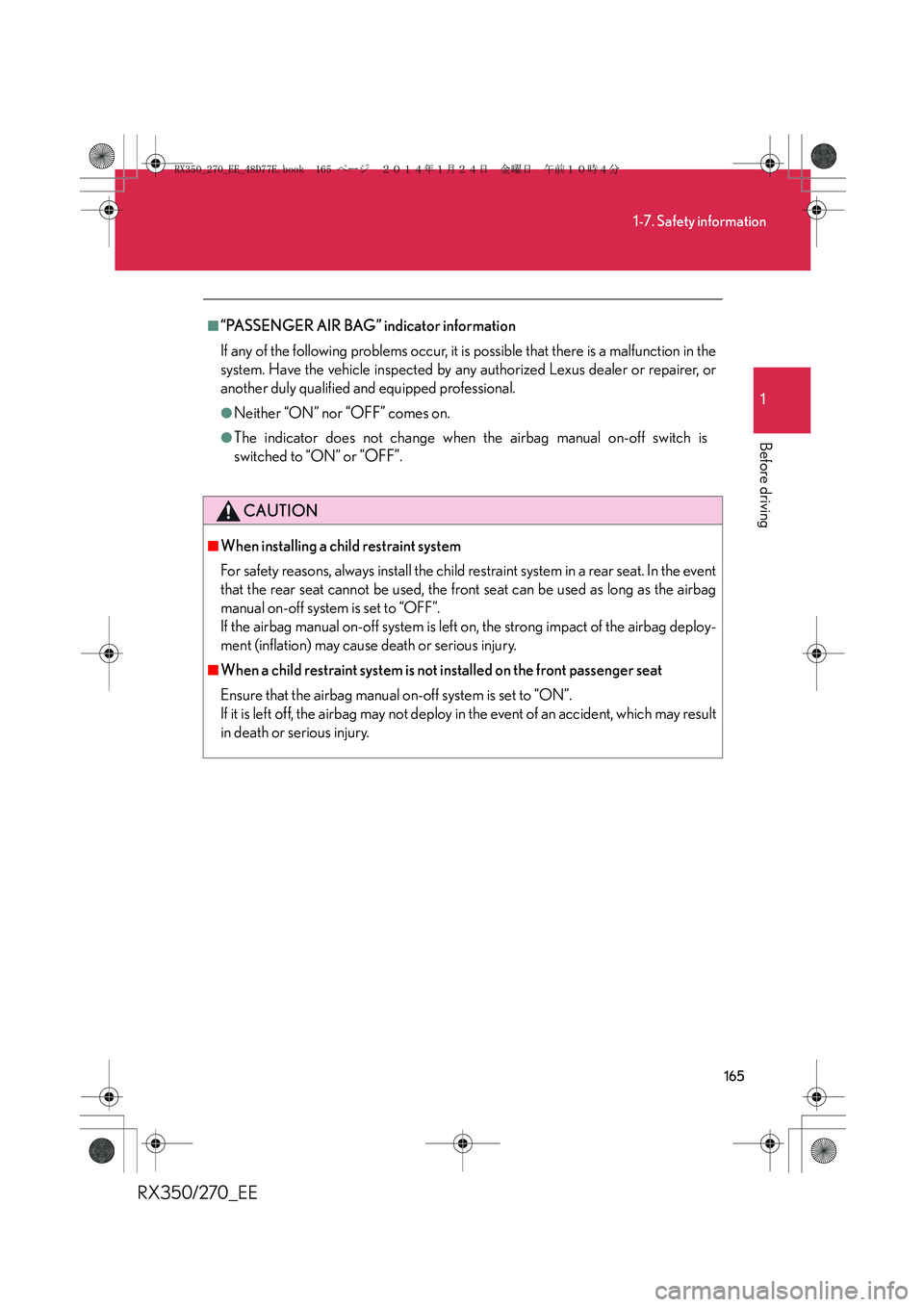

165
1-7. Safety information
1
Before driving
RX350/270_EE
■“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction in the
system. Have the vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
●Neither “ON” nor “OFF” comes on.
●The indicator does not change when the airbag manual on-off switch is
switched to “ON” or
“OFF”.
CAUTION
■When installing a child restraint system
For safety reasons, always install the child restraint system in a rear seat. In the event
that the rear seat cannot be used, the front seat can be used as long as the airbag
manual on-off system is set to “OFF”.
If the airbag manual on-off system is left on, the strong impact of the airbag deploy-
ment (inflation) may cause death or serious injury.
■When a child restraint system is not installed on the front passenger seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left
off, the airbag may not deploy in the event of an accident, which may result
in death or serious injury.
RX350_270_EE_48D77E.book 165 ページ ２０１４年１月２４日　金曜日　午前１０時４分

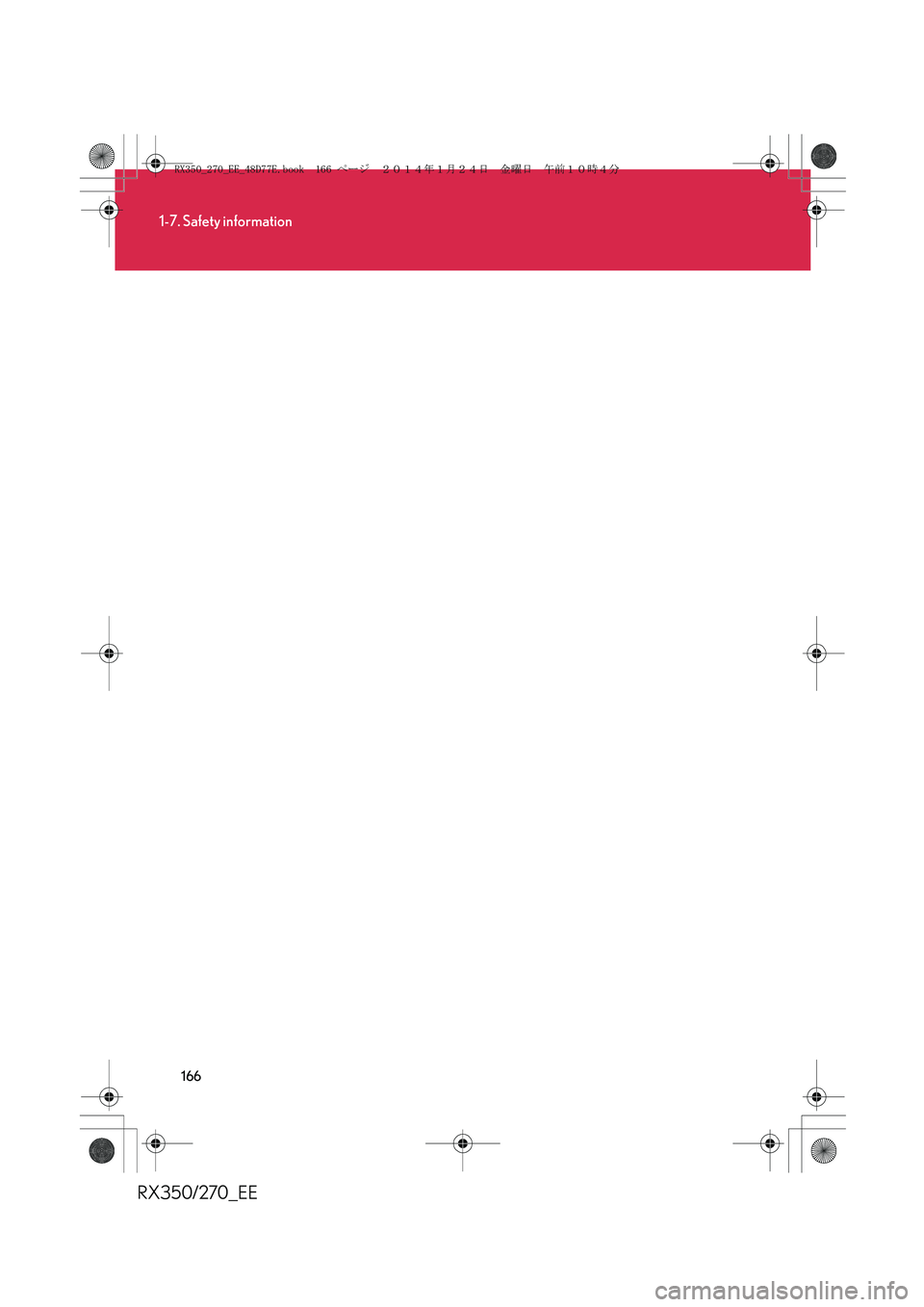

166
1-7. Safety information
RX350/270_EE
RX350_270_EE_48D77E.book 166 ページ ２０１４年１月２４日　金曜日　午前１０時４分

2When driving
167
RX350/270_EE
2-1. Driving procedures
Driving the vehicle ................. 168
Engine (ignition) switch ........ 180
Automatic transmission........ 186
Turn signal lever ...................... 193
Parking brake ........................... 194
Horn ........................................... 195
2-2. Instrument cluster
Gauges and meters ................ 196
Indicators and warning
lights......................................... 198
Multi-information
display .................................... 203
Head-up display ...................... 212
2-3. Operating the lights and
windshield wipers
Headlight switch ...................... 217
Fog light switch ....................... 222
Windshield wipers and
washer .................................... 223
Rear window wiper and
washer ..................................... 227
Headlight cleaner
switch...................................... 2292-4. Using other driving
systems
Cruise control ........................ 230
Dynamic radar cruise
control.................................... 234
Lexus parking
assist-sensor.......................... 248
Electronically modulated
air suspension ....................... 256
Rear view monitor
system ..................................... 263
Driving assist systems ............ 271
All-wheel drive lock
switch ...................................... 277
Hill-start assist control.......... 278
Pre-Crash Safety
system .................................... 280
2-5. Driving information
Utility vehicle
precautions .......................... 289
Cargo and luggage................ 293
Winter driving tips ................. 296
Trailer towing (RX350)....... 300
Trailer towing (RX270) .......... 311
RX350_270_EE_48D77E.book 167 ページ ２０１４年１月２４日　金曜日　午前１０時４分

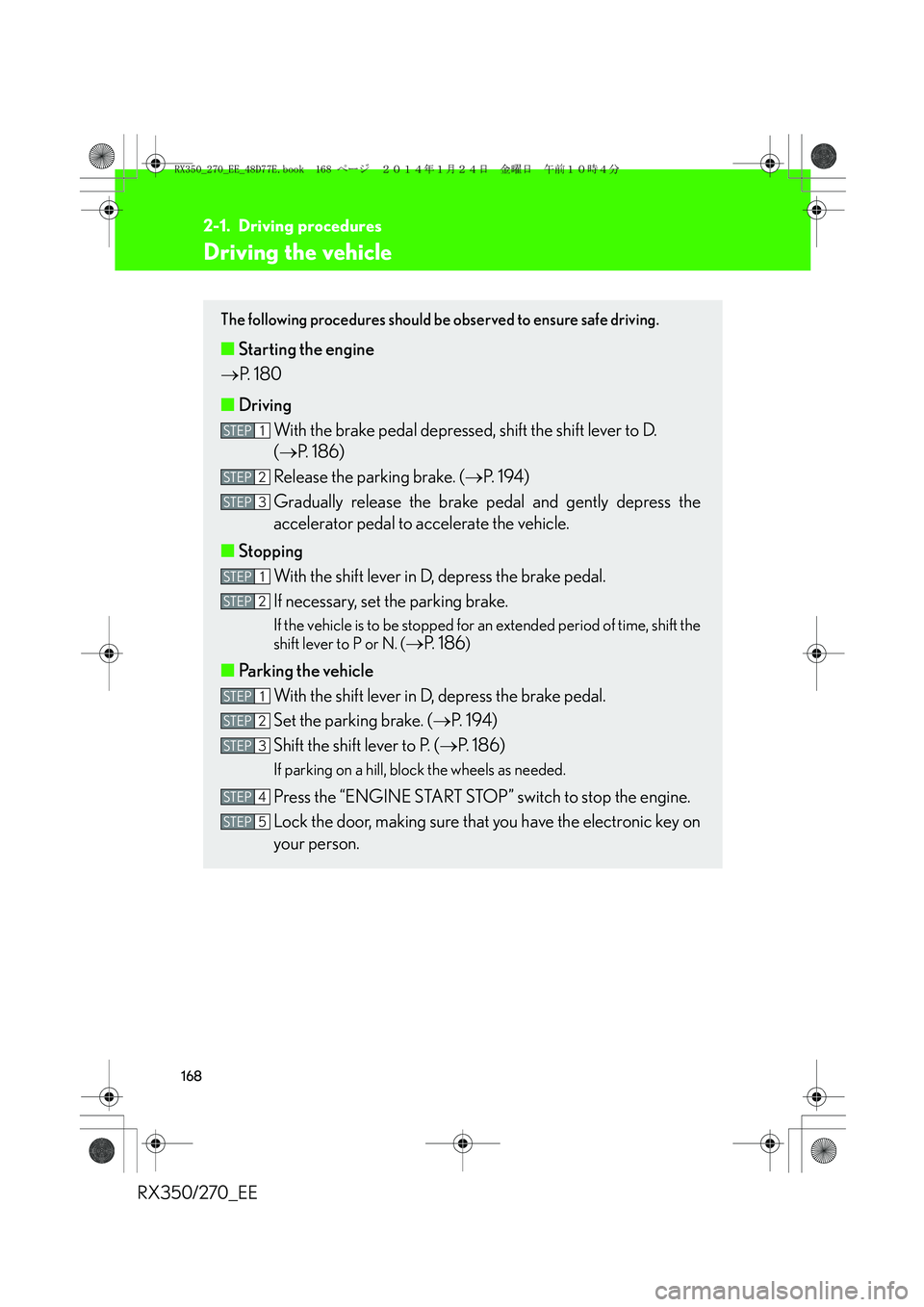

168
RX350/270_EE
2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driving.
■Starting the engine
→P. 1 8 0
■Driving
With the brake pedal depressed, shift the shift lever to D.
(→P. 1 8 6 )
Release the parking brake. (→P. 1 9 4 )
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
■Stopping
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the
shift lever to P or N. (
→P. 1 8 6)
■Parking the vehicle
With the shift lever in D, depress the brake pedal.
Set the parking brake. (→P. 1 9 4 )
Shift the shift lever to P. (→P. 1 8 6 )
If parking on a hill, block the wheels as needed.
Press the “ENGINE START STOP” switch to stop the engine.
Lock the door, making sure that you have the electronic key on
your person.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5
RX350_270_EE_48D77E.book 168 ページ ２０１４年１月２４日　金曜日　午前１０時４分

169
2-1. Driving procedures
2
When driving
RX350/270_EE
Starting off on a steep uphill
Make sure that the parking brake is set and shift the shift lever to
D.
Gently depress the accelerator pedal.
Release the parking brake.
■When starting off on an uphill
The hill-start assist control is available. (→P. 2 7 8 )
■Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the windows
may become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, because the road surface will be especially
slippery.
●Refrain from high speeds when driving on an expressway in the rain, because
there may be a layer of water between the tires and the road surface, preventing
the steering and brakes from operating properly.
■Engine speed while driving
In the following conditions, the engine speed may become high while driving. This is
due to automatic up-shifting control or down-shifting implementation to meet driv-
ing conditions. It does not indicate sudden acceleration.
●The vehicle is judged to be driving uphill or downhill
●When the accelerator pedal is released
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 169 ページ ２０１４年１月２４日　金曜日　午前１０時４分

170
2-1. Driving procedures
RX350/270_EE
■Breaking in your new Lexus
To extend the life of the vehicle, observing the following precautions is recom-
mended:
●For the first 300 km (200 miles):
Avoid sudden stops.
●For the first 800 km (500 miles):
Do not tow a trailer.
●For the first 2000 km (1200 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.
■Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system. This type of brake sys-
tem needs bedding-down of the brake shoes periodically or whenever the parking
brake shoes and/or drum are replaced. Have any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional, perform the bedding
down operation.
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability of the
correct fuel. (→P. 609)
