LEXUS RX270 2014 Owners Manual

121
1
1-6. Theft deterrent system
Before driving
RX350/270_EE
Double locking system
Setting the double locking system
●Turn the “ENGINE START STOP” switch off, have all the passengers
exit the vehicle and ensure that all the doors are closed.
●Using the entry function:
Touch the lock sensor on the outside door handle twice within 5 sec-
onds.
Using the wireless remote control:
Press twice within 5 seconds.
Canceling the double locking system
Using the entry function: Hold the outside door handle or press the back
door opener button. (→P. 32)
Using the wireless remote control: Press .
CAUTION
■Double locking system precaution
Never activate the double locking system when there are people in the vehicle
because all the doors cannot be opened from inside the vehicle.
Unauthorized access to the vehicle is prevented by disabling the door
unlocking function from both the interior and exterior of the vehicle.
Vehicles employing this system
have labels on the window glass
of both front doors.
RX350_270_EE_48D77E.book 121 ページ ２０１４年１月２４日　金曜日　午前１０時４分

122
1-6. Theft deterrent system
RX350/270_EE
Alarm∗
∗: If equipped
The system sounds the alarm and flashes the lights when forcible entry is
detected.
■Triggering of the alarm
The alarm is triggered in the following situations when the alarm is
set:
●A locked door is unlocked or opened in any way other than using
the entry function or wireless remote control.
(The doors will lock again automatically.)
●The hood is opened.
●The intrusion sensor detects something moving inside the vehicle.
(An intruder gets in the vehicle.)
●The tilt sensor detects a change of vehicle inclination.
■Setting the alarm system
Vehicles with a navigation system
Close the doors and hood, and
lock all the doors using the entry
function or wireless remote
control. The system will be set
automatically after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
RX350_270_EE_48D77E.book 122 ページ ２０１４年１月２４日　金曜日　午前１０時４分

123
1-6. Theft deterrent system
1
Before driving
RX350/270_EE
Intrusion sensor and tilt sensor
●The intrusion sensor detects an intruder or movement in the vehicle.
●The tilt sensor detects changes in vehicle inclination, such as when the
vehicle is towed away.
This system is designed to deter and prevent vehicle theft but does not
guarantee absolute security against all intrusions.
The intrusion sensor and tilt sensor can be canceled using the cancel
switch.
Vehicles without a navigation system
Close the doors and hood, and
lock all the doors using the entry
function or wireless remote
control. The system will be set
automatically after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarms:
●Unlock the doors using the entry function or the wireless remote
control.
●Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
RX350_270_EE_48D77E.book 123 ページ ２０１４年１月２４日　金曜日　午前１０時４分

124
1-6. Theft deterrent system
RX350/270_EE
Canceling the intrusion sensor and tilt sensor
Turn the “ENGINE START STOP”
switch off and press the intrusion
sensor and tilt sensor cancel
switch.
A message will be shown on the
multi-information display in the
instrument cluster.
The intrusion sensor and tilt sensor
will revert to on each time the
“ENGINE START STOP” switch is
turned to IGNITION ON mode.
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the
following:
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
RX350_270_EE_48D77E.book 124 ページ ２０１４年１月２４日　金曜日　午前１０時４分

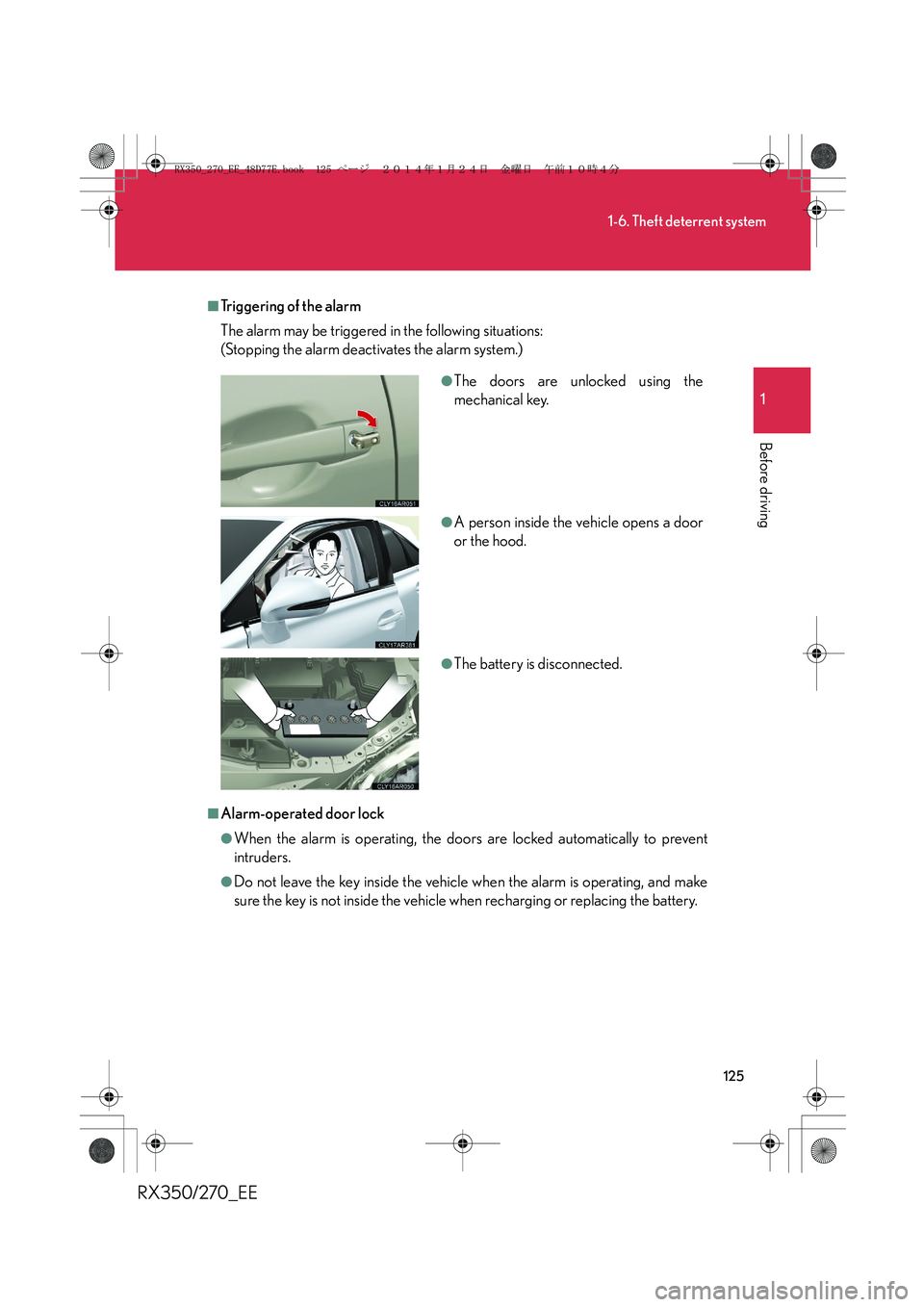

125
1-6. Theft deterrent system
1
Before driving
RX350/270_EE
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
●When the alarm is operating, the doors are locked automatically to prevent
intruders.
●Do not leave the key inside the vehicle when the alarm is operating, and make
sure the key is not inside the vehicle when recharging or replacing the battery.
●The doors are unlocked using the
mechanical key.
●A person inside the vehicle opens a door
or the hood.
●The battery is disconnected.
RX350_270_EE_48D77E.book 125 ページ ２０１４年１月２４日　金曜日　午前１０時４分

126
1-6. Theft deterrent system
RX350/270_EE
■Canceling and automatic re-enabling of the intrusion sensor and tilt sensor
●The alarm will still be set even when the intrusion sensor and tilt sensor are can-
celed.
●After the intrusion sensor and tilt sensor are canceled, pressing the “ENGINE
START STOP” switch or unlocking the doors using the entry function, wireless
remote control or mechanical key will re-enable the intrusion sensor and tilt
sensor.
●When the alarm system is set again, the intrusion sensor and tilt sensor will be
set.
■Intrusion sensor considerations
The sensor may trigger the alarm in the following situations:
●Persons or pets are in the vehicle.
●A window or the moon roof is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles
• The movement of people outside the
vehicle
RX350_270_EE_48D77E.book 126 ページ ２０１４年１月２４日　金曜日　午前１０時４分

127
1-6. Theft deterrent system
1
Before driving
RX350/270_EE
●The vehicle is inside an automatic or high-pressure car wash.
●The vehicle experiences impacts, such as hail, lightning strikes, and other kinds
of repeated impacts or vibrations.
■Tilt sensor detection considerations
The sensor may trigger the alarm in the following situations:
●The vehicle is transported by a ferry, trailer, train, etc.
●The vehicle is parked in a parking garage.
●The vehicle is inside a car wash that moves the vehicle.
●Any of the tires loses air pressure.
●The vehicle is jacked up.
●An earthquake occurs or the road caves in.
●Cargo is loaded onto or unloaded from a roof luggage carrier.
●Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.
●The vehicle is parked in a place where
extreme vibrations or noises occur, such
as in a parking garage.
●Ice or snow is removed from the vehicle,
causing the vehicle to receive repeated
impacts or vibrations.
RX350_270_EE_48D77E.book 127 ページ ２０１４年１月２４日　金曜日　午前１０時４分

128
1-6. Theft deterrent system
RX350/270_EE
NOTICE
■To ensure the intrusion sensor and tilt sensor functions correctly
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
●To ensure that the sensors operate prop-
erly, do not touch or cover them.
●Do not spray air fresheners or other prod-
ucts directly into the sensor holes.
RX350_270_EE_48D77E.book 128 ページ ２０１４年１月２４日　金曜日　午前１０時４分

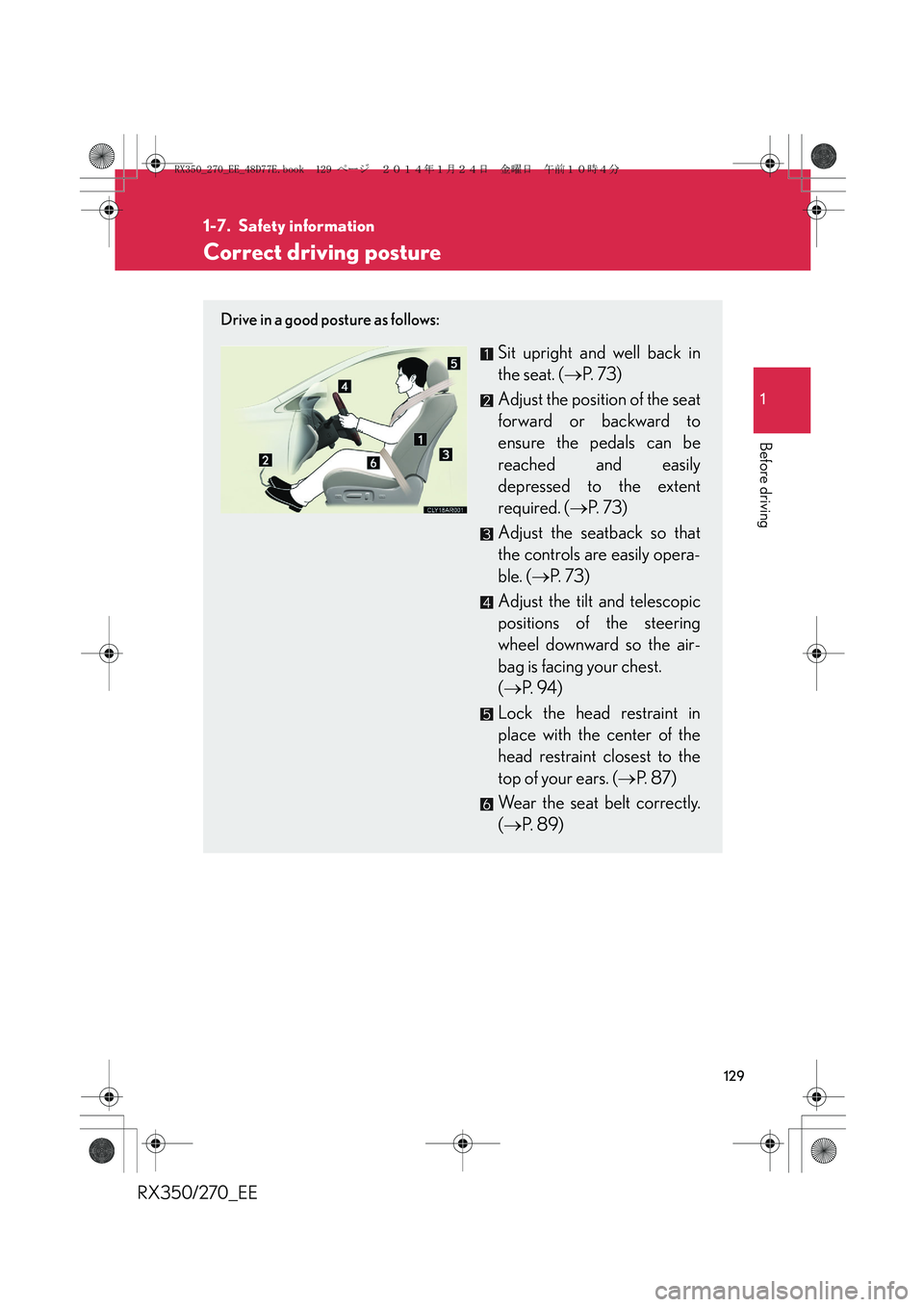

129
1
Before driving
RX350/270_EE
1-7. Safety information
Correct driving posture
Drive in a good posture as follows:
Sit upright and well back in
the seat. (→P. 7 3 )
Adjust the position of the seat
forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. (→P. 7 3 )
Adjust the seatback so that
the controls are easily opera-
ble. (→P. 7 3 )
Adjust the tilt and telescopic
positions of the steering
wheel downward so the air-
bag is facing your chest.
(→P. 9 4 )
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. (→P. 8 7 )
Wear the seat belt correctly.
(→P. 8 9 )
RX350_270_EE_48D77E.book 129 ページ ２０１４年１月２４日　金曜日　午前１０時４分

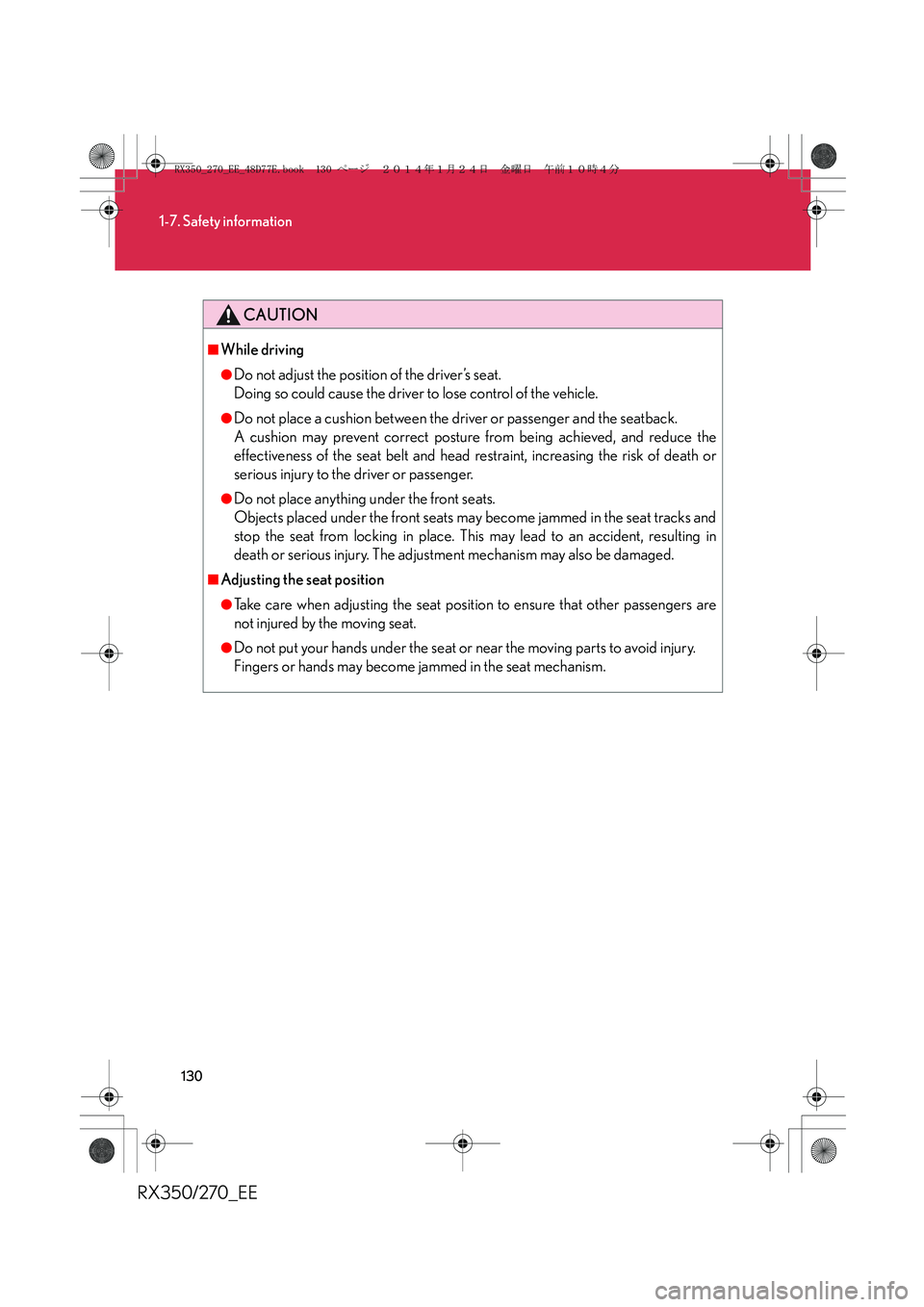

130
1-7. Safety information
RX350/270_EE
CAUTION
■While driving
●Do not adjust the position of the driver’s seat.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the
effectiveness of the seat belt and head restraint, increasing the risk of death or
serious injury to the driver or passenger.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and
stop the seat from locking in place. This may lead to an accident, resulting in
death or serious injury. The adjustment mechanism may also be damaged.
■Adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are
not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.
RX350_270_EE_48D77E.book 130 ページ ２０１４年１月２４日　金曜日　午前１０時４分
