LEXUS RX270 2014 Owners Manual

221
2-3. Operating the lights and windshield wipers
2
When driving
RX350/270_EE
■Light reminder buzzer
A buzzer sounds when the “ENGINE START STOP” switch is turned off or turned
to ACCESSORY mode and the driver's door is opened while the lights are turned
on.
■Turning on the low beam headlights when the vehicle is parked in dark areas
■Illuminated entry system
If the wireless remote control switch is used to unlock the vehicle when the light
switch is in and the surrounding area is dark, the front position light turns on.
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features →P. 6 2 2 )
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is off.
Turn off the engine with the light switch in
or off, and pull the light switch toward
you and release it. The low beam headlights
will turn on for about 30 seconds to light
up the area around the vehicle.
The lights are turned off in the following sit-
uations.
●The “ENGINE START STOP” switch is
turned to IGNITION ON mode.
●The light switch is turned on.
●The light switch is pulled toward you
and then released.
RX350_270_EE_48D77E.book 221 ページ ２０１４年１月２４日　金曜日　午前１０時４分

222
2-3. Operating the lights and windshield wipers
RX350/270_EE

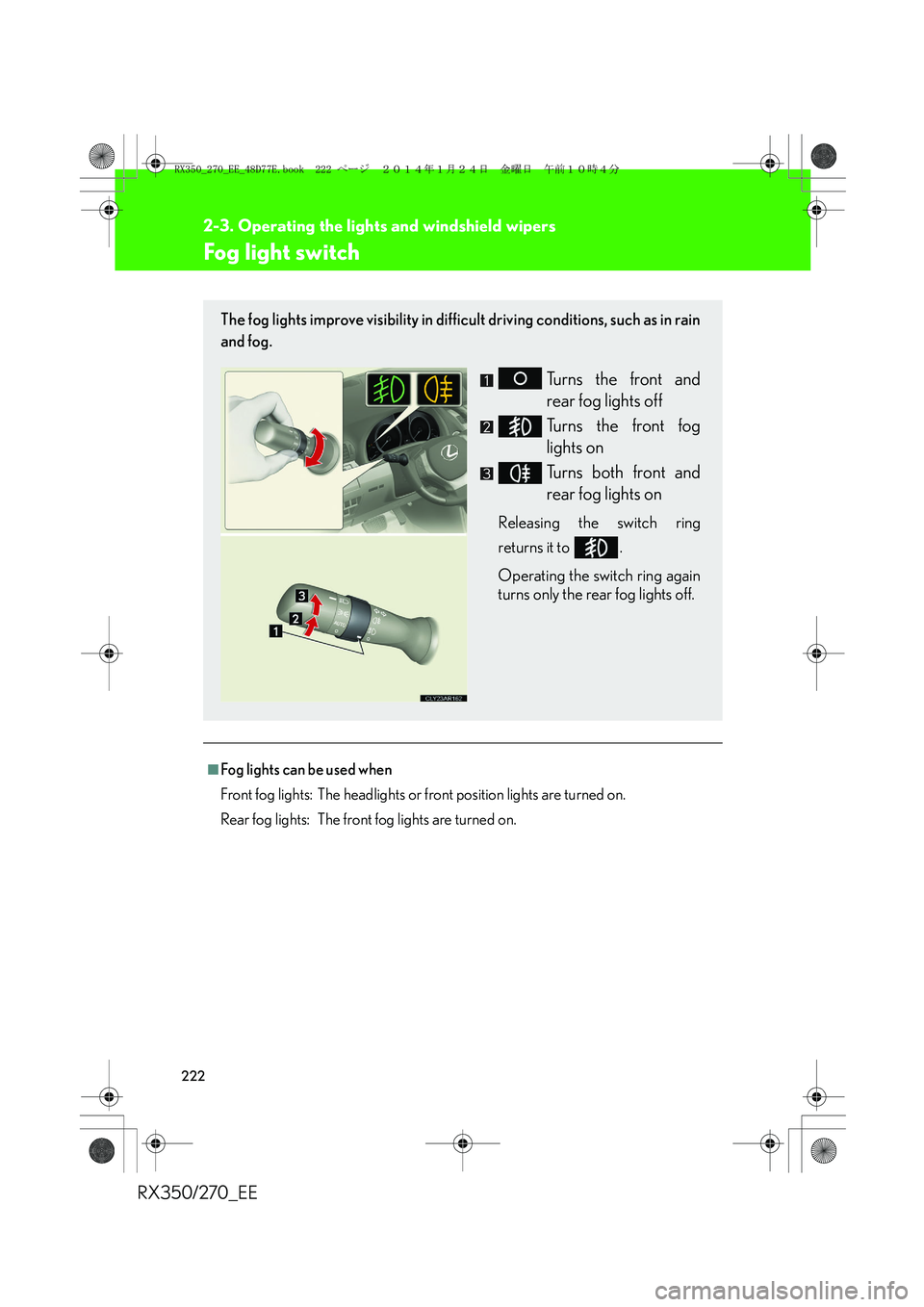

Fog light switch
■Fog lights can be used when
Front fog lights: The headlights or front position lights are turned on.
Rear fog lights: The front fog lights are turned on.
The fog lights improve visibility in difficult driving conditions, such as in rain
and fog.
Turns the front and
rear fog lights off
Turns the front fog
lights on
Turns both front and
rear fog lights on
Releasing the switch ring
returns it to .
Operating the switch ring again
turns only the rear fog lights off.
RX350_270_EE_48D77E.book 222 ページ ２０１４年１月２４日　金曜日　午前１０時４分

223
2-3. Operating the lights and windshield wipers
2
When driving
RX350/270_EE
Windshield wipers and washer
When is selected, the wipers will operate automatically when the
sensor detects falling rain. The system automatically adjusts wiper timing
according to rain volume and vehicle speed.
When is selected, the sensor sensitivity can be adjusted as fol-
lows by turning the switch ring:
Off
Rain-sensing wiper
operation
Low speed wiper
operation
High speed wiper
operation
Temporary operation
Sensor sensitivity (high)
Sensor sensitivity (low)
RX350_270_EE_48D77E.book 223 ページ ２０１４年１月２４日　金曜日　午前１０時４分

224
2-3. Operating the lights and windshield wipers
RX350/270_EE
■The windshield wipers and washer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Effects of vehicle speed on wiper operation
Vehicle speed affects the following even when the wipers are not in AUTO mode:
●Intermittent wiper interval
●Wiper operation when the washer is being used (delay until drip prevention
wiper sweep occurs)
When low speed wiper operation is selected, wiper operation will be switched from
low speed to intermittent wiper operation only when the vehicle is stationary.
(However, when the sensor sensitivity is adjusted to the highest level, the mode can-
not be switched.)
Washer/wiper dual operation
The wipers will automatically
operate a couple of times after
the washer squirts. (After oper-
ating several times, the wipers
operate one more time after a
short delay to prevent dripping.)
If the headlights are on, the
headlight cleaners will operate
once.
RX350_270_EE_48D77E.book 224 ページ ２０１４年１月２４日　金曜日　午前１０時４分

225
2-3. Operating the lights and windshield wipers
2
When driving
RX350/270_EE
■Raindrop sensor
●If the wiper switch is turned to the position while the “ENGINE START
STOP” switch is in IGNITION ON mode, the wipers will operate once to show
that AUTO mode is activated.
●When the sensor sensitivity ring is turned toward high while in AUTO mode, the
wipers will operate once to indicate that the sensor sensitivity is enhanced.
●If the temperature of the raindrop sensor is 90°C (194°F) or higher, or -15°C
(5°F) or lower, automatic operation may not occur. In this case, operate the wip-
ers in any mode other than AUTO.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
CAUTION
■Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in AUTO mode. Take care that your fingers etc. do
not become caught in the windshield wipers.
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes warm. The
fluid may freeze on the windshield and cause low visibility. This may lead to an acci-
dent, resulting in death or serious injury.
●The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.
RX350_270_EE_48D77E.book 225 ページ ２０１４年１月２４日　金曜日　午前１０時４分

226
2-3. Operating the lights and windshield wipers
RX350/270_EE

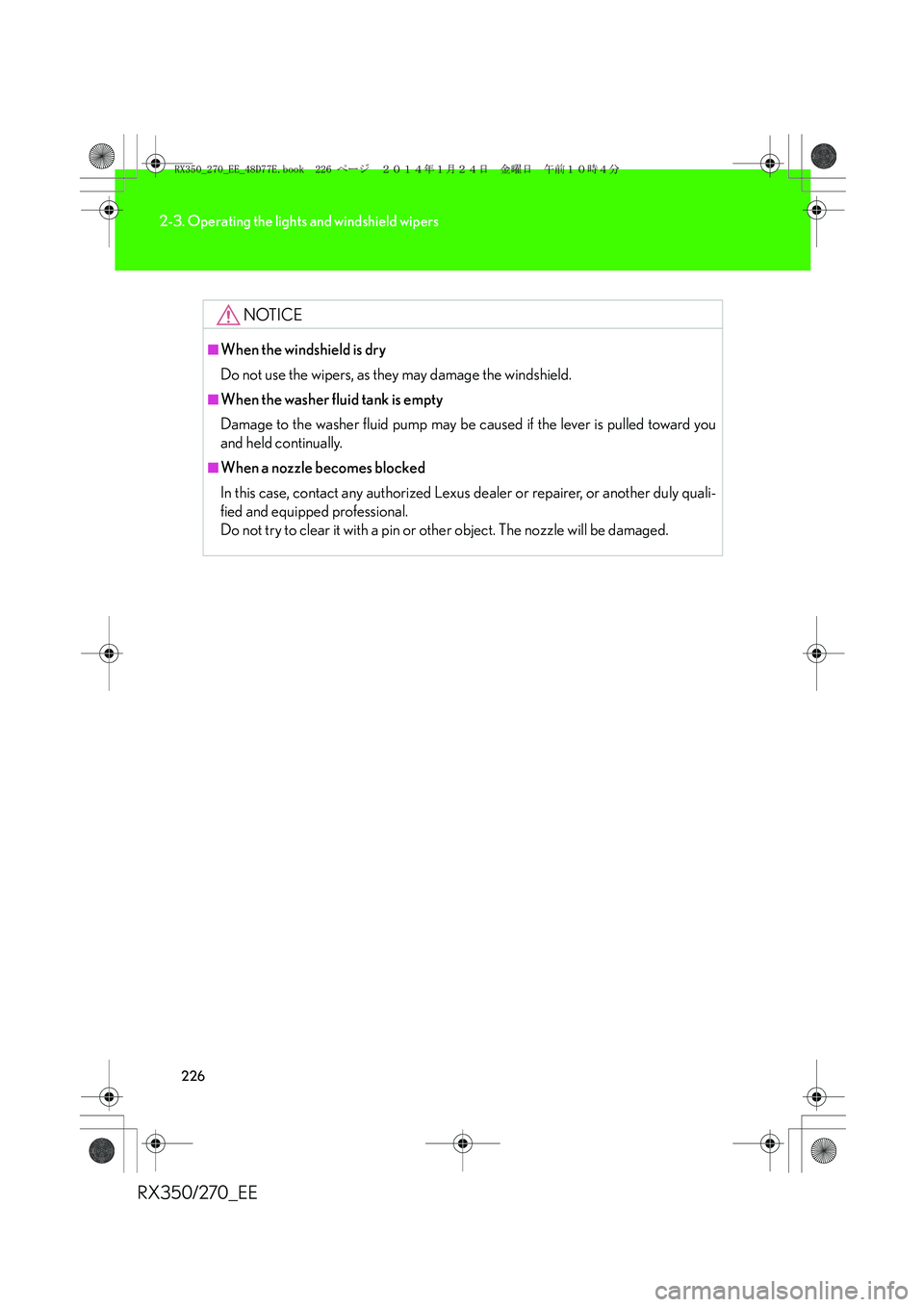

NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When the washer fluid tank is empty
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.
■When a nozzle becomes blocked
In this case, contact any authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
RX350_270_EE_48D77E.book 226 ページ ２０１４年１月２４日　金曜日　午前１０時４分

227
2-3. Operating the lights and windshield wipers
2
When driving
RX350/270_EE

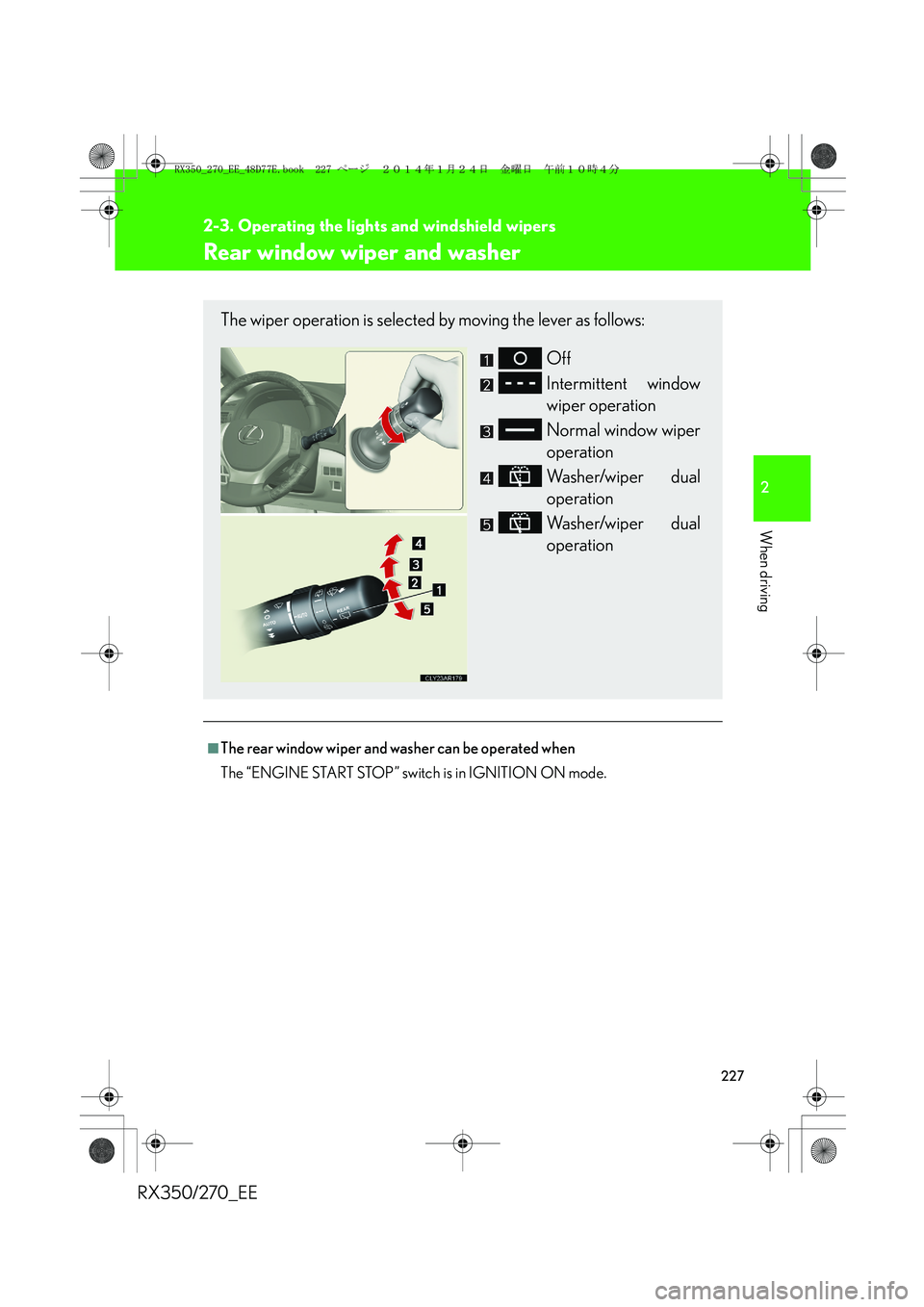

Rear window wiper and washer
■The rear window wiper and washer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
The wiper operation is selected by moving the lever as follows:
Off
Intermittent window
wiper operation
Normal window wiper
operation
Washer/wiper dual
operation
Washer/wiper dual
operation
RX350_270_EE_48D77E.book 227 ページ ２０１４年１月２４日　金曜日　午前１０時４分

228
2-3. Operating the lights and windshield wipers
RX350/270_EE
NOTICE
■When the rear window is dry
Do not use the wipers, as they may damage the rear window.
■When the washer fluid tank is empty
Damage to the washer fluid pump may be caused if the lever is operated continu-
ally.
■When a nozzle becomes blocked
In this case, contact any authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
RX350_270_EE_48D77E.book 228 ページ ２０１４年１月２４日　金曜日　午前１０時４分

229
2-3. Operating the lights and windshield wipers
2
When driving
RX350/270_EE

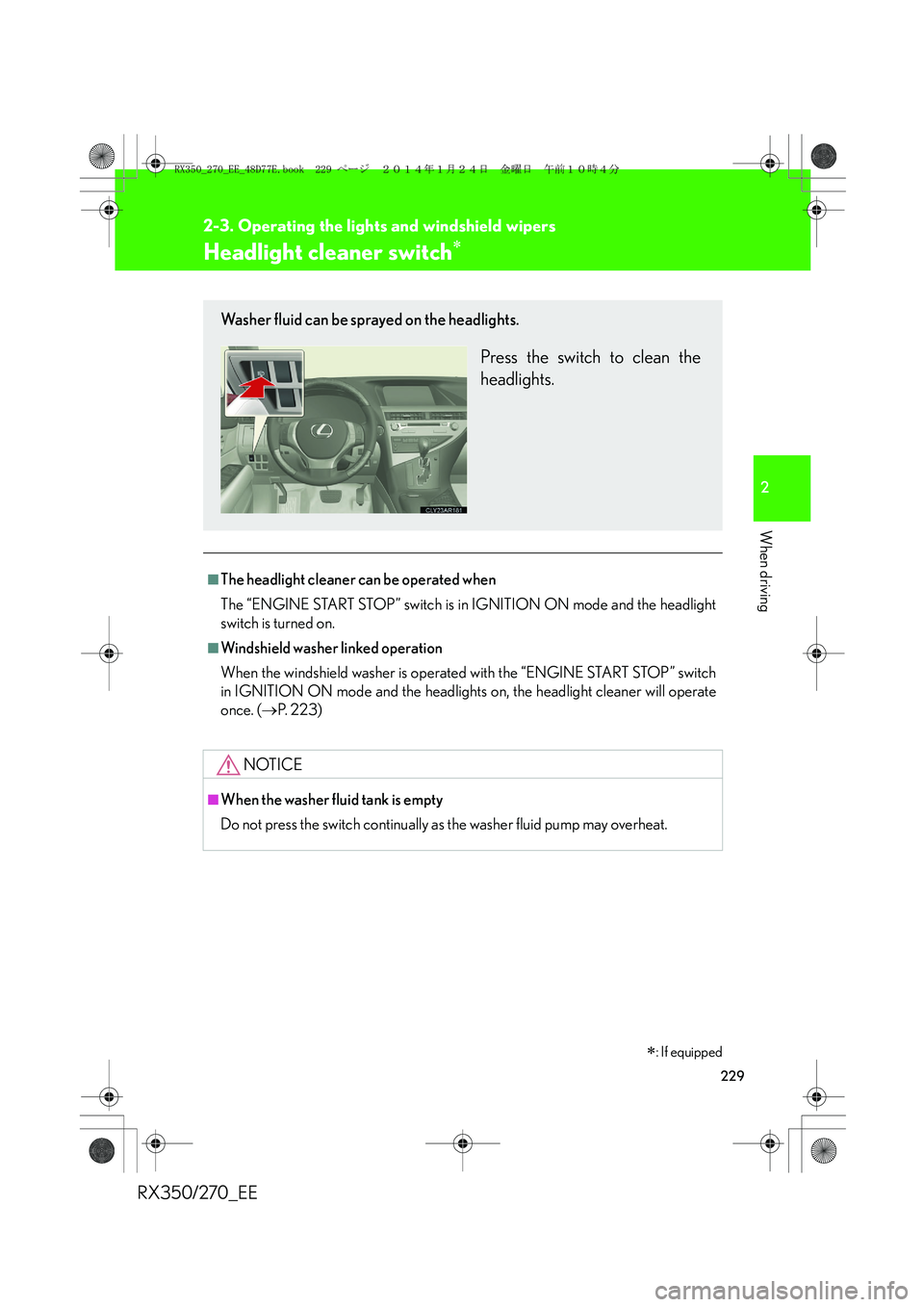

Headlight cleaner switch∗
■The headlight cleaner can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode and the headlight
switch is turned on.
■Windshield washer linked operation
When the windshield washer is operated with the “ENGINE START STOP” switch
in IGNITION ON mode and the headlights on, the headlight cleaner will operate
once. (→P. 223)
NOTICE
■When the washer fluid tank is empty
Do not press the switch continually as the washer fluid pump may overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.
∗: If equipped
RX350_270_EE_48D77E.book 229 ページ ２０１４年１月２４日　金曜日　午前１０時４分

230
RX350/270_EE
2-4. Using other driving systems

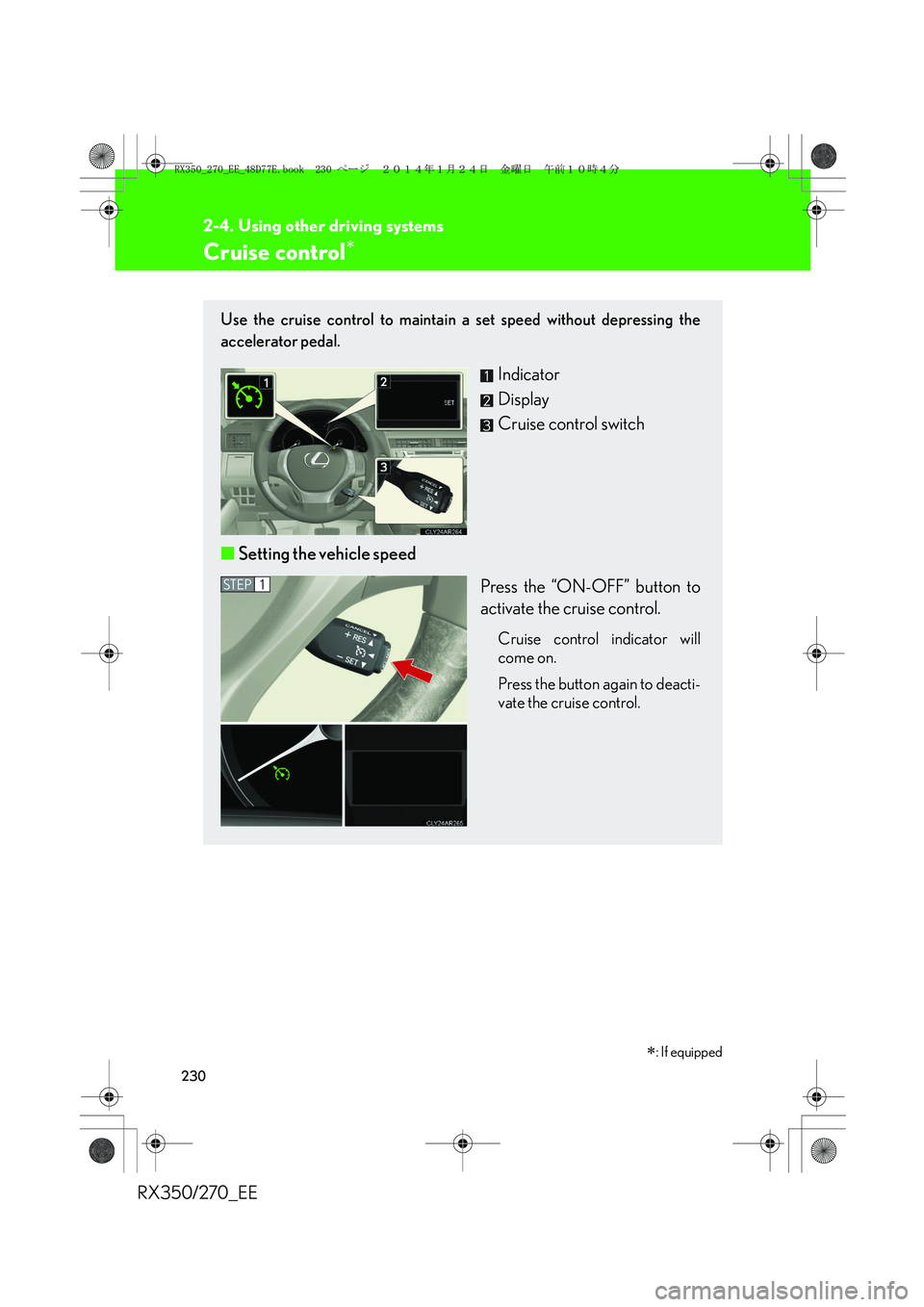

Cruise control∗
Use the cruise control to maintain a set speed without depressing the
accelerator pedal.
Indicator
Display
Cruise control switch
■Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will
come on.
Press the button again to deacti-
vate the cruise control.
STEP1
∗: If equipped
