2-4. Using other driving systems
2
When driving
RX350/270_EE

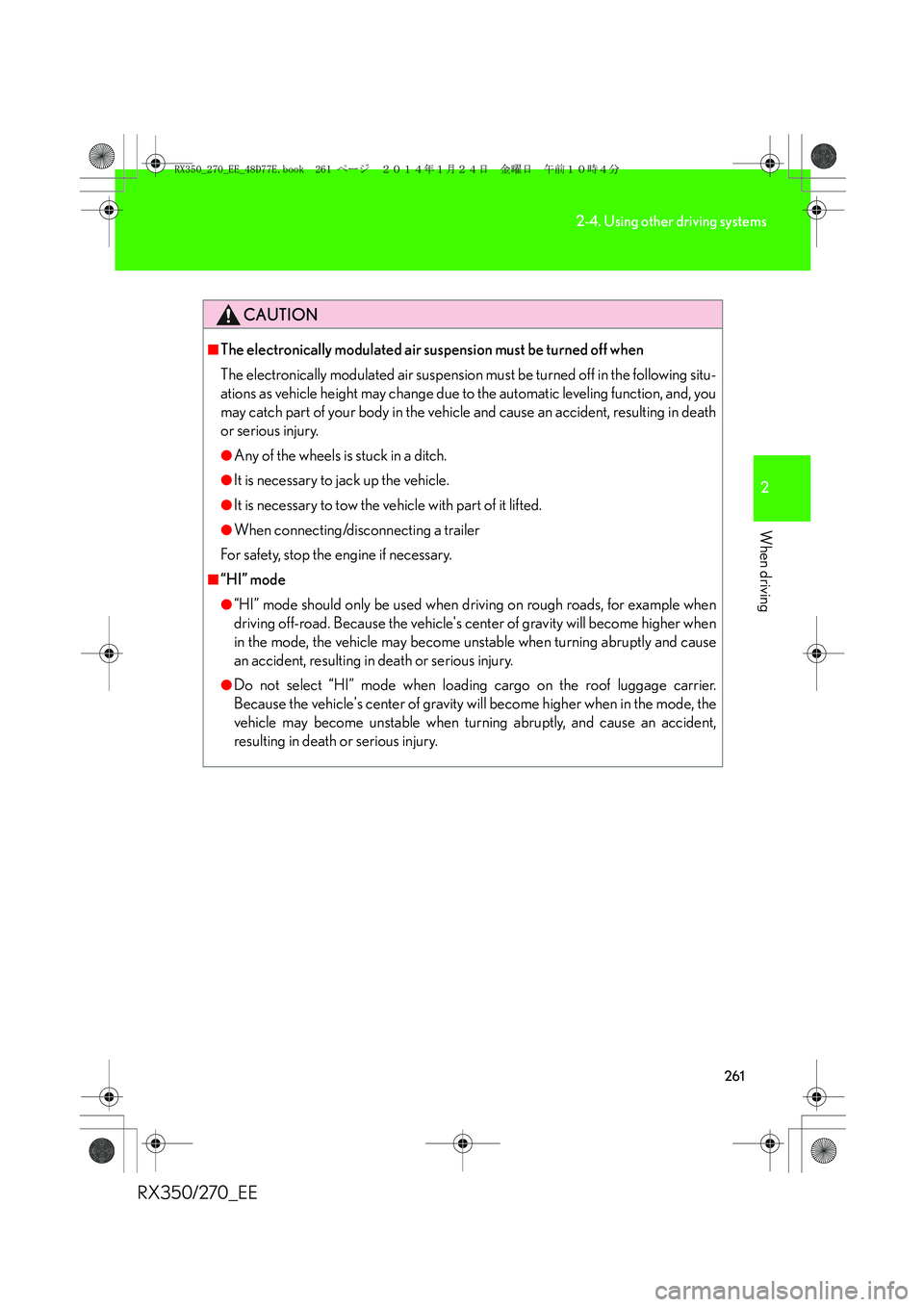

CAUTION
■The electronically modulated air suspension must be turned off when
The electronically modulated air suspension must be turned off in the following situ-
ations as vehicle height may change due to the automatic leveling function, and, you
may catch part of your body in the vehicle and cause an accident, resulting in death
or serious injury.
●Any of the wheels is stuck in a ditch.
●It is necessary to jack up the vehicle.
●It is necessary to tow the vehicle with part of it lifted.
●When connecting/disconnecting a trailer
For safety, stop the engine if necessary.
■“HI” mode
●“HI” mode should only be used when driving on rough roads, for example when
driving off-road. Because the vehicle's center of gravity will become higher when
in the mode, the vehicle may become unstable when turning abruptly and cause
an accident, resulting in death or serious injury.
●Do not select “HI” mode when loading cargo on the roof luggage carrier.
Because the vehicle's center of gravity will become higher when in the mode, the
vehicle may become unstable when turning abruptly, and cause an accident,
resulting in death or serious injury.
RX350_270_EE_48D77E.book 261 ページ ２０１４年１月２４日　金曜日　午前１０時４分

262
2-4. Using other driving systems
RX350/270_EE

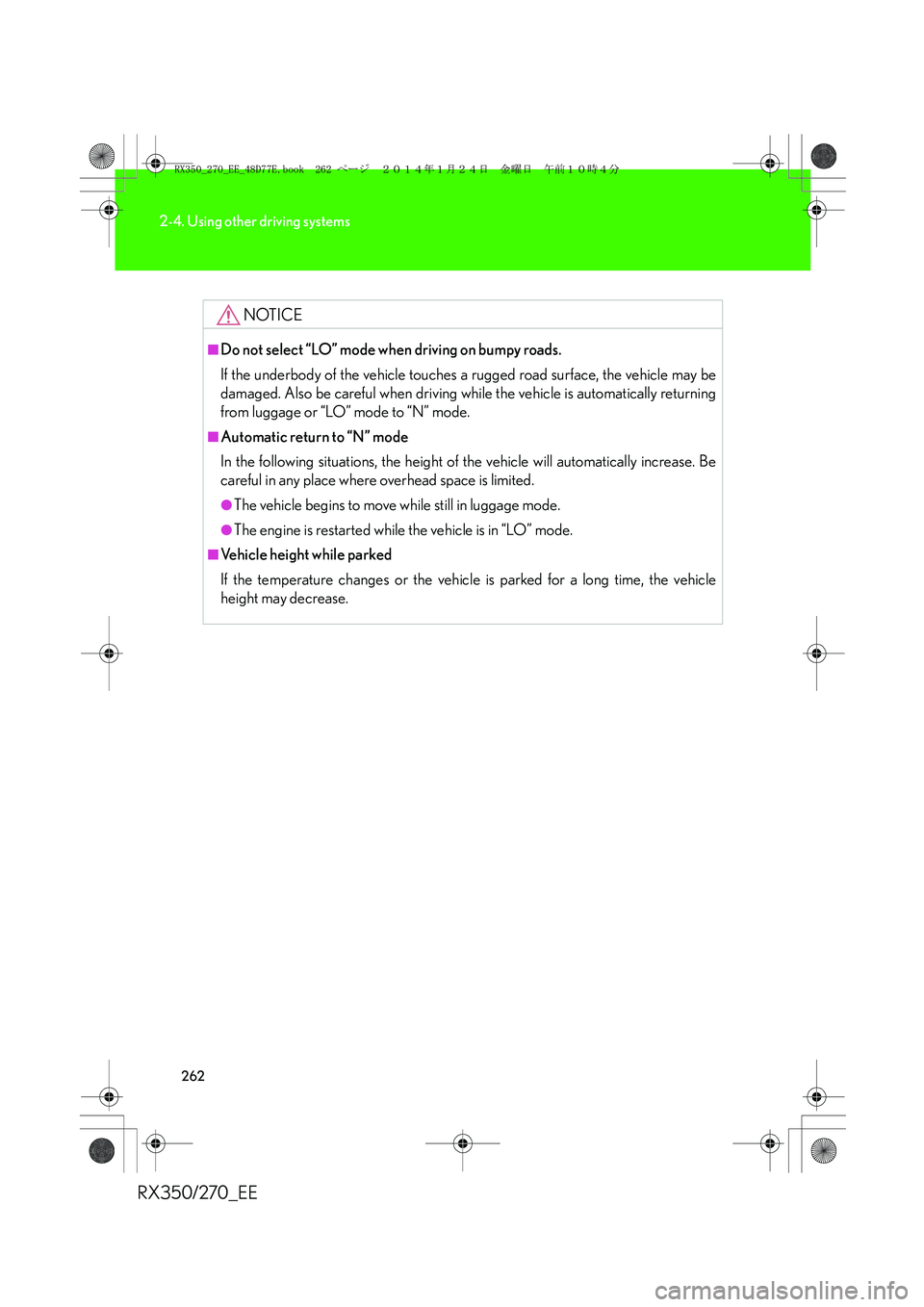

NOTICE
■Do not select “LO” mode when driving on bumpy roads.
If the underbody of the vehicle touches a rugged road surface, the vehicle may be
damaged. Also be careful when driving while the vehicle is automatically returning
from luggage or “LO” mode to “N” mode.
■Automatic return to “N” mode
In the following situations, the height of the vehicle will automatically increase. Be
careful in any place where overhead space is limited.
●The vehicle begins to move while still in luggage mode.
●The engine is restarted while the vehicle is in “LO” mode.
■Vehicle height while parked
If the temperature changes or the vehicle is parked for a long time, the vehicle
height may decrease.
RX350_270_EE_48D77E.book 262 ページ ２０１４年１月２４日　金曜日　午前１０時４分

263
2-4. Using other driving systems
2
When driving
RX350/270_EE

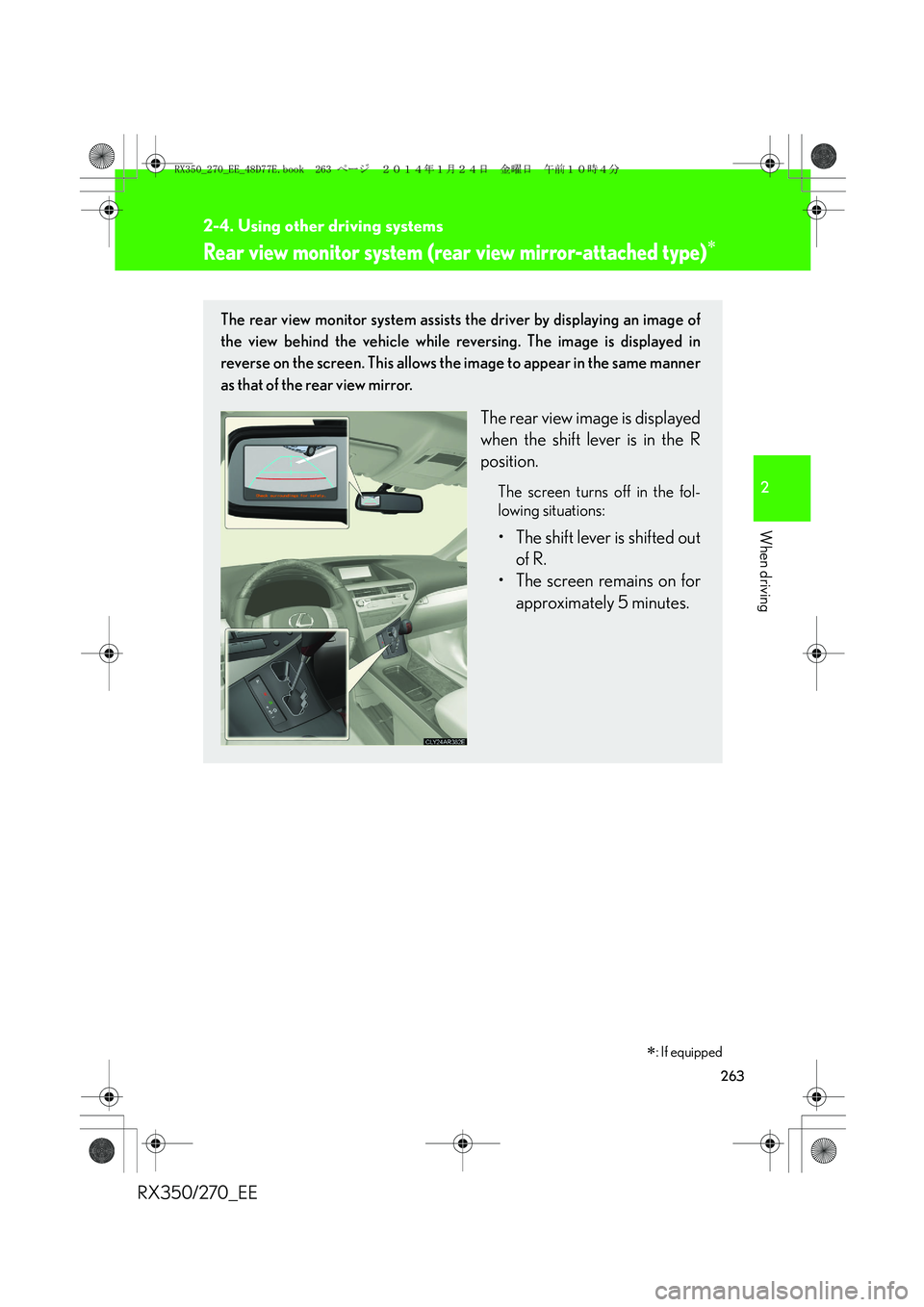

Rear view monitor system (rear view mirror-attached type)∗
The rear view monitor system assists the driver by displaying an image of
the view behind the vehicle while reversing. The image is displayed in
reverse on the screen. This allows the image to appear in the same manner
as that of the rear view mirror.
The rear view image is displayed
when the shift lever is in the R
position.
The screen turns off in the fol-
lowing situations:
• The shift lever is shifted out
of R.
• The screen remains on for
approximately 5 minutes.
∗: If equipped
RX350_270_EE_48D77E.book 263 ページ ２０１４年１月２４日　金曜日　午前１０時４分

264
2-4. Using other driving systems
RX350/270_EE

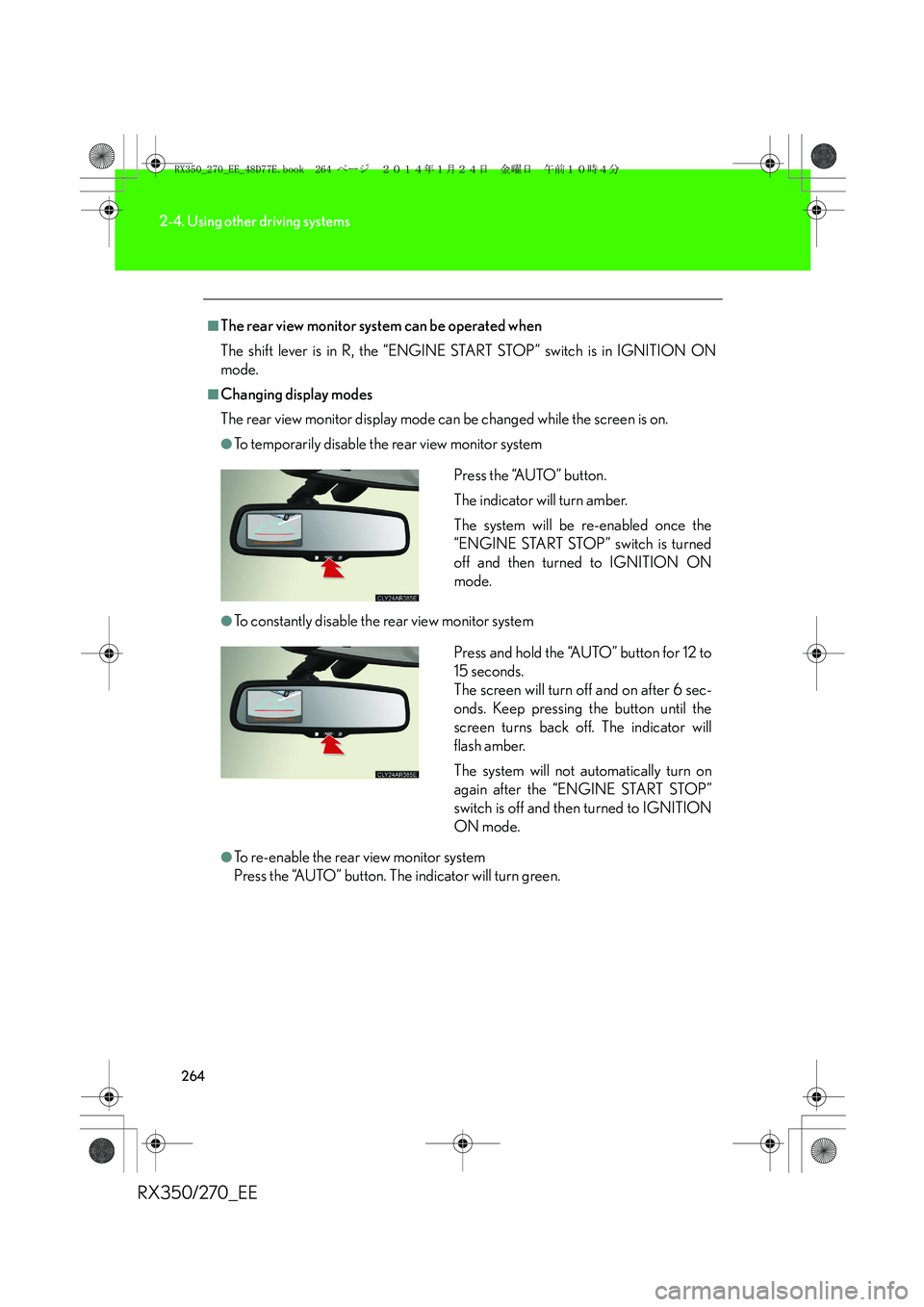

■The rear view monitor system can be operated when
The shift lever is in R, the “ENGINE START STOP” switch is in IGNITION ON
mode.
■Changing display modes
The rear view monitor display mode can be changed while the screen is on.
●To temporarily disable the rear view monitor system
●To constantly disable the rear view monitor system
●To re-enable the rear view monitor system
Press the “AUTO” button. The indicator will turn green.Press the “AUTO” button.
The indicator will turn amber.
The system will be re-enabled once the
“ENGINE START STOP” switch is turned
off and then turned to IGNITION ON
mode.
Press and hold the “AUTO” button for 12 to
15 seconds.
The screen will turn off and on after 6 sec-
onds. Keep pressing the button until the
screen turns back off. The indicator will
flash amber.
The system will not automatically turn on
again after the “ENGINE START STOP”
switch is off and then turned to IGNITION
ON mode.
RX350_270_EE_48D77E.book 264 ページ ２０１４年１月２４日　金曜日　午前１０時４分

265
2-4. Using other driving systems
2
When driving
RX350/270_EE
■Rear view monitor guide lines
Guide lines are displayed on the screen.
Guidelines shown differ from those
shown on the actual screen.
Vehicle width extension guide lines
(blue)
These lines indicate the estimated vehi-
cle width extension.
Distance guide line (blue)
This line indicates a position on the
ground about 1 m (3 ft.) behind on the
ground of the rear bumper of your vehi-
cle.
Distance guide line (red)
This line indicates a position on the
ground about 0.5 m (1.5ft.) behind on
the ground of the rear bumper of your
vehicle.
Vehicle center guide lines (blue)
These lines indicate the estimated vehi-
cle center on the ground.
RX350_270_EE_48D77E.book 265 ページ ２０１４年１月２４日　金曜日　午前１０時４分

266
2-4. Using other driving systems
RX350/270_EE

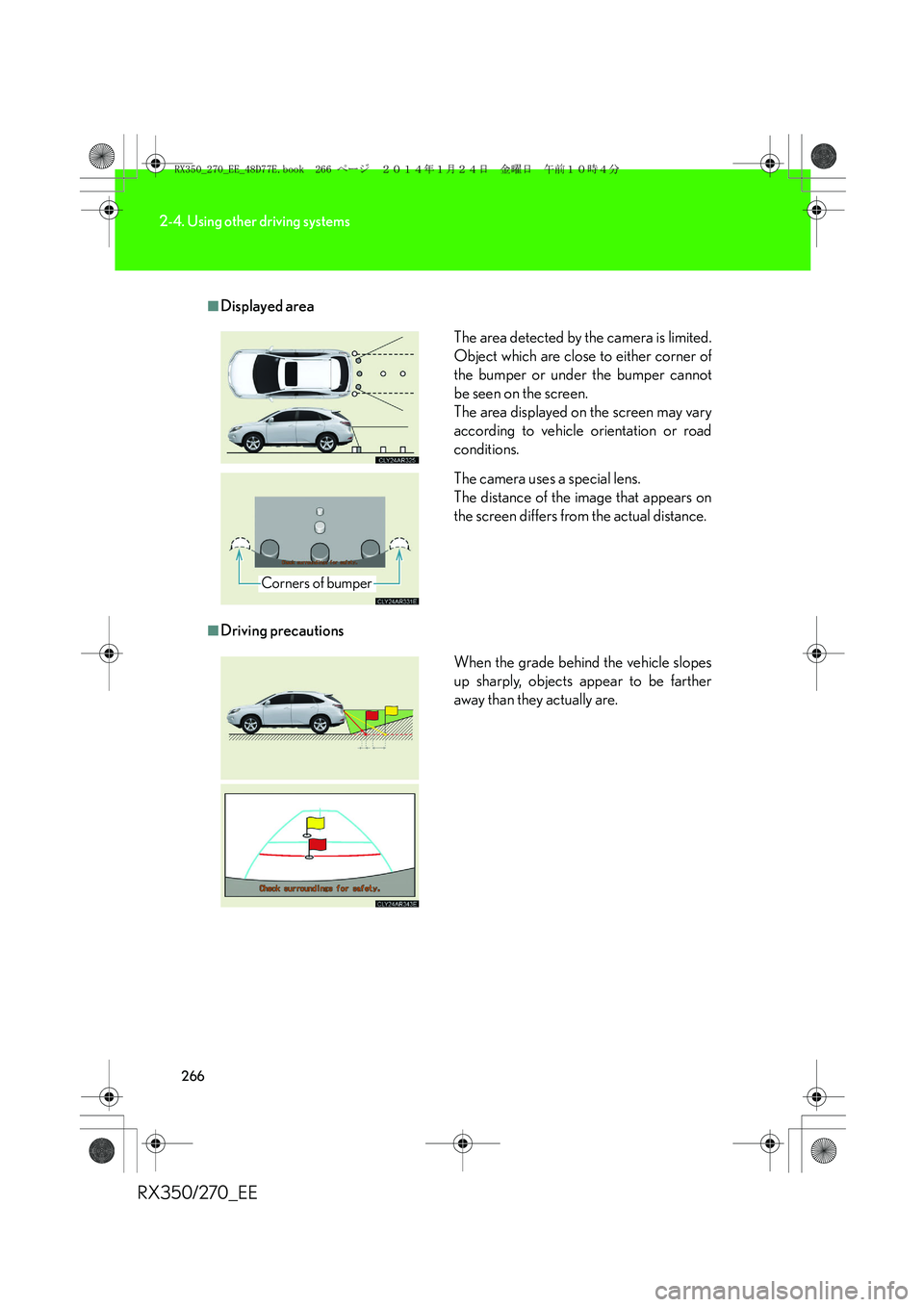

■Displayed area
■Driving precautionsThe area detected by the camera is limited.
Object which are close to either corner of
the bumper or under the bumper cannot
be seen on the screen.
The area displayed on the screen may vary
according to vehicle orientation or road
conditions.
The camera uses a special lens.
The distance of the image that appears on
the screen differs from the actual distance.
Corners of bumper
When the grade behind the vehicle slopes
up sharply, objects appear to be farther
away than they actually are.
RX350_270_EE_48D77E.book 266 ページ ２０１４年１月２４日　金曜日　午前１０時４分

267
2-4. Using other driving systems
2
When driving
RX350/270_EE

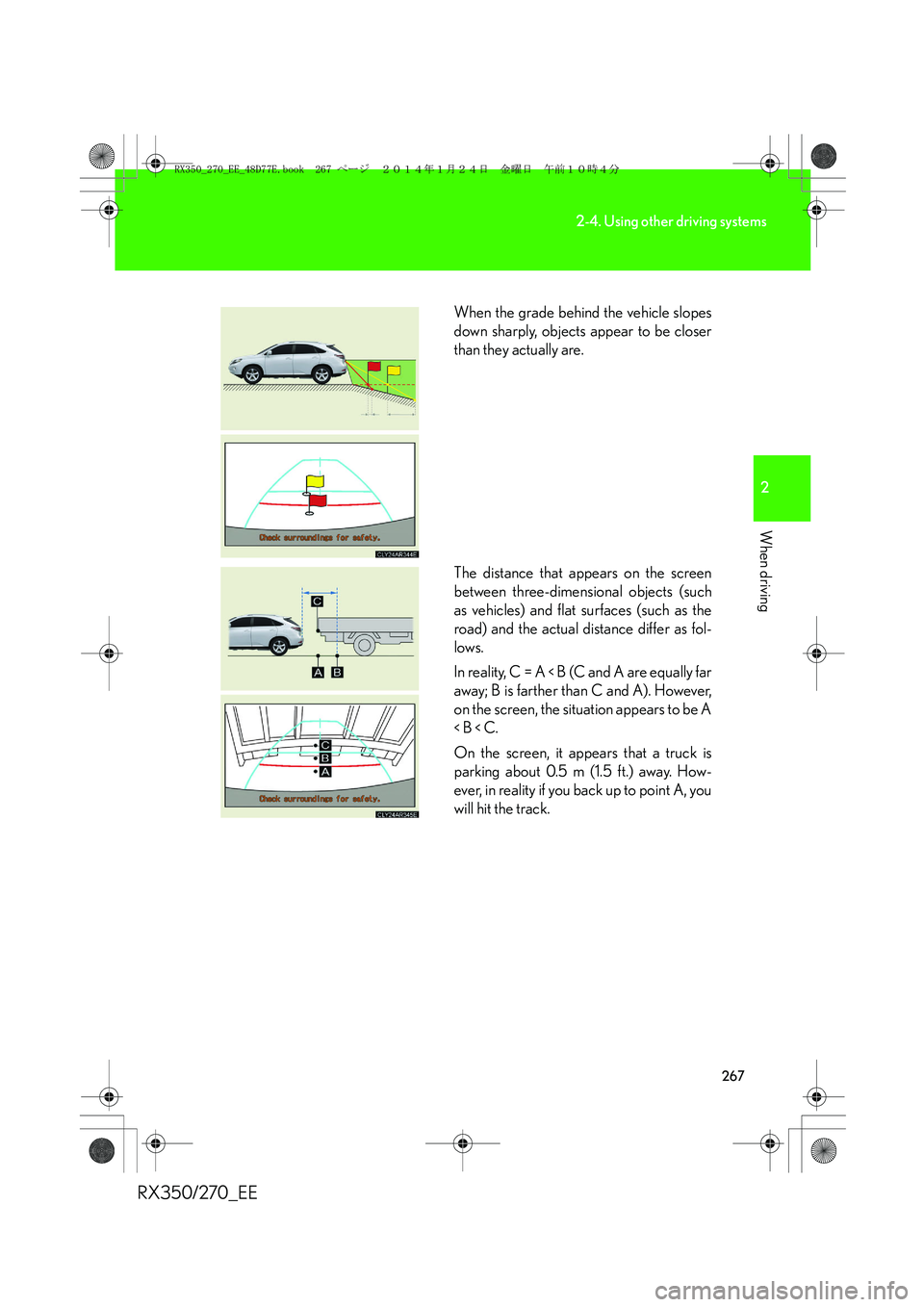

When the grade behind the vehicle slopes
down sharply, objects appear to be closer
than they actually are.
The distance that appears on the screen
between three-dimensional objects (such
as vehicles) and flat surfaces (such as the
road) and the actual distance differ as fol-
lows.
In reality, C = A < B (C and A are equally far
away; B is farther than C and A). However,
on the screen, the situation appears to be A
< B < C.
On the screen, it appears that a truck is
parking about 0.5 m (1.5 ft.) away. How-
ever, in reality if you back up to point A, you
will hit the track.
RX350_270_EE_48D77E.book 267 ページ ２０１４年１月２４日　金曜日　午前１０時４分

268
2-4. Using other driving systems
RX350/270_EE

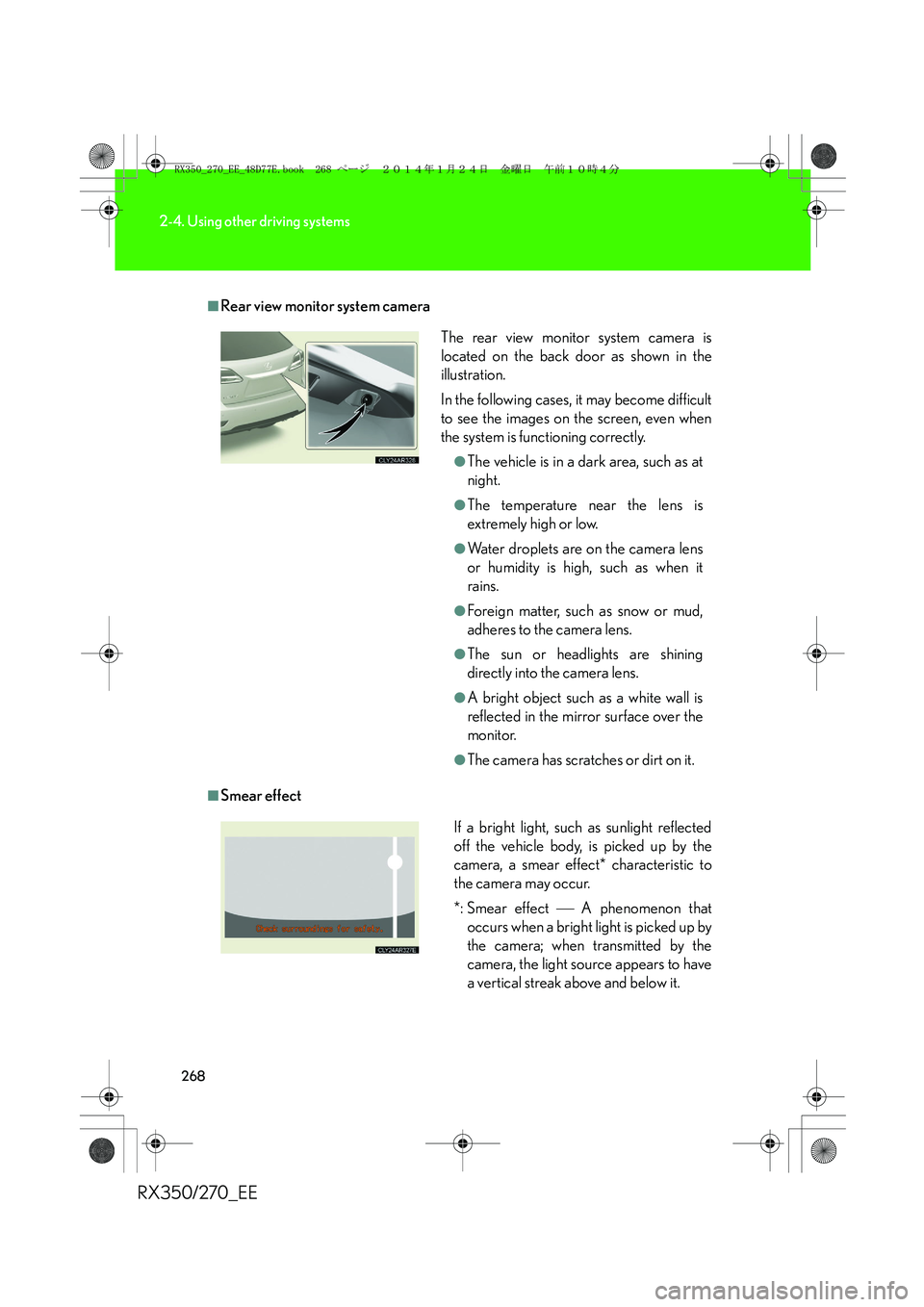

■Rear view monitor system camera
■Smear effectThe rear view monitor system camera is
located on the back door as shown in the
illustration.
In the following cases, it may become difficult
to see the images on the screen, even when
the system is functioning correctly.
●The vehicle is in a dark area, such as at
night.
●The temperature near the lens is
extremely high or low.
●Water droplets are on the camera lens
or humidity is high, such as when it
rains.
●Foreign matter, such as snow or mud,
adheres to the camera lens.
●The sun or headlights are shining
directly into the camera lens.
●A bright object such as a white wall is
reflected in the mirror surface over the
monitor.
●The camera has scratches or dirt on it.
If a bright light, such as sunlight reflected
off the vehicle body, is picked up by the
camera, a smear effect* characteristic to
the camera may occur.
*: Smear effect  A phenomenon that
occurs when a bright light is picked up by
the camera; when transmitted by the
camera, the light source appears to have
a vertical streak above and below it.
RX350_270_EE_48D77E.book 268 ページ ２０１４年１月２４日　金曜日　午前１０時４分

269
2-4. Using other driving systems
2
When driving
RX350/270_EE

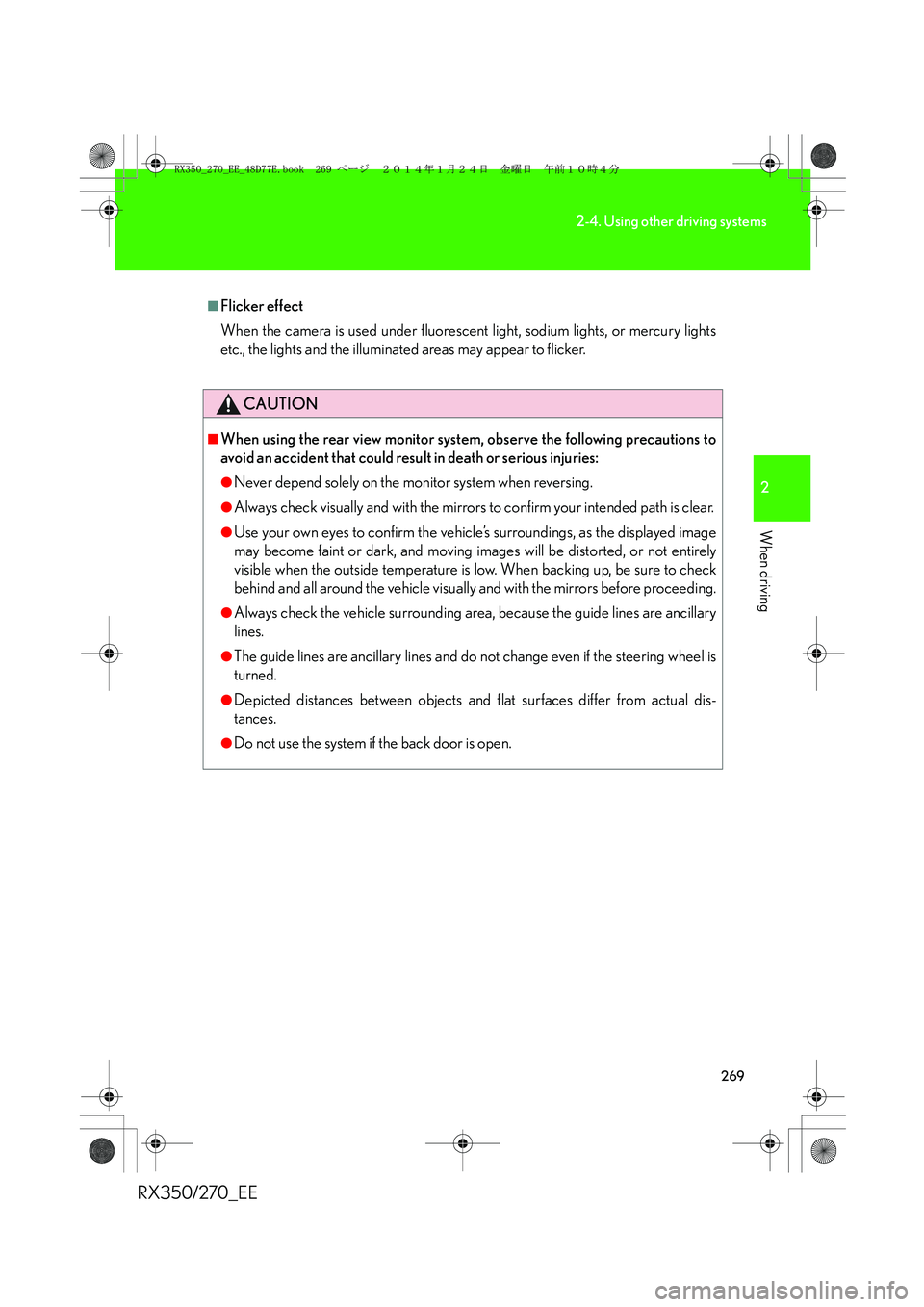

■Flicker effect
When the camera is used under fluorescent light, sodium lights, or mercury lights
etc., the lights and the illuminated areas may appear to flicker.
CAUTION
■When using the rear view monitor system, observe the following precautions to
avoid an accident that could result in death or serious injuries:
●Never depend solely on the monitor system when reversing.
●Always check visually and with the mirrors to confirm your intended path is clear.
●Use your own eyes to confirm the vehicle’s surroundings, as the displayed image
may become faint or dark, and moving images will be distorted, or not entirely
visible when the outside temperature is low. When backing up, be sure to check
behind and all around the vehicle visually and with the mirrors before proceeding.
●Always check the vehicle surrounding area, because the guide lines are ancillary
lines.
●The guide lines are ancillary lines and do not change even if the steering wheel is
turned.
●Depicted distances between objects and flat surfaces differ from actual dis-
tances.
●Do not use the system if the back door is open.
RX350_270_EE_48D77E.book 269 ページ ２０１４年１月２４日　金曜日　午前１０時４分

270
2-4. Using other driving systems
RX350/270_EE

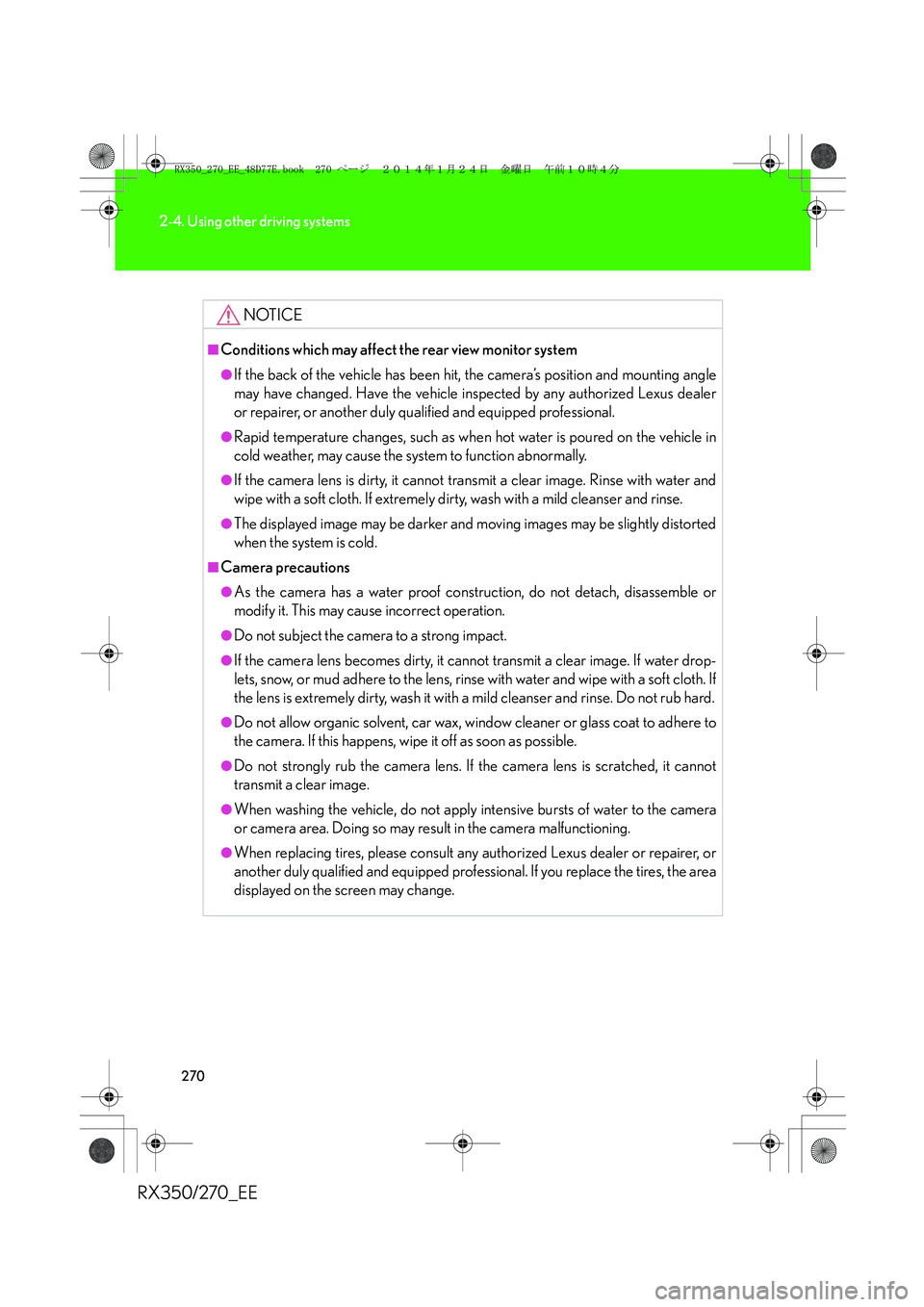

NOTICE
■Conditions which may affect the rear view monitor system
●If the back of the vehicle has been hit, the camera’s position and mounting angle
may have changed. Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional.
●Rapid temperature changes, such as when hot water is poured on the vehicle in
cold weather, may cause the system to function abnormally.
●If the camera lens is dirty, it cannot transmit a clear image. Rinse with water and
wipe with a soft cloth. If extremely dirty, wash with a mild cleanser and rinse.
●The displayed image may be darker and moving images may be slightly distorted
when the system is cold.
■Camera precautions
●As the camera has a water proof construction, do not detach, disassemble or
modify it. This may cause incorrect operation.
●Do not subject the camera to a strong impact.
●If the camera lens becomes dirty, it cannot transmit a clear image. If water drop-
lets, snow, or mud adhere to the lens, rinse with water and wipe with a soft cloth. If
the lens is extremely dirty, wash it with a mild cleanser and rinse. Do not rub hard.
●Do not allow organic solvent, car wax, window cleaner or glass coat to adhere to
the camera. If this happens, wipe it off as soon as possible.
●Do not strongly rub the camera lens. If the camera lens is scratched, it cannot
transmit a clear image.
●When washing the vehicle, do not apply intensive bursts of water to the camera
or camera area. Doing so may result in the camera malfunctioning.
●When replacing tires, please consult any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional. If you replace the tires, the area
displayed on the screen may change.
