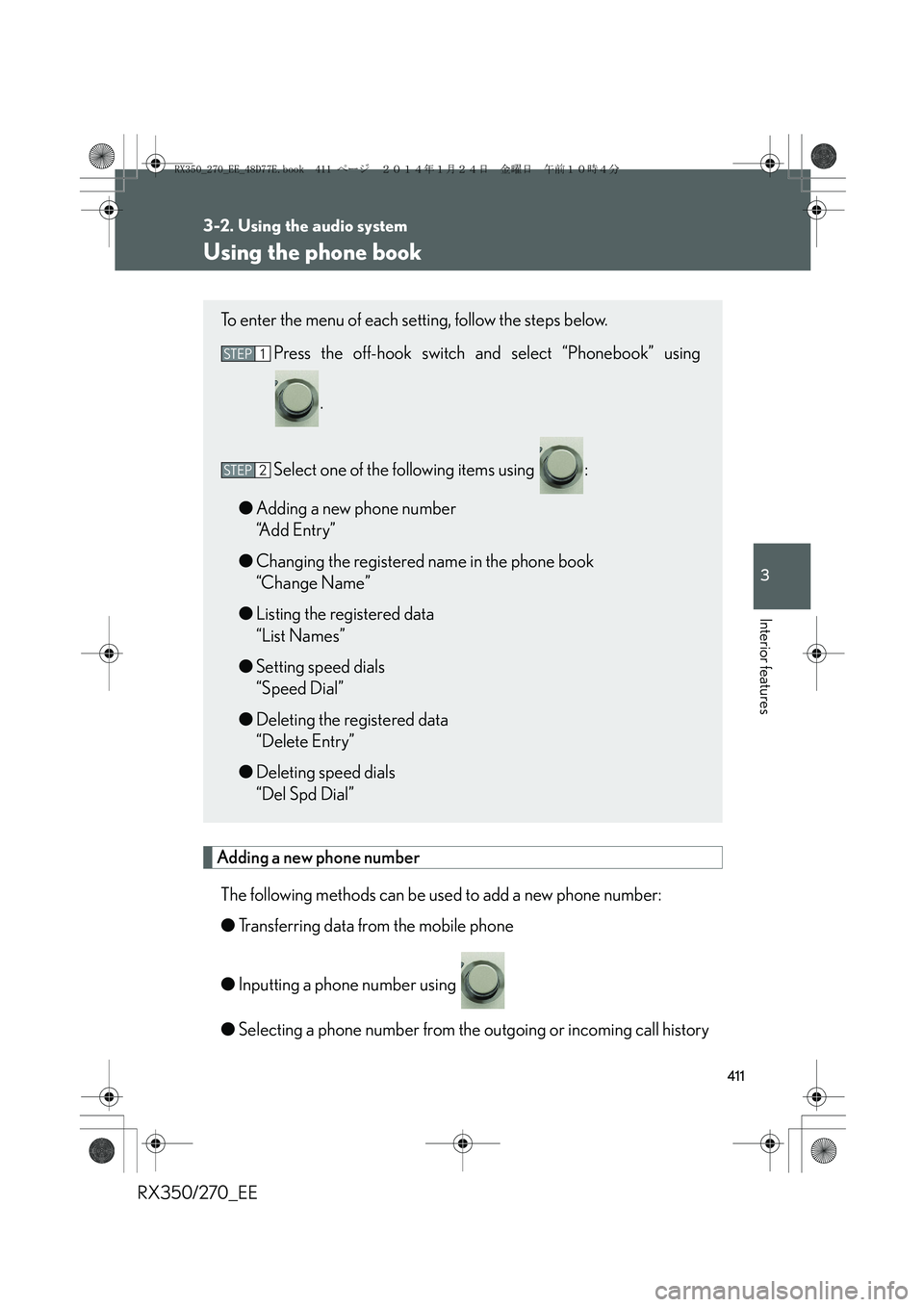

Page 411 of 652
411
3-2. Using the audio system
3
Interior features
RX350/270_EE
Using the phone book
Adding a new phone number
The following methods can be used to add a new phone number:
●Transferring data from the mobile phone
●Inputting a phone number using
●Selecting a phone number from the outgoing or incoming call history
To enter the menu of each setting, follow the steps below.
Press the off-hook switch and select “Phonebook” using
.
Select one of the following items using :
●Adding a new phone number
“Add Entry”
●Changing the registered name in the phone book
“Change Name”
●Listing the registered data
“List Names”
●Setting speed dials
“Speed Dial”
●Deleting the registered data
“Delete Entry”
●Deleting speed dials
“Del Spd Dial”
STEP1
STEP2
RX350_270_EE_48D77E.book 411 ページ 2014年1月24日 金曜日 午前10時4分

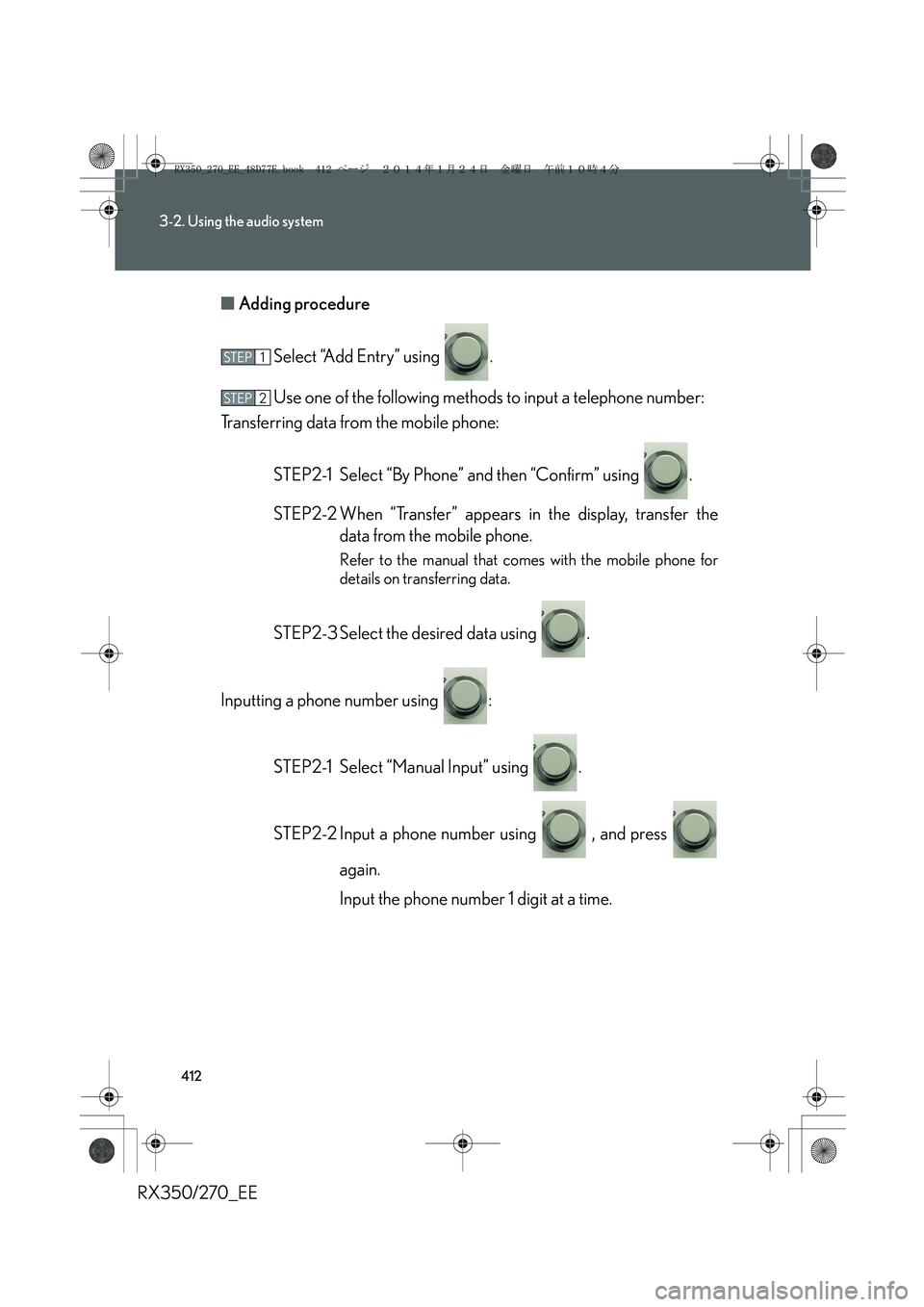

Page 412 of 652
412
3-2. Using the audio system
RX350/270_EE■Adding procedure
Select “Add Entry” using .
Use one of the following methods to input a telephone number:
Transferring data from the mobile phone:
STEP2-1 Select “By Phone” and then “Confirm” using .
STEP2-2 When “Transfer” appears in the display, transfer the
data from the mobile phone.
Refer to the manual that comes with the mobile phone for
details on transferring data.
STEP2-3 Select the desired data using .
Inputting a phone number using :
STEP2-1 Select “Manual Input” using .
STEP2-2 Input a phone number using , and press
again.
Input the phone number 1 digit at a time.
STEP1
STEP2
RX350_270_EE_48D77E.book 412 ページ 2014年1月24日 金曜日 午前10時4分
Page 413 of 652
413
3-2. Using the audio system
3
Interior features
RX350/270_EESelecting a phone number from the outgoing or incoming call history:
STEP2-1 Select “Call History” using .
STEP2-2 Select “Outgoing” or “Incoming” using .
STEP2-3 Select the desired data using .
Select “Record Name” using , and say the desired name
after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using .
Select “Confirm” again using .
In , selecting “Speed Dial” instead of “Confirm” registers the
newly added phone number as a speed dial.
STEP3
STEP4
STEP5
STEP5
RX350_270_EE_48D77E.book 413 ページ 2014年1月24日 金曜日 午前10時4分

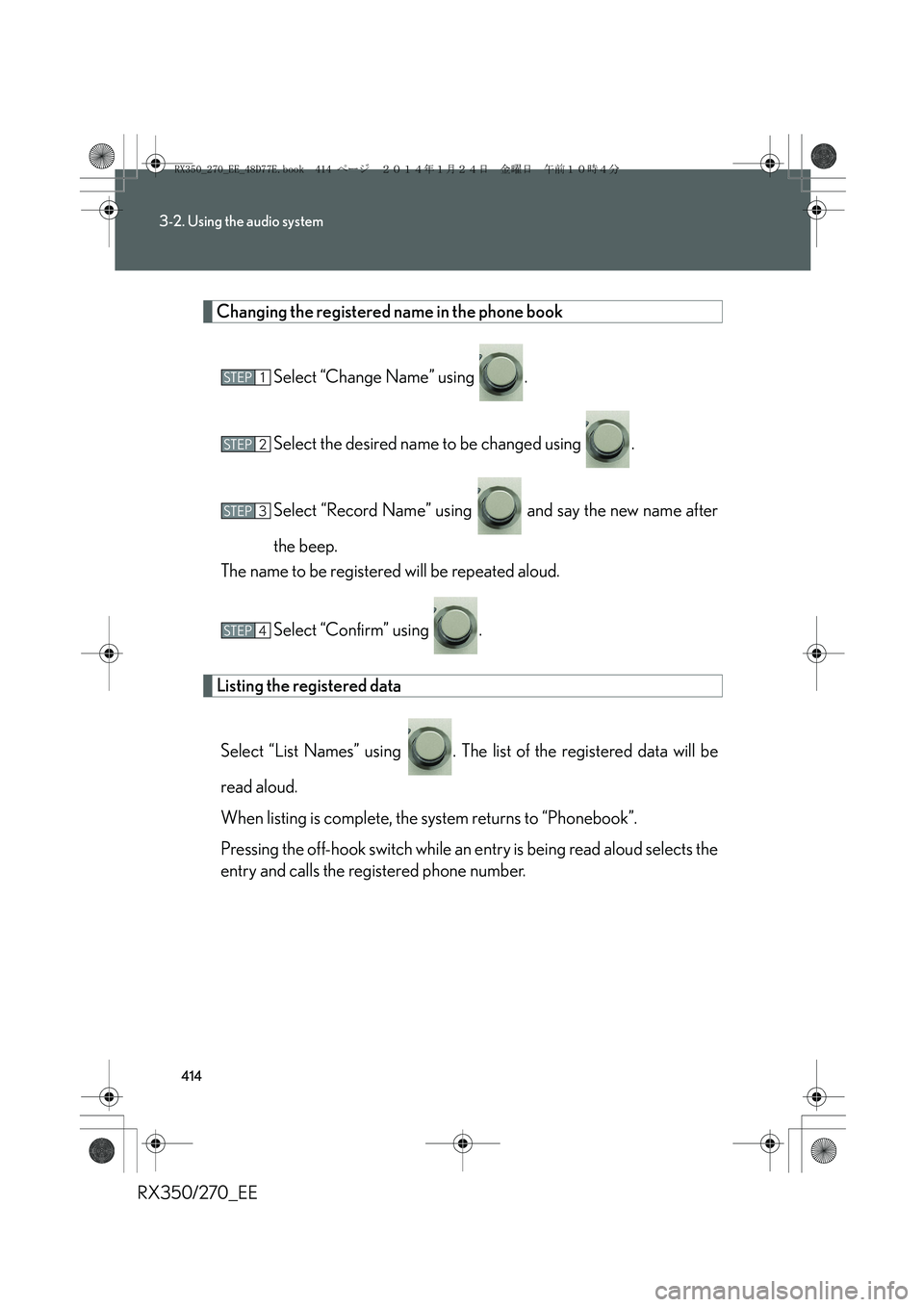

Page 414 of 652
414
3-2. Using the audio system
RX350/270_EE
Changing the registered name in the phone book
Select “Change Name” using .
Select the desired name to be changed using .
Select “Record Name” using and say the new name after
the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using .
Listing the registered data
Select “List Names” using . The list of the registered data will be
read aloud.
When listing is complete, the system returns to “Phonebook”.
Pressing the off-hook switch while an entry is being read aloud selects the
entry and calls the registered phone number.
STEP1
STEP2
STEP3
STEP4
RX350_270_EE_48D77E.book 414 ページ 2014年1月24日 金曜日 午前10時4分

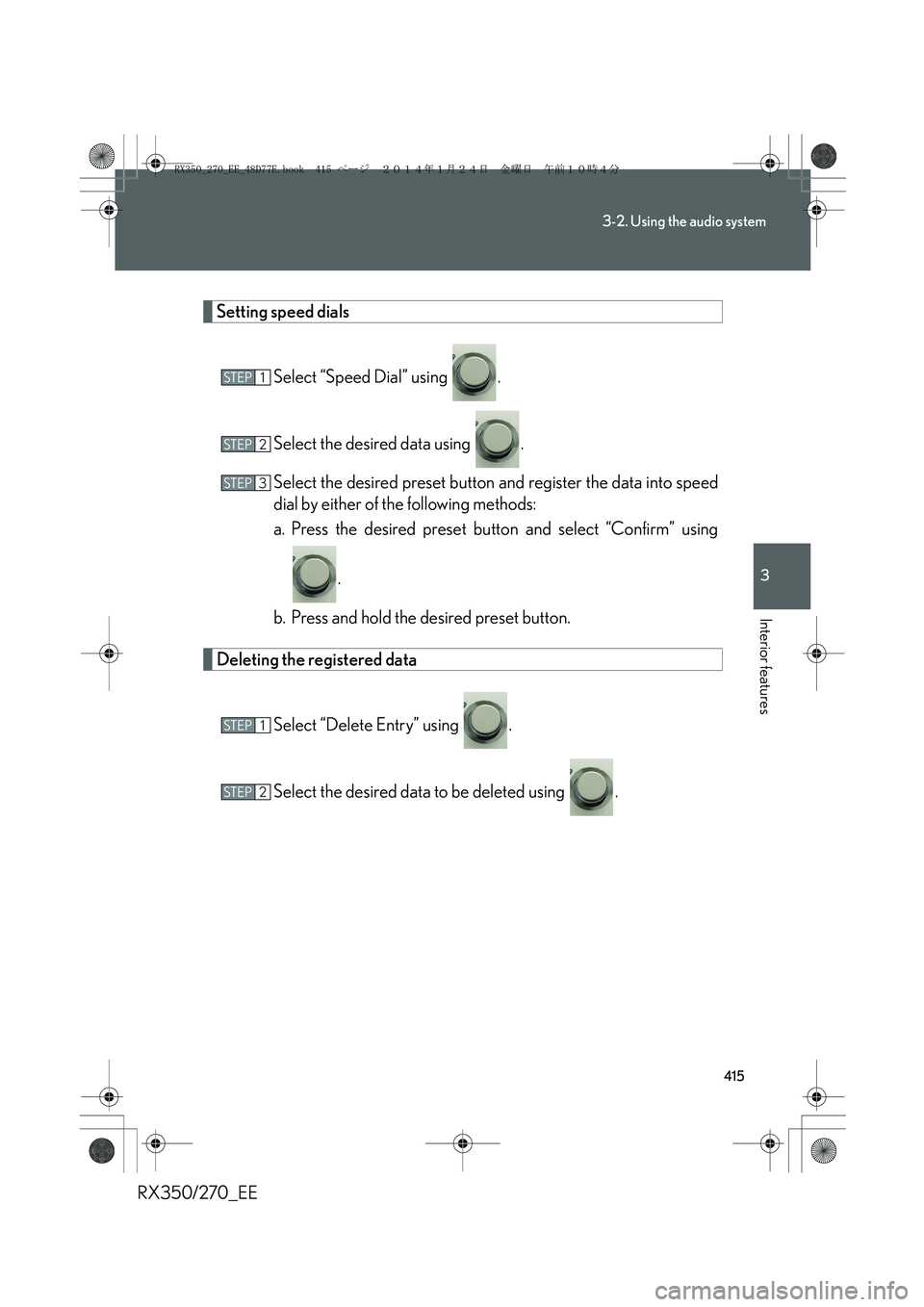

Page 415 of 652
415
3-2. Using the audio system
3
Interior features
RX350/270_EE
Setting speed dials
Select “Speed Dial” using .
Select the desired data using .
Select the desired preset button and register the data into speed
dial by either of the following methods:
a. Press the desired preset button and select “Confirm” using
.
b. Press and hold the desired preset button.
Deleting the registered data
Select “Delete Entry” using .
Select the desired data to be deleted using .
STEP1
STEP2
STEP3
STEP1
STEP2
RX350_270_EE_48D77E.book 415 ページ 2014年1月24日 金曜日 午前10時4分

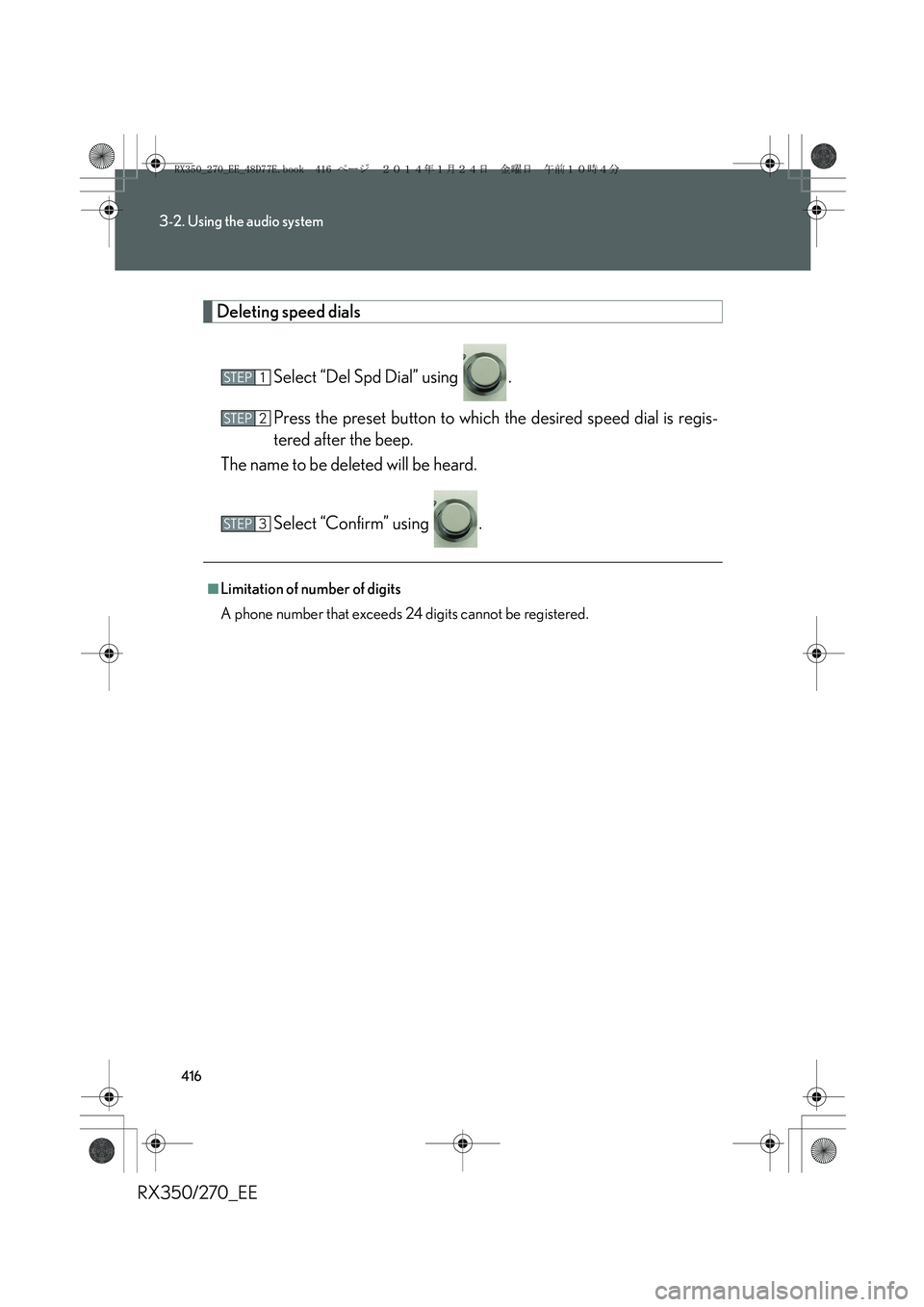

Page 416 of 652
416
3-2. Using the audio system
RX350/270_EE
Deleting speed dials
Select “Del Spd Dial” using .
Press the preset button to which the desired speed dial is regis-
tered after the beep.
The name to be deleted will be heard.
Select “Confirm” using .
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 416 ページ 2014年1月24日 金曜日 午前10時4分

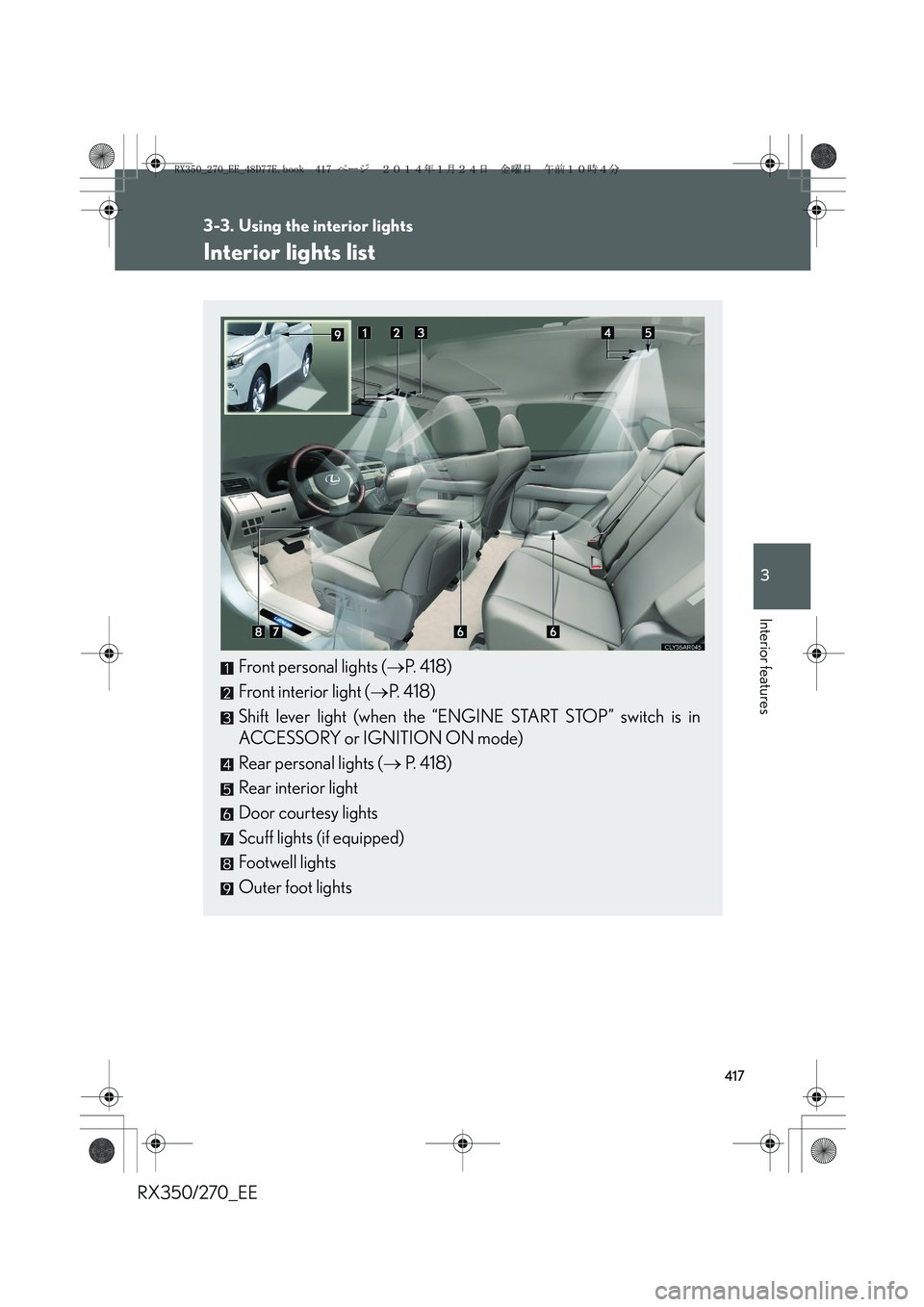

Page 417 of 652
417
3
Interior features
RX350/270_EE
3-3. Using the interior lights
Interior lights list
Front personal lights (→P. 4 1 8 )
Front interior light (→P. 4 1 8 )
Shift lever light (when the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode)
Rear personal lights (→ P. 4 1 8 )
Rear interior light
Door courtesy lights
Scuff lights (if equipped)
Footwell lights
Outer foot lights
RX350_270_EE_48D77E.book 417 ページ 2014年1月24日 金曜日 午前10時4分

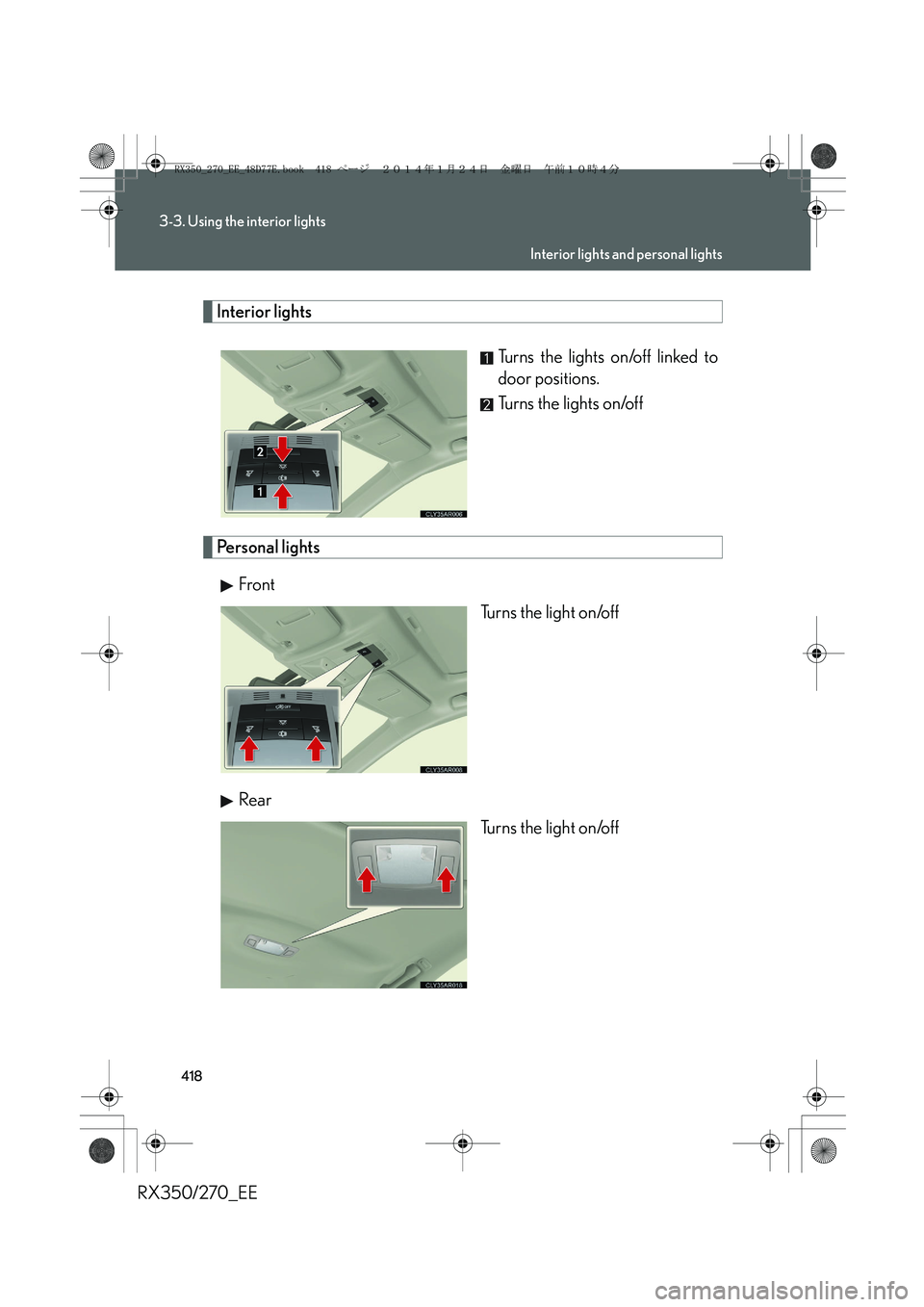

Page 418 of 652
418
3-3. Using the interior lights
RX350/270_EE
Interior lights
Turns the lights on/off linked to
door positions.
Turns the lights on/off
Personal lights
Front
Turns the light on/off
Rear
Turns the light on/off
Interior lights and personal lights
RX350_270_EE_48D77E.book 418 ページ 2014年1月24日 金曜日 午前10時4分
Page 419 of 652
419
3-3. Using the interior lights
3
Interior features
RX350/270_EE
■Illuminated entry system
The lights automatically turn on/off according to “ENGINE START STOP” switch
mode, the presence of the electronic key, whether the doors are locked/unlocked,
and whether the doors are open/closed.
■To prevent battery discharge
When the “ENGINE START STOP” switch is turned off, the lights will go off auto-
matically after 20 minutes.
●Personal lights
●Interior lights
●Door courtesy lights
●Scuff lights (if equipped)
●Footwell lights
■Customization
Settings (e.g. the time elapsed before the lights turn off) can be changed.
(Customizable features →P. 6 2 2 )
Interior lights and personal lights
RX350_270_EE_48D77E.book 419 ページ 2014年1月24日 金曜日 午前10時4分

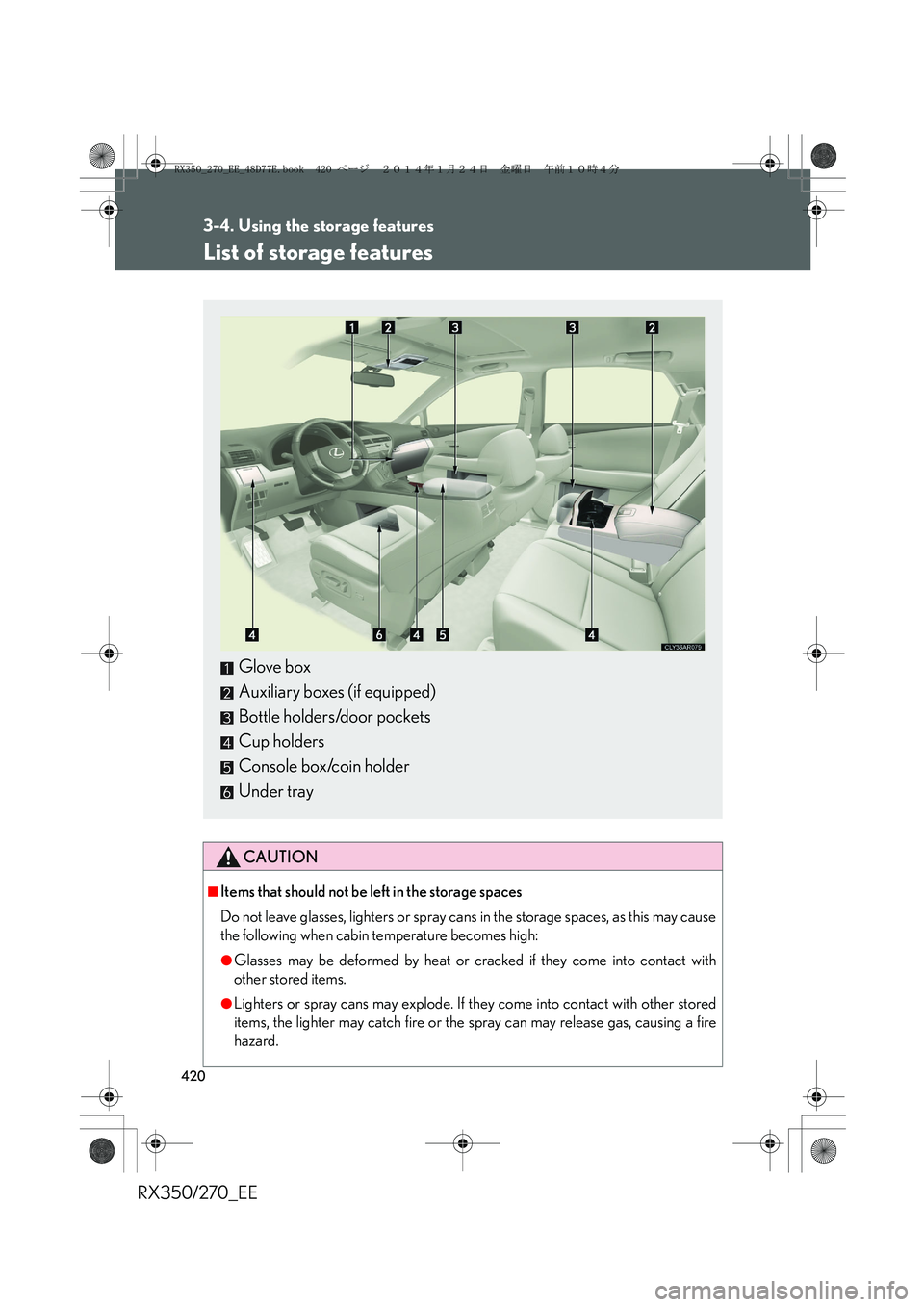

Page 420 of 652
420
RX350/270_EE
3-4. Using the storage features
List of storage features
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact with
other stored items.
●Lighters or spray cans may explode. If they come into contact with other stored
items, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.
Glove box
Auxiliary boxes (if equipped)
Bottle holders/door pockets
Cup holders
Console box/coin holder
Under tray
RX350_270_EE_48D77E.book 420 ページ 2014年1月24日 金曜日 午前10時4分
