LEXUS RX270 2014 Owners Manual

371
3-2. Using the audio system
3
Interior features
RX350/270_EE

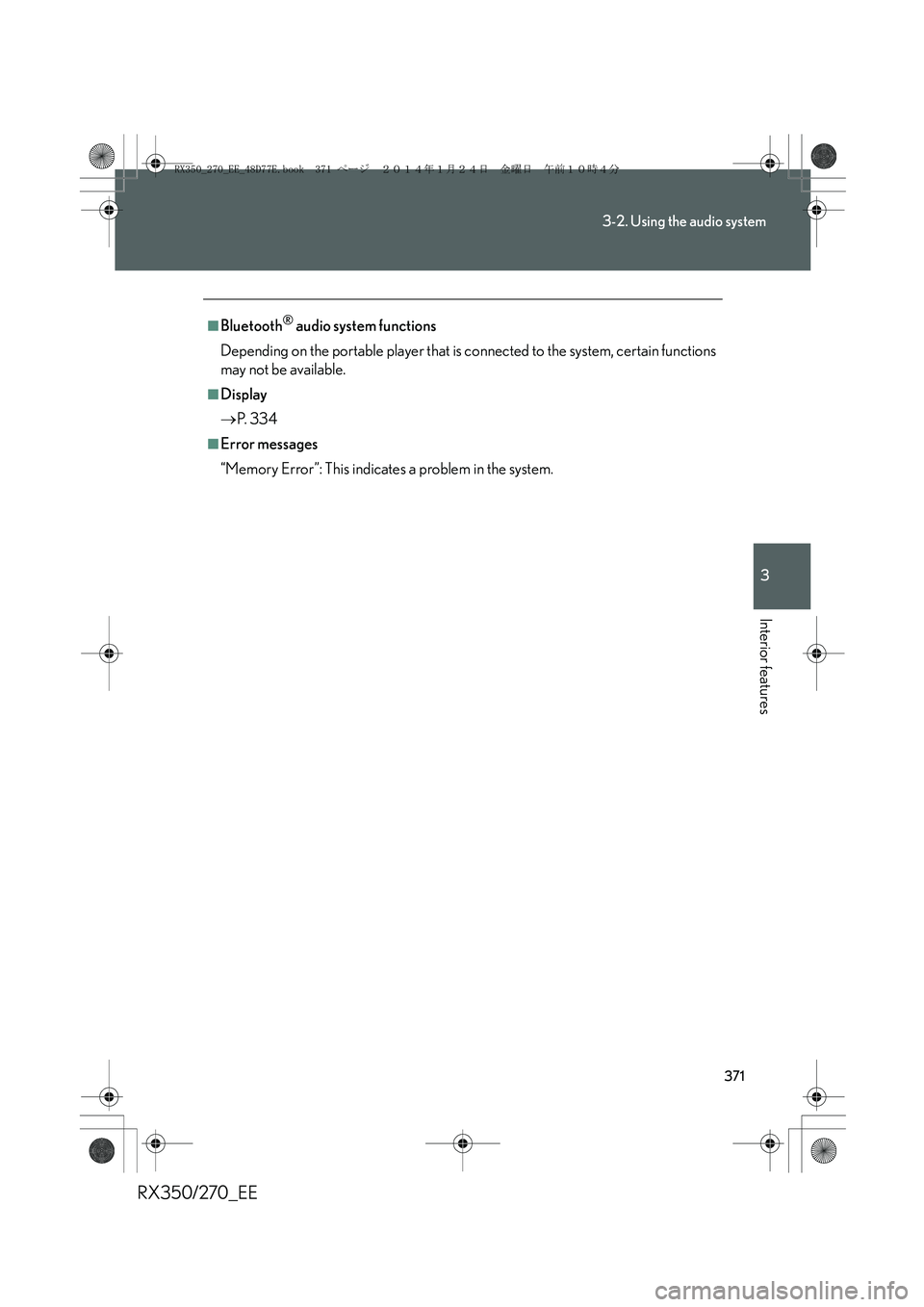

■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain functions
may not be available.
■Display
→P. 3 3 4
■Error messages
“Memory Error”: This indicates a problem in the system.
RX350_270_EE_48D77E.book 371 ページ ２０１４年１月２４日　金曜日　午前１０時４分

372
3-2. Using the audio system
RX350/270_EE

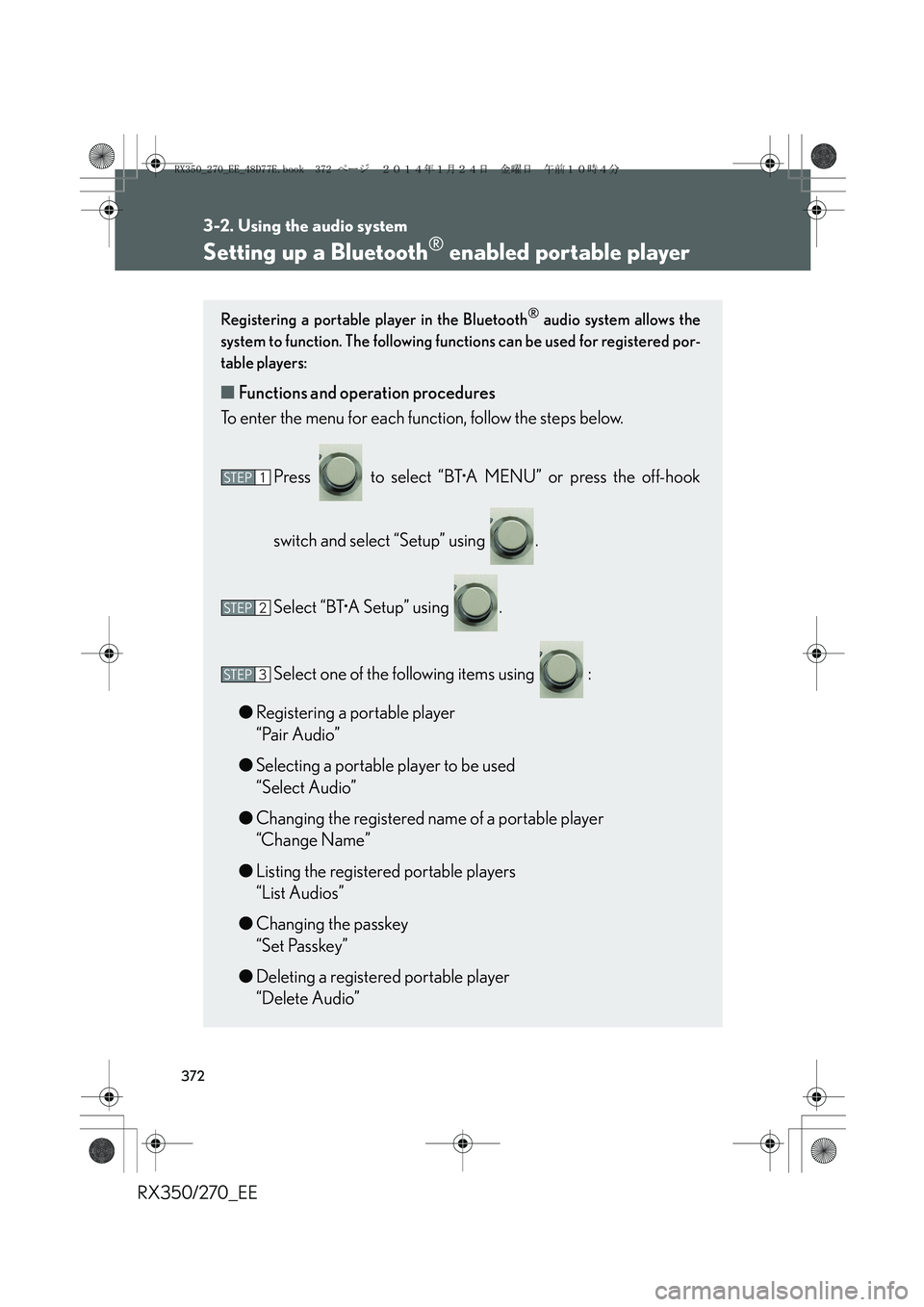

Setting up a Bluetooth® enabled portable player
Registering a portable player in the Bluetooth® audio system allows the
system to function. The following functions can be used for registered por-
table players:
■Functions and operation procedures
To enter the menu for each function, follow the steps below.
Press to select “BT•A MENU” or press the off-hook
switch and select “Setup” using .
Select “BT•A Setup” using .
Select one of the following items using :
●Registering a portable player
“Pair Audio”
●Selecting a portable player to be used
“Select Audio”
●Changing the registered name of a portable player
“Change Name”
●Listing the registered portable players
“List Audios”
●Changing the passkey
“Set Passkey”
●Deleting a registered portable player
“Delete Audio”
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 372 ページ ２０１４年１月２４日　金曜日　午前１０時４分

373
3-2. Using the audio system
3
Interior features
RX350/270_EE

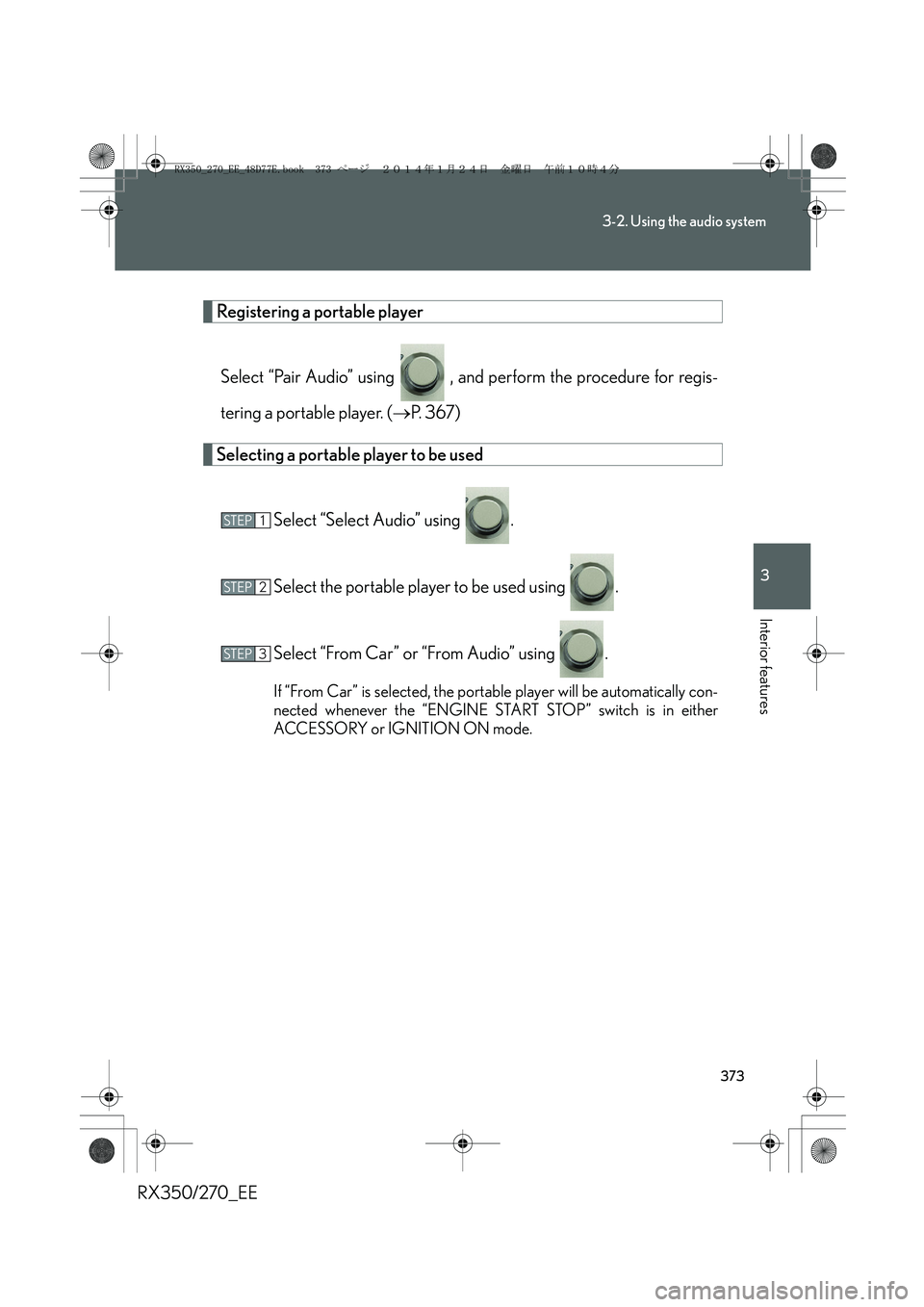

Registering a portable player
Select “Pair Audio” using , and perform the procedure for regis-
tering a portable player. (→P. 367)
Selecting a portable player to be used
Select “Select Audio” using .
Select the portable player to be used using .
Select “From Car” or “From Audio” using .
If “From Car” is selected, the portable player will be automatically con-
nected whenever the “ENGINE START STOP” switch is in either
ACCESSORY or IGNITION ON mode.
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 373 ページ ２０１４年１月２４日　金曜日　午前１０時４分

374
3-2. Using the audio system
RX350/270_EE

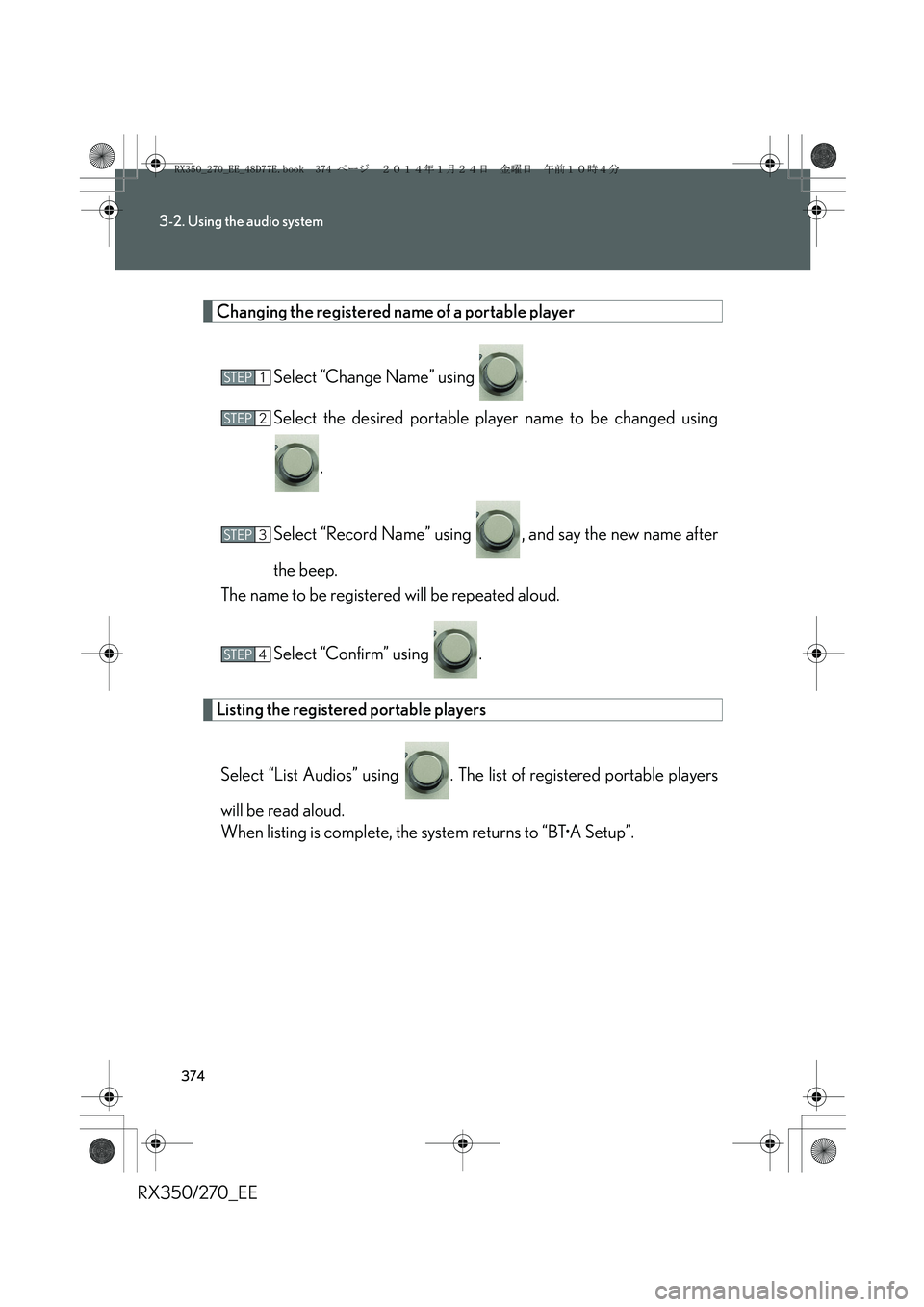

Changing the registered name of a portable player
Select “Change Name” using .
Select the desired portable player name to be changed using
.
Select “Record Name” using , and say the new name after
the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using .
Listing the registered portable players
Select “List Audios” using . The list of registered portable players
will be read aloud.
When listing is complete, the system returns to “BT•A Setup”.
STEP1
STEP2
STEP3
STEP4
RX350_270_EE_48D77E.book 374 ページ ２０１４年１月２４日　金曜日　午前１０時４分

375
3-2. Using the audio system
3
Interior features
RX350/270_EE

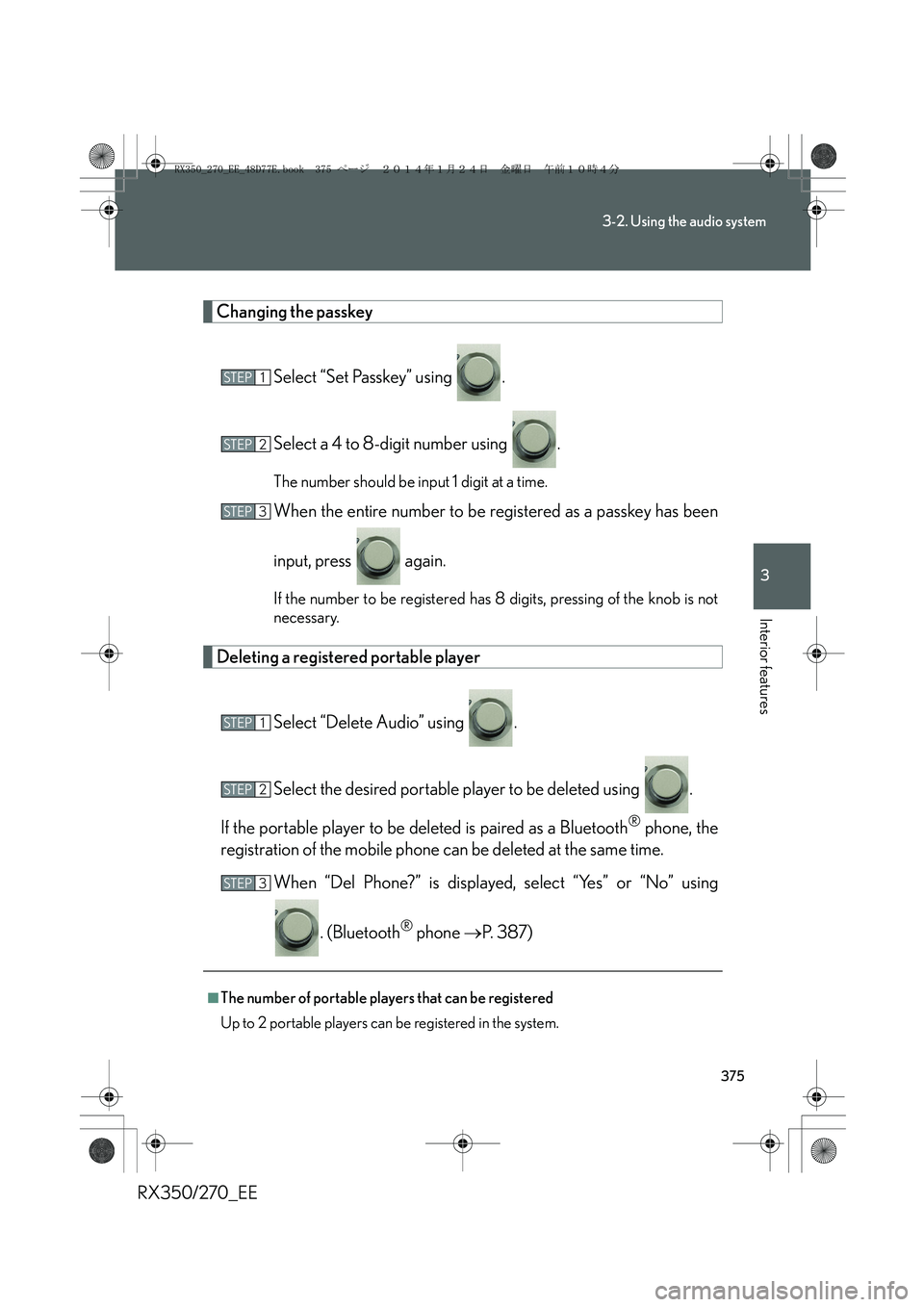

Changing the passkey
Select “Set Passkey” using .
Select a 4 to 8-digit number using .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press again.
If the number to be registered has 8 digits, pressing of the knob is not
necessary.
Deleting a registered portable player
Select “Delete Audio” using .
Select the desired portable player to be deleted using .
If the portable player to be deleted is paired as a Bluetooth
® phone, the
registration of the mobile phone can be deleted at the same time.
When “Del Phone?” is displayed, select “Yes” or “No” using
. (Bluetooth
® phone →P. 387)
■The number of portable players that can be registered
Up to 2 portable players can be registered in the system.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 375 ページ ２０１４年１月２４日　金曜日　午前１０時４分

376
3-2. Using the audio system
RX350/270_EE

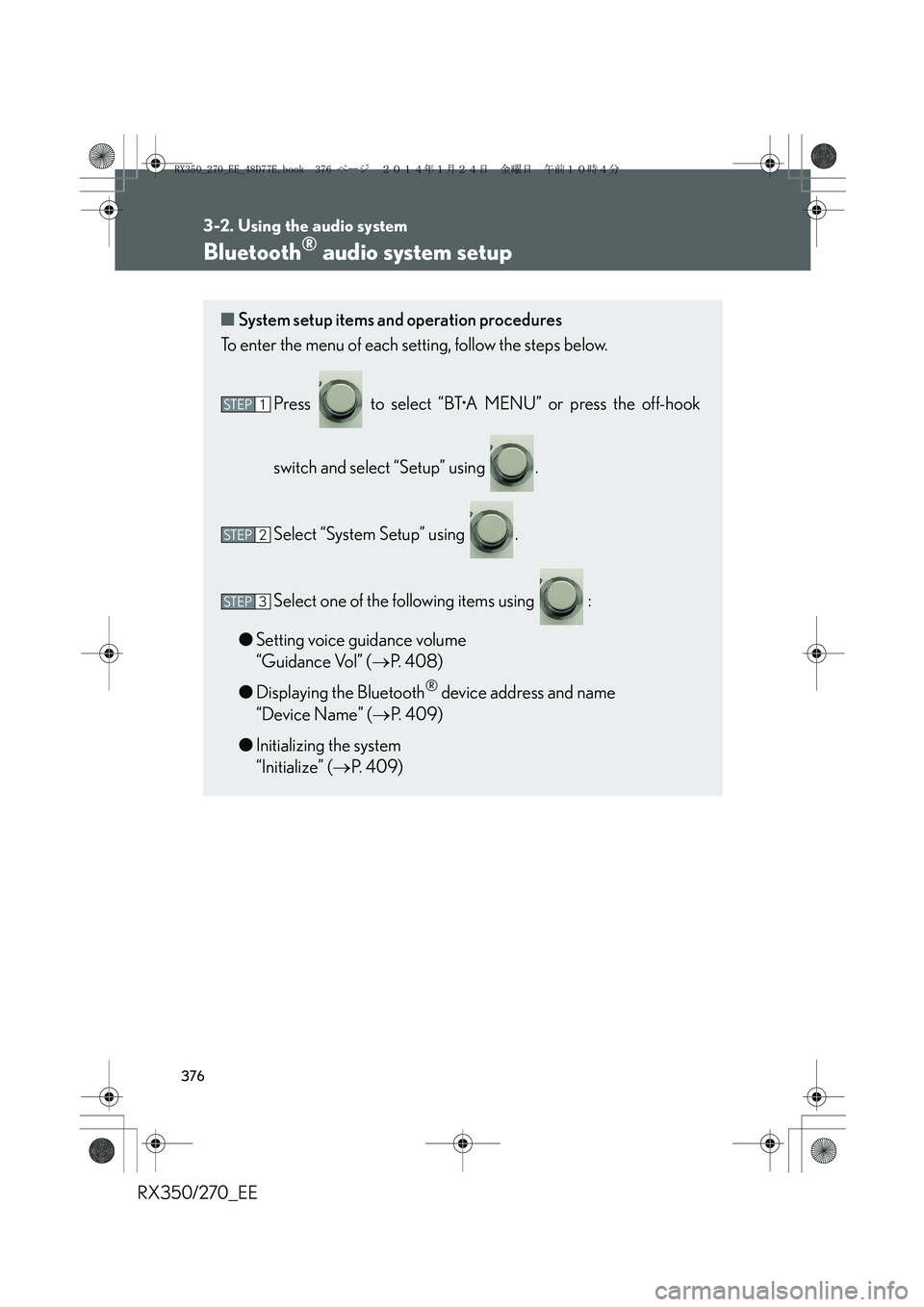

Bluetooth® audio system setup
■System setup items and operation procedures
To enter the menu of each setting, follow the steps below.
Press to select “BT•A MENU” or press the off-hook
switch and select “Setup” using .
Select “System Setup” using .
Select one of the following items using :
●Setting voice guidance volume
“Guidance Vol” (→P. 4 0 8 )
●Displaying the Bluetooth
® device address and name
“Device Name” (→P. 4 0 9 )
●Initializing the system
“Initialize” (→P. 4 0 9 )
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 376 ページ ２０１４年１月２４日　金曜日　午前１０時４分

377
3-2. Using the audio system
3
Interior features
RX350/270_EE

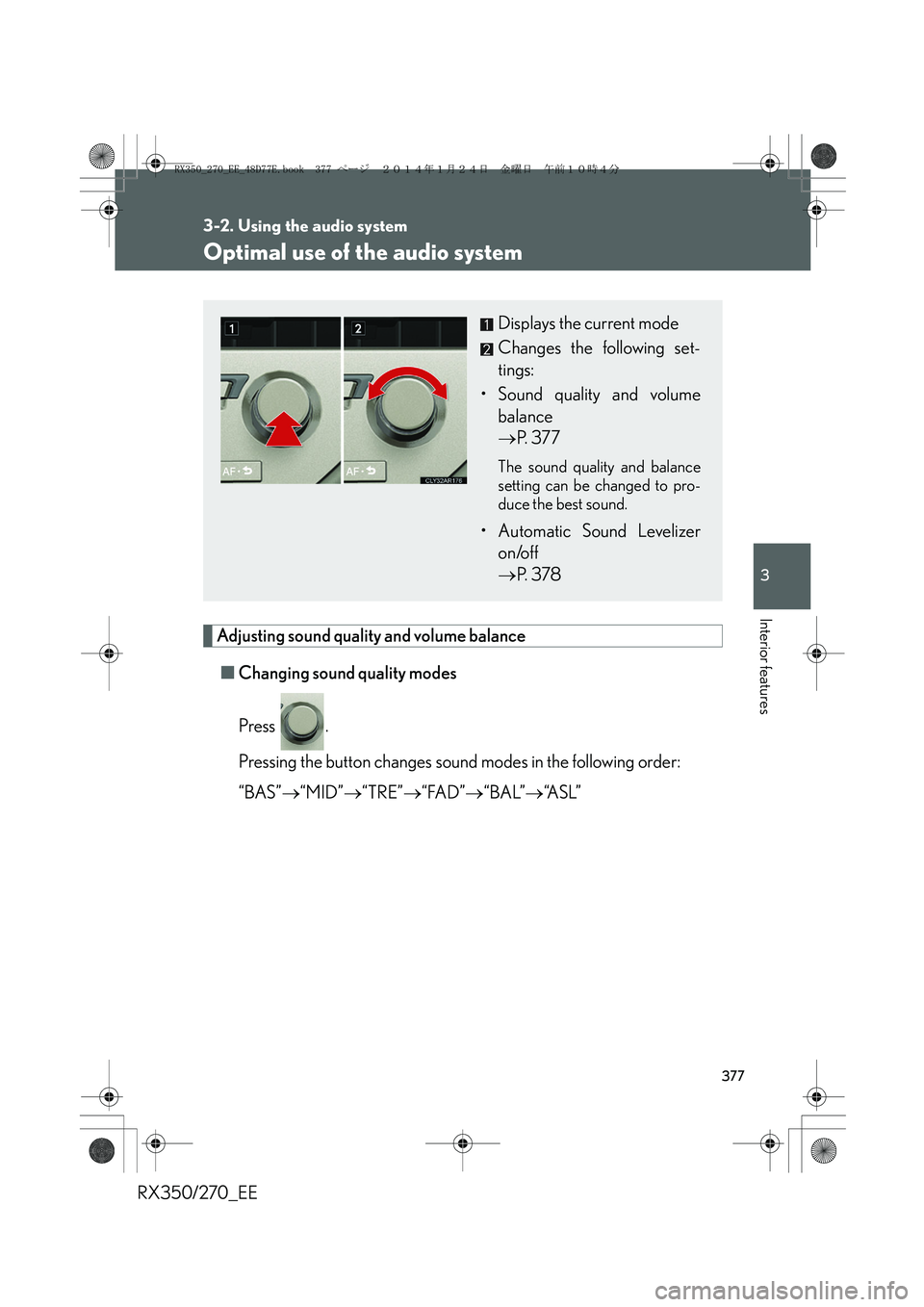

Optimal use of the audio system
Adjusting sound quality and volume balance
■Changing sound quality modes
Press .
Pressing the button changes sound modes in the following order:
“BAS”→“MID”→“TRE”→“FAD”→“BAL”→“A S L ”
Displays the current mode
Changes the following set-
tings:
• Sound quality and volume
balance
→P. 3 7 7
The sound quality and balance
setting can be changed to pro-
duce the best sound.
• Automatic Sound Levelizer
on/off
→P. 3 7 8
RX350_270_EE_48D77E.book 377 ページ ２０１４年１月２４日　金曜日　午前１０時４分

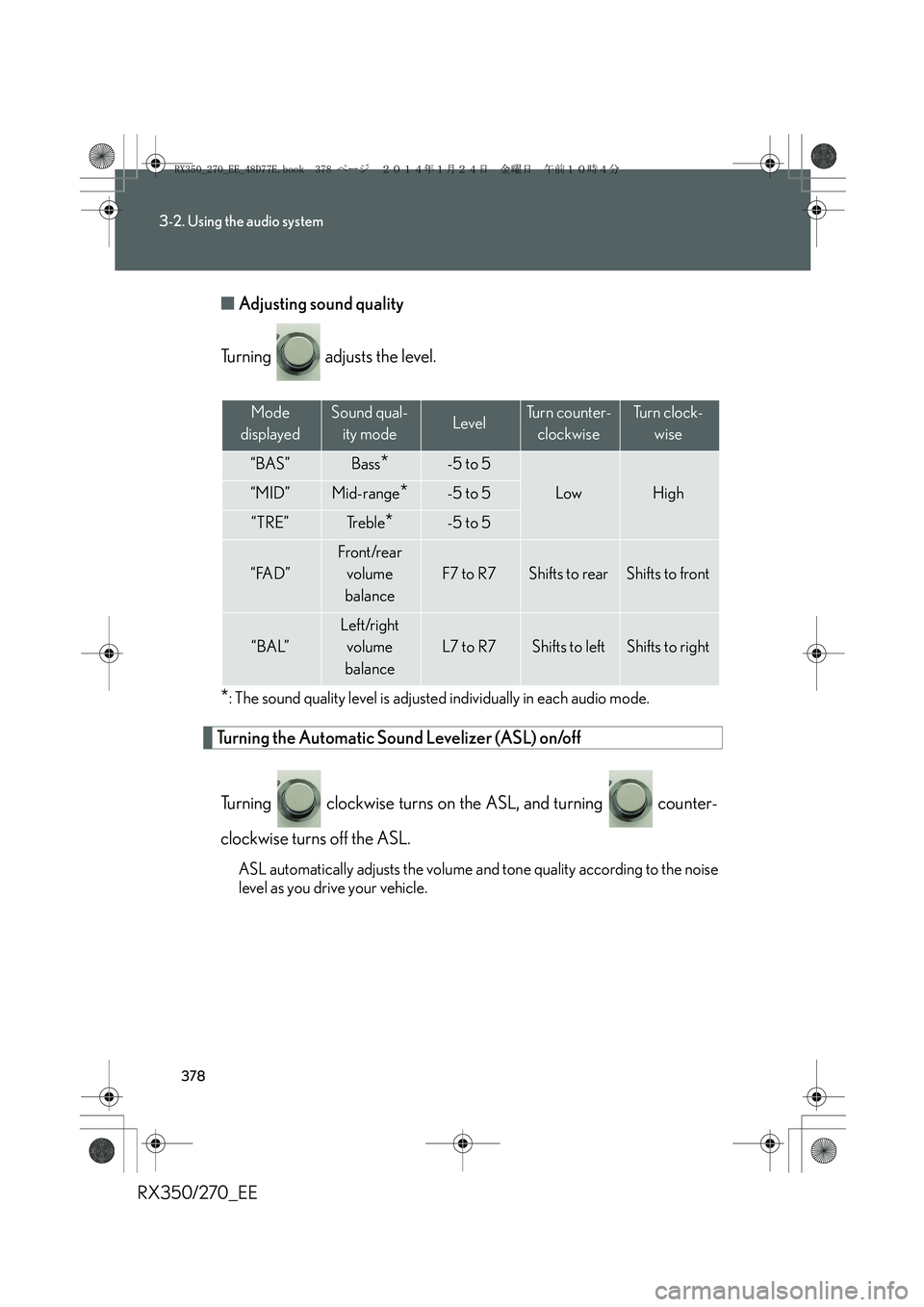

378
3-2. Using the audio system
RX350/270_EE■Adjusting sound quality
Turning adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
Turning the Automatic Sound Levelizer (ASL) on/off
Turning clockwise turns on the ASL, and turning counter-
clockwise turns off the ASL.
ASL automatically adjusts the volume and tone quality according to the noise
level as you drive your vehicle.
Mode
displayedSound qual-
ity modeLevelTurn counter-
clockwiseTu r n c l o c k -
wise
“BAS”Bass*-5 to 5
LowHigh“MID”Mid-range*-5 to 5
“TRE”Tr e b l e*-5 to 5
“FAD”
Front/rear
volume
balance
F7 to R7Shifts to rearShifts to front
“BAL”
Left/right
volume
balance
L7 to R7Shifts to leftShifts to right
RX350_270_EE_48D77E.book 378 ページ ２０１４年１月２４日　金曜日　午前１０時４分

379
3-2. Using the audio system
3
Interior features
RX350/270_EE

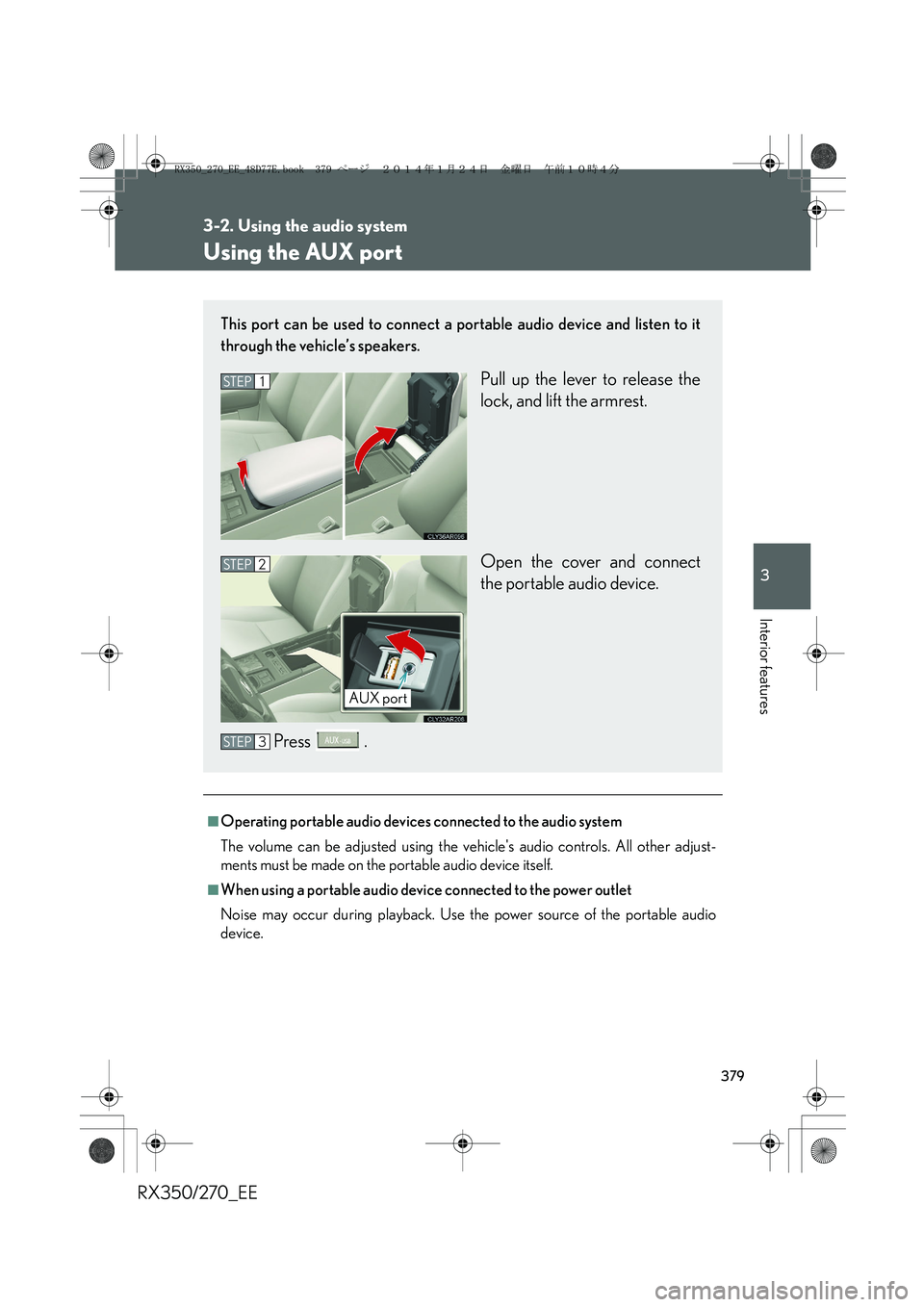

Using the AUX port
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle's audio controls. All other adjust-
ments must be made on the portable audio device itself.
■When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable audio
device.
This port can be used to connect a portable audio device and listen to it
through the vehicle’s speakers.
Pull up the lever to release the
lock, and lift the armrest.
Open the cover and connect
the portable audio device.
Press .STEP1
STEP2
AUX port
STEP3
RX350_270_EE_48D77E.book 379 ページ ２０１４年１月２４日　金曜日　午前１０時４分

380
3-2. Using the audio system
RX350/270_EE

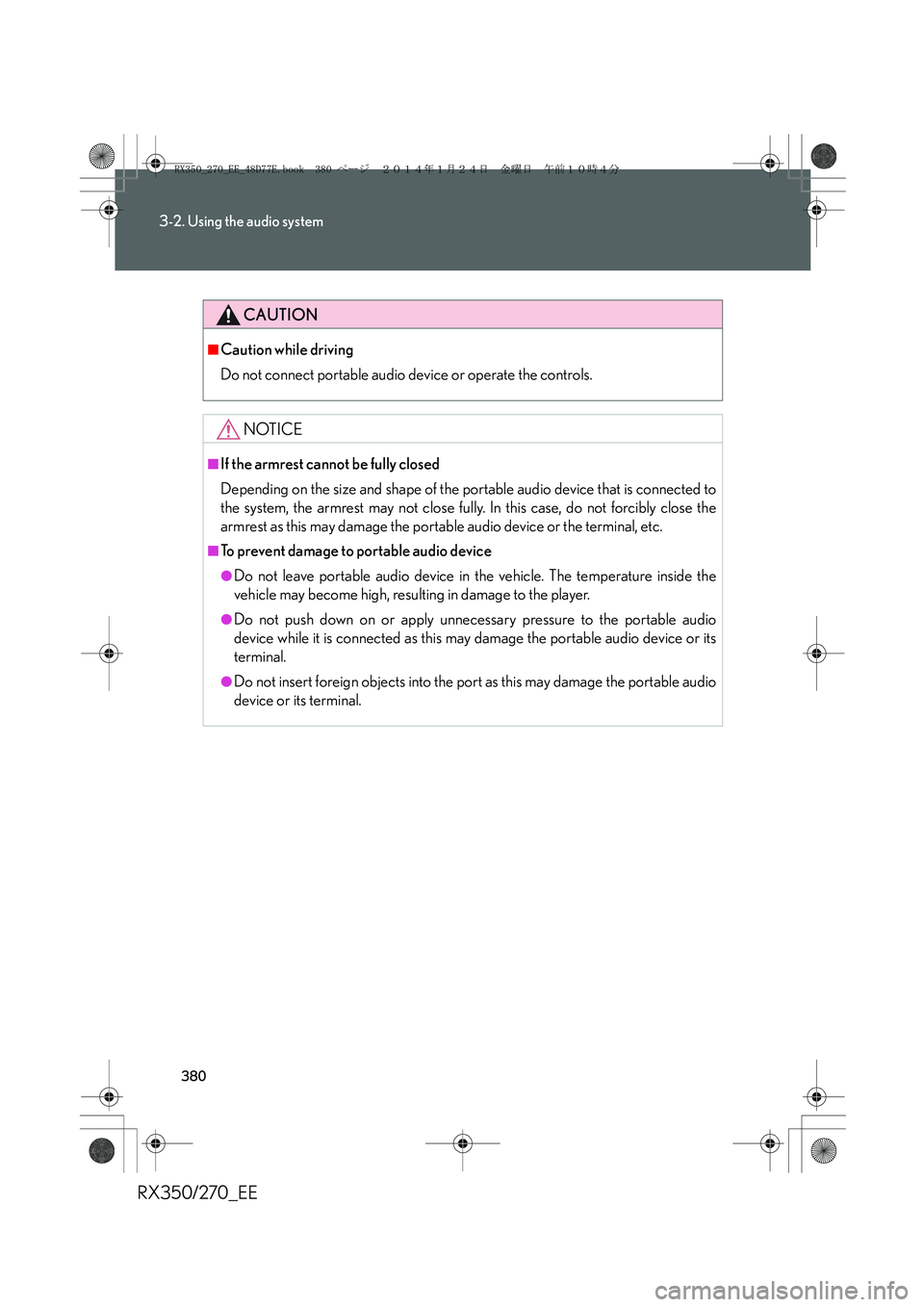

CAUTION
■Caution while driving
Do not connect portable audio device or operate the controls.
NOTICE
■If the armrest cannot be fully closed
Depending on the size and shape of the portable audio device that is connected to
the system, the armrest may not close fully. In this case, do not forcibly close the
armrest as this may damage the portable audio device or the terminal, etc.
■To prevent damage to portable audio device
●Do not leave portable audio device in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to the player.
●Do not push down on or apply unnecessary pressure to the portable audio
device while it is connected as this may damage the portable audio device or its
terminal.
●Do not insert foreign objects into the port as this may damage the portable audio
device or its terminal.
