LEXUS RX270 2014 Owners Manual

381
3-2. Using the audio system
3
Interior features
RX350/270_EE

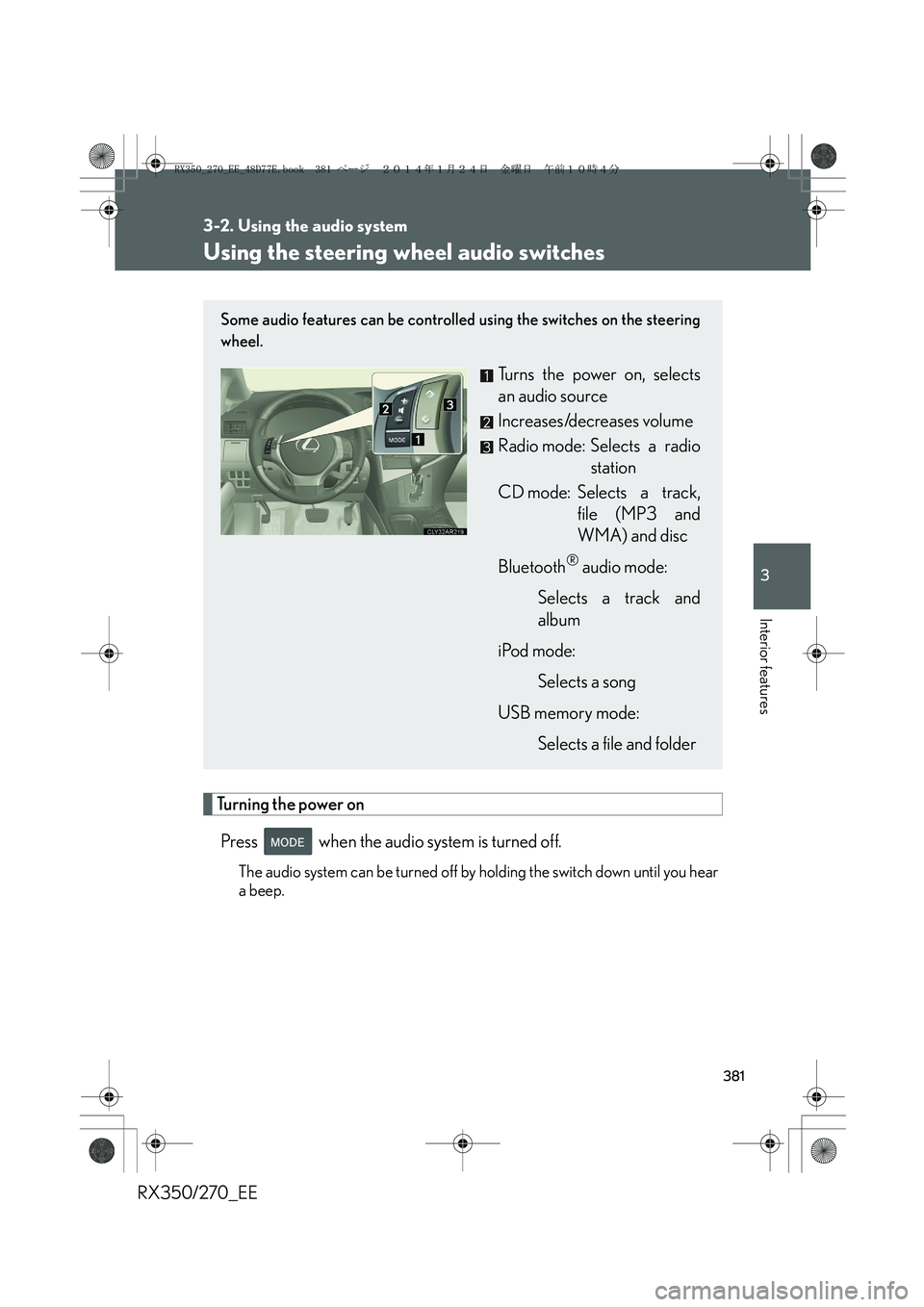

Using the steering wheel audio switches
Turning the power on
Press when the audio system is turned off.
The audio system can be turned off by holding the switch down until you hear
a beep.
Some audio features can be controlled using the switches on the steering
wheel.
Turns the power on, selects
an audio source
Increases/decreases volume
Radio mode: Selects a radio
station
CD mode: Selects a track,
file (MP3 and
WMA) and disc
Bluetooth
® audio mode:
Selects a track and
album
iPod mode:
Selects a song
USB memory mode:
Selects a file and folder
RX350_270_EE_48D77E.book 381 ページ ２０１４年１月２４日　金曜日　午前１０時４分

382
3-2. Using the audio system
RX350/270_EE
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time the button is pressed. If no discs are
inserted in the player, that mode will be skipped.
FM1→FM2→FM3→CD player→Bluetooth
® audio→AUX→
iPod or USB memory→MW→FM1
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Hold down the button to continue increasing or decreasing the volume.
Selecting a radio station
Press to select radio mode.
Press “∧” or “∨” on” to select a radio station.
To scan for receivable stations, press and hold “∧” or “∨” on the button
until you hear a beep.
Selecting a track/file or song
Press to select CD, Bluetooth
® audio, iPod or USB
memory mode.
Press “∧” or “∨” on to select the desired track/file or song.
STEP1
STEP2
STEP1
STEP2
RX350_270_EE_48D77E.book 382 ページ ２０１４年１月２４日　金曜日　午前１０時４分

383
3-2. Using the audio system
3
Interior features
RX350/270_EE

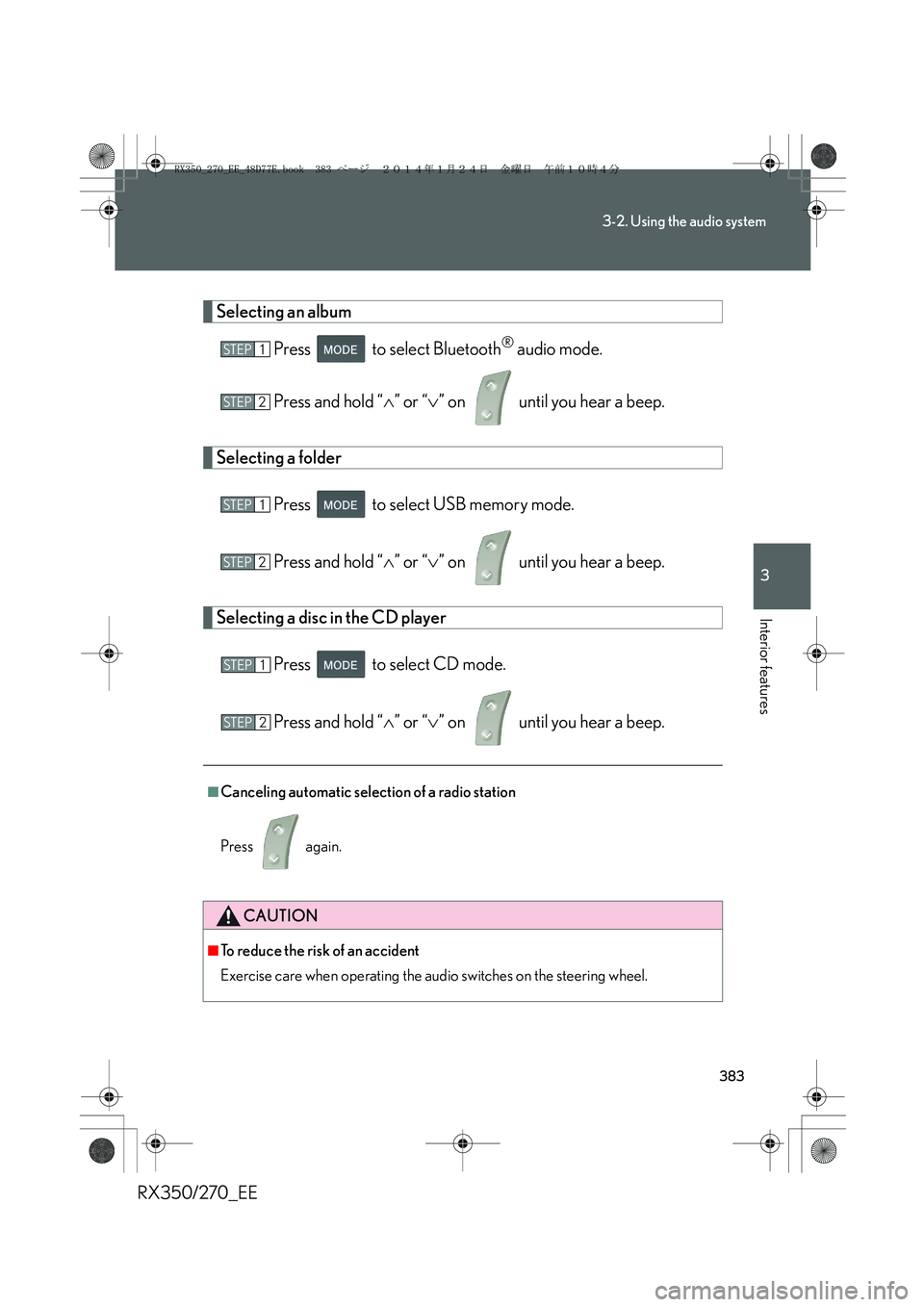

Selecting an album
Press to select Bluetooth
® audio mode.
Press and hold “∧” or “∨” on until you hear a beep.
Selecting a folder
Press to select USB memory mode.
Press and hold “∧” or “∨” on until you hear a beep.
Selecting a disc in the CD player
Press to select CD mode.
Press and hold “∧” or “∨” on until you hear a beep.
■Canceling automatic selection of a radio station
Press again.
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2
RX350_270_EE_48D77E.book 383 ページ ２０１４年１月２４日　金曜日　午前１０時４分

384
3-2. Using the audio system
RX350/270_EE

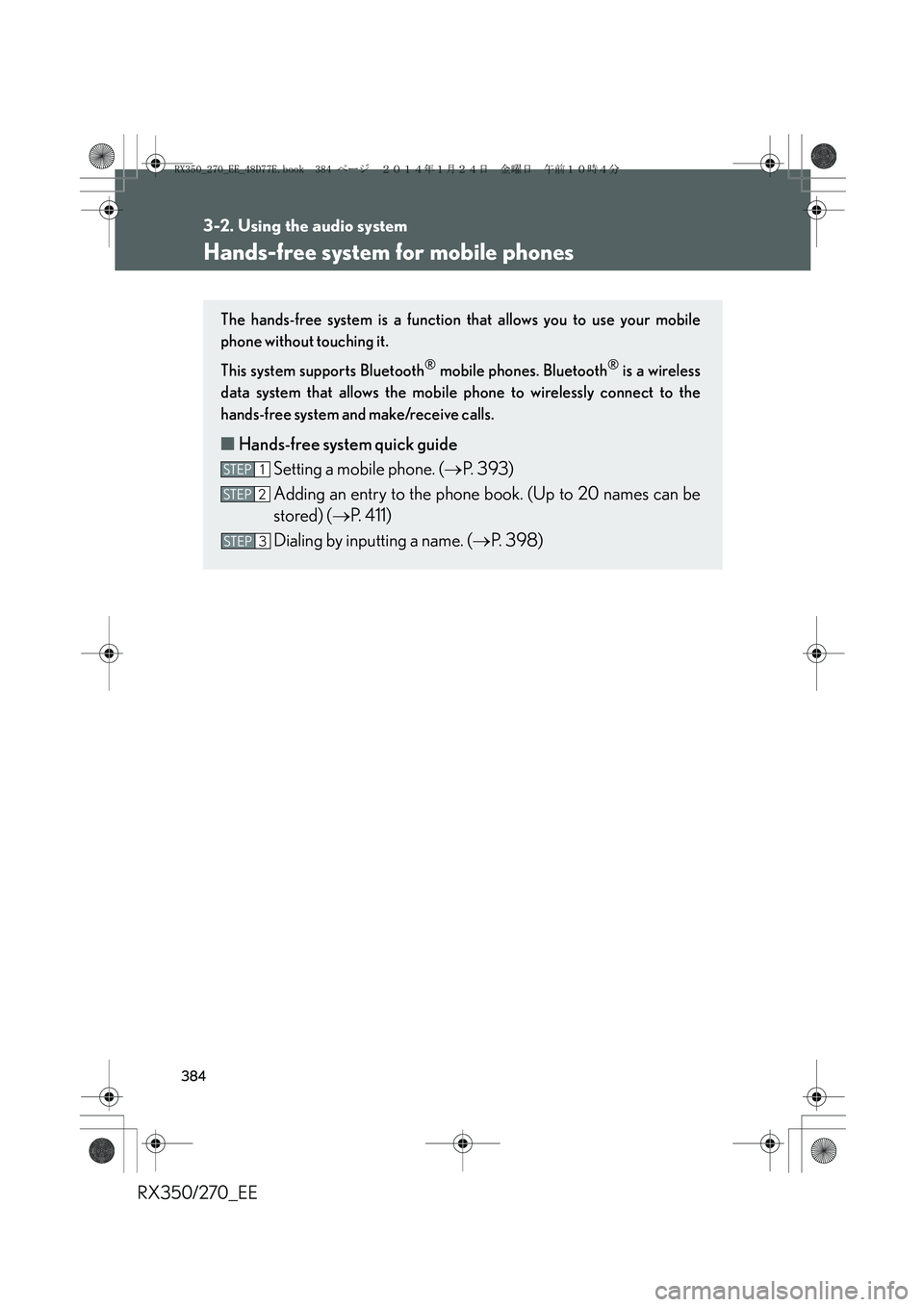

Hands-free system for mobile phones
The hands-free system is a function that allows you to use your mobile
phone without touching it.
This system supports Bluetooth
® mobile phones. Bluetooth® is a wireless
data system that allows the mobile phone to wirelessly connect to the
hands-free system and make/receive calls.
■Hands-free system quick guide
Setting a mobile phone. (→P. 393)
Adding an entry to the phone book. (Up to 20 names can be
stored) (→P. 4 1 1 )
Dialing by inputting a name. (→P. 398)
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 384 ページ ２０１４年１月２４日　金曜日　午前１０時４分

385
3-2. Using the audio system
3
Interior features
RX350/270_EE
Ti t l ePa g e
Using the hands-free system
■Using the hands-free phone system for the
first time
P. 3 9 3
Making a phone call
■Making a phone call
• Dialing by inputting a name
• Speed dialing
•Redial
• Call back
■Receiving a phone call
• Answering a phone call
• Refusing a phone call
■Transferring a phone call
■Using the call history memory
• Dialing
• Storing data in the phone book
•Deleting
P. 3 9 7
Setting a mobile phone
■Functions and operation proceduresP. 4 0 1
Security and system setup
■Security setting items and operation
procedures
■System setup items and operation
procedures
P. 4 0 5
RX350_270_EE_48D77E.book 385 ページ ２０１４年１月２４日　金曜日　午前１０時４分

386
3-2. Using the audio system
RX350/270_EE
■Conditions under which the system will not operate
●If using a mobile phone that does not support Bluetooth®
●If the mobile phone is switched off
●If you are outside service range
●If the mobile phone is not connected
●If the mobile phone's battery is low
●If the mobile phone is behind the seat or in the glove box or console box
●If metal is covering or touching the phone
■When using the hands-free system
●The audio system and voice guidance are muted when making a call.
●If both parties speak at the same time, it may be difficult to hear.
●If the incoming call volume is overly loud, an echo may be heard.
●Try to face toward the microphone as much as possible when speaking.
●In the following circumstances, it may be difficult to hear the other party:
• When driving on unpaved roads
• When driving at high speeds
•When a window is open
• When the air conditioning is blowing directly on the microphone
• When the air conditioning is set to high
Ti t l ePa g e
Using the phone book
■Adding a new phone number
■Changing the registered name in the phone
book
■Listing the registered data
■Setting speed dials
■Deleting the registered data
■Deleting speed dials
P. 4 1 1
RX350_270_EE_48D77E.book 386 ページ ２０１４年１月２４日　金曜日　午前１０時４分

387
3-2. Using the audio system
3
Interior features
RX350/270_EE

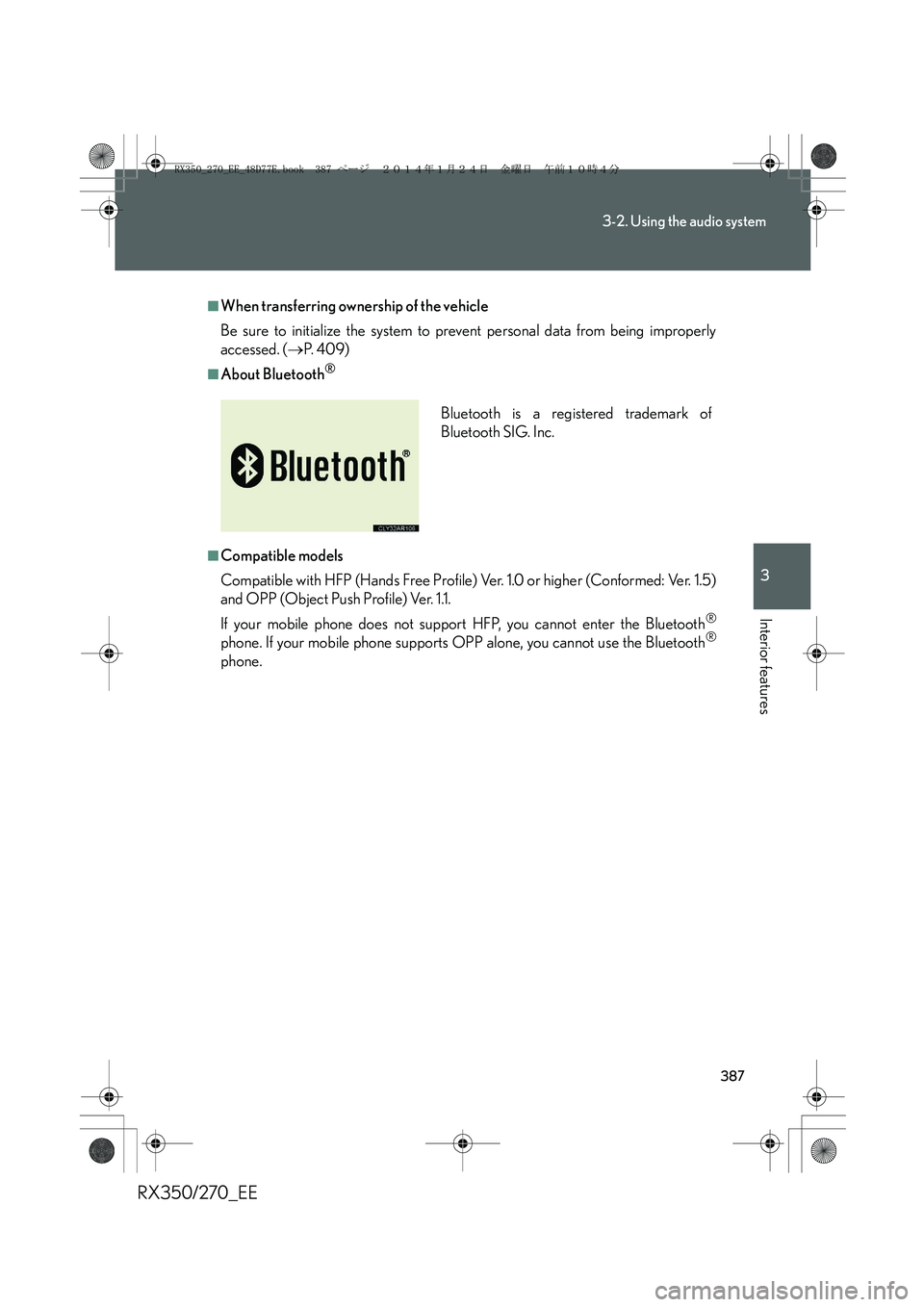

■When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improperly
accessed. (→P. 4 0 9 )
■About Bluetooth®
■Compatible models
Compatible with HFP (Hands Free Profile) Ver. 1.0 or higher (Conformed: Ver. 1.5)
and OPP (Object Push Profile) Ver. 1.1.
If your mobile phone does not support HFP, you cannot enter the Bluetooth
®
phone. If your mobile phone supports OPP alone, you cannot use the Bluetooth®
phone.Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
RX350_270_EE_48D77E.book 387 ページ ２０１４年１月２４日　金曜日　午前１０時４分

388
3-2. Using the audio system
RX350/270_EE

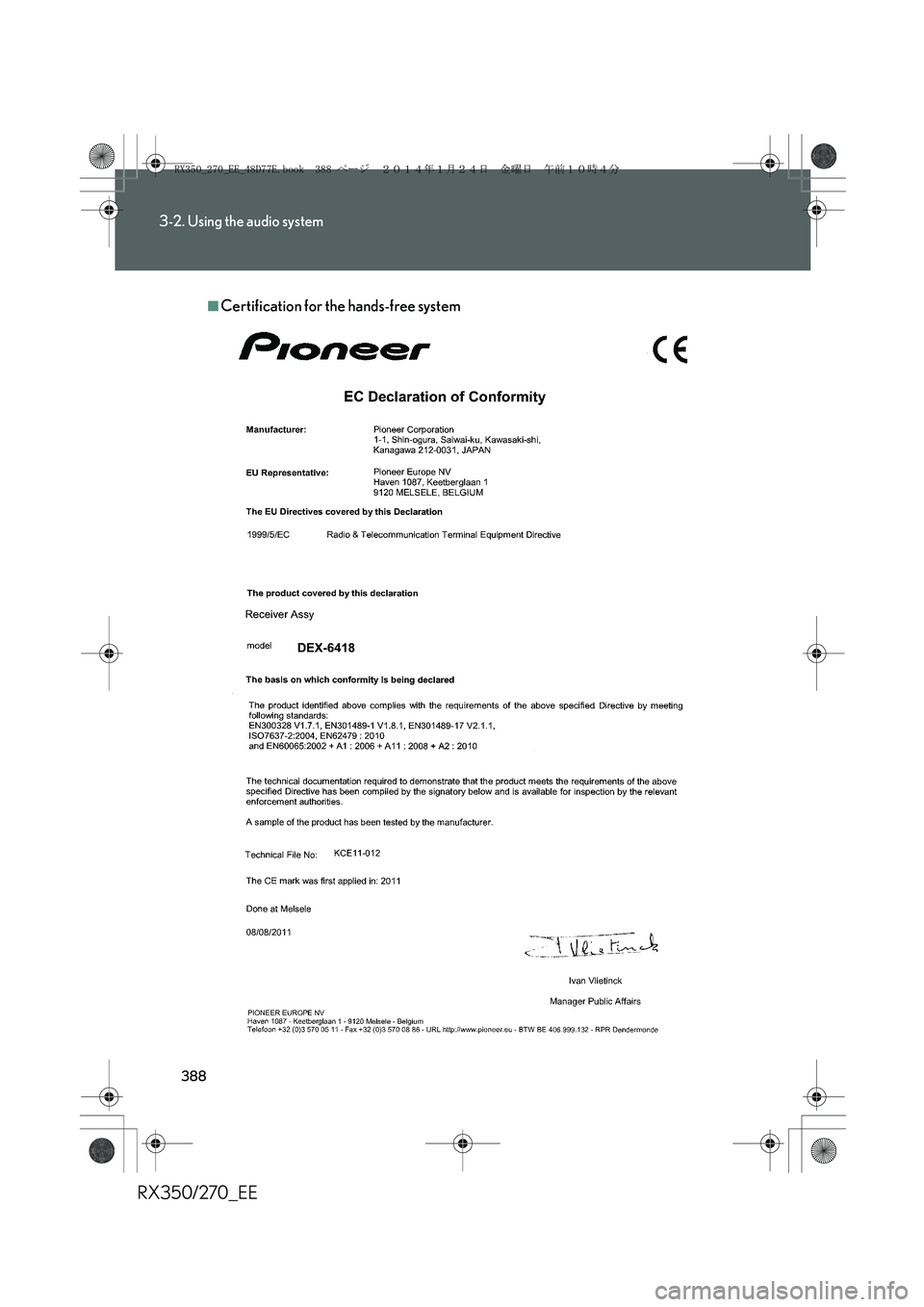

■Certification for the hands-free system
RX350_270_EE_48D77E.book 388 ページ ２０１４年１月２４日　金曜日　午前１０時４分

389
3-2. Using the audio system
3
Interior features
RX350/270_EE

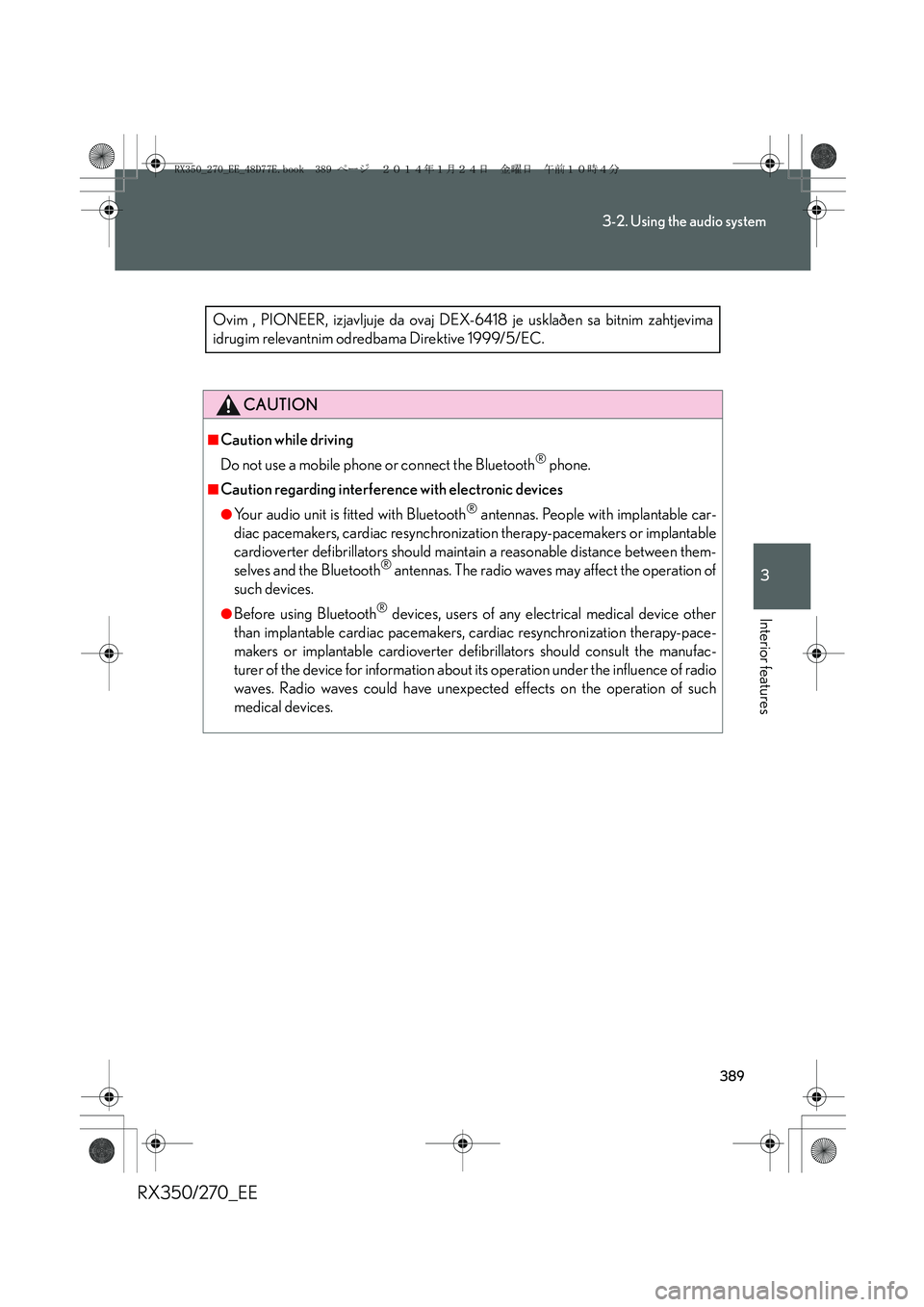

CAUTION
■Caution while driving
Do not use a mobile phone or connect the Bluetooth
® phone.
■Caution regarding interference with electronic devices
●Your audio unit is fitted with Bluetooth® antennas. People with implantable car-
diac pacemakers, cardiac resynchronization therapy-pacemakers or implantable
cardioverter defibrillators should maintain a reasonable distance between them-
selves and the Bluetooth
® antennas. The radio waves may affect the operation of
such devices.
●Before using Bluetooth® devices, users of any electrical medical device other
than implantable cardiac pacemakers, cardiac resynchronization therapy-pace-
makers or implantable cardioverter defibrillators should consult the manufac-
turer of the device for information about its operation under the influence of radio
waves. Radio waves could have unexpected effects on the operation of such
medical devices.
12

Ovim , PIONEER, izjavljuje da ovaj DEX-6418 je usklaÿen sa bitnim zahtjevima idrugim relevantnim
odredbama Direktive 1999/5/EC. Ovim , PIONEER, izjavljuje da ovaj DEX-6418 je usklaðen sa bitnim zahtjevima
idrugim relevantnim odredbama Direktive 1999/5/EC.
RX350_270_EE_48D77E.book 389 ページ ２０１４年１月２４日　金曜日　午前１０時４分

390
3-2. Using the audio system
RX350/270_EE

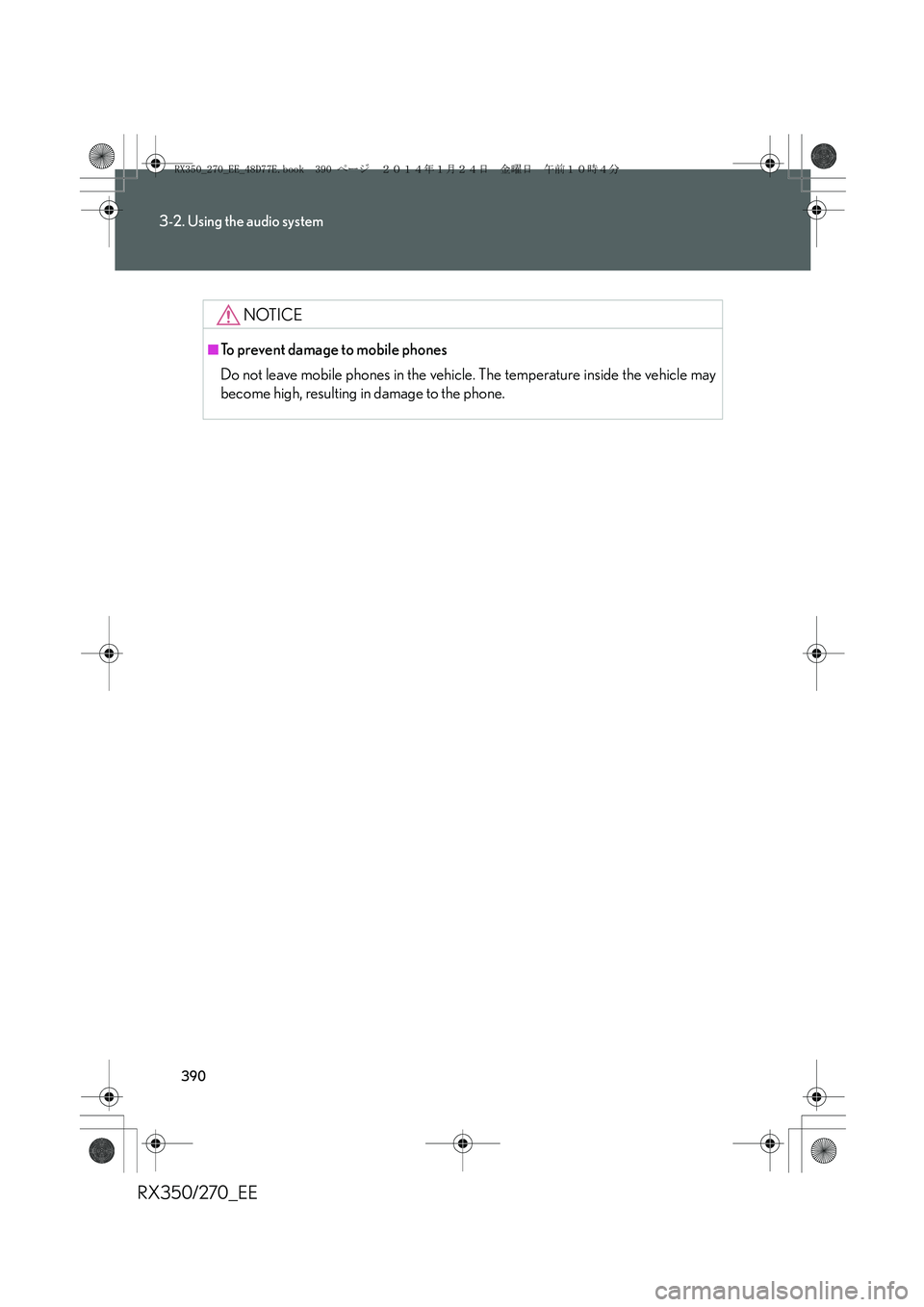

NOTICE
■To prevent damage to mobile phones
Do not leave mobile phones in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the phone.
RX350_270_EE_48D77E.book 390 ページ ２０１４年１月２４日　金曜日　午前１０時４分
