3-2. Using the audio system
3
Interior features
RX350/270_EE
●MP3 and WMA playback
• When a device containing MP3 or WMA files is connected, all files in the
USB memory device are checked. Once the file check is finished, the first
MP3 or WMA file is played. To make the file check finish more quickly, we
recommend that you do not include any files other than MP3 or WMA files
or create any unnecessary folders.
• When the USB device is connected and the audio source is changed to USB
memory mode, the USB device will start playing the first file in the first folder.
If the same device is removed and reinserted (and the contents have not been
changed), the USB device will resume play from the same point in which it
was last used.
●Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and WMA
files, they will be skipped (not played).
●Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit rate
of at least 128 kbps and a sampling frequency of 44.1 kHz.
• There is a wide variety of freeware and other encoding software for MP3
and WMA files on the market, and depending on the status of the encoding
and the file format, poor sound quality or noise at the start of playback may
result. In some cases, playback may not be possible at all.
• Microsoft, Windows, and Windows Media are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
CAUTION
■Caution while driving
Do not connect USB memories or operate the controls.
RX350_270_EE_48D77E.book 359 ページ ２０１４年１月２４日　金曜日　午前１０時４分

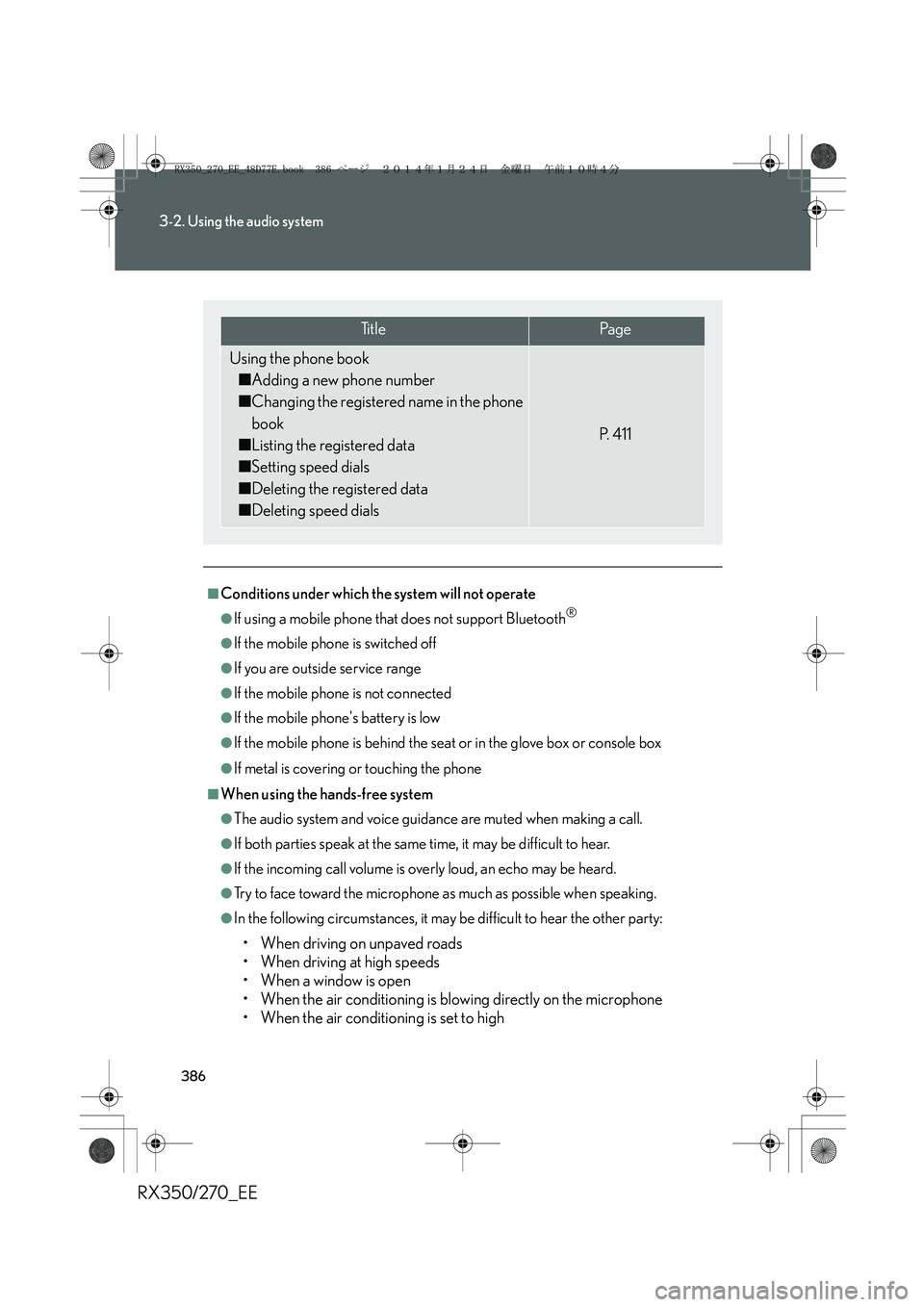

386
3-2. Using the audio system
RX350/270_EE
■Conditions under which the system will not operate
●If using a mobile phone that does not support Bluetooth®
●If the mobile phone is switched off
●If you are outside service range
●If the mobile phone is not connected
●If the mobile phone's battery is low
●If the mobile phone is behind the seat or in the glove box or console box
●If metal is covering or touching the phone
■When using the hands-free system
●The audio system and voice guidance are muted when making a call.
●If both parties speak at the same time, it may be difficult to hear.
●If the incoming call volume is overly loud, an echo may be heard.
●Try to face toward the microphone as much as possible when speaking.
●In the following circumstances, it may be difficult to hear the other party:
• When driving on unpaved roads
• When driving at high speeds
•When a window is open
• When the air conditioning is blowing directly on the microphone
• When the air conditioning is set to high
Ti t l ePa g e
Using the phone book
■Adding a new phone number
■Changing the registered name in the phone
book
■Listing the registered data
■Setting speed dials
■Deleting the registered data
■Deleting speed dials
P. 4 1 1
RX350_270_EE_48D77E.book 386 ページ ２０１４年１月２４日　金曜日　午前１０時４分

452
RX350/270_EE
4-1. Maintenance and care
Cleaning and protecting the vehicle exterior
■Automatic car washes
●Before washing the vehicle:
•Fold the mirrors.
• Turn off the power back door system (if equipped).
●Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
●In certain automatic car washes, the rear spoiler may interfere with machine
operation. This may prevent the vehicle from being cleaned properly or result in
damage to the rear spoiler.
■High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of the
windows and the air suspension unit (if equipped).
●Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.
Perform the following to protect the vehicle and maintain it in prime condi-
tion:
●Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
●Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
●For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
●Wipe away any water.
●Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
RX350_270_EE_48D77E.book 452 ページ ２０１４年１月２４日　金曜日　午前１０時４分

457
4-1. Maintenance and care
4
Maintenance and care
RX350/270_EE
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline, alkaline
or acidic solutions, dye, or bleach
• Seats: Acidic solutions, such as thinner, benzene, or alcohol
●Do not use polish wax or polish cleaner. The instrument panel's or other interior
part’s painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or that contain wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into
contact with electrical components under the floor of vehicle. Water may also
cause the body to rust.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to
the rear window defogger heater wires or antenna. Use a cloth dampened with
lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.
RX350_270_EE_48D77E.book 457 ページ ２０１４年１月２４日　金曜日　午前１０時４分

459
4-2. Maintenance
4
Maintenance and care
RX350/270_EE
■Where to go for maintenance service?
In order to maintain your vehicle in the best possible condition, Lexus recommends
that maintenance service operations as well as other inspections and repairs be
carried out by authorized Lexus dealers or repairers or other duly qualified and
equipped professionals. For repairs and services covered by your warranty, please
visit an authorized Lexus dealer or repairer, who will use genuine Lexus parts in
repairing any difficulties you may encounter. There can also be advantages in utiliz-
ing authorized Lexus dealers or repairers for non-warranty repairs and services, as
members of the Lexus network will be able to expertly assist you with any difficulties
you may encounter.
Your Lexus dealer or repairer, or another duly qualified and equipped professional
will perform all of the scheduled maintenance on your vehicle reliably and econom-
ically due to their experience with Lexus vehicles.
■Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs that indi-
cate service is needed. Some important clues are:
●Engine missing, stumbling or pinging
●Appreciable loss of power
●Strange engine noises
●A fluid leak under the vehicle (However, water dripping from the air condition-
ing system after use is normal.)
●Change in exhaust sound (This may indicate a dangerous carbon monoxide
leak. Drive with the windows open and have the exhaust system checked imme-
diately.)
●Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
●Vehicle pulls to one side when driving straight on a level road
●Strange noises related to suspension movement
●Loss of brake effectiveness, spongy feeling brake pedal, pedal almost touches
the floors, vehicle pulls to one side when braking
●Engine coolant temperature continually higher than normal
If you notice any of these clues, take your vehicle to any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional, as soon as possible.
Your vehicle may need adjustment or repair.
RX350_270_EE_48D77E.book 459 ページ ２０１４年１月２４日　金曜日　午前１０時４分

507
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
Fuse layout and amperage ratings
■Engine compartment
FuseAmpereCircuit
1RDI FAN NO. 180 AElectric cooling fans
2RR DEF50 ARear window defogger
3AIR SUS50 AElectronically modulated air suspen-
sion
4HEATER50 AAir conditioning system
5SPARE30 A
6SPARE40 A
7ABS NO. 230 AVehicle stability control
8H-LP CLN30 AHeadlight cleaner
9PBD30 APower back door
10ST30 AStarter system
11PD50 A
A/F, H-LP RH HI, H-LP LH LO, H-LP
RH LO, H-LP LH HI, HORN, S-
HORN, EFI MAIN NO. 2
RX350_270_EE_48D77E.book 507 ページ ２０１４年１月２４日　金曜日　午前１０時４分

509
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
23ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
24RAD NO. 110 AAudio system, navigation system
25AM27. 5 AStarter system
26ECU-B NO. 27. 5 A
Air conditioning system, audio system,
vehicle stability control system, power
windows
27MAYDAY/TEL7. 5 AMAYDAY/TEL
28IMMOBI7. 5 AIMMOBI
29ALT-S7. 5 ACharging system
30DRL7. 5 ADaytime running light system
31IGN10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
32DOME10 A
Vanity mirror lights, luggage compart-
ment lights, interior lights, personal
lights, door courtesy lights, footwell
lights, scuff lights
33ECU-B NO. 110 A
Tilt and telescopic steering, multiplex
communication system, meters and
gauges, driving position memory,
power seats, power back door, head-
up display, outside rear view mirror,
steering sensor
34EFI NO. 110 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, electronic controlled transmis-
sion
FuseAmpereCircuit
RX350_270_EE_48D77E.book 509 ページ ２０１４年１月２４日　金曜日　午前１０時４分

510
4-3. Do-it-yourself maintenance
RX350/270_EE
35A/F*110 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
WIP-S*27. 5 ACruise control
36ECU-IG1 NO. 410 A
Adaptive front-lighting system, air
conditioning system, rear window
defogger, vehicle stability control sys-
tem, electric cooling fans
37BK/UP LP7. 5 ABack-up lights
38ECU-IG1 NO. 515 AAir conditioning system
39ECU-IG1 NO. 610 A
Adaptive front-lighting system, head
light cleaner, cruise control, electroni-
cally modulated air suspension, vehi-
cle stability control, air conditioning
system
40EFI NO. 210 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
41F/ P M P*215 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
42DEICER25 AWindshield wipers and washer
43STOP7. 5 A
Vehicle stability control, vehicle
dynamics integrated management,
stop lights, electronic controlled
transmission, multiport fuel injection
system/sequential multiport fuel injec-
tion system, shift lock control system,
starter system
44TOW IN G BAT T20 ATr a i l e r b a t t e r y
FuseAmpereCircuit
RX350_270_EE_48D77E.book 510 ページ ２０１４年１月２４日　金曜日　午前１０時４分

514
4-3. Do-it-yourself maintenance
RX350/270_EE
21PA N E L10 A
Switch illumination, navigation system,
electronically modulated air suspen-
sion, automatic transmission system,
audio system, multi-information dis-
play, air conditioning system, multiplex
communication system
22TA I L10 A
Front position lights, tail lights, license
plate lights, front fog lights, towing
converter, rear fog lights
23AIR SUS20 AElectronically modulated air suspen-
sion
24P- S E AT R H30 APower seat right side
25OBD7. 5 AOn-Board diagnosis
26FR DOOR25 AFront power window (right-side), out-
side rear view mirror
27RR DOOR25 ARear power window (right-side)
28FL DOOR25 AFront power window (left-side), out-
side rear view mirror
29RL DOOR25 ARear power window (left-side)
30FR WASH25 AWindshield wipers and washer
31RR WIP15 AWindshield wipers and washer
32RR WASH20 AWindshield wipers and washer
33FR WIP30 AWindshield wipers and washer
34ECU IG210 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, SRS airbag system, stop lights,
electronic controlled transmission,
steering lock system
FuseAmpereCircuit
RX350_270_EE_48D77E.book 514 ページ ２０１４年１月２４日　金曜日　午前１０時４分

5
549
5-2. Steps to take in an emergency
When trouble arises
RX350/270_EE
■When a tire is replaced with a spare tire
Vehicles with a compact spare tire
The compact spare tire is not equipped with a tire pressure warning valve and trans-
mitter. If a tire goes flat, the tire pressure warning light will not turn off even though
the flat tire has been replaced with the spare tire. Replace the spare tire with the
repaired tire and adjust the tire inflation pressure. The tire pressure warning light
will go off after a few minutes.
Vehicles with a full-size spare tire
The spare tire is also equipped with the tire pressure warning valve and transmitter.
The tire pressure warning light will turn on if the tire inflation pressure of the spare
tire is low. If a tire goes flat, even though the flat tire is replaced with the spare tire,
the tire pressure warning light does not turn off. Replace the spare tire with the
repaired tire and adjust to the proper tire inflation pressure. The tire pressure warn-
ing light will turn off after a few minutes.
■If the tire pressure warning system is not functioning
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used
●If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer
●If the tire inflation pressure is 500 kPa (5.1 kgf/cm2 or bar, 73psi) or higher
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies are nearby
●If a radio set at similar frequencies is in use in the vehicle
●If a window tint that affects the radio wave signals is installed
●If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings
●If non-genuine Lexus wheels are used (Even if you use Lexus wheels, the tire
pressure warning system may not work properly with some types of tires.)
RX350_270_EE_48D77E.book 549 ページ ２０１４年１月２４日　金曜日　午前１０時４分
