37
1-2. Opening, closing and locking the doors
1
Before driving
RX350/270_EE
■Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situations,
the communication between the electronic key and the vehicle may be affected,
preventing the smart entry & start system, wireless remote control and immobilizer
system from operating properly.
(Ways of coping: →P. 5 9 1 )
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wire-
less communication device
●When the electronic key is in contact with, or is covered by the following metal-
lic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When multiple electronic keys are in the vicinity
●When another wireless key (that emits radio waves) is being used nearby
●When carrying the electronic key together with the following devices that emit
radio waves
• Another vehicle's electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or metallic objects are attached to the rear
window
RX350_270_EE_48D77E.book 37 ページ ２０１４年１月２４日　金曜日　午前１０時４分

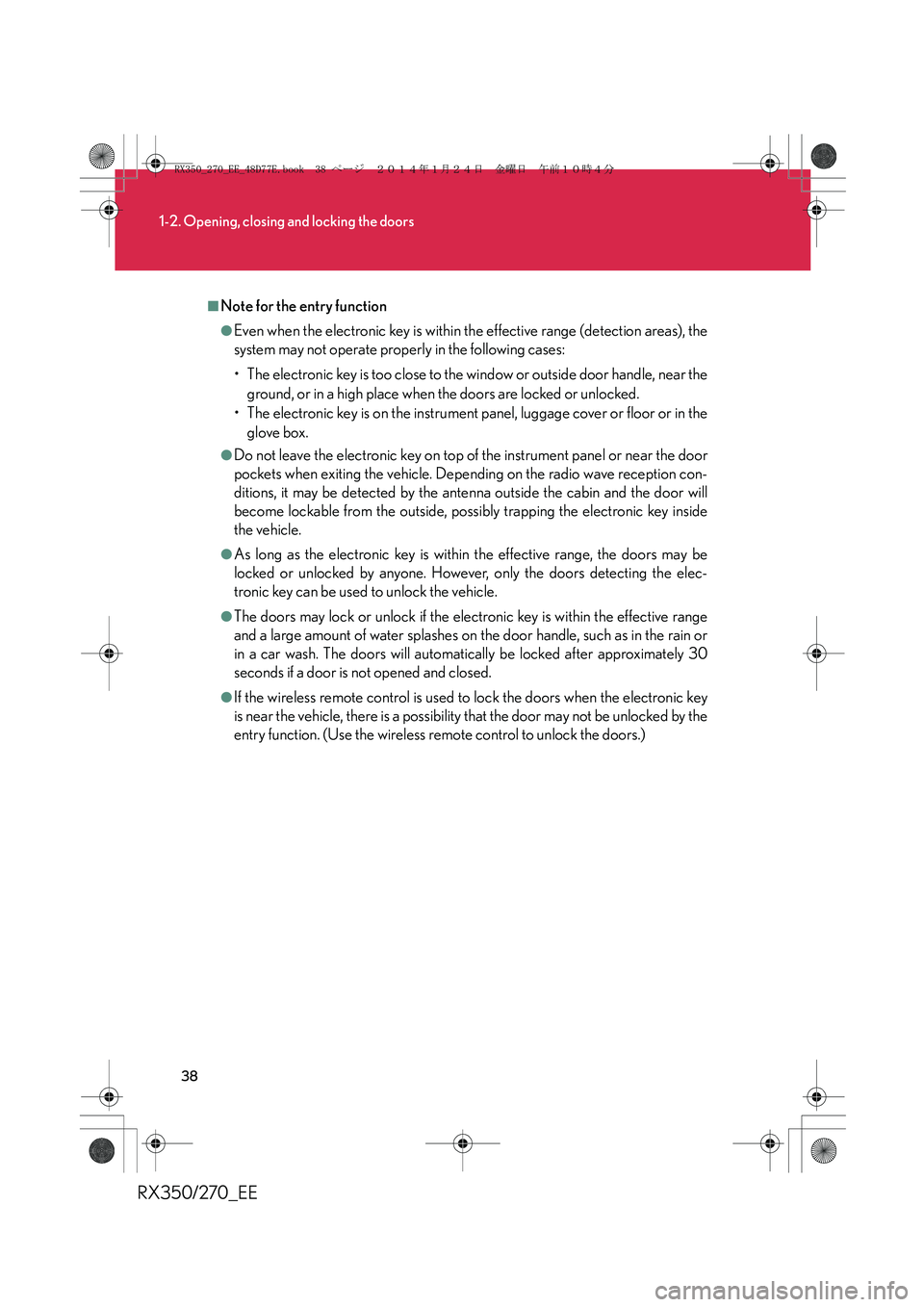

38
1-2. Opening, closing and locking the doors
RX350/270_EE
■Note for the entry function
●Even when the electronic key is within the effective range (detection areas), the
system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near the
ground, or in a high place when the doors are locked or unlocked.
• The electronic key is on the instrument panel, luggage cover or floor or in the
glove box.
●Do not leave the electronic key on top of the instrument panel or near the door
pockets when exiting the vehicle. Depending on the radio wave reception con-
ditions, it may be detected by the antenna outside the cabin and the door will
become lockable from the outside, possibly trapping the electronic key inside
the vehicle.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.
●The doors may lock or unlock if the electronic key is within the effective range
and a large amount of water splashes on the door handle, such as in the rain or
in a car wash. The doors will automatically be locked after approximately 30
seconds if a door is not opened and closed.
●If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
entry function. (Use the wireless remote control to unlock the doors.)
RX350_270_EE_48D77E.book 38 ページ ２０１４年１月２４日　金曜日　午前１０時４分

53
1
1-2. Opening, closing and locking the doors
Before driving
RX350/270_EE
Wireless remote control
The wireless remote control can be used to lock and unlock the vehicle.
It also opens and closes the back door.
Vehicles without a power back door
Locks all the doors
Closes the windows and
moon roof (press and hold)*
Unlocks all the doors
Opens the windows and
moon roof (press and hold)*
*: This setting must be customized
at any authorized Lexus dealer
or repairer, or another duly quali-
fied and equipped professional.
Vehicles with a power back door
Locks all the doors
Closes the windows and
moon roof (press and hold)*
Unlocks all the doors
Opens the windows and
moon roof (press and hold)*
Opens and closes the back
door (press and hold)
*: This setting must be customized
at any authorized Lexus dealer
or repairer, or another duly quali-
fied and equipped professional.
RX350_270_EE_48D77E.book 53 ページ ２０１４年１月２４日　金曜日　午前１０時４分

54
1-2. Opening, closing and locking the doors
RX350/270_EE
■Operation signals
Doors:
The emergency flashers flash to indicate that the doors have been locked/unlocked.
(Locked: Once; Unlocked: Twice)
Power back door (if equipped):
A buzzer sounds to indicate that the back door is opening/closing.
Windows and moon roof:
A buzzer sounds to indicate that the windows and moon roof are opening.
■Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a buzzer
sounds continuously. Fully close the door to stop the buzzer, and lock the vehicle
once more.
■Security feature
→P. 3 6
■Back door operation
The back door will not be locked automatically after it has been opened and then
closed. Lock the back door again when you leave the vehicle.
■Alarm
Using the wireless remote control to lock the doors will set the alarm system.
(→P. 122)
■Reversing the operation of the power back door
Pressing the wireless remote control switch again while the power back door is
operating will cause the operation to reverse.
■Conditions affecting operation
→P. 3 7
■If the wireless remote control does not operate properly
Locking and unlocking the doors: Use the mechanical key. (→P. 5 9 1 )
RX350_270_EE_48D77E.book 54 ページ ２０１４年１月２４日　金曜日　午前１０時４分

55
1-2. Opening, closing and locking the doors
1
Before driving
RX350/270_EE
■Electronic key battery depletion
→P. 4 0
■When the electronic key battery is fully depleted
→P. 5 0 1
■Customization
Settings (e.g. door unlocking function) can be changed.
(Customizable features →P. 6 2 2 )
CAUTION
■When closing the windows or moon roof using wireless remote control
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window or moon roof is being oper-
ated.
●To prevent inadvertent power windows and moon roof operation, never let a
small child have and use the wireless remote control.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the window or moon roof fully closes.
RX350_270_EE_48D77E.book 55 ページ ２０１４年１月２４日　金曜日　午前１０時４分

100
1-3. Adjustable components (seats, mirrors, steering wheel)
RX350/270_EE
■When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn on
the rear window defogger to turn on the outside rear view mirror defoggers.
(→P. 3 2 1 )
■Automatic adjustment of the mirror angle (vehicles with driving position mem-
ory)
A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. (→P. 8 1 )
■Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirror is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light. (→P. 9 6 )
CAUTION
■When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your hand
caught by the moving mirror.
■When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.
RX350_270_EE_48D77E.book 100 ページ ２０１４年１月２４日　金曜日　午前１０時４分

101
1
Before driving
RX350/270_EE
1-4. Opening and closing the windows and moon roof
Power windows
Window lock switch
Press the switch to lock the pas-
senger window switches.
The indicator will come on.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
The passenger windows can still be
opened and closed using the
power window switches on the
driver’s side even if the lock switch
is on.
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing
*
Opening
One-touch opening
*
*: To stop the window partway,
operate the switch in the oppo-
site direction.
Indicator
RX350_270_EE_48D77E.book 101 ページ ２０１４年１月２４日　金曜日　午前１０時４分

102
1-4. Opening and closing the windows and moon roof
RX350/270_EE
■The power windows can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Operating the power windows after turning the engine off
The power windows can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is turned to ACCESSORY mode or turned off.
They cannot, however, be operated once either front door is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot be
closed, perform the following operations using the power window switch on the rel-
evant door.
●After stopping the vehicle, the window can be closed by holding the power win-
dow switch in the one-touch closing position while the “ENGINE START
STOP” switch is turned to IGNITION ON mode.
●If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following procedure.
Hold the power window switch in the one-touch closing position. Con-
tinue holding the switch for a further 6 seconds after the window has
closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the beginning.
If the window continues to close but then re-open slightly even after performing the
above procedure correctly, have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 102 ページ ２０１４年１月２４日　金曜日　午前１０時４分

103
1-4. Opening and closing the windows and moon roof
1
Before driving
RX350/270_EE
■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key.
(→P. 5 9 1 )
●The power windows can be opened and closed using the wireless remote con-
trol if customized at any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional. (→P. 5 3 )
■Window close suggestion mode
If the “ENGINE START STOP” switch is turned off with the windows open, a sug-
gestion to close all the windows is shown on the multi-information display.
(→P. 2 0 8 )
■When the battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch after
reconnecting the battery.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 6 2 2 )
CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
The driver is responsible for instructing children not to operate the power win-
dows.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the window fully closes. Also, the jam protection does not operate when the
power window switch is pulled up continually to close the windows.
RX350_270_EE_48D77E.book 103 ページ ２０１４年１月２４日　金曜日　午前１０時４分

104
1-4. Opening and closing the windows and moon roof
RX350/270_EE
Moon roof∗
Use the overhead switches to open and close the moon roof and tilt it up
and down.
■Opening and closing
Opens the moon roof*
The moon roof stops slightly
before the fully open position to
reduce wind noise.
Press the switch again to fully
open the moon roof.
Closes the moon roof*
*: Lightly press either of the moon
roof switches to stop the moon
roof partway.
■Tilting up and down
Tilts the moon roof up*
Tilts the moon roof down*
*: Lightly press either of the moon
roof switches to stop the moon
roof partway.
∗: If equipped
RX350_270_EE_48D77E.book 104 ページ ２０１４年１月２４日　金曜日　午前１０時４分
