LEXUS RX300H 2017 Owners Manual

1112. Instrument cluster
2
Instrument cluster
RC300h_EE(OM24740E)

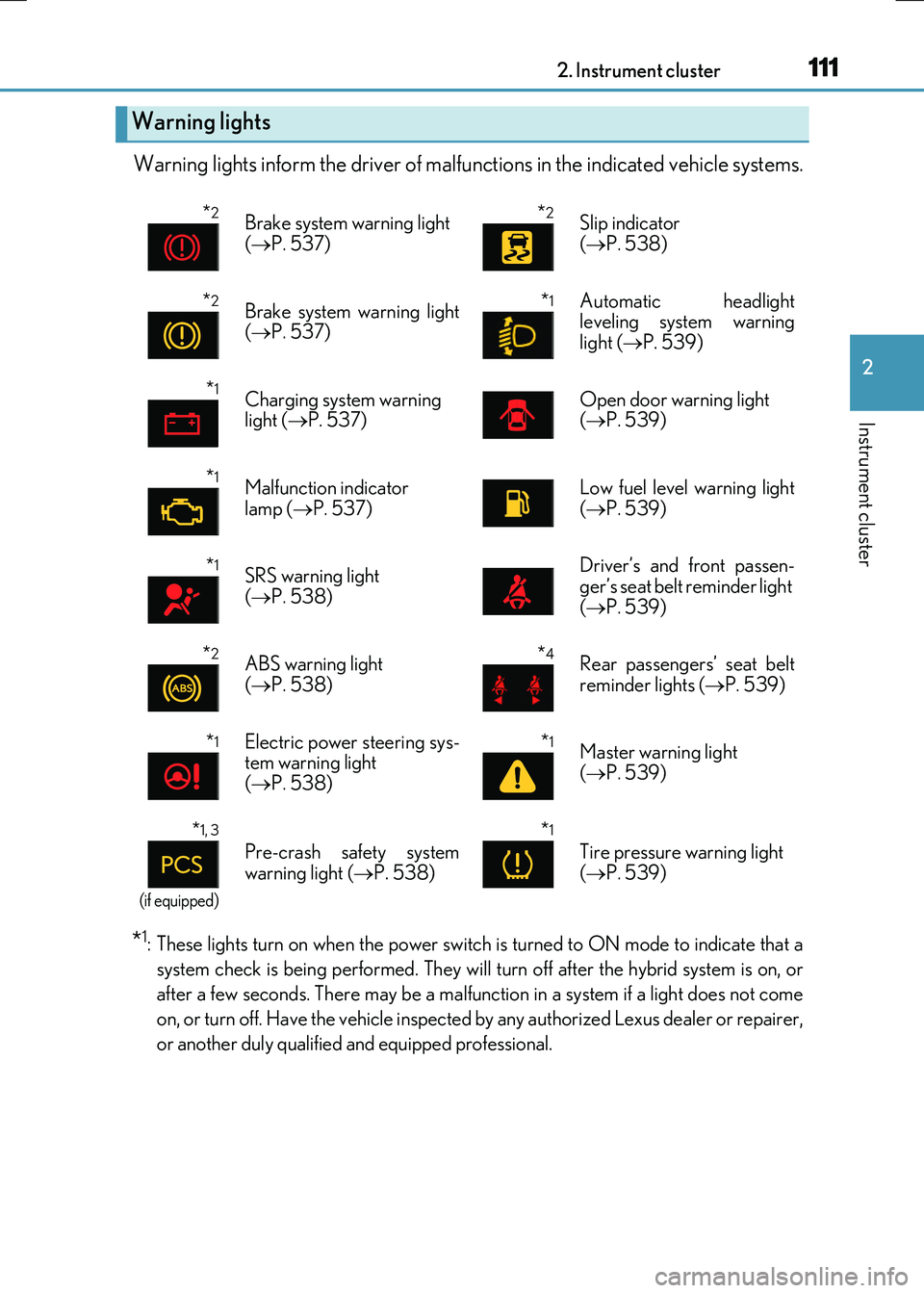

Warning lights inform the driver of malfunctions in the indicated vehicle systems.
*1: These lights turn on when the power switch is turned to ON mode to indicate that a
system check is being performed. They will turn off after the hybrid system is on, or
after a few seconds. There may be a malfunct ion in a system if a light does not come
on, or turn off. Have the vehicle inspected by any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
Warning lights
*2Brake system warning light
( P. 537)
*2Slip indicator
( P. 538)
*2Brake system warning light ( P. 537)
*1 Automatic headlight leveling system warning
light ( P. 539)
*1Charging system warning light ( P. 537)Open door warning light ( P. 539)
*1Malfunction indicator
lamp ( P. 537)
Low fuel level warning light
( P. 539)
*1SRS warning light ( P. 538)
Driver’s and front passen- ger’s seat belt reminder light
( P. 539)
*2ABS warning light ( P. 538)
*4Rear passengers’ seat belt reminder lights ( P. 539)
*1Electric power steering sys- tem warning light( P. 538)
*1Master warning light
( P. 539)
*1, 3
(if equipped)
Pre-crash safety system
warning light ( P. 538)
*1
Tire pressure warning light
( P. 539)

1122. Instrument cluster
RC300h_EE(OM24740E)
*2: These lights turn on when the power switch is turned to ON mode to indicate that a
system check is being perfor med. They will turn off after the “READY” indicator turns
on. There may be a malfunction in a system if a light does not come on, or turn off.
Have the vehicle inspected by any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
*3: The light flashes to indicate a malfunction.
*4: This light illuminates on the center panel.
The indicators inform the driver of the operating state of the vehicle’s various sys-
tems.
Indicators
Turn signal indicator ( P. 229) Cruise control “SET” indica- tor ( P. 253, 257)
Tail light indicator ( P. 232) (if equipped)
LDA (Lane Departure Alert) indicator ( P. 273)
Headlight high beam indi-
cator ( P. 232)
Lexus parking assist-sensor
indicator ( P. 279)
(if equipped)
Automatic High Beam indi-
cator ( P. 235)
*2, 3 Slip indicator
( P. 305)
(if equipped)
Front fog light indicator
( P. 239)
*1VSC OFF indicator
( P. 307)
Rear fog light indicator ( P. 239)
*1, 4
(if equipped)
Pre-crash safety system warning light ( P. 312)
Cruise control indicator ( P. 253, 257)
*5, 7
(if equipped)
BSM (Blind Spot Monitor) outside rear view mirror
indicators ( P. 319)
(if equipped)
Dynamic radar cruise con- trol indicator ( P. 257)
*8Security indicator ( P. 95, 102)

1132. Instrument cluster
2
Instrument cluster
RC300h_EE(OM24740E)

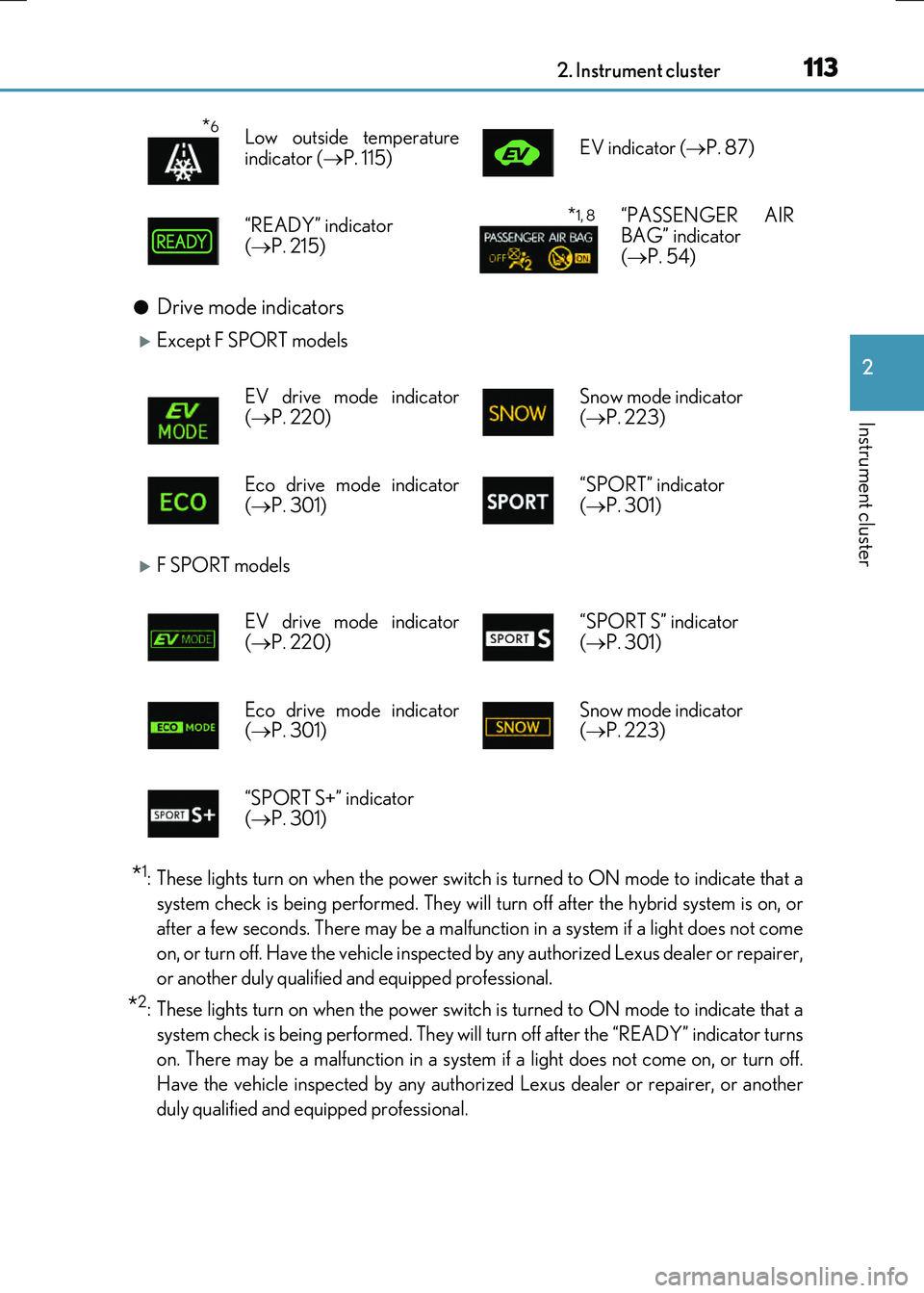

●Drive mode indicators
Except F SPORT models
F SPORT models
*1: These lights turn on when the power switch is turned to ON mode to indicate that a
system check is being performed. They will turn off after the hybrid system is on, or
after a few seconds. There may be a malfunct ion in a system if a light does not come
on, or turn off. Have the vehicle inspected by any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
*2: These lights turn on when the power switch is turned to ON mode to indicate that a
system check is being perfor med. They will turn off after the “READY” indicator turns
on. There may be a malfunction in a system if a light does not come on, or turn off.
Have the vehicle inspected by any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
*6Low outside temperature
indicator ( P. 115) EV indicator ( P. 87)
“READY” indicator
( P. 215)
*1, 8“PASSENGER AIR BAG” indicator ( P. 54)
EV drive mode indicator ( P. 220) Snow mode indicator ( P. 223)
Eco drive mode indicator
( P. 301)
“SPORT” indicator
( P. 301)
EV drive mode indicator
( P. 220)
“SPORT S” indicator
( P. 301)
Eco drive mode indicator ( P. 301) Snow mode indicator ( P. 223)
“SPORT S+” indicator ( P. 301)

1142. Instrument cluster
RC300h_EE(OM24740E)

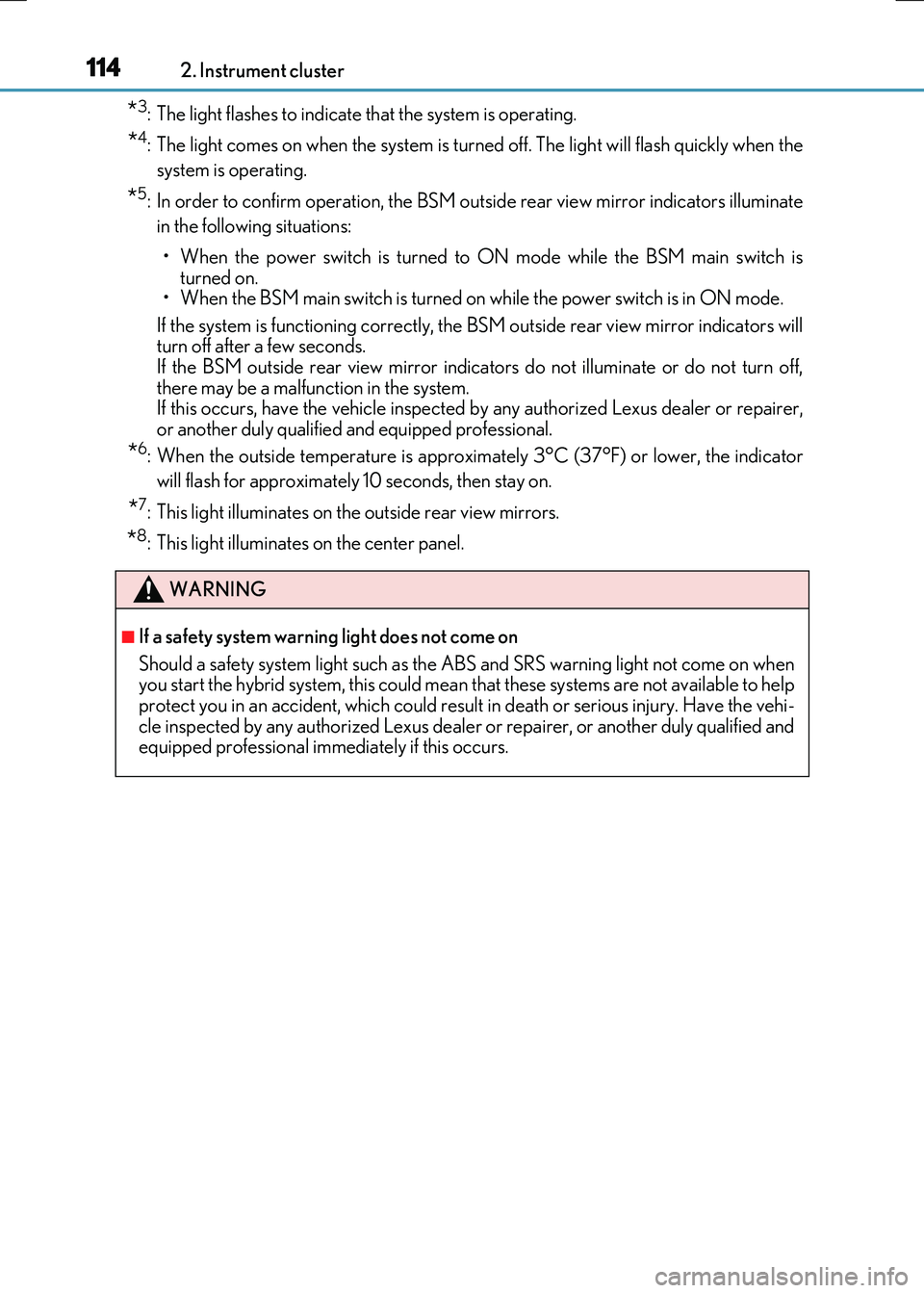

*3: The light flashes to indicate that the system is operating.
*4: The light comes on when the system is turned off. The light will flash quickly when the
system is operating.
*5: In order to confirm operation, the BSM outside rear view mirror indicators illuminate
in the following situations:
• When the power switch is turned to ON mode while the BSM main switch is turned on.• When the BSM main switch is turned on while the power switch is in ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators will turn off after a few seconds. If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction in the system. If this occurs, have the vehicle inspected by any authorized Lexus dealer or repairer,or another duly qualified and equipped professional.
*6: When the outside temperature is approximately 3°C (37°F) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
*7: This light illuminates on the outside rear view mirrors.
*8: This light illuminates on the center panel.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when you start the hybrid system, this could mean that these systems are not available to helpprotect you in an accident, which could result in death or serious injury. Have the vehi-
cle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional immediately if this occurs.

1152. Instrument cluster
2
Instrument cluster
RC300h_EE(OM24740E)

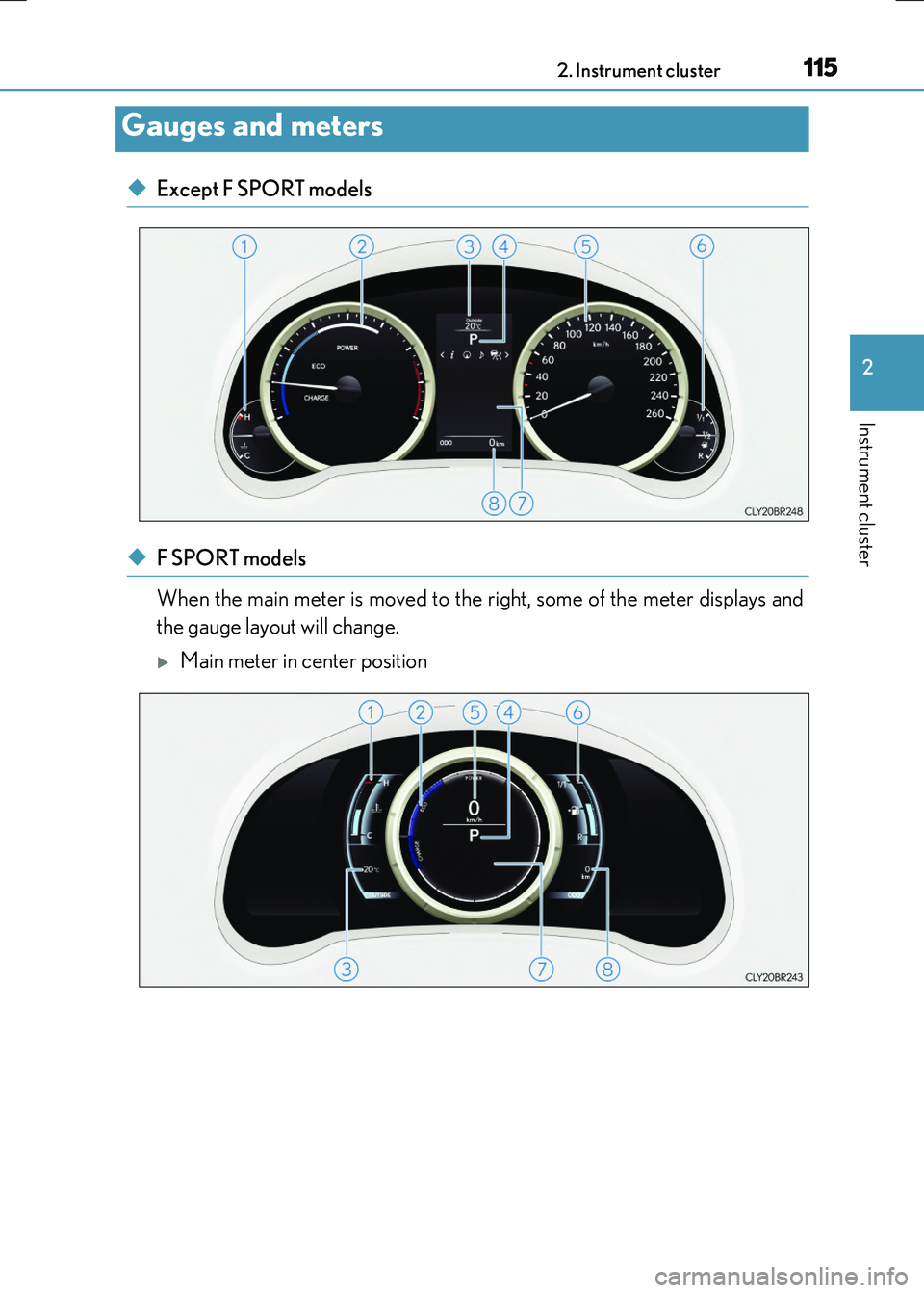

◆Except F SPORT models
◆F SPORT models
When the main meter is moved to the right, some of the meter displays and
the gauge layout will change.
Main meter in center position
Gauges and meters

1162. Instrument cluster
RC300h_EE(OM24740E)

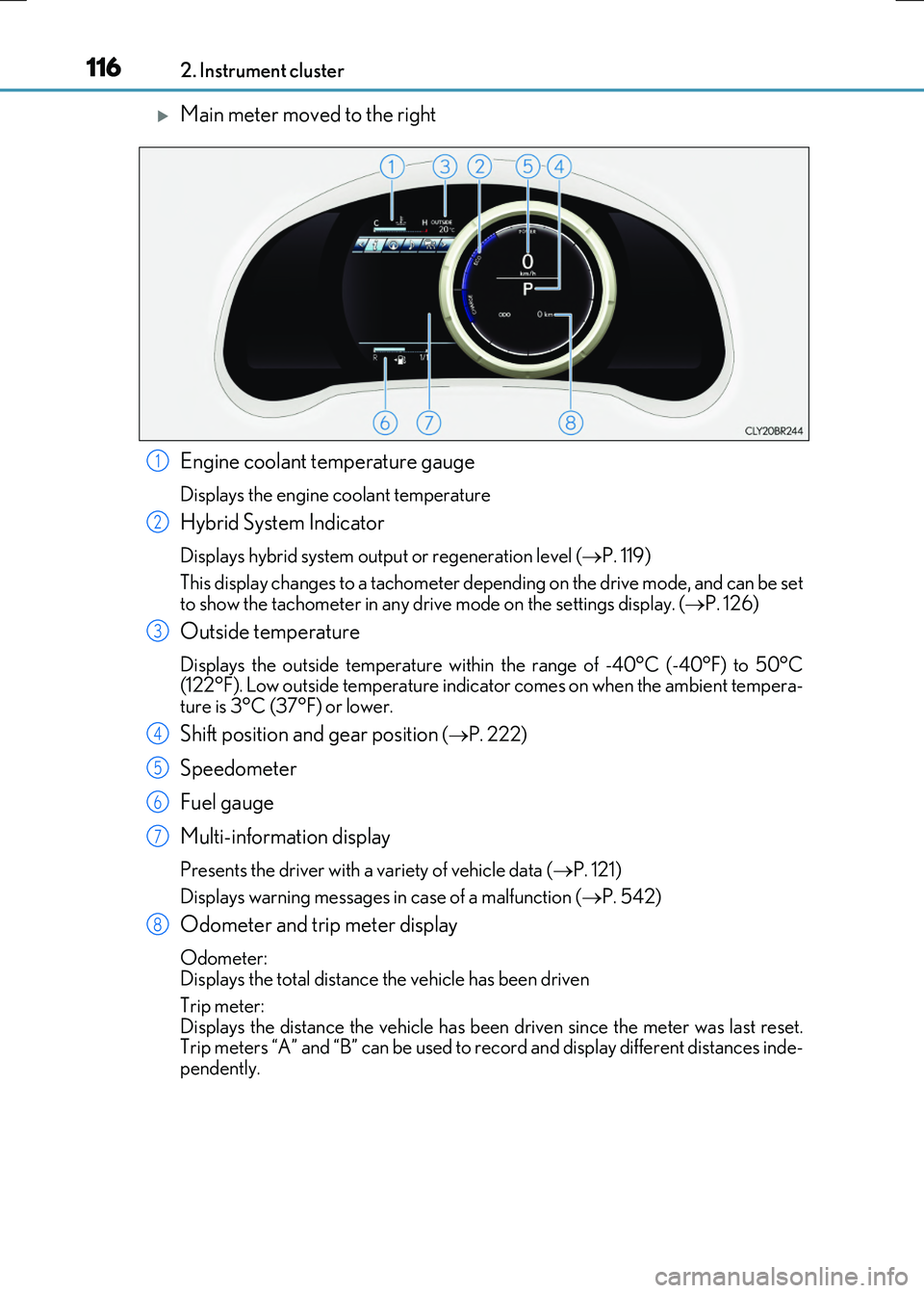

Main meter moved to the right
Engine coolant temperature gauge
Displays the engine coolant temperature
Hybrid System Indicator
Displays hybrid system output or regeneration level ( P. 119)
This display changes to a tachometer depending on the drive mode, and can be set
to show the tachometer in any drive mode on the settings display. ( P. 126)
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F). Low outside temperature indicator comes on when the ambient tempera-ture is 3°C (37°F) or lower.
Shift position and gear position ( P. 222)
Speedometer
Fuel gauge
Multi-information display
Presents the driver with a variety of vehicle data ( P. 121)
Displays warning messages in case of a malfunction ( P. 542)
Odometer and trip meter display
Odometer: Displays the total distance the vehicle has been driven
Trip meter: Displays the distance the vehicle has been driven since the meter was last reset. Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
1
2
3
4
5
6
7
8

1172. Instrument cluster
2
Instrument cluster
RC300h_EE(OM24740E)

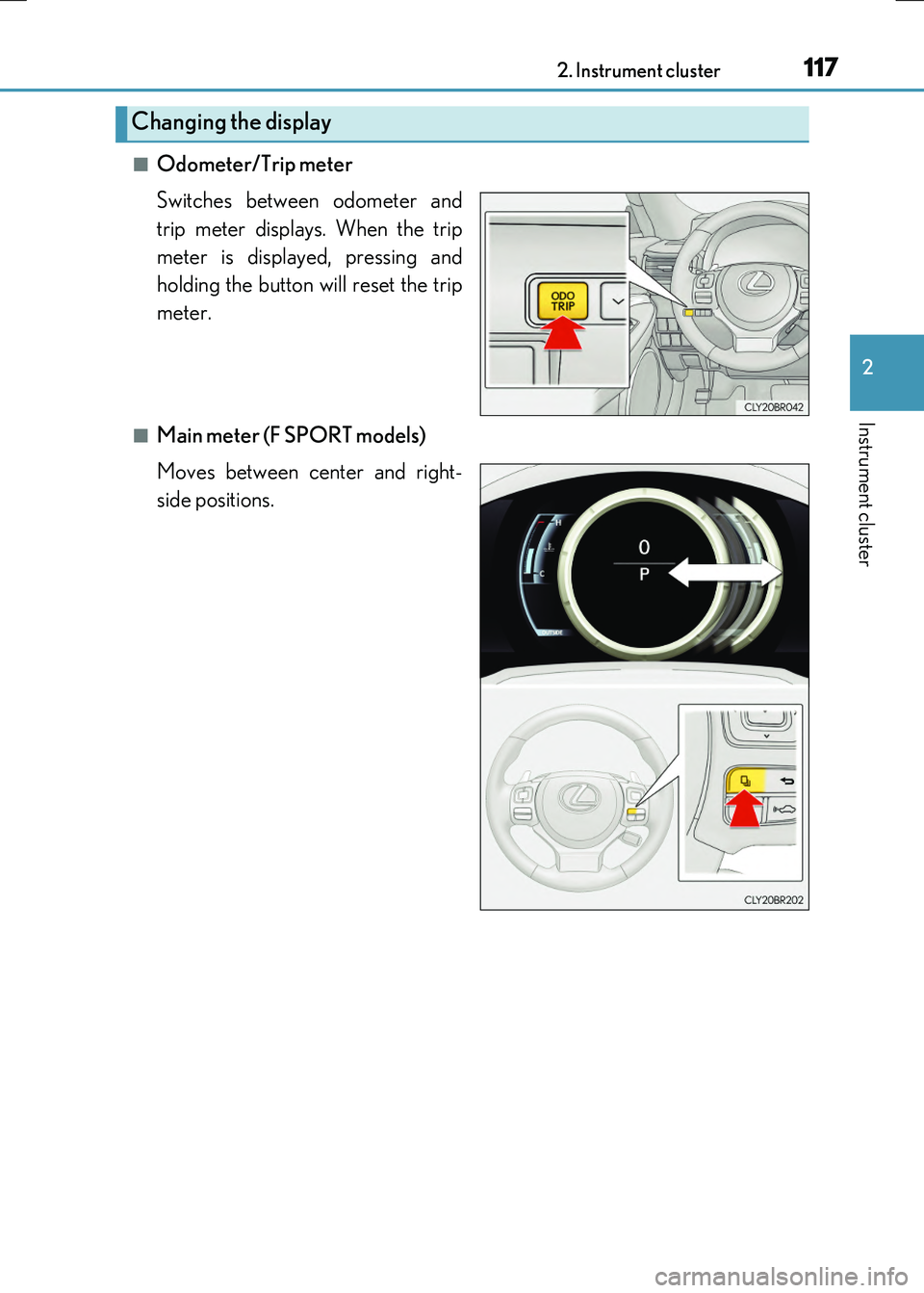

■Odometer/Trip meter
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the trip
meter.
■Main meter (F SPORT models)
Moves between center and right-
side positions.
Changing the display

1182. Instrument cluster
RC300h_EE(OM24740E)

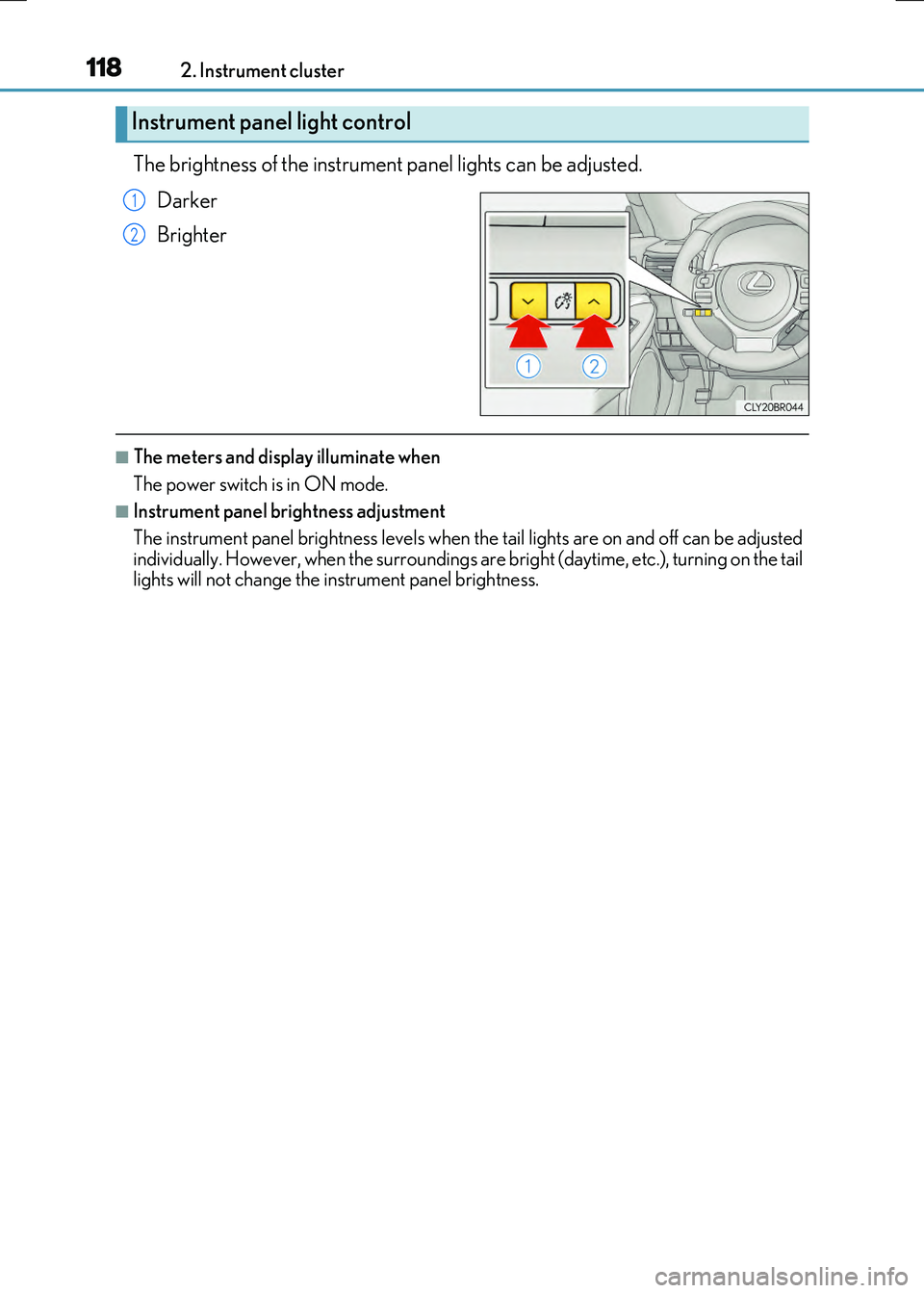

The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
■The meters and display illuminate when
The power switch is in ON mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels when th e tail lights are on and off can be adjusted
individually. However, when the surroundings ar e bright (daytime, etc.), turning on the tail lights will not change the in strument panel brightness.
Instrument panel light control
1
2

1192. Instrument cluster
2
Instrument cluster
RC300h_EE(OM24740E)

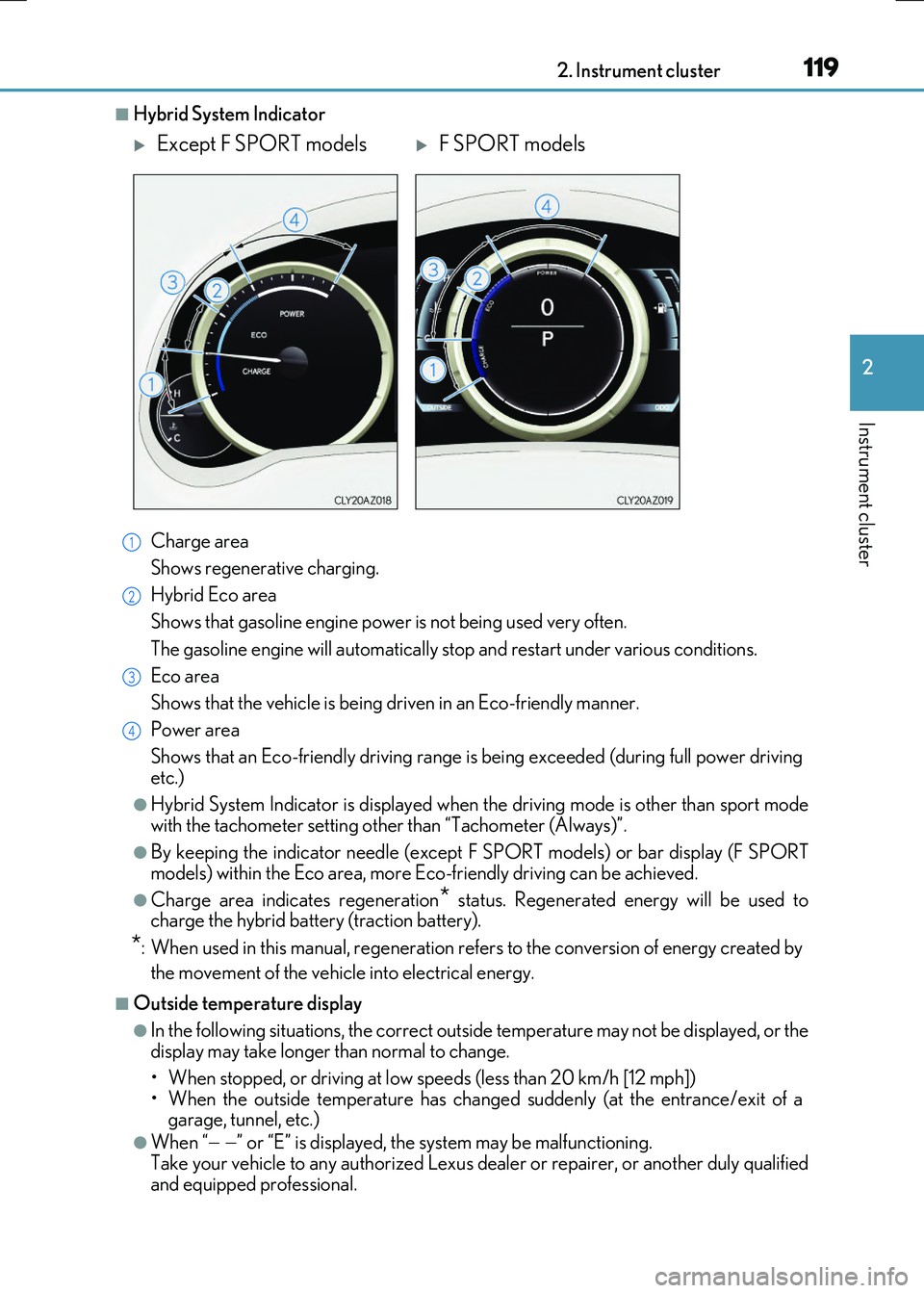

■Hybrid System Indicator
Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is not being used very often.
The gasoline engine will aut omatically stop and restart under various conditions.
Eco area
Shows that the vehicle is being dr iven in an Eco-friendly manner.
Power area
Shows that an Eco-friendly dr iving range is being exceeded (during full power driving etc.)
●Hybrid System Indicator is displayed when the driving mode is other than sport mode with the tachometer setting other than “Tachometer (Always)”.
●By keeping the indicator needle (except F SPORT models) or bar display (F SPORT
models) within the Eco area, more Eco- friendly driving can be achieved.
●Charge area indicates regeneration* status. Regenerated energy will be used to charge the hybrid battery (traction battery).
*: When used in this manual, re generation refers to the conversion of energy created by
the movement of the vehicle into electrical energy.
■Outside temperature display
●In the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph]) • When the outside temperature has changed suddenly (at the entrance/exit of agarage, tunnel, etc.)
●When “ ” or “E” is displayed, the system may be malfunctioning. Take your vehicle to any authorized Lexus de aler or repairer, or another duly qualified
and equipped professional.
Except F SPORT modelsF SPORT models
1
2
3
4

1202. Instrument cluster
RC300h_EE(OM24740E)

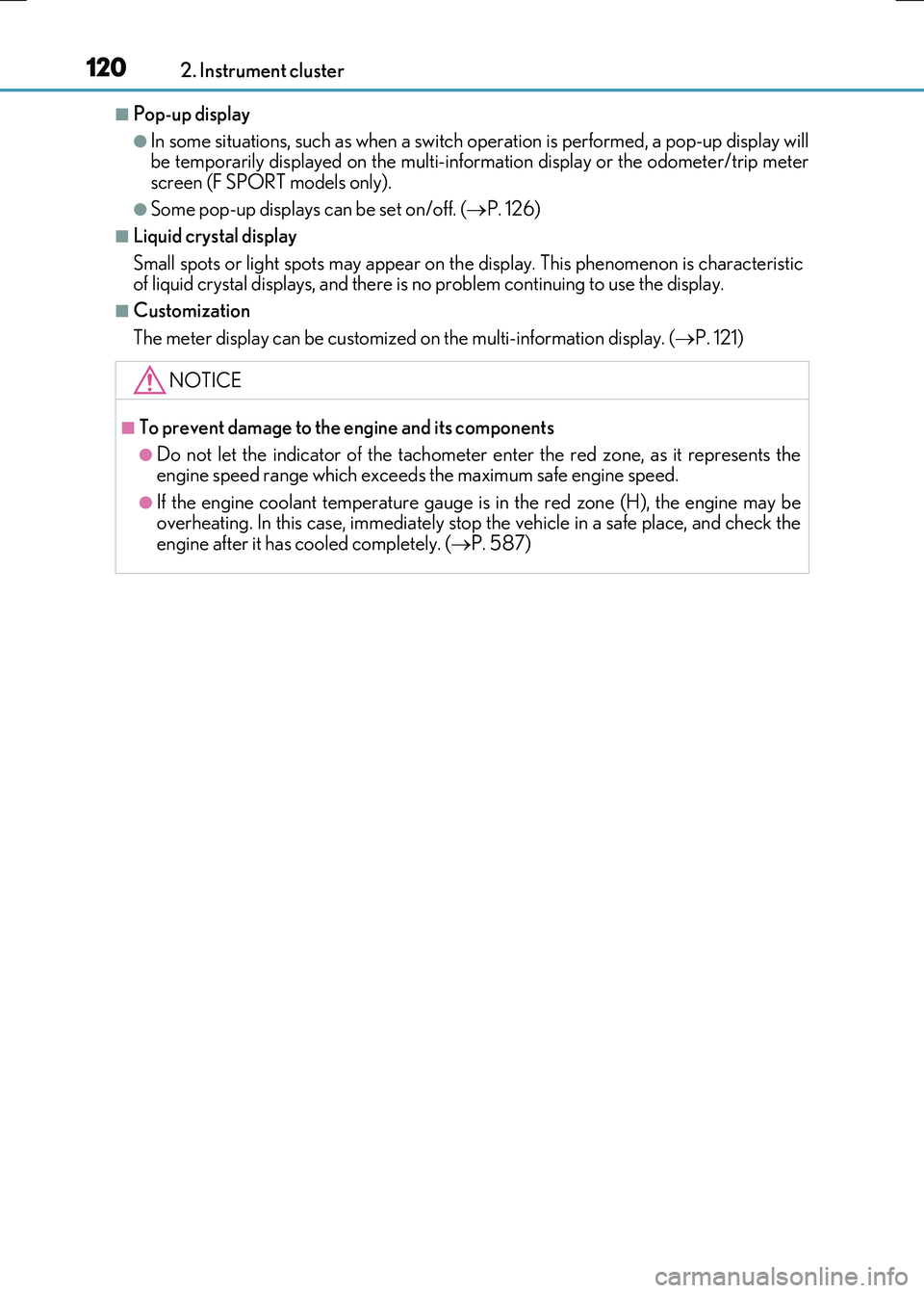

■Pop-up display
●In some situations, such as when a switch operation is performed, a pop-up display will be temporarily displayed on the multi-information display or the odometer/trip meter
screen (F SPORT models only).
●Some pop-up displays can be set on/off. ( P. 126)
■Liquid crystal display
Small spots or light spots may appear on th e display. This phenomenon is characteristic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
The meter display can be customized on the multi-information display. (P. 121)
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator of the tachometer enter the red zone, as it represents the engine speed range which exceeds the maximum safe engine speed.
●If the engine coolant temperature gauge is in the red zone (H), the engine may beoverheating. In this case, immediately stop the vehicle in a safe place, and check theengine after it has cooled completely. ( P. 587)
