911-2. Hybrid system
1
For safety and security
RC300h_EE(OM24740E)

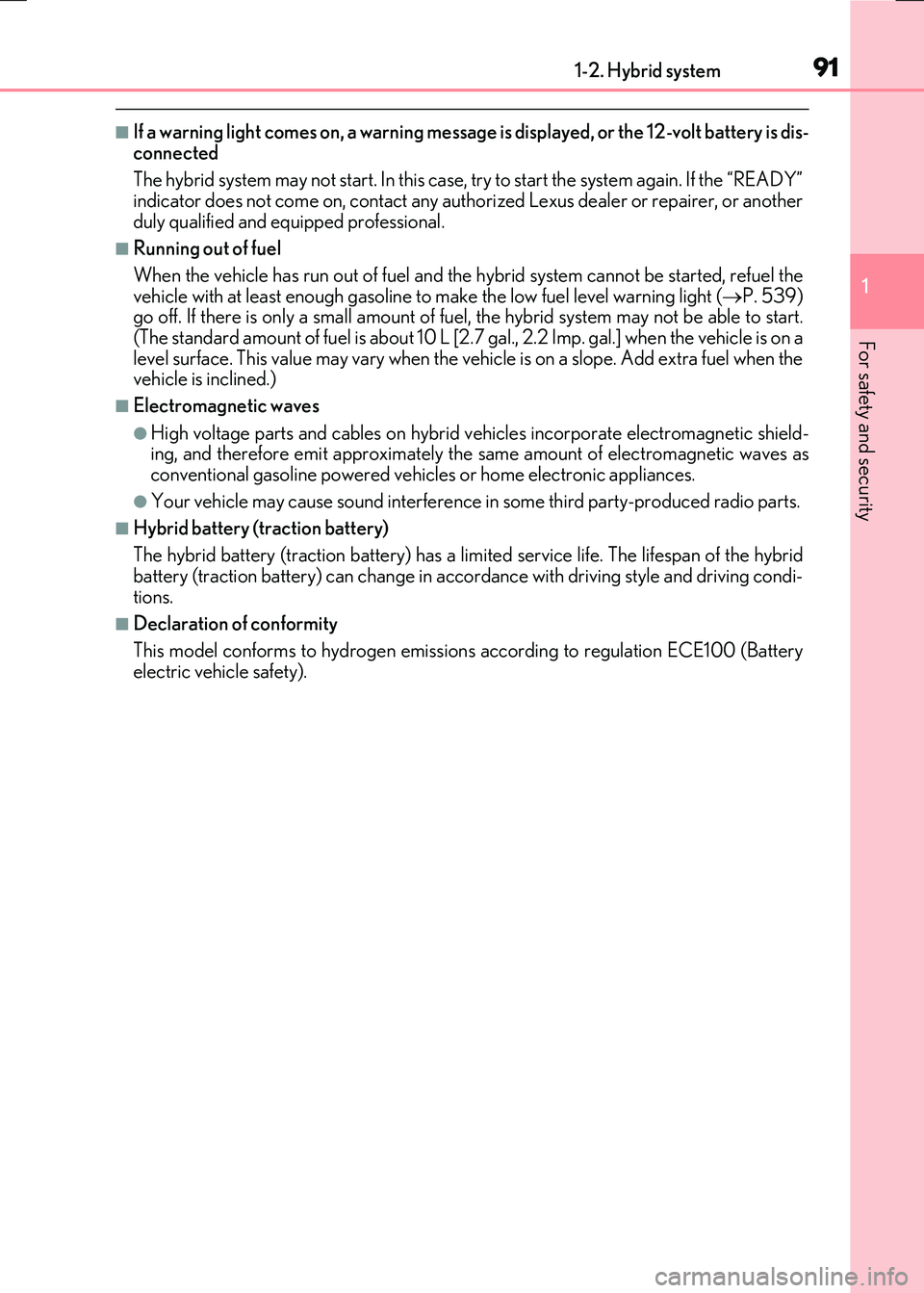

■If a warning light comes on, a warning message is displayed, or the 12-volt battery is dis-
connected
The hybrid system may not start. In this case, try to start the system again. If the “READY” indicator does not come on, contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
■Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make the low fuel level warning light (P. 539) go off. If there is only a small amount of fuel, the hybrid system may not be able to start.(The standard amount of fuel is about 10 L [2.7 gal., 2.2 Imp. gal.] when the vehicle is on a
level surface. This value may vary when the vehi cle is on a slope. Add extra fuel when the vehicle is inclined.)
■Electromagnetic waves
●High voltage parts and cables on hybrid ve hicles incorporate electromagnetic shield- ing, and therefore emit approximately the same amount of electromagnetic waves as conventional gasoline powered vehicles or home electronic appliances.
●Your vehicle may cause sound interference in some third party-produced radio parts.
■Hybrid battery (traction battery)
The hybrid battery (traction battery) has a lim ited service life. The lifespan of the hybrid
battery (traction battery) can change in accordance with driving style and driving condi- tions.
■Declaration of conformity
This model conforms to hydrogen emissions according to regulation ECE100 (Battery electric vehicle safety).

921-2. Hybrid system
RC300h_EE(OM24740E)

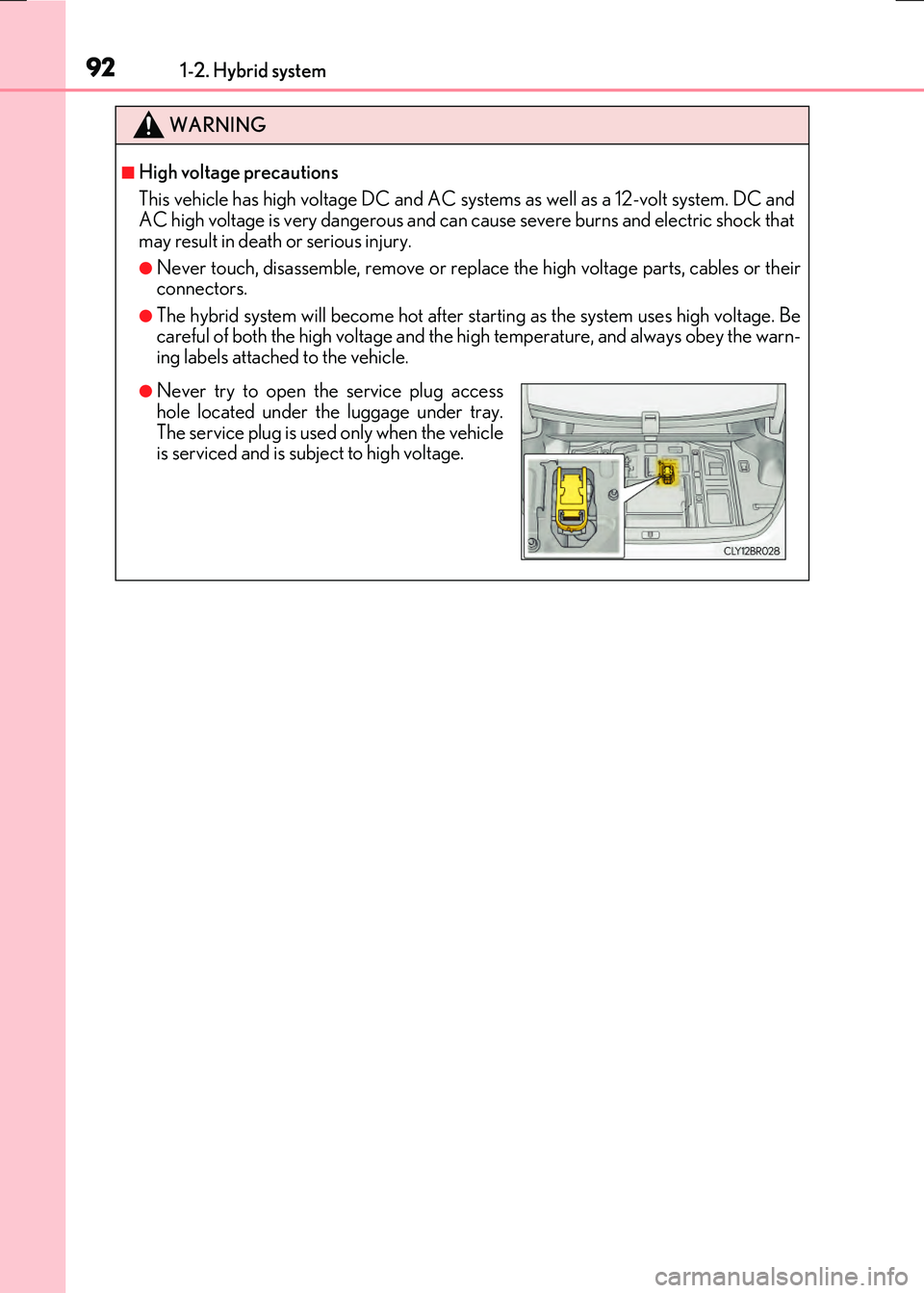

WARNING
■High voltage precautions
This vehicle has high voltage DC and AC systems as well as a 12-volt system. DC and AC high voltage is very dangerous and can cause severe burns and electric shock that
may result in death or serious injury.
●Never touch, disassemble, remove or replace the high voltage parts, cables or their connectors.
●The hybrid system will become hot after starting as the system uses high voltage. Becareful of both the high voltage and the hi gh temperature, and always obey the warn- ing labels attached to the vehicle.
●Never try to open the service plug accesshole located under the luggage under tray.
The service plug is used only when the vehicle is serviced and is subject to high voltage.

931-2. Hybrid system
1
For safety and security
RC300h_EE(OM24740E)

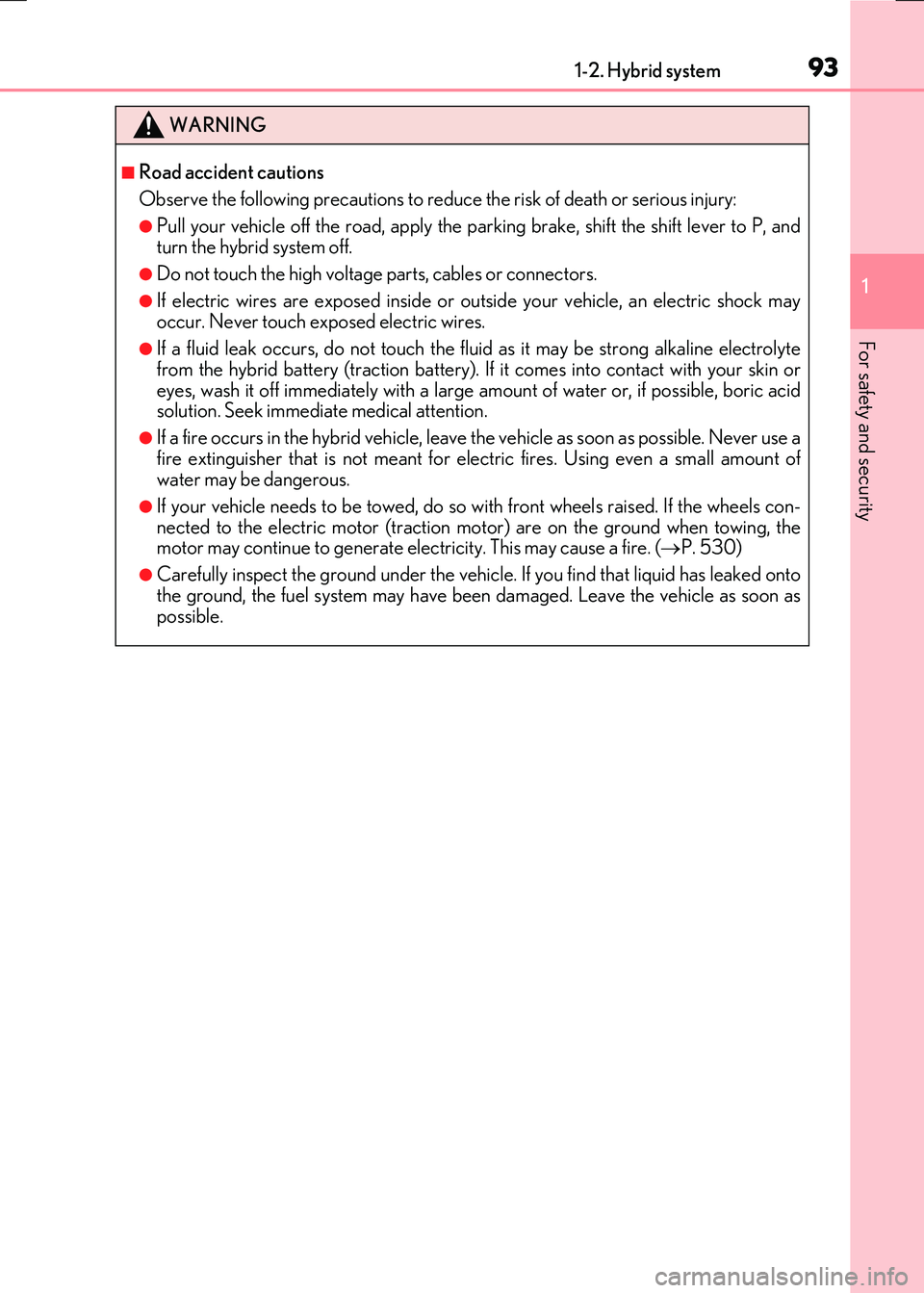

WARNING
■Road accident cautions
Observe the following precautions to reduce the risk of death or serious injury:
●Pull your vehicle off the road, apply the parking brake, shift the shift lever to P, and
turn the hybrid system off.
●Do not touch the high voltage parts, cables or connectors.
●If electric wires are exposed inside or ou tside your vehicle, an electric shock may
occur. Never touch exposed electric wires.
●If a fluid leak occurs, do not touch the fluid as it may be strong alkaline electrolyte from the hybrid battery (traction battery). If it comes into contact with your skin or
eyes, wash it off immediately with a large amount of water or, if possible, boric acid solution. Seek immediate medical attention.
●If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible. Never use a
fire extinguisher that is not meant for electric fires. Using even a small amount of water may be dangerous.
●If your vehicle needs to be towed, do so with front wheels raised. If the wheels con-
nected to the electric motor (traction mot or) are on the ground when towing, the motor may continue to generate electricity. This may cause a fire. ( P. 530)
●Carefully inspect the ground under the vehicle. If you find that liquid has leaked onto
the ground, the fuel system may have been damaged. Leave the vehicle as soon as possible.

941-2. Hybrid system
RC300h_EE(OM24740E)

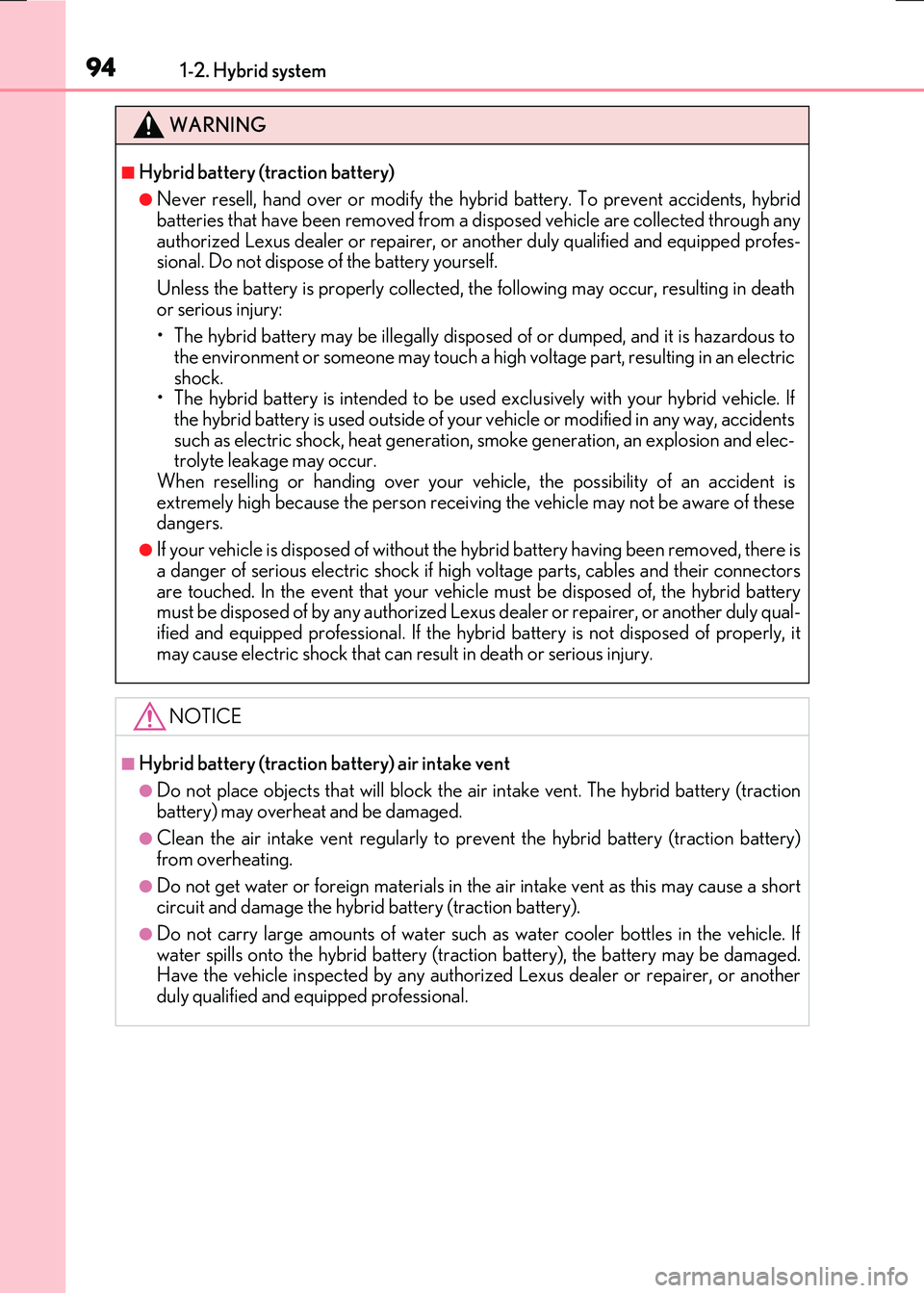

WARNING
■Hybrid battery (traction battery)
●Never resell, hand over or modify the hybrid battery. To prevent accidents, hybrid batteries that have been removed from a disposed vehicle are collected through any
authorized Lexus dealer or repairer, or an other duly qualified and equipped profes- sional. Do not dispose of the battery yourself.
Unless the battery is properly collected, the following may occur, resulting in death
or serious injury:
• The hybrid battery may be illegally dispos ed of or dumped, and it is hazardous to the environment or someone may touch a high voltage part, resulting in an electric
shock. • The hybrid battery is intended to be used exclusively with your hybrid vehicle. If the hybrid battery is used outside of your vehicle or modified in any way, accidents
such as electric shock, heat generation, smoke generation, an explosion and elec- trolyte leakage may occur.When reselling or handing over your vehicle, the possibility of an accident is
extremely high because the person receiving the vehicle may not be aware of these dangers.
●If your vehicle is disposed of without the hybrid battery having been removed, there is
a danger of serious electric shock if high voltage parts, cables and their connectors are touched. In the event that your vehicle must be disposed of, the hybrid batterymust be disposed of by any authorized Lexu s dealer or repairer, or another duly qual-
ified and equipped professional. If the hybrid battery is not disposed of properly, it may cause electric shock that can result in death or serious injury.
NOTICE
■Hybrid battery (traction battery) air intake vent
●Do not place objects that will block the air intake vent. The hybrid battery (traction
battery) may overheat and be damaged.
●Clean the air intake vent regularly to prevent the hybrid battery (traction battery) from overheating.
●Do not get water or foreign materials in the air intake vent as this may cause a shortcircuit and damage the hybrid battery (traction battery).
●Do not carry large amounts of water such as water cooler bottles in the vehicle. If
water spills onto the hybrid battery (tract ion battery), the battery may be damaged. Have the vehicle inspected by any authorized Lexus dealer or repairer, or anotherduly qualified and equipped professional.

95
1
For safety and security
RC300h_EE(OM24740E)

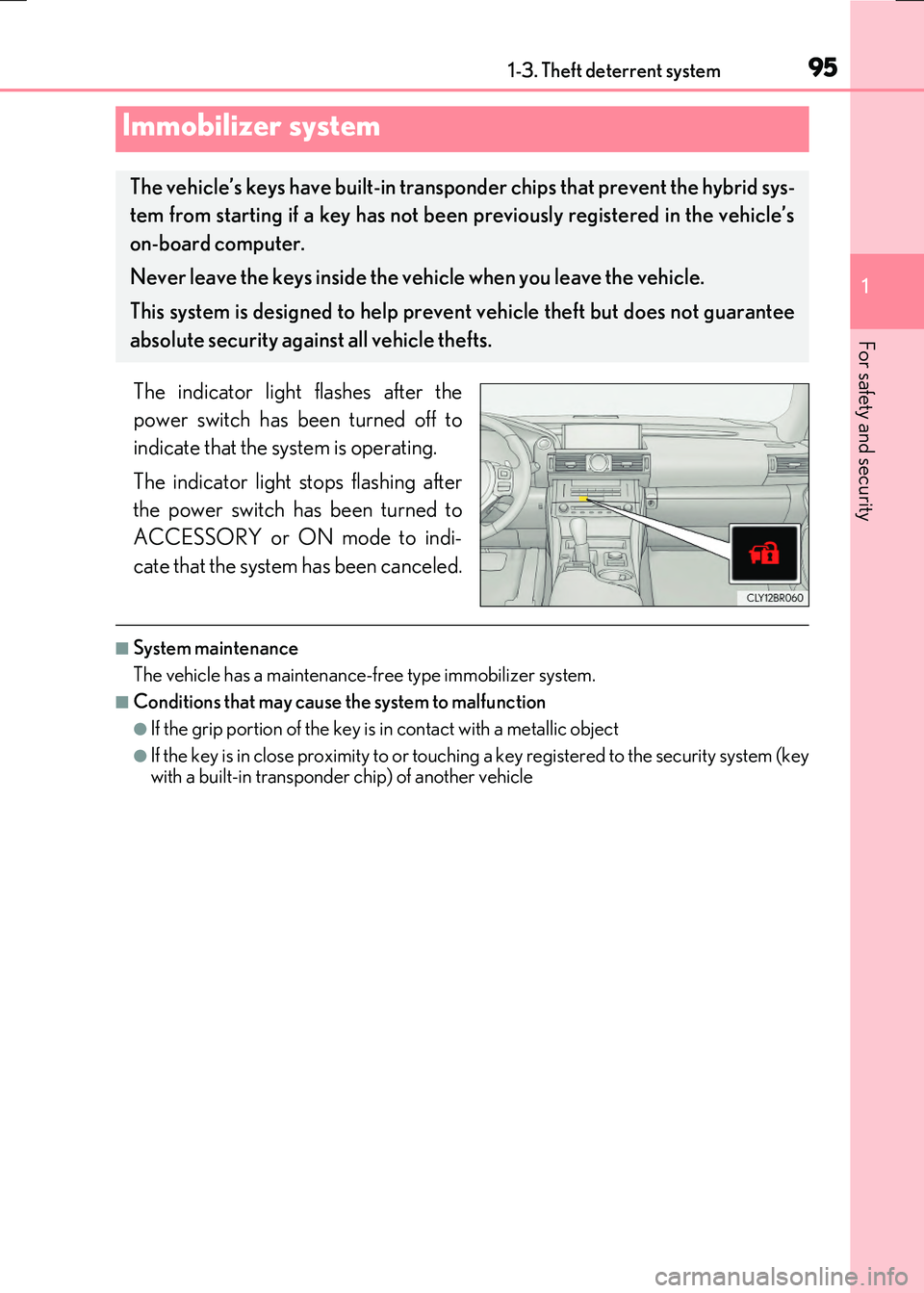

1-3. Theft deterrent system
The indicator light flashes after the
power switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the power switch has been turned to
ACCESSORY or ON mode to indi-
cate that the system has been canceled.
■System maintenance
The vehicle has a maintenance-free type immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key registered to the security system (key
with a built-in transponder chip) of another vehicle
Immobilizer system
The vehicle’s keys have built-in transpon der chips that prevent the hybrid sys-
tem from starting if a key has not been previously registered in the vehicle’s
on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prev ent vehicle theft but does not guarantee
absolute security agai nst all vehicle thefts.

961-3. Theft deterrent system
RC300h_EE(OM24740E)

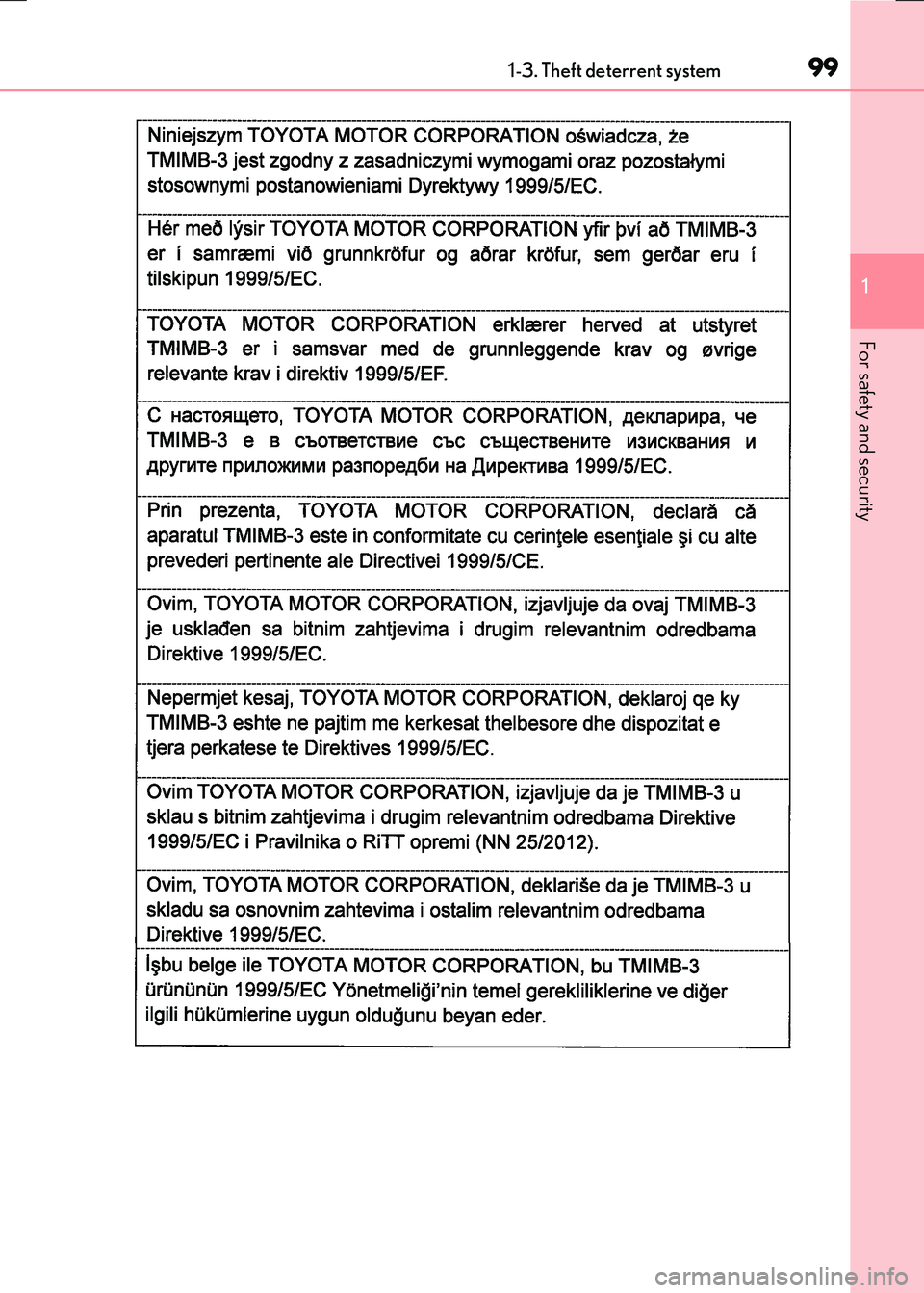

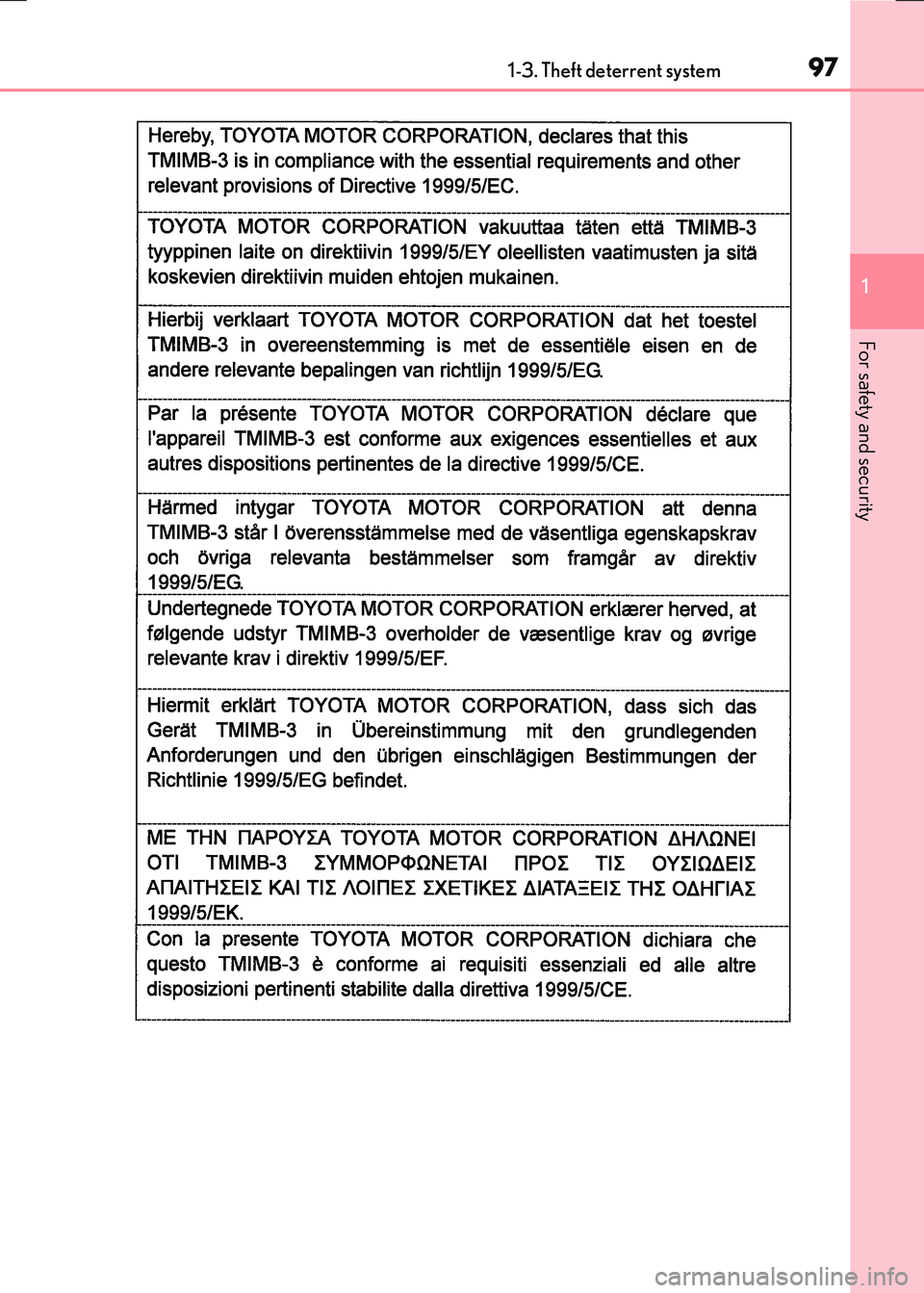

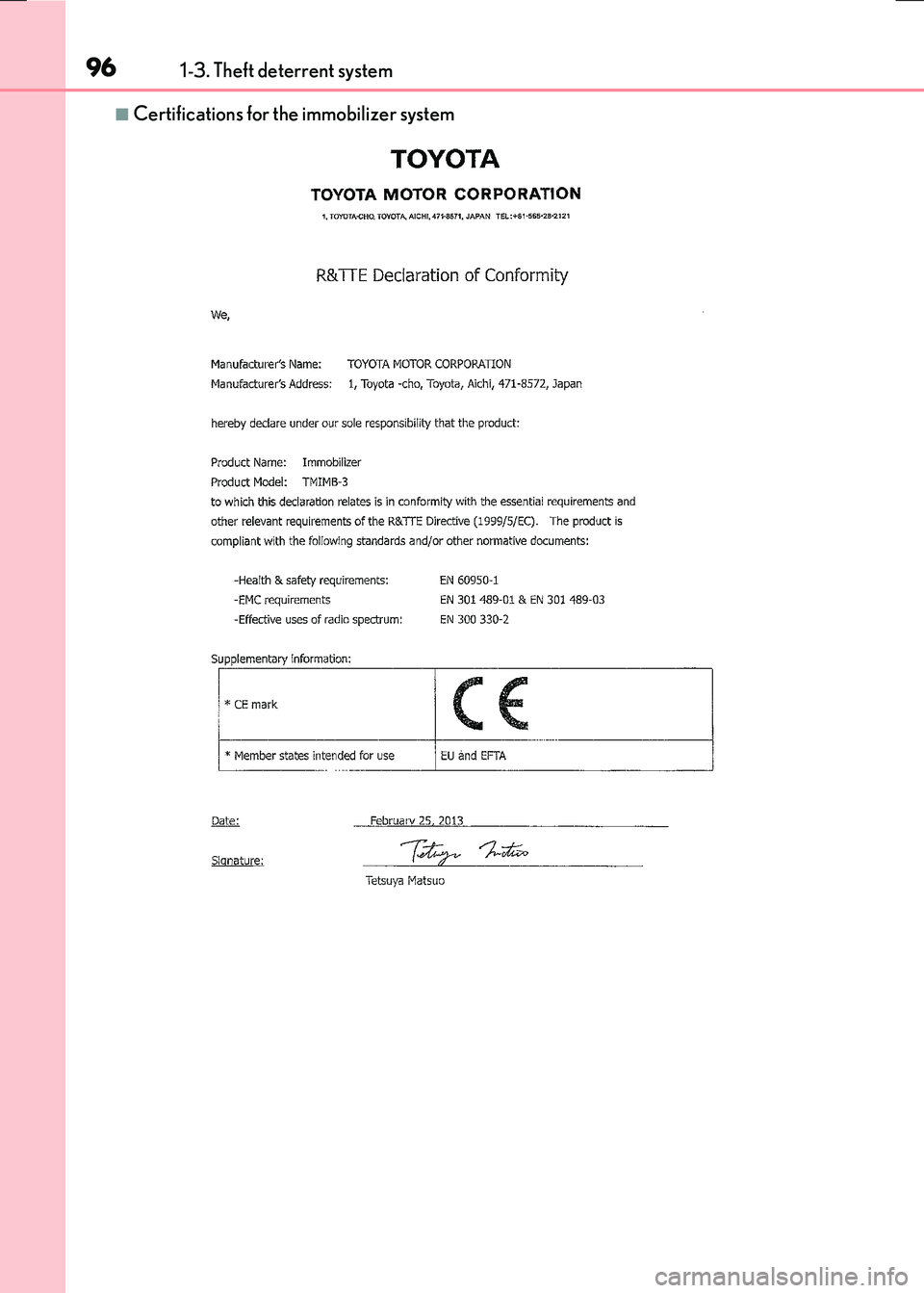

■Certifications for the immobilizer system

971-3. Theft deterrent system
1
For safety and security
RC300h_EE(OM24740E)

981-3. Theft deterrent system
RC300h_EE(OM24740E)

991-3. Theft deterrent system
1
For safety and security
RC300h_EE(OM24740E)

1001-3. Theft deterrent system
RC300h_EE(OM24740E)

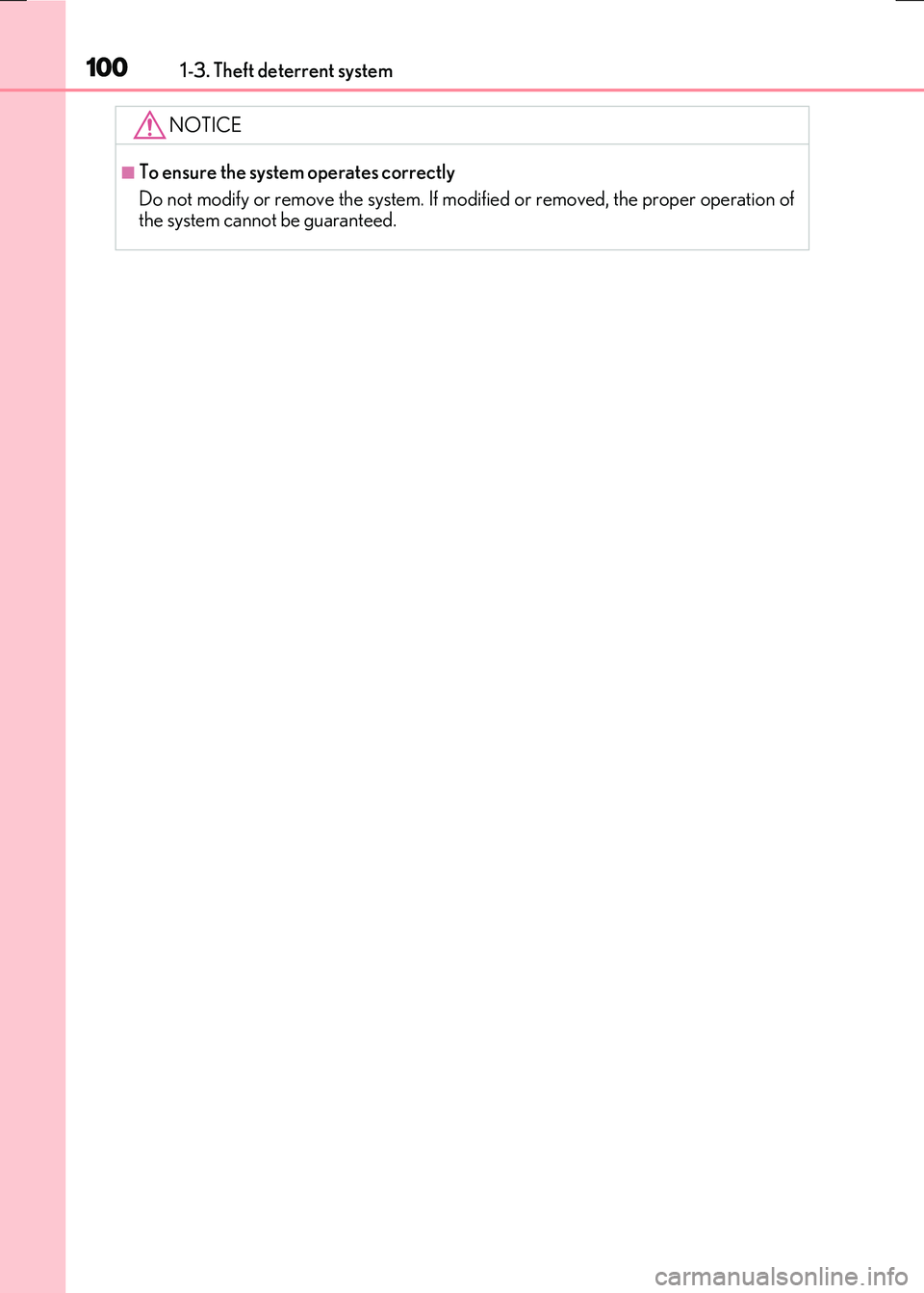

NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modi fied or removed, the proper operation of the system cannot be guaranteed.
