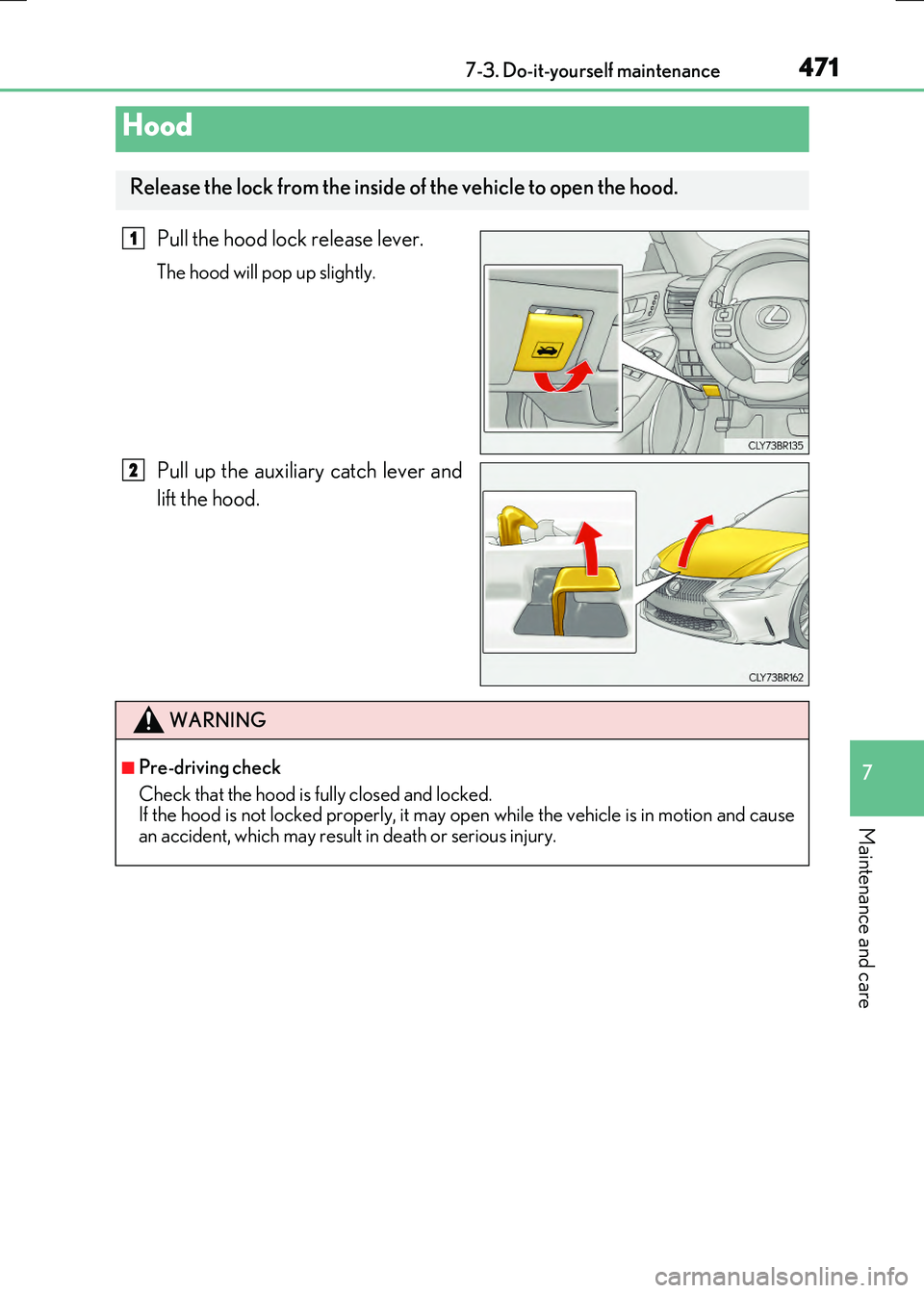

Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever and
lift the hood.
Hood
Release the lock from the inside of the vehicle to open the hood.
1
2
WARNING
■Pre-driving check
Check that the hood is fully closed and locked. If the hood is not locked properly, it may op en while the vehicle is in motion and cause
an accident, which may result in death or serious injury.

4727-3. Do-it-yourself maintenance
RC300h_EE(OM24740E)
◆Front
◆Rear

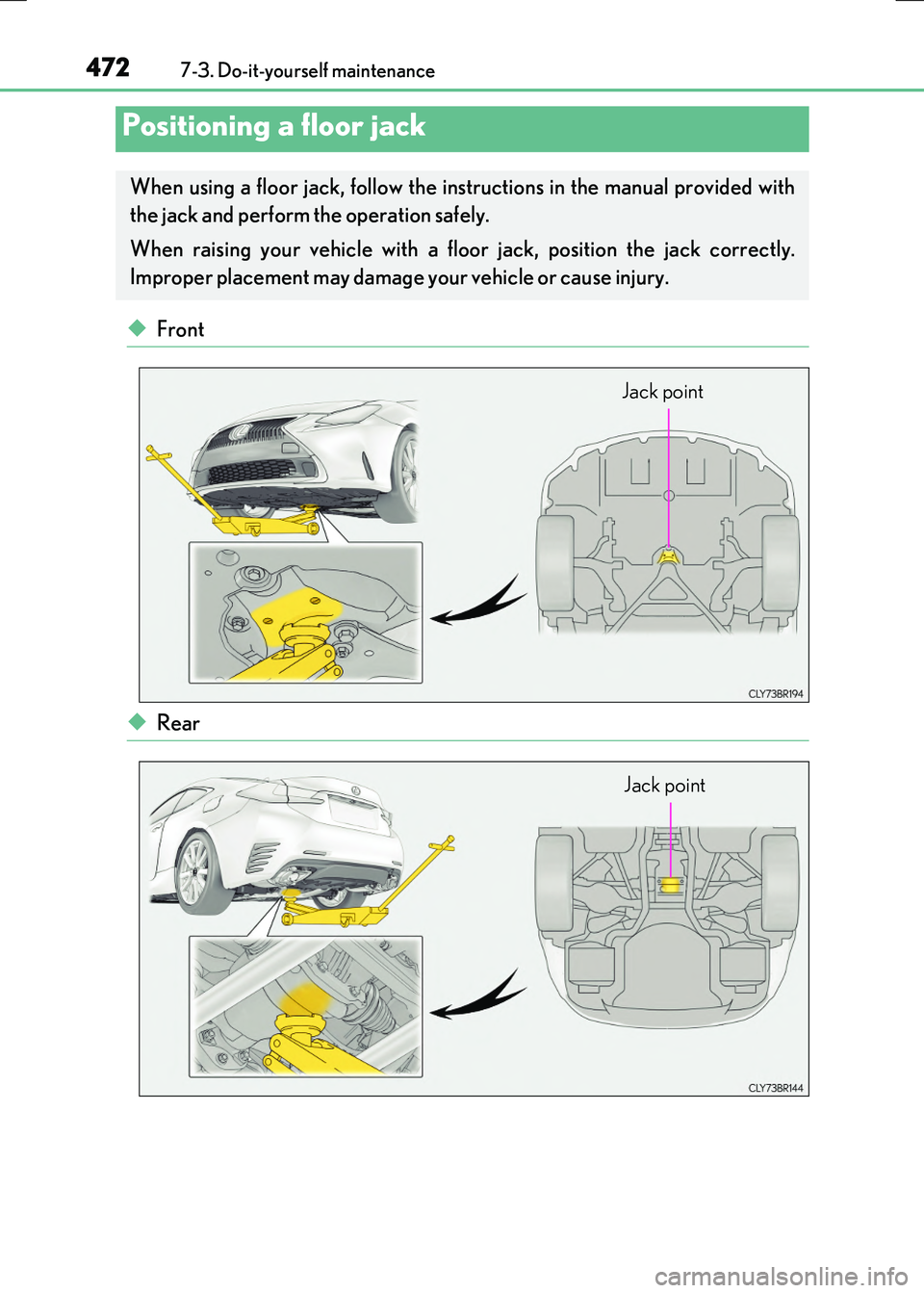

Positioning a floor jack
When using a floor jack, follow the instructions in the manual provided with
the jack and perform the operation safely.
When raising your vehicle with a floo r jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
Jack point
Jack point

4737-3. Do-it-yourself maintenance
7
Maintenance and care
RC300h_EE(OM24740E)
■12-volt battery
 P. 481

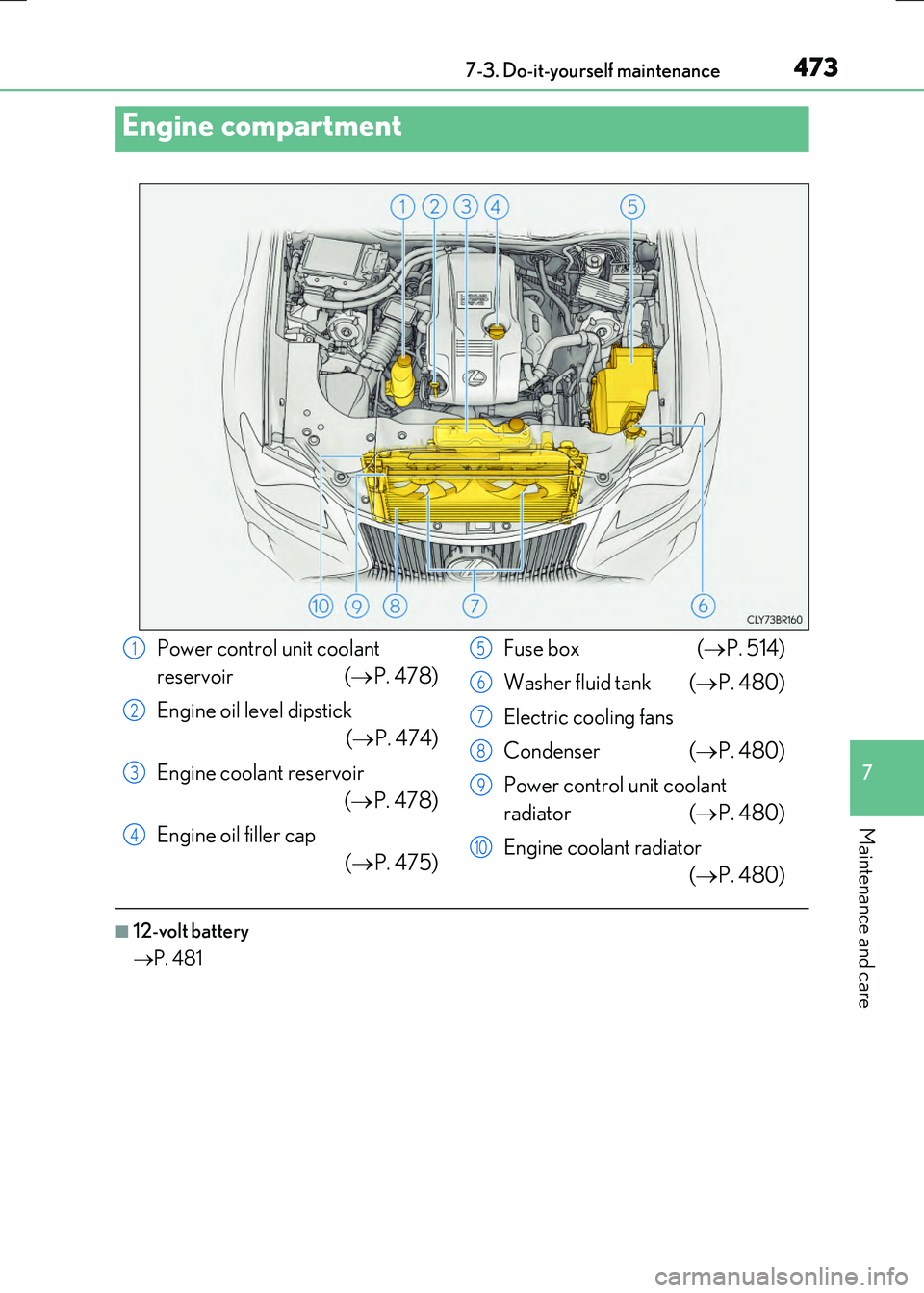

Engine compartment
Power control unit coolant
reservoir ( P. 478)
Engine oil level dipstick
( P. 474)
Engine coolant reservoir
( P. 478)
Engine oil filler cap
( P. 475)
Fuse box ( P. 514)
Washer fluid tank ( P. 480)
Electric cooling fans
Condenser ( P. 480)
Power control unit coolant
radiator ( P. 480)
Engine coolant radiator
( P. 480)
1
2
3
4
5
6
7
8
9
10

4747-3. Do-it-yourself maintenance
RC300h_EE(OM24740E)

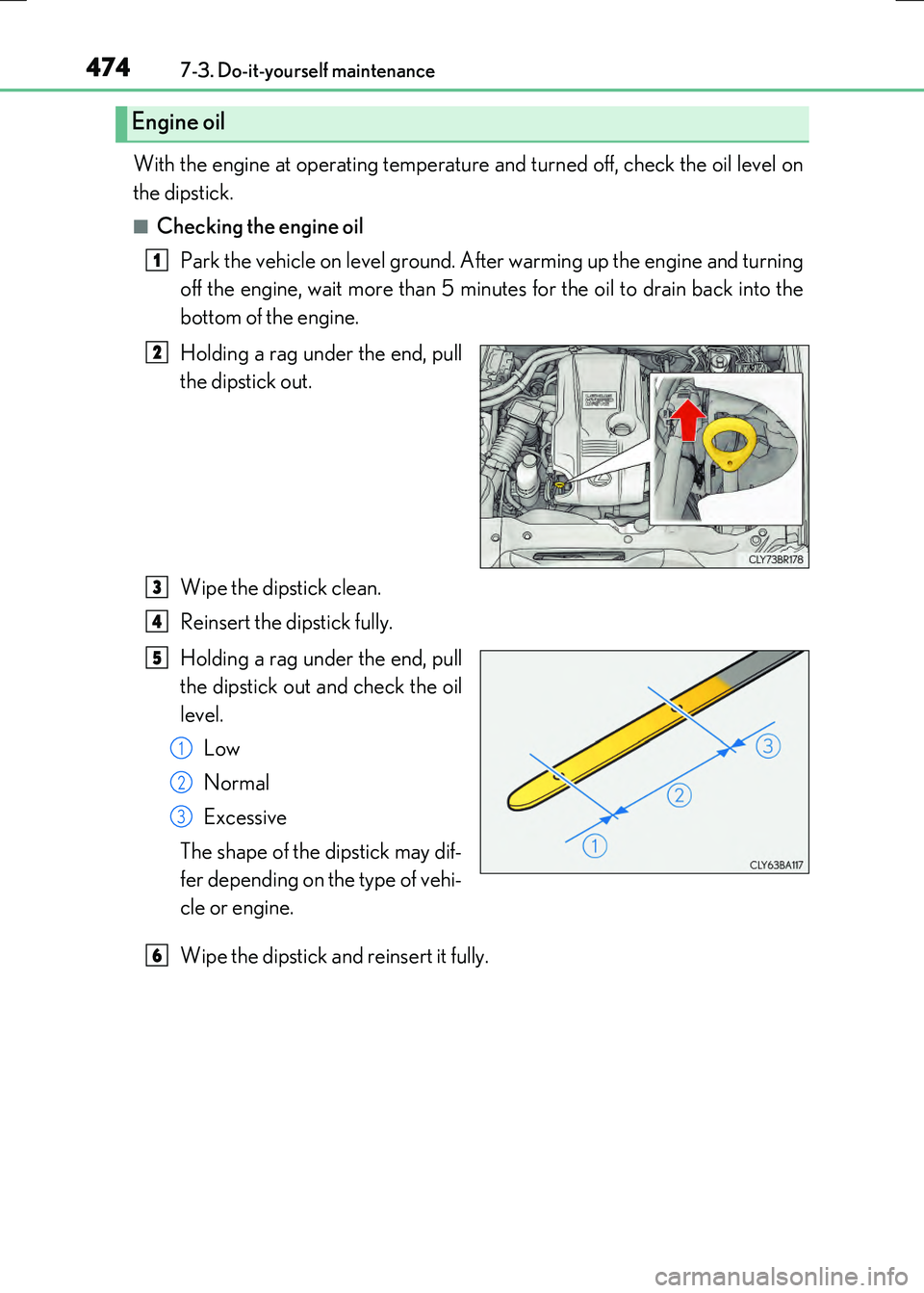

With the engine at operating temperature and turned off, check the oil level on
the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine and turning
off the engine, wait more than 5 minutes for the oil to drain back into the
bottom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull
the dipstick out and check the oil
level.
Low
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
3
4
5
1
2
3
6

4757-3. Do-it-yourself maintenance
7
Maintenance and care
RC300h_EE(OM24740E)

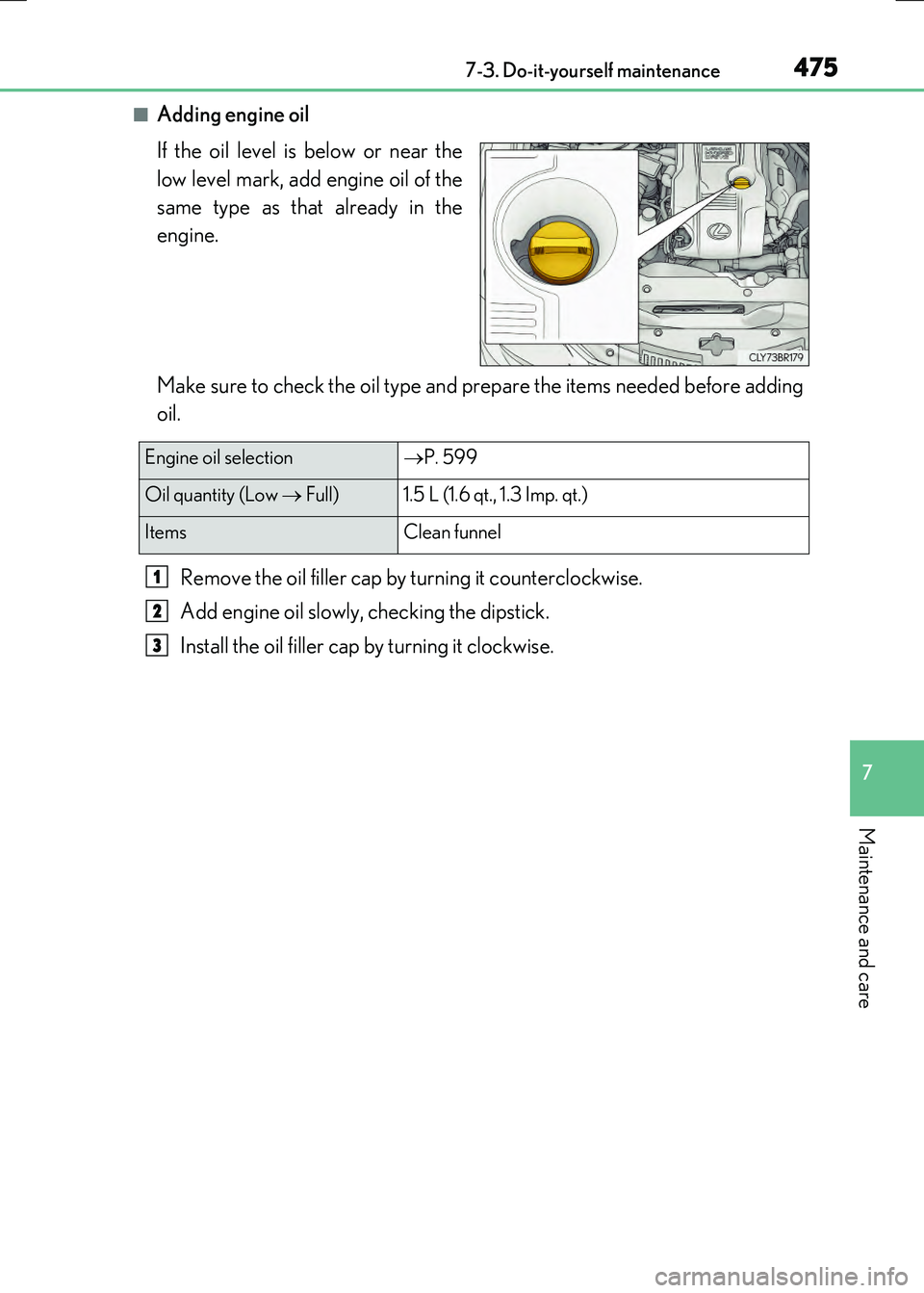

■Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of the
same type as that already in the
engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection P. 599
Oil quantity (Low  Full) 1.5 L (1.6 qt., 1.3 Imp. qt.)
Items Clean funnel
1
2
3

4767-3. Do-it-yourself maintenance
RC300h_EE(OM24740E)

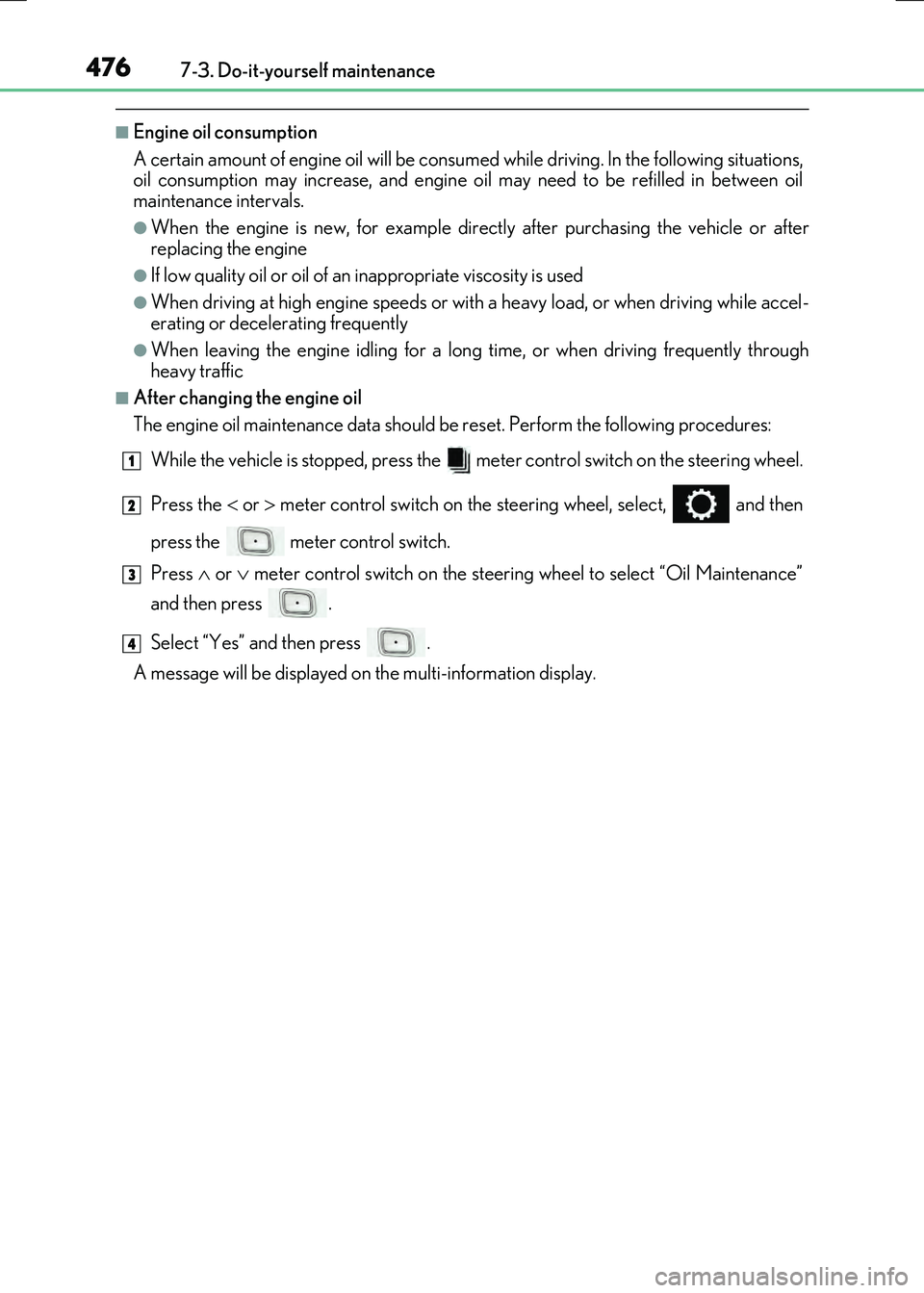

■Engine oil consumption
A certain amount of engine oil will be consum ed while driving. In the following situations,
oil consumption may increase, and engine o il may need to be refilled in between oil
maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, or when driving while accel-
erating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through
heavy traffic
■After changing the engine oil
The engine oil maintenance data should be reset. Perform the following procedures:
While the vehicle is stopped, press the meter control switch on the steering wheel.
Press the  or  meter control switch on the st eering wheel, select, and then
press the meter control switch.
Press  or  meter control switch on the steering wheel to select “Oil Maintenance”
and then press .
Select “Yes” and then press .
A message will be displayed on the multi-information display.
1
2
3
4

4777-3. Do-it-yourself maintenance
7
Maintenance and care
RC300h_EE(OM24740E)

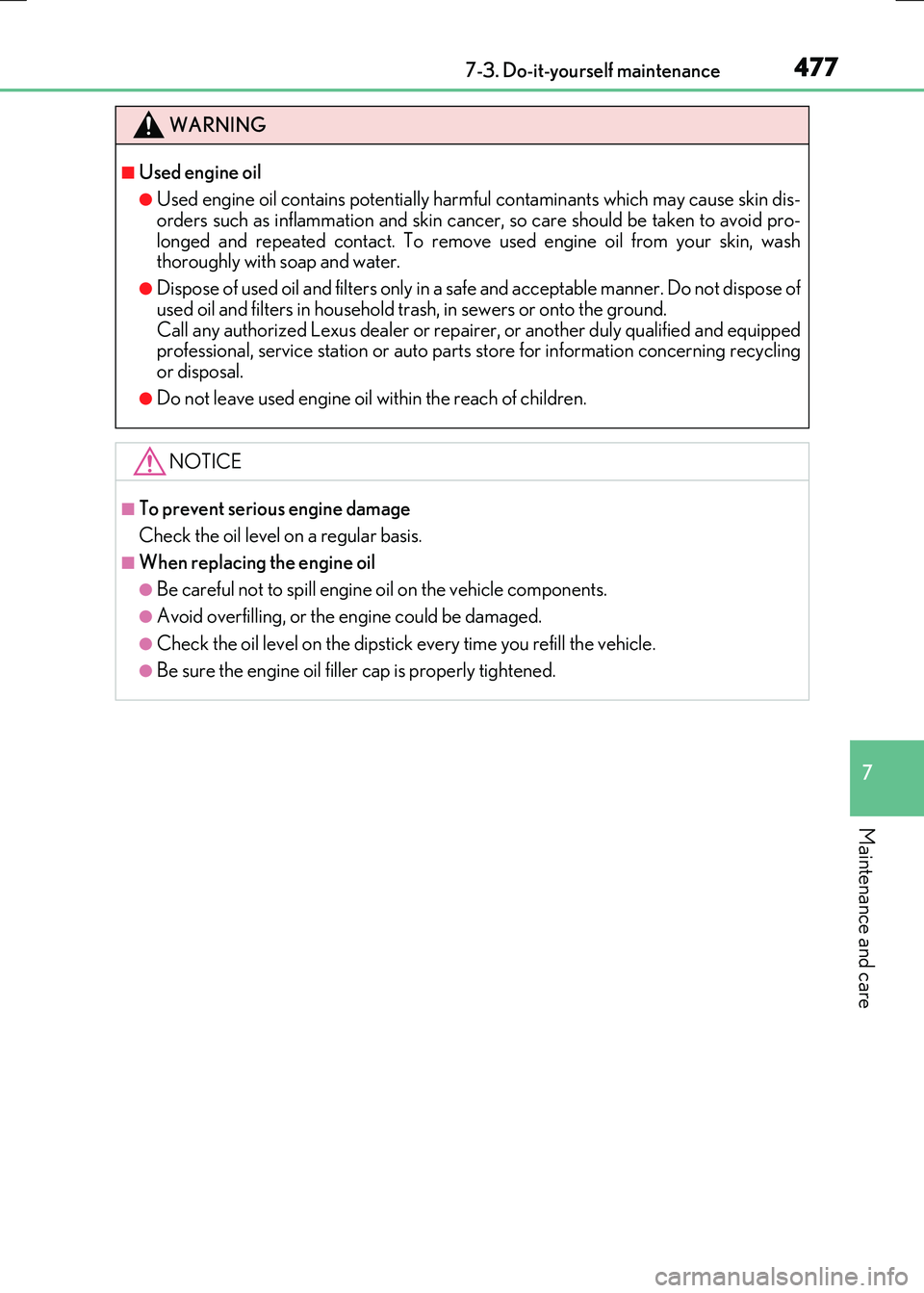

WARNING
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin dis- orders such as inflammation and skin cancer, so care should be taken to avoid pro-
longed and repeated contact. To remove used engine oil from your skin, wash thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of
used oil and filters in household trash, in sewers or onto the ground. Call any authorized Lexus dealer or repair er, or another duly qualified and equipped professional, service station or auto parts store for information concerning recycling
or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.

4787-3. Do-it-yourself maintenance
RC300h_EE(OM24740E)

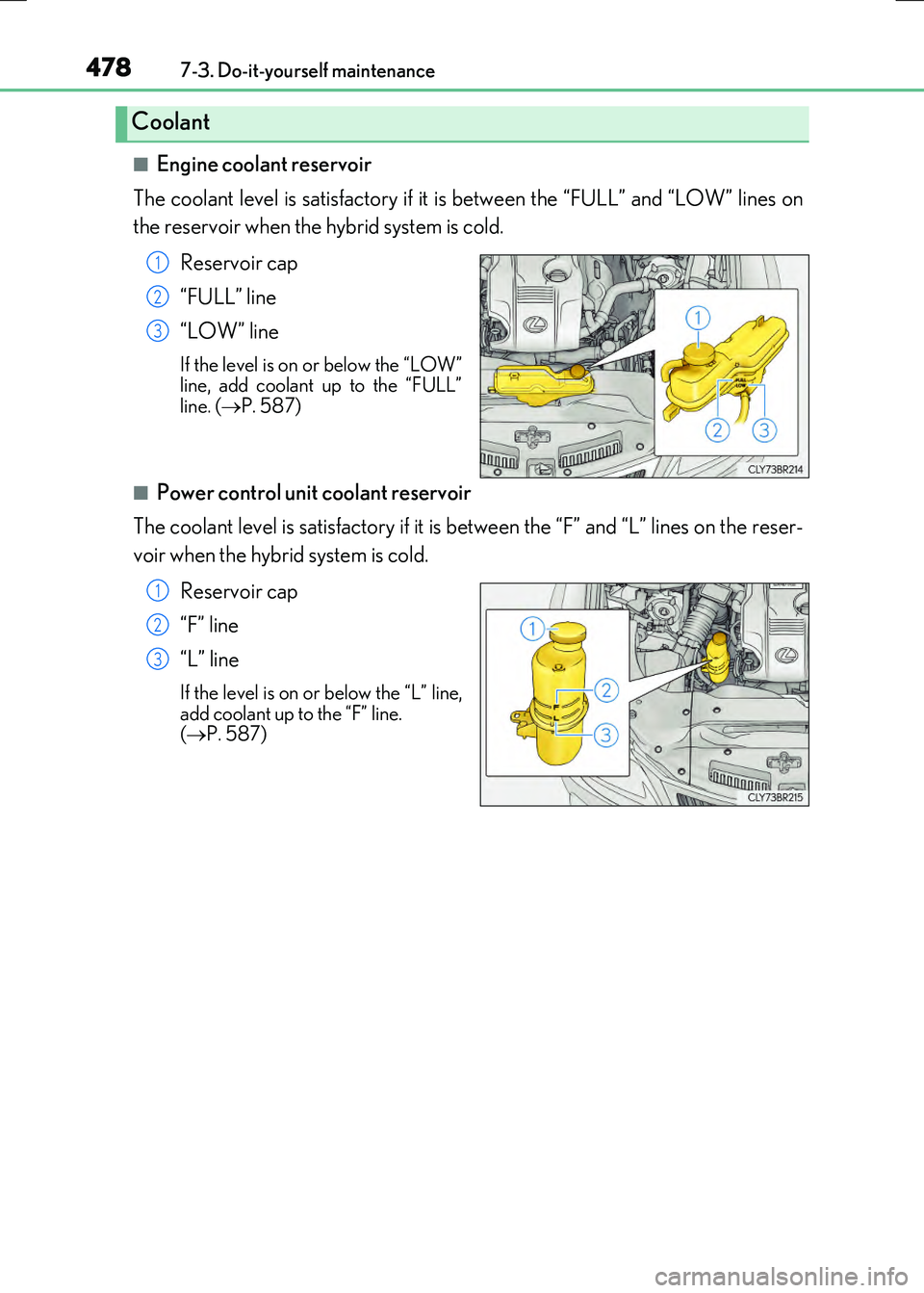

■Engine coolant reservoir
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on
the reservoir when the hybrid system is cold.
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the “LOW” line, add coolant up to the “FULL”
line. ( P. 587)
■Power control unit coolant reservoir
The coolant level is satisfactory if it is between the “F” and “L” lines on the reser-
voir when the hybrid system is cold.
Reservoir cap
“F” line
“L” line
If the level is on or below the “L” line, add coolant up to the “F” line. ( P. 587)
Coolant
1
2
3
1
2
3

4797-3. Do-it-yourself maintenance
7
Maintenance and care
RC300h_EE(OM24740E)

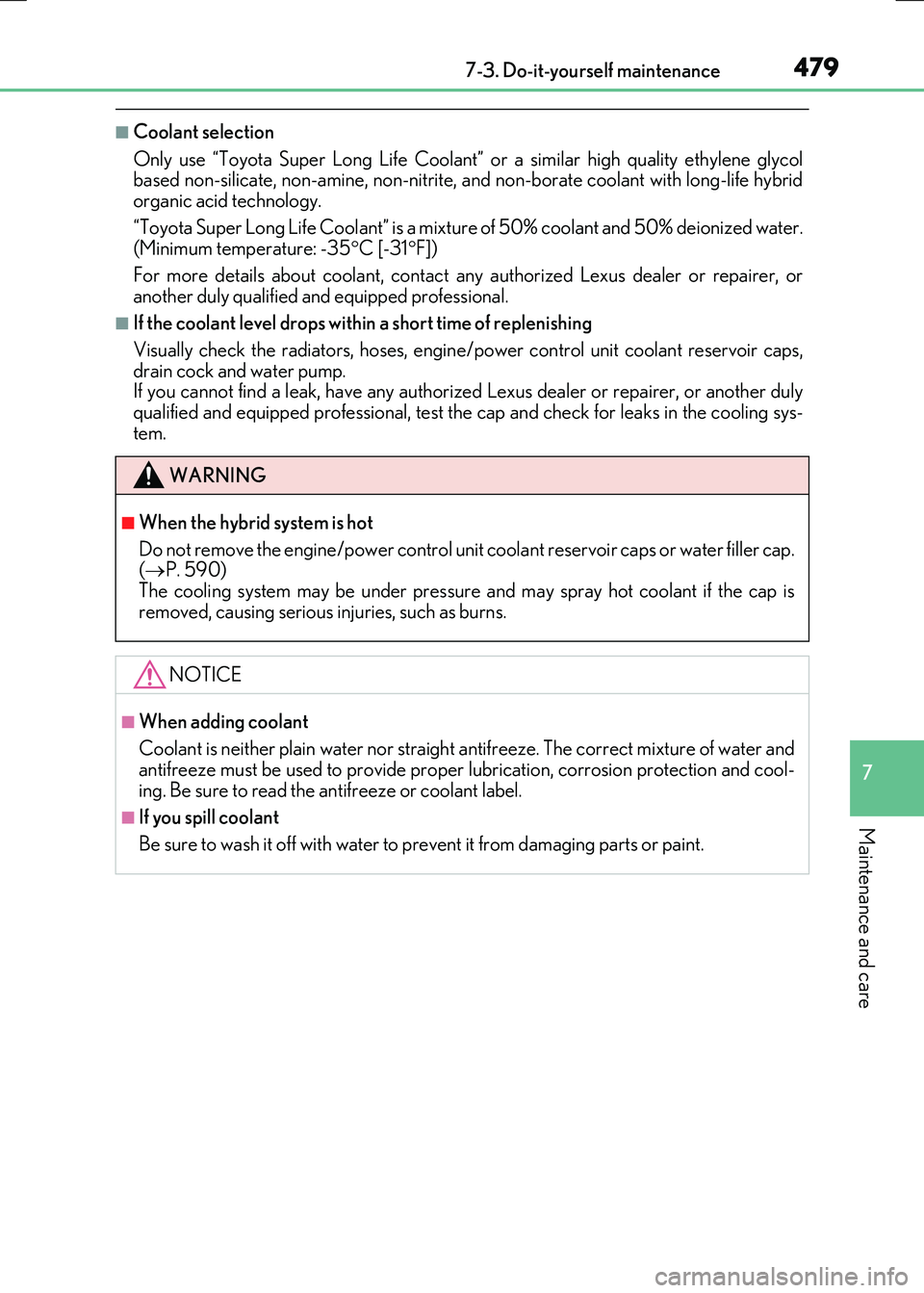

■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybridorganic acid technology.
“Toyota Super Long Life Coolant” is a mixt ure of 50% coolant and 50% deionized water. (Minimum temperature: -35 C [-31F])
For more details about coolant, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
■If the coolant level drops within a short time of replenishing
Visually check the radiators, hoses, engine /power control unit coolant reservoir caps,
drain cock and water pump. If you cannot find a leak, have any authorized Lexus dealer or repairer, or another dulyqualified and equipped professional, test the cap and check for leaks in the cooling sys-
tem.
WARNING
■When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps or water filler cap. ( P. 590)
The cooling system may be under pressure and may spray hot coolant if the cap is removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water and
antifreeze must be used to provide proper lubrication, corrosion protection and cool- ing. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.

4807-3. Do-it-yourself maintenance
RC300h_EE(OM24740E)

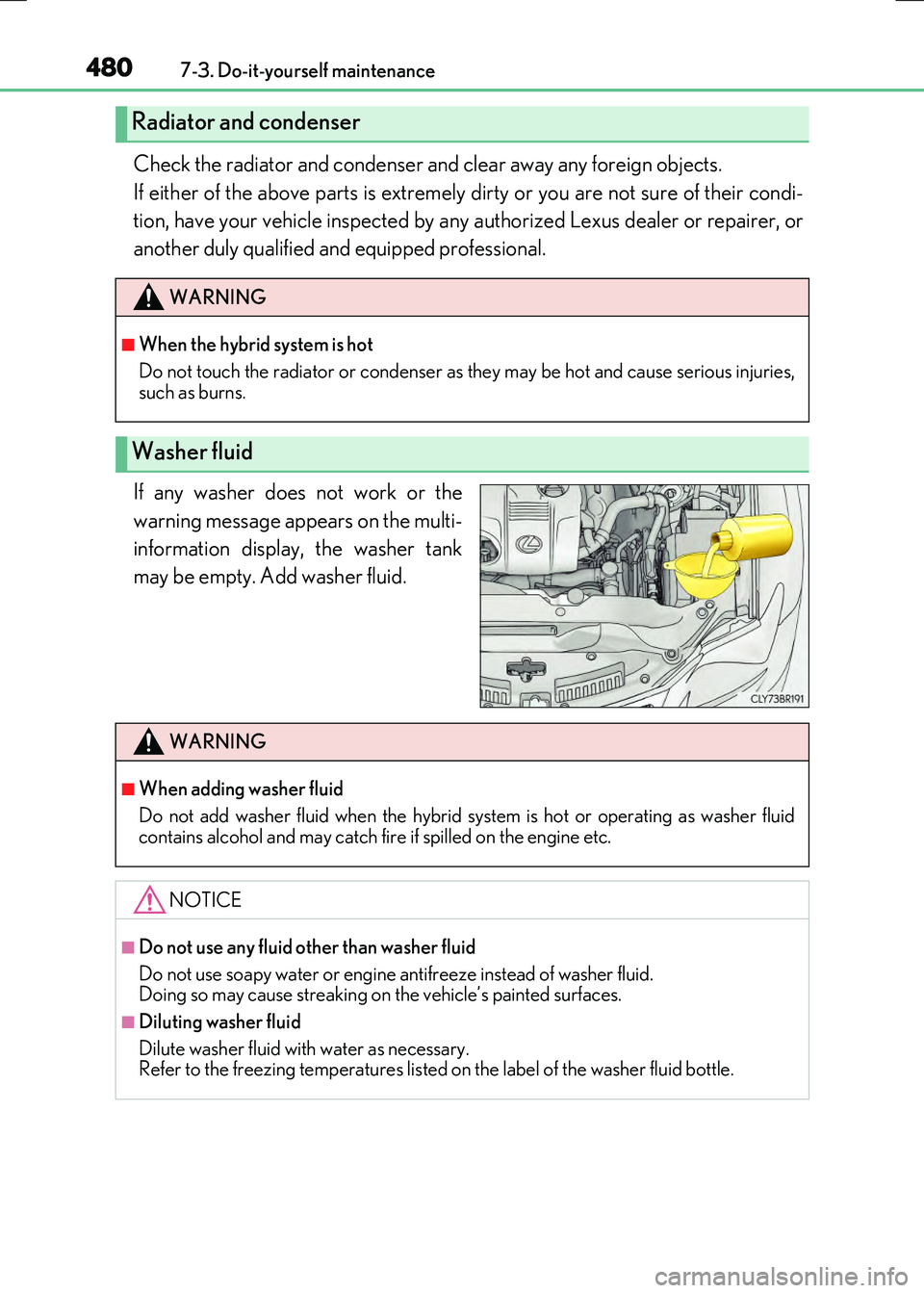

Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of their condi-
tion, have your vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
If any washer does not work or the
warning message appears on the multi-
information display, the washer tank
may be empty. Add washer fluid.
Radiator and condenser
WARNING
■When the hybrid system is hot
Do not touch the radiator or condenser as they may be hot and cause serious injuries, such as burns.
Washer fluid
WARNING
■When adding washer fluid
Do not add washer fluid when the hybrid sy stem is hot or operating as washer fluid
contains alcohol and may catch fi re if spilled on the engine etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid. Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary. Refer to the freezing temperatures listed on the label of the washer fluid bottle.
