5117-3. Do-it-yourself maintenance
7
Maintenance and care
RC300h_EE(OM24740E)
●Flathead screwdriver
●Small flathead screwdriver
●Lithium battery CR2032

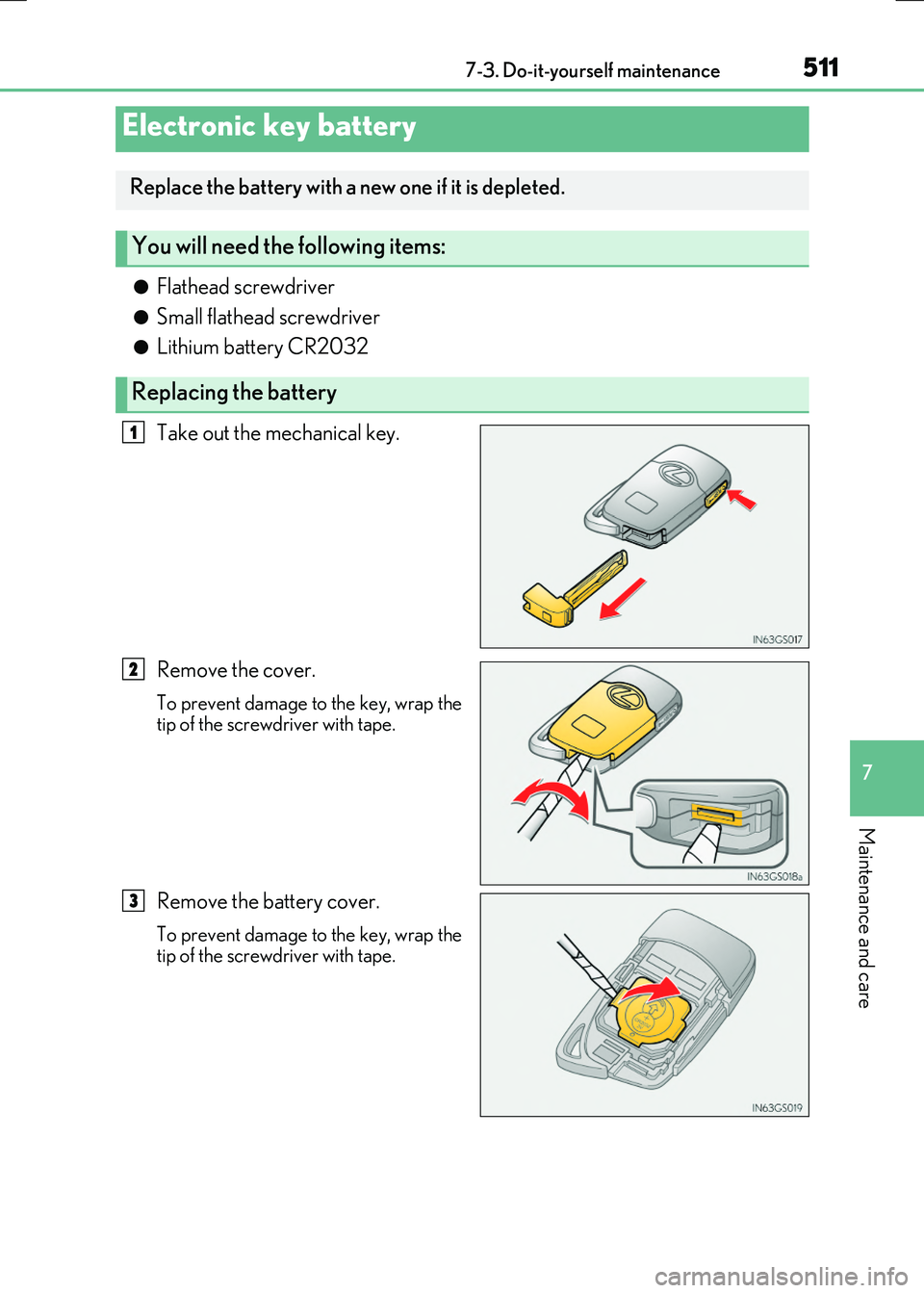

Take out the mechanical key.
Remove the cover.
To prevent damage to the key, wrap the
tip of the screwdriver with tape.
Remove the battery cover.
To prevent damage to the key, wrap the
tip of the screwdriver with tape.
Electronic key battery
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2
3

5127-3. Do-it-yourself maintenance
RC300h_EE(OM24740E)

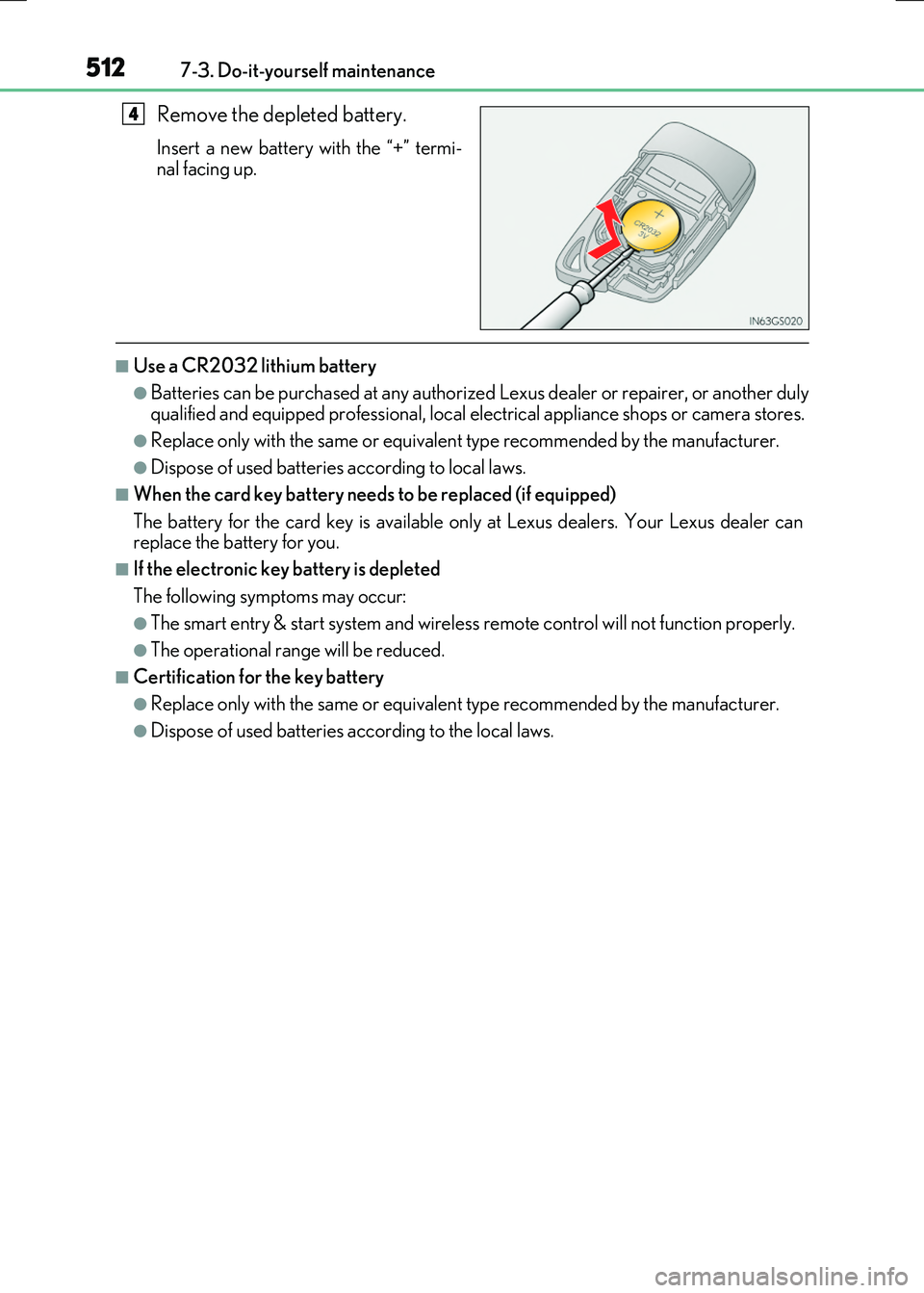

Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
■Use a CR2032 lithium battery
●Batteries can be purchased at any authorized Lexus dealer or repairer, or another duly qualified and equipped professional, local electrical appliance shops or camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer can replace the battery for you.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart entry & start system and wireless remote control will not function properly.
●The operational range will be reduced.
■Certification for the key battery
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to the local laws.
4

5137-3. Do-it-yourself maintenance
7
Maintenance and care
RC300h_EE(OM24740E)
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away from children. Failure to do so could result in death or serious injury.
■Certification for the smart entry & start system
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.

5147-3. Do-it-yourself maintenance
RC300h_EE(OM24740E)

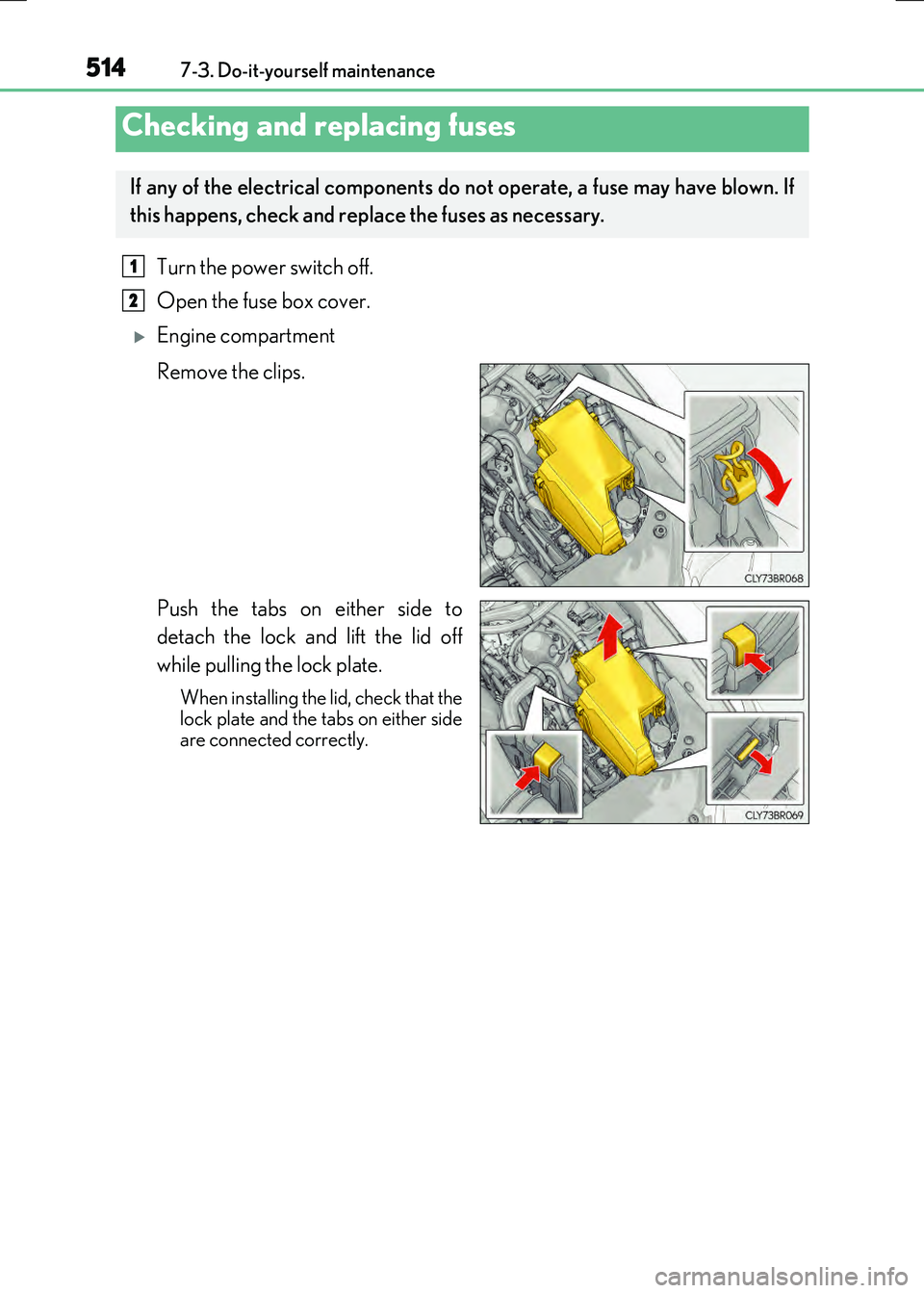

Turn the power switch off.
Open the fuse box cover.
Engine compartment
Remove the clips.
Push the tabs on either side to
detach the lock and lift the lid off
while pulling the lock plate.
When installing the lid, check that the
lock plate and the tabs on either side are connected correctly.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and repl ace the fuses as necessary.
1
2

5157-3. Do-it-yourself maintenance
7
Maintenance and care
RC300h_EE(OM24740E)
Left side instrument panel (left-hand drive vehicles)

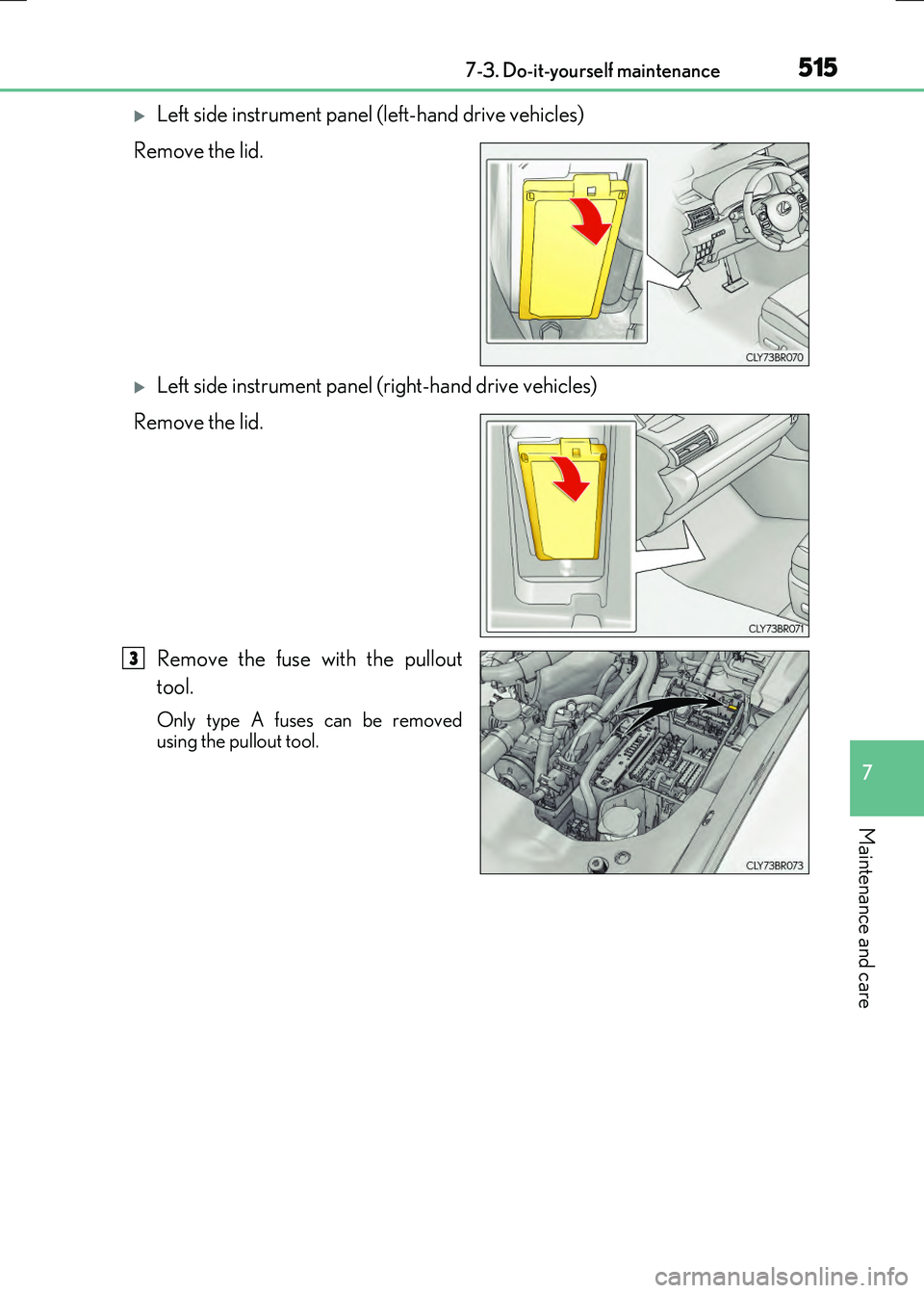

Remove the lid.
Left side instrument panel (right-hand drive vehicles)
Remove the lid.
Remove the fuse with the pullout
tool.
Only type A fuses can be removed using the pullout tool.
3

5167-3. Do-it-yourself maintenance
RC300h_EE(OM24740E)

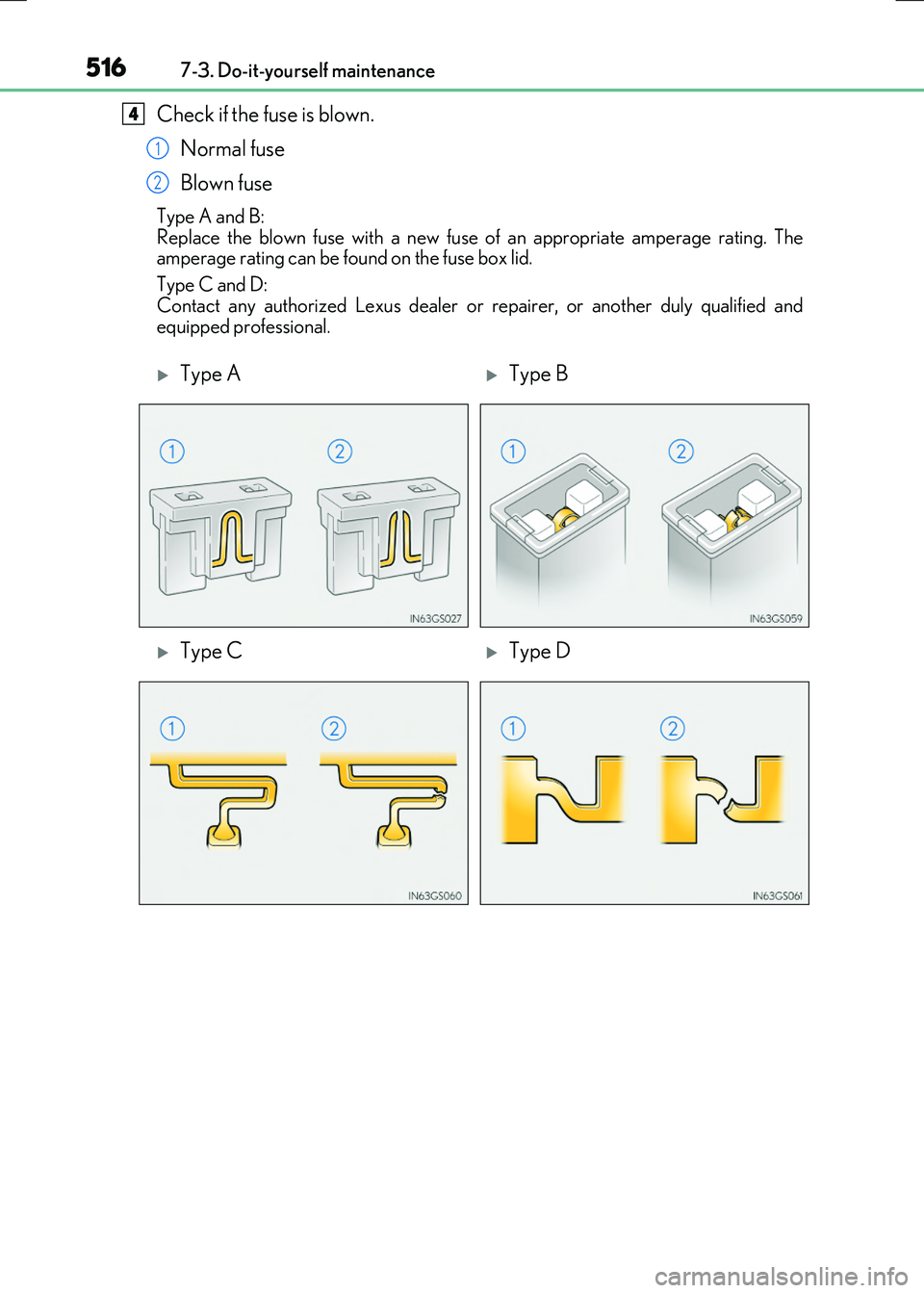

Check if the fuse is blown.
Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The amperage rating can be found on the fuse box lid.
Type C and D:
Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
Type AType B
Type CType D
4
1
2

5177-3. Do-it-yourself maintenance
7
Maintenance and care
RC300h_EE(OM24740E)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need replacement. ( P. 518)
●If the replaced fuse blows again, have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you us e genuine Lexus products designed for this vehicle. Because certain bulbs are connected to circuits designed to prevent overload, non-gen-
uine parts or parts not designed for this vehicle may be unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions. Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any otherobject in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
■Fuse box near the power control unit
Never check or replace the fuses as there ar e high voltage parts and wiring near the fuse box.Doing so may cause electric shock, re sulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional as soon as possible.

5187-3. Do-it-yourself maintenance
RC300h_EE(OM24740E)
Check the wattage of the light bulb to be replaced. (P. 605)
Light bulbs
You may replace the following bulbs by yourself. The difficulty level of replace-
ment varies depending on the bulb. As there is a danger that components may
be damaged, we recommend that replacement is carried out by any autho-
rized Lexus dealer or repairer, or an other duly qualified and equipped profes-
sional.
Preparing for light bulb replacement

5197-3. Do-it-yourself maintenance
7
Maintenance and care
RC300h_EE(OM24740E)
■Front
■Rear

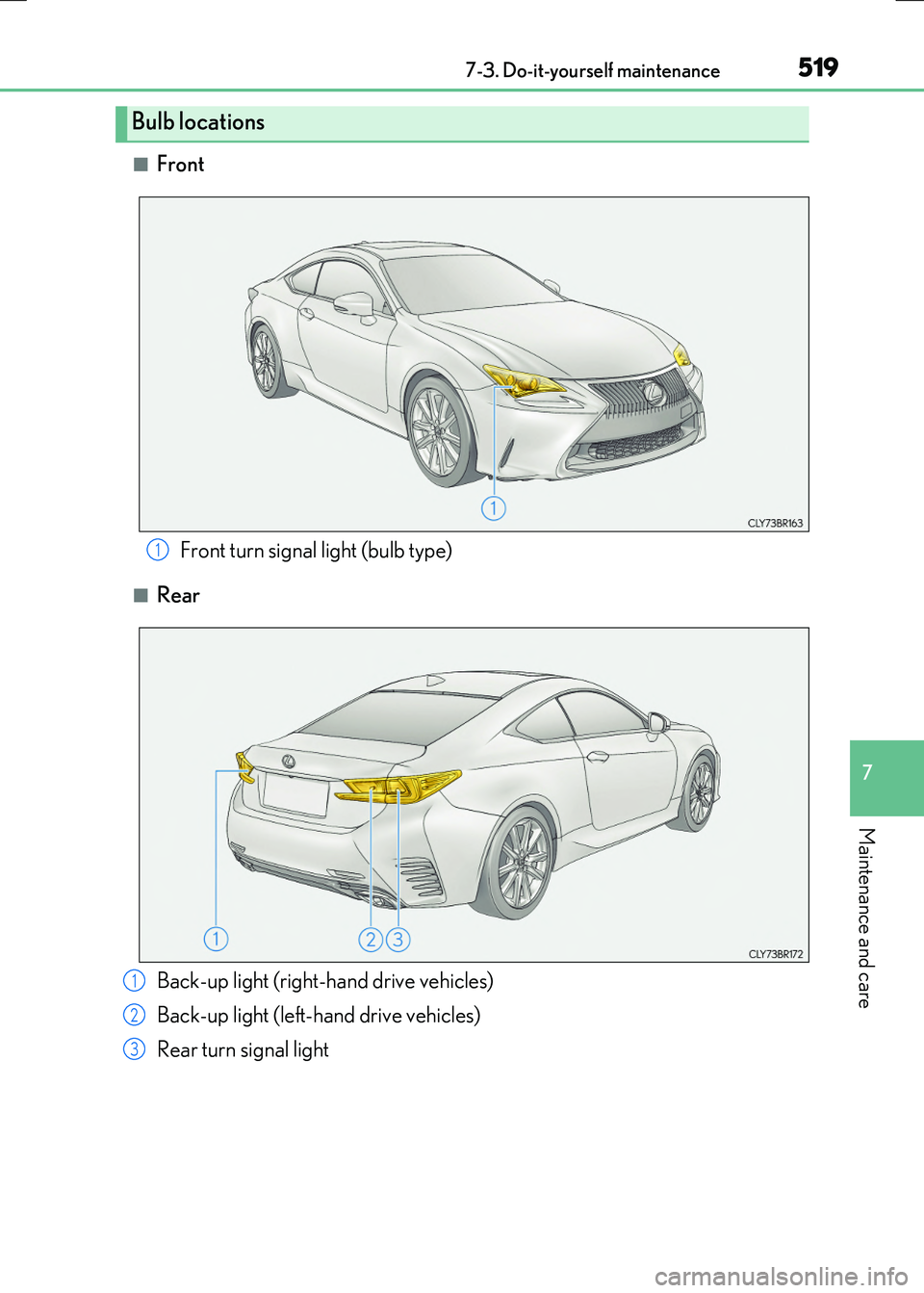

Bulb locations
Front turn signal light (bulb type)1
Back-up light (right-hand drive vehicles)
Back-up light (left-hand drive vehicles)
Rear turn signal light
1
2
3

5207-3. Do-it-yourself maintenance
RC300h_EE(OM24740E)

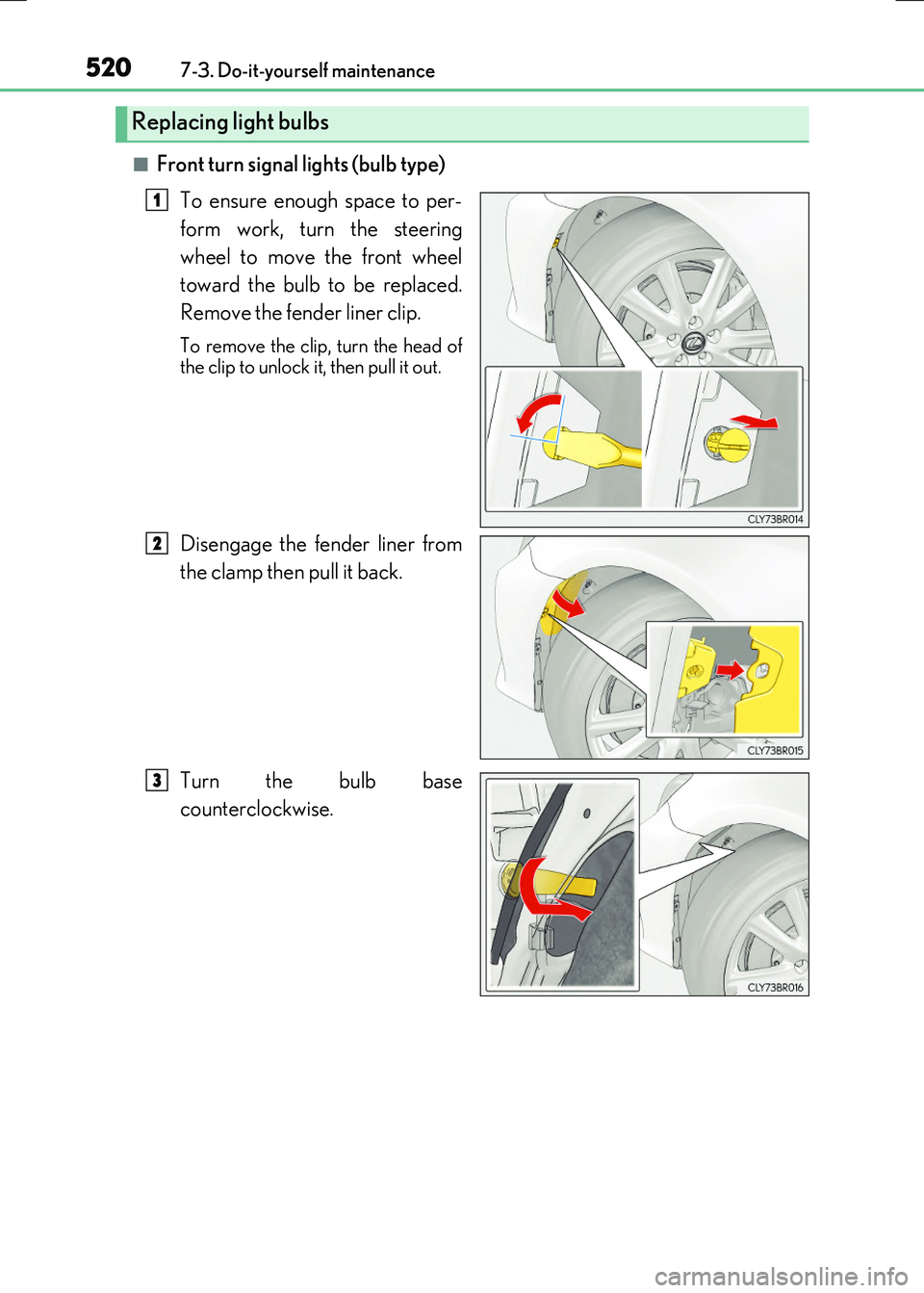

■Front turn signal lights (bulb type)
To ensure enough space to per-
form work, turn the steering
wheel to move the front wheel
toward the bulb to be replaced.
Remove the fender liner clip.
To remove the clip, turn the head of the clip to unlock it, then pull it out.
Disengage the fender liner from
the clamp then pull it back.
Turn the bulb base
counterclockwise.
Replacing light bulbs
1
2
3
