LEXUS RX330 2006 Owners Manual

GAUGES, METERS AND SERVICE REMINDER INDICATORS
90
(6) Driving range(“Cruising Range miles” or “Cruising Range
km”)
The distance the vehicle can travel with the remaining fuel
is calculated and displayed based on the quantity of
remaining fuel and past fuel consumption.
The driving range display indicates the approximate distance
that you can drive until the fuel gauge reaches “E”. It is dif ferent
from the actual distance traveled.
The displayed value is updated every time the fuel equivalent
for 1 mile or 1 km is consumed.
The actual driving range varies with driving habits and road
conditions. If fuel consumption is good, the driving range will
be longer than indica ted. If fuel consumption is poor, the
driving range will be shorter than indicated.
If the low fuel level warning light comes on, refuel the vehicle
even if the display indicates that the vehicle can be driven
further.
INSTRUMENT PANEL LIGHT CONTROL
To adjust the brightness of the instrument panel lights,
turn the knob.
With the knob turned fully clockwise, the intensity of the
instrument panel lights will not be reduced even if the headlight
switch is turned on.
If the instrument panel light control knob is turned fully
counterclockwise, the foot lights will turn off.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
91
MULTIDISPLAY LIGHT CONTROL
To adjust the brightness of the multidisplay light, push
and release the “BRIGHTNESS” button until the desired
brightness is obtained.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
92

SECTION 1 – 4
93
INSTRUMENTS AND CONTROLS
Interior equipment
Sun visors94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Interior lights 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Personal lights 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Luggage compartment lights 97
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illuminated entry system 97
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 99
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Outside temperature display 100
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 101
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Rear console box 104
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Glove box 106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Garage door opener 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Cupholders 11 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Overhead console box 11 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary boxes 11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Auxiliary box and grocery bag hooks 11 6
. . . . . . . . . . . . . . . . . . . . . . .
Luggage cover 11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Floor mat 121
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Tie −down hooks 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .

INTERIOR EQUIPMENT
94
SUN VISORS
To block out glare, move the sun visor as shown.
1To block out glare from the front , swing the sun visor
down.
2To block out glare from the side, remove the sun visor
from the hook and swing it to the side.
3To block out glare coming obliquely from behind you,
slide the visor backwards.
At this position, the vanity light does not come on.
INTERIOR LIGHTS
Front
Vehicles with moon roof
Vehicles without moon roof

INTERIOR EQUIPMENT
95
To turn on the interior light, slide the switch.
The interior light switch has the following positions:
“ON” — Keeps the light on all the time.
“OFF” — Turns the light off.
“DOOR” — Turns the light on when any of the side doors or
back
door is opened. The light goes off when all the side doors
and back door are closed. For details, see “Illuminated entry
system” on page 97.
Rear
To turn on the interior light, slide the switch.
The interior light switch has the following positions:
“ON” — Keeps the light on all the time.
“OFF” — Turns the light off.
“DOOR” — Turns the light on when any of the side doors or
back door is opened. The light goes off when all the side doors
and back door are closed. For details, see “Illuminated entry
system” on page 97.

INTERIOR EQUIPMENT
96

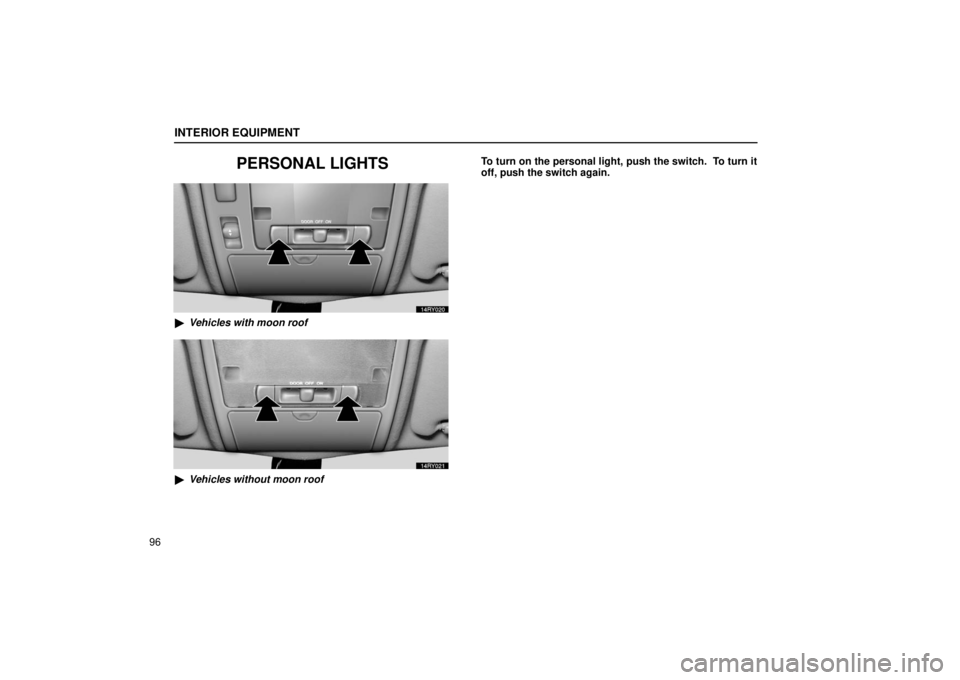

PERSONAL LIGHTS
Vehicles with moon roof
Vehicles without moon roof To turn on the personal light, push the switch. To turn it
off, push the switch again.

INTERIOR EQUIPMENT
97

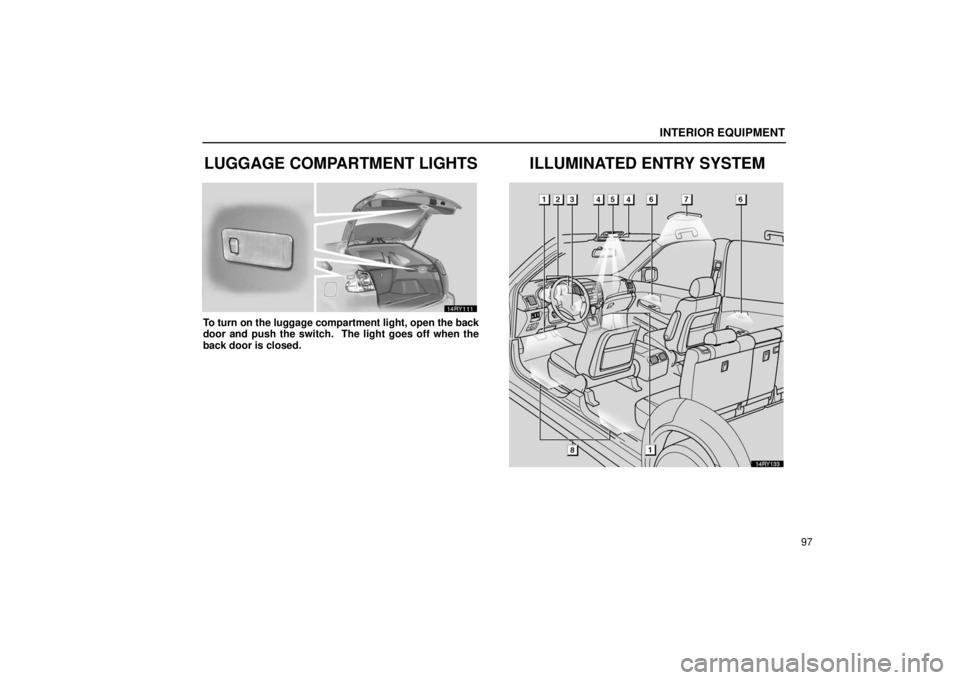

LUGGAGE COMPARTMENT LIGHTS
To turn on the luggage compartment light, open the back
door and push the switch. The light goes off when the
back door is closed.
ILLUMINATED ENTRY SYSTEM

INTERIOR EQUIPMENT
98
1Foot lights (on some models)
2Meter ring light
3Ignition switch light
4Center console spot lights
5Front interior light (with the “DOOR” position)
6Inside door handle lights (on some models)
7Rear interior light (with the “DOOR” position)
8Scuff plate lights (on some models)
All of the lights except the center console spot lights and
meter ring light will come on when any of the side doors
are opened.* After all the doors are closed, the lights
remain on for about 15 seconds before fading out.** NOTE:
* The operating condition can be changed.
** The duration of lighting can be changed.
Ask your Lexus dealer for details. However, in
the following cases, the lights go out immediately:
 All of the lights except the center console spot lights and
meter ring light — All the side doors and back door are
locked.
 Ignition switch light, front interior light, rear interior light and
scuff plate lights — All the side doors are closed and the
ignition key is in the “ACC” or “ON” position.
When any of the side doors is unlocked, all of the lights except
the center console spot light and meter ring light will come on
and remain on for about 15 seconds before fading out.
To prevent the battery from being discharged, all of the lights
will automatically turn off when the ignition key is removed and
the door is left opened for about 20 minutes.
Ignition switch light, front interior light, rear interior light
and scuff plate lights
The ignition switch light, front interior light, rear interior light and
scuff plate lights also come on and remain on for about 15
seconds before fading out when the ignition switch is turned to
the “LOCK” position.

INTERIOR EQUIPMENT
99
Foot lights and inside door handle lights
The foot lights and inside door handle lights also come on when
the ignition switch is in the “ON” position with the selector lever
in the “P” position. When the selector lever is moved out of the
“P” position, the foot lights and inside door handle lights will be
dimmed.*
NOTE:
* The foot lights and inside door handle lights can be set to
turn off when the selector lever is moved out of the “P”
position.
Ask your Lexus dealer for details.
When you turn the engine off, the lights remain on for about 15
seconds before fading out.
When the instrument panel light control knob is turned fully
counterclockwise, the foot lights will turn off.
Center console spot lights
The center console spot lights come on when the ignition
switch is in the “ACC” or “ON” position.
Meter ring light
The meter ring light comes on when the ignition switch is in the
“ON” position.
The light also come on and remain on for about 15 seconds
before fading out when the driver’s door is opened. However,
if the driver’s door is opened when you turn the engine off, the
light will not come on.
CLOCK
The digital clock indicates the time with the ignition key at
the “ACC” or “ON” position. To reset the hour, press the
“H” button. To reset the minutes, press the “M” button.
To adjust the time to the nearest hour, press the “:00”
button.
For example, if the “:00” button is pressed when the time is
between 9:30 — 9:59 or between 10:01 — 10:29, the time will
change to 10:00.
When the instrument panel lights are turned on, the brightness
of the display will be reduced.
