LEXUS RX350 2011 Owners Manual

301
3-2. Using the audio system
3

Interior features

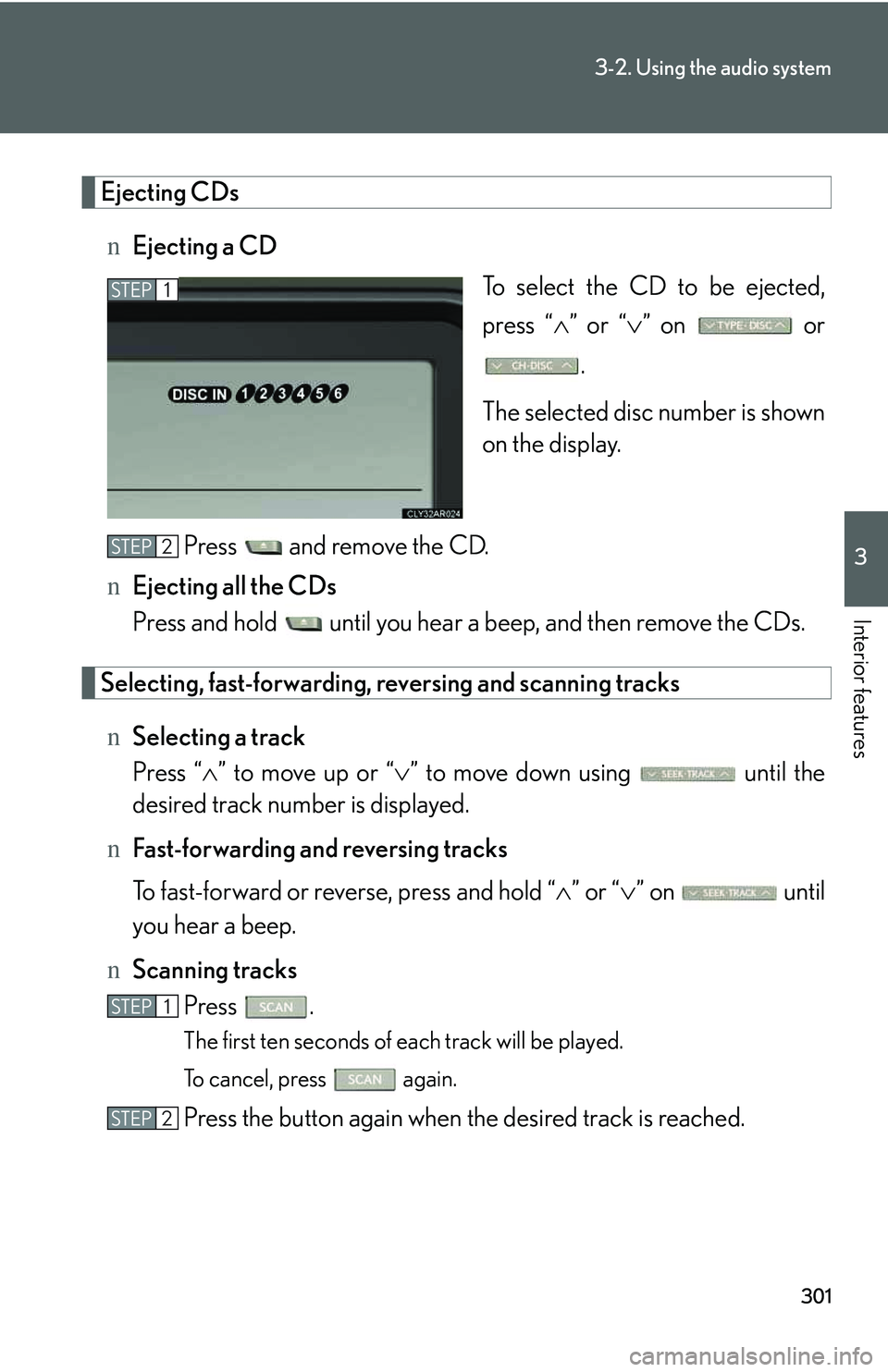

Ejecting CDs
nEjecting a CD
To select the CD to be ejected,
press “∧” or “∨” on or
.
The selected disc number is shown
on the display.
Press and remove the CD.
nEjecting all the CDs
Press and hold until you hear a beep, and then remove the CDs.
Selecting, fast-forwarding, reversing and scanning tracks
nSelecting a track
Press “∧” to move up or “∨” to move down using until the
desired track number is displayed.
nFast-forwarding and reversing tracks
To fast-forward or reverse, press and hold “∧” or “∨” on until
you hear a beep.
nScanning tracks
Press .
The first ten seconds of each track will be played.
To cancel, press again.
Press the button again when the desired track is reached.
STEP1
STEP2
STEP1
STEP2

302
3-2. Using the audio system

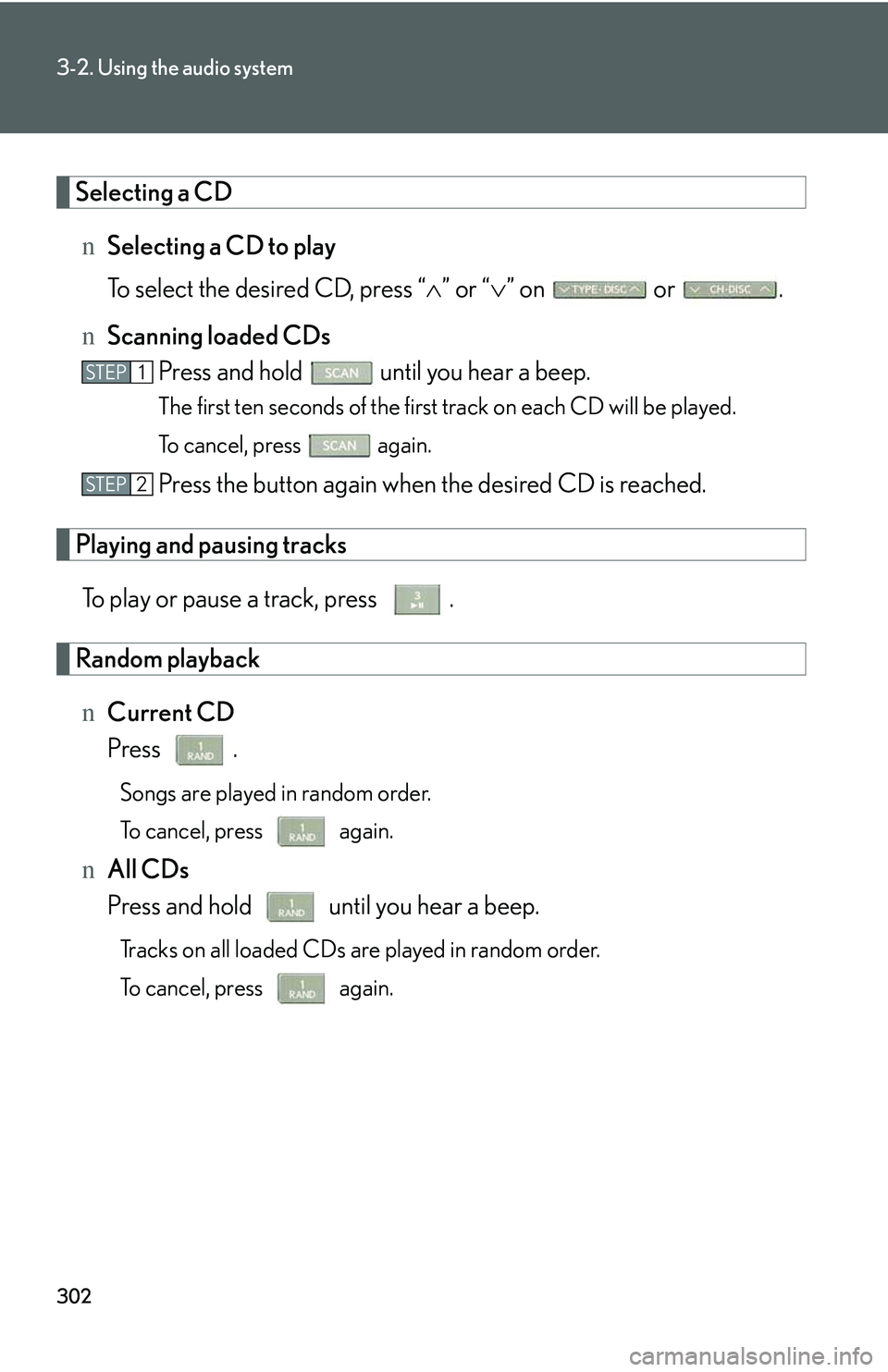

Selecting a CD
nSelecting a CD to play
To select the desired CD, press “∧” or “∨” on or .
nScanning loaded CDs
Press and hold until you hear a beep.
The first ten seconds of the first track on each CD will be played.
To cancel, press again.
Press the button again when the desired CD is reached.
Playing and pausing tracks
To play or pause a track, press .
Random playback
nCurrent CD
Press .
Songs are played in random order.
To cancel, press again.
nAll CDs
Press and hold until you hear a beep.
Tracks on all loaded CDs are played in random order.
To cancel, press again.
STEP1
STEP2

303
3-2. Using the audio system
3

Interior features

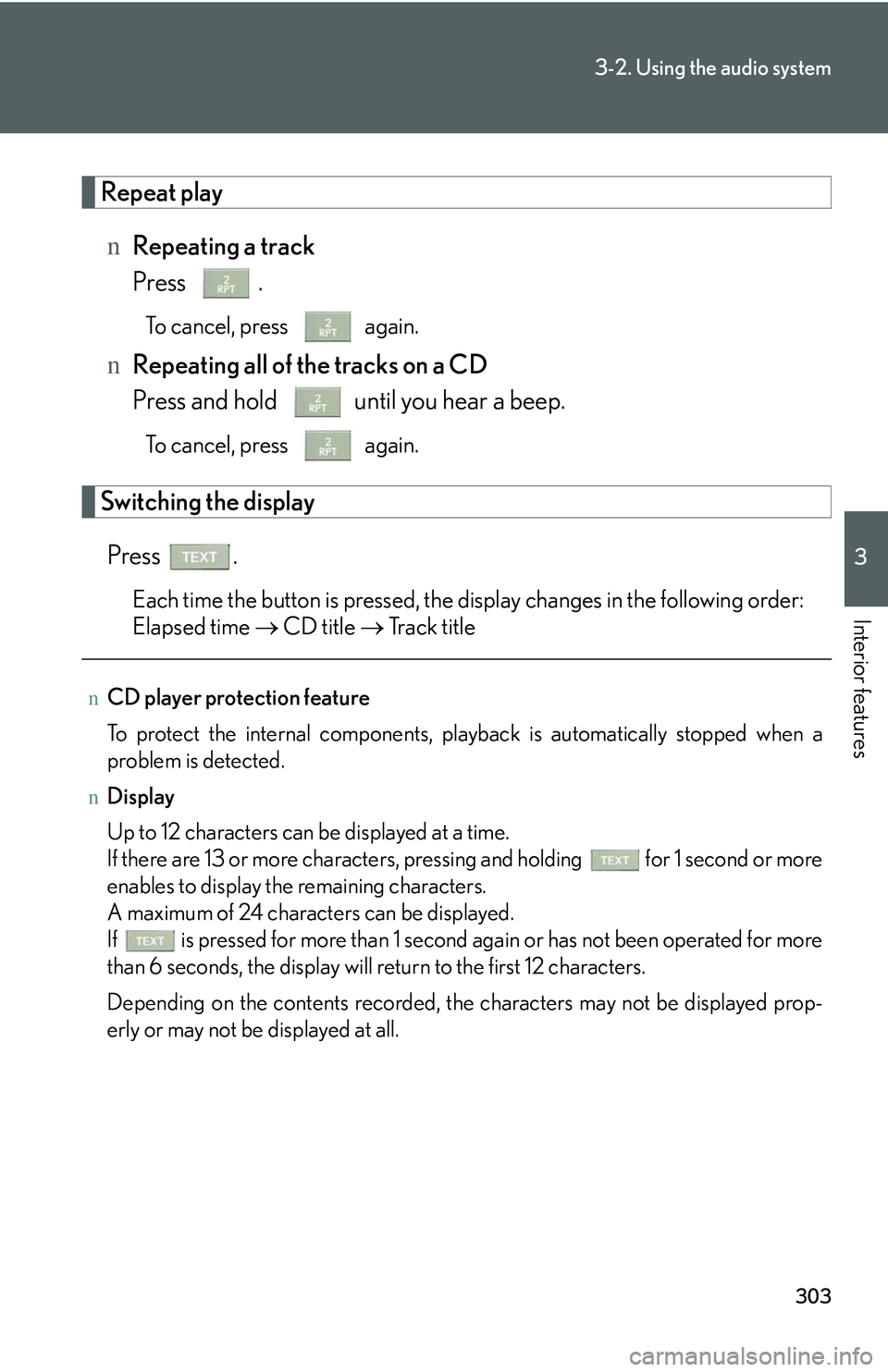

Repeat play
nRepeating a track
Press .
To cancel, press again.
nRepeating all of the tracks on a CD
Press and hold until you hear a beep.
To cancel, press again.
Switching the display
Press .
Each time the button is pressed, the display changes in the following order:
Elapsed time → CD title → Track title
nCD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected.
nDisplay
Up to 12 characters can be displayed at a time.
If there are 13 or more characters, pressing and holding for 1 second or more
enables to display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed for more than 1 second again or has not been operated for more
than 6 seconds, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed prop-
erly or may not be displayed at all.

304
3-2. Using the audio system

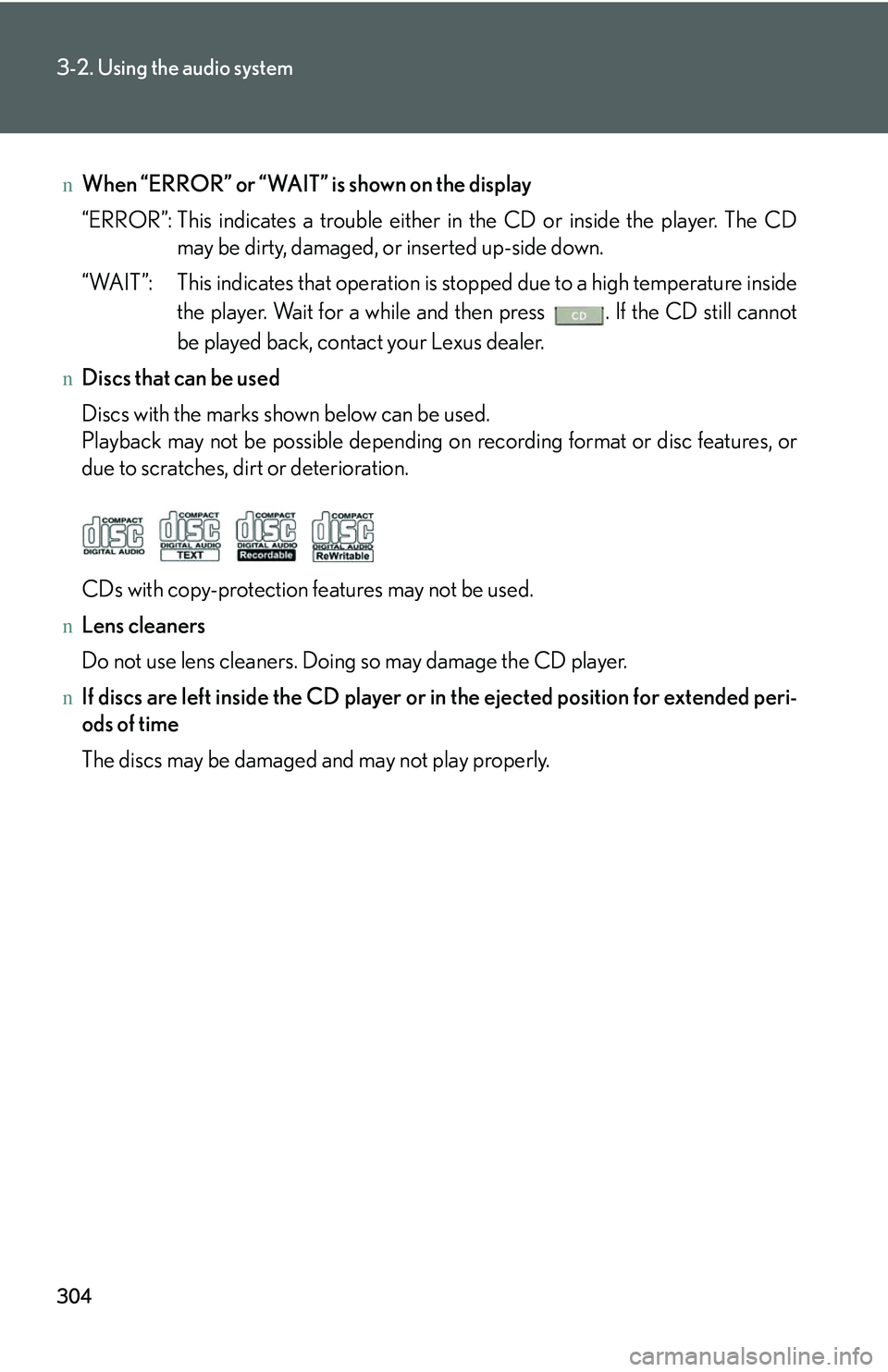

nWhen “ERROR” or “WAIT” is shown on the display
“ERROR”: This indicates a trouble either in the CD or inside the player. The CD
may be dirty, damaged, or inserted up-side down.
“WAIT”: This indicates that operation is stopped due to a high temperature inside
the player. Wait for a while and then press . If the CD still cannot
be played back, contact your Lexus dealer.
nDiscs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.
CDs with copy-protection features may not be used.
nLens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
nIf discs are left inside the CD player or in the ejected position for extended peri-
ods of time
The discs may be damaged and may not play properly.

305
3-2. Using the audio system
3

Interior features

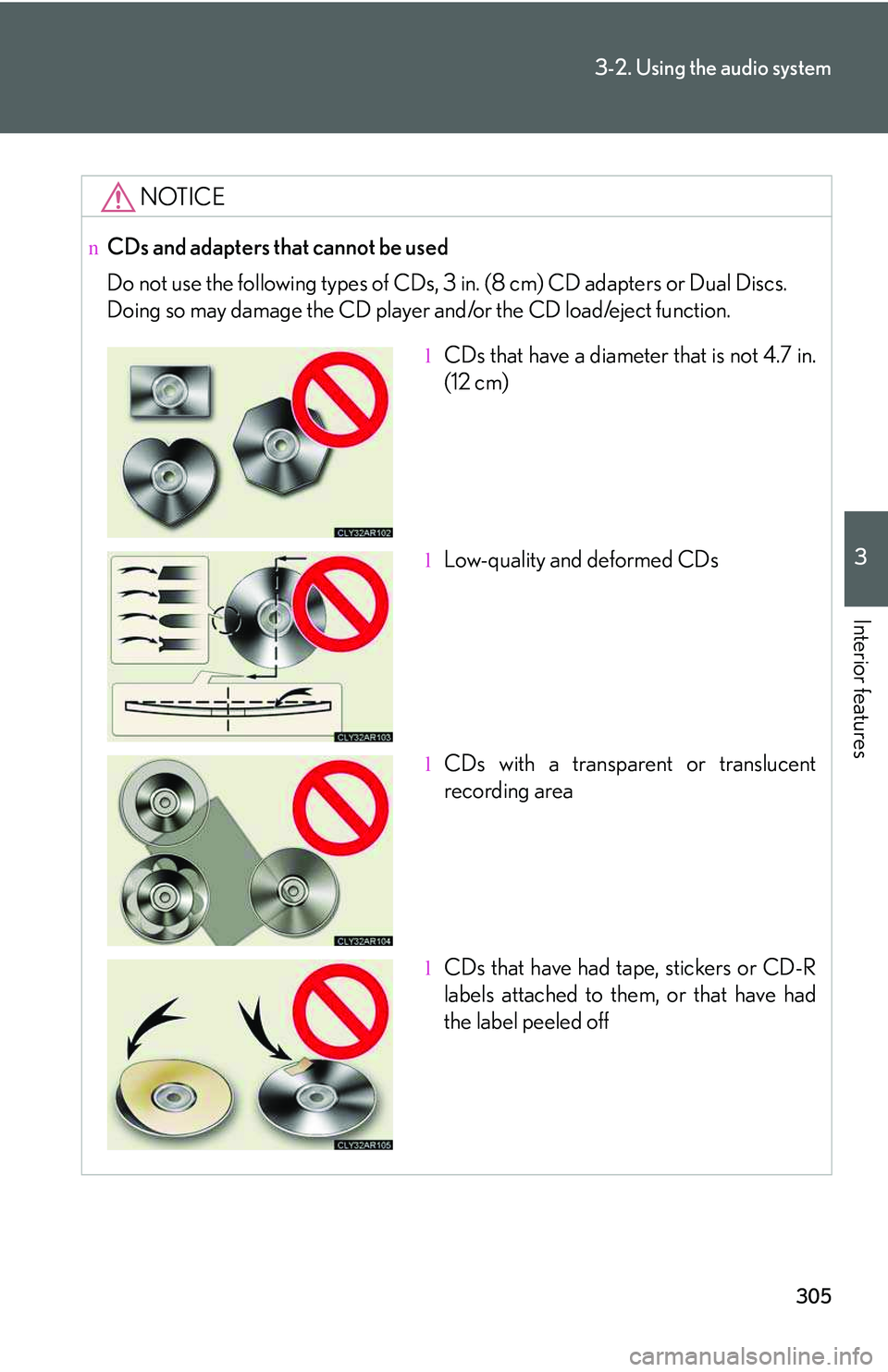

NOTICE
nCDs and adapters that cannot be used
Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual Discs.
Doing so may damage the CD player and/or the CD load/eject function.
lCDs that have a diameter that is not 4.7 in.
(12 cm)
lLow-quality and deformed CDs
lCDs with a transparent or translucent
recording area
lCDs that have had tape, stickers or CD-R
labels attached to them, or that have had
the label peeled off

306
3-2. Using the audio system
NOTICE
nCD player precautions
Failure to follow the precautions below may result in serious damage to the CDs or
the player itself.
lDo not insert anything other than CDs into the CD slot.
lDo not apply oil to the CD player.
lStore CDs away from direct sunlight.
lNever try to disassemble any part of the CD player.
lDo not insert more than one CD at a time.

307
3-2. Using the audio system
3

Interior features
Playing MP3 and WMA discs
Type A
Eject button
Playback button
Search playback button
Load button
Disc selector button
File selector knob
Random playback button
Repeat play button
Te x t b u t t o n
File selector button
Playback/Pause button
Folder selector buttons

“PWR ⋅ VOL” knob
Po w e r Vo l u m e

308
3-2. Using the audio system
Type B
Eject button
Playback button
Search playback button
Load button
Disc selector button
File selector knob
Random playback button
Repeat play button
Te x t b u t t o n
File selector button
Playback/Pause button
Folder selector buttons
“PWR ⋅ VOL” knob
Po w e r Vo l u m e

309
3-2. Using the audio system
3

Interior features
Type C
Random playback button
Eject button
Playback button
Load button
Disc selector button
File selector knob
Te x t b u t t o n
Folder selector buttons
File selector button
Repeat play button
Search playback button
Mute button

“PWR ⋅ VOL” knob
Po w e r Vo l u m e
Playback/Pause button

310
3-2. Using the audio system
Loading and ejecting MP3 and WMA discs
→P. 300, 301
Selecting MP3 and WMA discs
→P. 302
Selecting and scanning a folder
nSelecting a folder one at a time
Press or to select the desired folder.
nReturning to the first folder
Press and hold until you hear a beep.
nScanning the first file of all the folders
Press and hold until you hear a beep.
The first ten seconds of the first file in each folder will be played.
When the desired folder is reached, press again.
Fast-forwarding and reversing files
To fast-forward or reverse, press and hold “∧” or “∨” on until
you hear a beep.
STEP1
STEP2
