LEXUS RX350 2011 Owners Manual

Contents
The Quick Guide is not intended as a substitute for your
Owner’s
Manual
. We strongly encourage you to review the
Owner’s
Manual
and supplementary manuals so you will have a betterunderstanding of your vehicle’s capabilities and limitations.
1
Air Conditioning System (with navigation system)
Using the automatic mode ........................................................................................................40
Adjusting the temperature ........................................................................................................ 40
To turn off the airflow ................................................................................................................... 40
Air Conditioning System (without navigation system)
Using the automatic mode ..........................................................................................................51
Adjusting the temperature ..........................................................................................................51
To turn off the airflow .....................................................................................................................51
Audio System (with navigation system)
Audio control screen ................................................................................................................... 36
Basic operation .............................................................................................................................. 36
Radio....................................................................................................................................................37
DVD player/CD player...............................................................................................................37
Operating an iPod ........................................................................................................................ 39
Remote control (steering wheel switches) ......................................................................... 39
Audio System (without navigation system)
Basic operation .............................................................................................................................. 45
Radio................................................................................................................................................... 46
CD player ..........................................................................................................................................47
Operating an iPod ........................................................................................................................ 49
Remote control (steering wheel switches) ......................................................................... 50
Automatic High Beam........................................................................................................................22
Back Door .............................................................................................................................................. 65
Cruise Control........................................................................................................................................15
Door Locks............................................................................................................................................. 63
Dynamic Radar Cruise Control ...................................................................................................... 16
Eco Driving Indicator ........................................................................................................................... 14
Engine (Ignition) Switch ......................................................................................................................10
Fuel Tank Cap ....................................................................................................................................... 66
Hands-free System For Cellular Phone (with navigation system)
Bluetooth® phone pairing...........................................................................................................31
Phonebook transfer ..................................................................................................................... 32
Registering a speed dial ............................................................................................................. 33
Calling by name ............................................................................................................................. 34
Receiving a call............................................................................................................................... 35

2

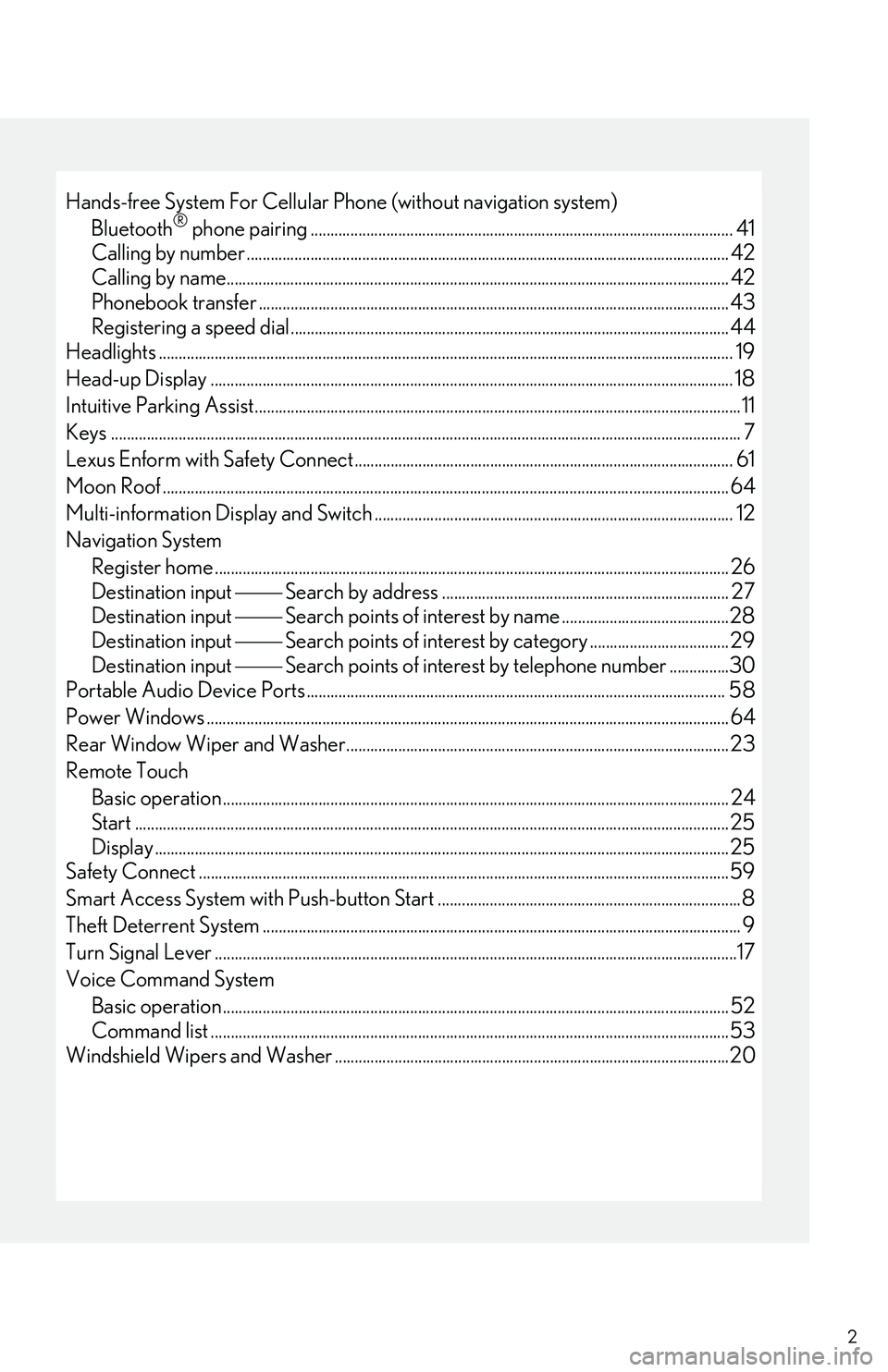

Hands-free System For Cellular Phone (without navigation system)
Bluetooth® phone pairing.......................................................................................................... 41
Calling by number ......................................................................................................................... 42
Calling by name.............................................................................................................................. 42
Phonebook transfer ...................................................................................................................... 43
Registering a speed dial.............................................................................................................. 44
Headlights ................................................................................................................................................ 19
Head-up Display ................................................................................................................................... 18
Intuitive Parking Assist..........................................................................................................................11
Keys .............................................................................................................................................................. 7
Lexus Enform with Safety Connect ...............................................................................................61
Moon Roof .............................................................................................................................................. 64
Multi-information Display and Switch .......................................................................................... 12
Navigation System
Register home ................................................................................................................................. 26
Destination input ⎯⎯ Search by address ........................................................................ 27
Destination input ⎯⎯ Search points of interest by name ..........................................28
Destination input ⎯⎯ Search points of interest by category ................................... 29
Destination input ⎯⎯ Search points of interest by telephone number ...............30
Portable Audio Device Ports ......................................................................................................... 58
Power Windows ................................................................................................................................... 64
Rear Window Wiper and Washer................................................................................................ 23
Remote Touch
Basic operation............................................................................................................................... 24
Start .....................................................................................................................................................25
Display ................................................................................................................................................25
Safety Connect .....................................................................................................................................59
Smart Access System with Push-button Start ............................................................................8
Theft Deterrent System ........................................................................................................................ 9
Turn Signal Lever ...................................................................................................................................17
Voice Command System
Basic operation...............................................................................................................................52
Command list ..................................................................................................................................53
Windshield Wipers and Washer ...................................................................................................20

3

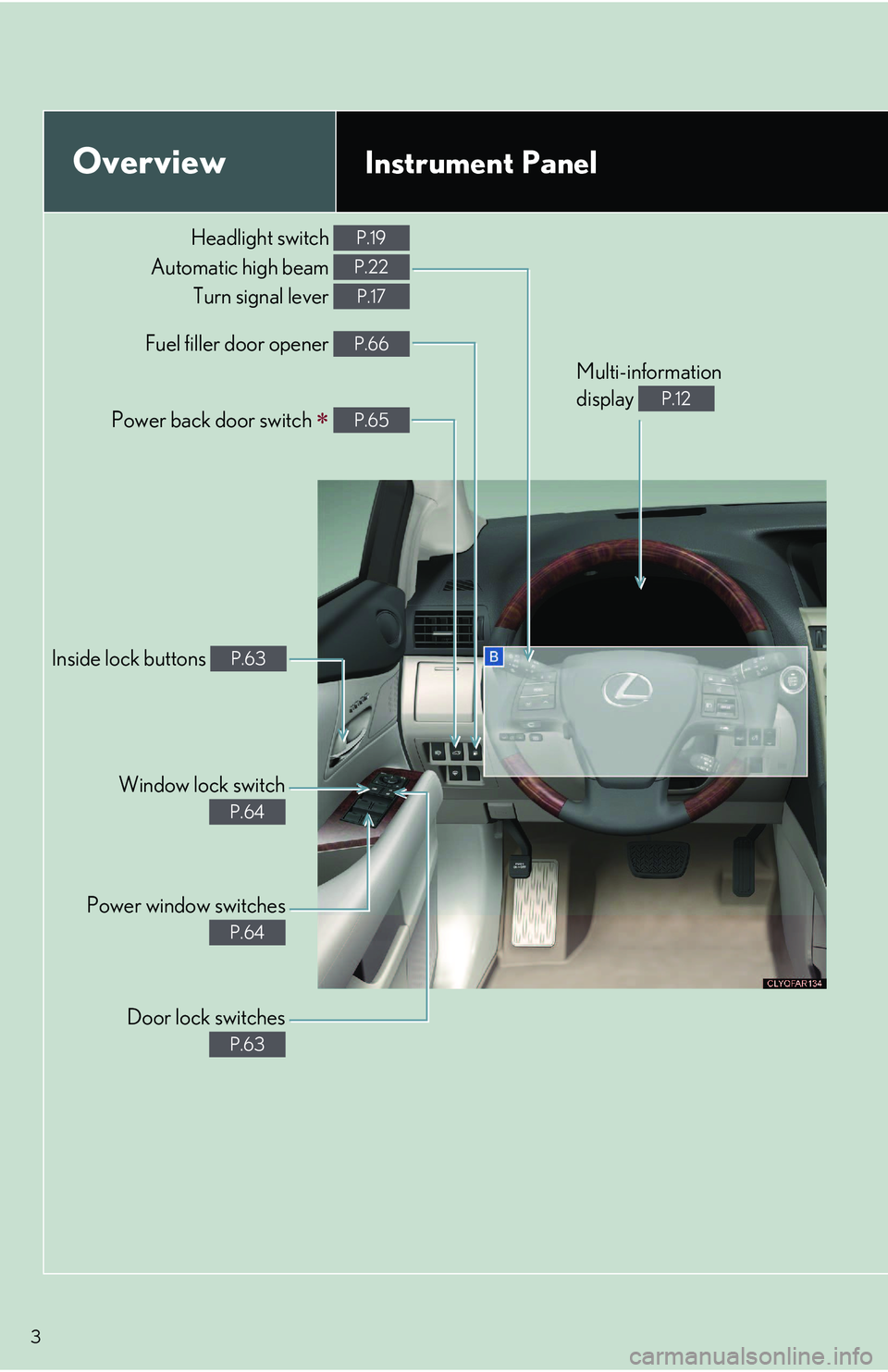

OverviewInstrument Panel
Inside lock buttons P.63
Door lock switches
P.63
Power window switches
P.64
Window lock switch
P.64
Headlight switch
Automatic high beam
Turn signal lever
P.19
P.22
P.17
Multi-information
display P.12Power back door switch ∗ P.65
Fuel filler door opener P.66

4

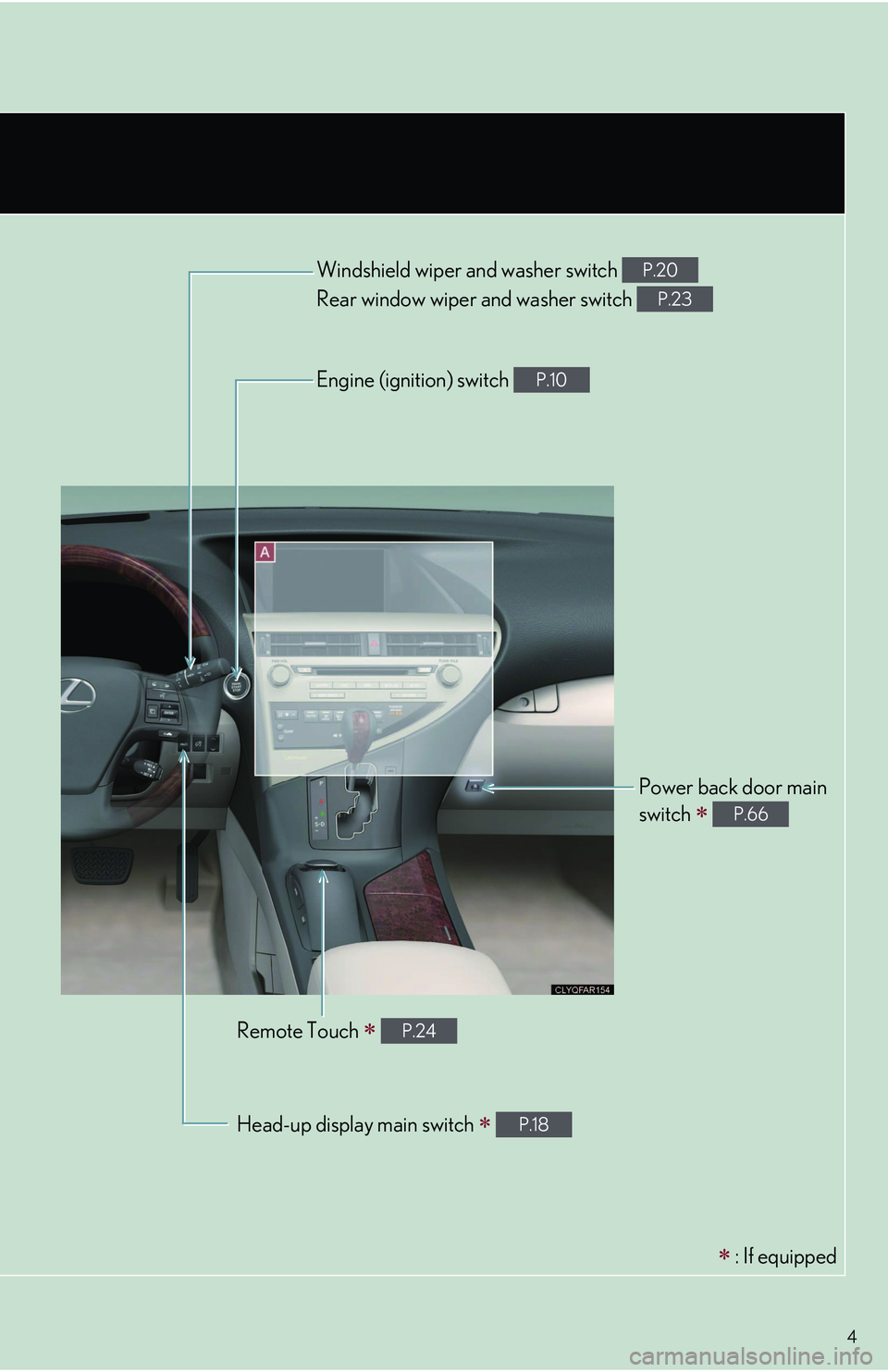

Windshield wiper and washer switch
Rear window wiper and washer switch
P.20
P.23
Engine (ignition) switch P.10
Power back door main
switch ∗ P.66
∗ : If equipped
Remote Touch ∗ P.24
Head-up display main switch ∗ P.18

5

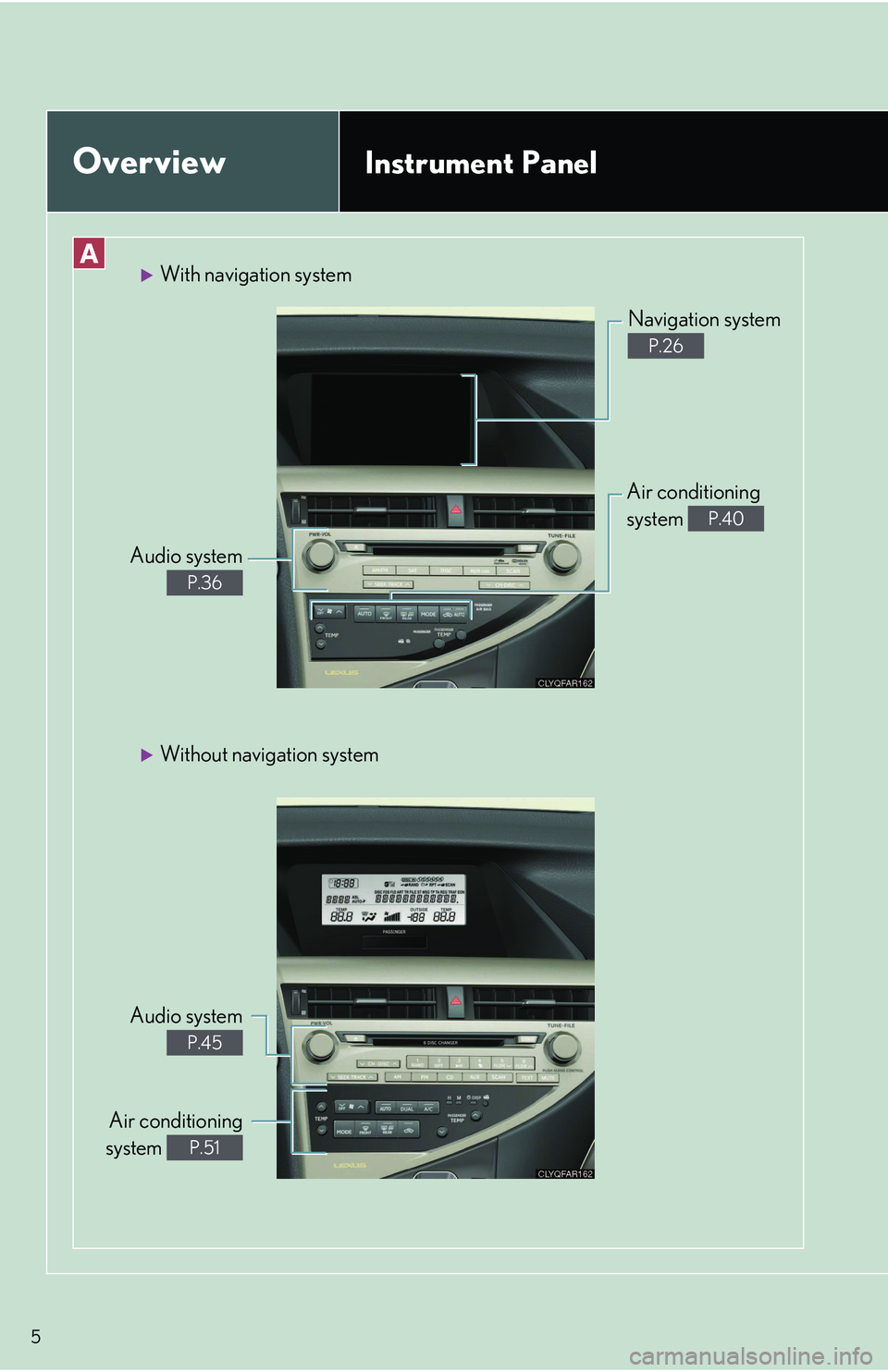

OverviewInstrument Panel
With navigation system
Audio system
P.36
Navigation system
P.26
Air conditioning
system P.40
Without navigation system
Audio system
P.45
Air conditioning
system P.51

6
∗ : If equipped

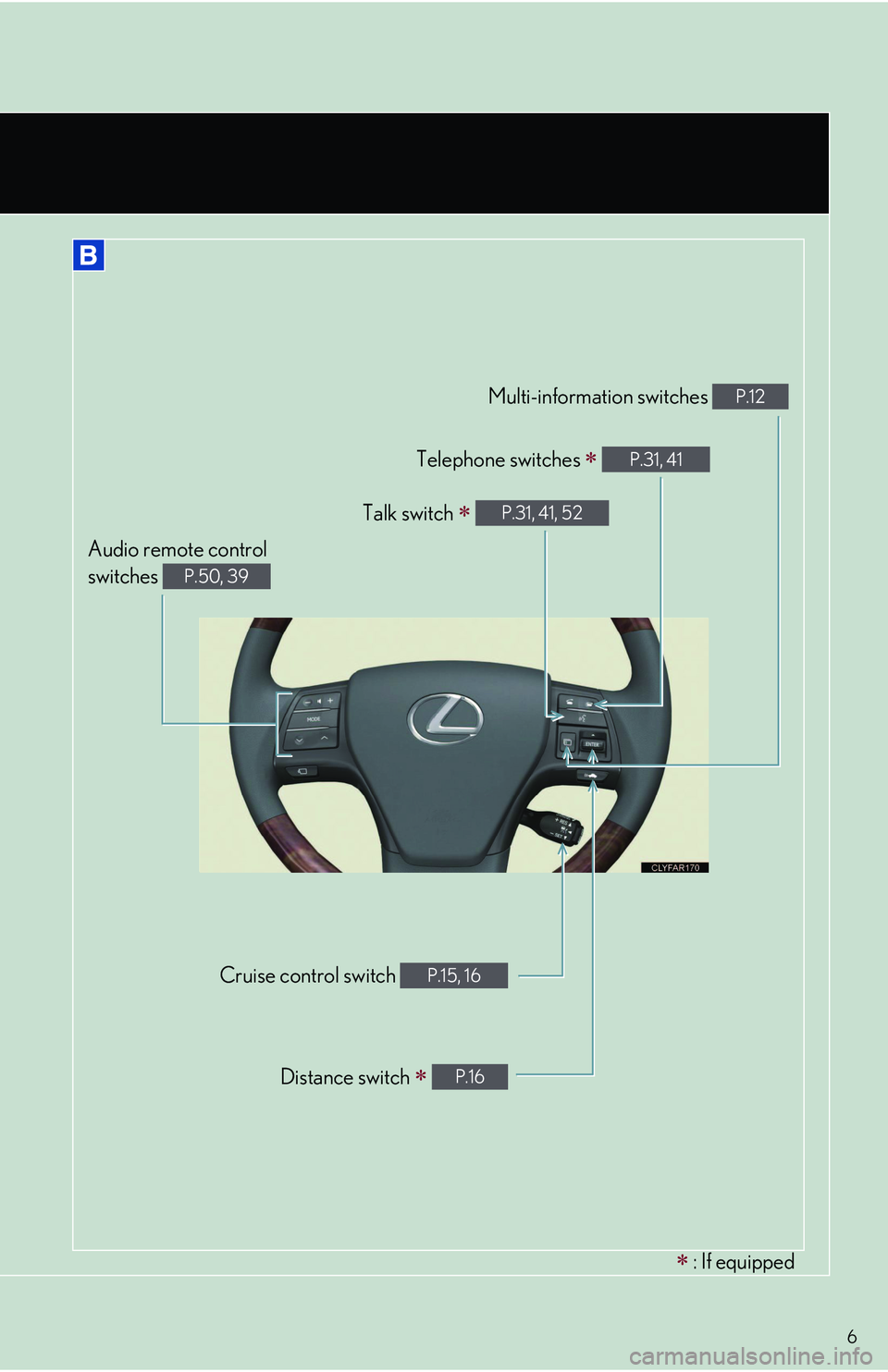

Audio remote control
switches P.50, 39
Cruise control switch P.15, 16
Distance switch ∗ P.16
Multi-information switches P.12
Telephone switches ∗ P.31, 41
Talk switch ∗ P.31, 41, 52

7

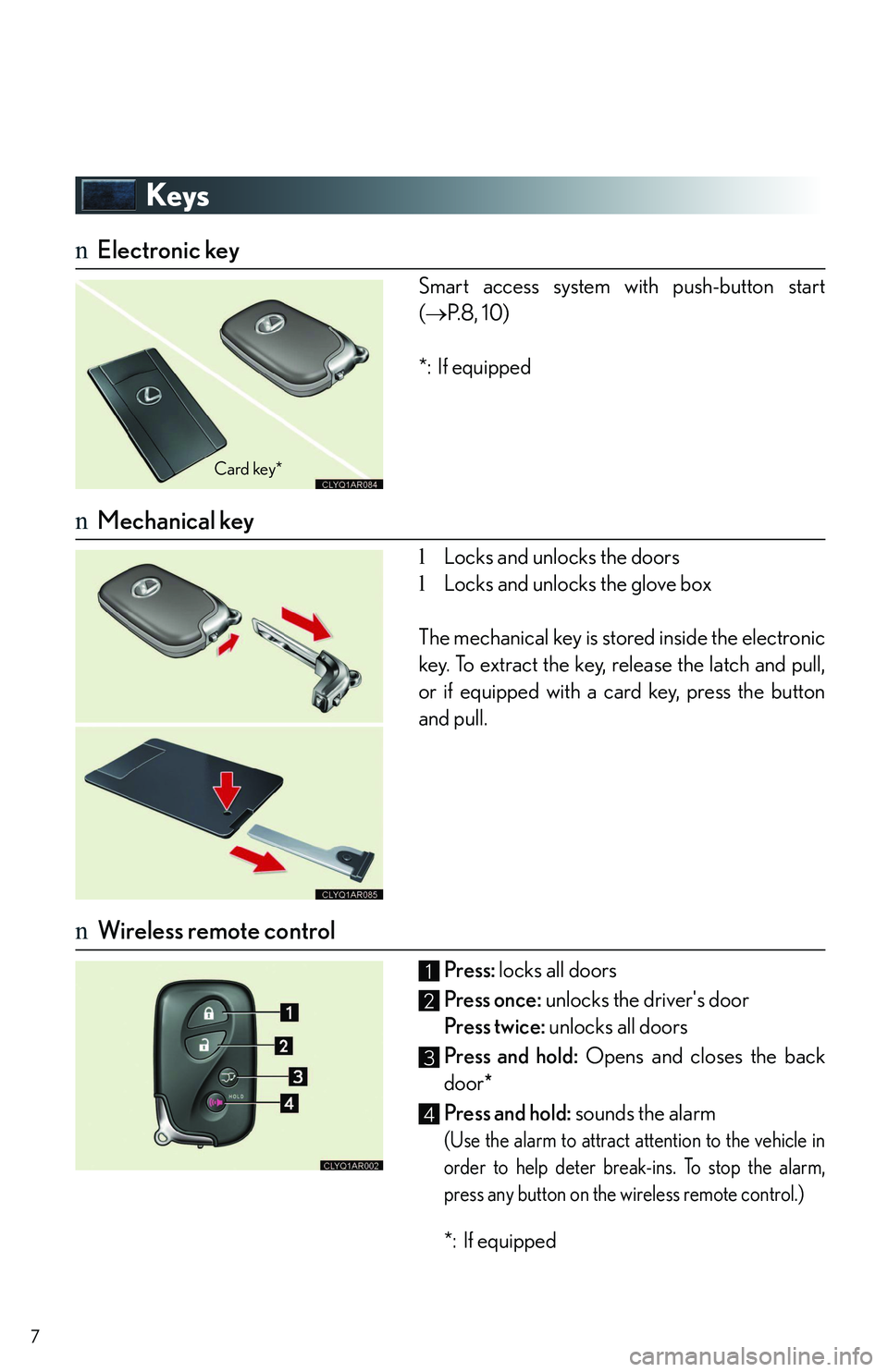

Keys
nElectronic key
Smart access system with push-button start
(→P. 8 , 1 0 )
*: If equipped
nMechanical key
lLocks and unlocks the doors
lLocks and unlocks the glove box
The mechanical key is stored inside the electronic
key. To extract the key, release the latch and pull,
or if equipped with a card key, press the button
and pull.
nWireless remote control
Press: locks all doors
Press once: unlocks the driver's door
Press twice: unlocks all doors
Press and hold: Opens and closes the back
door
*
Press and hold: sounds the alarm

(Use the alarm to attract attention to the vehicle in
order to help deter break-ins. To stop the alarm,
press any button on the wireless remote control.)
*: If equipped
Card key*
1
2
3
4

8

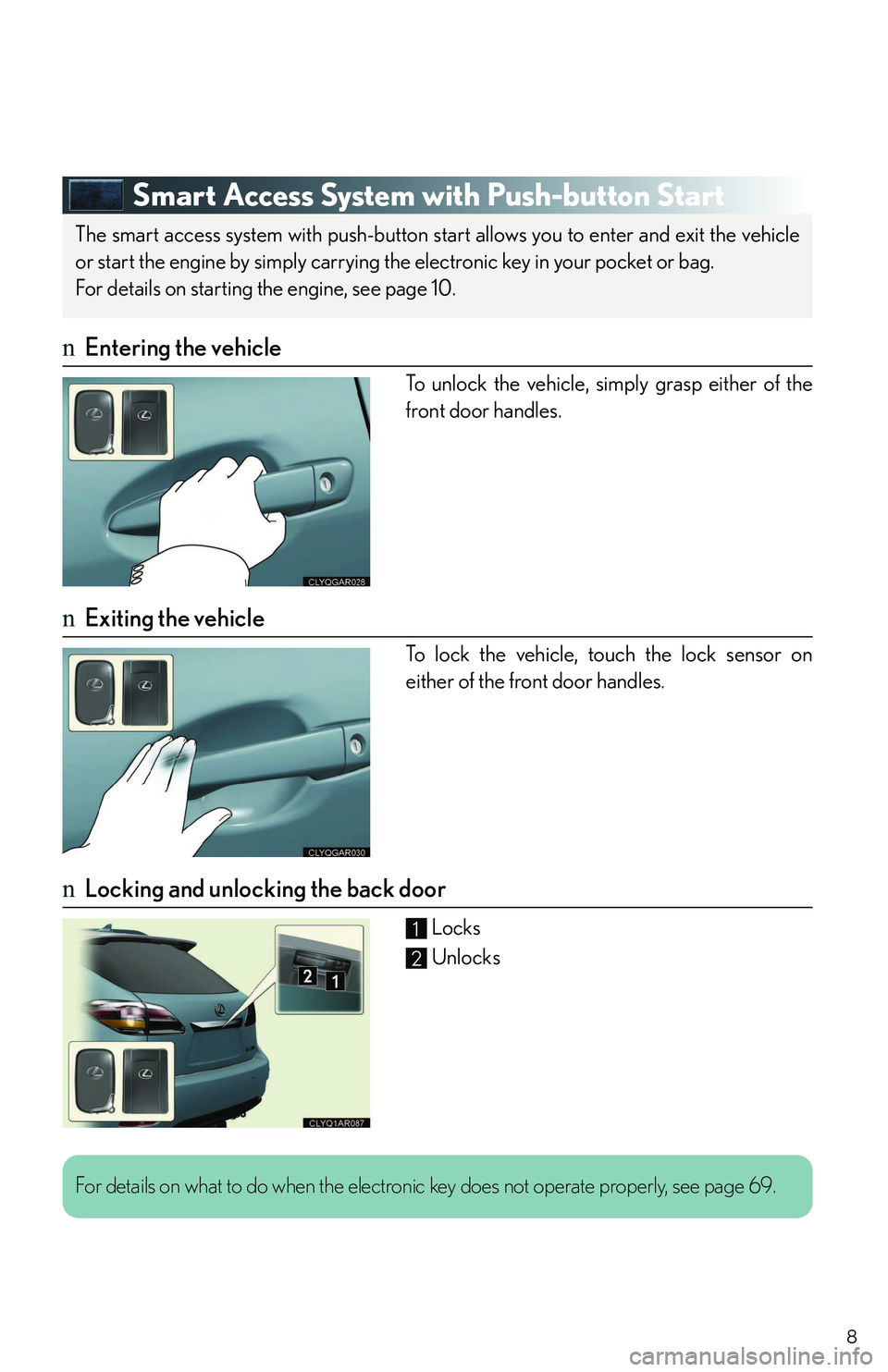

Smart Access System with Push-button Start
nEntering the vehicle
To unlock the vehicle, simply grasp either of the
front door handles.
nExiting the vehicle
To lock the vehicle, touch the lock sensor on
either of the front door handles.
nLocking and unlocking the back door
Locks
Unlocks
The smart access system with push-button start allows you to enter and exit the vehicle
or start the engine by simply carrying the electronic key in your pocket or bag.
For details on starting the engine, see page 10.
1
2
For details on what to do when the electronic key does not operate properly, see page 69.

9

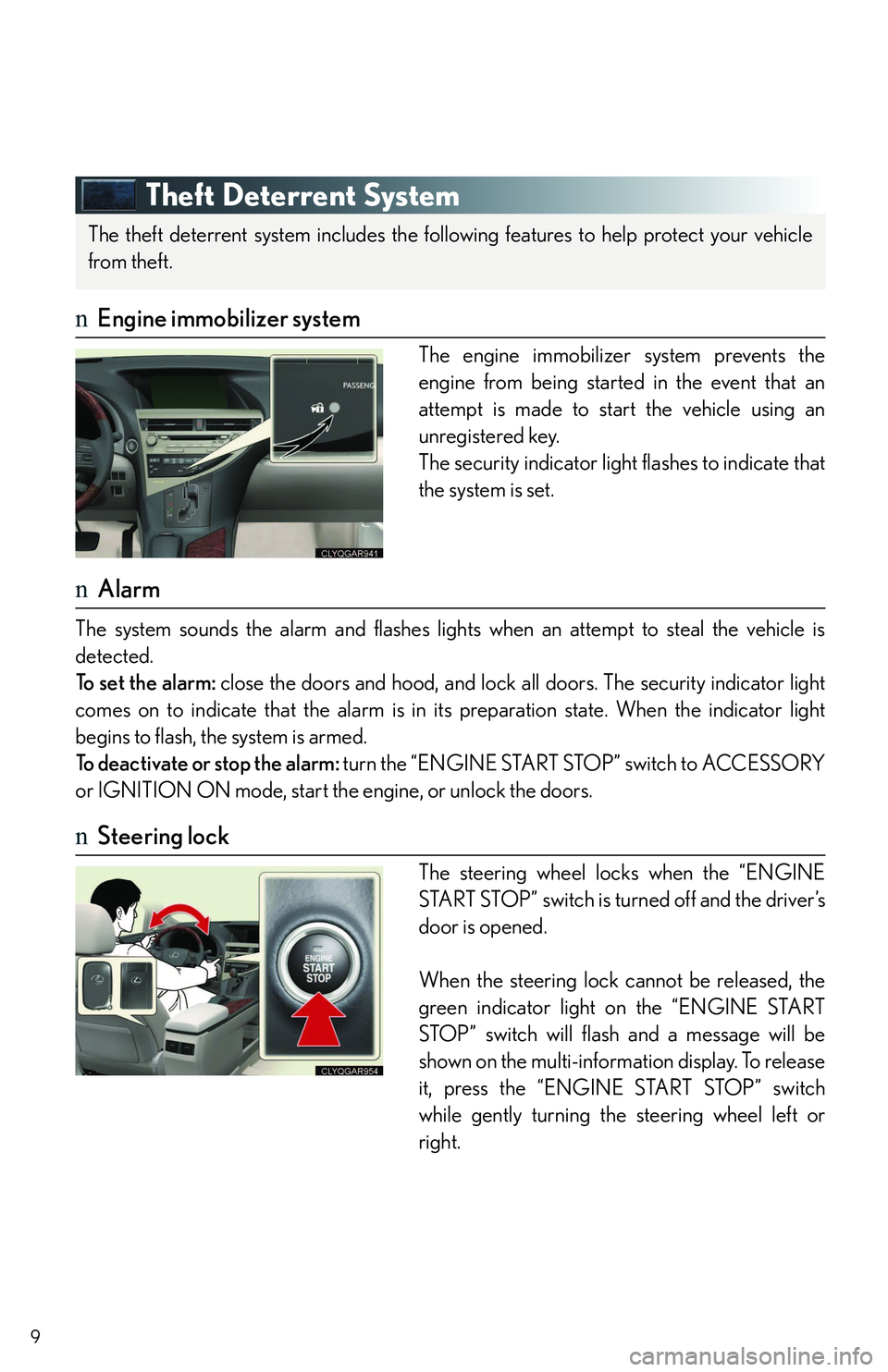

Theft Deterrent System
nEngine immobilizer system
The engine immobilizer system prevents the
engine from being started in the event that an
attempt is made to start the vehicle using an
unregistered key.
The security indicator light flashes to indicate that
the system is set.
nAlarm
The system sounds the alarm and flashes lights when an attempt to steal the vehicle is
detected.
To set the alarm: close the doors and hood, and lock all doors. The security indicator light
comes on to indicate that the alarm is in its preparation state. When the indicator light
begins to flash, the system is armed.
To deactivate or stop the alarm: turn the “ENGINE START STOP” switch to ACCESSORY
or IGNITION ON mode, start the engine, or unlock the doors.
nSteering lock
The steering wheel locks when the “ENGINE
START STOP” switch is turned off and the driver’s
door is opened.
When the steering lock cannot be released, the
green indicator light on the “ENGINE START
STOP” switch will flash and a message will be
shown on the multi-information display. To release
it, press the “ENGINE START STOP” switch
while gently turning the steering wheel left or
right.
The theft deterrent system includes the following features to help protect your vehicle
from theft.

10

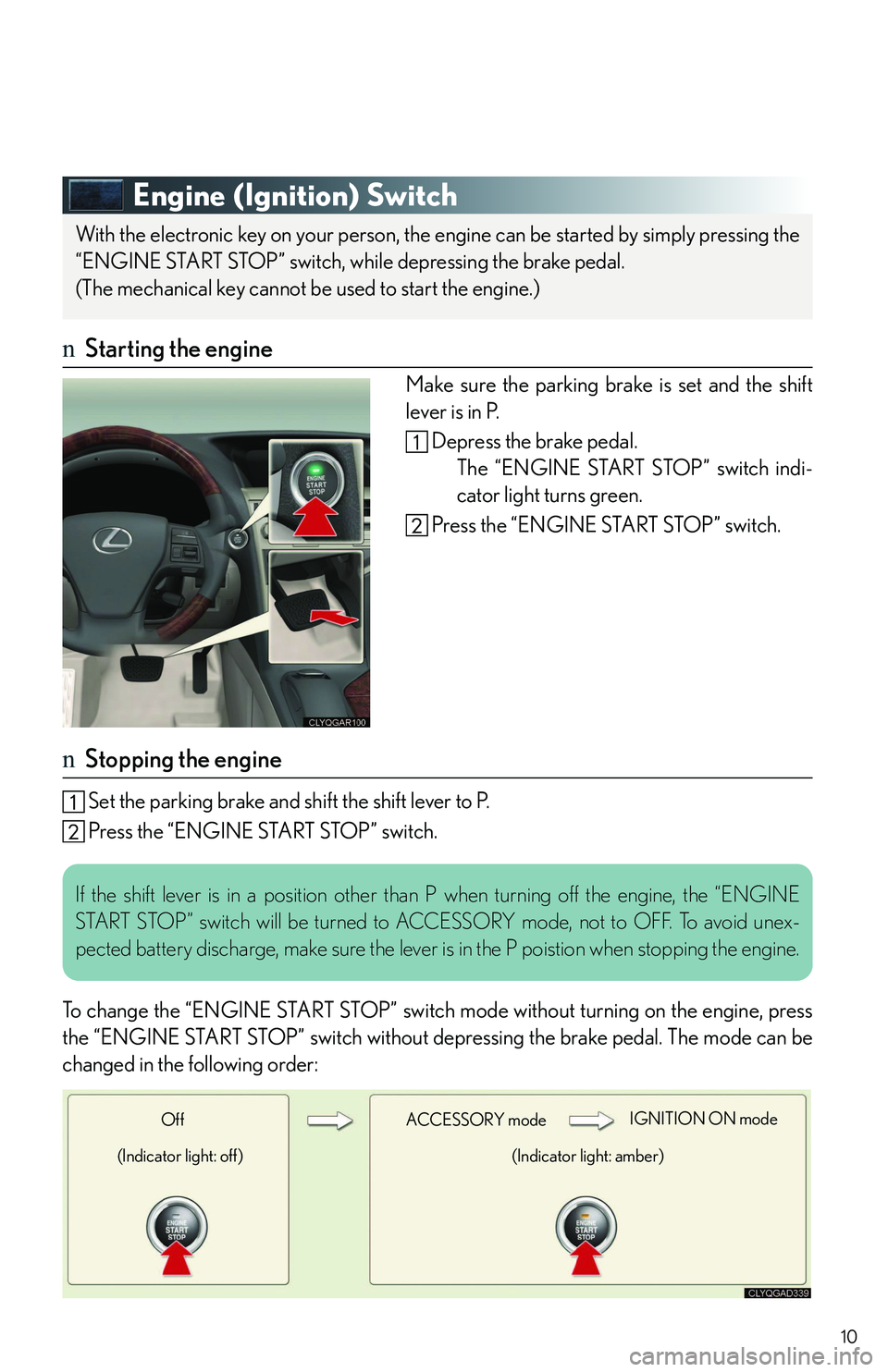

Engine (Ignition) Switch
nStarting the engine
Make sure the parking brake is set and the shift
lever is in P.
Depress the brake pedal.
The “ENGINE START STOP” switch indi-
cator light turns green.
Press the “ENGINE START STOP” switch.
nStopping the engine
Set the parking brake and shift the shift lever to P.
Press the “ENGINE START STOP” switch.
To change the “ENGINE START STOP” switch mode without turning on the engine, press
the “ENGINE START STOP” switch without depressing the brake pedal. The mode can be
changed in the following order:
With the electronic key on your person, the engine can be started by simply pressing the
“ENGINE START STOP” switch, while depressing the brake pedal.
(The mechanical key cannot be used to start the engine.)
If the shift lever is in a position other than P when turning off the engine, the “ENGINE
START STOP” switch will be turned to ACCESSORY mode, not to OFF. To avoid unex-
pected battery discharge, make sure the lever is in the P poistion when stopping the engine.
ACCE SSORY modeIGNITION ON mode
(Indicator light: amber)
Off
(Indicator light: off)
