LEXUS RX350 2011 Owners Manual

281
3-1. Using the air conditioning system and defogger
3

Interior features

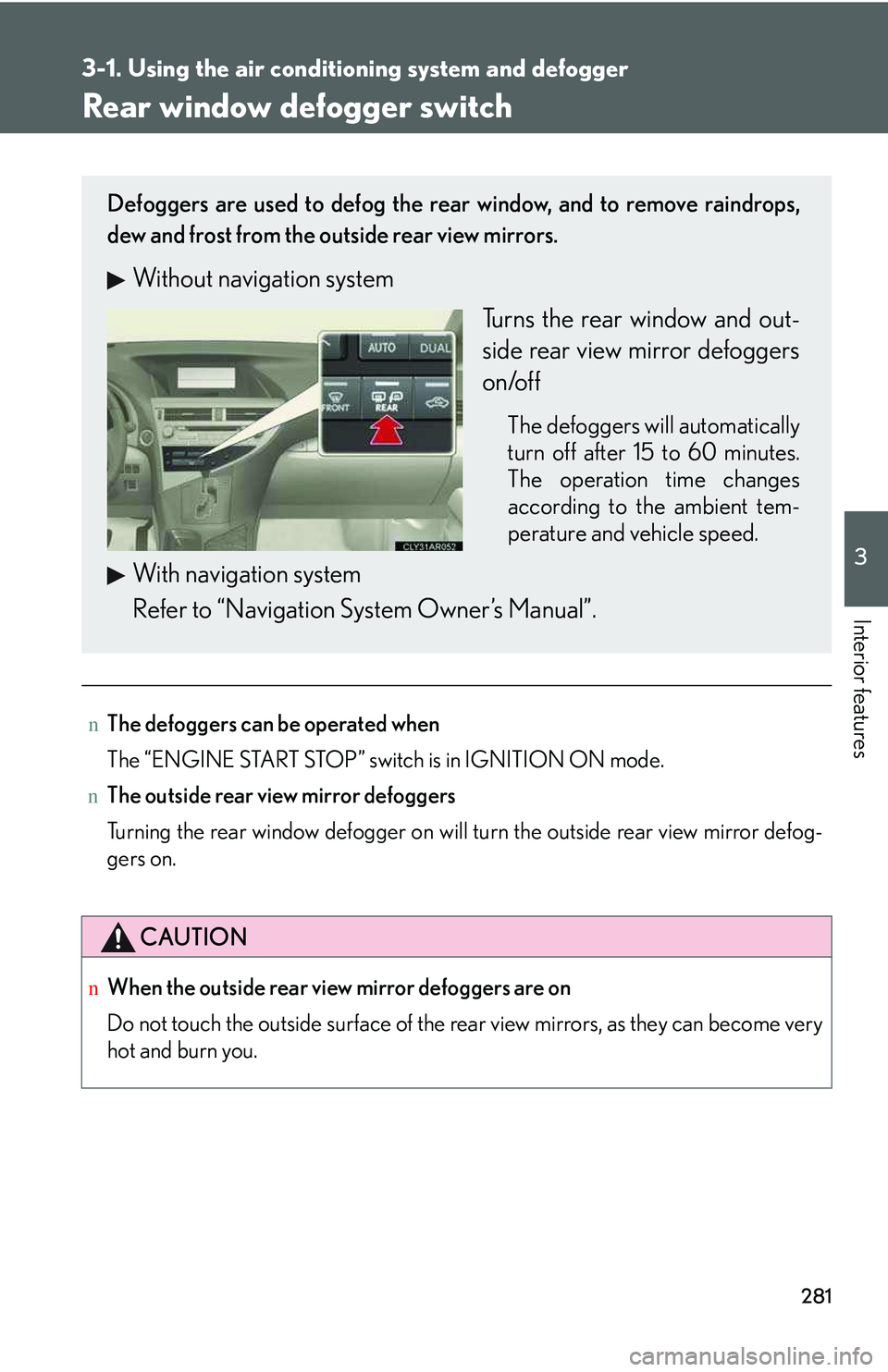

Rear window defogger switch
nThe defoggers can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
nThe outside rear view mirror defoggers
Turning the rear window defogger on will turn the outside rear view mirror defog-
gers on.
CAUTION
nWhen the outside rear view mirror defoggers are on
Do not touch the outside surface of the rear view mirrors, as they can become very
hot and burn you.
Defoggers are used to defog the rear window, and to remove raindrops,
dew and frost from the outside rear view mirrors.
Without navigation system
Turns the rear window and out-
side rear view mirror defoggers
on/off
The defoggers will automatically
turn off after 15 to 60 minutes.
The operation time changes
according to the ambient tem-
perature and vehicle speed.
With navigation system
Refer to “Navigation System Owner’s Manual”.

282
3-1. Using the air conditioning system and defogger
Windshield wiper de-icer∗
nThe windshield wiper de-icer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
nWhen the windshield wiper de-icer is on
Do not touch the lower part of the windshield or the side of the front pillars, as the
surfaces can become very hot and burn you.
This feature is used to prevent ice from building up on the windshield and
wiper blades.
Without navigation system
Turns the windshield wiper de-
icer on/off
The windshield wiper de-icer
will automatically turn off after
approximately 15 minutes.
With navigation system
Refer to “Navigation System Owner’s Manual”.
∗: If equipped

283
3

Interior features
3-2. Using the audio system
Audio system
Vehicles with a navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner’s Manual”.
Vehicles without a navigation system
CD player with a changer and AM/FM radio
Type A

284
3-2. Using the audio system
Type B

285
3-2. Using the audio system
3

Interior features
Type C
Ti t l ePa g e
Using the radioP. 2 8 7
Using the CD playerP. 2 9 7
Playing MP3 and WMA discsP. 3 0 7
Operating an iPodP. 3 1 7
Operating a USB memoryP. 3 2 5
Optimal use of the audio systemP. 3 3 4
Using the AUX portP. 3 3 7
Using the steering wheel audio switchesP. 3 3 9

286
3-2. Using the audio system
nUsing mobile phones
Interference may be heard through the audio system’s speakers if a mobile phone is
being used inside or close to the vehicle while the audio system is operating.
CAUTION
nCertification
lPa r t 1 5 o f t h e F CC Ru l e s
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the user’s
authority to operate this device.
lLaser products

287
3-2. Using the audio system
3

Interior features

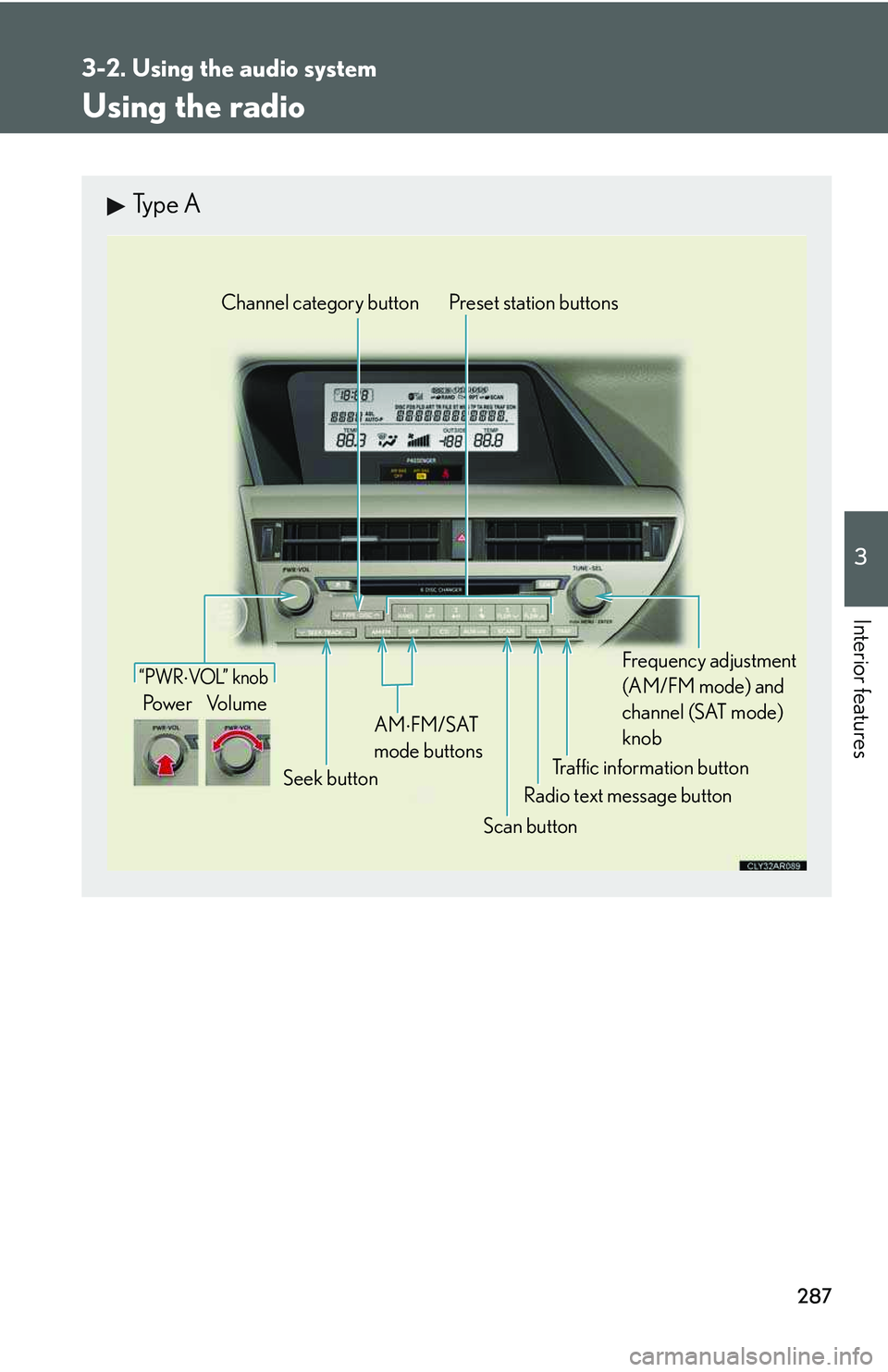

Using the radio
Type A
Traffic information button
Preset station buttons
Radio text message button
Scan button
Seek button
Channel category button
Frequency adjustment
(AM/FM mode) and
channel (SAT mode)
knobAM

⋅
FM/SAT
mode buttons
“PWR ⋅ VOL” k nob
Po w e r Vo l u m e

288
3-2. Using the audio system

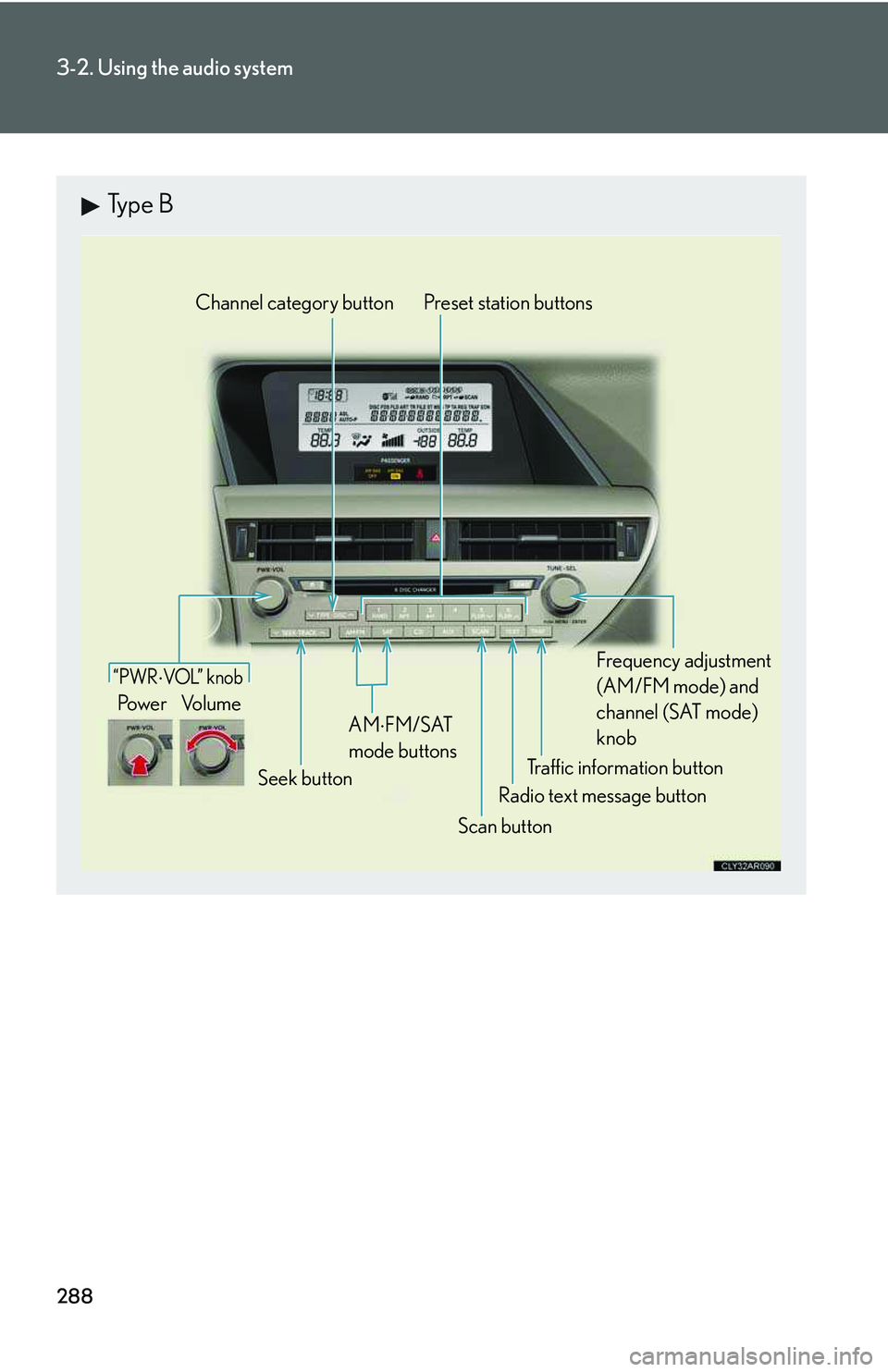

Type B
Traffic information button
Preset station buttons
Radio text message button
Scan button
Seek button
Channel category button
Frequency adjustment
(AM/FM mode) and
channel (SAT mode)
knobAM
⋅
FM/SAT
mode buttons
“PWR ⋅ VOL” k nob
Po w e r Vo l u m e

289
3-2. Using the audio system
3

Interior features
Type C
Preset tuning button
Frequency adjustment
knob
Mute button

“PWR ⋅ VOL” k nob
Po w e r Vo l u m e
Seek button
AM/FM
mode buttons
Preset station buttons
Scan button

290
3-2. Using the audio system
Setting station presets (excluding XM® Satellite Radio)
Search for the desired stations by turning or or
pressing “∧” or “∨” on .
Press and hold the button (from to ) the station is to
be set to until you hear a beep.
Scanning radio stations (excluding XM® Satellite Radio)
nScanning the preset radio stations
Press and hold until you hear a beep.
Preset stations will be played for 5 seconds each.
When the desired station is reached, press the button again.
nScanning all the radio stations within range
Press .
All the stations with reception will be played for 5 seconds each.
When the desired station is reached, press the button again.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2
