steering LEXUS RX350 2011 Owners Manual

Contents
The Quick Guide is not intended as a substitute for your
Owner’s
Manual
. We strongly encourage you to review the
Owner’s
Manual
and supplementary manuals so you will have a betterunderstanding of your vehicle’s capabilities and limitations.
1
Air Conditioning System (with navigation system)
Using the automatic mode ........................................................................................................40
Adjusting the temperature ........................................................................................................ 40
To turn off the airflow ................................................................................................................... 40
Air Conditioning System (without navigation system)
Using the automatic mode ..........................................................................................................51
Adjusting the temperature ..........................................................................................................51
To turn off the airflow .....................................................................................................................51
Audio System (with navigation system)
Audio control screen ................................................................................................................... 36
Basic operation .............................................................................................................................. 36
Radio....................................................................................................................................................37
DVD player/CD player...............................................................................................................37
Operating an iPod ........................................................................................................................ 39
Remote control (steering wheel switches) ......................................................................... 39
Audio System (without navigation system)
Basic operation .............................................................................................................................. 45
Radio................................................................................................................................................... 46
CD player ..........................................................................................................................................47
Operating an iPod ........................................................................................................................ 49
Remote control (steering wheel switches) ......................................................................... 50
Automatic High Beam........................................................................................................................22
Back Door .............................................................................................................................................. 65
Cruise Control........................................................................................................................................15
Door Locks............................................................................................................................................. 63
Dynamic Radar Cruise Control ...................................................................................................... 16
Eco Driving Indicator ........................................................................................................................... 14
Engine (Ignition) Switch ......................................................................................................................10
Fuel Tank Cap ....................................................................................................................................... 66
Hands-free System For Cellular Phone (with navigation system)
Bluetooth® phone pairing...........................................................................................................31
Phonebook transfer ..................................................................................................................... 32
Registering a speed dial ............................................................................................................. 33
Calling by name ............................................................................................................................. 34
Receiving a call............................................................................................................................... 35

9
Theft Deterrent System
nEngine immobilizer system
The engine immobilizer system prevents the
engine from being started in the event that an
attempt is made to start the vehicle using an
unregistered key.
The security indicator light flashes to indicate that
the system is set.
nAlarm
The system sounds the alarm and flashes lights when an attempt to steal the vehicle is
detected.
To set the alarm: close the doors and hood, and lock all doors. The security indicator light
comes on to indicate that the alarm is in its preparation state. When the indicator light
begins to flash, the system is armed.
To deactivate or stop the alarm: turn the “ENGINE START STOP” switch to ACCESSORY
or IGNITION ON mode, start the engine, or unlock the doors.
nSteering lock
The steering wheel locks when the “ENGINE
START STOP” switch is turned off and the driver’s
door is opened.
When the steering lock cannot be released, the
green indicator light on the “ENGINE START
STOP” switch will flash and a message will be
shown on the multi-information display. To release
it, press the “ENGINE START STOP” switch
while gently turning the steering wheel left or
right.
The theft deterrent system includes the following features to help protect your vehicle
from theft.

35

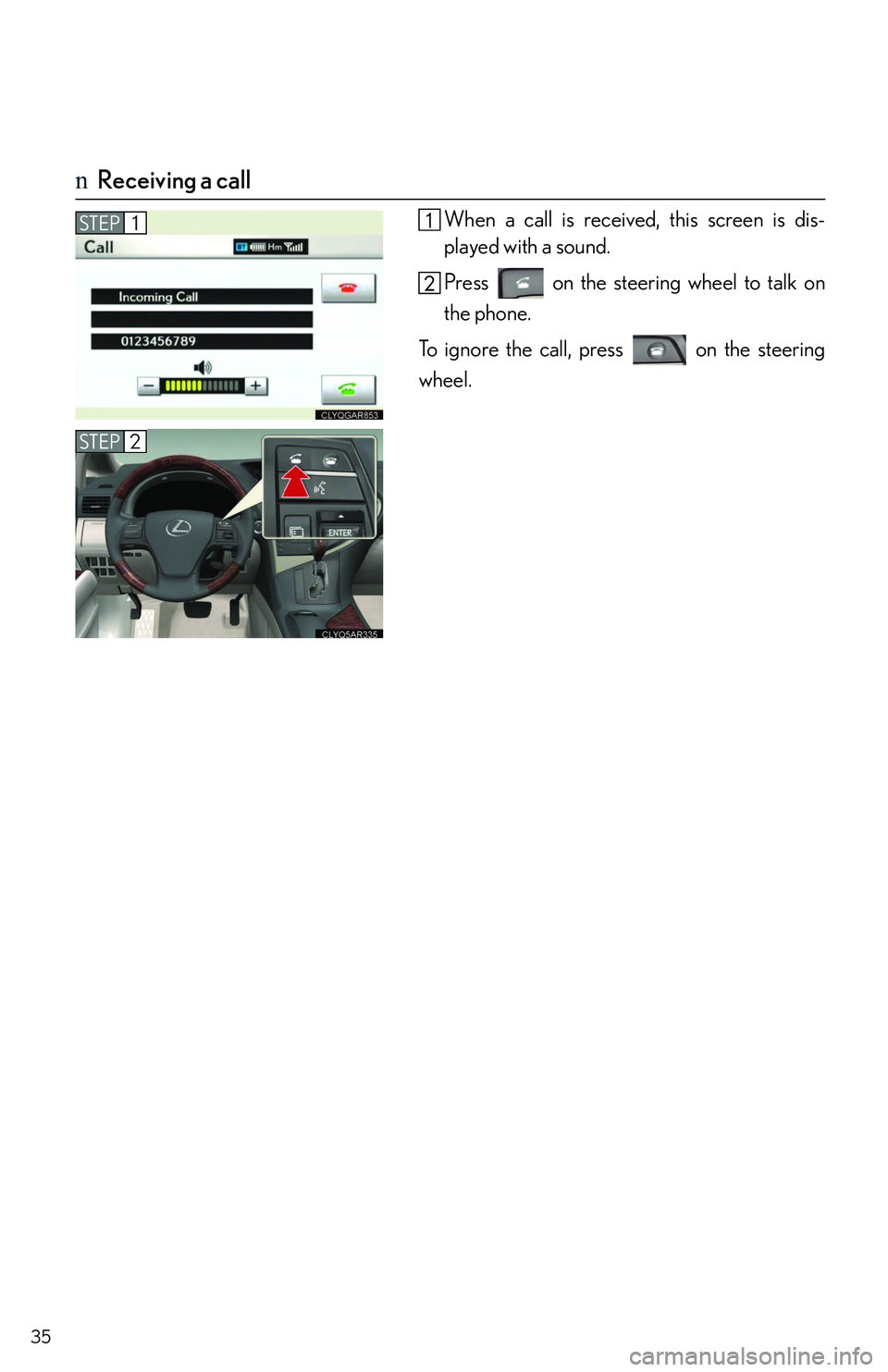

nReceiving a call
When a call is received, this screen is dis-
played with a sound.
Press on the steering wheel to talk on
the phone.
To ignore the call, press on the steering
wheel.
STEP1
STEP2

39

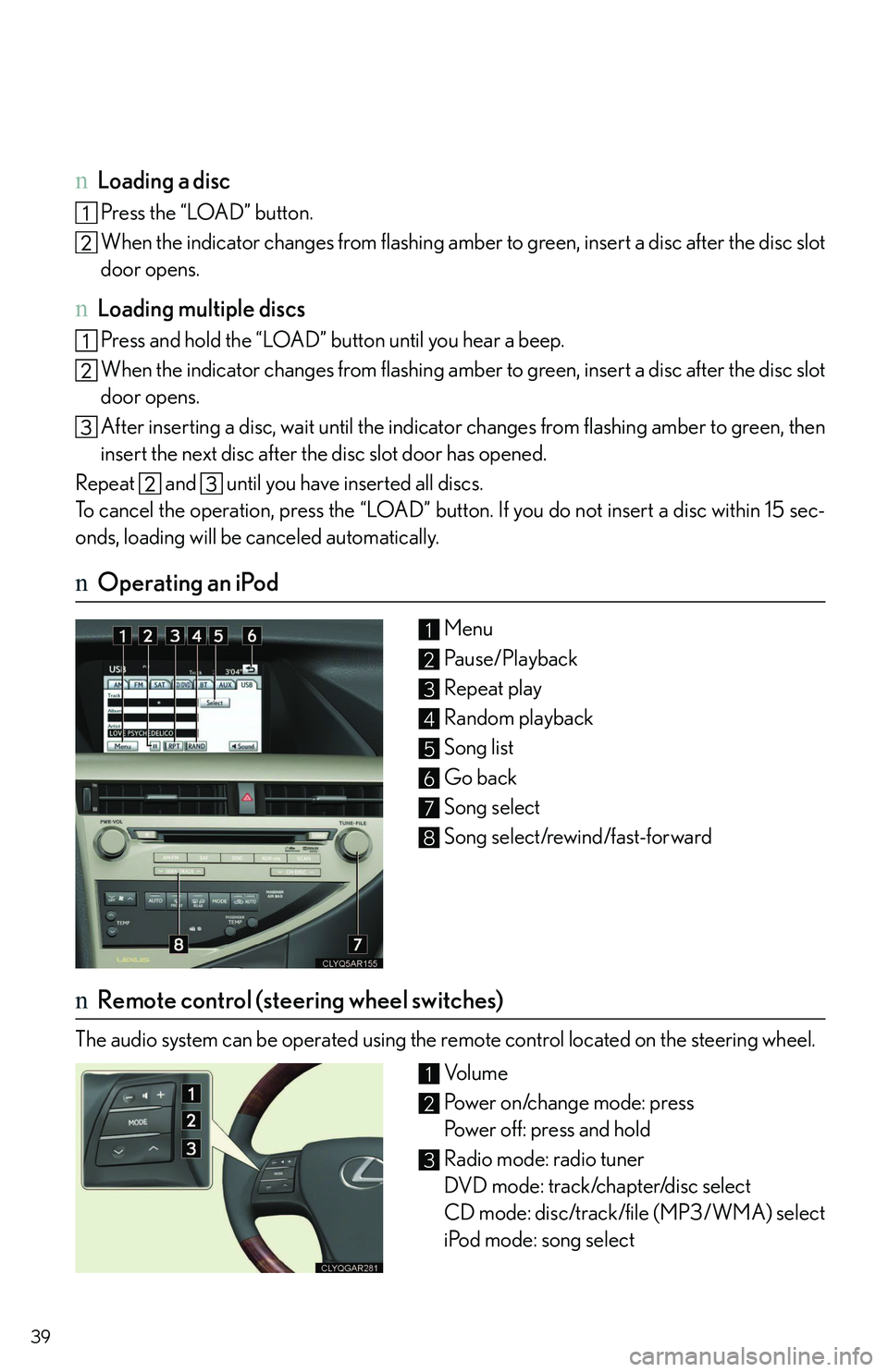

nLoading a disc
Press the “LOAD” button.
When the indicator changes from flashing amber to green, insert a disc after the disc slot
door opens.
nLoading multiple discs
Press and hold the “LOAD” button until you hear a beep.
When the indicator changes from flashing amber to green, insert a disc after the disc slot
door opens.
After inserting a disc, wait until the indicator changes from flashing amber to green, then
insert the next disc after the disc slot door has opened.
Repeat and until you have inserted all discs.
To cancel the operation, press the “LOAD” button. If you do not insert a disc within 15 sec-
onds, loading will be canceled automatically.
nOperating an iPod
Menu
Pau s e / P l a y b a c k
Repeat play
Random playback
Song list
Go back
Song select
Song select/rewind/fast-forward
nRemote control (steering wheel switches)
The audio system can be operated using the remote control located on the steering wheel.
Vo l u m e
Power on/change mode: press
Power off: press and hold
Radio mode: radio tuner
DVD mode: track/chapter/disc select
CD mode: disc/track/file (MP3/WMA) select
iPod mode: song select
1
2
3
4
5
6
7
8
1
2
3

50

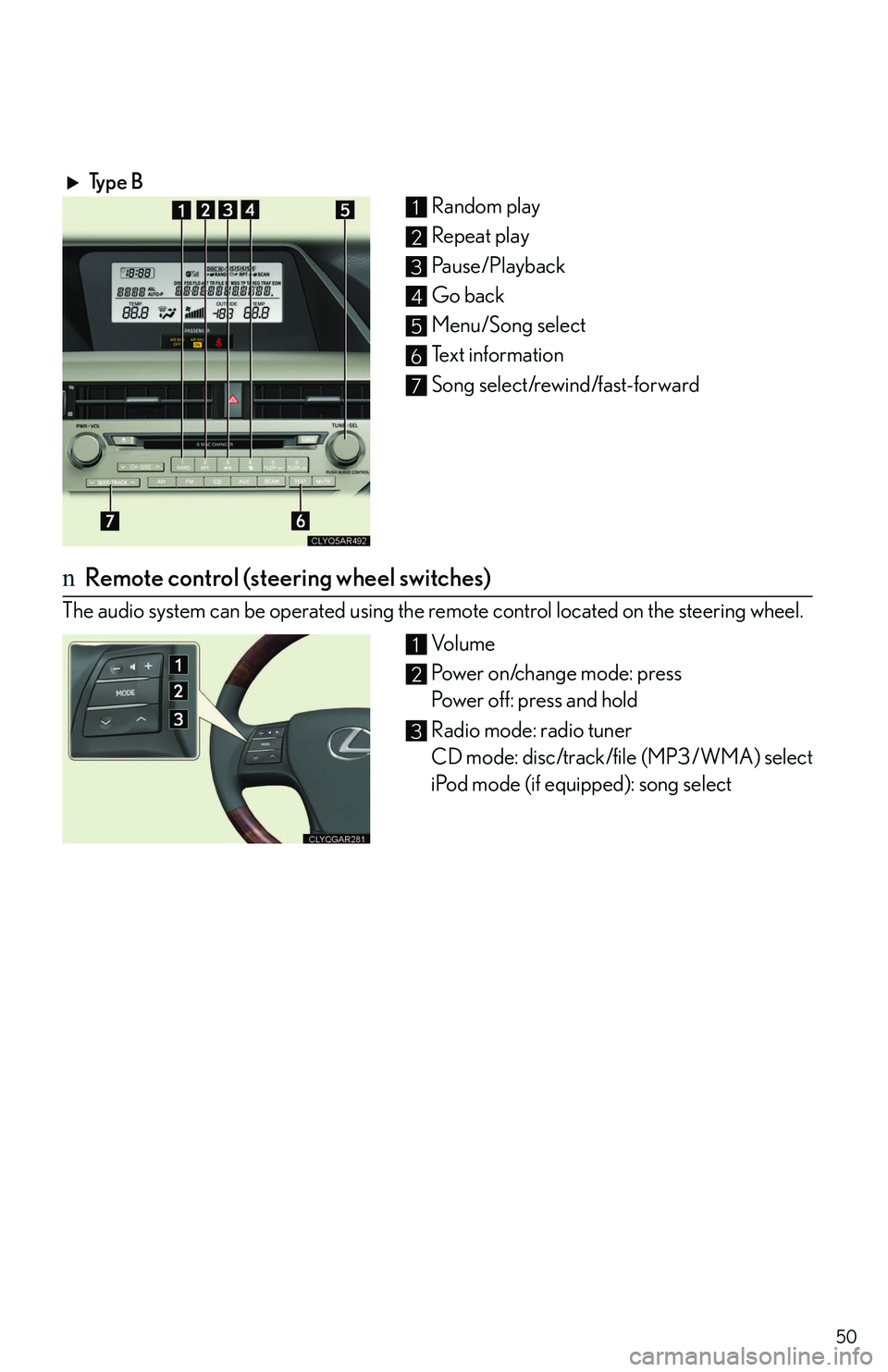

Typ e B
Random play
Repeat play
Pause/Playback
Go back
Menu/Song select
Text information
Song select/rewind/fast-forward
nRemote control (steering wheel switches)
The audio system can be operated using the remote control located on the steering wheel.
Vo l u m e
Power on/change mode: press
Power off: press and hold
Radio mode: radio tuner
CD mode: disc/track/file (MP3/WMA) select
iPod mode (if equipped): song select
1
2
3
4
5
6
7
1
2
3

52

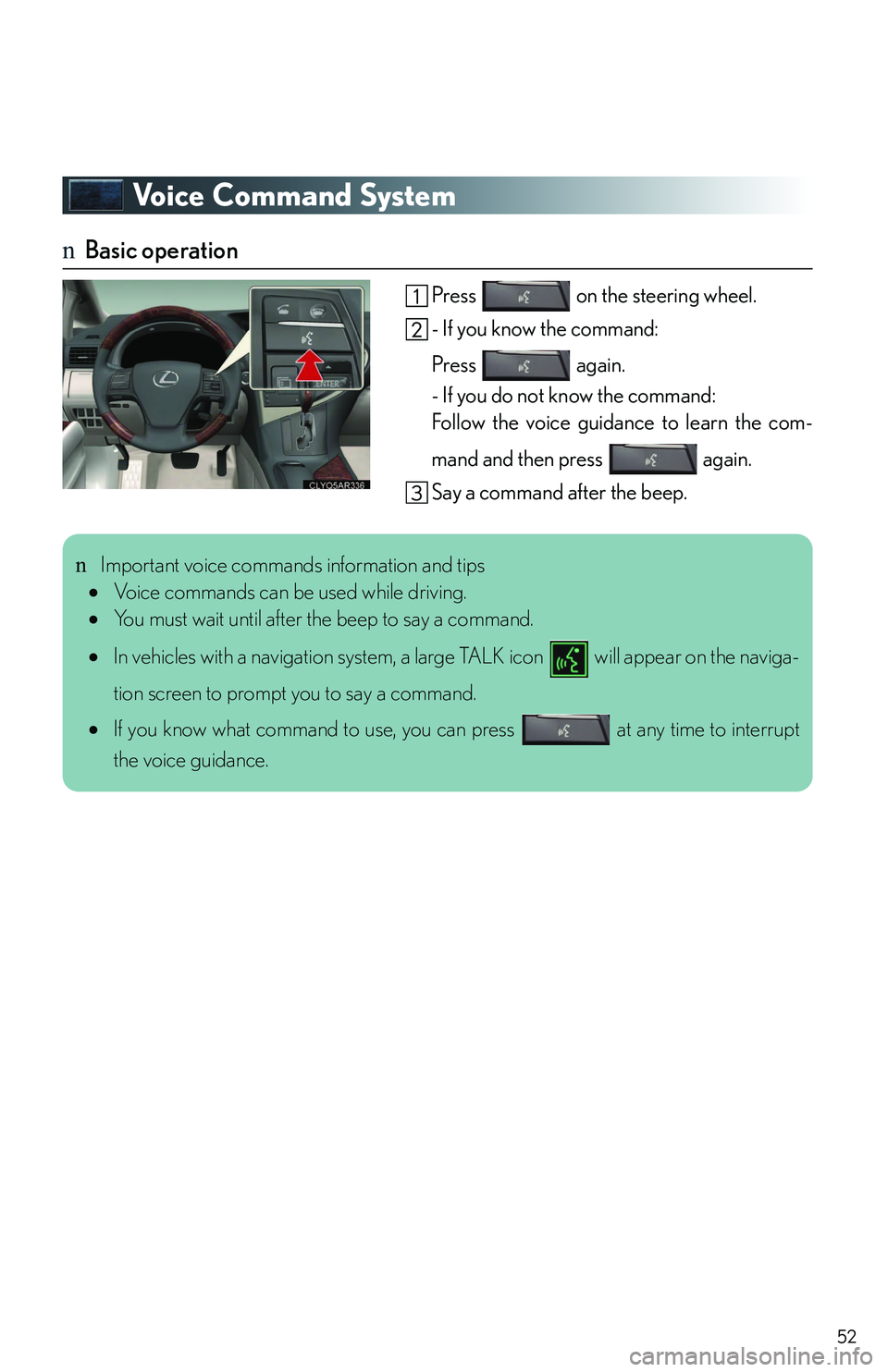

Voice Command System
nBasic operation
Press on the steering wheel.
- If you know the command:
Press again.
- If you do not know the command:
Follow the voice guidance to learn the com-
mand and then press again.
Say a command after the beep.
nImportant voice commands information and tips
•Voice commands can be used while driving.
•You must wait until after the beep to say a command.
•In vehicles with a navigation system, a large TALK icon will appear on the naviga-
tion screen to prompt you to say a command.
•If you know what command to use, you can press at any time to interrupt
the voice guidance.

What to do if ...
67

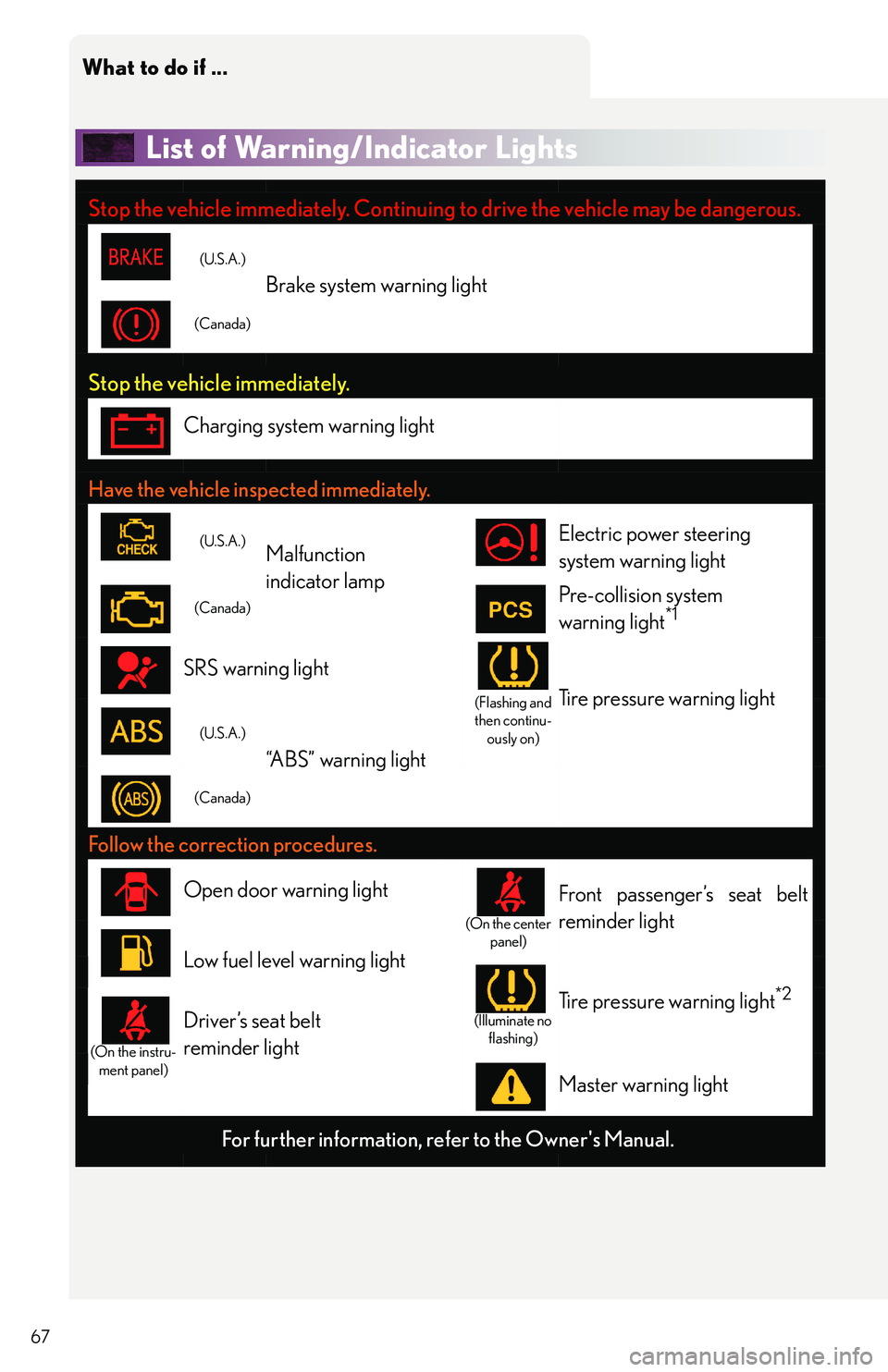

List of Warning/Indicator Lights
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Canada)
Stop the vehicle immediately.
Charging system warning light
Have the vehicle inspected immediately.
(U.S.A.)Malfunction
indicator lamp
Electric power steering
system warning light
(Canada)Pre-collision system
warning light*1
SRS warning light
(Flashing and then continu-ously on)
Tire pressure warning light
(U.S.A.)
“ABS” warning light
(Canada)
Follow the correction procedures.
Open door warning light
(On the center panel)
Front passenger’s seat belt
reminder light
Low fuel level warning light
(Illuminate no flashing)
Tire pressure warning light*2
(On the instru-ment panel)
Driver’s seat belt
reminder light
Master warning light
For further information, refer to the Owner's Manual.

70

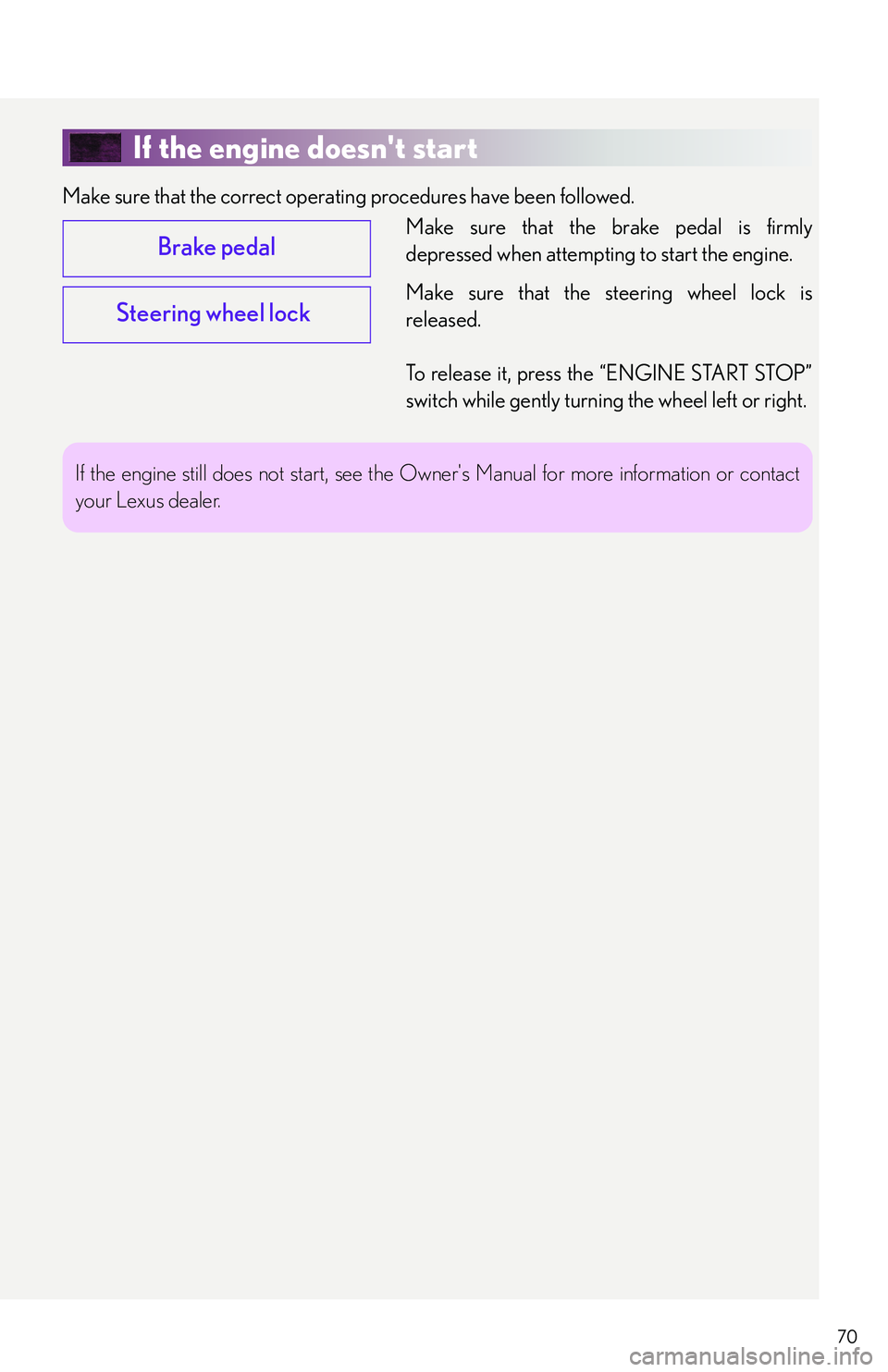

If the engine doesn't start
Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal is firmly
depressed when attempting to start the engine.
Make sure that the steering wheel lock is
released.
To release it, press the “ENGINE START STOP”
switch while gently turning the wheel left or right.
Brake pedal
Steering wheel lock
If the engine still does not start, see the Owner's Manual for more information or contact
your Lexus dealer.

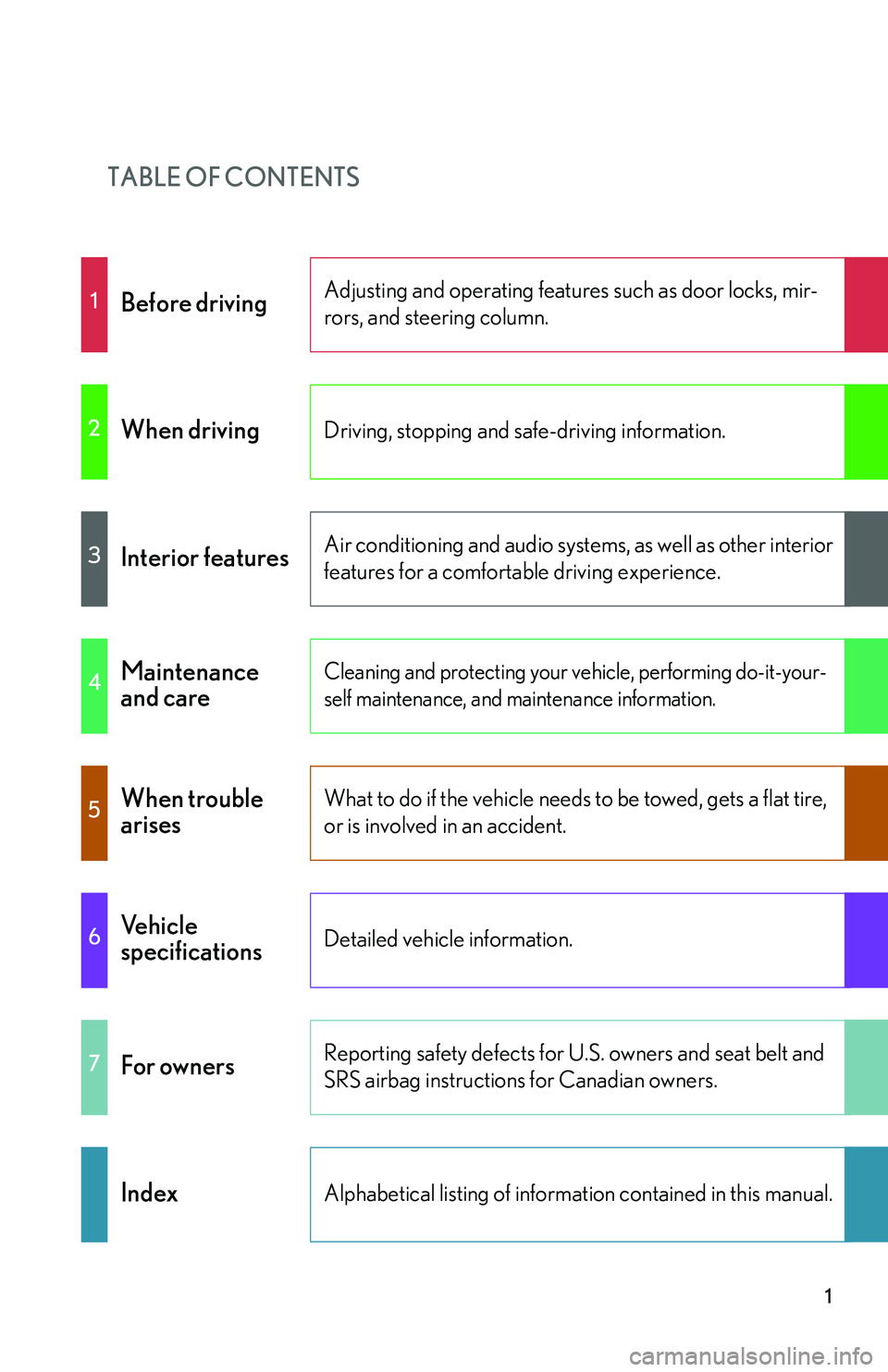

TABLE OF CONTENTS
1
1Before drivingAdjusting and operating features such as door locks, mir-
rors, and steering column.
2When drivingDriving, stopping and safe-driving information.
3Interior featuresAir conditioning and audio systems, as well as other interior
features for a comfortable driving experience.
4Maintenance
and care
Cleaning and protecting your vehicle, performing do-it-your-
self maintenance, and maintenance information.
5When trouble
arises
What to do if the vehicle needs to be towed, gets a flat tire,
or is involved in an accident.
6Vehicle
specificationsDetailed vehicle information.
7For ownersReporting safety defects for U.S. owners and seat belt and
SRS airbag instructions for Canadian owners.
IndexAlphabetical listing of information contained in this manual.

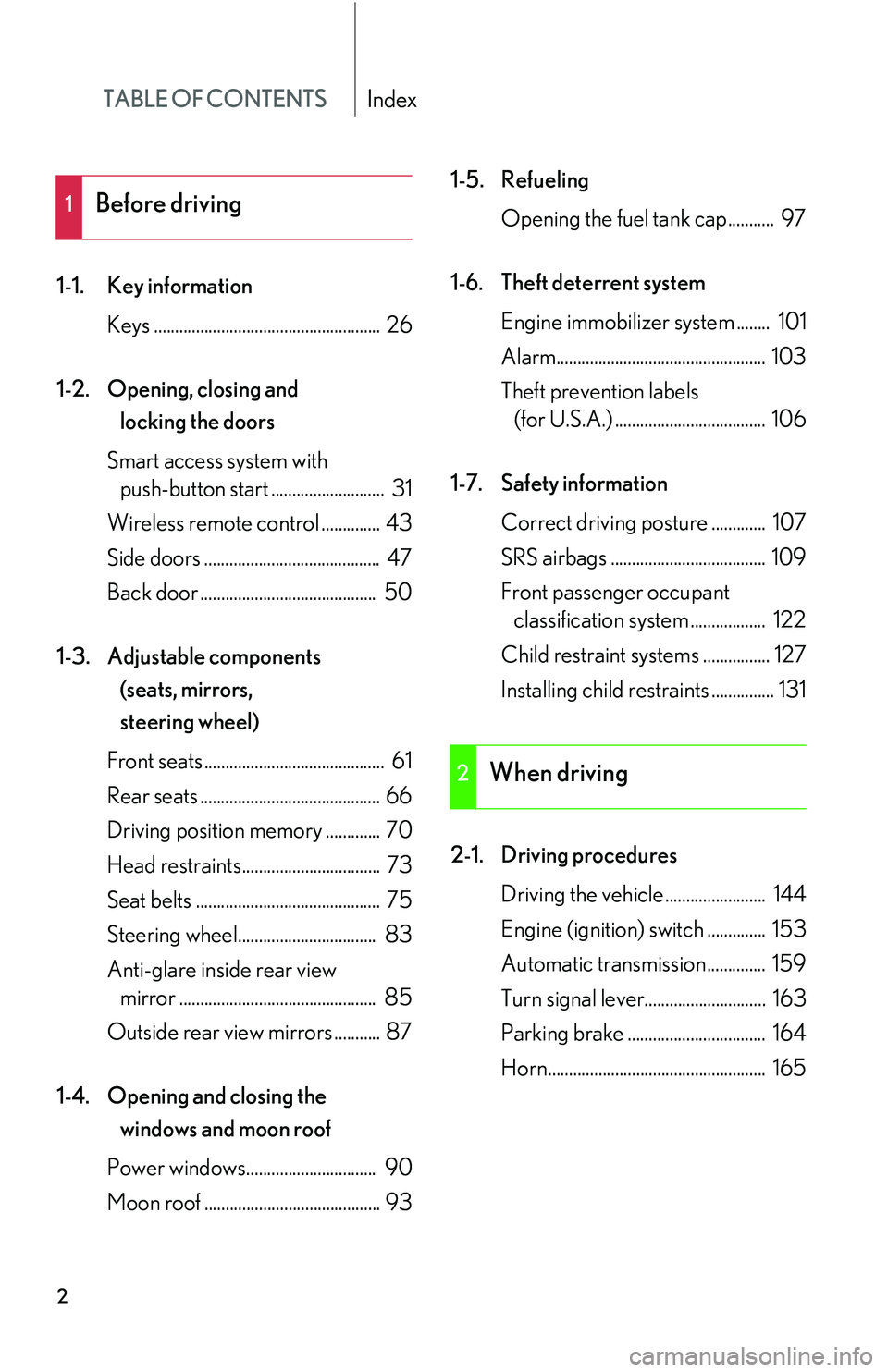

TABLE OF CONTENTSIndex
2
1-1.Key information
Keys ...................................................... 26
1-2. Opening, closing and
locking the doors
Smart access system with
push-button start ........................... 31
Wireless remote control .............. 43
Side doors .......................................... 47
Back door .......................................... 50
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ........................................... 61
Rear seats ........................................... 66
Driving position memory ............. 70
Head restraints................................. 73
Seat belts ............................................ 75
Steering wheel................................. 83
Anti-glare inside rear view
mirror ............................................... 85
Outside rear view mirrors ........... 87
1-4. Opening and closing the
windows and moon roof
Power windows............................... 90
Moon roof .......................................... 93
1-5. Refueling
Opening the fuel tank cap........... 97
1-6. Theft deterrent system
Engine immobilizer system ........ 101
Alarm.................................................. 103
Theft prevention labels
(for U.S.A.) .................................... 106
1-7. Safety information
Correct driving posture ............. 107
SRS airbags ..................................... 109
Front passenger occupant
classification system .................. 122
Child restraint systems ................ 127
Installing child restraints ............... 131
2-1. Driving procedures
Driving the vehicle ........................ 144
Engine (ignition) switch .............. 153
Automatic transmission.............. 159
Turn signal lever............................. 163
Parking brake ................................. 164
Horn.................................................... 165
1Before driving
2When driving
