3413-1. Lexus Display Audio system
3
Interior features Fuel consumption
■ Trip information
If the “Trip Information” screen does not appear, select “Trip
Information”.
Average vehicle speed
Elapsed time
Cruising range
Previous fuel consumption per
minute
Current fuel consumption
Reset the trip information data
“History” screen appears
These images are examples only, and may vary slightly from actual condi-
tions.
■ History
If the “History” screen does not appear, select “History”.
Previous fuel economy record
Current fuel economy
Best recorded fuel economy
Update the past record data
Reset the past record data
“Trip Information” screen
appears
These images are examples only, and may vary slightly from actual condi-
tions.

3423-1. Lexus Display Audio system
■
Updating the past record data
Selecting “Update” on the “History” screen will update the past record data.
Also, the average fuel consumption displayed in the multi-information display will
be reset at the same time.

3433-1. Lexus Display Audio system
3

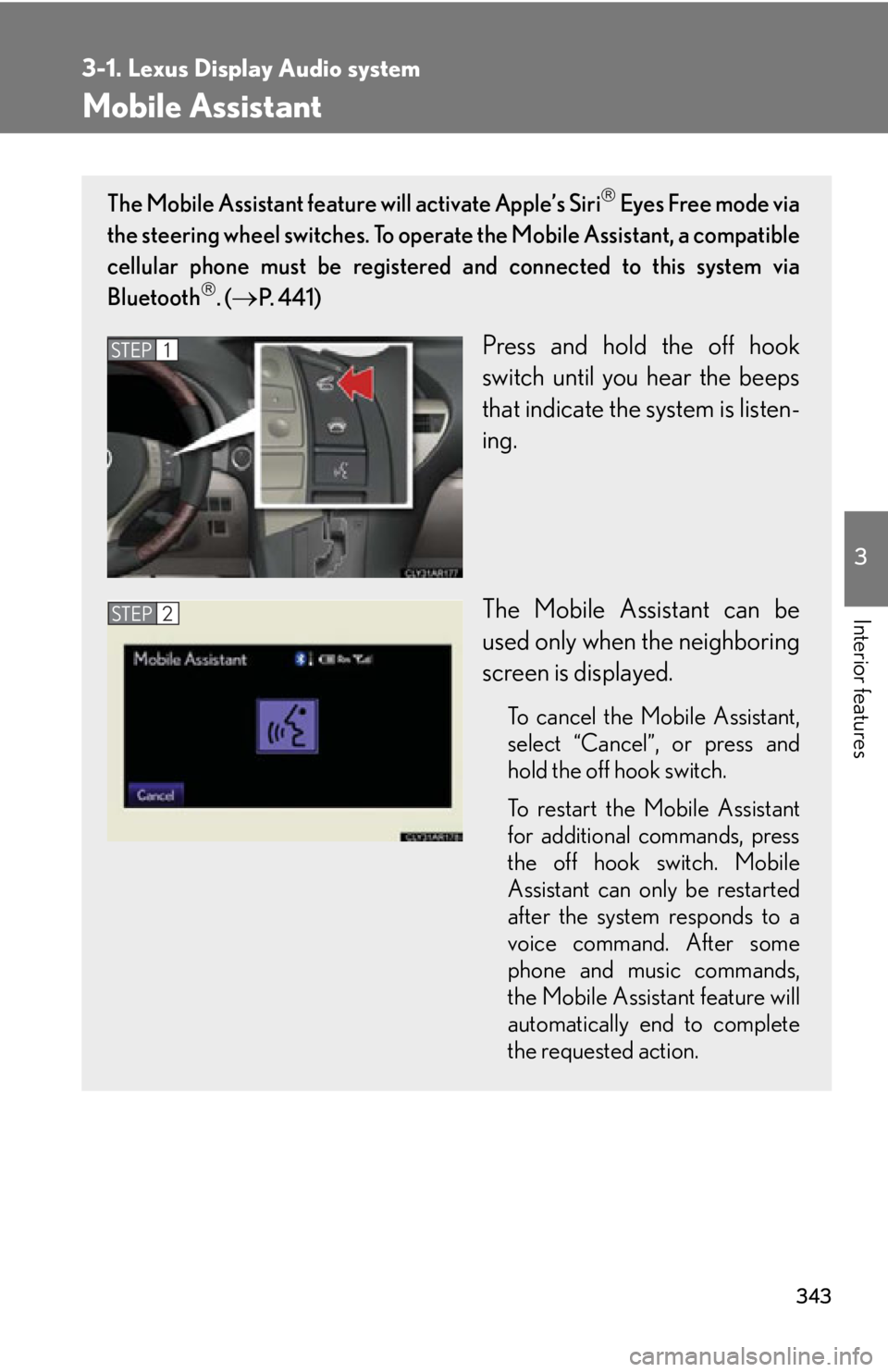

Interior features Mobile Assistant The Mobile Assistant feature will activate Apple’s Siri 
Eyes Free mode via
the steering wheel switches. To operat e the Mobile Assistant, a compatible
cellular phone must be registered and connected to this system via
Bluetooth 
. (
 P. 4 4 1 )
Press and hold the off hook
switch until you hear the beeps
that indicate the system is listen-
ing.
The Mobile Assistant can be
used only when the neighboring
screen is displayed. To cancel the Mobile Assistant,
select “
Cancel ”
, or press and
hold the off hook switch.
To restart the Mobile Assistant
for additional commands, press
the off hook switch. Mobile
Assistant can only be restarted
after the system responds to a
voice command. After some
phone and music commands,
the Mobile Assistant feature will
automatically end to complete
the requested action.STEP 1
STEP 2

3443-1. Lexus Display Audio system
■
Adjusting the volume
The volume of the Mobile Assist ant can be adjusted using the
“ PWR·VOL
” knob or
steering wheel volume switches. The Mobile Assistant and phone call volumes are
synchronized.■
Microphone
●
Wait for the listening beeps befo re using the Mobile Assistant.●
The Mobile Assistant may not recognize commands in the following situations:
• When spoken too quickly.
• When spoken at a low or high volume.
• When the roof or windows are open.
• When passengers are talking while the Mobile Assistant is being used.
• When the air conditioning system’s fan speed is set high.
• When the air conditioning vents are turned toward the microphone.■
Mobile Assistant precautions ●
The available features and functions may vary based on the iOS version
installed on the connected device.●
Some Siri features are limited in Eyes Free mode. If you attempt to use an
unavailable function, Siri will inform you that the function is not available.●
If Siri is not enabled on the cell ular phone connected via Bluetooth 
, an error
message will be displayed on the screen.
●
While a phone call is active, the Mo bile Assistant cannot be used.
●
If using the navigation feature of the cellular phone, ensure the active audio
source is Bluetooth 
audio or iPod in order to hear turn by turn direction
prompts. It is not necessary to speak directly into the
microphone when using the Mobile Assis-
tant.

3453

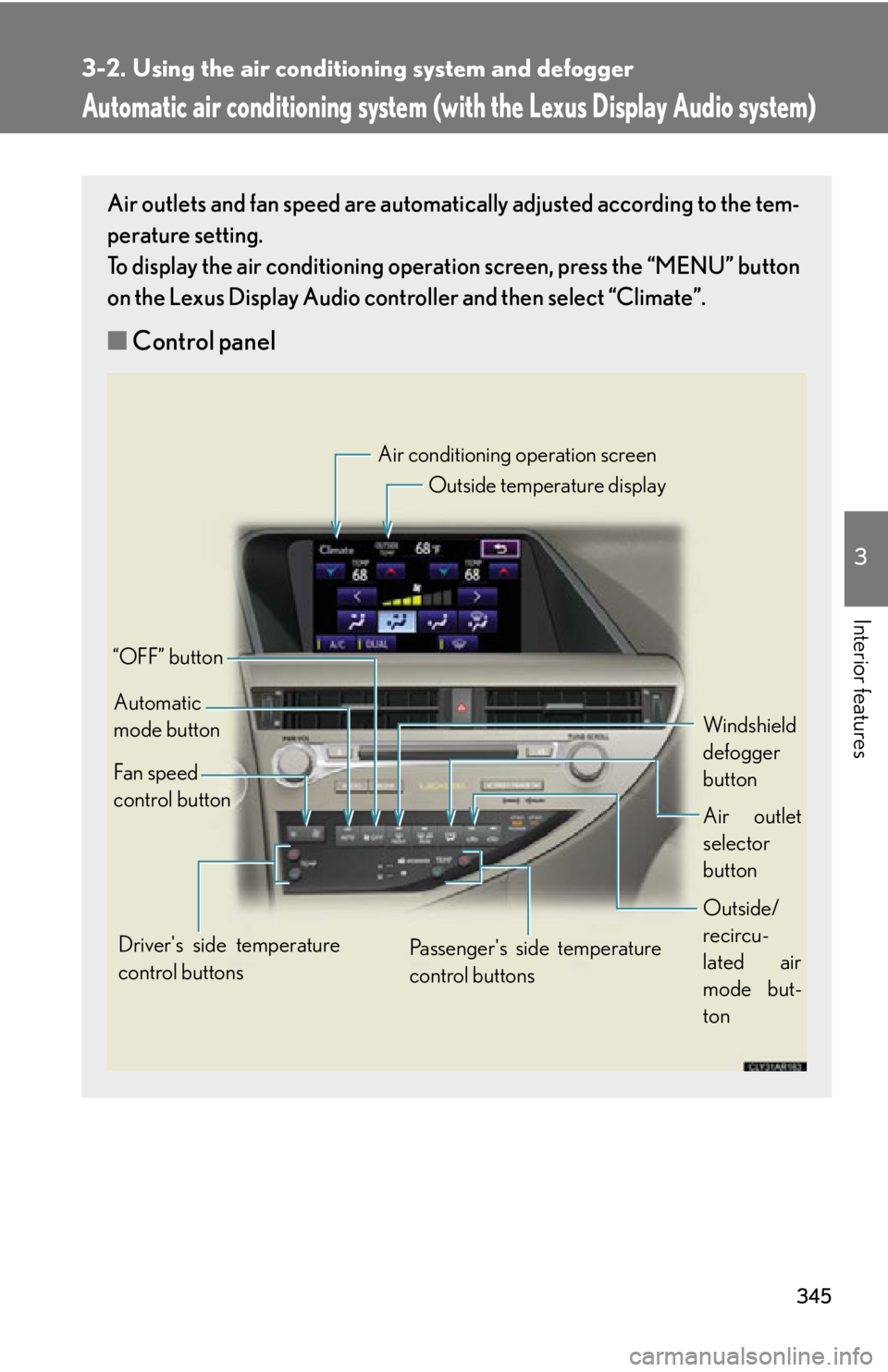

Interior features 3-2. Using the air conditio ning system and defogger
Automatic air conditioning system (with the Lexus Display Audio system) Air outlets and fan speed are automati cally adjusted according to the tem-
perature setting.
To display the air conditioning oper ation screen, press the “MENU” button
on the Lexus Display Audio controller and then select “Climate”.
■ Control panel Air conditioning operation screen
Outside temperature display
Windshield
defogger
button
Air outlet
selector
button
Outside/
recircu-
lated air
mode but-
tonPassenger's side temperature
control buttons“OFF” button
Automatic
mode button
Fan speed
control button
Driver's side temperature
control buttons

3463-2. Using the air conditio ning system and defogger
Using the automatic air conditioning system
Press .
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature
setting.
Press or select of the “TEMP” to increase the tempera-
ture and or to decrease the temperature.
When is selected (the indicator on is on) or the pas-
senger’s side temperature control bu tton is pressed, the temperature
for the driver and passenger seat s can be adjusted separately.
■ Automatic mode indicator
If fan speed setting or air flow modes are operated, the automatic
mode indicator goes off. However, automatic mode for functions other
than that operated are maintained.■ Automatic air conditioning system control screen
Adjusting driver’s side tem-
perature setting
Adjusting passenger’s side
temperature setting
Adjusting the fan speed
Selecting air outlet mode
Cooling and dehumidifica-
tion function on/off
Dual mode on/off
Windshield wiper de-icer on/
offSTEP 1
STEP 2

3473-2. Using the air conditio ning system and defogger
3
Interior features Adjusting the settings manually
■ Basic setting
To turn on the air conditioning system and adjust the fan speed,
press on to increase the fan speed and to
decrease the fan speed or select “  ” of to increase the
fan speed and “  ” to decrease the fan speed.Press to turn the fan off.
To adjust the temperature setting, press or select of the
“TEMP” to increase the temperature and or to
decrease the temperature. When is selected (the indicator on is on) or the pas-
senger’s side temperature control bu tton is pressed, the temperature
for the driver and passenger seat s can be adjusted separately.
To change the air outlets, press
or select an air outlet
switch on the operation screen. The air outlets used are switched
each time is pressed. The
air flow shown on the display indi-
cates the following:STEP 1
STEP 2
STEP 3

3483-2. Using the air conditio ning system and defogger
Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
Air flows to the feet and the wind-
shield defogger operates.

3493-2. Using the air conditio ning system and defogger
3
Interior features ■ Switching between outside air and recirculated air modes
Press . The mode switches between (recirculated air mode) and
(outside air mode) modes each time the button is pressed.
Defogging the windshield
Defogging The air conditioning system oper-
ates automatically.
Recirculated air mode will auto-
matically switch to outside air
mode. It is not possible to return to
recirculated air mode when the
switch is on.

3503-2. Using the air conditio ning system and defogger
Adjusting the position of and opening and closing the air outlets
Front center outlets
Direct air flow to the left or right,
up or down.
Turn the knob to open or close
the vent.
Front side outlets
Direct air flow to the left or right,
up or down.
Turn the knob to open or close
the vent.
Rear outlets
Direct air flow to the left or right,
up or down.
Turn the knob to open or close
the vent.
