6313-7. Other interior features
3
Interior features CAUTION■
When the cargo hooks are not in use
To avoid injury, always return the ca rgo hooks to their stowed positions.

6323-7. Other interior features
Garage door opener The garage door opener (HomeLink 
Universal Transceiver) is manufactured
under license from HomeLink 
.
Programming the HomeLink 
(for U.S.A. owners)
The HomeLink 
compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
Buttons
■ Programming the HomeLink 
Point the remote control transmit-
ter for the device 1 to 3 in. (25 to
75 mm) from the HomeLink 
control buttons.
Keep the HomeLink 
indicator
light in view while programming.The garage door opener can be pr ogrammed to operate garage doors,
gates, entry doors, door locks, home lighting systems, security systems, and
other devices.
STEP 1

6333-7. Other interior features
3
Interior features Press and hold one of the
HomeLink 
buttons and the trans-
mitter button. When the
HomeLink 
indicator light
changes from a slow to a rapid
flash, you can release both buttons. If the HomeLink 
indicator light
comes on but does not flash, or
flashes rapidly for 2 seconds and
remains lit, the HomeLink 
button
is already programmed. Use the
other buttons or follow the “Repro-
gramming a HomeLink 
button”
instructions. (  P. 6 3 5 )
Test the HomeLink 
operation by
pressing the newly programmed
button. If a HomeLink 
button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
remote control transmitter is of the
rolling code type. Press and hold
the programmed HomeLink 
but-
ton. The remote control transmitter
is of the rolling code type if the
HomeLink 
indicator light flashes
rapidly for 2 seconds and then
remains lit. If your transmitter is of
the rolling code type, proceed to
the heading “Programming a roll-
ing code system”.
Repeat the steps above to program another device for each of
the remaining HomeLink 
buttons.STEP 2
STEP 3
STEP 4

6343-7. Other interior features
■ Programming a Rolling Code system (for U.S.A. owners)
If your device is Rolling Code eq uipped, follow the steps under the
heading “Programming the HomeLink 
” before proceeding with the
steps listed below.
Locate the learn button on th e ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener motor. Refer to the operation manual supplied with the garage door opener
for the location of the learn button.
Press the learn button. Following this step, you have 30 se conds in which to initiate step 3
below.
Press and hold the vehi cle’s programmed HomeLink 
button for
2 seconds and release it. Repeat this step once again. The garage
door may open. If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink 
signal and operate the garage door.
Repeat the steps above to prog ram another rolling code system
for any of the remaining HomeLink 
buttons.
■ Programming an entry gate (for U .S.A. owners)/Programming all
devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the sur-
face of the HomeLink 
.
Keep the HomeLink 
indicator light in view while programming.
Press and hold the selected HomeLink 
button.
Repeatedly press and release (cyc le) the device’s remote control
button for two seconds each until step 4 is completed.
When the indicator light on the HomeLink 
compatible trans-
ceiver starts to flash rapidly, release the buttons.STEP 1
STEP 2
STEP 3
STEP 4
STEP 1
STEP 2
STEP 3
STEP 4

6353-7. Other interior features
3
Interior features Test the operation of the HomeLink 
by pressing the newly pro-
grammed button. Check to see if the gate/device operates cor-
rectly.
Repeat the steps above to program another device for each of
the remaining HomeLink 
buttons.
■ Programming other devices
To program other devices such as home security systems, home door
locks or lighting, contact your auth orized Lexus dealer for assistance.
■ Reprogramming a button
The individual HomeLink 
buttons cannot be erased but can be
reprogrammed. To reprogram a button, follow the “Reprogramming a
HomeLink 
button” instructions.
Operating HomeLink 
Press the appropriate HomeLink 
button. The HomeLink 
indicator
light should turn on. The HomeLink 
compatible transceiver in your vehicle continues to send a
signal for up to 20 seconds as long as the button is pressed.
Reprogramming a HomeLink 
button
Press and hold the desired HomeLink 
button. After 20 seconds, the
HomeLink 
indicator light will st art flashing slowly. Next, while still press-
ing and holding the HomeLink 
button, press and hold the button on the
transmitter until the HomeLink 
indicator light chan ges from a slow to a
rapid flash. STEP 5
STEP 6

6363-7. Other interior features
Erasing the entire HomeLink 
memory (all three programs)
Press and hold the 2 outside but-
tons for 10 seconds until the indi-
cator light flashes. If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink 
memory.
■
Before programming ●
Install a new battery in the remote control transmitter.●
The battery side of the remote control transmitter must be pointed away from
the HomeLink 
button.■
When programming
Depending on radio wave conditions, the di rection the remote control transmitter is
pointed and the remaining charge of the transmitter's batteries, there are cases
when programming may be difficult.

6373-7. Other interior features
3
Interior features ■
Certification for the garage door opener
For vehicles sold in the U.S.A.
FCC ID: NZLGHSHL4
FCC ID: NZLOBIHL4
FCC ID: NZLWZLHL4
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must a ccept any interference, including interfer-
ence that may cause undesired operation of the device.■
When support is necessary
Visit on the web at www.homelink.com or call 1-800-355-3515.
CAUTION■
When programming a garage door or other remote control device
The garage door or other device may operate, so ensure people and objects are
out of danger to prevent potential harm.■
Conforming to federal safety standards
Do not use the HomeLink 
compatible transceiver wi th any garage door opener
or device that lacks safety stop and reverse features as required by federal safety
standards.
This includes any garage door that canno t detect an obstruction object. A door or
device without these featur es increases the risk of death or serious injury.

6383-7. Other interior features

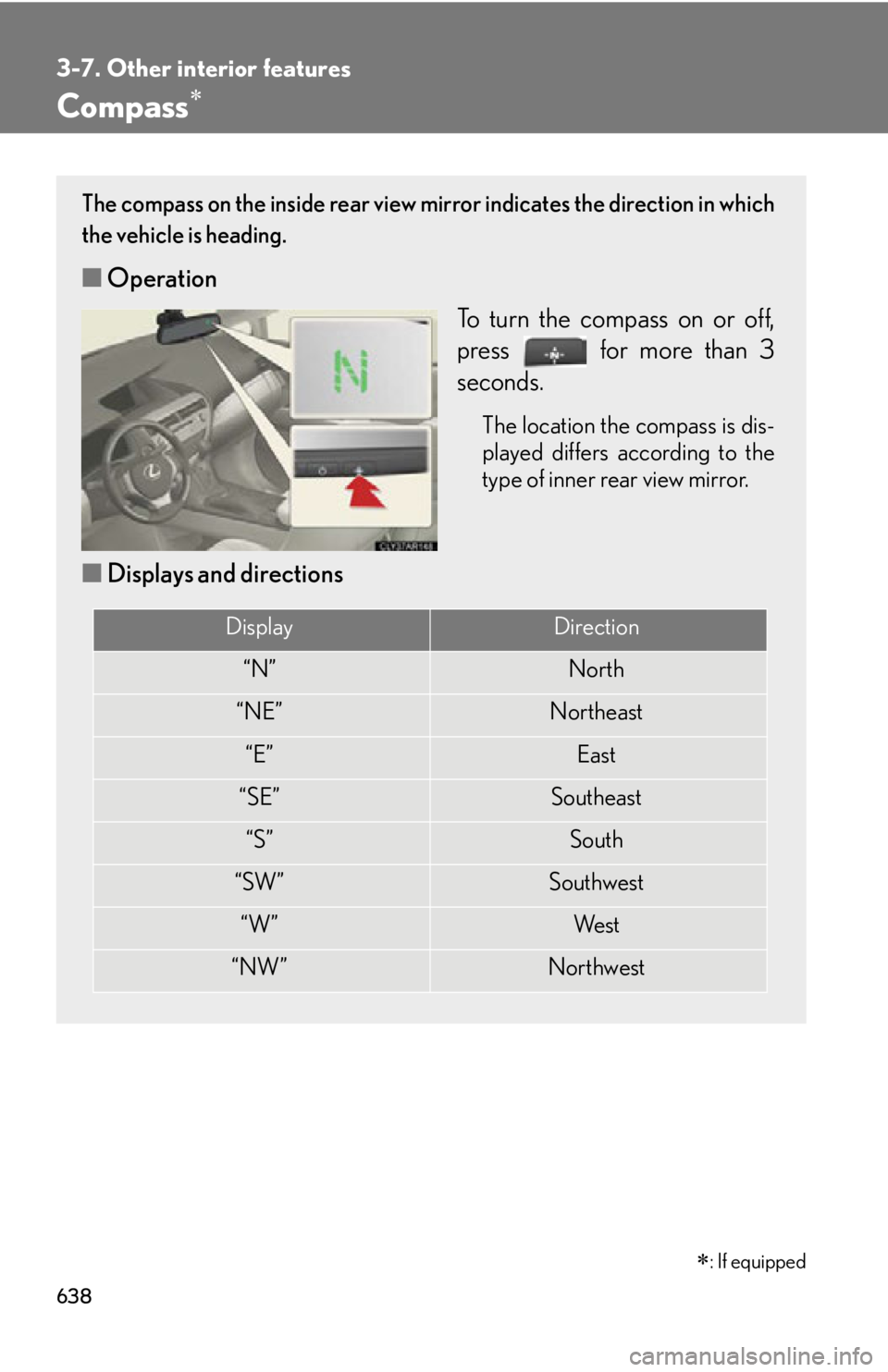

Compass 
 : If equippedThe compass on the inside rear view mi rror indicates the direction in which
the vehicle is heading.
■ Operation
To turn the compass on or off,
press for more than 3
seconds. The location the compass is dis-
played differs according to the
type of inner rear view mirror.
■ Displays and directions Display Direction
“N” North
“NE” Northeast
“E” East
“SE” Southeast
“S” South
“SW” Southwest
“W” We s t
“NW” Northwest

6393-7. Other interior features
3
Interior features Calibrating the compass
The direction display deviates from the true direction determined by the
earth’s magnetic field. The amount of deviation varies depending on the
geographic position of the vehicle. If you cross over one of the map boundaries shown in illustration, the com-
pass will deviate.
To obtain higher precision or perfect calibration, refer to “Deviation calibra-
tion”.
■ Deviation calibration
Stop the vehicle.
Press and hold .
A number (1 to 15) appears on the
compass display.
The location the compass is dis-
played differs according to the type
of inner rear view mirror.STEP 1
STEP 2

6403-7. Other interior features
Referring to the map above, pr ess to select the number of
the zone you are in. If the direction is displayed for several seconds after adjustment, the
calibration is complete.
■ Circling calibration
If “C” appears on the display, drive
the vehicle at 5 mph (8 km/h) or
less in a circle until a direction is
displayed. If there is not enough space to
drive in a circle, drive around the
block until a direction is displayed.STEP 3
■
Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions: ●
The vehicle is stopped immediately after turning.●
The vehicle is on an inclined surface.●
The vehicle is in a place where the earth's magnetic field is subject to interfer-
ence by artificial magnetic fields (underground car park/parking lot, under a
steel tower, between buildings, roof car pa rk/parking lot, near an intersection,
near a large vehicle, etc.).●
The vehicle has become magnetized. (There is a magnet or metal object near
the inside rear view mirror.)●
The battery has been disconnected.●
A door is open.
