6614-2. Maintenance
4

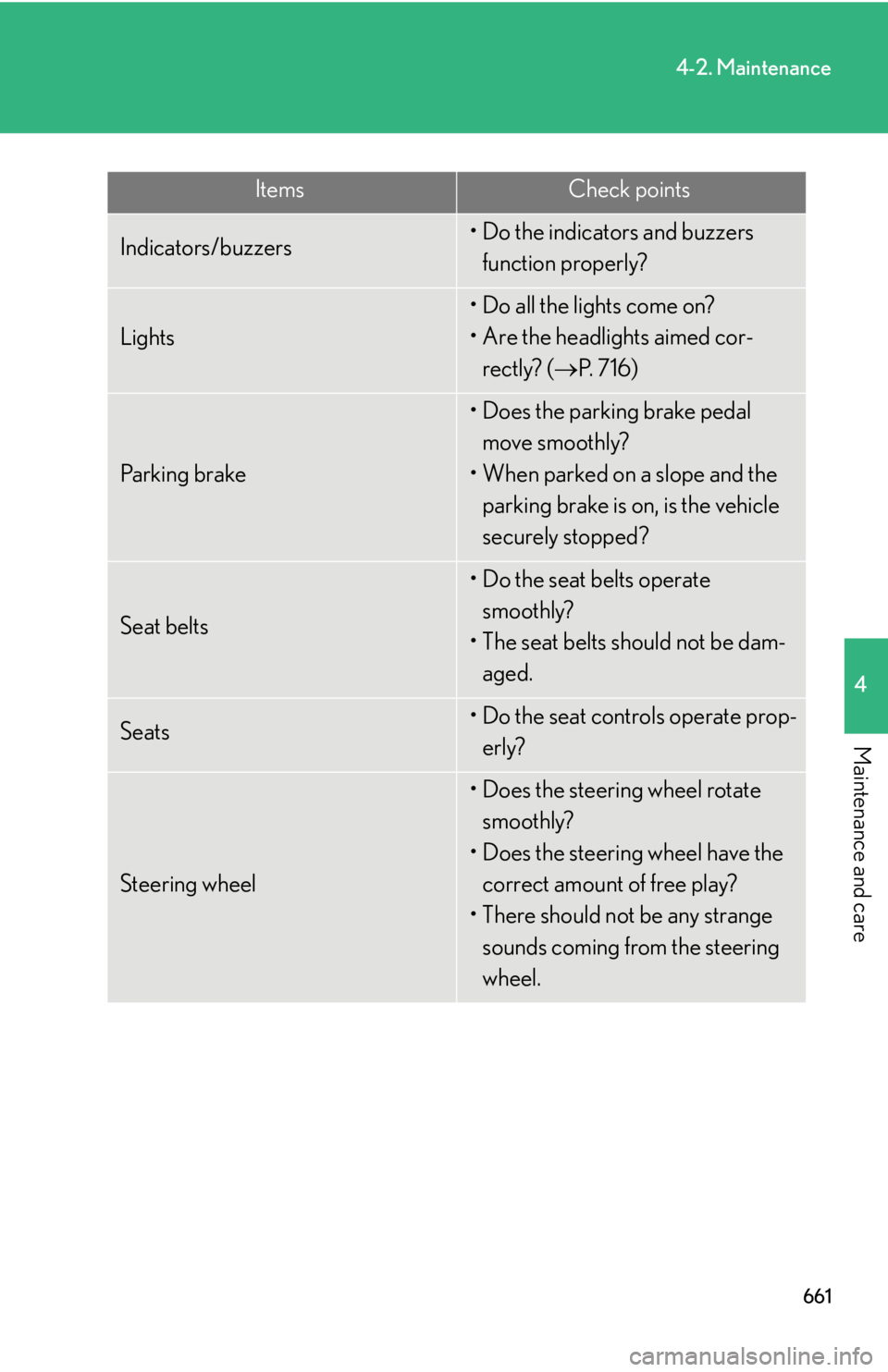

Maintenance and care Items Check points
Indicators/buzzers • Do the indicators and buzzers
function properly?
Lights • Do all the lights come on?
• Are the headlights aimed cor-
rectly? (  P. 7 1 6 )
Pa r k i n g b r a ke • Does the parking brake pedal
move smoothly?
• When parked on a slope and the
parking brake is on, is the vehicle
securely stopped?
Seat belts • Do the seat belts operate
smoothly?
• The seat belts should not be dam-
aged.
Seats • Do the seat controls operate prop-
erly?
Steering wheel • Does the steering wheel rotate
smoothly?
• Does the steering wheel have the
correct amount of free play?
• There should not be any strange
sounds coming from the steering
wheel.

6624-2. Maintenance
Vehicle exterior Items Check points
Doors • Do the doors operate smoothly?
Engine hood • Does the engine hood lock system
work properly?
Fluid leaks • There should not be any signs of
fluid leakage after the vehicle has
been parked.
Ti r e s • Is the tire inflation pressure cor-
rect?
• The tires should not be damaged or
excessively worn.
• Have the tires been rotated
according to the maintenance
schedule?
• The wheel nuts should not be loose.
Windshield wipers/rear window
wiper • The wiper blades should not show
any signs of cracking, splitting,
wear, contamination or deforma-
tion.
• The wiper blades should clear the
windshield/rear window without
streaking or skipping.
CAUTION
■
If the engine is running
Turn the engine off and ensure that there is adequate ventilation before performing
maintenance checks.

6634-2. Maintenance
4

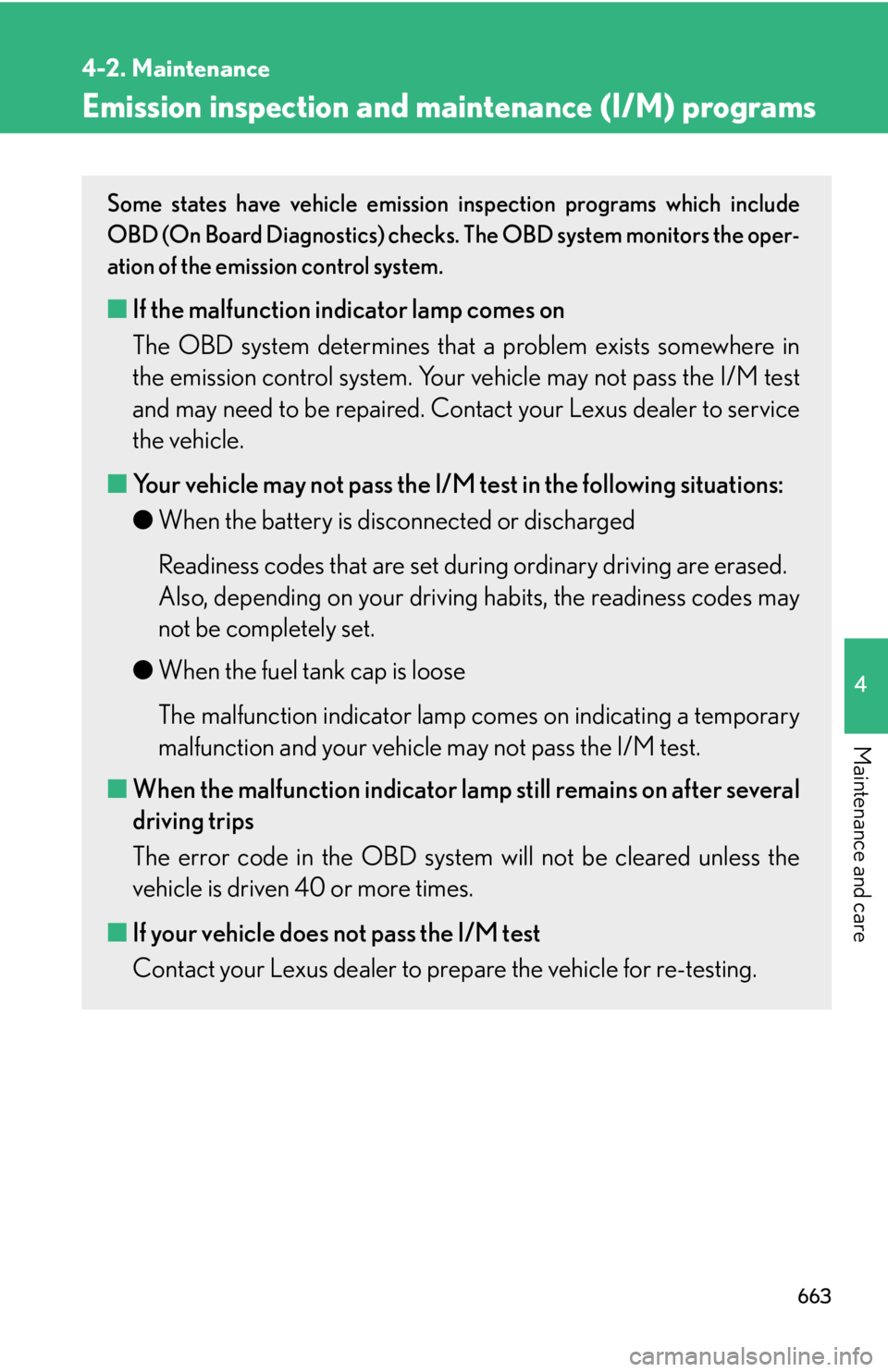

Maintenance and care Emission inspection and maintenance (I/M) programsSome states have vehicle emission inspection programs which include
OBD (On Board Diagnostics) checks. The OBD system monitors the oper-
ation of the emission control system.
■ If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere in
the emission control system. Your vehicle may not pa ss the I/M test
and may need to be repaired. Cont act your Lexus dealer to service
the vehicle.
■ Your vehicle may not pass the I/M test in the following situations:
● When the battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may
not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a temporary
malfunction and your vehicle may not pass the I/M test.
■ When the malfunction indicator la mp still remains on after several
driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Lexus dealer to prep are the vehicle for re-testing.

6644-3. Do-it-yourself maintenance

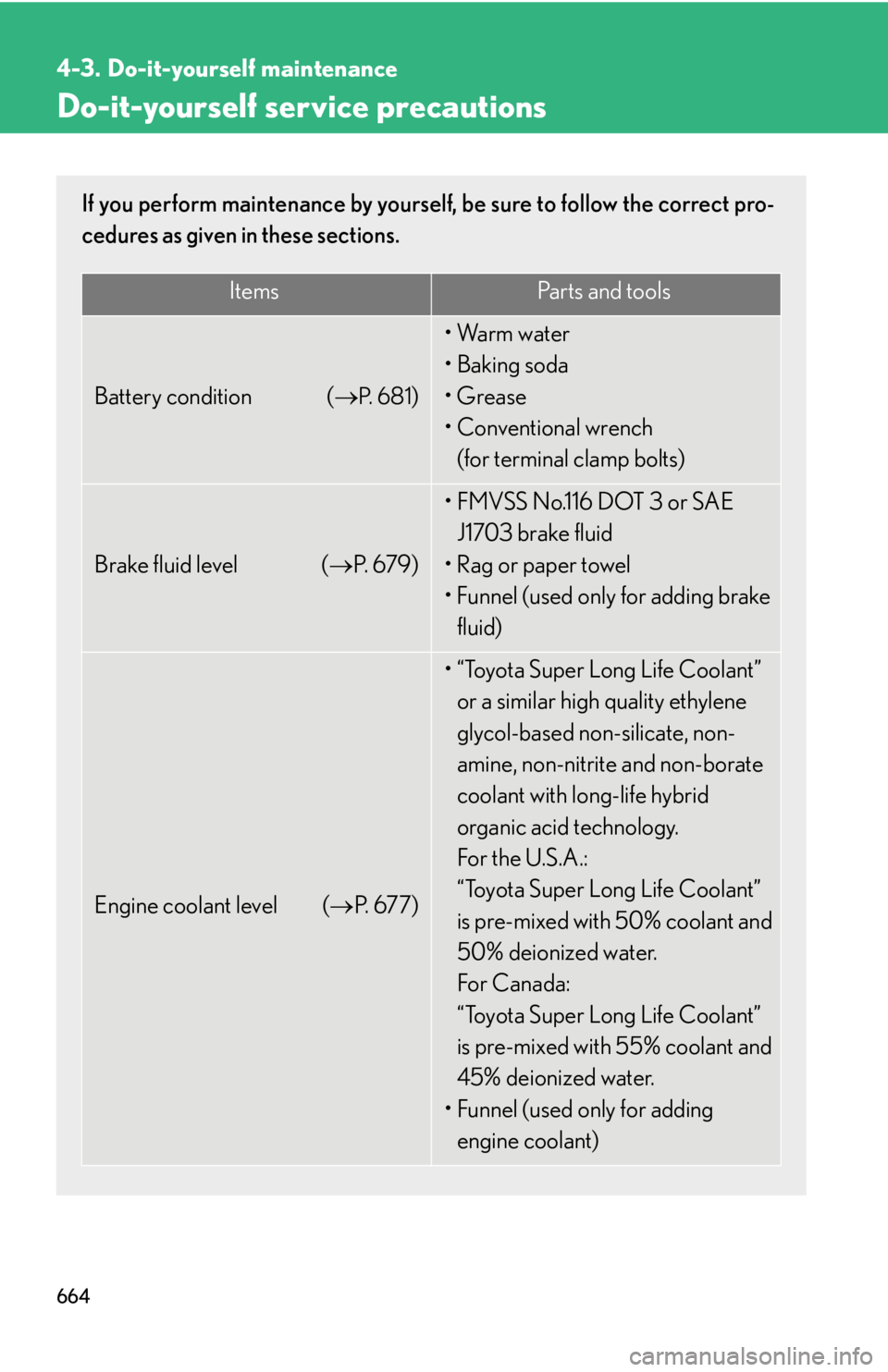

Do-it-yourself service precautions If you perform maintenance by yourself, be sure to follow the correct pro-
cedures as given in these sections.
Items Pa r t s a n d t o o l s
Battery condition (  P. 6 8 1
) •Warm water
• Baking soda
•Grease
• Conventional wrench
(for terminal clamp bolts)
Brake fluid level (  P. 6 7 9 ) • FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
•Rag or paper towel
• Funnel (used only for adding brake
fluid)
Engine coolant level (  P. 6 7 7 ) • “Toyota Super Long Life Coolant”
or a similar high quality ethylene
glycol-based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology.
For the U.S.A.:
“Toyota Super Long Life Coolant”
is pre-mixed with 50% coolant and
50% deionized water.
For Canada:
“Toyota Super Long Life Coolant”
is pre-mixed with 55% coolant and
45% deionized water.
• Funnel (used only for adding
engine coolant)

6654-3. Do-it-yourself maintenance
4

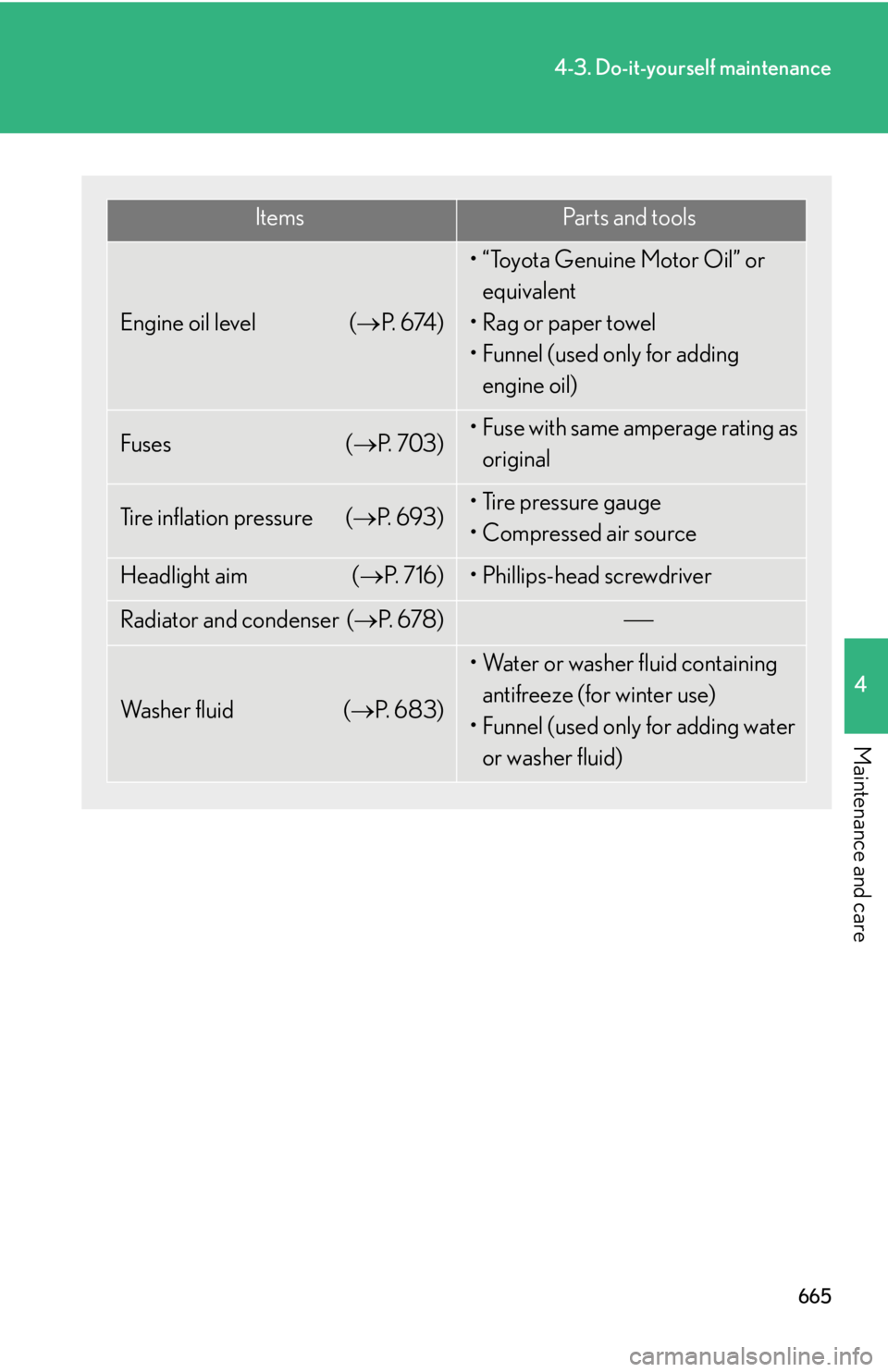

Maintenance and care Items Pa r t s a n d t o o l s
Engine oil level (  P. 6 74 ) • “Toyota Genuine Motor Oil” or
equivalent
•Rag or paper towel
• Funnel (used only for adding
engine oil)
Fuses (  P. 7 0 3 ) • Fuse with same amperage rating as
original
Tire inflation pressure (  P. 6 9 3 ) • Tire pressure gauge
• Compressed air source
Headlight aim (  P. 7 1 6 ) • Phillips-head screwdriver
Radiator and condenser (  P. 6 7 8 )

Wa s h e r f l u i d (  P. 6 8 3 ) • Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding water
or washer fluid)

6664-3. Do-it-yourself maintenance
CAUTIONThe engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury,
observe the following precautions: ■
When working on the engine compartment ●
Keep hands, clothing and tools away from the moving fans and engine drive belt.●
Be careful not to touch the engine, radiator , exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.●
Do not leave anything that may burn easi ly, such as paper and rags, in the engine
compartment.●
Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.●
Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.■
When working near the electric cooling fans or radiator grille
Be sure the “ENGINE START STOP” switch is off.
With the “ENGINE START STOP” switch in IGNITION ON mode, the electric
cooling fans may automatically start to run if the air conditioning is on and/or the
coolant temperature is high. (  P. 6 7 8 )■
Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting
in your eyes.
NOTICE■
If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air.

6674-3. Do-it-yourself maintenance
4
Maintenance and care Hood
CAUTION■
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.Release the lock from the inside of the vehicle to open the hood.
Pull the hood lock release lever. The hood will pop up slightly.
Pull up the hood catch and lift
the hood.STEP 1
STEP 2

6684-3. Do-it-yourself maintenance

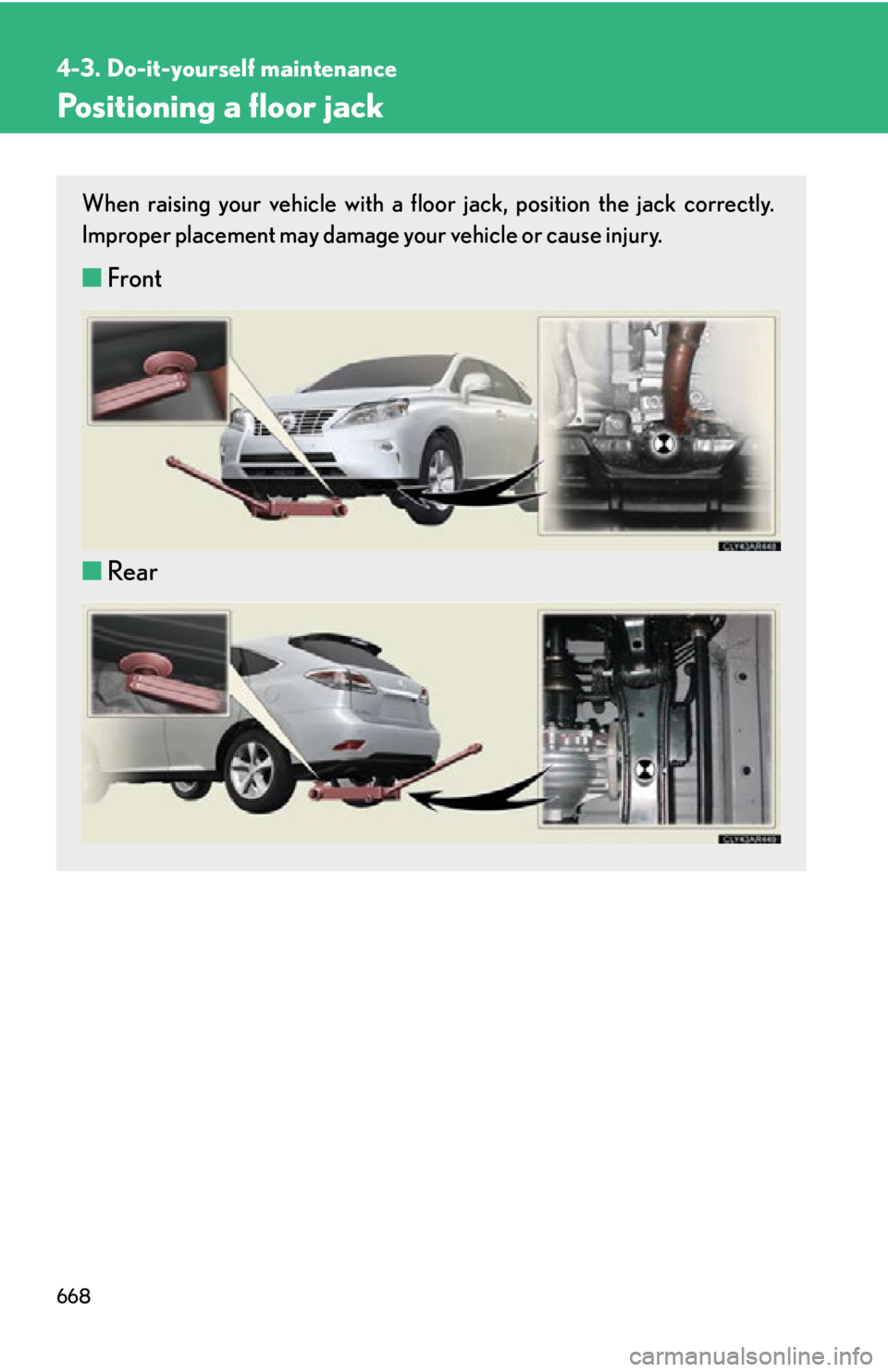

Positioning a floor jack When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
■ Front
■ Rear

6694-3. Do-it-yourself maintenance
4
Maintenance and care CAUTION■
When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of death or
serious injury:
●
When using a floor jack, follow the instructions of the manual provided with the
jack.●
Do not use the jack that wa s supplied with your vehicle.●
Do not put any part of your body underneath the vehicle when it is supported
only by the floor jack.●
Always use floor jack and/or automotive jack stands on a solid, flat, level surface.●
Do not start the engine while the vehicle is supported by the floor jack.●
Stop the vehicle on level, firm ground, firmly set the parking brake and shift the
shift lever to P.●
Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage the vehi-
cle and may cause the vehicle to fall off the floor jack.●
Do not raise the vehicle while someone is in the vehicle.●
When raising the vehicle, do not place any objects on top of or underneath the
floor jack. ●
Lift up the vehicle using a floor jack such as
the one shown in the illustration.

6704-3. Do-it-yourself maintenance
Engine compartment
Engine oil filler cap
(  P. 675)
Engine oil level dipstick
(  P. 6 74 )
Battery (  P. 6 8 1 )
Brake fluid reservoir
(  P. 6 7 9 )
Fuse box (  P. 703) Engine coolant reservoir
(  P. 677)
Condenser (  P. 6 7 8 )
Radiator (  P. 6 7 8 )
Electric cooling fans
Washer fluid tank (  P. 683)
