5
When trouble arises
7415-1. Essential information
CAUTION■
While towing ●
When towing using a rope, avoid sudden starts, etc. which place excessive stress
on the towing hook and rope.
The towing hook or rope may become damaged, broken debris may hit people
and cause serious damage.●
Do not turn the “ENGINE START STOP” switch off.
There is a possibility that the steering wheel is locked and can not be operated.■
Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing.
NOTICE■
To prevent damage to the vehicle when towing using a wheel-lift type truck
When raising the vehicle, ensure adequa te ground clearance for towing at the
opposite end of the raised vehicle. Without adequate clearance, the vehicle could
be damaged while being towed.■
To prevent body damage when to wing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.■
Recreational towing (behind motor home, etc.)
Never dinghy tow your vehicle to prevent
causing serious damage to the Active Torque
Control 4WD system (AWD models) and
transmission. (  P. 323)

7425-1. Essential information

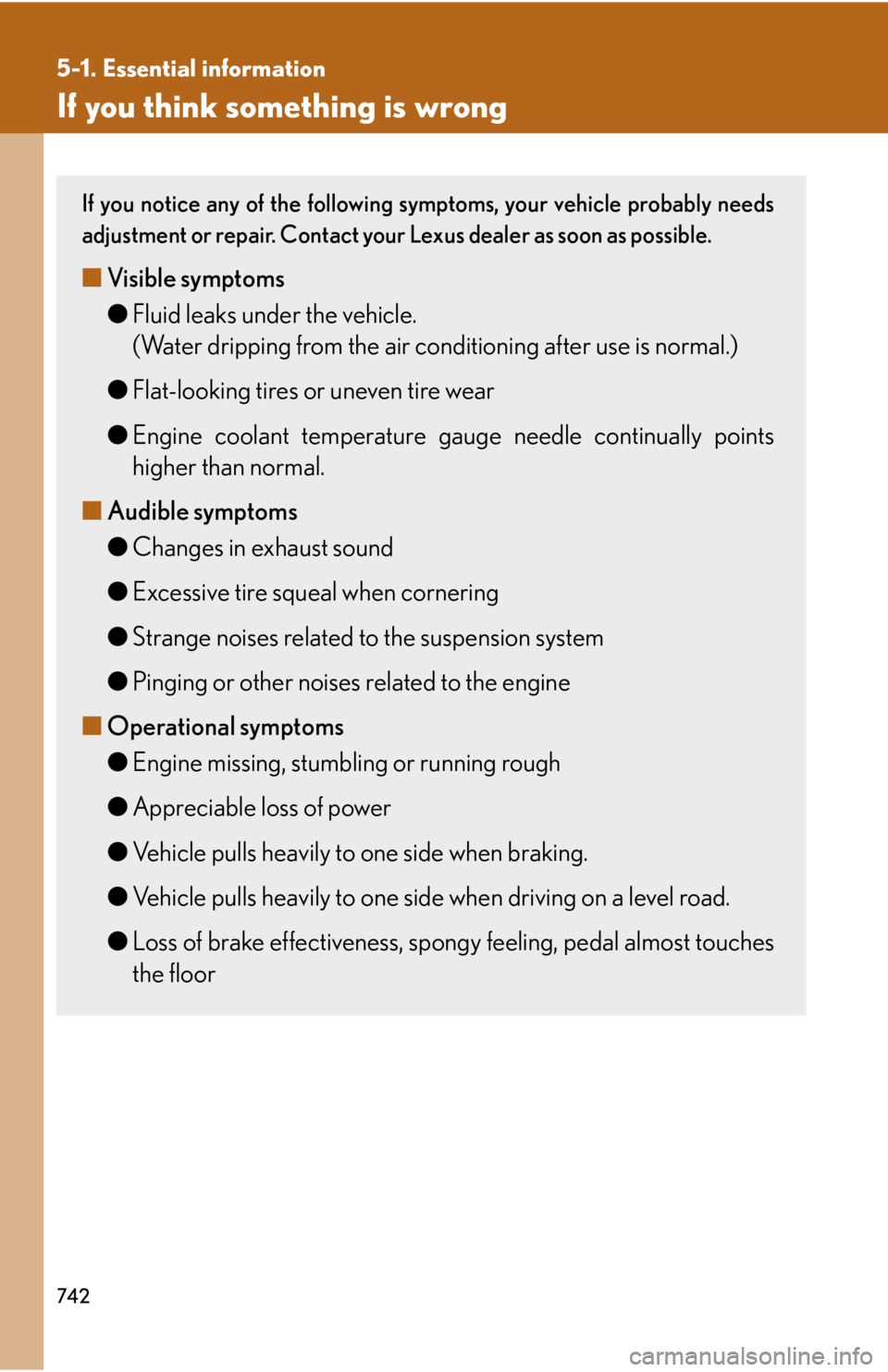

If you think something is wrong If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■ Visible symptoms
● Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temper ature gauge needle continually points
higher than normal.
■ Audible symptoms
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
● Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking.
● Vehicle pulls heavily to one side when driving on a level road.
● Loss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor

5
When trouble arises
7435-1. Essential information
Fuel pump shut off system Follow the procedure below to restart the engine after the system is acti-
vated.
Turn the “ENGINE START STOP” switch to ACCESSORY mode
or turn it off.
Restart the engine.NOTICE■
Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been damaged
and is in need of repair. Do not restart the engine.To minimize the risk of fuel leakage when the engine stalls or when an air-
bag inflates upon collision, the fuel pump shut off system stops the supply of
fuel to the engine. STEP 1
STEP 2

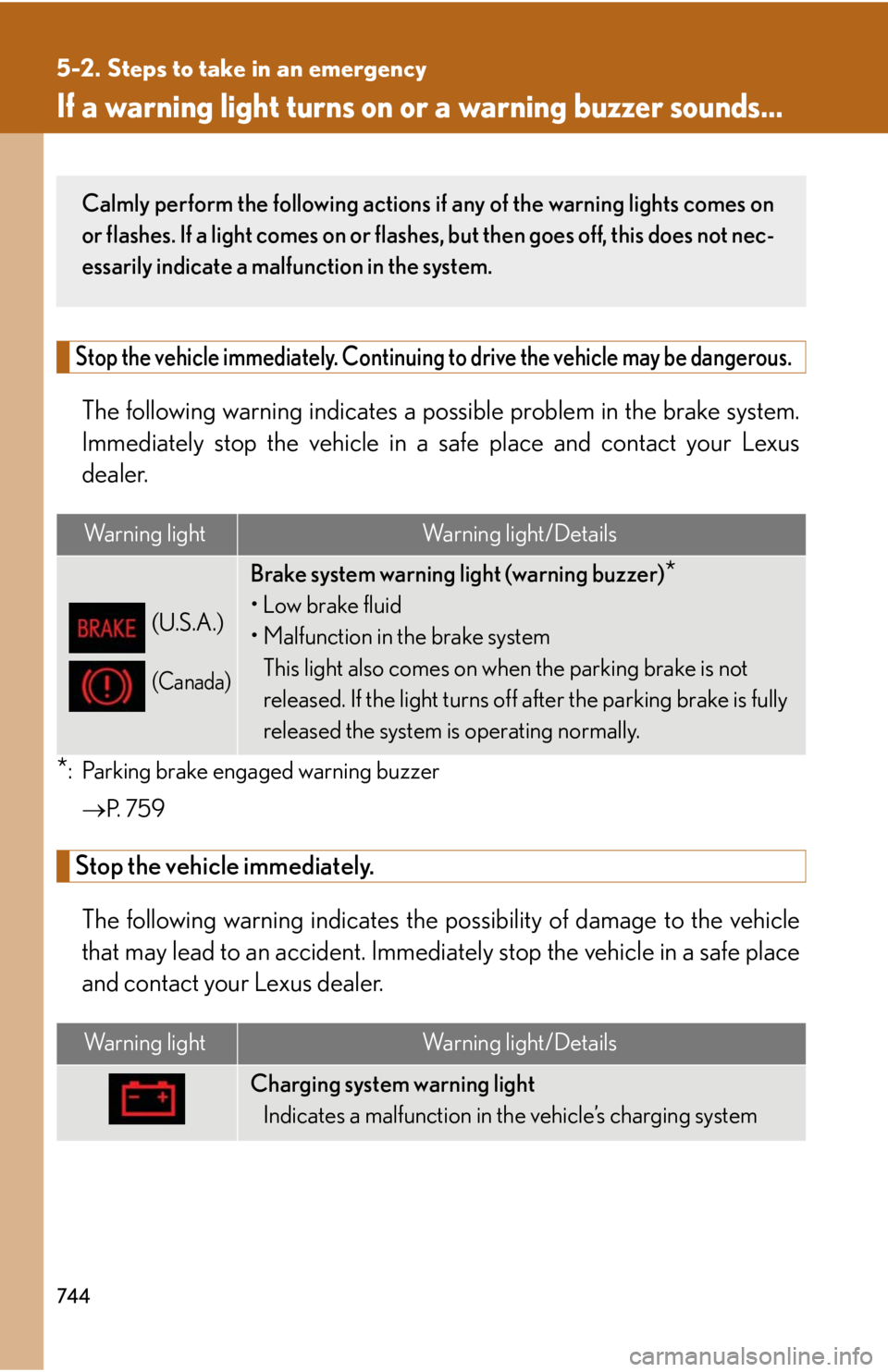

7445-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer sounds...Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
The following warning in dicates a possible problem in the brake system.
Immediately stop the vehi cle in a safe place and contact your Lexus
dealer.
* : Parking brake engaged warning buzzer
 P. 7 5 9
Stop the vehicle immediately.
The following warning indicates the po ssibility of damage to the vehicle
that may lead to an ac cident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer. Warning light Warning light/Details
(U.S.A.)

(Canada) Brake system warning light (warning buzzer)
*•Low brake fluid
• Malfunction in the brake system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released the system is operating normally.
Warning light Warning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging systemCalmly perform the following actions if any of the warning lights comes on
or flashes. If a light comes on or flashes, but then goes off, this does not nec-
essarily indicate a malfunction in the system.

5
When trouble arises

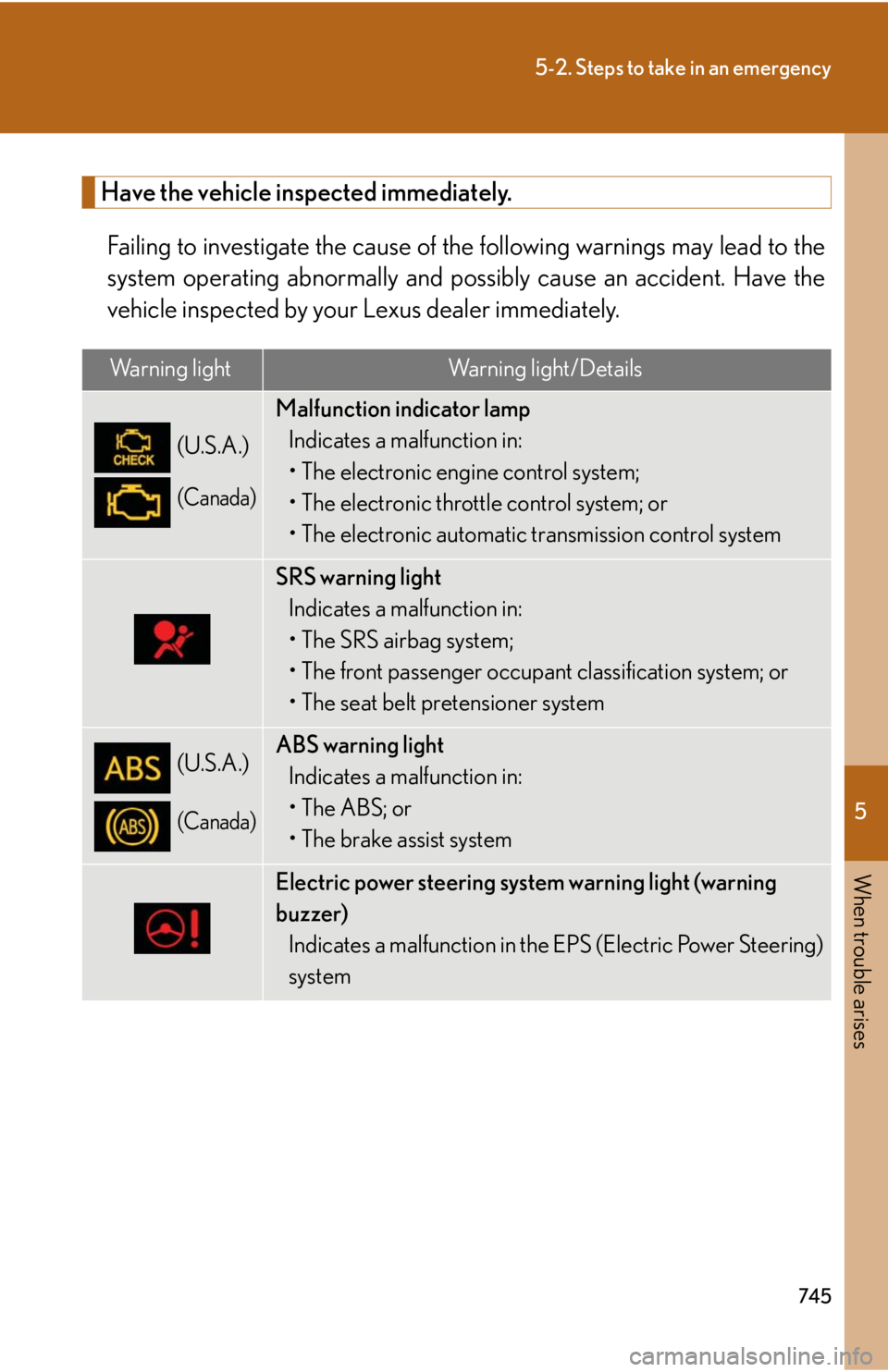

7455-2. Steps to take in an emergency
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately. Warning light Warning light/Details
(U.S.A.)
(Canada) Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
(U.S.A.)
(Canada) ABS warning light
Indicates a malfunction in:
•The ABS; or
• The brake assist system
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steering)
system

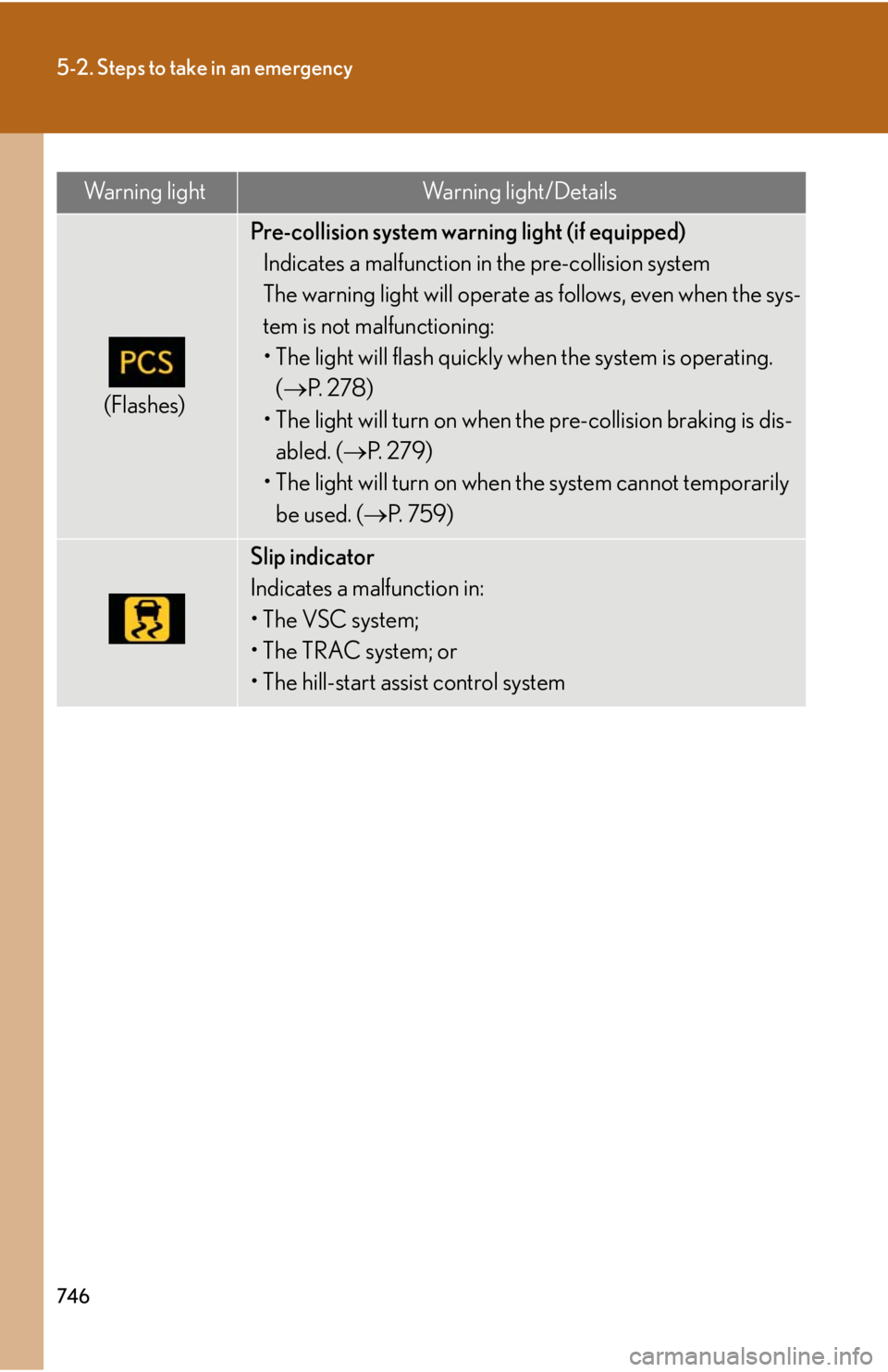

7465-2. Steps to take in an emergency
(Flashes) Pre-collision system warning light (if equipped)
Indicates a malfunction in the pre-collision system
The warning light will operate as follows, even when the sys-
tem is not malfunctioning:
• The light will flash quickly wh en the system is operating.
(  P. 2 7 8 )
• The light will turn on when the pre-collision braking is dis-
abled. (  P. 2 7 9 )
• The light will turn on when the system cannot temporarily
be used. (  P. 7 5 9 )
Slip indicator
Indicates a malfunction in:
• The VSC system;
•The TRAC system; or
• The hill-start assist control systemWarning light Warning light/Details

5
When trouble arises

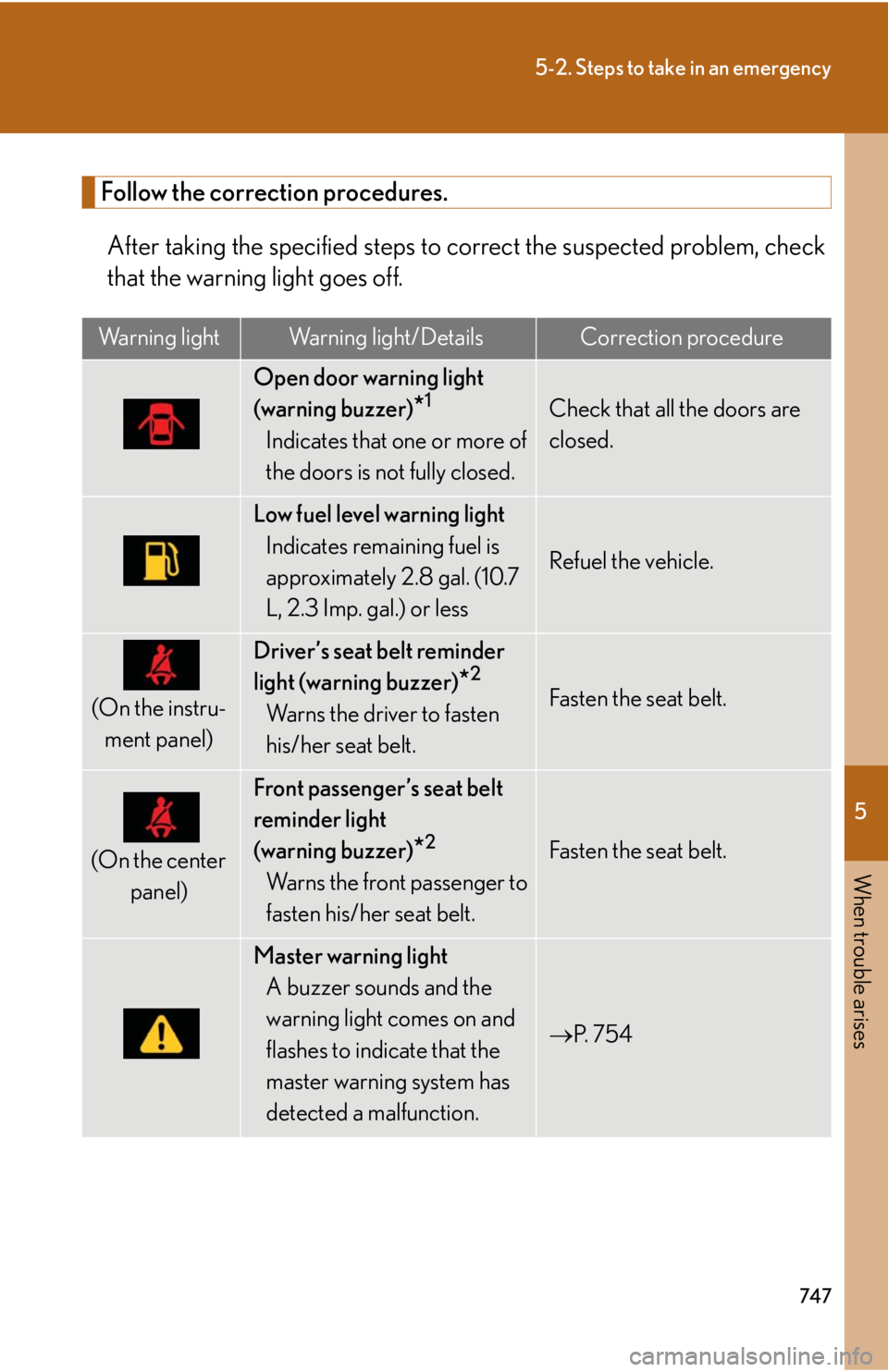

7475-2. Steps to take in an emergency
Follow the correction procedures.
After taking the specified steps to co rrect the suspected problem, check
that the warning light goes off.Warning light Warning light/Details Correction procedure
Open door warning light
(warning buzzer)
* 1
Indicates that one or more of
the doors is not fully closed. Check that all the doors are
closed.
Low fuel level warning light
Indicates remaining fuel is
approximately 2.8 gal. (10.7
L, 2.3 Imp. gal.) or less Refuel the vehicle.
(On the instru-
ment panel) Driver’s seat belt reminder
light (warning buzzer)
* 2
Warns the driver to fasten
his/her seat belt. Fasten the seat belt.
(On the center
panel) Front passenger’s seat belt
reminder light
(warning buzzer)
* 2
Warns the front passenger to
fasten his/her seat belt. Fasten the seat belt.
Master warning light
A buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.  P. 7 5 4

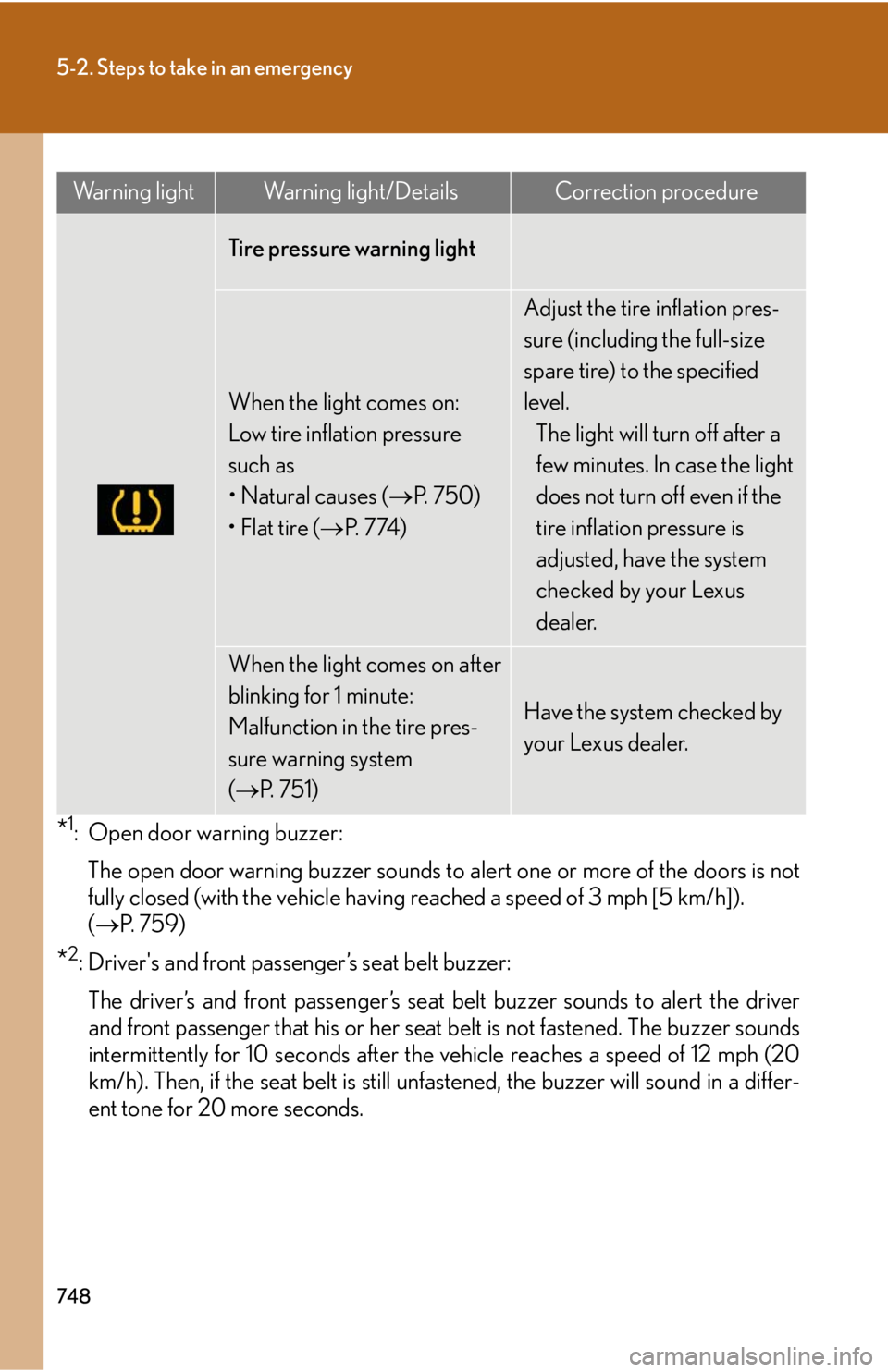

7485-2. Steps to take in an emergency
* 1
: Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is not
fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).
(  P. 7 5 9 )
* 2
: Driver's and front passenger’s seat belt buzzer:
The driver’s and front passenger’s seat belt buzzer sounds to alert the driver
and front passenger that his or her seat belt is not fastened. The buzzer sounds
intermittently for 10 seconds after the vehicle reaches a speed of 12 mph (20
km/h). Then, if the seat be lt is still unfastened, the bu zzer will sound in a differ-
ent tone for 20 more seconds. Tire pressure warning light
When the light comes on:
Low tire inflation pressure
such as
• Natural causes (  P. 7 5 0 )
• Flat tire (  P. 7 74 ) Adjust the tire inflation pres-
sure (including the full-size
spare tire) to the specified
level.
The light will turn off after a
few minutes. In case the light
does not turn off even if the
tire inflation pressure is
adjusted, have the system
checked by your Lexus
dealer.
When the light comes on after
blinking for 1 minute:
Malfunction in the tire pres-
sure warning system
(  P. 7 5 1 ) Have the system checked by
your Lexus dealer.Warning light Warning light/Details Correction procedure

5
When trouble arises
7495-2. Steps to take in an emergency
■
If the malfunction indicator lamp comes on while driving
First check the following: ●
Is the fuel tank empty?
If it is, fill the fuel tank immediately.●
Is the fuel tank cap loose?
If it is, tighten it securely.
The lamp will go off after several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.■
SRS warning light
This warning light system monitors the airb ag sensor assembly, front airbag sensors,
side and curtain shield airbag sensors, curtain shield and rear side airbag sensors,
door sensors, driver's seat position sensor, driver's seat belt buckle switch, front
passenger occupant classification system (ECU and sensors), “AIR BAG ON” indi-
cator light, “AIR BAG OFF” in dicator light, front pass enger's seat belt buckle
switch, seat belt pretensioner assemblies, inflators, interconnecting wiring and
power sources. (  P. 1 1 9 )■
Front passenger detection sensor, passen ger seat belt reminder and warning
buzzer ●
If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash and the warning buzzer to sound
even if a passenger is not sitting in the seat.●
If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.■
Electric power steering system warning light (warning buzzer)
When the battery charge becomes insuffic ient or the voltage temporarily drops,
the electric power steering system warn ing light may come on and the warning
buzzer may sound.
■
When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch will not turn off the tire pressure warning light.

7505-2. Steps to take in an emergency
■
The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural
air leaks and tire inflation pressure chan ges caused by temperature. In this case,
adjusting the tire inflation pressure will turn off the warning light (after a few min-
utes).■
When a tire is replaced with a spare tire
Vehicles with a compact spare tire
The compact spare tire is not equipped with a tire pressure warning valve and trans-
mitter. If a tire goes flat, the tire pressure warning light will not turn off even though
the flat tire has been replaced with the spare tire. Replace the spare tire with the
repaired tire and adjust the tire inflatio n pressure. The tire pressure warning light
will go off after a few minutes.
Vehicles with a full-size spare tire
The spare tire is also equipped with the tire pressure warning valve and transmitter.
The tire pressure warning light will turn on if the tire inflation pressure of the spare
tire is low. If a tire goes flat, even though the flat tire is replaced with the spare tire,
the tire pressure warning light does not turn off. Replace the spare tire with the
repaired tire and adjust to the proper tire inflation pressure. The tire pressure warn-
ing light will turn off after a few minutes.■
If the tire pressure warning system is not functioning
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.) ●
If tires not equipped with tire pressure warning valves and transmitters are used●
If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer●
If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm 2
or bar) or higher
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●
If electronic devices or facilities using similar radio wave frequencies are nearby
●
If a radio set at similar frequencies is in use in the vehicle
●
If a window tint that affects the radio wave signals is installed
●
If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings
