4115-3. Using the audio system
5
Lexus Display Audio system
RX350_U_OM48E90U To display the iPod settings screen in a di fferent way, select “iPod Settings” on the
audio menu screen. (  P. 4 1 3 )
Change the screen size (video
mode)
Change the cover art settings
(  P. 4 1 2 )
Adjust the screen quality (video
mode) (  P. 4 0 7 )
Change video sound input port
To display the A/V settings screen in a di fferent way, select “External Video Set-
tings” on the audio menu screen. (  P. 4 1 3 )
Change the screen size
Change the video signal
Adjust the screen quality (video
mode) (  P. 4 0 7 )Changing iPod settings 1
2
3
4
Changing A/V settings 1
2
3

412 5-3. Using the audio system
RX350_U_OM48E90U To display the cover art settings screen in a different way, select “Cover Art Set-
tings” on the audio menu screen. (  P. 4 1 3 )
Select to set the cover art display
on/off.
Select to set the priority of the
Gracenote database on/off.
To display the USB settings screen in a different way, select “USB Settings” on
the audio menu screen. (  P. 4 1 3 )
Change the cover art settings
(  P. 4 1 2 )Changing the cover art settings 1
2
Changing USB settings 1

4135-3. Using the audio system
5
Lexus Display Audio system

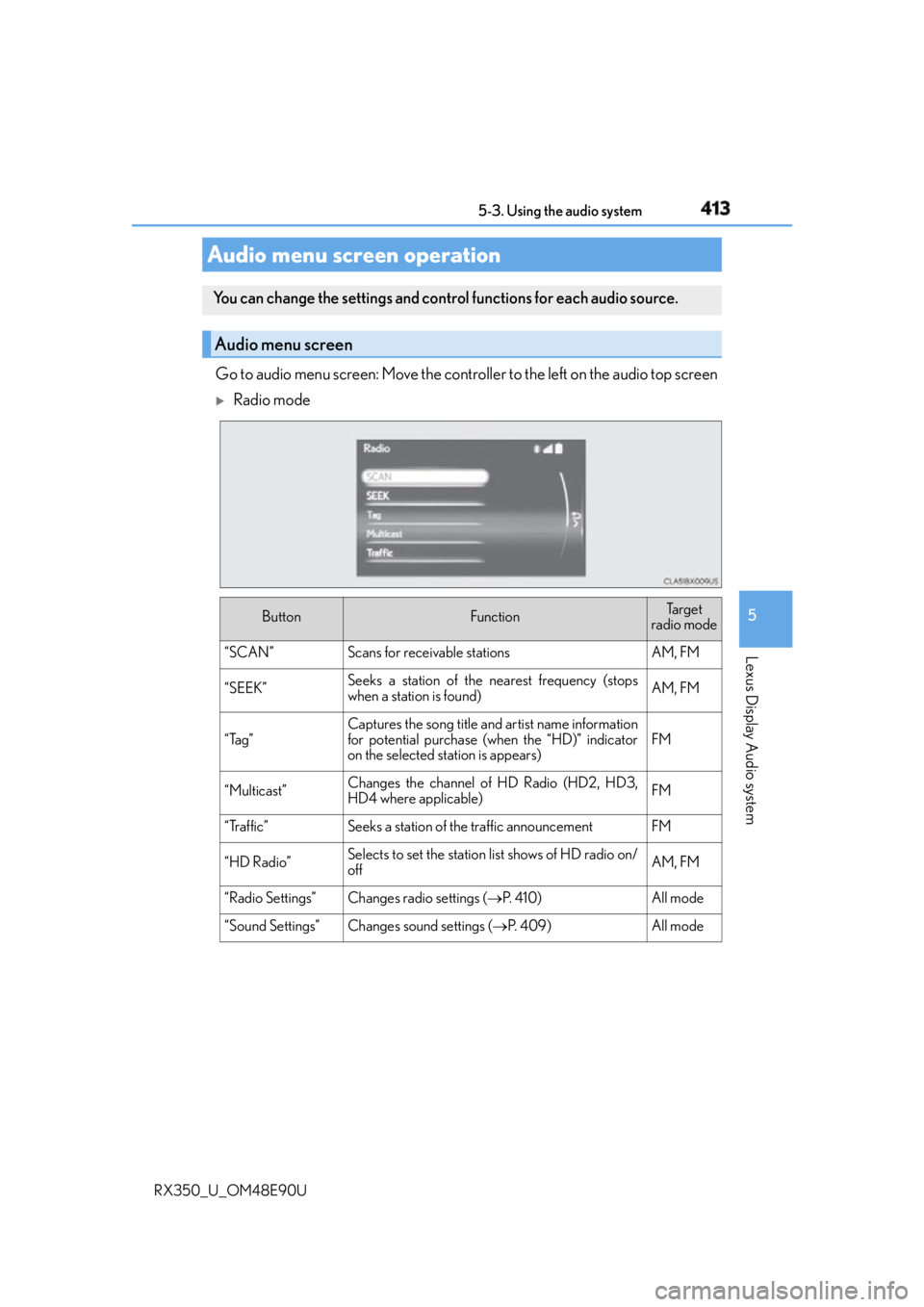

RX350_U_OM48E90U Go to audio menu screen: Move the controller to the left on the audio top screen 
Radio mode
Audio menu screen operation You can change the settings and contro l functions for each audio source.
Audio menu screen
Button Function Ta r g e t
radio mode
“SCAN” Scans for receivable stations AM, FM
“SEEK” Seeks a station of the nearest frequency (stops
when a station is found) AM, FM
“Tag” Captures the song title and artist name information
for potential purchase (when the “HD)” indicator
on the selected station is appears) FM
“Multicast” Changes the channel of HD Radio (HD2, HD3,
HD4 where applicable) FM
“Traffic” Seeks a station of the traffic announcement FM
“HD Radio” Selects to set the station li st shows of HD radio on/
off AM, FM
“Radio Settings” Changes radio settings (  P. 4 1 0 ) All mode
“Sound Settings” Changes sound settings (  P. 4 0 9 ) All mode

414 5-3. Using the audio system
RX350_U_OM48E90U 

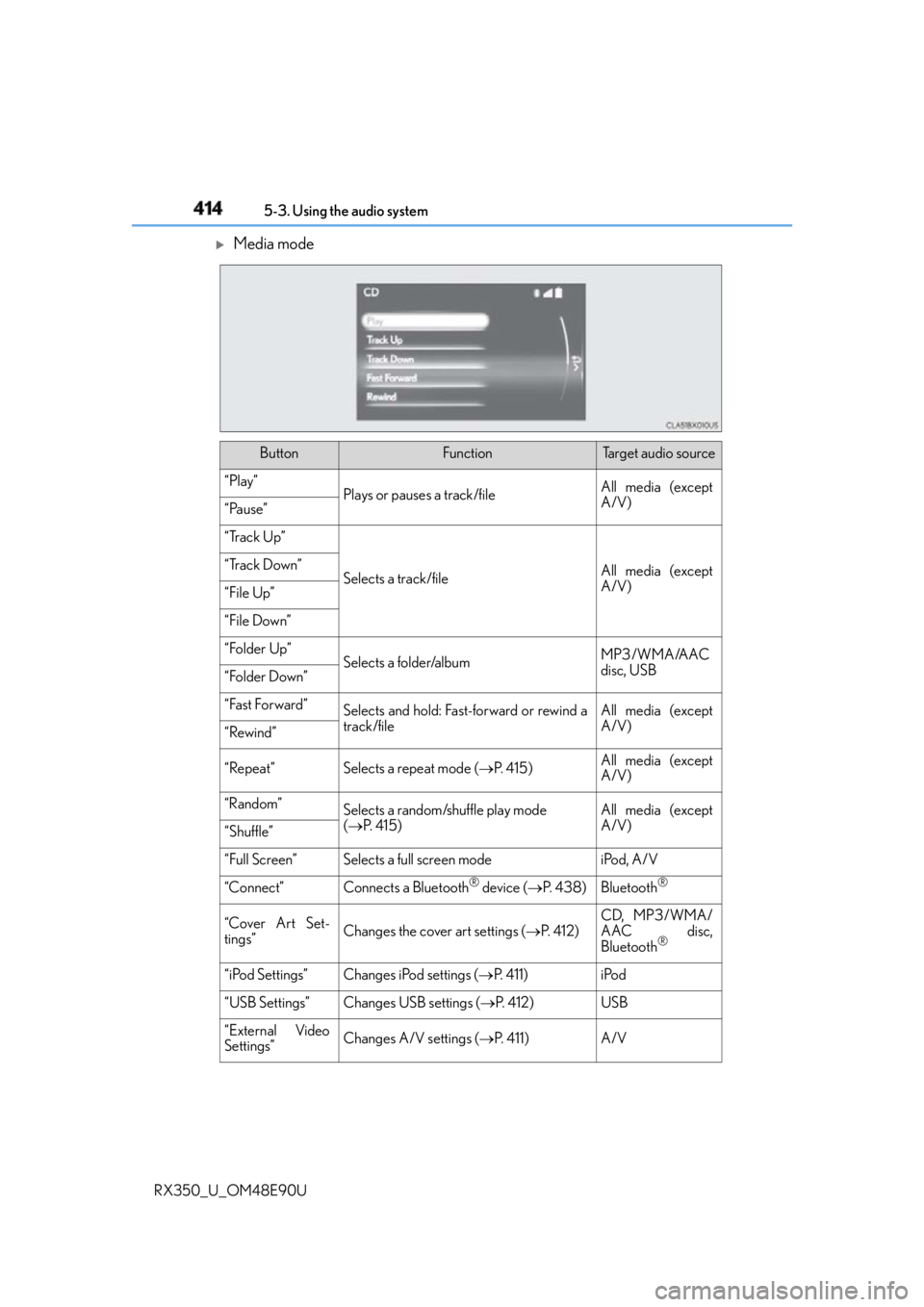

Media mode
Button Function Ta r g e t a u d i o s o u r c e
“Play”
Plays or pauses a track/file All media (except
A/V)
“Pause”
“Track Up”
Selects a track/file All media (except
A/V)“Track Down”
“File Up”
“File Down”
“Folder Up”
Selects a folder/album MP3/WMA/AAC
disc, USB
“Folder Down”
“Fast Forward”
Selects and hold: Fast-forward or rewind a
track/file All media (except
A/V)
“Rewind”
“Repeat” Selects a repeat mode (  P. 4 1 5 ) All media (except
A/V)
“Random”
Selects a random/shuffle play mode
(  P. 4 1 5 ) All media (except
A/V)
“Shuffle”
“Full Screen” Selects a full screen mode iPod, A/V
“Connect” Connects a Bluetooth ®
device (  P. 4 3 8 ) Bluetooth ®
“Cover Art Set-
tings” Changes the cover art settings (  P. 4 1 2 ) CD, MP3/WMA/
AAC disc,
Bluetooth ®
“iPod Settings” Changes iPod settings (  P. 4 1 1 ) iPod
“USB Settings” Changes USB settings (  P. 4 1 2 ) USB
“External Video
Settings” Changes A/V settings (  P. 4 1 1 ) A/V

4155-3. Using the audio system
5
Lexus Display Audio system
RX350_U_OM48E90U “Sound Settings” Changes sound settings (  P. 4 0 9 ) All media

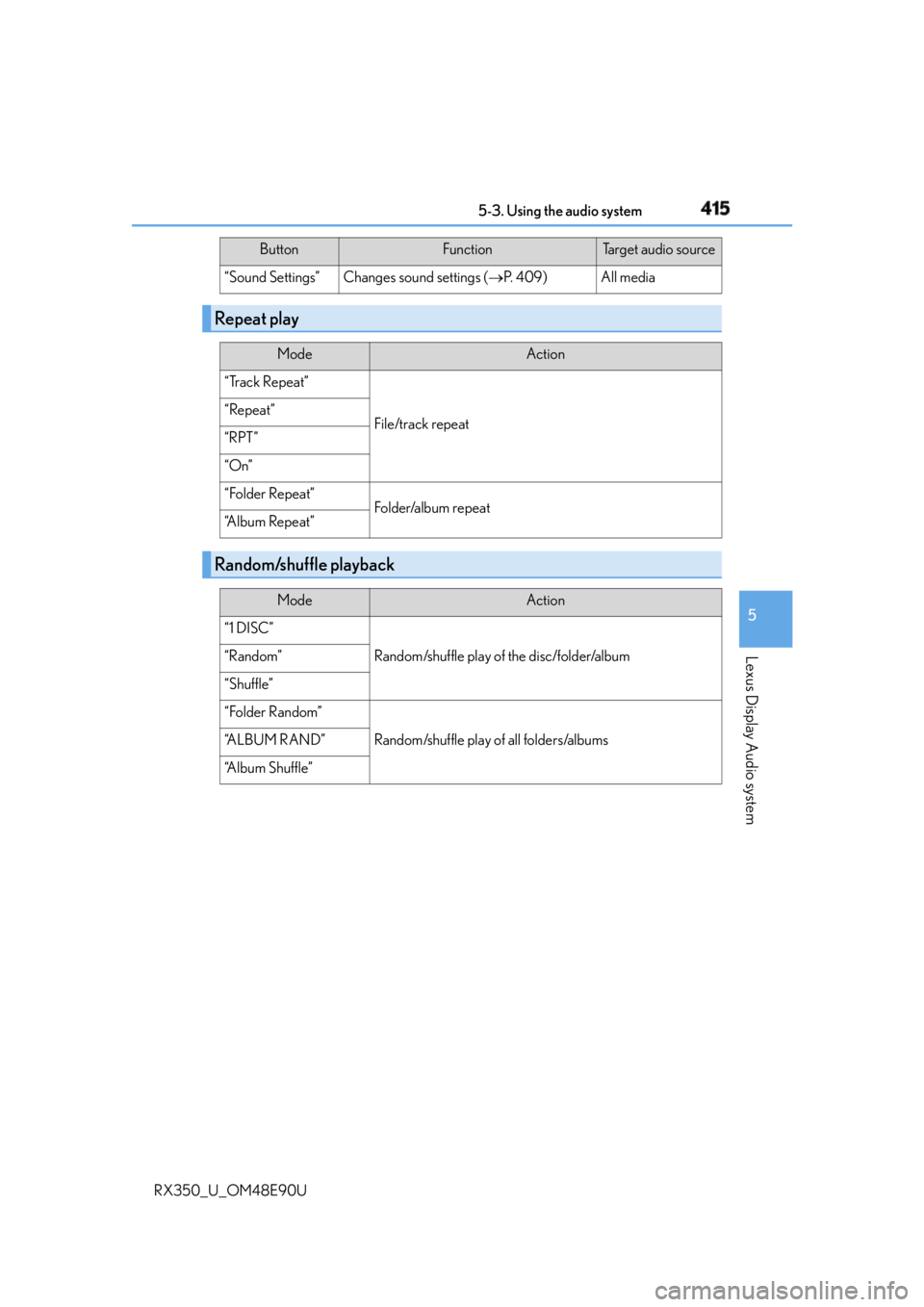

Repeat play Mode Action
“Track Repeat”
File/track repeat“Repeat”
“RPT”
“On”
“Folder Repeat”
Folder/album repeat
“Album Repeat”
Random/shuffle playback Mode Action
“1 DISC”
Random/shuffle play of the disc/folder/album“Random”
“Shuffle”
“Folder Random”
Random/shuffle play of all folders/albums“A L B U M R A N D ”
“A l b u m S h u f f l e ” Button Function Ta r g e t a u d i o s o u r c e

416
RX350_U_OM48E90U 5-4. Using the radio
Pressing the “RADIO” button displays the radio top screen from any screen of
the selected source. ■
Menu screen
 P. 4 1 3
Tune in to the desired station us ing one of the following methods.■
Seek tuning
Press and hold then release the “  PRST” or “TRACK  ” button.
Seek tuning can also be operated on the menu screen. (  P. 4 1 3 )
The radio will begin seeking up or down for a station of the nearest frequency
and will stop when a station is found. ■
Manual tuning
Turn the “TUNE•SCROLL” knob. ■
Preset stations
Select the desired preset station by pressing the “  PRST” or “TRACK  ” but-
ton, or turning and pressing the controller. ■
Station list
Move the controller to the right and selecting “Station List”.
AM radio: Selecting a desired station.
FM radio: Selecting a desired type of station and selecting a desired sta-
tion. To refreshing the station list, select “R efresh”. Select “Source” on the refresh
screen, can be change to the other audio source while refreshing.Radio operation Select “AM”, “FM” or “SAT” on the audio source selection screen to begin lis-
tening to the radio.
Radio top screen
Selecting a station (AM or FM radio)
1
2

4175-4. Using the radio
5
Lexus Display Audio system
RX350_U_OM48E90U When “HD Radio” is set to “On”, available stations with HD Radio channels are
marked with “HD)”.
In AM or FM mode, select a station marked with “HD)”.
Turn the “TUNE•SCROLL” knob to select an HD Radio channel. HD Radio channels can also be selected by selecting “Multicast” on the menu screen.
(  P. 4 1 3 )
Select in to the desired channel using one of the following methods.■
Tu r n i n g u p /d o w n t h e c h a n n e l
Press and hold the “  PRST” or “TRACK  ” button or turn the
“TUNE•SCROLL” knob. ■
Preset channels
Select the desired preset channel by pressing the “  PRST” or “TRACK  ”
button or controller. ■
Channel list
Move the controller to the right and selecting “Select a SAT Category”.
Selecting a desired category of chan nel and selecting a desired channel.
Search for desired stations or channel.
Select and hold one of the preset until you hear a beep. ■
Display the song information
Move the controller to the right and selecting “Text”. ■
Display the Additional information (HD radio)
Move the controller to the right and selecting “Additional Information”.Selecting an HD Radio channel
Selecting a channel (XM Satellite Radio)
Setting presets
Display the text message 1
2
1
2
1
2

418 5-4. Using the radio
RX350_U_OM48E90U HD Radio™ Technology is the digital evolution of analog AM/FM radio. Your
radio product has a special receiver which allows it to receive digital broadcasts
(where available) in addition to the analog broadcasts it already receives.
Digital broadcasts have better sound qua lity than analog broadcasts as digital
broadcasts provide free, crystal clear audio with no static or distortion. For more
information, and a guide to available radio stations and programming, refer to
www.hdradio.com
.
“HD Radio features included in Lexus radios:
Digital Sound - HD Radio broadcasts deliver crystal-clear, digital audio quality to
listeners.
HD2 /HD3 Channels - FM stations can provide additional digital only audio pro-
gramming with expanded content and format choices on HD2 /HD3 channels.
PSD - Program Service Data (PSD) gives you on-screen information such as art-
ist name and song title.
iTunes Tagging - Listeners can tag (store) songs they like for later review and pur-
chase through iTunes.
Artist Experience - Images related to the broadcast are displayed on the radio
screen, such as album cover art and station logos.”HD Radio™ Technology
HD Radio Technology manufactured under license from iBiquity Digital Corpora-
tion. U.S. and Foreign Patents. HD Radio™ and the HD, HD Radio, and “Arc” logos
are proprietary trademarks of iBiquity Digital Corp.

4195-4. Using the radio
5
Lexus Display Audio system
RX350_U_OM48E90U ■

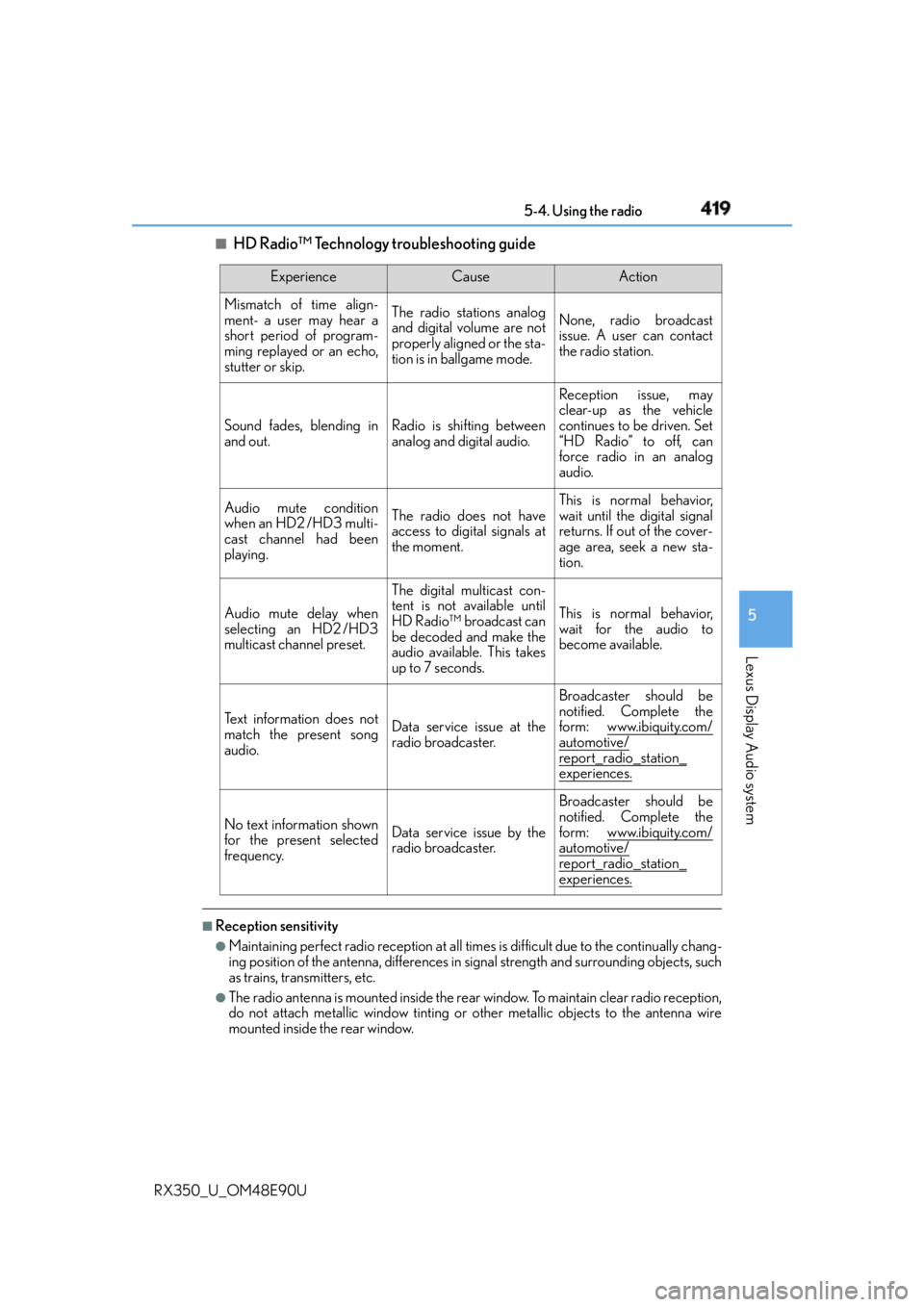

HD Radio™ Technology troubleshooting guide
■
Reception sensitivity ●
Maintaining perfect radio recept ion at all times is difficult due to the continually chang-
ing position of the antenna, differences in signal strength and surrounding objects, such
as trains, transmitters, etc. ●
The radio antenna is mounted inside the rear window. To maintain clear radio reception,
do not attach metallic window tinting or other metallic objects to the antenna wire
mounted inside the rear window. Experience Cause Action
Mismatch of time align-
ment- a user may hear a
short period of program-
ming replayed or an echo,
stutter or skip. The radio stations analog
and digital volume are not
properly aligned or the sta-
tion is in ballgame mode. None, radio broadcast
issue. A user can contact
the radio station.
Sound fades, blending in
and out. Radio is shifting between
analog and digital audio. Reception issue, may
clear-up as the vehicle
continues to be driven. Set
“HD Radio” to off, can
force radio in an analog
audio.
Audio mute condition
when an HD2 /HD3 multi-
cast channel had been
playing. The radio does not have
access to digital signals at
the moment. This is normal behavior,
wait until the digital signal
returns. If out of the cover-
age area, seek a new sta-
tion.
Audio mute delay when
selecting an HD2 /HD3
multicast channel preset. The digital multicast con-
tent is not available until
HD Radio™ broadcast can
be decoded and make the
audio available. This takes
up to 7 seconds. This is normal behavior,
wait for the audio to
become available.
Te x t i n f o r m a t i o n d o e s n o t
match the present song
audio. Data service issue at the
radio broadcaster. Broadcaster should be
notified. Complete the
form: www.ibiquity.com/
automotive/
report_radio_station_
experiences.
No text information shown
for the present selected
frequency. Data service issue by the
radio broadcaster. Broadcaster should be
notified. Complete the
form: www.ibiquity.com/
automotive/
report_radio_station_
experiences.

420 5-4. Using the radio
RX350_U_OM48E90U ■
XM Radio Services — Descriptions ●
Radio and Entertainment
XM offers more than 170 satellite radio channels of commercial-free music and pre-
mier sports, news, talk, and entertainment. XM is broadcast via satellites to millions of
listeners across the continental United States . XM subscribers listen to XM on satellite
radio receivers for the car, home, and port able use. More information about XM is
available online at www.siriusxm.com
(U.S.A.) or www.siriusxm.ca (Canada).●
Satellite tuner
The tuner supports only Audio Services (M usic and Talk) and the accompanying Text
Information of XM ®
Satellite Radio.■
XM Radio Services — Subscription Instructions
For XM Services requiring a subscription (s uch as XM Radio), the following paragraph
shall be included.
Required XM Radio monthly subscriptions sold separately after tr ial period. Subscrip-
tion fee is consumer only. All fees and prog ramming subject to change. Subscriptions are
subject to the Customer Agreement available at www.siriusxm.com
(U.S.A.) or
www.siriusxm.ca (Canada) XM service only availa ble in the 48 contiguous United
States and 10 Canadian provinces. © 2011 Sirius XM Radio Inc. Sirius, XM and all
related marks and logos are trademarks of Sirius XM Radio Inc. All other marks, channel
names and logos are the property of their respective owners.
For more information, program schedules, and to subscribe or extend subscription after
complimentary trial period; more information is available at:
U.S.A. Customers:
Visit w w w.siriusxm.com or call 1-877-447-0011
Canadian Customers:
Visit w w w.siriusxm.ca or call 1-877-438-9677●
Radio ID
You will need the radio ID when activating XM service or reporting a problem. If
“Ch000” is selected using the “TUNE•SCRO LL” knob, the ID code, which is 8 alpha-
numeric characters, will be displayed. If anot her channel is selected , the ID code will no
longer be displayed. The channel (000) alte rnates between displaying the radio ID and
the specific radio code. ■
XM Radio Services — Legal Disclaimers and Warnings ●
Fees and Taxes — Subscription fee, taxes, on e time activation fee, and other fees may
apply. Subscription fee is consumer only. All fees and programming subject to change.
Subscriptions subject to Customer Agreement available at www.siriusxm.com (U.S.A.)
or www.siriusxm.ca (Canada) XM service only available in the 48 contiguous United
States and Canada
* .
* : Canada — some deterioration of service may occur in extreme northern latitudes.
This is beyond the control of XM Satellite Radio.
Explicit Language Notice — Channels with frequent explicit la nguage are indicated
with an “XL” preceding the channel name. Channel blocking is available for XM Satel-
lite Radio receivers by notifying XM at; 
U.S.A. Customers:
Visit www.siriusxm.com or calling 1-877-447-0011
Canadian Customers:
Visit www.siriusxm.ca or calling 1-877-438-9677
