LEXUS RX350 2019 Owners Manual

400 5-1. Basic Operations
RX350/RX350L_U Volume switch
• Increases/decreases volume
• Press and hold: Continuously
increases/decreases volume
Radio mode:
• Press: Select a radio station
• Press and hold: Seek up/down
CD, MP3/WMA/AAC disc, Bluetooth ®
, iPod or USB mode:
• Press: Select a track/file/video
• Press and hold: Quickly move up/d own through tracks/files/videos.
“MODE” switch
• Turns the power on, selects audio source
• Press and hold this switch to mute or pause the current operation. To can-
cel the mute or pause, press and hold.Steering wheel audio switches Some audio features can be controlled using the switches on the steering
wheel.
Operation may differ depending on th e type of audio system or navigation
system. For details, refer to the manual provided with the audio system or nav-
igation system.
Operating the audio system us ing the steering wheel switches1
2
WARNING ■
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel. 3

4015-1. Basic Operations
5
Lexus Display Audio system
RX350/RX350L_U Press and hold the off hook switch
until you hear the beeps that indicate
the system is listening.
The Mobile Assistant can be used
only when the neighboring screen is
displayed. To cancel the Mobile Assistant, select
“Cancel”, or press and hold the off hook
switch.
To restart the Mobile Assistant for addi-
tional commands, press the off hook
switch. Mobile Assistant can only be
restarted after the sy stem responds to a
voice command. After some phone and
music commands, the Mobile Assistant
feature will automatically end to com-
plete the requested action.Mobile Assistant The Mobile Assistant feature will activate Apple’s Siri 
Eyes Free mode via
the steering wheel switches. To operat e the Mobile Assistant, a compatible
cellular phone must be registered and connected to this system via
Bluetooth 
. (  P. 443) 1
2

402 5-1. Basic Operations
RX350/RX350L_U ■
Adjusting the volume
The volume of the Mobile Assist ant can be adjusted using the
“ PWR·VOL
” knob or
steering wheel volume switch es. The Mobile Assistant an d phone call volumes are syn-
chronized. ■
Microphone
It is not necessary to speak directly into the microphone when using the Mobile Assis-
tant. ●
Wait for the listening beeps before using the Mobile Assistant.●
The Mobile Assistant may not recognize commands in the following situations:
• When spoken too quickly.
• When spoken at a low or high volume.
• When the roof or windows are open.
• When passengers are talking while th e Mobile Assistan t is being used.
• When the air conditioning syst em’s fan speed is set high.
• When the air conditioning vents ar e turned toward the microphone.■
Mobile Assistant precautions ●
The available features and functions may vary based on the iOS version installed on the
connected device. ●
Some Siri features are limited in Eyes Free mode. If you attempt to use an unavailable
function, Siri will inform you that the function is not available. ●
If Siri is not enabled on the ce llular phone connected via Bluetooth 
, an error message
will be displayed on the screen. ●
While a phone call is active, the Mobile Assistant cannot be used. ●
If using the navigation featur e of the cellular phone, ensure the active audio source is
Bluetooth 
audio or iPod in order to hear turn by turn direction prompts.

4035-1. Basic Operations
5
Lexus Display Audio system
RX350/RX350L_U Press the knob.
Open the cover.
■
iPod
Open the cover and connect an iPod using an iPod cable.Turn on the power of the iPod if it is not turned on.■
USB memory
Open the cover and connect the USB memory device. Turn on the power, if applicable, of the US B memory device if it is not turned on.
■
Portable audio player
Open the cover and connect the portable audio player. Turn on the power of the portable au dio player if it is not turned on.USB/AUX ports Connect an iPod, USB memory device or portable audio player to the USB/
AUX port as indicated below. Select “iPod”, “USB”, “AUX” or “External” on
the audio source selection screen and the device can be operated via Lexus
Display Audio system.
Connecting using the USB/AUX port 1
2

404 5-1. Basic Operations
RX350/RX350L_U To view a video on an iPod video or VTR, it is necessary to use a 4-pole AUX
cable to connect the portable audio device.
When connecting a portable audio devi ce to the AUX port, use a 4-pole AUX
cable with a plug that matches the ex act layout shown in the illustration.
Connected device (portable audio
device, etc.)
Left audio
Right audio
Ground
Video
When using an iPod video, a cable
that has a 4-pole AUX plug and a
USB connector is necessary. Con-
nect the plug and connector to the
AUX and USB ports.Using a 4-pole AUX cable 1
2
3
4
5

4055-1. Basic Operations
5
Lexus Display Audio system
RX350/RX350L_U ■
When using a 4-pole AUX cable
If a 4-pole AUX cable with a different layout is used, audio and/or video may not be out-
put properly. ■
When using the USB/AUX port
There is clearance between the lid and console
box to allow the cable ro uted to outside the con-
sole box.
WARNING ■
While driving
Do not connect a device or operate the device controls.
NOTICE ■
To prevent damage to the device or its terminals
Depending on the size and shape of the device that is connected to the system, the
console box/auxiliary box may not close fully. In this case, do not forcibly close the con-
sole box/auxiliary box as this may da mage the device or the terminal, etc.

406
RX350/RX350L_U 5-2. Setup
Go to “Setup”: “MENU” button  “Setup”
Change the settings for operation
sounds, screen animation, etc.
(  P. 407)
Change the settings for voice guid-
ance. (  P. 410)
Change the settings for registering,
removing, connecting and discon-
necting Bluetooth ®
devices.
(  P. 445, 446, 447, 448)
Change the settings for FM radio,
iPod, etc. (  P. 414)
Change the settings for vehicle cus-
tomization. (  P. 722)
Change the settings for phone
sound, phonebook, etc. (  P. 466)
Set the pop up reminder for mobile
data usage notification.Setup menu The Lexus Display Audio system can be adjusted to the desired settings.
Display “Setup” screen 1
2
3
4
5
6
7

407 5-2. Setup
5
Lexus Display Audio system
RX350/RX350L_U Go to “General Settings”: “MENU” button  “Setup”  “General”

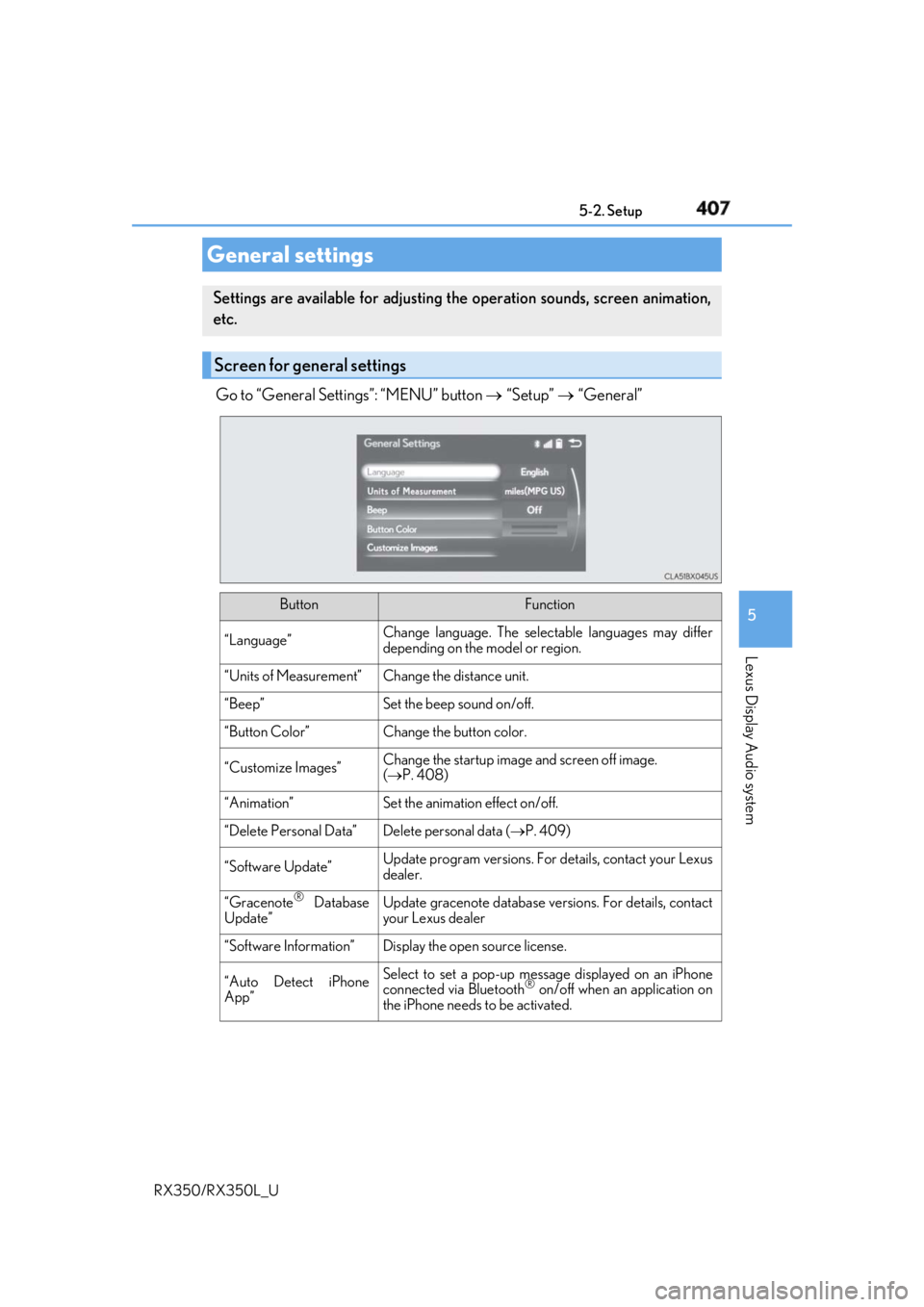

General settings Settings are available for adjusting th e operation sounds, screen animation,
etc.
Screen for general settings
Button Function
“Language” Change language. The select able languages may differ
depending on the model or region.
“Units of Measurement” Change the distance unit.
“Beep” Set the beep sound on/off.
“Button Color” Change the button color.
“Customize Images” Change the startup image and screen off image.
(  P. 408)
“Animation” Set the animation effect on/off.
“Delete Personal Data” Delete personal data (  P. 409)
“Software Update” Update program versions. For details, contact your Lexus
dealer.
“Gracenote ®
Database
Update” Update gracenote database versions. For details, contact
your Lexus dealer
“Software Information” Display the open source license.
“Auto Detect iPhone
App” Select to set a pop-up message displayed on an iPhone
connected via Bluetooth ®
on/off when an application on
the iPhone needs to be activated.

408 5-2. Setup
RX350/RX350L_U Go to “Customize Images”: “MENU” button  “Setup”  “General” 
“Customize Images”
Select “Set Images” and then select the desired image.
Set as startup image.
Set as screen off image.
Set as startup image and screen
off image.■
Adding an image
Connect a USB memory device. (  P. 403)
Select “Copy from USB” on the “Customize Images” screen and then
select the desired image.
Move the controller to the left and then select “Copy”. Up to 10 images can be downloaded.■
Deleting images
Select “Delete Images” on the “Customize Images” screen and then select the
desired images. ■
USB memory
When saving the images to a USB memory de vice, name the folder that the images are
saved to “Image”. ●
Compatible device formats
The following device format can be used:
• USB communication format: USB2.0 FS (480 Mbps)
• File system format: FAT16/32 (Windows)
• Correspondence class: Mass storage class
The following types of files can be used:
• The image’s file fo rmat must be JPEG.
• The file name may only contain ASCII characters.●
JPEG file compatibility
Compatible image size: Maximum 5MBCustomizing images 1
2
1
2
3
1
2
3

409 5-2. Setup
5
Lexus Display Audio system
RX350/RX350L_U Go to “Delete Personal Data”: “MENU” button  “Setup”  “General” 
“Delete Personal Data”
Select “Delete”. Check carefully beforeha nd, as data cannot be retrieved once deleted.
The following personal data will be dele ted or changed to its default settings.• Phonebook data
• Call history data
•Favorite data
•Bluetooth ®
devices data
• Phone sound settings
• Detailed Bluetooth ®
settings
• Audio/video setting
• Customized image data
•FM info setting
• iPod tagging information
• Software update history
• Software update detail information
• Phone display setting
• Contact/call history setting
• Messaging setting
• Traffic information map
• Weather information
• Phonebook data for voice recognition
• Music data for voice recognition NOTICE ■
To prevent damage to the USB me mory device or its terminals
 P. 441
Deleting personal data 1
2
