LEXUS RX350 2019 Owners Manual

390 4-6. Driving tips
RX350/RX350L_U WARNING ■
Off-road driving precautions
Always observe the following precautions to minimize the risk of death, serious injury
or damage to your vehicle: ●
Drive carefully when off the road. Do not ta ke unnecessary risks by driving in danger-
ous places. ●
Do not grip the steering wheel spokes when driving off-road. A bad bump could jerk
the wheel and injure your hands. Keep both hands and especially your thumbs on the
outside of the rim. ●
Always check your brakes for effectiveness immediately after driving in sand, mud,
water or snow. ●
After driving through tall grass, mud, rock , sand, rivers, etc., check that there is no
grass, bush, paper, rags, stone, sand, etc. adhering or trapped on the underbody.
Clear off any such matter from the underbody. If the vehicle is used with these materi-
als trapped or adhering to the underbody, a breakdown or fire could occur. ●
When driving off-road or in rugged terrain , do not drive at excessive speeds, jump,
make sharp turns, strike obje cts, etc. This may cause loss of control or vehicle rollover
causing death or serious injury. You are also risking expensive damage to your vehi-
cle’s suspension and chassis.
NOTICE ■
To prevent water damage
Take all necessary safety measures to ensure that water damage to the engine or other
components does not occur. ●
Water entering the engine air intake will cause severe engine damage.●
Water entering the automatic transmission will cause deterioration in shift quality,
locking up of your transmission accompan ied by vibration, and ultimately damage.●
Water can wash the grease from wheel be arings, causing rusting and premature fail-
ure, and may also enter the differential, transmission and transfer (AWD models only)
case, reducing the gear oi l’s lubricating qualities.■
When you drive through water
If driving through water, such as when cro ssing shallow streams, first check the depth of
the water and the bottom of the riverbed for firmness. Drive slowly and avoid deep
water. ■
Inspection after off-road driving ●
Sand and mud that has accumulated around brake discs may affect braking efficiency
and may damage brake system components. ●
Always perform a maintenance inspection afte r each day of off-road driving that has
taken you through rough terrain, sand, mud, or water. For scheduled maintenance
information, refer to the “Warranty and Services Guide/Owner’s Manual Supple-
ment/Scheduled Maintenance”.

3914-6. Driving tips
4
Driving
RX350/RX350L_U

392
RX350/RX350L_U 5-1. Basic Operations
Lexus Display Audio
system .......................................... 394
Steering wheel audio
switches...................................... 400
Mobile Assistant.......................... 401
USB/AUX ports ........................403
5-2. Setup
Setup menu ..................................406
General settings ......................... 407
Voice settings ............................... 410
Display settings .............................. 411
5-3. Using the audio system
Selecting the au dio source ......412
Optimal use of the audio
system ........................................... 413
Audio settings ...............................414
Audio menu screen
operation ......................................417
5-4. Using the radio
Radio operation.......................... 420
5-5. Playing an audio CD and
MP3/WMA/AAC discs
CD player operation ................ 4275 Lexus Display
Audio system

393
5 Lexus Display
Audio system
RX350/RX350L_U 5-6. Using an external device
Listening to an iPod ...................434
Using USB memory
device.......................................... 438
Using the AUX port ................. 442
5-7. Connecting Bluetooth ®
Steps for using Bluetooth ®

devices .........................................443
Registering a Bluetooth ®

device...........................................445
Selecting a Bluetooth ®

device...........................................446
Connecting a Bluetooth ®

audio player ............................... 447
Connecting a Bluetooth ®

phone .......................................... 448
Displaying a Bluetooth ®

device details ............................449
Detailed Bluetooth ®

settings........................................ 450
5-8. Bluetooth ®
Audio
Listening to Bluetooth ®

Audio............................................453 5-9. Bluetooth ®
Phone
Using a Bluetooth ®

Phone ...........................................455
Making a call ................................ 457
Receiving a call ...........................460
Speaking on the phone............. 461
Using a Bluetooth ®
phone
message ...................................... 463
Using the steering wheel
switches....................................... 465
Bluetooth ®
phone
settings ........................................ 466
5-10. Phonebook
Contact settings .........................468
Messaging setting........................471
5-11. Bluetooth ®
What to do if...
(Troubleshooting)................... 472
Bluetooth ®
................................... 476
5-12. Other function
“Information” screen................. 482
USB photo ....................................484
Weather information................486
Voice command system ......... 487

394
RX350/RX350L_U 5-1. Basic Operations
Disc slot
“TUNE•SCROLL” knob
Select a radio station band, track or file.
Except radio and A/V mode: Pause or resume playing a track or file.
Radio and A/V mode: Turn mute on/off.
Select preset radio stations, or access a desired track or file.
Display the media top screen.
Display the radio top screen.
Eject a disc.
“PWR•VOL” knob
Press to turn the audio system on/o ff, and turn to adjust the volume.Lexus Display Audio system 
 : If equippedUse the following buttons to star t listening to the audio system.
Lexus Display Audio operation buttons
1
2
3
4
5
6
7
8

3955-1. Basic Operations
5
Lexus Display Audio system
RX350/RX350L_U ■

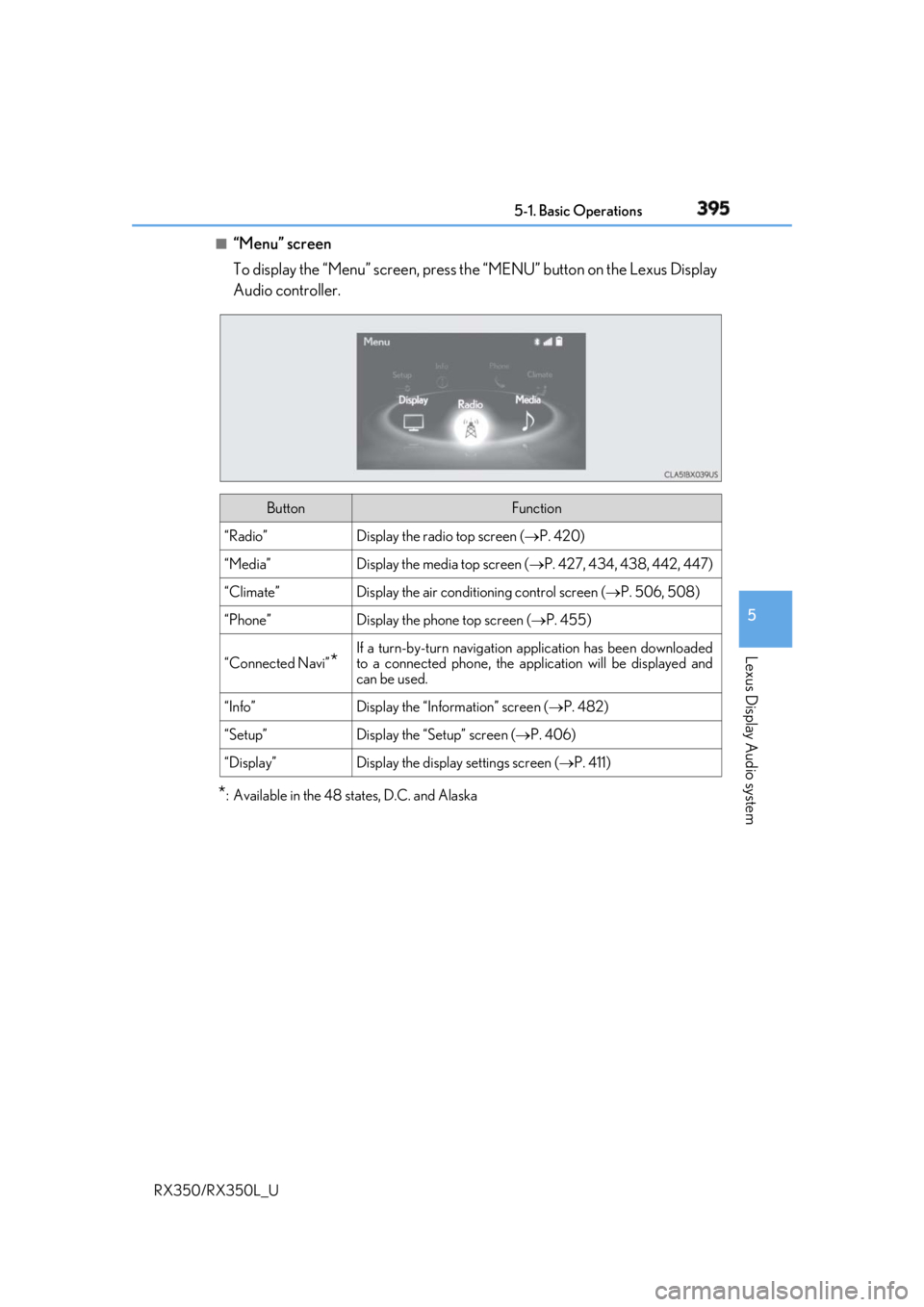

“Menu” screen
To display the “Menu” screen, press th e “MENU” button on the Lexus Display
Audio controller.
* : Available in the 48 states, D.C. and Alaska Button Function
“Radio” Display the radio top screen (  P. 420)
“Media” Display the media top screen (  P. 427, 434, 438, 442, 447)
“Climate” Display the air conditioning control screen (  P. 506, 508)
“Phone” Display the phone top screen (  P. 455)
“Connected Navi”
* If a turn-by-turn navigation application has been downloaded
to a connected phone, the appl ication will be displayed and
can be used.
“Info” Display the “Information” screen (  P. 482)
“Setup” Display the “Setup” screen (  P. 406)
“Display” Display the display settings screen (  P. 411)

396 5-1. Basic Operations
RX350/RX350L_U By using the Lexus Display Audio controlle r, you can control the audio system,
hands-free system, etc.
Display the “Source” screen or
audio top screen (  P. 412)
Display the “Menu” screen
(  P. 395)
Back button
Display the previous screen
Turn or move the controller to select
a function and number.
Move the controller to display the le ft or right side of the screen.
Push the controller to enter the selected function and number. ■
Using the Lexus Display Audio controller
Select: Turn or move the control-
ler.
Enter: Push the controller.Lexus Display Audio controller 1
2
3
4
1
2

3975-1. Basic Operations
5
Lexus Display Audio system
RX350/RX350L_U ■
Basic screen operation
When a list is displayed, use the approp riate button to scroll through the list.
Select the list by turning the con-
troller.
Return to the previous screen.
Indicator turns on when you can
move the controller left to view
additional screen text.
Indicator turns on when you can
move the controller right to view
additional screen text. 1
2
3
4

398 5-1. Basic Operations
RX350/RX350L_U ■
Input mode
Letters and numbers are inputted via the screen.
Turn the controller to select the
desired character and press the
controller to input the character.
When this indicator is shown, you
can change input fields by moving
the controller forward.
When this indicator is shown, you
can change character types by
moving the controller to the right
and then selecting the desired
character type.
Select to erase characters one by one. Select and hold to erase all charac-
ters.
Select to complete data input.■
Input field mode
When in the input field you can move the cursor to the desired position.
Turn the controller to move the
cursor left or right.
When this indicator is shown, you
can move the cursor to the right
input field by moving the control-
ler to the right.
When this indicator is shown, you
can move the cursor to the left
input field by moving the control-
ler to the left.
When this indicator is shown, you can change to input mode by moving the
controller backward.Inputting letters and numbers 1
2
3
4
5
1
2
3
4

3995-1. Basic Operations
5
Lexus Display Audio system
RX350/RX350L_U ■
When using the screen ●
Under extremely cold conditions, the Lexus Display Audio controller may react slowly.●
If the screen is cold, the display may be da rk, or the system may seem to be operating
slightly slower than normal. ●
The screen may seem dark and hard to see when viewed through sunglasses. Change
your angle of viewing, adjust the display on the “Display” screen (  P. 411) or remove
your sunglasses. ■
Using cellular phones
Interference may be heard through the audi o system’s speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
WARNING ■
Using the Lexus Display Audio controller
Be careful when touching the Lexus Display Audio controller in extreme temperatures
as it may become very hot or cold due to the temperature inside the vehicle. ■
Laser product ●
CAUTION
USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PROCE-
DURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARD-
OUS RADIATION EXPOSURE. ●
CAUTION
THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL
INCREASE EYE HAZARD.
NOTICE ■
To prevent Lexus Display Au dio controller malfunction●
Do not allow the Lexus Display Audio controll er to come into contact with food, liq-
uid, stickers or lit cigarettes as doing so may cause it to change color, emit a strange
odor or stop functioning. ●
Do not subject the Lexus Display Audio cont roller to excessive pressure or strong
impact as the controller may bend or break off.■
To prevent battery discharge
Do not leave the audio system on longer than necessary when the engine is off. ■
To avoid damaging the audio system
Take care not to spill drinks or other fluids on the audio system.
