LEXUS RX350 2019 Owners Manual

480 5-11. Bluetooth ®
RX350/RX350L_U

4815-11. Bluetooth ®
5
Lexus Display Audio system
RX350/RX350L_U WARNING ■
While driving
Do not operate the portable audio player, ce llular phone or connect a device to the
Bluetooth ®
system.■
Caution regarding interference with electronic devices●
Your audio unit is fitted with Bluetooth ®
antennas. People with implantable cardiac
pacemakers, cardiac resynchronization ther apy-pacemakers or implantable cardio-
verter defibrillators should maintain a re asonable distance between themselves and
the Bluetooth ®
antennas. The radio waves may affe ct the operation of such devices.●
Before using Bluetooth ®
devices, users of any electrical medical device other than
implantable cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defi brillators should consult the manufacturer of the device
for information about its operation under th e influence of radio waves. Radio waves
could have unexpected effects on the operation of such medical devices.
NOTICE ■
When leaving the vehicle
Do not leave your portable au dio player or cellular phone in the vehicle. The inside of
the vehicle may become hot, causing damage to the portable audio player or cellular
phone.

482
RX350/RX350L_U 5-12. Other function
Go to “Information”: “MENU” button  “Info”
Display the fuel consumption.
(  P. 115)
Display the “USB Photo” screen.
(  P. 484)
Display the Traffic Map picture. Available when in a traffic supported
HD Radio coverage area
Display the weather information.
(  P. 486)
Go to “Traffic Map”: “MENU” button  “Info”  “Traffic Incidents”
Current position of your car
Traffic information line
The line color means the following:
Red: Heavy congestion
Yellow: Moderate traffic
Green: Free flowing traffic“Information” screen Display “Information” screen 1
2
3
4
Traffic information map 1
2

4835-12. Other function
5
Lexus Display Audio system
RX350/RX350L_U ■
Certification for U.S. owners

484 5-12. Other function
RX350/RX350L_U Go to “USB Photo”: “MENU” button  “Info”  “USB1 Photo” or “USB2
Photo”
 P. 403
Move the controller to the left to display the menu screen.
Change the full screen mode.
Select to set the slide show display
on/off. Start the slide show at a selected folder.
Change the play speed.
Change the play mode.
Move the controller to the right and select “Browse”.
Select the desired folder, and then sele ct a desired file to begin using the
selected folder.USB photo Connecting a USB memory device enables you to enjoy photo on the Lexus
Display Audio display.
USB photo screen
Connecting a USB memory device
Menu screen 1
2
3
4
Selecting a folder and a file 1
2

4855-12. Other function
5
Lexus Display Audio system
RX350/RX350L_U ■
USB memory functions
 P. 439 ■
USB memory ●
Compatible devices
USB memory device that can be used for JPEG display.●
Compatible device formats
The following device format can be used:
• USB communication format: USB2.0 FS (480 Mbps)
• File system format: FAT16/32 (Windows)
• Correspondence class: Mass storage class●
JPEG file compatibility
• Compatible image size: Maximum 10MB
• Compatible pixel size: Maximum 10,000,000 pixels
NOTICE ■
To prevent damage to the USB me mory device or its terminals
 P. 441

486 5-12. Other function
RX350/RX350L_U Go to “Weather”: “MENU” button  “Info”  “Weather”
Select the desired city/location.
Current location of your car
Select of the recently checked
location list Select the desired location on the
recently checked location list.
Select of the National City list. Select the region on the region list
and then select the city on the
National City list.
Select of the local location list Select the location on th e local location list.■
Select the time
Select “Current Weather” on the “Weather” screen.
Display the current weather infor-
mation.
Display the 3 days weather infor-
mation. You can display detail of a week,
move the controlle r right and then
select the desired week.
Display the 6/12 hour weather information.Weather information Weather information for the selected city is displayed.
Available when in weather suppo rted HD Radio coverage area
How to check the weather information 1
2
1
2
3
4
1
2
3

4875-12. Other function
5
Lexus Display Audio system
RX350/RX350L_U Press the talk switch. To cancel the voice command system,
press and hold the talk switch.
After a beep sounds, say the desired
command. On the list screen, you can select the
desired command.
■
Menu screen
To display the menu screen, m ove the controller to the left.Voice command system The voice command system enables the audio and hands-free systems to be
operated using voice commands.
Operations of the voice command system can be performed by selecting the
menu corresponding to each function on the right part of the screen. Even if
any menu is selected, commands displayed on all menus can be operated.
Using the voice command system 1
2 
“Hints” screen 
Except “Hints” screen
Offer examples of commands and operation methods
Adjust the settings for voice guidance volume and voice recognition
prompts. Select to train voice recognition. (“Hints” screen) (  P. 410)
Start over voice recognition (except “Hints” screen)
Cancel voice recognition 1
2
3
4

488 5-12. Other function
RX350/RX350L_U ■
Microphone
 P. 456 ■
When using the microphone ●
It is unnecessary to speak directly into the microphone when giving a command.●
Wait for the confirmation beep before speaking a command.●
Voice commands may not be recognized if:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while voice commands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned towards the microphone.●
In the following conditions, the system ma y not recognize the command properly and
using voice commands may not be possible:
• The command is incorrect or unclear. No te that certain words, accents or speech
patterns may be difficult for the system to recognize.
• There is excessive background noise, such as wind noise. ■
When searching for a track ●
A USB memory or iPod must be connected to enable track searching and playback.
(  P. 403) ●
When a USB memory or iPod is connected, recognition data is created so tracks can
be searched using voice commands. ●
Recognition data is updated un der the following conditions:
• When the USB memory or iPod data has changed.
• When the voice recognition language is changed. (  P. 407)●
While the recognition data is being created or being updated, a track search cannot be
performed using a voice command. ■

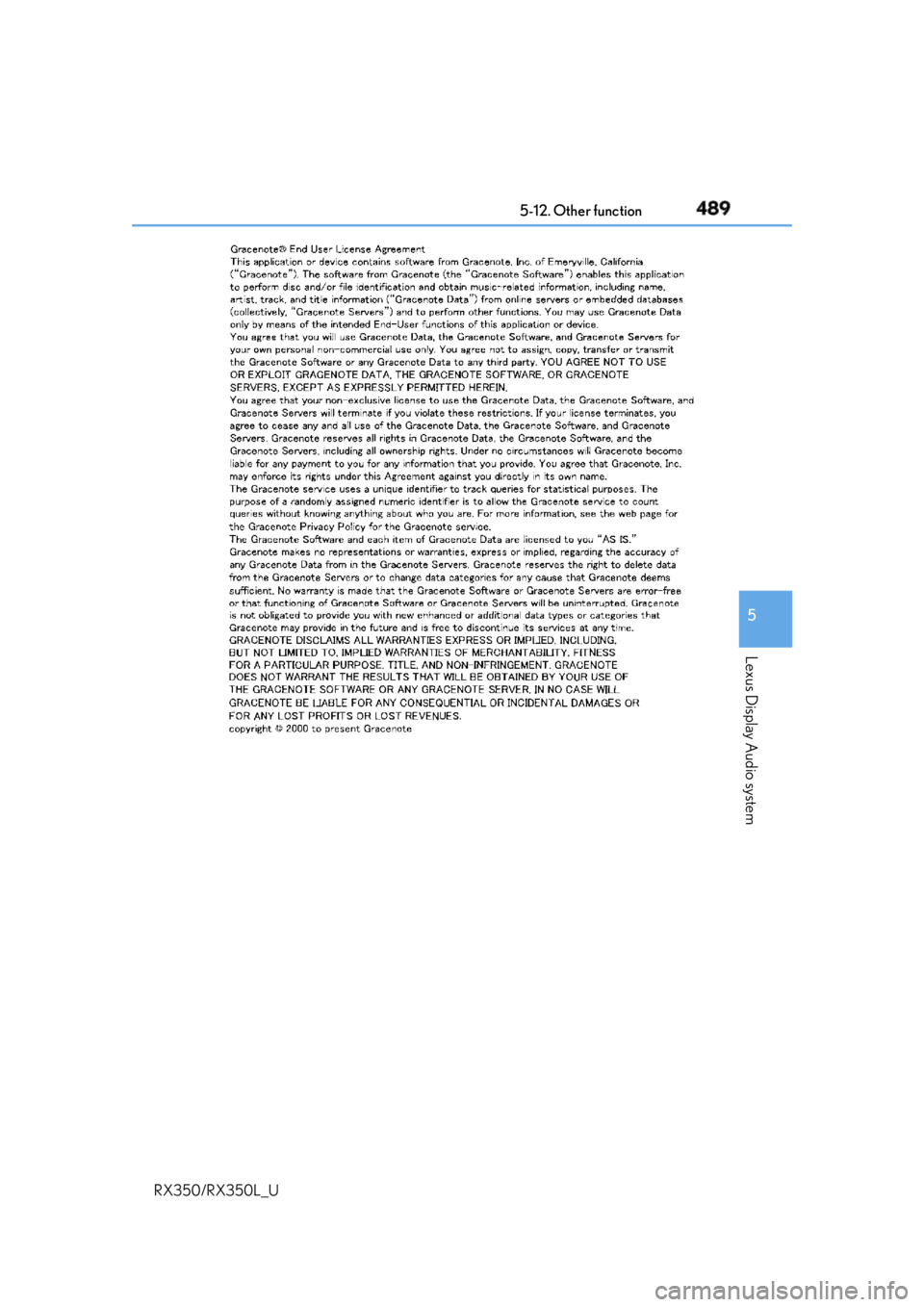

The Gracenote ®
media database

4895-12. Other function
5
Lexus Display Audio system
RX350/RX350L_U
