LEXUS RX350 2019 Owners Manual

590
RX350/RX350L_U 7-3. Do-it-yourself maintenance

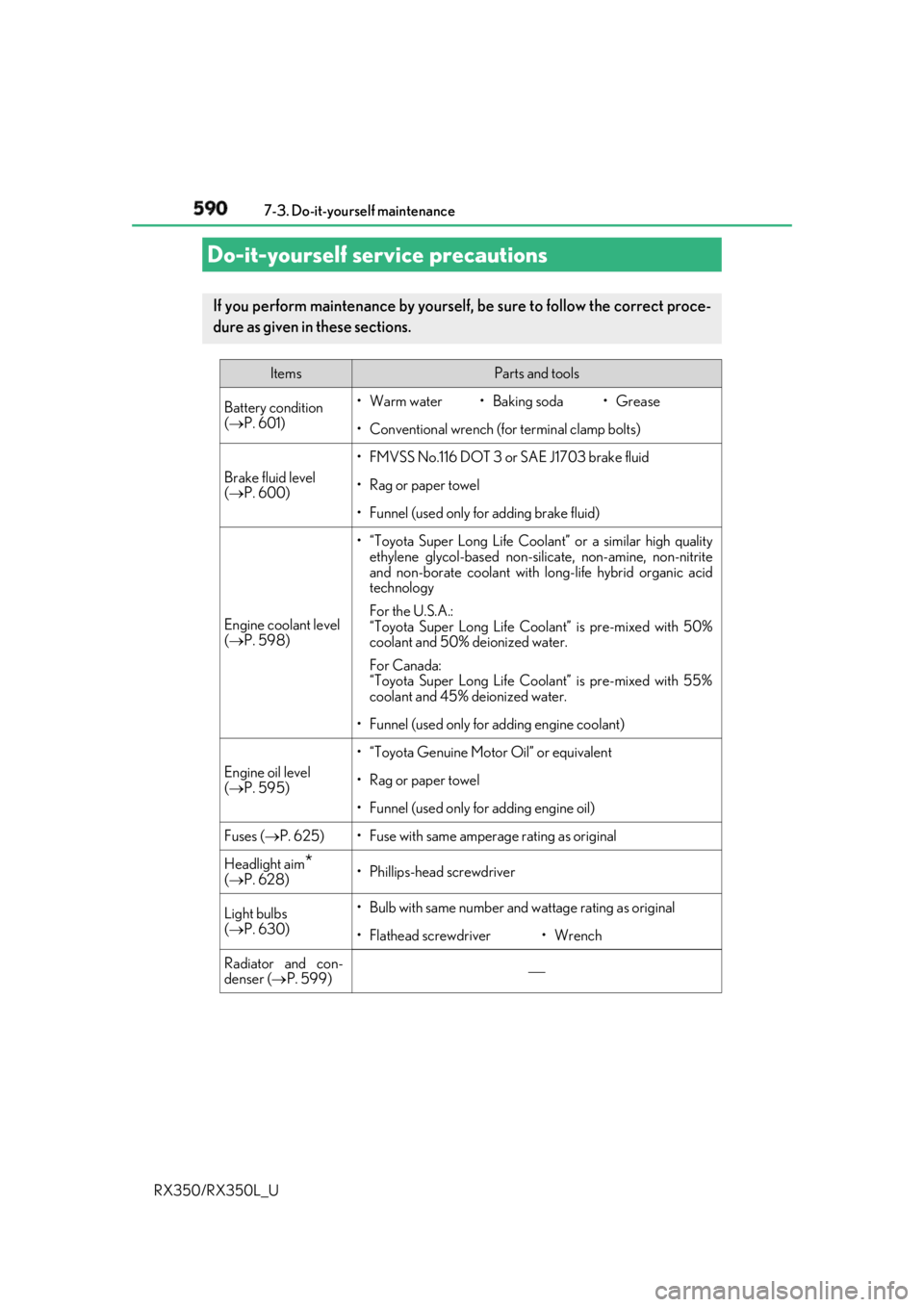

Do-it-yourself service precautions If you perform maintenance by yourself, be sure to follow the correct proce-
dure as given in these sections. Items Parts and tools
Battery condition
(  P. 601) •Warm water • Baking soda •Grease
• Conventional wrench (for terminal clamp bolts)
Brake fluid level
(  P. 600) • FMVSS No.116 DOT 3 or SAE J1703 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine coolant level
(  P. 598) • “Toyota Super Long Life Coolan t” or a similar high quality
ethylene glycol-based non-silicate, non-amine, non-nitrite
and non-borate coolant with long-life hybrid organic acid
technology
For the U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with 50%
coolant and 50% deionized water.
For Canada:
“Toyota Super Long Life Cool ant” is pre-mixed with 55%
coolant and 45% deionized water.
• Funnel (used only for adding engine coolant)
Engine oil level
(  P. 595) • “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (  P. 625) • Fuse with same amperage rating as original
Headlight aim
*(  P. 628) • Phillips-head screwdriver
Light bulbs
(  P. 630) • Bulb with same number and wattage rating as original
• Flathead screwdriver •Wrench
Radiator and con-
denser (  P. 599) 

5917-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX350L_U * : Vehicles with single-beam headlightsTire inflation pres-
sure (  P. 613) • Tire pressure gauge • Compressed air source
Washer fluid
(  P. 603) • Water or washer fluid containing antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)
WARNING
The engine compartment contains many mechan isms and fluids that may move suddenly,
become hot, or become electrically energize d. To avoid death or serious injury, observe
the following precautions. ■
When working on the engine compartment ●
Keep hands, clothing and tools away from the moving fan and engine drive belt.●
Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driving
as they may be hot. Oil and other fluids may also be hot. ●
Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment. ●
Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel and
battery fumes are flammable. ●
Be extremely cautions when working on the battery. It contains poisonous and corro-
sive sulfuric acid. ■
When working near the electric cooling fans or radiator grille
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fans may auto-
matically start to run if the air conditioning is on and/or the coolant temperature is high.
(  P. 599) ■
Safety glasses
Wear safety glasses to prevent flying or falling material, flui d spray, etc. from getting in
your eyes.
NOTICE ■
If you remove the air cleaner filter
Driving with the air cleaner f ilter removed may cause excessive engine wear due to dirt
in the air. Items Parts and tools

592 7-3. Do-it-yourself maintenance
RX350/RX350L_U Pull the hood lock release lever. The hood will pop up slightly.
Pull up the auxiliary catch lever and
lift the hood.Hood Release the lock from the inside of the vehicle to open the hood.1
2
WARNING ■
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may op en while the vehicle is in motion and cause
an accident, which may result in death or serious injury.

5937-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX350L_U ◆ Front
◆ RearPositioning a floor jack When using a floor jack, follow the inst ructions in the manual provided with
the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.

594 7-3. Do-it-yourself maintenance
RX350/RX350L_UEngine compartment
Washer fluid tank (  P. 603)
Engine oil filler cap (  P. 596)
Engine oil level dipstick
(  P. 595)
Engine coolant reservoir
(  P. 598) Battery (  P. 601)
Brake fluid reservoir (  P. 600)
Fuse box (  P. 625)
Radiator (  P. 599)
Condenser (  P. 599)
Electric cooling fans1
2
3
4 5
6
7
8
9
10

5957-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX350L_U With the engine at operating temperatur e and turned off, check the oil level on
the dipstick. ■
Checking the engine oil
Park the vehicle on level ground. Afte r warming up the engine and turning
off the engine, wait more than 5 minutes for the oil to drain back into the
bottom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull
the dipstick out and check the oil
level.
Low
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Wipe the dipstick and reinsert it fully.Engine oil 1
2
3
4
5
1
2
3
6

596 7-3. Do-it-yourself maintenance
RX350/RX350L_U ■
Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of the
same type as that already in the
engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.■
Engine oil consumption
A certain amount of engine oil will be consumed while driving. In th e following situations,
oil consumption may increase, and engine oil may need to be refilled in between oil
maintenance intervals. ●
When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine ●
If low quality oil or oil of an inappropriate viscosity is used●
When driving at high engine speeds or with a heavy load, when towing, or when driving
while accelerating or decelerating frequently ●
When leaving the engine idling for a long time, or when drivin g frequently through
heavy trafficEngine oil selection  P. 701
Oil quantity (Low  Full) 1.9 qt. (1.8 L, 1.6 Imp. qt.)
Items Clean funnel1
2
3

5977-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX350L_U ■
After changing the engine oil
The engine oil maintenance data should be reset. Perform the following procedures:
Select on the multi-information display. (  P. 97)
Press or of the meter control switch, select the “Vehicle Settings” then “Oil
Maintenance”. (To conf irm setting, press .)
Select the “Yes” and push .
A message is displayed on th e multi-information display.
WARNING ■
Used engine oil ●
Used engine oil contains potentially harm ful contaminants which may cause skin dis-
orders such as inflammation and skin cance r, so care should be taken to avoid pro-
longed and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water. ●
Dispose of used oil and filters only in a sa fe and acceptable manner. Do not dispose of
used oil and filters in household trash, in sewers or onto the ground. Call your Lexus
dealer, service station or auto parts store for information concerning recycling or dis-
posal. ●
Do not leave used engine oil within the reac h of children.
NOTICE ■
To prevent serious engine damage
Check the oil level on a regular basis. ■
When replacing the engine oil ●
Be careful not to spill engine oil on the vehicle components.●
Avoid overfilling, or the engine could be damaged. ●
Check the oil level on the dipstick every time you refill the vehicle.●
Be sure the engine oil fille r cap is properly tightened. 1
2
3
4

598 7-3. Do-it-yourself maintenance
RX350/RX350L_U The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on
the reservoir when the engine is cold.
Reservoir cap
“FULL” line
“LOW” line If the level is on or below the “LOW”
line, add coolant up to the “FULL” line.
(  P. 692)■
Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high qu ality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mixt ure of 50% coolant and 50% deionized water.
(Minimum temperature: -31  F [-35  C])
Canada:
“Toyota Super Long Life Cool ant” is a mixture of 55% coolant and 45% deionized water.
(Minimum temperature: -44  F [-42  C])
For more details about coolant, contact your Lexus dealer.■
If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir cap, drain cock and water
pump.
If you cannot find a leak, have your Lexus de aler test the cap and check for leaks in the
cooling system.Coolant 1
2
3
WARNING ■
When the engine is hot
Do not remove the engine coolan t reservoir cap and radiator cap.
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.

5997-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX350L_U Check the radiator and condenser an d clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of their condi-
tion, have your vehicle inspected by your Lexus dealer. NOTICE ■
When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water and
antifreeze must be used to provide proper lubrication, corrosion protection and cool-
ing. Be sure to read the antifreeze or coolant label.■
If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
Radiator and condenser WARNING ■
When the engine is hot
Do not touch the radiator or condenser as they may be hot and cause serious injuries,
such as burns.
