LEXUS RX350 2019 Owners Manual

610 7-3. Do-it-yourself maintenance
RX350/RX350L_U ■
Warning performance of the tire pressure warning system
The warning of the tire pressu re warning system will change in accordance with the con-
ditions under which it was init ialized. For this reason, the sy stem may give a warning even
if the tire pressure does not reach a low enough level, or if the pressu re is higher than the
pressure that was adjusted to when the system was initialized. ■
When initialization of the tire pressure warning system has failed
Initialization may take longer to complete if the vehicle is driven on an unpaved road.
When performing initialization, drive on a pa ved road if possible. Depending on the driv-
ing environment and condition of the tires, initialization wi ll be completed in approxi-
mately 10 to 30 minutes. If initialization is not complete after driving approximately 10 to
30 minutes, continue driving for a while.
If the inflation pressure of each tire is not displayed after driving fo r approximately 1 hour,
perform the following procedure. ●
Park the vehicle in a safe place for approxim ately 20 minutes. Then drive straight (with
occasional left and right turns) at appr oximately 25 mph (40 km/h) or more for
approximately 10 to 30 minutes.
However, in the following situations, the tire inflation pressure will not be recorded and
the system will not operate proper ly. Perform initialization again.●
When operating the tire pres sure warning reset switch, th e tire pressure warning light
does not blink 3 times. ●
After performing initia lization, the tire pressure warning light blinks for 1 minute then
stays on while driving.
If the inflation pressure of ea ch tire is still not displayed, have the vehicle inspected by
your Lexus dealer.

6117-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX350L_U ■

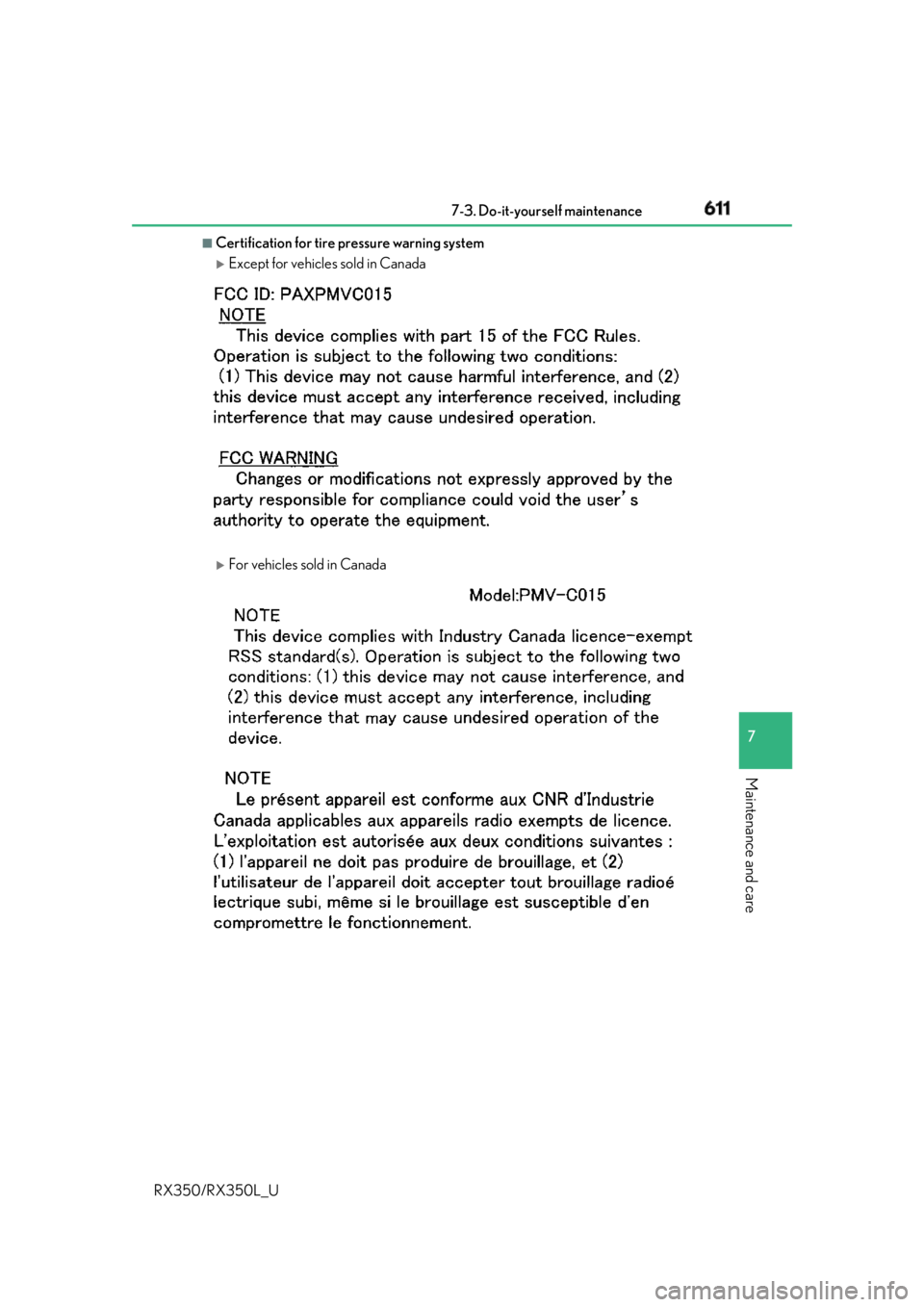

Certification for tire pressure warning system
Except for vehicles sold in Canada 
For vehicles sold in Canada

612 7-3. Do-it-yourself maintenance
RX350/RX350L_U WARNING ■
When inspecting or replacing tires
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to parts of the drive train as well as dangerous han-
dling characteristics, which may lead to an accident resu lting in death or serious injury.●
Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear. ●
Do not use tire sizes other than those recommended by Lexus. ●
Do not mix differently constructed tires (radial, bias-belted or bias-ply tires). ●
Do not mix summer, all season and snow tires. ●
Do not use tires that have be en used on another vehicle.
Do not use tires if you do not know how they were used previously. ●
Do not tow if your vehicle has a compact spare tire installed. ■
When initializing the tire pressure warning system
Do not initializing tire inflatio n pressure without first adjusting the tire inflation pressure
to the specified level. Otherwise, the tire pressure warning light may not come on even
if the tire inflation pressure is low, or it may come on when the tire inflation pressure is
actually normal.
NOTICE ■
Repairing or replacing tires, wheels, tire pressure warning valv es, transmitters and
tire valve caps ●
When removing or fitting the wheels, tires or the tire pressure warning valves and
transmitters, contact your Lexus dealer as the tire pressure warning valves and trans-
mitters may be damaged if not handled correctly. ●
Make sure to install the tire valve caps. If the tire valve caps ar e not installed, water
could enter the tire pressure warning valves and the tire pressure warning valves
could be bound. ●
When replacing tire valve caps, do not use tire valve caps other than those specified.
The cap may become stuck. ■
To avoid damage to the tire pressu re warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve and trans-
mitter may not operate properly. If a liquid sealant is used, contact your Lexus dealer or
other qualified service shop as soon as possi ble. Make sure to replace the tire pressure
warning valve and transmitter when replacing the tire. (  P. 605)■
Driving on rough roads
Take particular care when driving on roads with loose surfaces or potholes.
These conditions may cause lo sses in tire inflation pre ssure, reducing the cushioning
ability of the tires. In addition, driving on rough roads may cause damage to the tires
themselves, as well as the vehicle’s wheels and body. ■
If tire inflation pressure of ea ch tire becomes low while driving
Do not continue driving, or your tires and/or wheels may be ruined.

6137-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX350L_U The recommended cold tire inflation
pressure and tire size are displayed on
the tire and loading information label.
(  P. 704)
Tire inflation pressure Tire inflation pressure

614 7-3. Do-it-yourself maintenance
RX350/RX350L_U Tire valve
Tire pressure gauge
Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the gauge gradations.
If the tire inflation pressure is not at the recommended level, adjust the pres-
sure.
If you add too much air, press the center of the valve to deflate.
After completing the tire inflation pressure measuremen t and adjustment,
apply soapy water to the valve and check for leakage.
Put the tire valve cap back on. ■
Tire inflation pressure check interval
You should check tire inflation pressure ev ery two weeks, or at least once a month.
Do not forget to check the spare. ■
Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:●
Reduced fuel economy ●
Reduced driving comfort and poor handling ●
Reduced tire life due to wear ●
Reduced safety ●
Damage to the drive train
If a tire needs frequent inflating, ha ve it checked by your Lexus dealer.Inspection and adjustment procedure 1
2
1
2
3
4
5
6

6157-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX350L_U ■
Instructions for checking tire inflation pressure
When checking tire in flation pressure, ob serve the following:●
Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been driven for more than
1 mile or 1.5 km, you will get an accurate cold tire inflation pressure reading. ●
Always use a tire pressure gauge.
It is difficult to judge if a tire is properly inflated based only on its appearance. ●
It is normal for the tire inflat ion pressure to be higher after driving as heat is generated
in the tire. Do not reduce tire inflation pressure after driving.●
Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is balanced.
WARNING ■
Proper inflation is critical to save tire performance
Keep your tires properly inflated.
If the tires are not properly inflated, the following conditions may occur which could
lead to an accident resultin g in death or serious injury:●
Excessive wear ●
Uneven wear ●
Poor handling ●
Possibility of blowouts resu lting from overheated tires●
Air leaking from between tire and wheel ●
Wheel deformation and/or tire damage ●
Greater possibility of tire damage while driving (due to road hazards, expansion
joints, sharp edges on the road, etc.)
NOTICE ■
When inspecting and adjust ing tire inflation pressure
Be sure to put the tire valve caps back on.
If a valve cap is not installed, dirt or moisture may get into the valve and cause an air
leak, resulting in decreased tire inflation pressure.

616 7-3. Do-it-yourself maintenance
RX350/RX350L_U When replacing wheels, care should be ta ken to ensure that they are equivalent
to those removed in load capacity, diameter, rim width and inset
* .
Replacement wheels are available at your Lexus dealer.
* : Conventionally referre d to as “offset”.
Lexus does not recommend using the following:●
Wheels of different sizes or types ●
Used wheels ●
Bent wheels that have been straightened ●
Use only Lexus wheel nuts and wrenches designed for use with your alumi-
num wheels. ●
When rotating, repairing or changing your tires, check that the wheel nuts are
still tight after driving 1000 miles (1600 km). ●
Be careful not to damage the aluminum wheels when using tire chains. ●
Use only Lexus genuine balance weights or equivalent and a plastic or rubber
hammer when balancing your wheels. ■
When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning valves and transmit-
ters that allow the tire pressure warning system to provide advance warning in the event
of a loss in tire inflation pressure. Whenever wheels are replaced, tire pressure warning
valves and transmitters must be installed. (  P. 605)Wheels If a wheel is bent, cracked or heavily corroded, it should be replaced. Other-
wise, the tire may separate from the wheel or cause a loss of handling control.
Wheel selection
Aluminum wheel precautions

6177-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX350L_U WARNING ■
When replacing wheels ●
Do not use wheels that are a different size from those recommended in the Owner’s
Manual, as this may result in a loss of handling control. ●
Never use an inner tube in a leaking wheel which is designed for a tubeless tire. Doing
so may result in an accident, causing death or serious injury. ■
Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air du ring driving, possibly causing an accident.
NOTICE ■
Replacing tire pressure warn ing valves and transmitters●
Because tire repair or replacement may affe ct the tire pressure warning valves and
transmitters, make sure to have tires serviced by your Lexus dealer or other qualified
service shop. In addition, ma ke sure to purchase your tire pressure warning valves
and transmitters at your Lexus dealer. ●
Ensure that only genuine Lexus wh eels are used on your vehicle.
Tire pressure warning valves and transmitte rs may not work properly with non-genu-
ine wheels. ■
Selectable Color Trim (if equipped) ●
If rattles, noise, or ot her problems occur while
Selectable Color Trim are installed, contact
your Lexus dealer. ●
Do not remove or install Selectable Color
Trim yourself, as it may be damaged. Have the
Selectable Color Trim removed and installed
by your Lexus dealer.

618 7-3. Do-it-yourself maintenance
RX350/RX350L_U Turn the engine switch off.
Open the glove box. Slide off the
damper.
Push in the glove box on the vehicle’s
outer side to disconnect the claws.
Then pull out the glove box and dis-
connect the lower claws.
Remove the cover.Air conditioning filter The air conditioning filter must be ch anged regularly to maintain air condi-
tioning efficiency.
Removal method 1
2
3
4

6197-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX350L_U Remove the filter cover.
Unlock the filter cover.
Move the filter cover in the direc-
tion of the arrow, and then pull it
out of the claws.
Remove the filter case. There may be foreign objects on top of
the air conditioning filter.
Remove the air conditioning filter
from the filter case and replace it
with a new one. The “  UP” marks shown on the filter
and the filter case sh ould be pointing up.
■
Checking interval
Inspect and replace the air cond itioning filter according to the maintenance schedule. In
dusty areas or areas with heavy traffic fl ow, early replacement may be required. (For
scheduled maintenance informat ion, please refer to the “Owner’s Manual Supplement”
or “Scheduled Maintenance”.) ■
If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary. ■
Air conditioning filter with deodorizing function
When fragrances are placed in your vehicle, the deodorizing effect may become signifi-
cantly weakened in a short period.
When an air conditioning odor comes out cont inuously, replace the air conditioning filter.5
1
2
6
7
