690 8-2. Steps to take in an emergency
RX350/RX350L_U WARNING ■
When removing the battery terminals
Always remove the negative (-) terminal first. If the positive (+) terminal contacts any
metal in the surrounding area when the posi tive (+) terminal is removed, a spark may
occur, leading to a fire in addition to el ectrical shocks and de ath or serious injury.■
Avoiding battery fires or explosions
Observe the following precautions to preven t accidentally igniting the flammable gas
that may be emitted from the battery: ●
Make sure each jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any other than the intended terminal.●
Do not allow the other end of the jumper cab le connected to the “+” terminal to come
into contact with any other parts or metal surfaces in the area, such as brackets or
unpainted metal. ●
Do not allow the + and - clamps of the jump er cables to come in to contact with each
other. ●
Do not smoke, use matches, cigarette lighters or allow open flame near the battery. ■
Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while related parts
contain lead and lead compounds. Observ e the following precautions when handling
the battery: ●
When working with the battery, always wear safety glasses and take care not to allow
any battery fluids (acid) to come into cont act with skin, clothing or the vehicle body.●
Do not lean over the battery. ●
In the event that battery fluid comes into contact with the skin or eyes, immediately
wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received. ●
Always wash your hands afte r handling the battery support, terminals, and other bat-
tery-related parts. ●
Do not allow childre n near the battery.

6918-2. Steps to take in an emergency
8
When trouble arises
RX350/RX350L_U WARNING ■
When replacing the battery ●
When the vent plug and indicator are close to the hold down clamp, the battery fluid
(sulfuric acid) may leak. ●
For information regarding battery repl acement, contact your Lexus dealer.
NOTICE ■
When handling jumper cables
When connecting the jumper cables, ensure that they do not become entangled in the
cooling fans or engine drive belt.

692 8-2. Steps to take in an emergency
RX350/RX350L_U Stop the vehicle in a safe place and tu rn off the air conditioning system, and
then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down
sufficiently, insp ect the hoses and
radiator core (radiator) for any
leaks.
Radiator
Cooling fans If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
The coolant level is satisfactory if it is
between the “FULL” and “LOW”
lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
Radiator capIf your vehicle overheats The following may indicate that your vehicle is overheating. ●
The needle of the engine coolant temperature gauge (  P. 86) enters the
red zone, or a loss of engine power is experienced. (For example, the vehi-
cle speed does not increase.) ●
“Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” is
shown on the multi-information display. ●
Steam comes out from under the hood.
Correction procedures 1
2
3
1
2
4
1
2
3
4

6938-2. Steps to take in an emergency
8
When trouble arises
RX350/RX350L_U Add coolant if necessary. Water can be used in an emergency if
coolant is unavailable.
Start the engine and turn the air conditio ning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses. The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air flow.
If it is difficult to check these, turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately an d contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
Check if “Engine Coolant Temp High St op in a Safe Place See Owner’s Man-
ual” is shown on the multi-information display.
If the message does not disappear:
Stop the engine and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer. 5
6
7
8

694 8-2. Steps to take in an emergency
RX350/RX350L_U WARNING ■
To prevent an accident or injury when inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.●
If steam is seen coming from under the h ood, do not open the hood until the steam
has subsided. The engine compartment may be very hot. ●
Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and
belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-
ous injury. ●
Do not loosen the radiator cap and the c oolant reservoir cap while the engine and
radiator are hot.
High temperature steam or coolant could spray out.
NOTICE ■
When adding engine coolant
Add coolant slowly after the engine has cool ed down sufficiently. Adding cool coolant
to a hot engine too quickly can cause damage to the engine. ■
To prevent damage to the cooling system
Observe the following precautions: ●
Avoid contaminating the coolant with foreig n matter (such as sand or dust etc.).●
Do not use any coolant additive.

6958-2. Steps to take in an emergency
8
When trouble arises
RX350/RX350L_U Stop the engine. Shift the shift lever to P and set the parking brake.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other materi al under the front wheels to help pro-
vide traction.
Restart the engine.
AWD models: Activate all-wheel drive lock mode. (  P. 377)
Shift the shift lever to D or R and rele ase the parking brake. Then, while exer-
cising caution, depress the accelerator pedal. ■
When it is difficult to free the vehicle
If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRAC. 1
2
3
4
5
6

696 8-2. Steps to take in an emergency
RX350/RX350L_U WARNING ■
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehicl es, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution. ■
When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-
dent resulting in deat h or serious injury.
NOTICE ■
To avoid damage to the tran smission and other components●
Avoid spinning the front wheels and depre ssing the accelerator pedal more than nec-
essary. ●
If the vehicle remains stuck even after th ese procedures are performed, the vehicle
may require towing to be freed. ●
When a warning message for the automatic transmission fluid temperature is dis-
played while attempting to free a stuck vehicle, immediately remove your foot from
the accelerator pedal and wait until the warning message disappears. Otherwise, the
transmission may become damaged. (  P. 662)

697
9Vehicle specifications
RX350/RX350L_U 9-1. Specifications

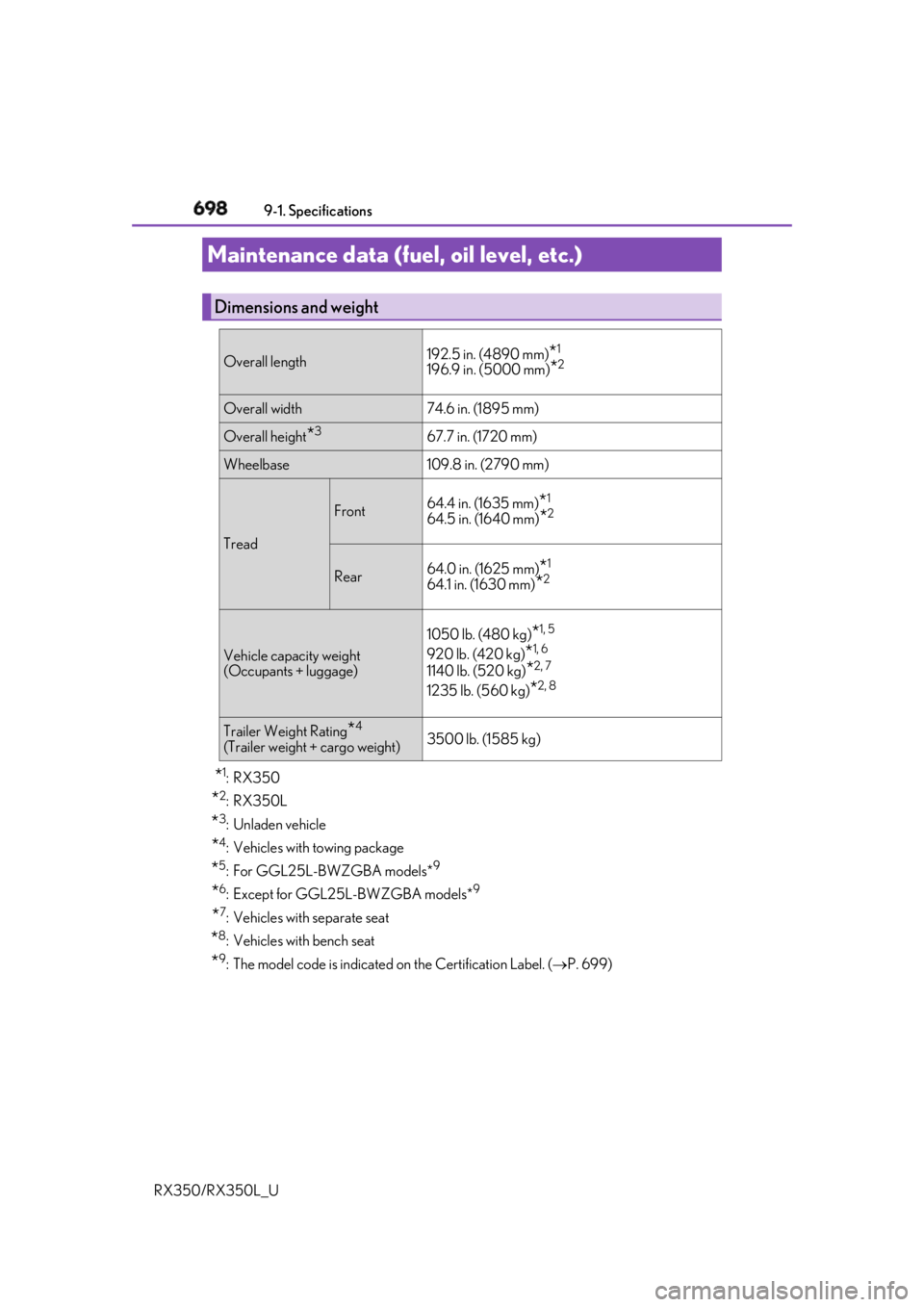

Maintenance data
(fuel, oil level, etc.) ..................698
Fuel information.......................... 706
Tire information .......................... 709
9-2. Customization
Customizable features ............ 722
9-3. Initialization
Items to initialize ......................... 735

698
RX350/RX350L_U 9-1. Specifications
* 1
:RX350
* 2
:RX350L
* 3
:Unladen vehicle
* 4
: Vehicles with towing package
* 5
: For GGL25L-BWZGBA models* 9
* 6
: Except for GGL25L-BWZGBA models* 9
* 7
: Vehicles with separate seat
* 8
: Vehicles with bench seat
* 9
: The model code is indicated on the Certification Label. (  P. 699)Maintenance data (fuel, oil level, etc.) Dimensions and weight Overall length 192.5 in. (4890 mm)
* 1
196.9 in. (5000 mm)
* 2
Overall width 74.6 in. (1895 mm)
Overall height
* 3
67.7 in. (1720 mm)
Wheelbase 109.8 in. (2790 mm)
Tread Front 64.4 in. (1635 mm)
* 1
64.5 in. (1640 mm)
* 2
Rear 64.0 in. (1625 mm)
* 1
64.1 in. (1630 mm)
* 2
Vehicle capacity weight
(Occupants + luggage) 1050 lb. (480 kg)
* 1, 5
920 lb. (420 kg)
* 1, 6
1140 lb. (520 kg)
* 2, 7
1235 lb. (560 kg)
* 2, 8
Trailer Weight Rating
* 4
(Trailer weight + cargo weight) 3500 lb. (1585 kg)

6999-1. Specifications
9
Vehicle specifications
RX350/RX350L_U ■
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.
This number is also on the Certifica-
tion Label.
On some models, this number is also
stamped under the right-hand front
seat.Vehicle identification
