LEXUS RX400H 2008 Owners Manual

229
3-2. Using the front audio system
3
Interior features
RX400h_U■

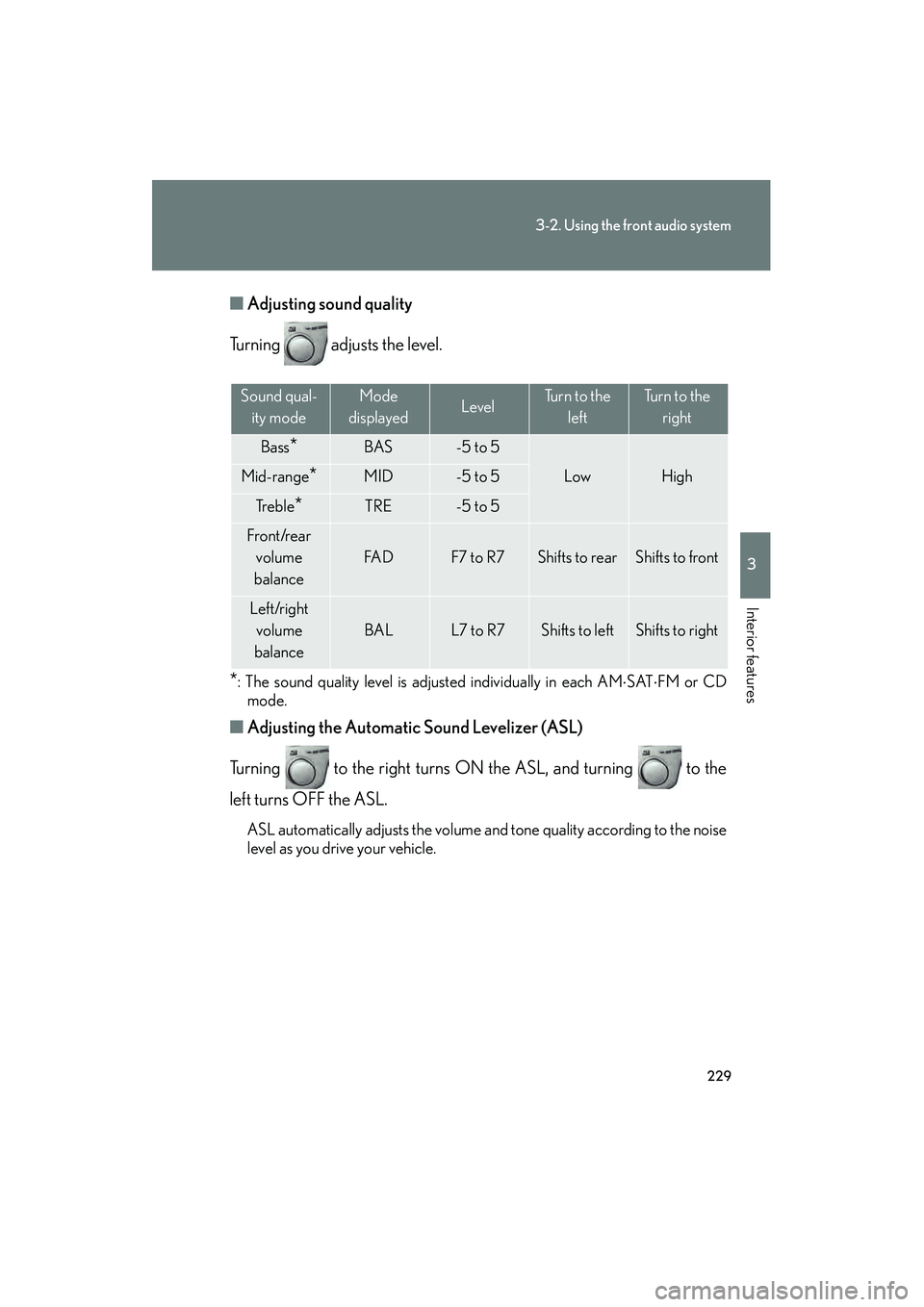

Adjusting sound quality
Turning adjusts the level.
*: The sound quality level is adjusted individually in each AM ⋅SAT ⋅FM or CD
mode.
■ Adjusting the Automatic Sound Levelizer (ASL)
Turning to the right turns ON the ASL, and turning to the
left turns OFF the ASL.
ASL automatically adjusts the volume and tone quality according to the noise
level as you drive your vehicle.
Sound qual- ity modeMode
displayedLevelTurn to the leftTurn to the right
Bass*BAS-5 to 5
LowHighMid-range*MID-5 to 5
Tr e b l e*TRE-5 to 5
Front/rear volume
balance
FA DF7 to R7Shifts to rearShifts to front
Left/right volume
balance
BALL7 to R7Shifts to leftShifts to right

230
3-2. Using the front audio system
RX400h_U■

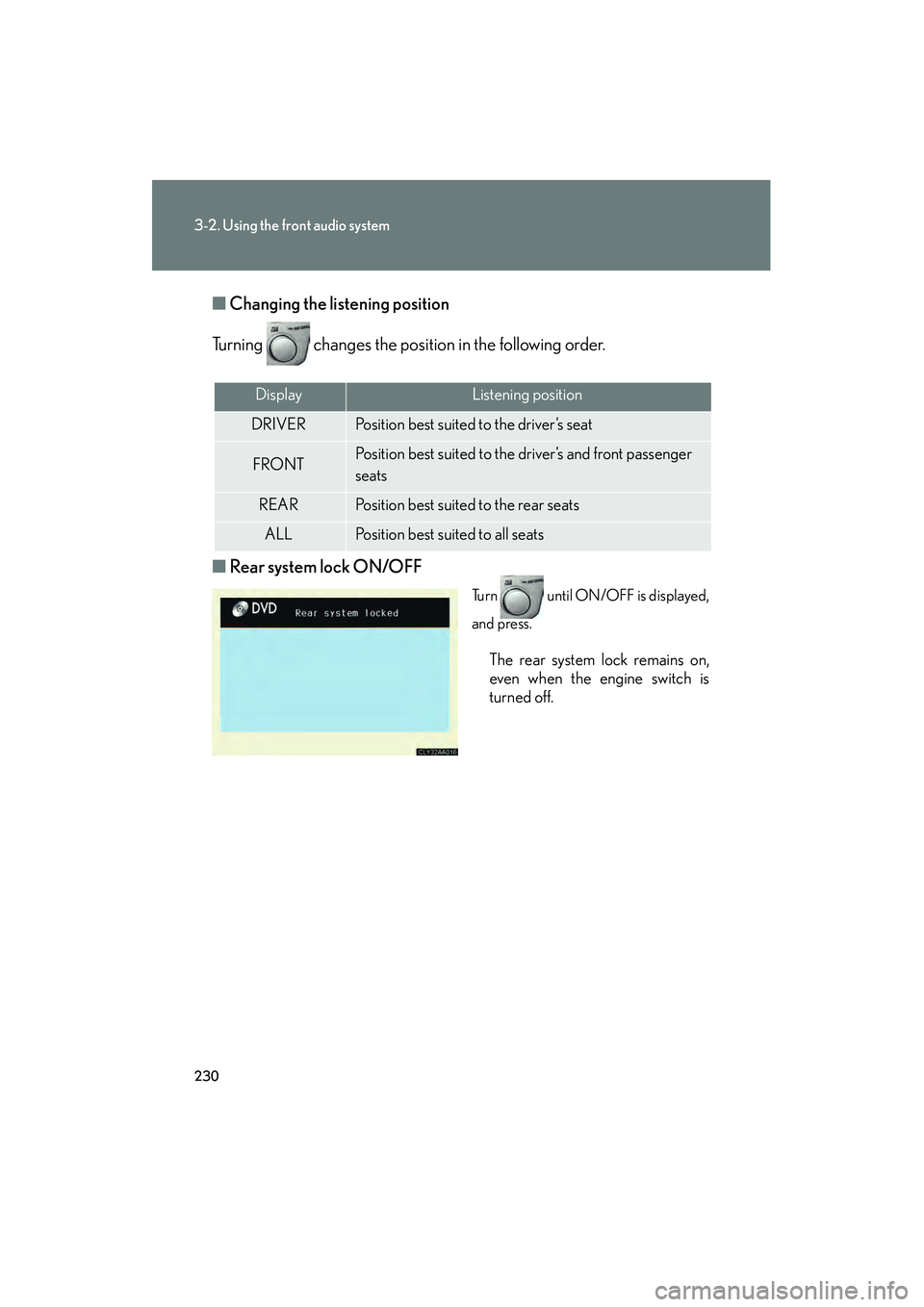

Changing the li stening position
Turning changes the position in the following order.
■ Rear system lock ON/OFF
Turn until ON/OFF is displayed,
and press.
The rear system lock remains on,
even when the engine switch is
turned off.
DisplayListening position
DRIVERPosition best suited to the driver’s seat
FRONTPosition best suited to the driver’s and front passenger
seats
REARPosition best suited to the rear seats
ALLPosition best suited to all seats

231
3-2. Using the front audio system
3
Interior features
RX400h_U

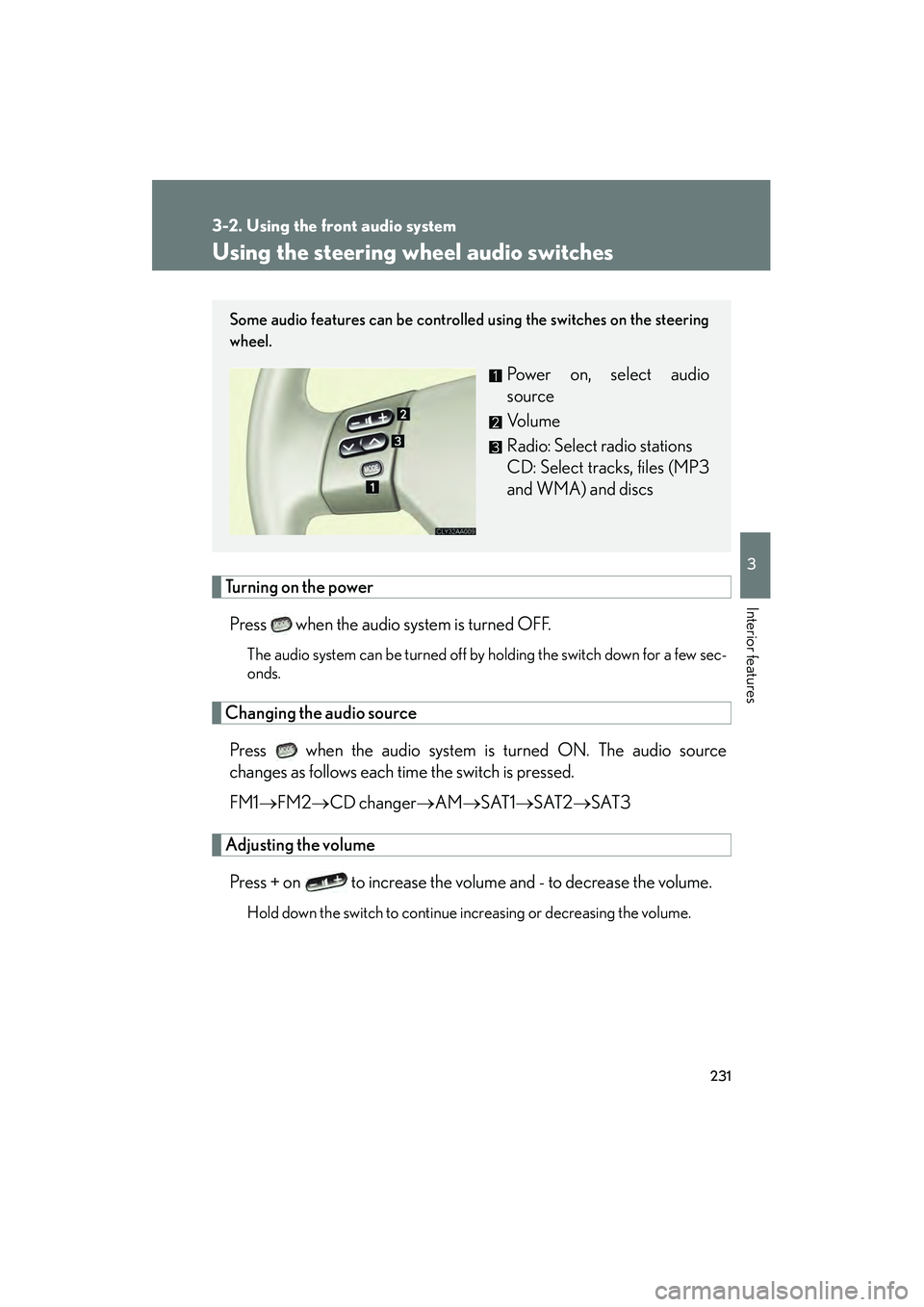

Using the steering wheel audio switches
Turning on the powerPress when the audio system is turned OFF.
The audio system can be turned off by holding the switch down for a few sec-
onds.
Changing the audio sourcePress when the audio system is turned ON. The audio source
changes as follows each time the switch is pressed.
FM1 →FM2 →CD changer →AM→ SAT1→SAT2 →SAT3
Adjusting the volume
Press + on to increase the volume and - to decrease the volume.
Hold down the switch to continue increasing or decreasing the volume.
Some audio features can be controlled using the switches on the steering
wheel.
Power on, select audio
source
Vo l u m e
Radio: Select radio stations
CD: Select tracks, files (MP3
and WMA) and discs

232
3-2. Using the front audio system
RX400h_U

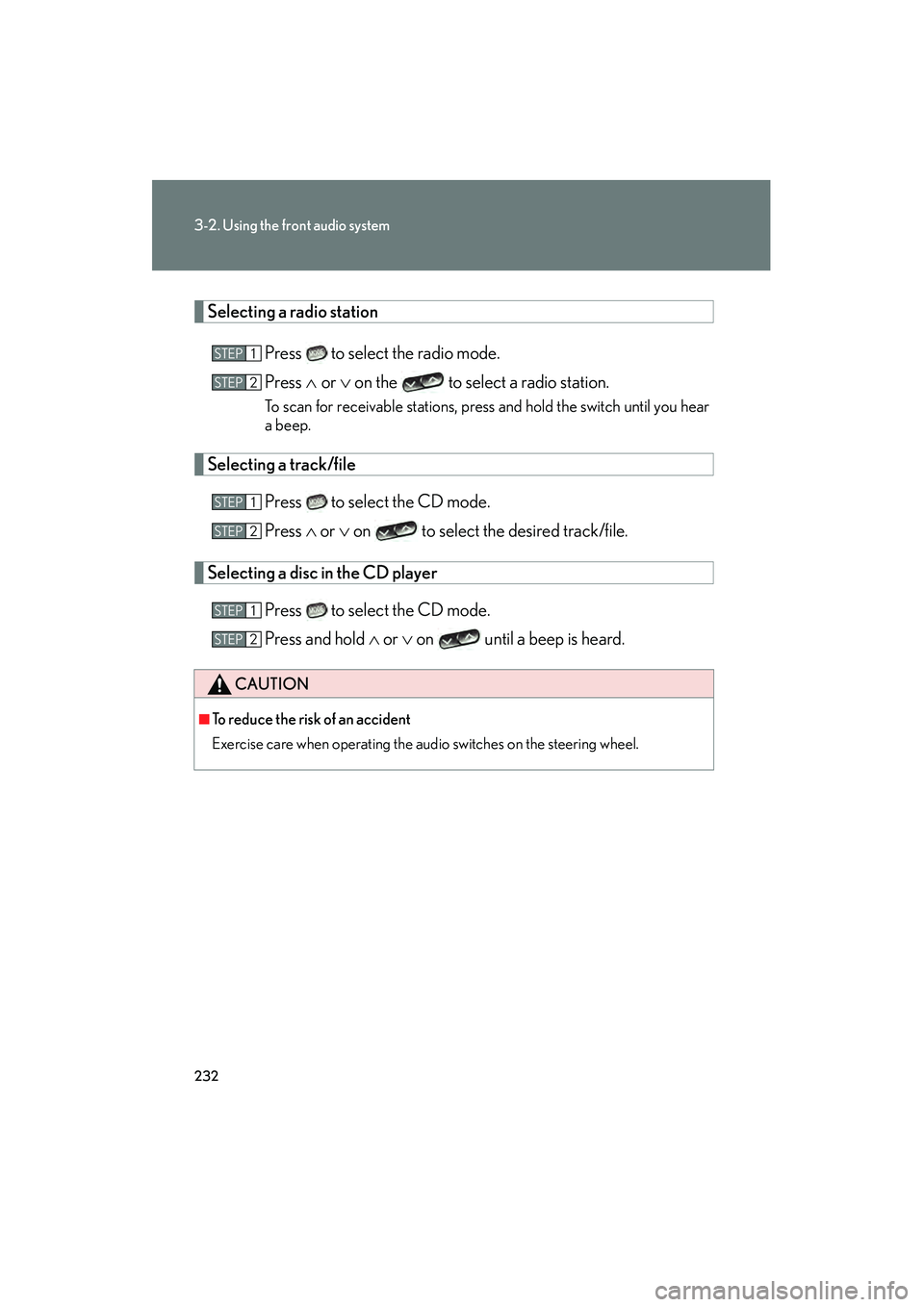

Selecting a radio stationPress to select the radio mode.
Press ∧ or ∨ on the to select a radio station.
To scan for receivable stations, press and hold the switch until you hear
a beep.
Selecting a track/file
Press to select the CD mode.
Press ∧ or ∨ on to select the desired track/file.
Selecting a disc in the CD player
Press to select the CD mode.
Press and hold ∧ or ∨ on until a beep is heard.
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

233
3
Interior features
RX400h_U
3-3. Using the rear audio system
Rear seat entertainment system features (if equipped)
The rear seat entertainment system is designed for the rear passengers to
enjoy audio and DVD video separately from the front audio system.
Front audio system
Display
Headphone volume control dials and headphone jacks
DVD pla yer
A/V input adapter
Power outlet
Rear seat entertainment system controller
Power outlet main switch

234
3-3. Using the rear audio system
RX400h_U
Opening and closing the displayPress the lock release button to
open the display.
Pull the display down to an easily
viewable angle (between 90° and
125° ).
To close the display, press the dis-
play up until a click is heard to
close the display.
The illumination of the screen is
automatically turned off when the
display is closed. However, the rear
seat entertainment system is not
turned off.
Loading a disc
Insert the disc into the slot with the
label side up.
The DISC indicator light turns on
while the disc is loaded.
The player will play the track or
chapter, and will repeat it after it
reaches the end.

235
3-3. Using the rear audio system
3
Interior features
RX400h_U

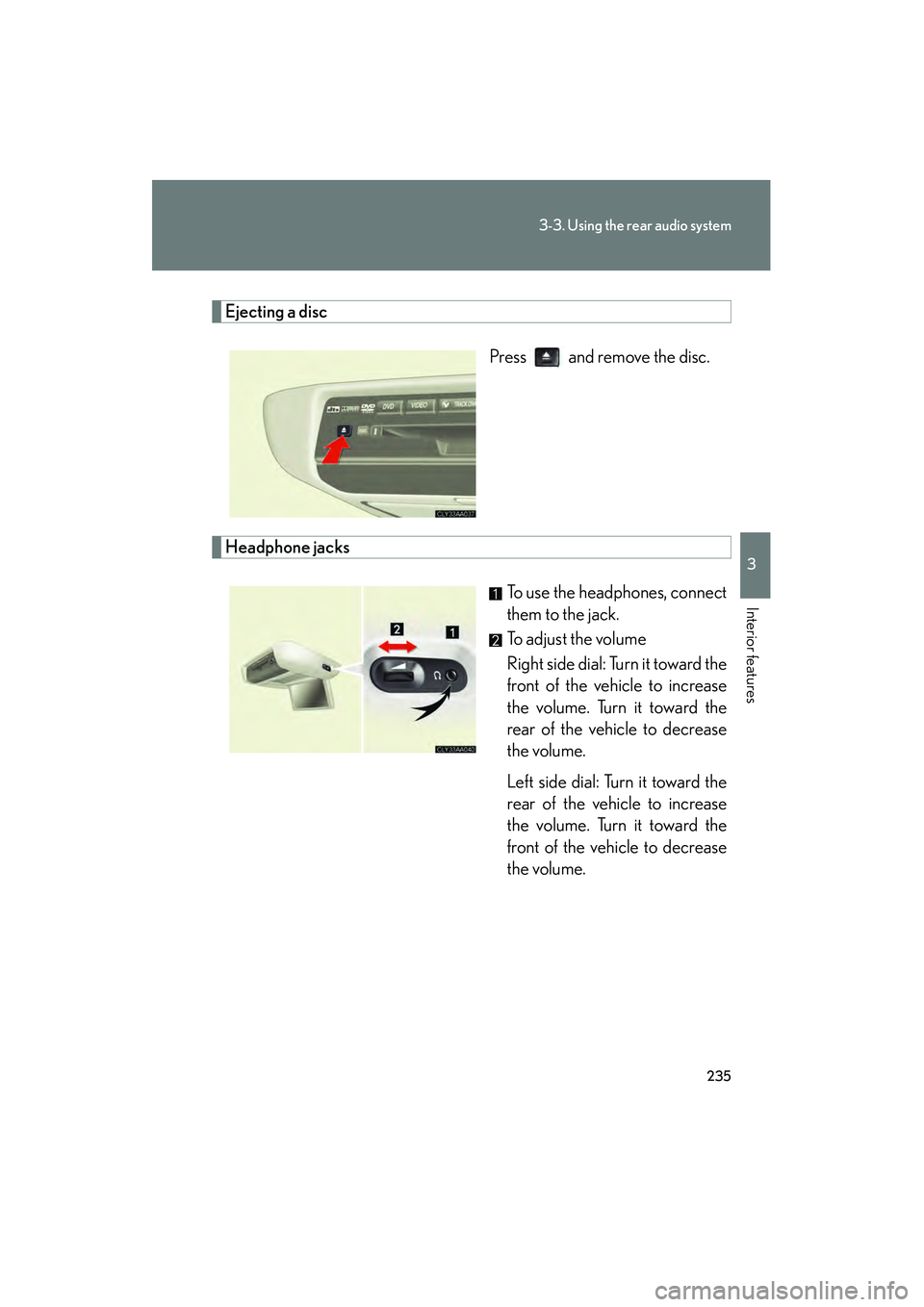

Ejecting a discPress and remove the disc.
Headphone jacks To use the headphones, connect
them to the jack.
To adjust the volume
Right side dial: Turn it toward the
front of the vehicle to increase
the volume. Turn it toward the
rear of the vehicle to decrease
the volume.
Left side dial: Turn it toward the
rear of the vehicle to increase
the volume. Turn it toward the
front of the vehicle to decrease
the volume.

236
3-3. Using the rear audio system
RX400h_U
■The rear seat entertainment system can be used when
The engine switch is in the ACC or ON position.
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.
■When appears on the screen
It indicates that the selected switch cannot work.
■Rear system lock
→P. 2 3 0

237
3-3. Using the rear audio system
3
Interior features
RX400h_U

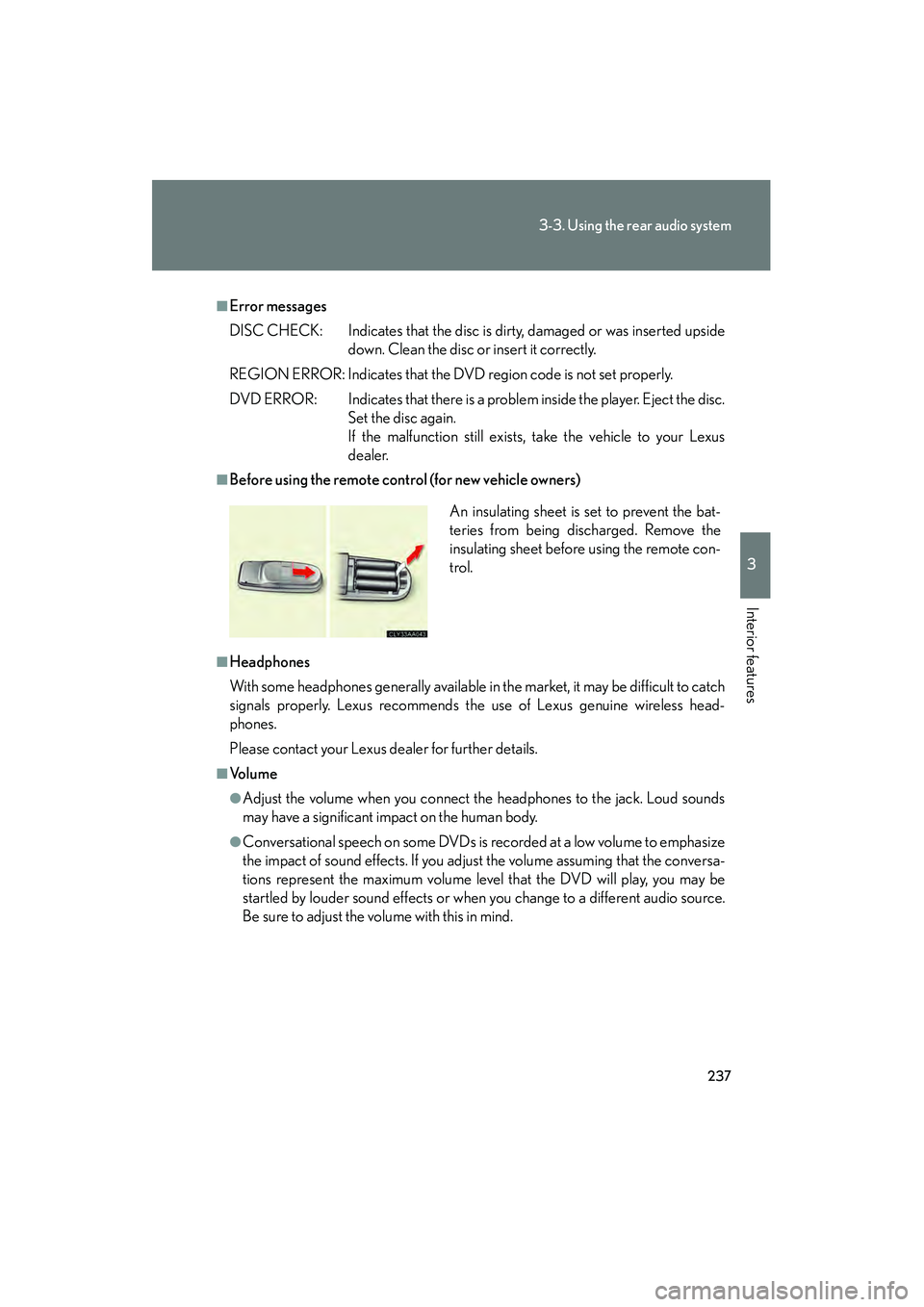

■Error messages
DISC CHECK: Indicates that the disc is dirty, damaged or was inserted upsidedown. Clean the disc or insert it correctly.
REGION ERROR: Indicates that the DVD region code is not set properly.
DVD ERROR: Indicates that there is a problem inside the player. Eject the disc. Set the disc again.
If the malfunction still exists, take the vehicle to your Lexus
dealer.
■Before using the remote control (for new vehicle owners)
■Headphones
With some headphones generally available in the market, it may be difficult to catch
signals properly. Lexus recommends the use of Lexus genuine wireless head-
phones.
Please contact your Lexus dealer for further details.
■Vo l u m e
●Adjust the volume when you connect the headphones to the jack. Loud sounds
may have a significant impact on the human body.
●Conversational speech on some DVDs is recorded at a low volume to emphasize
the impact of sound effects. If you adjust the volume assuming that the conversa-
tions represent the maximum volume level that the DVD will play, you may be
startled by louder sound effects or when you change to a different audio source.
Be sure to adjust the volume with this in mind. An insulating sheet is set to prevent the bat-
teries from being discharged. Remove the
insulating sheet before using the remote con-
trol.

238
3-3. Using the rear audio system
RX400h_U
CAUTION
■While driving
Do not use headphones.
Doing so may cause an accident, resulting in death or serious injury.
■When the rear seat entertainment system is not used
Keep the display closed.
In the event of an accident or sudden braking, the opened display may hit an occu-
pant's body, resulting in injury.
■To prevent accidents and electric shock
Do not disassemble or modify the remote control.
■When the remote control is not used
Stow the remote control.
Injuries may result in the event of an accident or sudden braking.
