259
3-3. Using the rear audio system
3
Interior features
RX400h_U

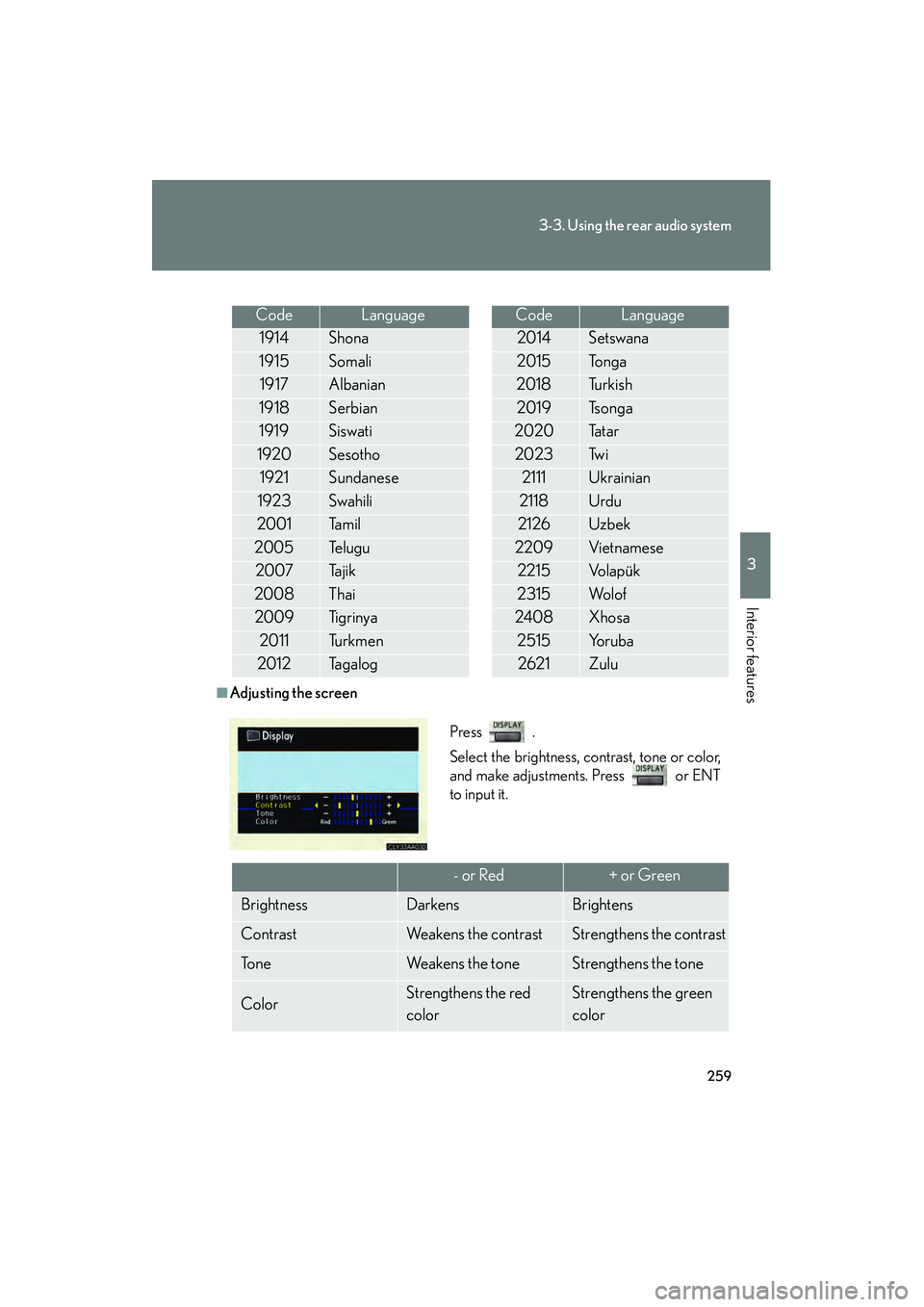

■Adjusting the screen
CodeLanguage
1914Shona
1915Somali
1917Albanian
1918Serbian
1919Siswati
1920Sesotho
1921Sundanese
1923Swahili
2001Ta m i l
2005Te l u g u
2007Ta j i k
2008Thai
2009Ti g r i n y a
2011Tu r k m e n
2012Ta g a l o g
2014Setswana
2015To n g a
2018Tu r k i s h
2019Ts o n g a
2020Ta t a r
2023Tw i
2111Ukrainian
2118Urdu
2126Uzbek
2209Vietnamese
2215Vo l a p ü k
2315Wo l o f
240 8Xhosa
2515Yo r u b a
2621Zulu
CodeLanguage
Press .
Select the brightness, contrast, tone or color,
and make adjustments. Press or ENT
to input it.
- or Red+ or Green
BrightnessDarkensBrightens
ContrastWeakens the contrastStrengthens the contrast
To n eWeakens the toneStrengthens the tone
ColorStrengthens the red
colorStrengthens the green
color

260
RX400h_U

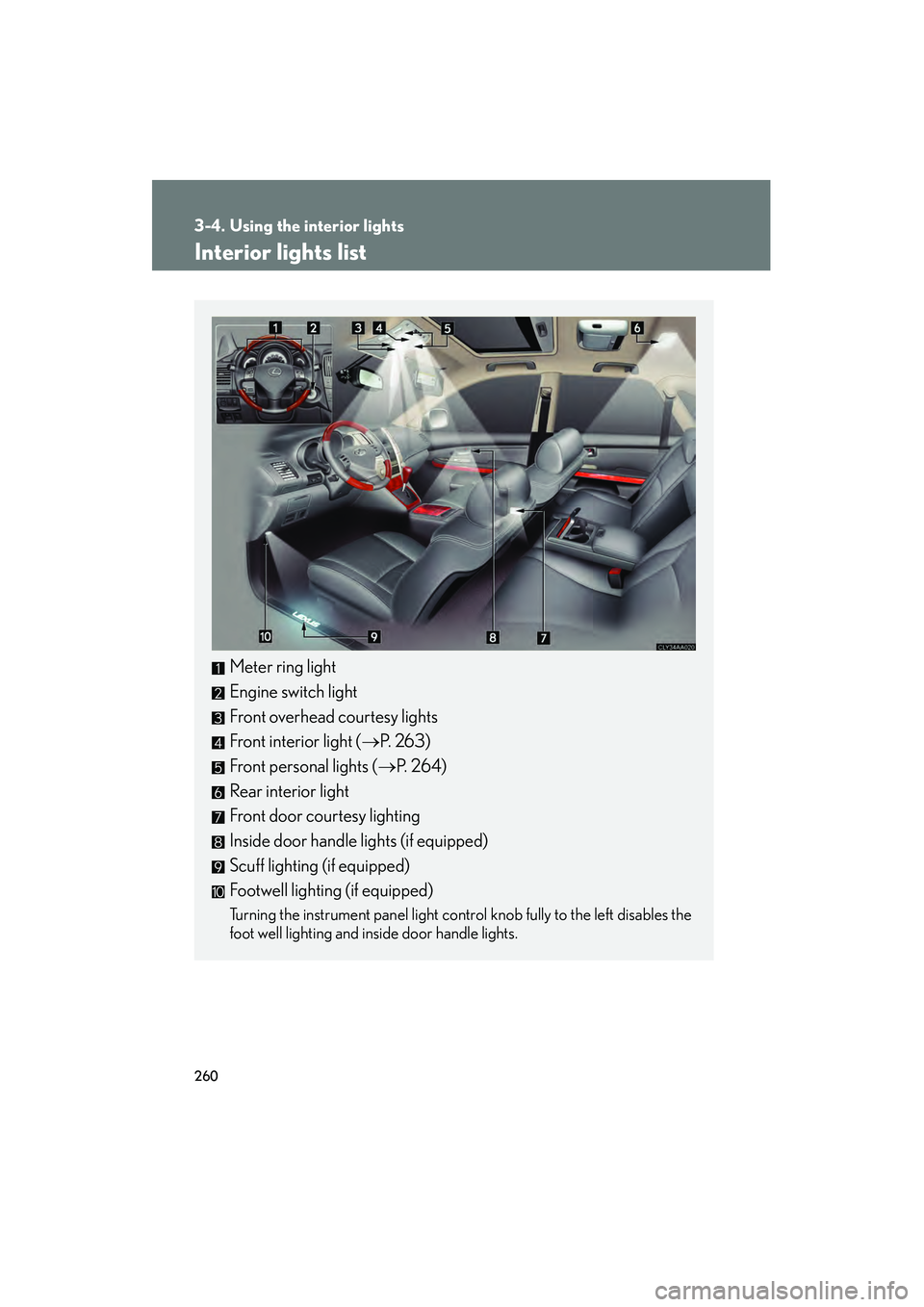

3-4. Using the interior lights
Interior lights list
Meter ring light
Engine switch light
Front overhead courtesy lights
Front interior light (→P. 263)
Front personal lights ( →P. 2 6 4 )
Rear interior light
Front door courtesy lighting
Inside door handle lights (if equipped)
Scuff lighting (if equipped)
Footwell lighting (if equipped)
Turning the instrument panel light control knob fully to the left disables the
foot well lighting and inside door handle lights.

261
3-4. Using the interior lights
3
Interior features
RX400h_U

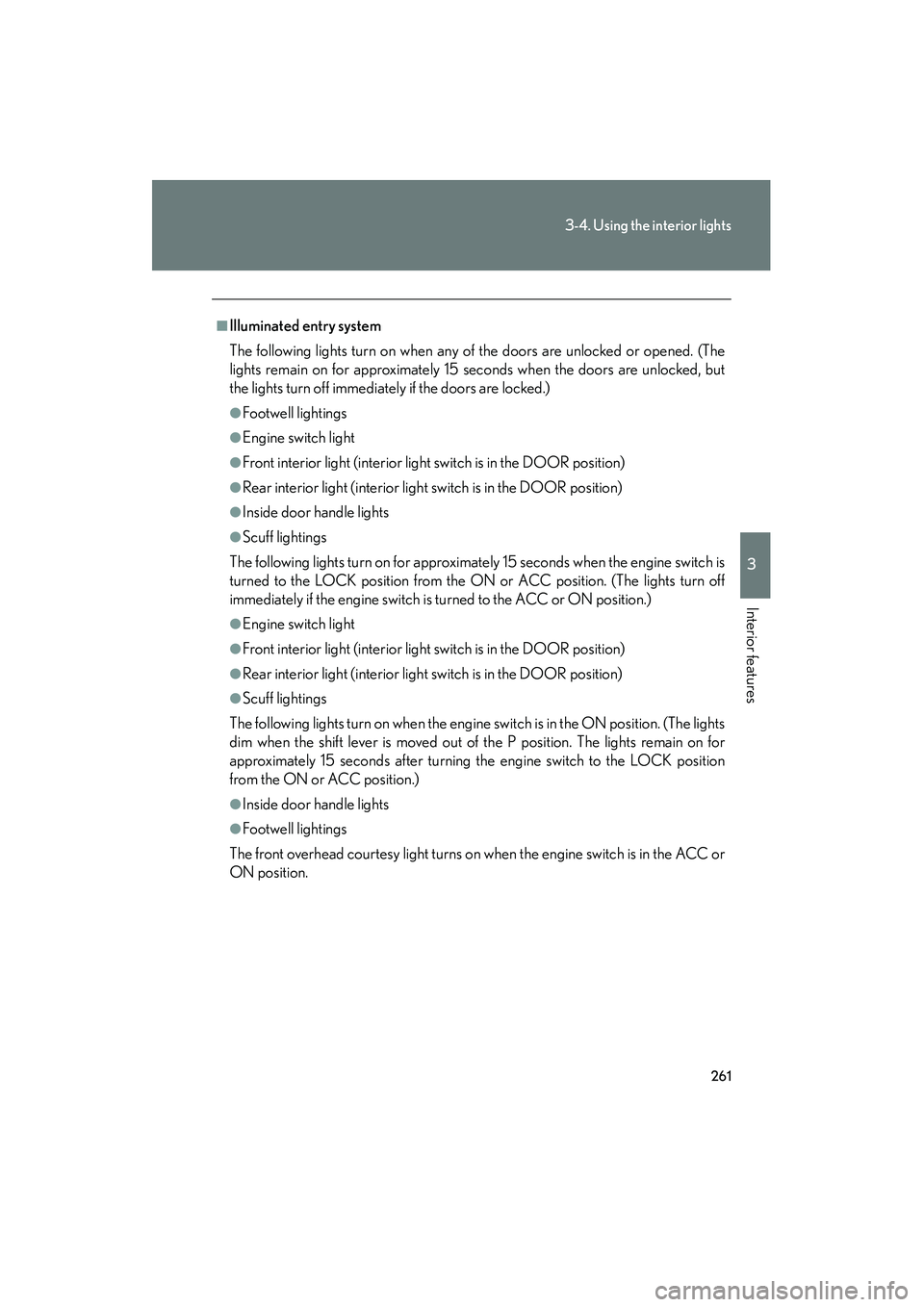

■Illuminated entry system
The following lights turn on when any of the doors are unlocked or opened. (The
lights remain on for approximately 15 seconds when the doors are unlocked, but
the lights turn off immediately if the doors are locked.)
●Footwell lightings
●Engine switch light
●Front interior light (interior light switch is in the DOOR position)
●Rear interior light (interior light switch is in the DOOR position)
●Inside door handle lights
●Scuff lightings
The following lights turn on for approximately 15 seconds when the engine switch is
turned to the LOCK position from the ON or ACC position. (The lights turn off
immediately if the engine switch is turned to the ACC or ON position.)
●Engine switch light
●Front interior light (interior light switch is in the DOOR position)
●Rear interior light (interior light switch is in the DOOR position)
●Scuff lightings
The following lights turn on when the engine switch is in the ON position. (The lights
dim when the shift lever is moved out of the P position. The lights remain on for
approximately 15 seconds after turning the engine switch to the LOCK position
from the ON or ACC position.)
●Inside door handle lights
●Footwell lightings
The front overhead courtesy light turns on when the engine switch is in the ACC or
ON position.

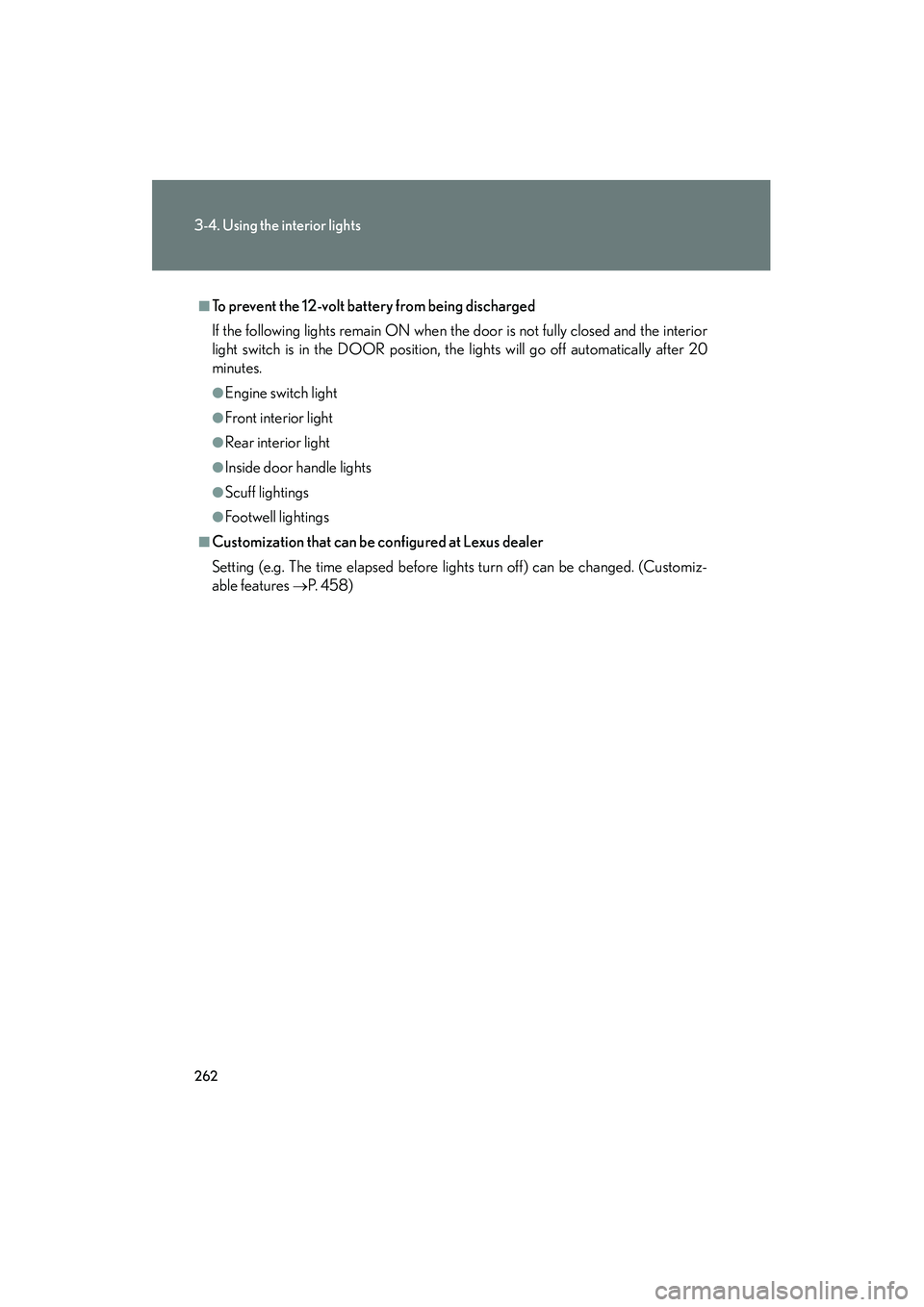

262
3-4. Using the interior lights
RX400h_U
■To prevent the 12-volt battery from being discharged
If the following lights remain ON when the door is not fully closed and the interior
light switch is in the DOOR position, the lights will go off automatically after 20
minutes.
●Engine switch light
●Front interior light
●Rear interior light
●Inside door handle lights
●Scuff lightings
●Footwell lightings
■Customization that can be configured at Lexus dealer
Setting (e.g. The time elapsed before lights turn off) can be changed. (Customiz-
able features
→P. 4 5 8 )

263
3-4. Using the interior lights
3
Interior features
RX400h_U

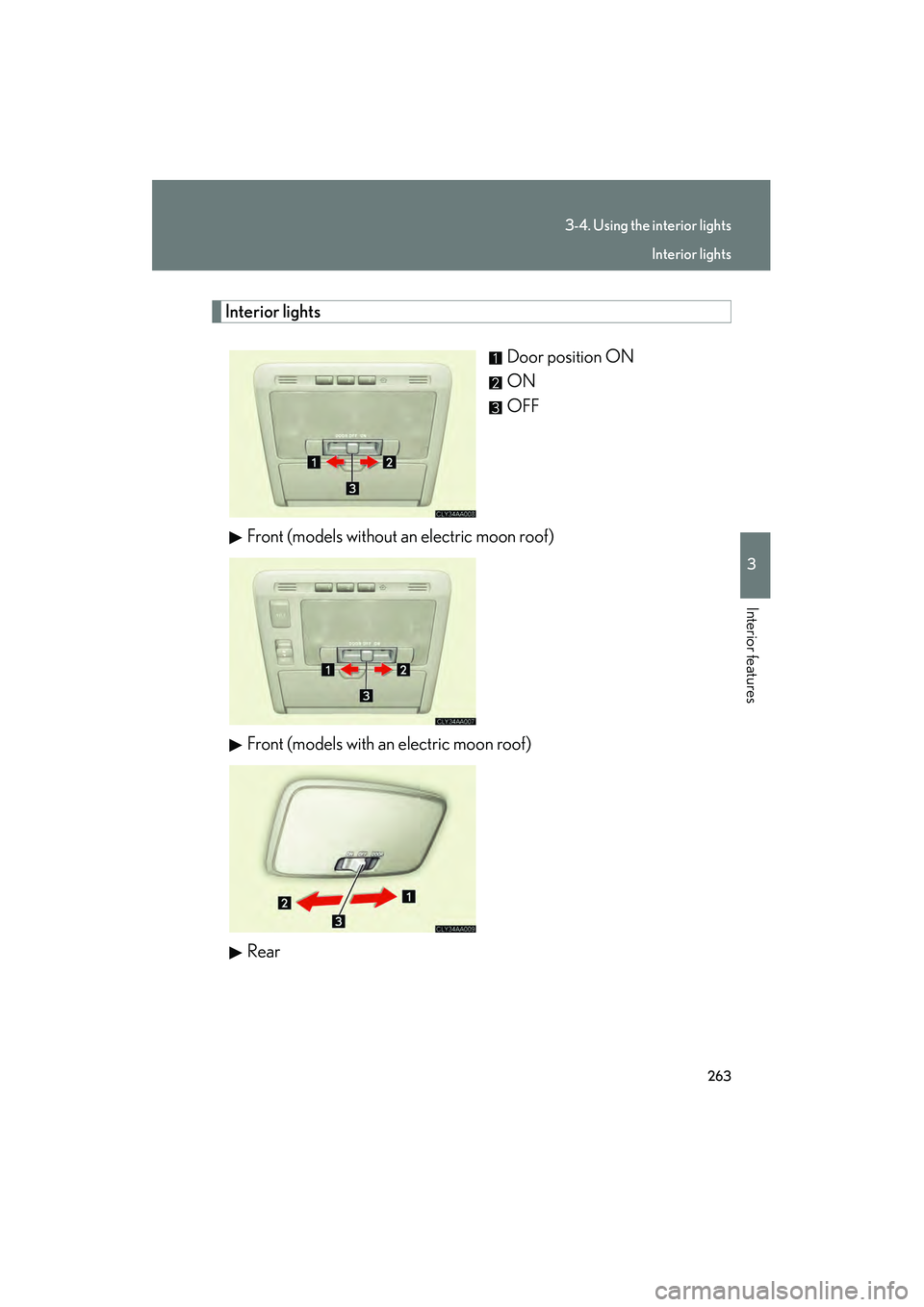

Interior lightsDoor position ON
ON
OFF
Front (models without an electric moon roof)
Front (models with an electric moon roof)
Rear
Interior lights

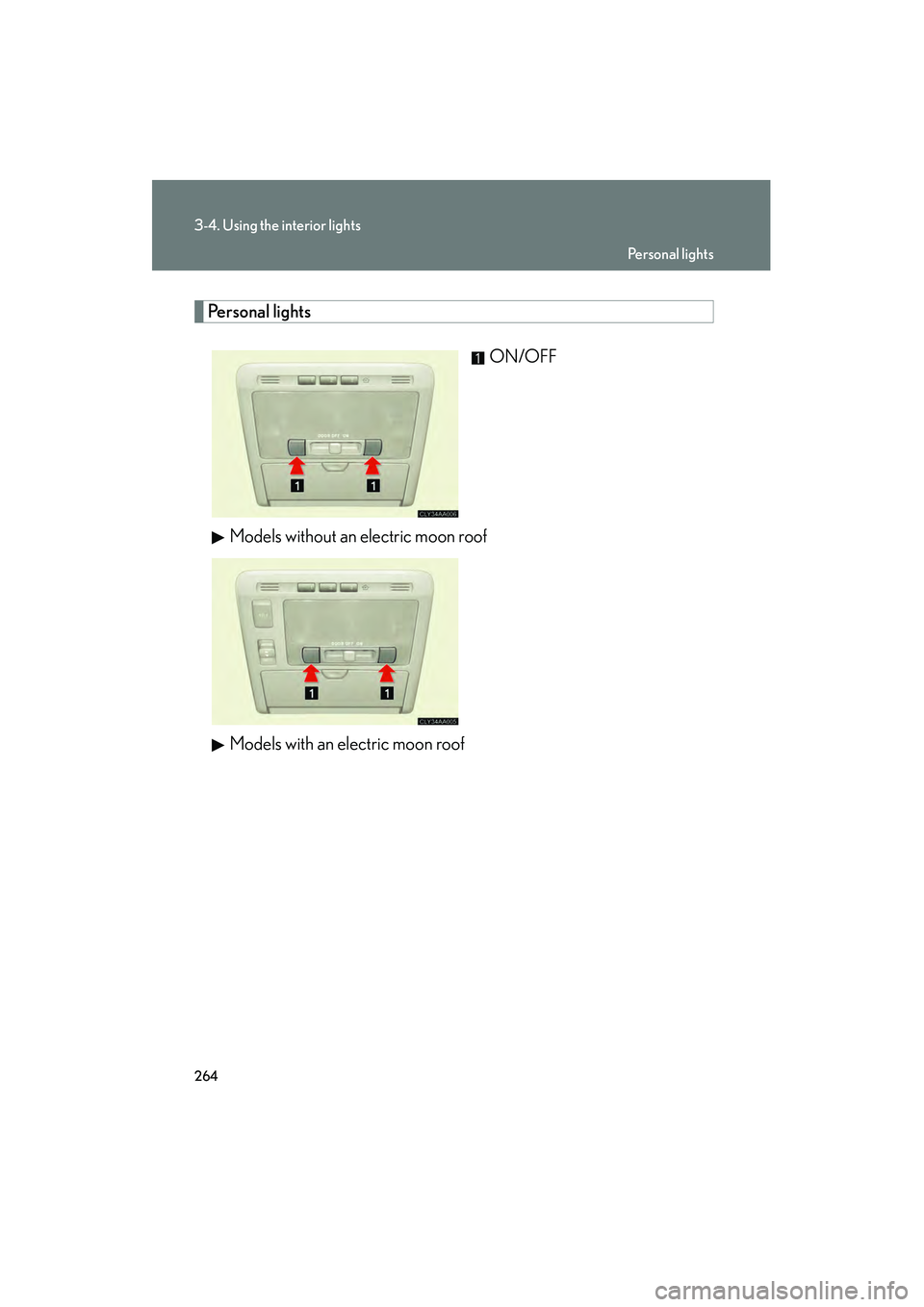

264
3-4. Using the interior lights
RX400h_U
Personal lightsON/OFF
Models without an electric moon roof
Models with an electric moon roof
Personal lights

265
3
Interior features
RX400h_U

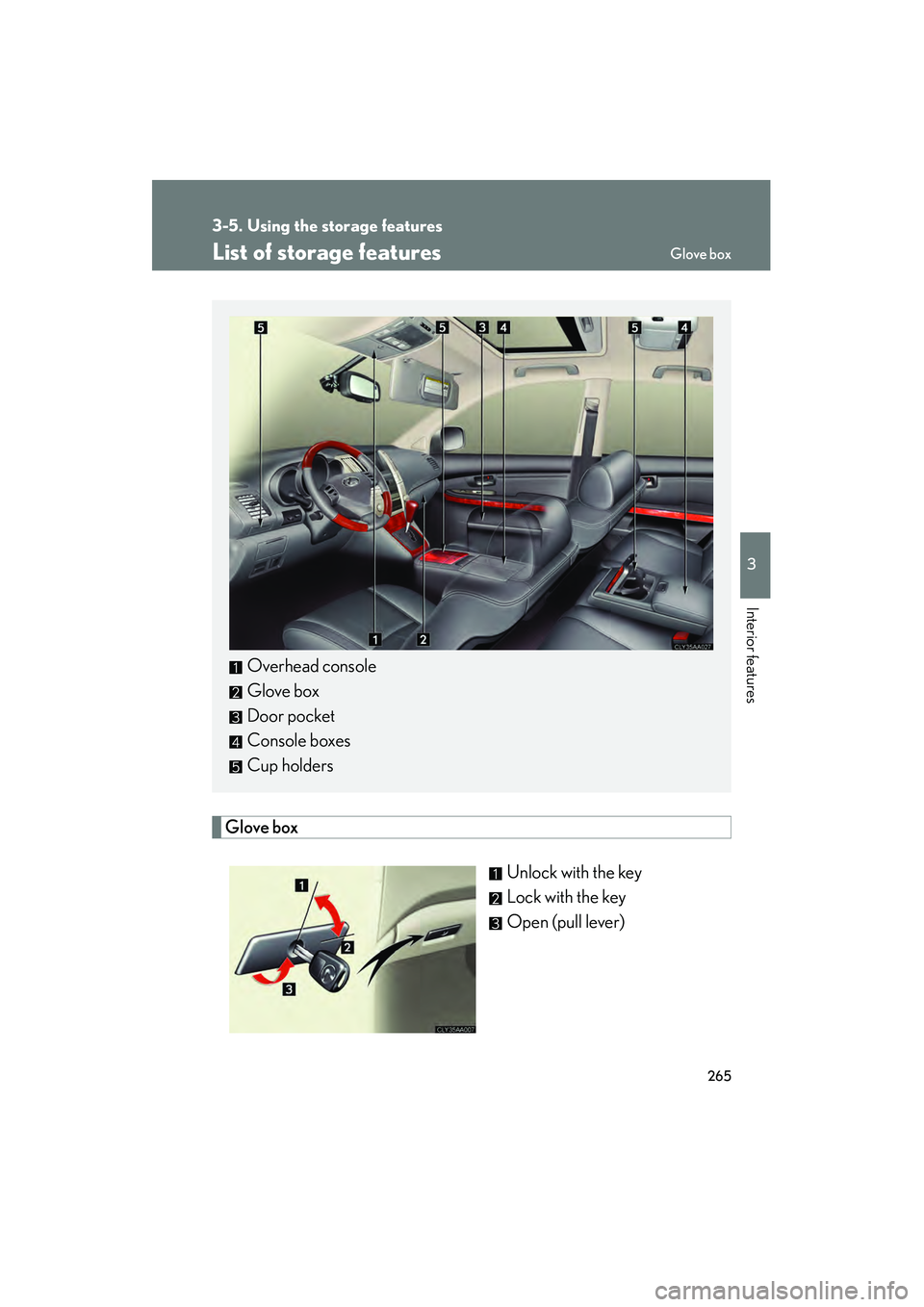

3-5. Using the storage features
List of storage features
Glove boxUnlock with the key
Lock with the key
Open (pull lever)
Overhead console
Glove box
Door pocket
Console boxes
Cup holders
Glove box

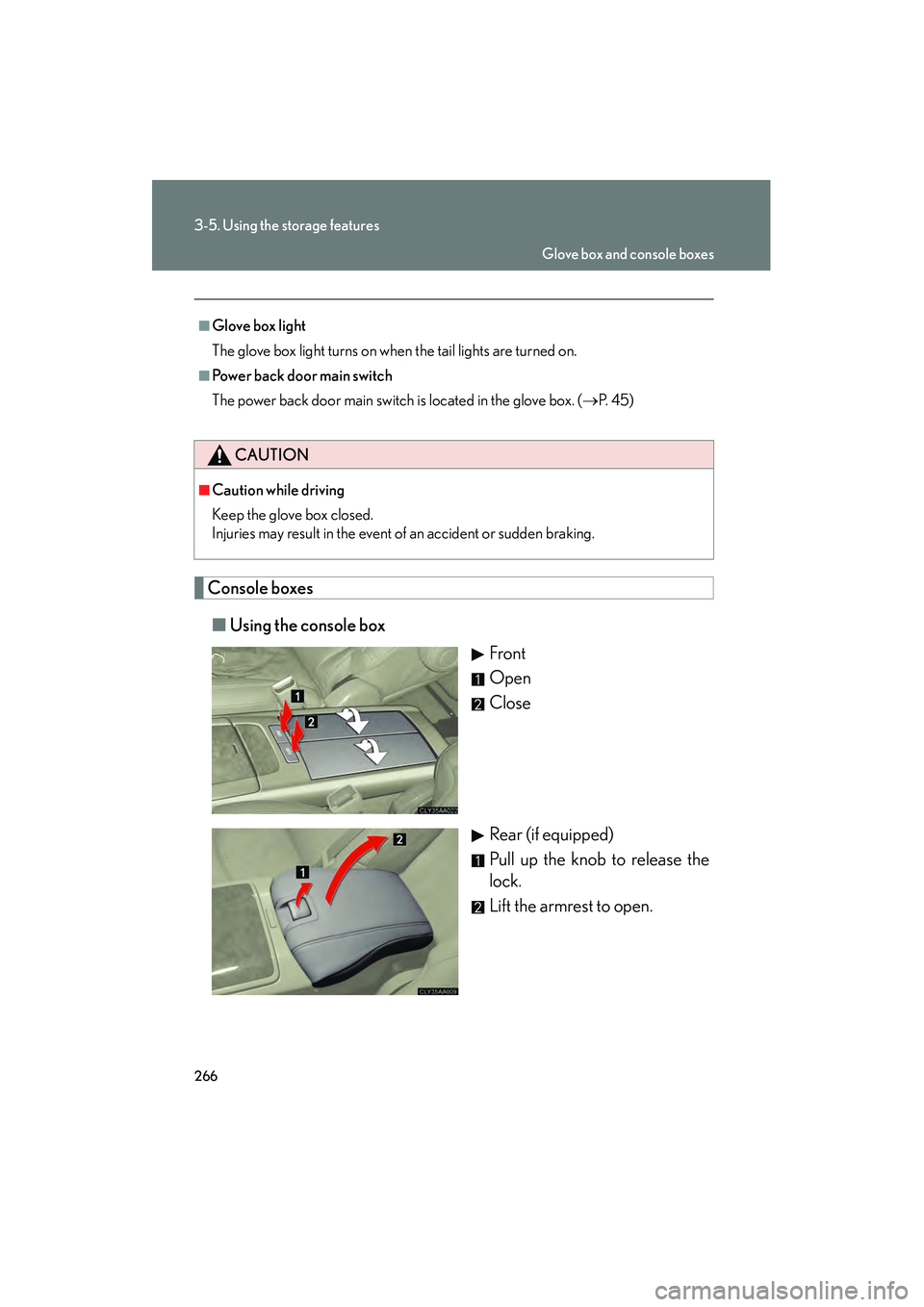

266
3-5. Using the storage features
RX400h_U
Console boxes■ Using the console box
Front
Open
Close
Rear (if equipped)
Pull up the knob to release the
lock.
Lift the armrest to open.
■Glove box light
The glove box light turns on when the tail lights are turned on.
■Power back door main switch
The power back door main switch is located in the glove box. ( →P. 4 5 )
CAUTION
■Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box and console boxes

267
3-5. Using the storage features
3
Interior features

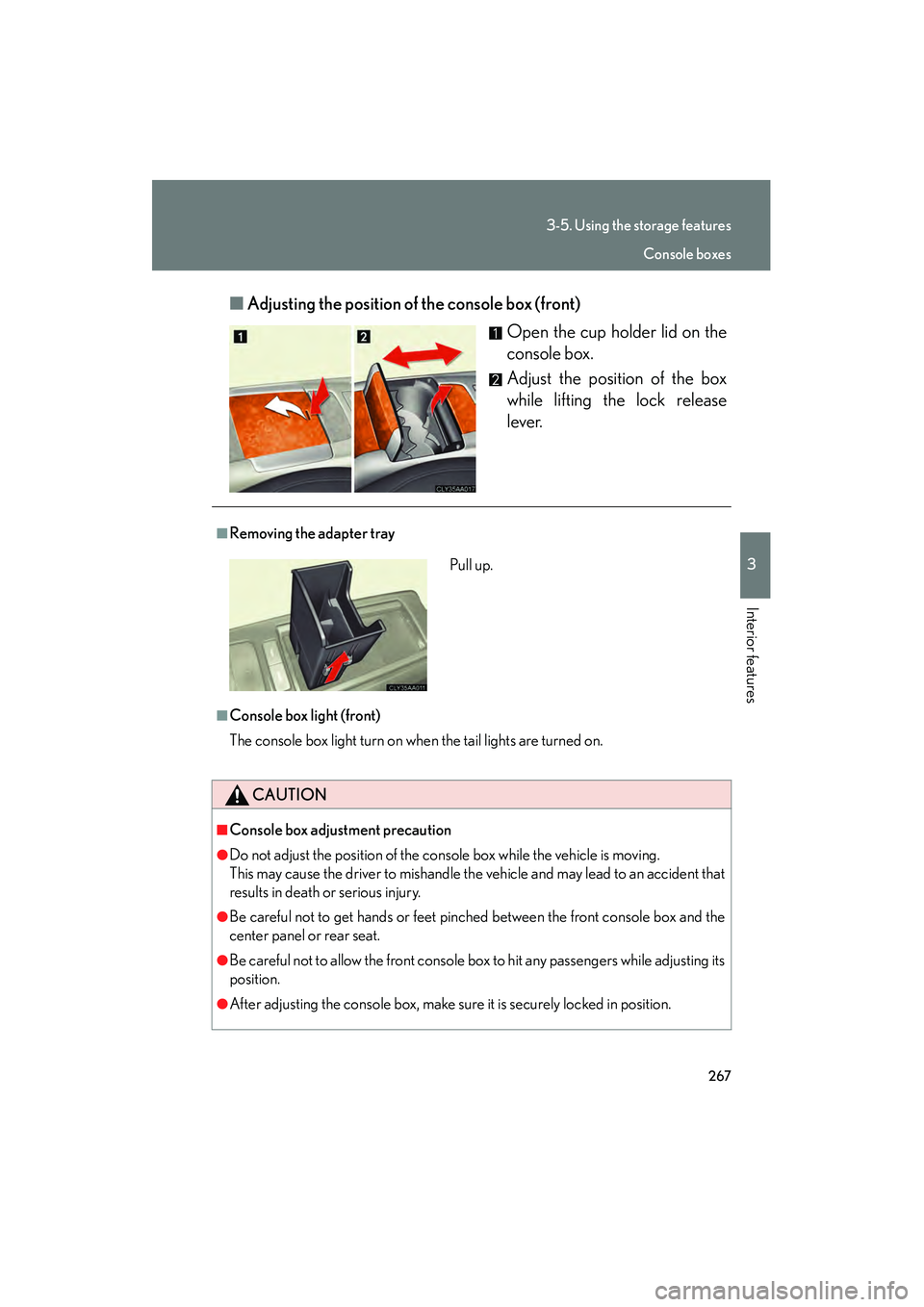

RX400h_U■
Adjusting the position of the console box (front)
Open the cup holder lid on the
console box.
Adjust the position of the box
while lifting the lock release
lever.
■Removing the adapter tray
■Console box light (front)
The console box light turn on when the tail lights are turned on.
CAUTION
■Console box adjustment precaution
●Do not adjust the position of the console box while the vehicle is moving.
This may cause the driver to mishandle the vehicle and may lead to an accident that
results in death or serious injury.
●Be careful not to get hands or feet pinched between the front console box and the
center panel or rear seat.
●Be careful not to allow the front console box to hit any passengers while adjusting its
position.
●After adjusting the console box, make sure it is securely locked in position.
Pull up.
Console boxes

268
3-5. Using the storage features
RX400h_U

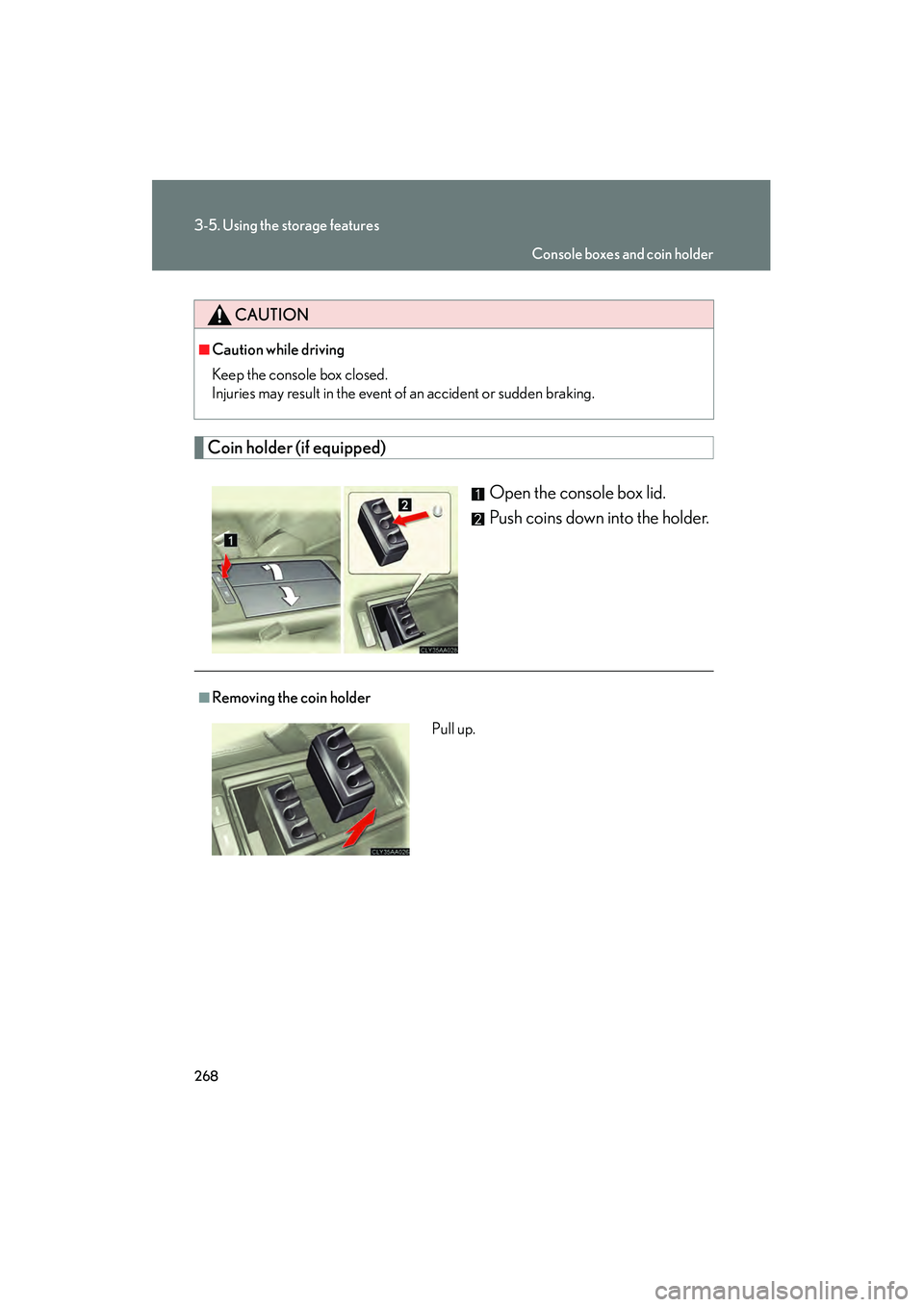

Coin holder (if equipped)Open the console box lid.
Push coins down into the holder.
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
■Removing the coin holderPull up.
Console boxes and coin holder
