LEXUS RX400H 2008 Repair Manual

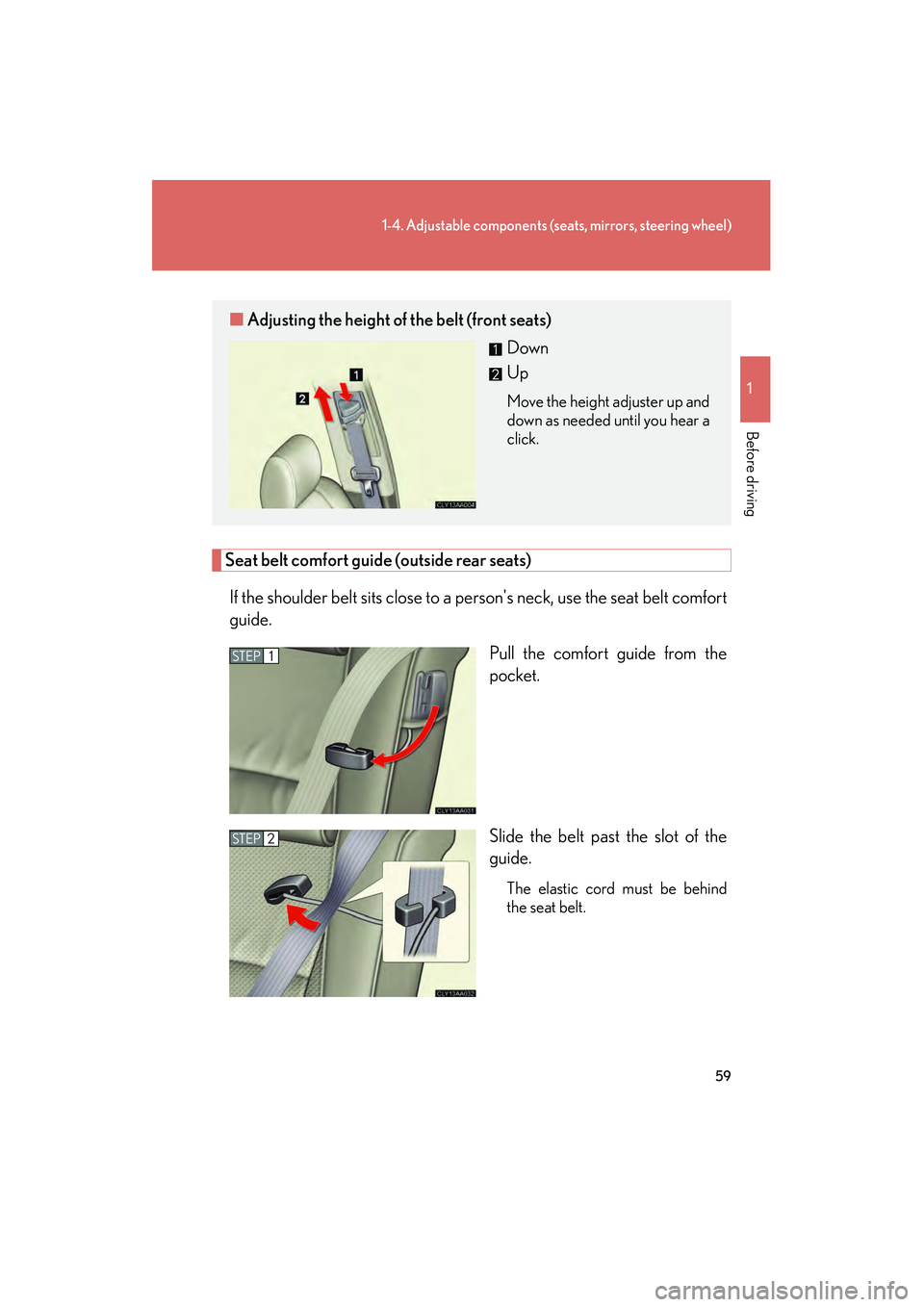

59
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX400h_U
Seat belt comfort guide (outside rear seats)If the shoulder belt sits close to a person's neck, use the seat belt comfort
guide. Pull the comfort guide from the
pocket.
Slide the belt past the slot of the
guide.
The elastic cord must be behind
the seat belt.
■Adjusting the height of the belt (front seats)
Down
Up
Move the height adjuster up and
down as needed until you hear a
click.
STEP1
STEP2

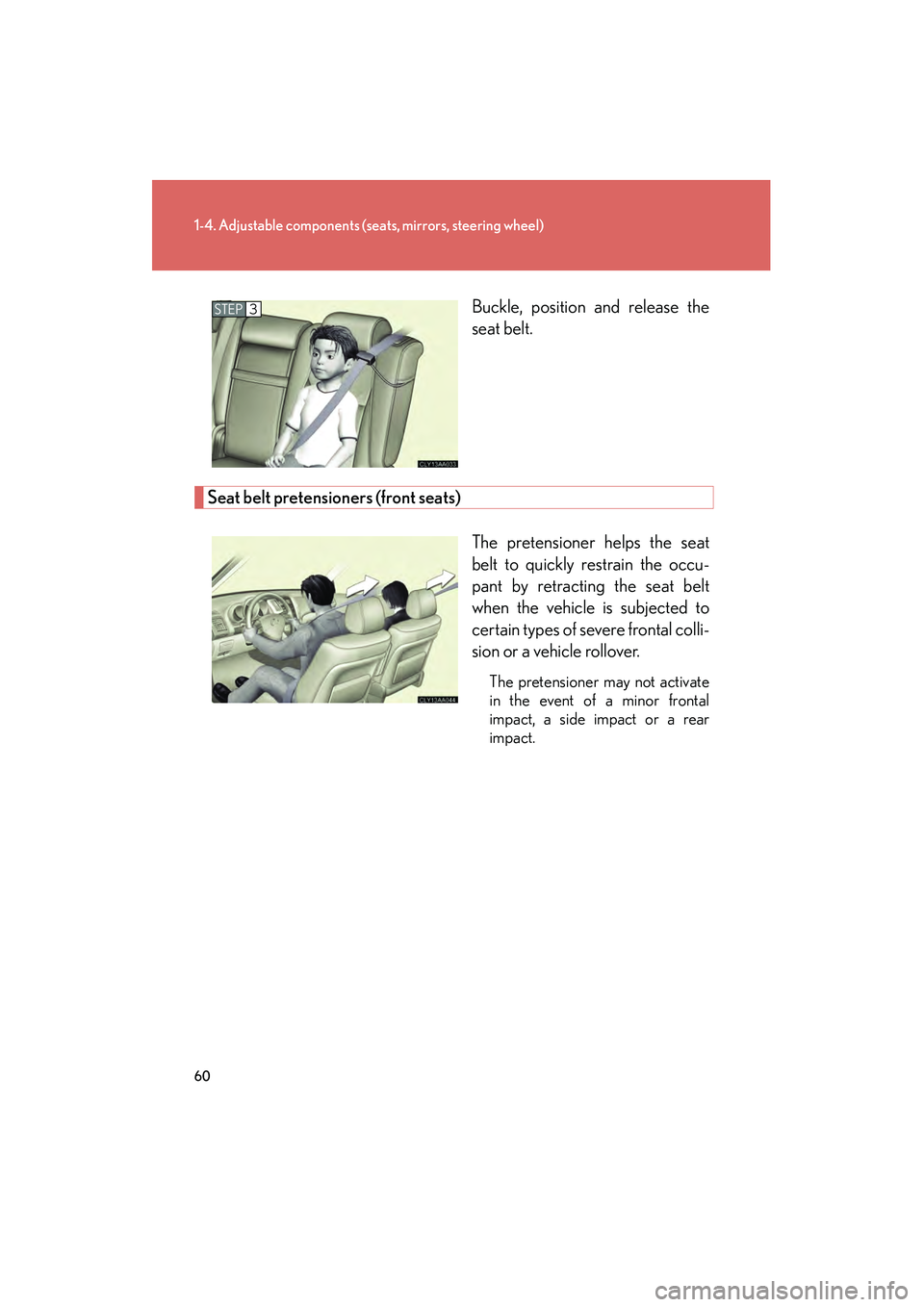

60
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U Buckle, position and release the
seat belt.
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal colli-
sion or a vehicle rollover.
The pretensioner may not activate
in the event of a minor frontal
impact, a side impact or a rear
impact.
STEP3

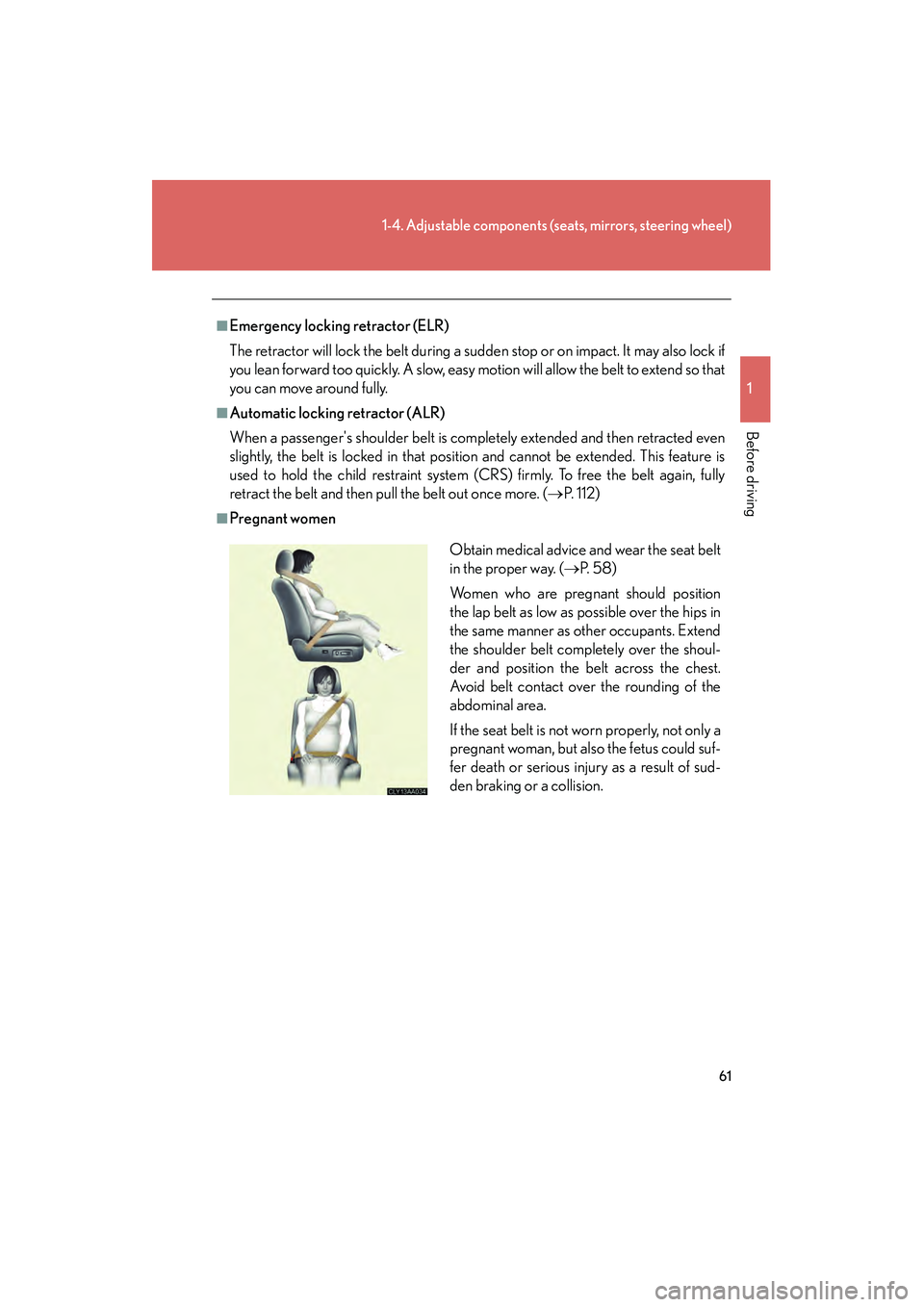

61
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX400h_U
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if
you lean forward too quickly. A slow, easy motion will allow the belt to extend so that
you can move around fully.
■Automatic locking retractor (ALR)
When a passenger's shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is
used to hold the child restraint system (CRS) firmly. To free the belt again, fully
retract the belt and then pull the belt out once more. ( →P. 112)
■Pregnant women
Obtain medical advice and wear the seat belt
in the proper way. (→P. 5 8 )
Women who are pregnant should position
the lap belt as low as possible over the hips in
the same manner as other occupants. Extend
the shoulder belt completely over the shoul-
der and position the belt across the chest.
Avoid belt contact over the rounding of the
abdominal area.
If the seat belt is not worn properly, not only a
pregnant woman, but also the fetus could suf-
fer death or serious injury as a result of sud-
den braking or a collision.

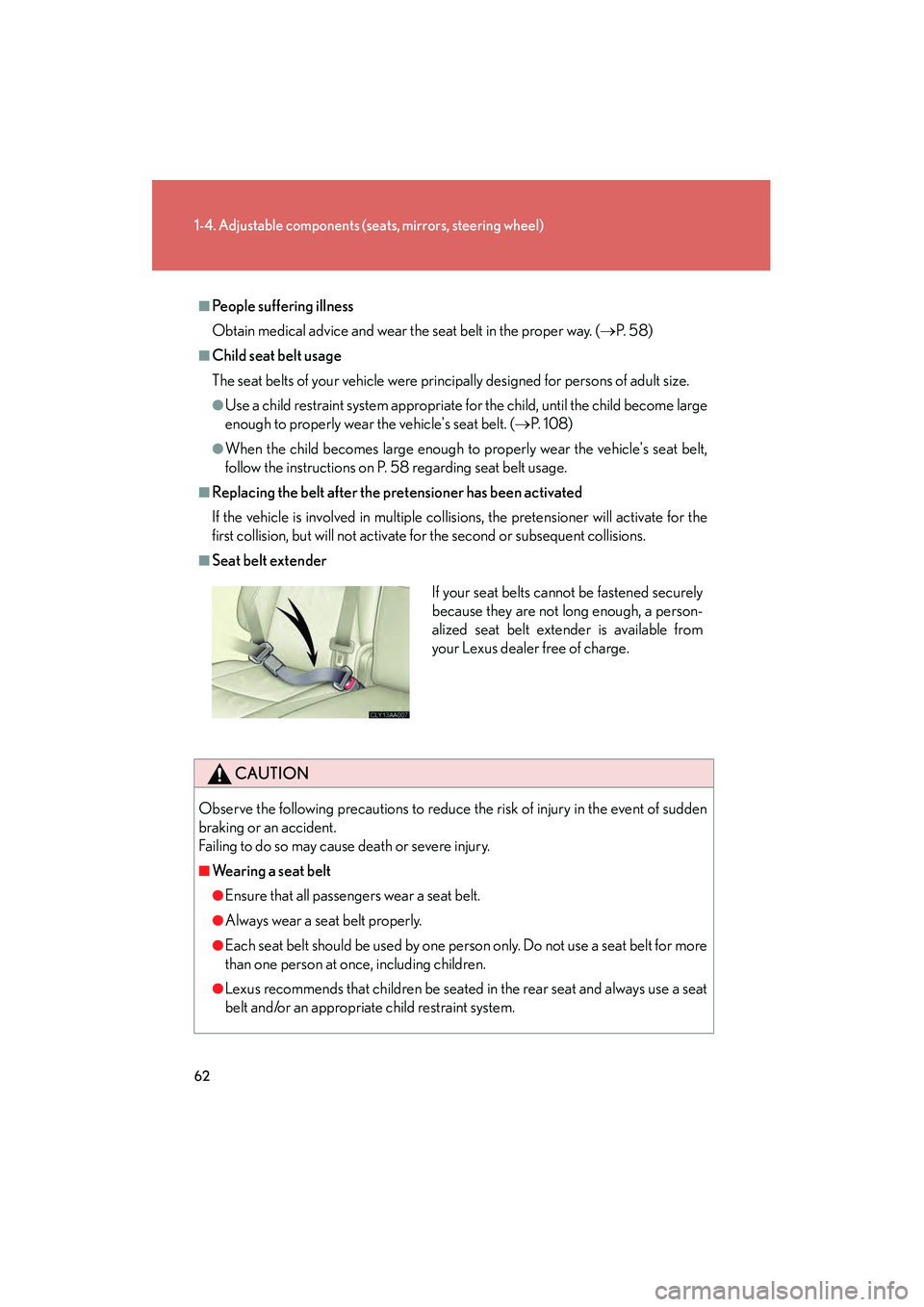

62
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U
■People suffering illness
Obtain medical advice and wear the seat belt in the proper way. ( →P. 5 8 )
■Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
●Use a child restraint system appropriate for the child, until the child become large
enough to properly wear the vehicle's seat belt. ( →P. 1 0 8 )
●When the child becomes large enough to properly wear the vehicle's seat belt,
follow the instructions on P. 58 regarding seat belt usage.
■Replacing the belt after the pr etensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the second or subsequent collisions.
■Seat belt extender
CAUTION
Observe the following precautions to reduce the risk of injury in the event of sudden
braking or an accident.
Failing to do so may cause death or severe injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at once, including children.
●Lexus recommends that children be seated in the rear seat and always use a seat
belt and/or an appropriate child restraint system.
If your seat belts cannot be fastened securely
because they are not long enough, a person-
alized seat belt extender is available from
your Lexus dealer free of charge.

63
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX400h_U
CAUTION
●Do not recline the seat any more than necessary to achieve a proper seating
position. The seat belt is most effective when the occupants are sitting up straight
and well back in the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Seat belt pretensioners
●Do not place anything, such as a cushion, on the front passenger's seat. Doing so
will disperse the passenger's weight, which prevents the sensor from detecting
the passenger's weight properly. As a result, the seat belt pretensioner for the
front passenger's seat may not activate in the event of a collision.
●If the pretensioner has activated, the seat belt becomes locked: it cannot be fur-
ther extended, nor will it return to the stowed position. The seat belt cannot be
used again and must be replaced at your Lexus dealer.
■Child restraint lock function belt
Do not allow children to play with the child restraint lock function belt.
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed
in the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from death or serious injury.
●Ensure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus
dealer.

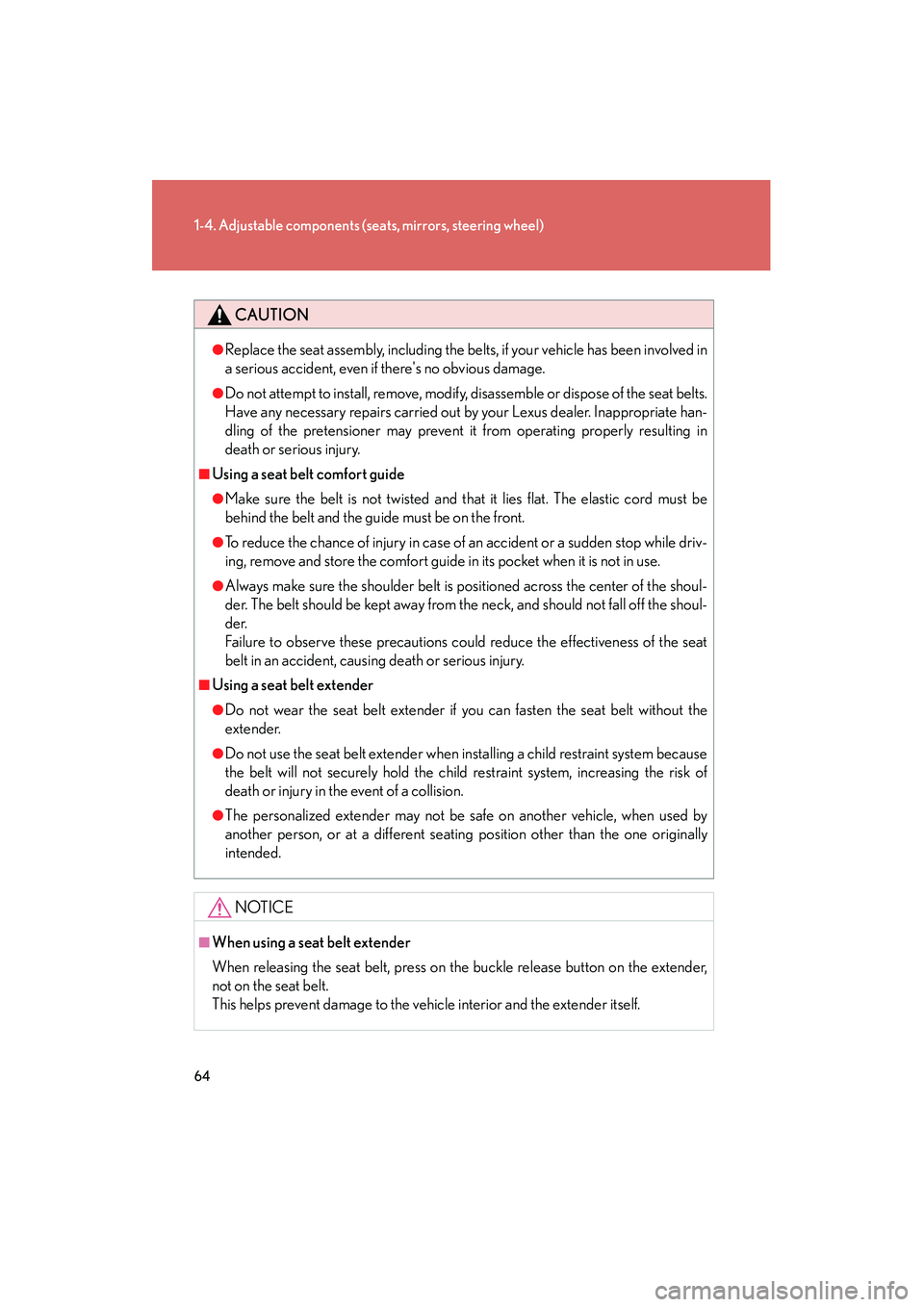

64
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U
CAUTION
●Replace the seat assembly, including the belts, if your vehicle has been involved in
a serious accident, even if there's no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate han-
dling of the pretensioner may prevent it from operating properly resulting in
death or serious injury.
■Using a seat belt comfort guide
●Make sure the belt is not twisted and that it lies flat. The elastic cord must be
behind the belt and the guide must be on the front.
●To reduce the chance of injury in case of an accident or a sudden stop while driv-
ing, remove and store the comfort guide in its pocket when it is not in use.
●Always make sure the shoulder belt is positioned across the center of the shoul-
der. The belt should be kept away from the neck, and should not fall off the shoul-
der.
Failure to observe these precautions could reduce the effectiveness of the seat
belt in an accident, causing death or serious injury.
■Using a seat belt extender
●Do not wear the seat belt extender if you can fasten the seat belt without the
extender.
●Do not use the seat belt extender when installing a child restraint system because
the belt will not securely hold the child restraint system, increasing the risk of
death or injury in the event of a collision.
●The personalized extender may not be safe on another vehicle, when used by
another person, or at a different seatin g position other than the one originally
intended.
NOTICE
■When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

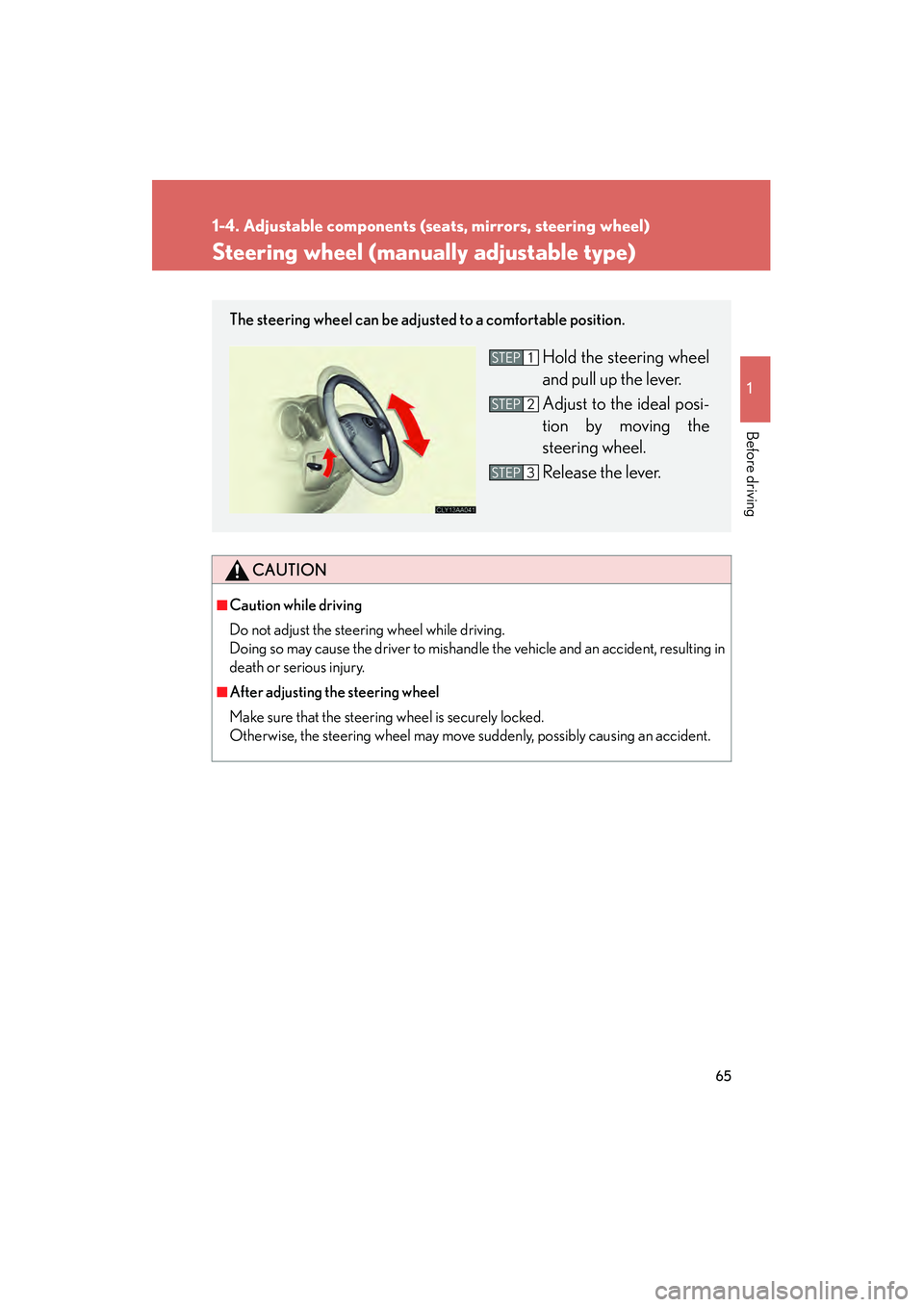

65
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
RX400h_U
Steering wheel (manually adjustable type)
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an accident.
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel
and pull up the lever.
Adjust to the ideal posi-
tion by moving the
steering wheel.
Release the lever. STEP1
STEP2
STEP3

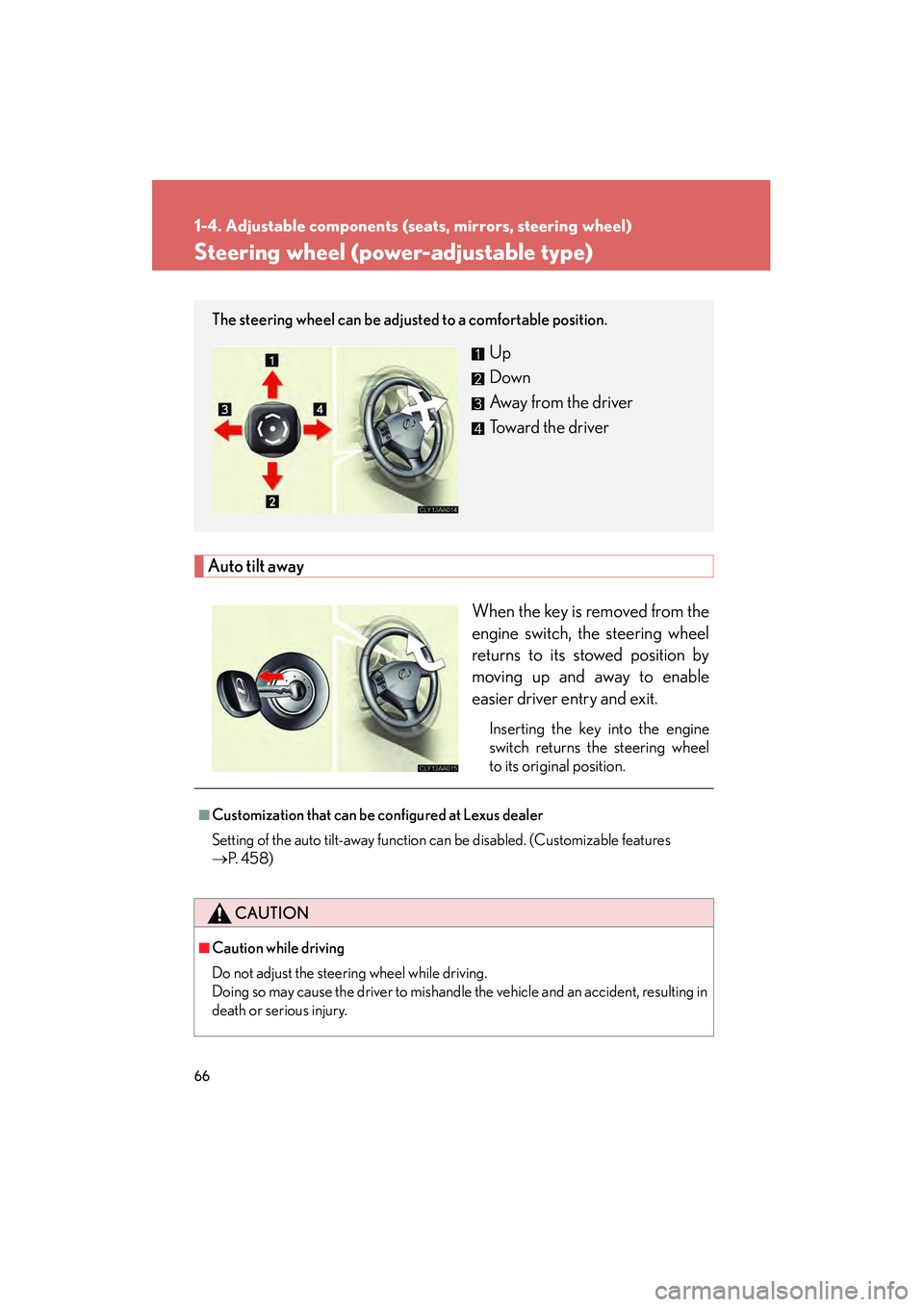

66
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U
Steering wheel (power-adjustable type)
Auto tilt awayWhen the key is removed from the
engine switch, the steering wheel
returns to its stowed position by
moving up and away to enable
easier driver entry and exit.
Inserting the key into the engine
switch returns the steering wheel
to its original position.
The steering wheel can be adjusted to a comfortable position.
Up
Down
Away from the driver
Toward the driver
■Customization that can be configured at Lexus dealer
Setting of the auto tilt-away function can be disabled. (Customizable features
→P. 4 5 8 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.

67
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
RX400h_U
Anti-glare inside rear view mirror
■To prevent sensor error
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, resulting in death
or serious injury.
In automatic mode, sensors are used to detect the headlights of vehicles
behind and automatically reduces the reflected light.
To turn automatic mode on/
off, press and hold the switch
for 3 seconds.
The indicator comes on when
automatic mode is turned on.
The anti-glare mirror default
mode is automatic mode. The
anti-glare mirror is automati-
cally set to automatic mode
whenever the engine switch is in
the ON position.
To ensure that the sensors operate properly,
do not touch or cover them.

68
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U
Outside rear view mirrors
■When the mirrors are fogged up
Turn on the outside rear view mirror defoggers to defog the mirrors. (→P. 2 0 4 )
■Folding back the mirrors
■One-touch adjustment of the mirror angle (vehicles with driving position mem-
ory)
A desired mirror face angle can be entered to memory and adjusted with the touch
of a button. (→ P. 5 5 )
Mirror angle can be adjusted using the switch when the engine switch is in
the ACC or ON position.
Pull down the cover
Select a mirror to adjust
(L: left or R: right)
Adjust the mirror up, down,
in, or out using the switch
Push back in the direction of the vehicle's
rear.
