LEXUS RX400H 2008 Manual PDF

69
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX400h_U
■Linked mirror function when reversing (vehicles with driving position memory)
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (between L and
R).
■Auto anti-glare function
When the anti-glare inside rear view mirror is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light. ( →P. 6 7 )
CAUTION
■When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded back.
●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■When the mirror defoggers are operating
Do not touch the surface of the mirror, as it may be hot.

70
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U

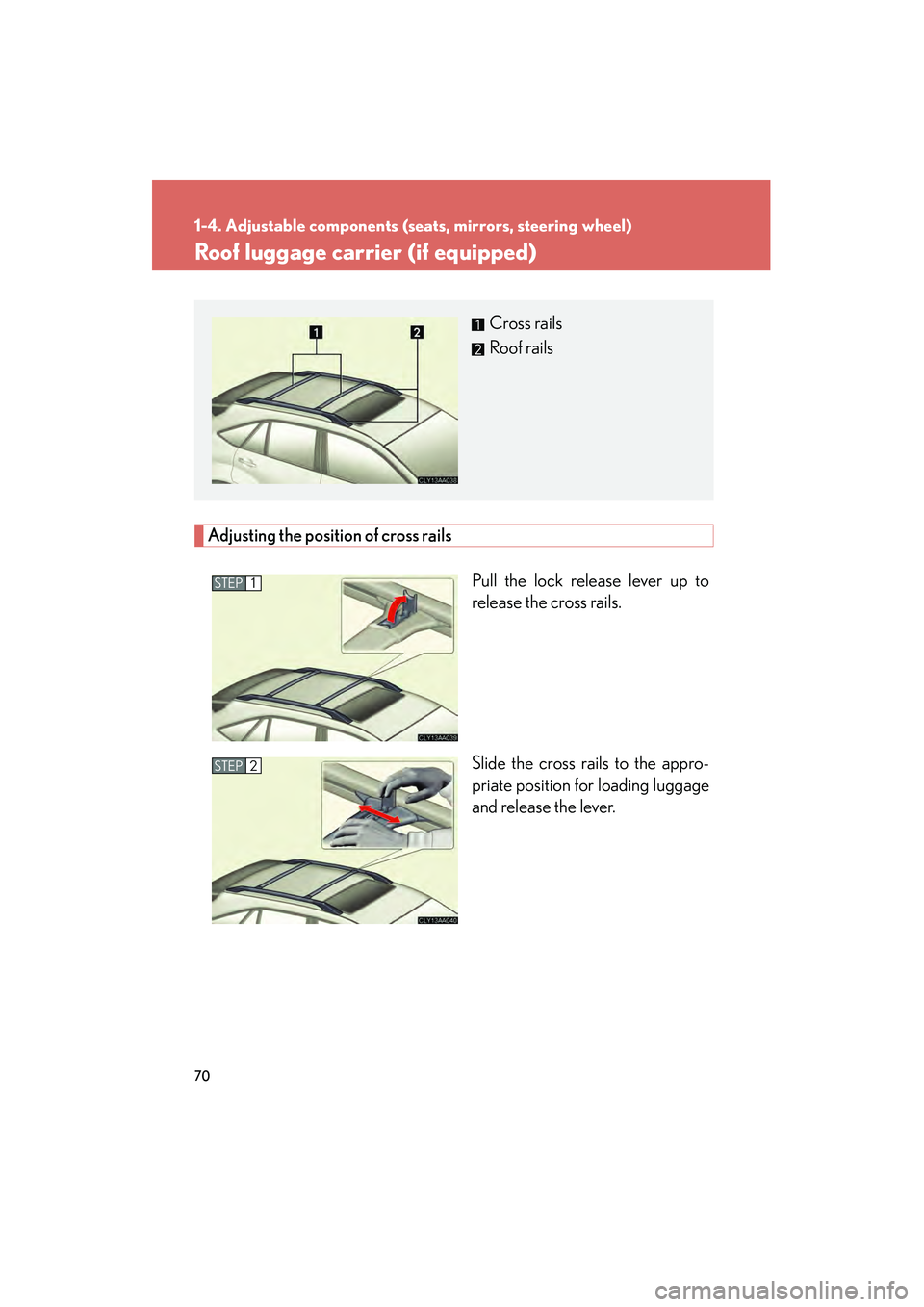

Roof luggage carrier (if equipped)
Adjusting the position of cross railsPull the lock release lever up to
release the cross rails.
Slide the cross rails to the appro-
priate position for loading luggage
and release the lever.
Cross rails
Roof rails
STEP1
STEP2

71
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX400h_U
CAUTION
■Cross rail adjustment
Make sure the cross rails are locked securely by pushing forward and rearward
them.
Failure to do so may cause an unexpected accident or severe injury in the event of
emergency braking or a collision.
■When loading cargo
Observe the following precautions.
●Place the cargo so that its weight is distributed evenly between the front and rear
axles.
●If loading long or wide cargo, never exceed the vehicle overall length or width.
(→ P. 4 3 0 )
●Before driving, make sure the cargo is securely fastened on the roof luggage car-
rier.
●Loading cargo on the roof luggage carrier will make the center of the vehicle
gravity higher. Avoid high speeds, sudden starts, sharp turns, sudden braking or
abrupt maneuvers, otherwise it may result in loss of control or vehicle rollover
due to failure to operate this vehicle correctly.
●If driving for a long distance, on rough roads, or at high speeds, stop the vehicle
now and then during the trip to make sure the cargo remains in its place.
●Do not exceed 165 lb. (75 kg) cargo weight on the roof luggage carrier.
NOTICE
■When loading the luggage
Be careful not to scratch the surface of the moon roof.

72
RX400h_U
1-5. Opening and closing the windows and moon roof

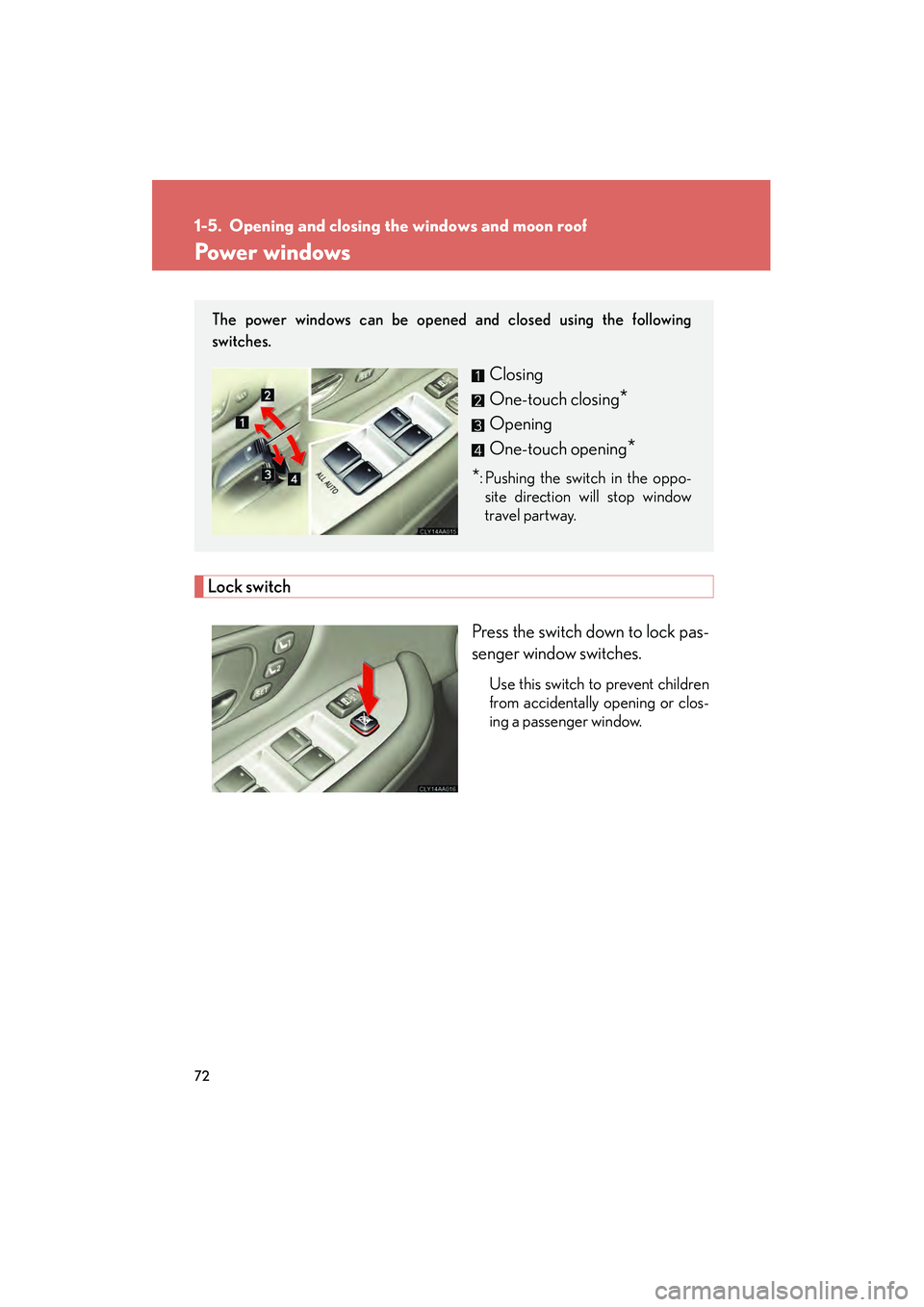

Power windows
Lock switchPress the switch down to lock pas-
senger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
The power windows can be opened and closed using the following
switches.
Closing
One-touch closing
*
Opening
One-touch opening
*
*: Pushing the switch in the oppo-site direction will stop window
travel partway.

73
1-5. Opening and closing the windows and moon roof
1
Before driving
RX400h_U

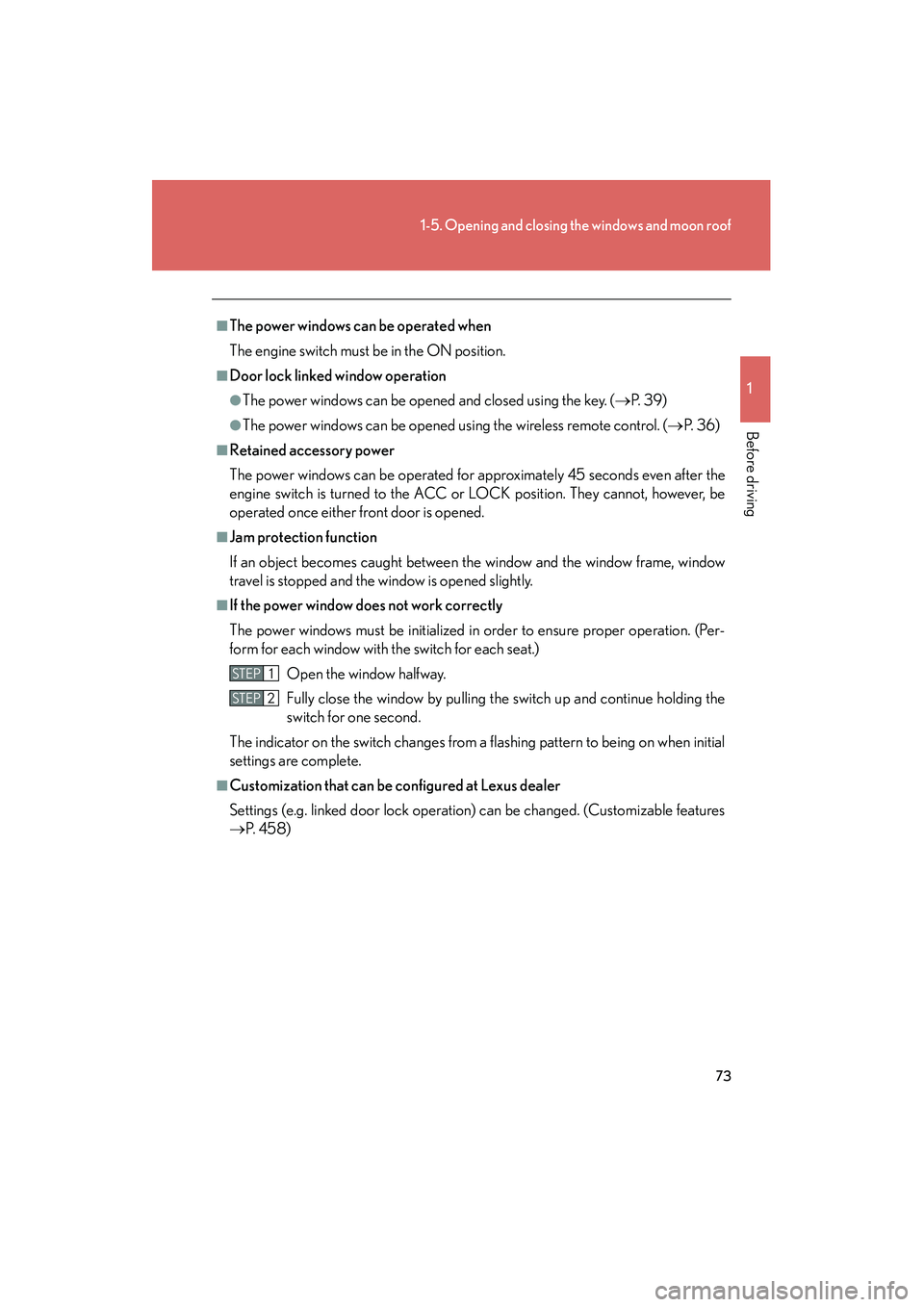

■The power windows can be operated when
The engine switch must be in the ON position.
■Door lock linked window operation
●The power windows can be opened and closed using the key. (→P. 3 9 )
●The power windows can be opened using the wireless remote control. ( →P. 3 6 )
■Retained accessory power
The power windows can be operated for approximately 45 seconds even after the
engine switch is turned to the ACC or LOCK position. They cannot, however, be
operated once either front door is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■If the power window does not work correctly
The power windows must be initialized in order to ensure proper operation. (Per-
form for each window with the switch for each seat.)
Open the window halfway.
Fully close the window by pulling the switch up and continue holding the
switch for one second.
The indicator on the switch changes from a flashing pattern to being on when initial
settings are complete.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed. (Customizable features
→ P. 4 5 8 )
STEP1
STEP2

74
1-5. Opening and closing the windows and moon roof
RX400h_U

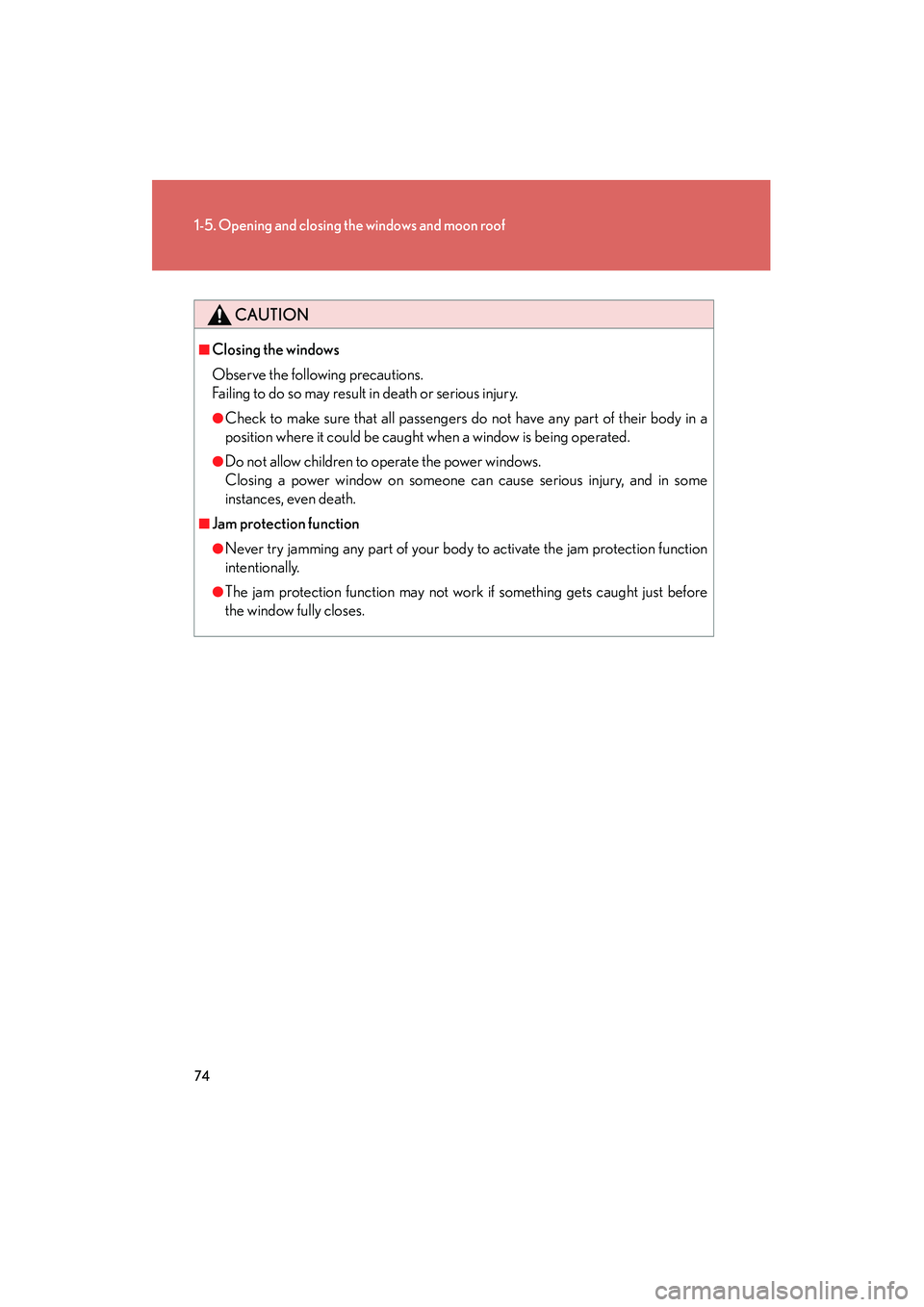

CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in some
instances, even death.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the window fully closes.

75
1
1-5. Opening and closing the windows and moon roof
Before driving
RX400h_U

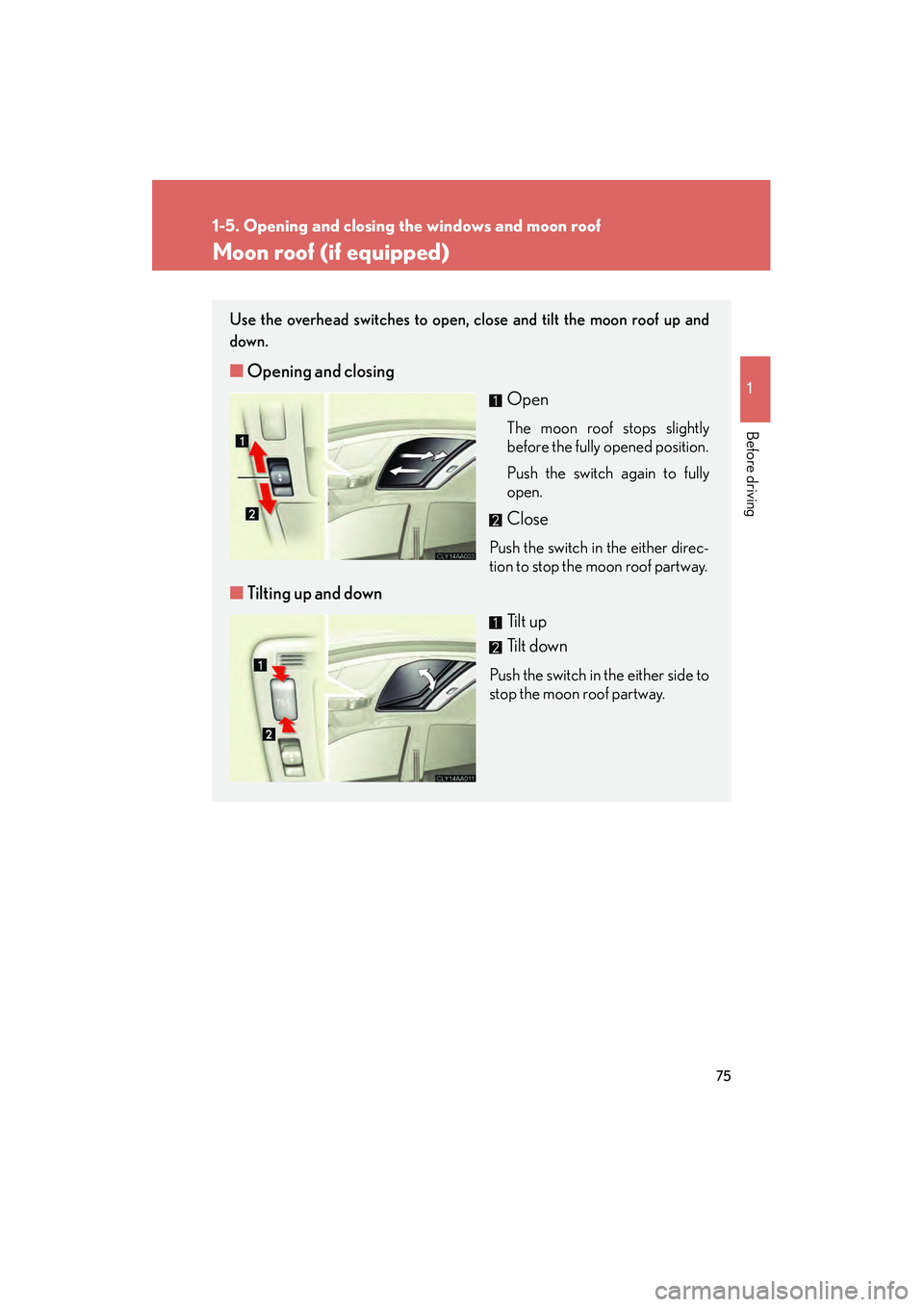

Moon roof (if equipped)
Use the overhead switches to open, close and tilt the moon roof up and
down.
■Opening and closing
Open
The moon roof stops slightly
before the fully opened position.
Push the switch again to fully
open.
Close
Push the switch in the either direc-
tion to stop the moon roof partway.
■Tilting up and down
Tilt up
Tilt down
Push the switch in the either side to
stop the moon roof partway.

76
1-5. Opening and closing the windows and moon roof
RX400h_U

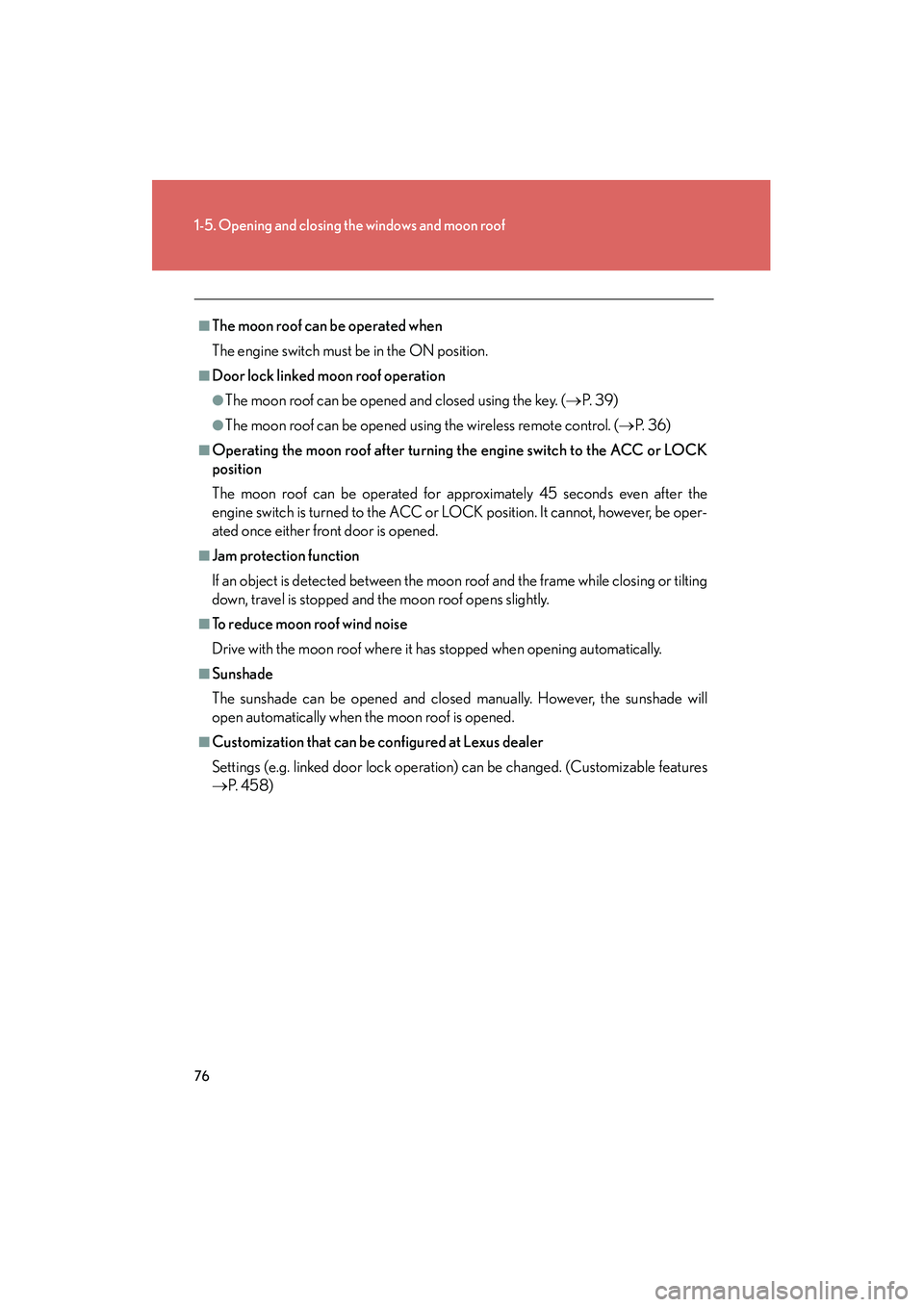

■The moon roof can be operated when
The engine switch must be in the ON position.
■Door lock linked moon roof operation
●The moon roof can be opened and closed using the key. (→P. 3 9 )
●The moon roof can be opened using the wireless remote control. ( →P. 3 6 )
■Operating the moon roof after turning the engine switch to the ACC or LOCK
position
The moon roof can be operated for approximately 45 seconds even after the
engine switch is turned to the ACC or LOCK position. It cannot, however, be oper-
ated once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and the moon roof opens slightly.
■To reduce moon roof wind noise
Drive with the moon roof where it has stopped when opening automatically.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed. (Customizable features
→P. 4 5 8 )

77
1-5. Opening and closing the windows and moon roof
1
Before driving
RX400h_U

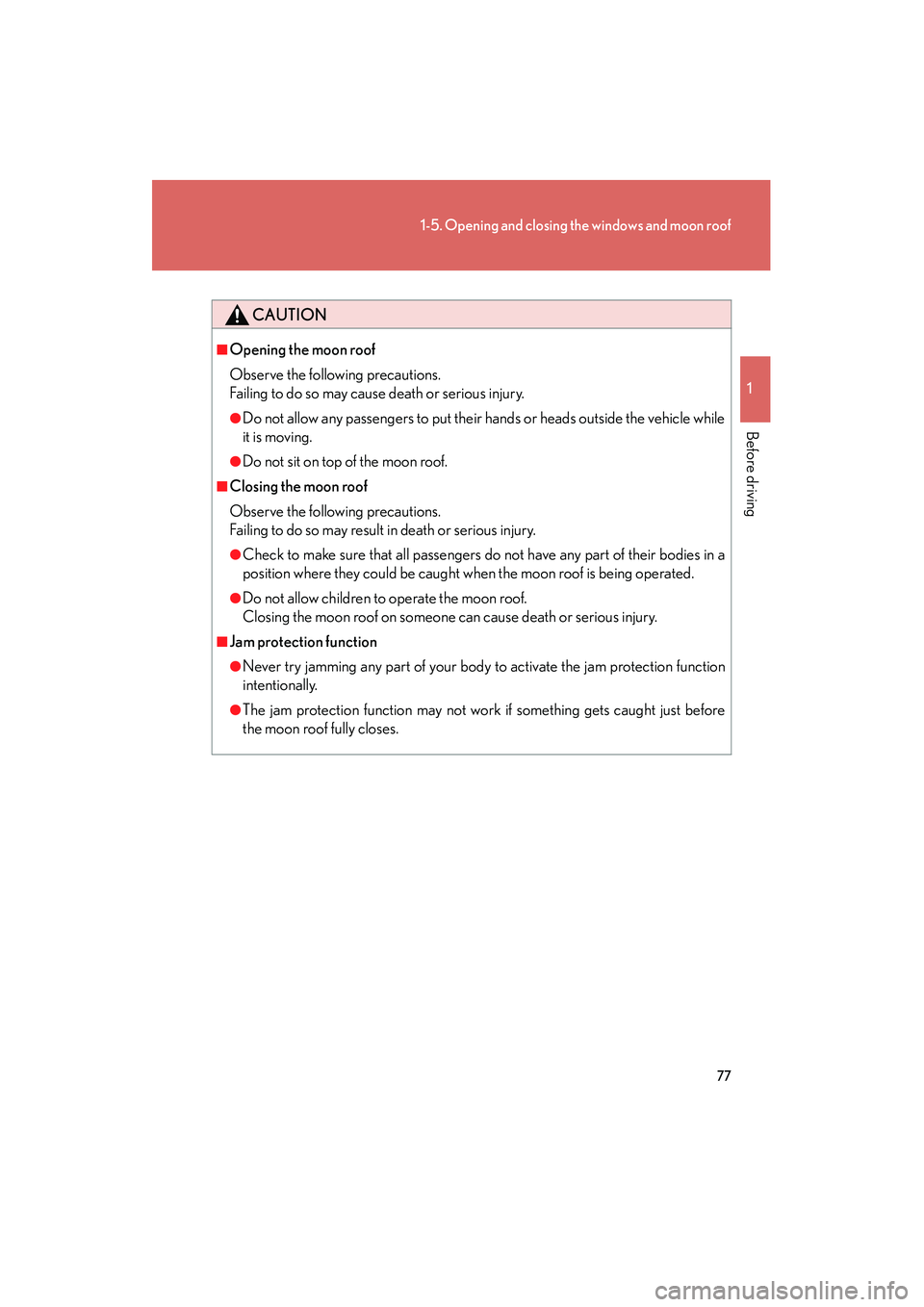

CAUTION
■Opening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.
●Do not allow any passengers to put their hands or heads outside the vehicle while
it is moving.
●Do not sit on top of the moon roof.
■Closing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their bodies in a
position where they could be caught when the moon roof is being operated.
●Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the moon roof fully closes.

78
RX400h_U

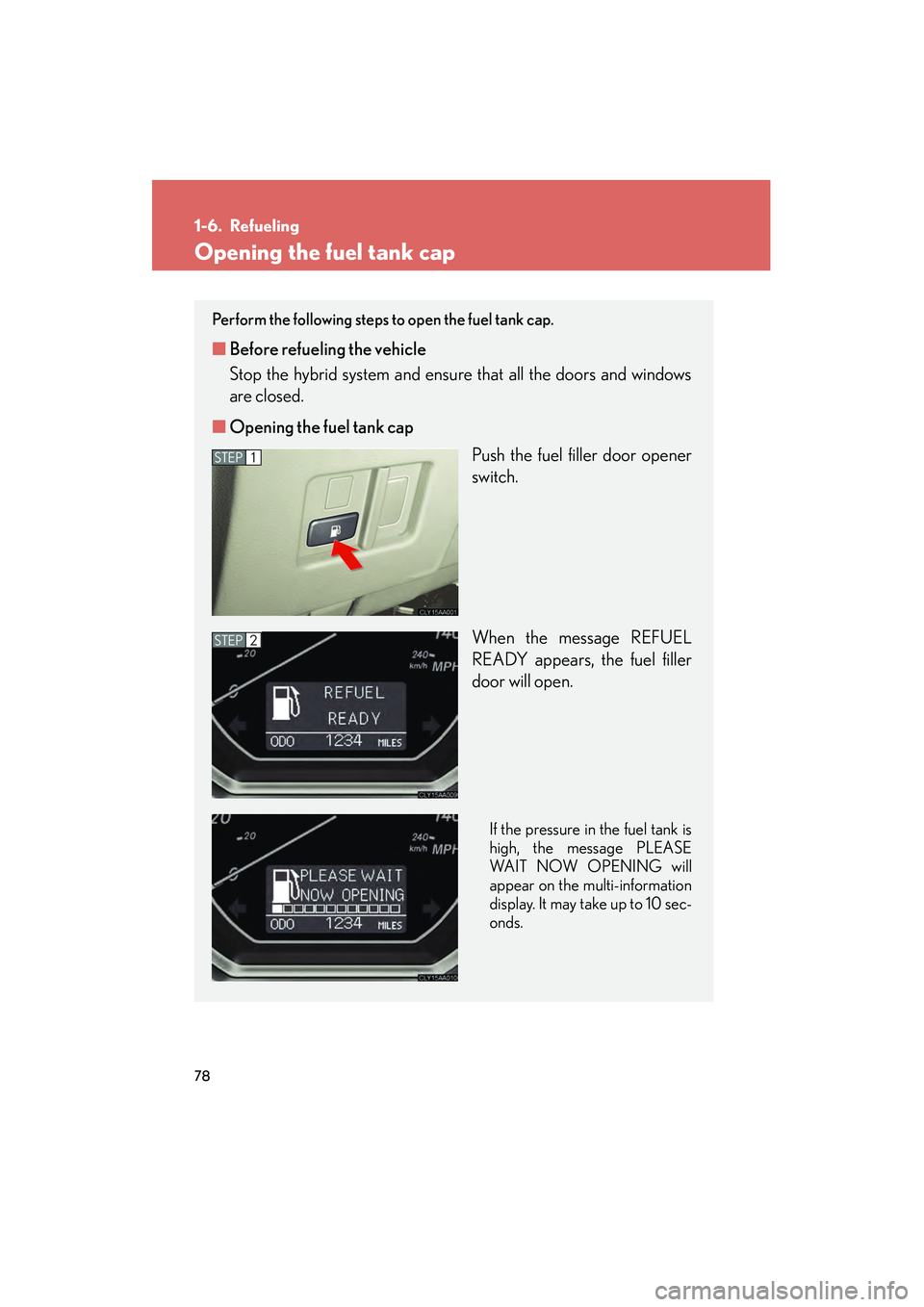

1-6. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
■Before refueling the vehicle
Stop the hybrid system and ensure that all the doors and windows
are closed.
■ Opening the fuel tank cap
Push the fuel filler door opener
switch.
When the message REFUEL
READY appears, the fuel filler
door will open.
If the pressure in the fuel tank is
high, the message PLEASE
WAIT NOW OPENING will
appear on the multi-information
display. It may take up to 10 sec-
onds.
STEP1
STEP2
