LEXUS RX450h 2015 Owners Manual

6013-7. Other interior features
3

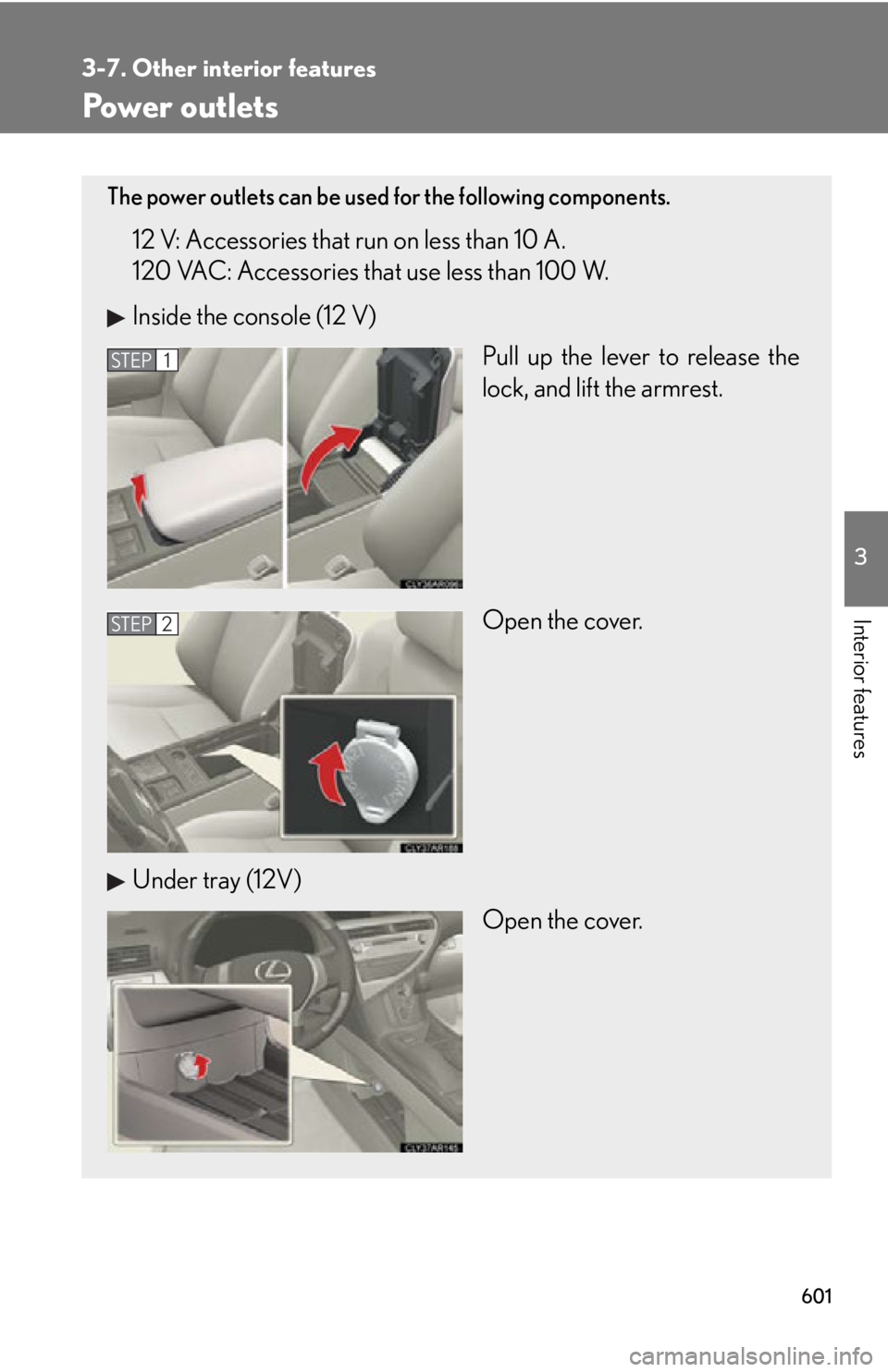

Interior features Power outlets The power outlets can be used for the following components.
12 V: Accessories that run on less than 10 A.
120 VAC: Accessories that use less than 100 W.
Inside the console (12 V)
Pull up the lever to release the
lock, and lift the armrest.
Open the cover.
Under tray (12V)
Open the cover.STEP 1
STEP 2

6023-7. Other interior features
■
The power outlets can be used when
12 V
The “POWER” switch is in ACCESSORY or ON mode.
120 VAC
The “POWER” switch is in ON mode. Luggage compartment (12V)
Open the cover.
On the back surface of the console (120 VAC)*
Open the cover.
*: If equipped

6033-7. Other interior features
3
Interior features NOTICE■
To avoid damaging the power outlets
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter th e power outlet may cause a short circuit.■
To prevent the fuse from being blown
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter th e power outlet may cause a short circuit.
12 V :
Do not use an accessory that uses more than 12 V 10 A.
120 VAC :
Do not use a 120 VAC appliance that requires more than 100 W.
If a 120 VAC appliance that consumes more than 100 W is used, the protection cir-
cuit will cut the power supply.■
To prevent 12-volt battery discharge
Do not use the power outlets longer than necessary when the hybrid system is off.■
Appliances that may not operate properly (120 VAC)
The following 120 VAC appliances may not operate properly even if their power
consumption is under 100 W: ●
Appliances with high initial peak wattage●
Measuring devices that process precise data●
Other appliances that require an extremely stable power supply

6043-7. Other interior features
Heated steering wheel 
■
The heated steering wheel can be used when
The “POWER” switch is in ON mode.■
To prevent 12-volt battery discharge
The heated steering wheel will automatically turn off after about 30 minutes.■
If the indicator light does not come on
If the indicator light does not come on wh en the switch is pressed, a malfunction
may have occurred in the system. Have the vehicle inspected by your Lexus dealer.
CAUTION■
Burns
Care should be taken to prevent injury if anyone in the following categories comes
in contact with the steering wheel when the heated steering wheel is on:
●
Babies, small children, the elderly, the sick and the physically challenged
●
Persons with sensitive skin
●
Pe r s o n s w h o a r e f a t i g u e d
●
Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold
remedies, etc.)
 : If equippedThe heated steering wheel heats the le ather portions on the left and right
of the steering wheel.
Turns the heater on/off The indicator light comes on
when the heater is operating.

6053-7. Other interior features
3
Interior features Seat heaters and ventilators 
■
Operating condition
The “POWER” switch is in ON mode.■
When not in use
Set the knob at “0”. The indicator light turns off.
CAUTION■
Burns ●
Use caution when seating the following pers ons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically challenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,
cold remedies, etc.)
●
Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
 : If equippedThe seat heaters and ventilators heat the seats and maintain good airflow
by blowing air from the seats.
Turns the seat heater on The indicator light comes on.
The higher the number is, the
warmer the seat becomes.
Blows air from the seat The indicator light comes on.
The higher the number is, the
stronger the airflow becomes.

6063-7. Other interior features
NOTICE■
To prevent damage to the seat heaters/ventilators
Do not put heavy objects that have an unev en surface on the seat and do not stick
sharp objects (needles, nail s, etc.) into the seat.■
To prevent 12-volt battery discharge
Do not leave the system on longer than necessary when the hybrid system is off.

6073-7. Other interior features
3
Interior features Armrest
NOTICE■
To prevent damage to the armrest
Do not place too much strain on the armrest. Pull the armrest down for use.

6083-7. Other interior features
Coat hooks
CAUTION■
Items that must not be hung on the hook
Do not hang a coat hanger or other hard or sharp object on the hook. If the SRS
curtain shield airbags deploy, these items may become projectiles that cause death
or serious injury. To use the coat hook, push it in.

6093-7. Other interior features
3
Interior features Assist grips
CAUTION■
Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from your
seat.
NOTICE■
To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.An assist grip installed on the ceil ing can be used to support your body
while sitting on the seat.

6103-7. Other interior features

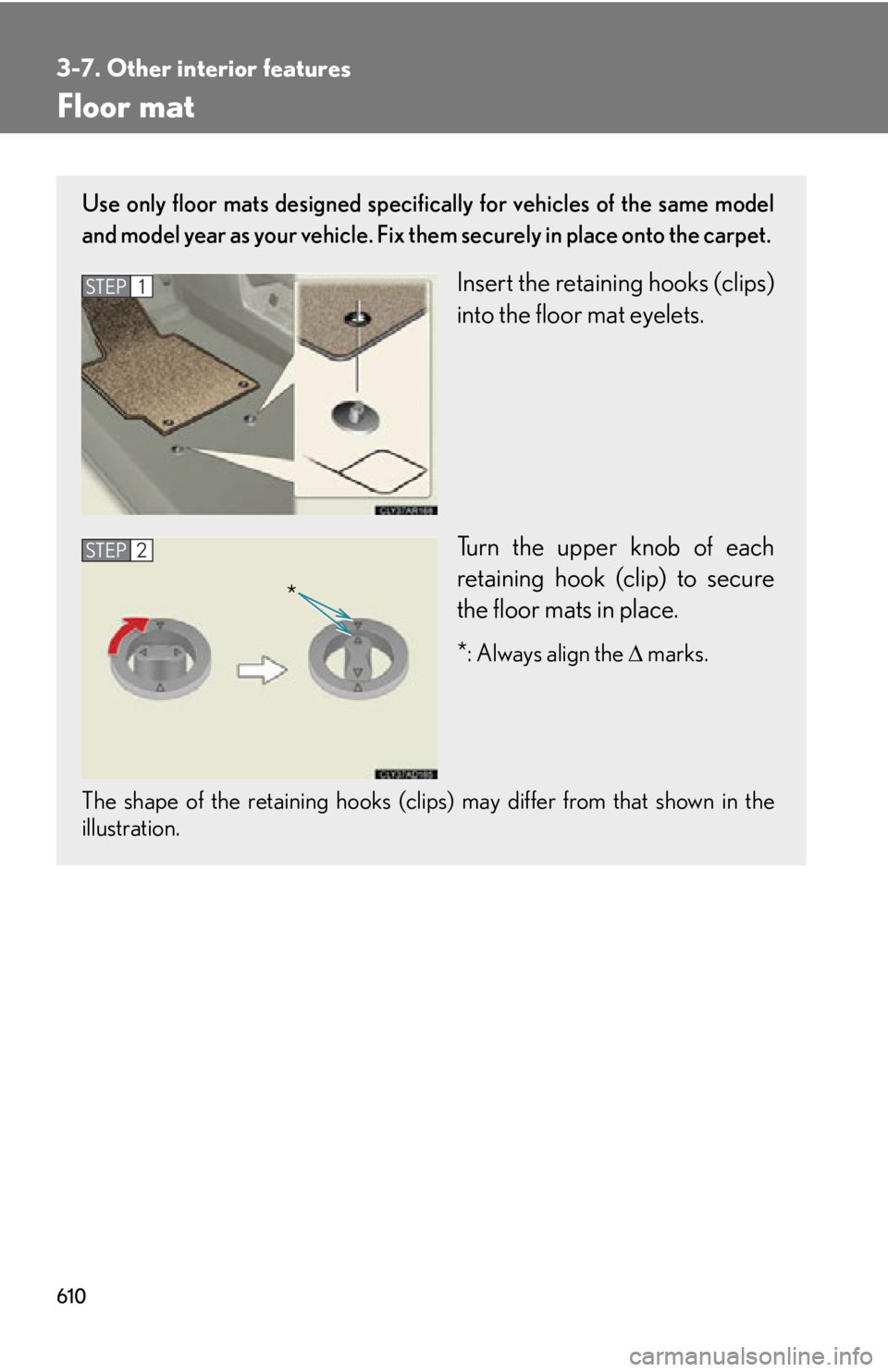

Floor mat Use only floor mats designed specifically for vehicles of the same model
and model year as your vehicle. Fix th em securely in plac e onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
* : Always align the  marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration. STEP 1
STEP 2
*
