LEXUS RX450h 2015 Owners Manual

6814-3. Do-it-yourself maintenance
4
Maintenance and care ■
Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following: ●
Reduced fuel efficiency●
Reduced driving comfort and tire life●
Reduced safety●
Damage to the drive train
If a tire needs frequent inflating, have it checked by your Lexus dealer.■
Instructions for checking tire pressure
When checking tire inflation pressure, observe the following: ●
Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been driven for
more than 1 mile or 1.5 km, you will get an accurate cold tire inflation pressure
reading.●
Always use a tire pressure gauge.
The appearance of the tire can be mislea ding. In addition, tire inflation pressure
that is even just a few pounds off can degrade ride and handling.●
Do not reduce tire inflation pressure after driving. It is normal for tire inflation
pressure to be higher after driving.●
Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is bal-
anced.

6824-3. Do-it-yourself maintenance
CAUTION■
Proper inflation is critical to save tire performance
Keep your tires properly inflated. Otherwise, the following conditions may occur
and result in an accident causing death or serious injury: ●
Excessive wear●
Uneven wear●
Poor handling●
Possibility of blowouts resulting from overheated tires●
Poor sealing of the tire bead●
Wheel deformation and/or tire separation●
A greater possibility of tire damage from road hazards
NOTICE■
When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.
Without the valve caps, dirt or moisture co uld get into the valve and cause air leak-
age, which could result in an accident. If the caps are lost, replace them as soon as
possible.

6834-3. Do-it-yourself maintenance
4

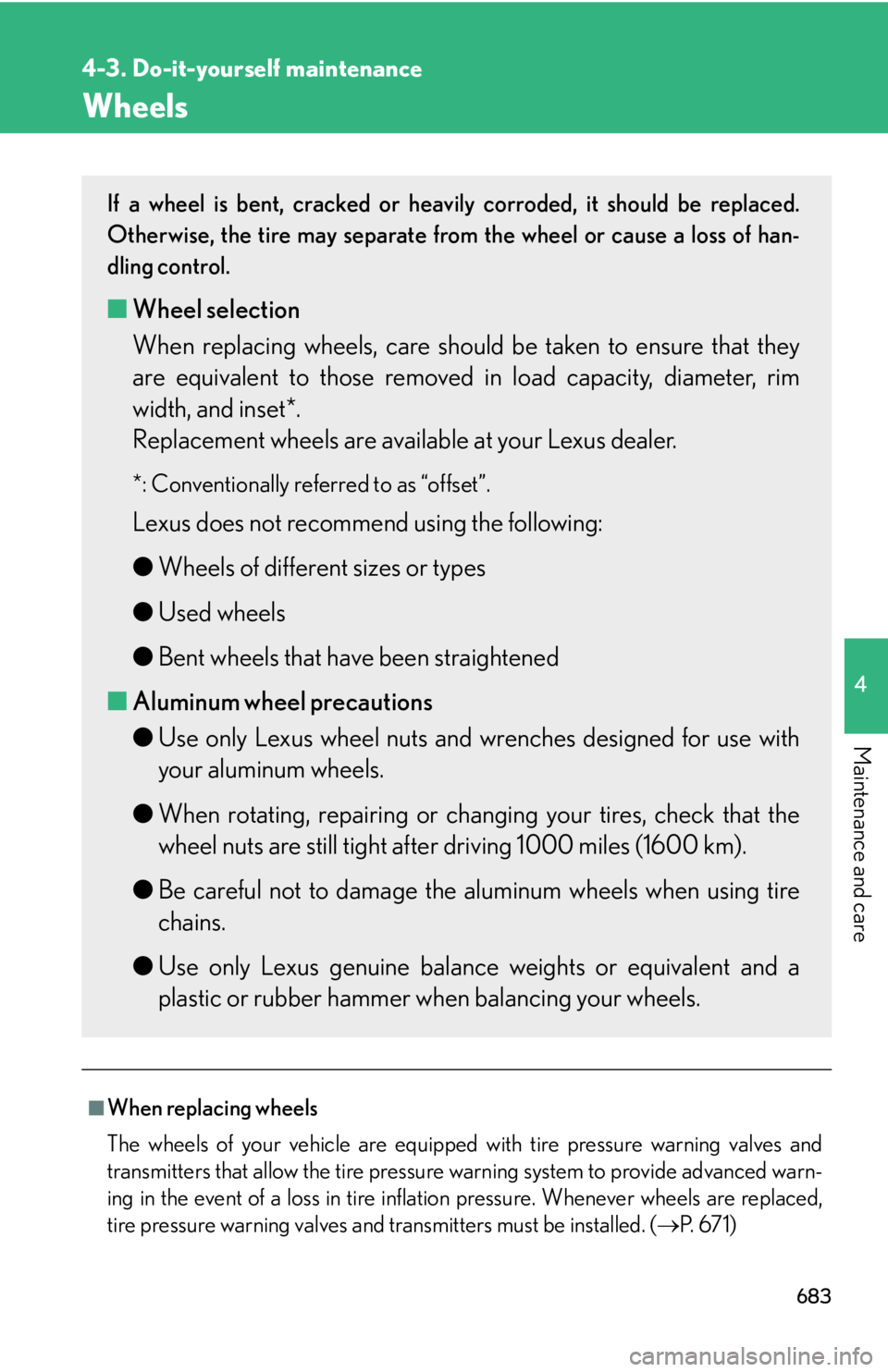

Maintenance and care Wheels
■
When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning valves and
transmitters that allow the tire pressure warning system to provide advanced warn-
ing in the event of a loss in tire inflation pressure. Whenever wheels are replaced,
tire pressure warning valves and transmitters must be installed. (  P. 6 7 1 )If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause a loss of han-
dling control.
■ Wheel selection
When replacing wheels, care should be taken to ensure that they
are equivalent to those removed in load capaci ty, diameter, rim
width, and inset*.
Replacement wheels are available at your Lexus dealer. *: Conventionally referred to as “offset”.
Lexus does not recommen d using the following:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
■ Aluminum wheel precautions
● Use only Lexus wheel nuts and wrenches designed for use with
your aluminum wheels.
● When rotating, repairing or changi ng your tires, check that the
wheel nuts are still tight after driving 1000 miles (1600 km).
● Be careful not to damage the aluminum wheels when using tire
chains.
● Use only Lexus genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.

6844-3. Do-it-yourself maintenance
CAUTION■
When replacing wheels ●
Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in loss of handling control.●
Never use an inner tube in a leaking wheel which is designed for a tubeless tire.
Doing so may result in an accident , causing death or serious injury.
NOTICE■
Replacing tire pressure warning valves and transmitters ●
Because tire repair or replacement may affect the tire pressure warning valves
and transmitters, make sure to have tires serviced by your Lexus dealer or other
qualified service shop. In addition, make sure to purchase your tire pressure
warning valves and transmitters at your Lexus dealer.●
Ensure that only genuine Lexus wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with non-
genuine wheels.

6854-3. Do-it-yourself maintenance
4

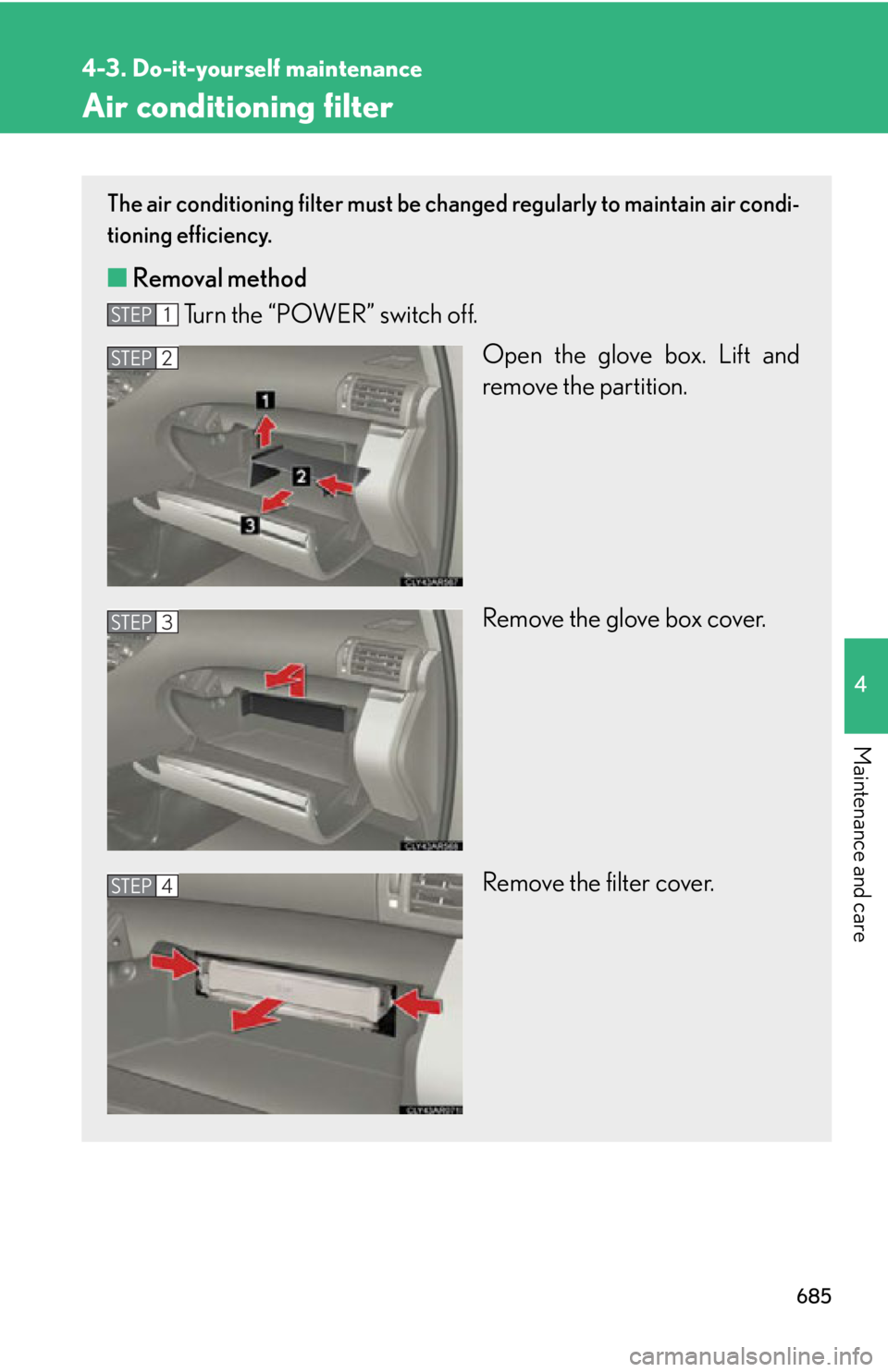

Maintenance and care Air conditioning filter The air conditioning filter must be changed regularly to maintain air condi-
tioning efficiency.
■ Removal method
Turn the “POWER” switch off.
Open the glove box. Lift and
remove the partition.
Remove the glove box cover.
Remove the filter cover.STEP 1
STEP 2
STEP 3
STEP 4

6864-3. Do-it-yourself maintenance
■
Checking interval
Inspect and replace the air conditioning filter according to the maintenance sched-
ule. In dusty areas or areas with heavy traffic flow, early replacement may be
required. (For scheduled maintenance information, please refer to the “Owner's
Manual Supplement” or “Scheduled Maintenance”.)■
If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE■
To prevent damage to the system
When using the air conditioning system, make sure that a filter is always installed.Remove the air conditioning fil-
ter and replace it with a new
one. The “  UP” mark shown on the
filter should be pointing up.STEP 5

6874-3. Do-it-yourself maintenance
4

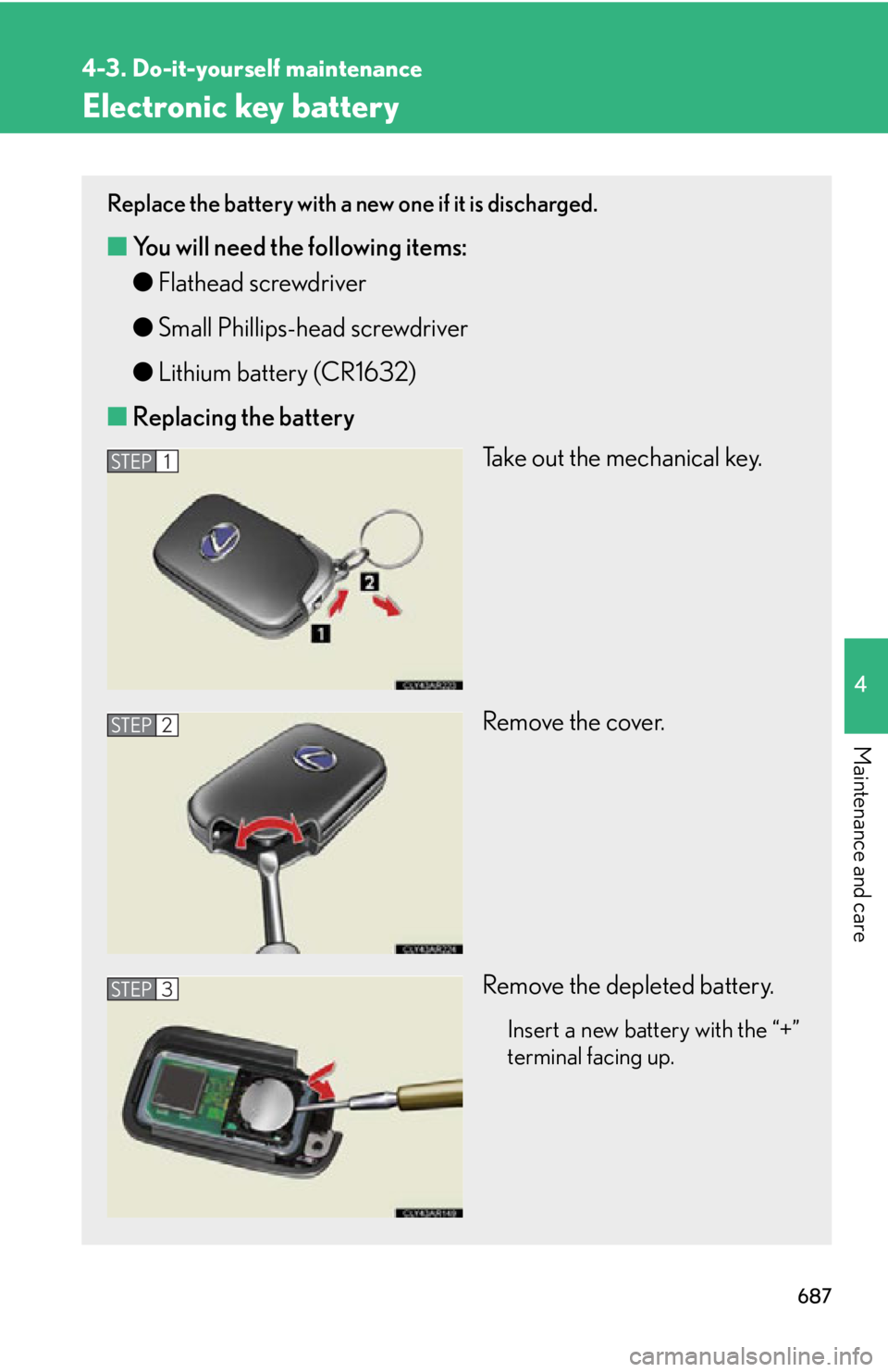

Maintenance and care Electronic key battery Replace the battery with a new one if it is discharged.
■ You will need the following items:
● Flathead screwdriver
● Small Phillips-head sc rewdriver
● Lithium battery (CR1632)
■ Replacing the battery
Take out the mechanical key.
Remove the cover.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.STEP 1
STEP 2
STEP 3

6884-3. Do-it-yourself maintenance
■
Use a CR1632 lithium battery ●
Batteries can be purchased at your Le xus dealer, local electrical appliance
shops or camera stores.●
Replace only with the same or equivalent type recommended by the manufac-
turer.●
Dispose of used batteries according to the local laws.■
If the electronic key battery is discharged
The following symptoms may occur: ●
The smart access system with push-button start and wireless remote control will
not function properly.●
The operational range is reduced.■
When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer
can replace the battery for you.
CAUTION■
Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep
away from children. Failure to do so could result in death or serious injury.
NOTICE■
For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●
Always work with dry hands.
Moisture may cause the battery to rust.
●
Do not touch or move any other comp onents inside the remote control.
●
Do not bend either of the battery terminals.

6894-3. Do-it-yourself maintenance
4

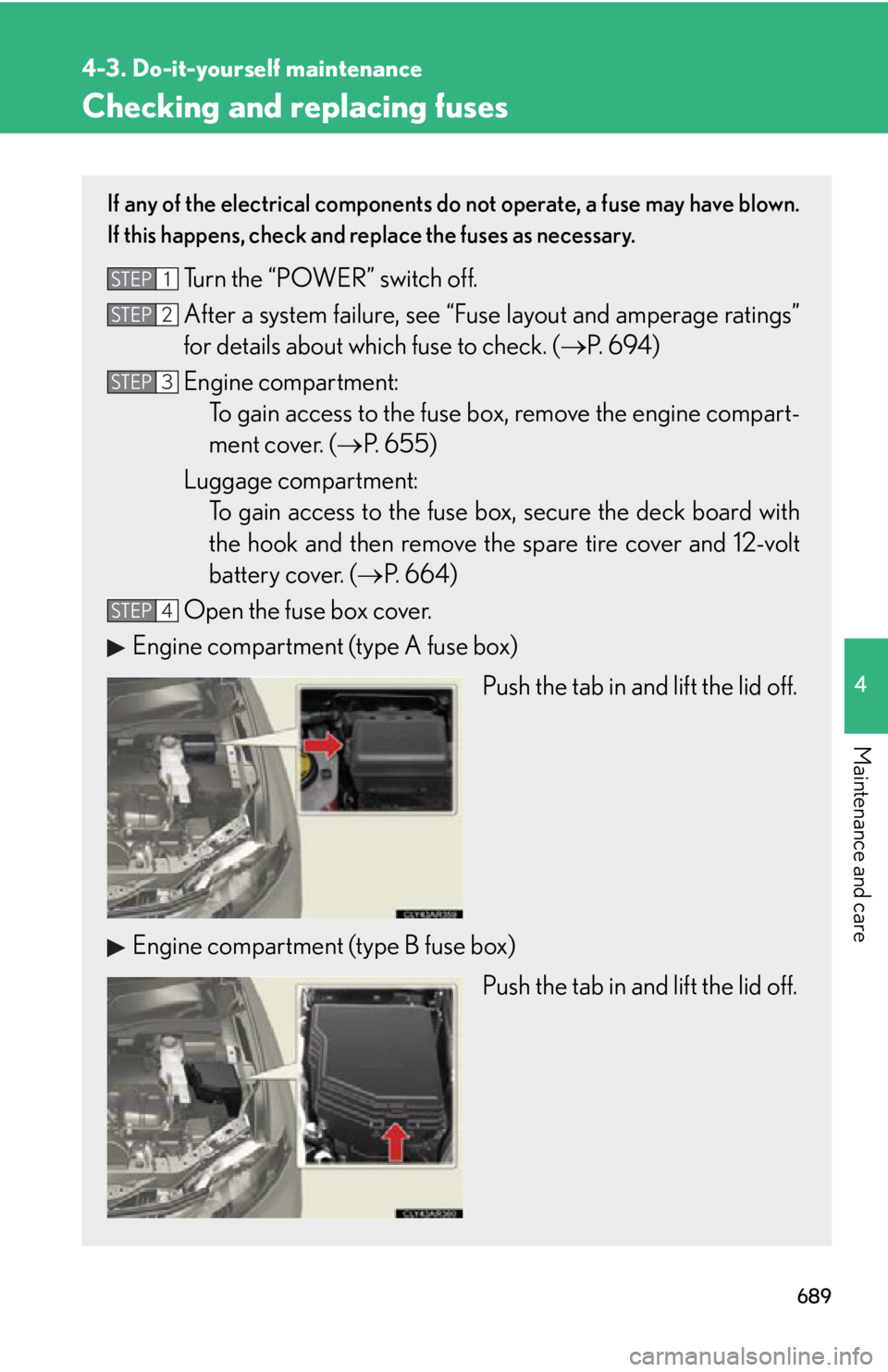

Maintenance and care Checking and replacing fuses If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and re place the fuses as necessary.
Turn the “POWER” switch off.
After a system failure, see “Fuse layout and amperage ratings”
for details about which fuse to check. (  P. 694)
Engine compartment:
To gain access to the fuse box, remove the engine compart-
ment cover. (  P. 655)
Luggage compartment:
To gain access to the fuse box, secure the deck board with
the hook and then remove th e spare tire cover and 12-volt
battery cover. (  P. 664)
Open the fuse box cover.
Engine compartment (type A fuse box)
Push the tab in and lift the lid off.
Engine compartment (type B fuse box)
Push the tab in and lift the lid off.STEP 1
STEP 2
STEP 3
STEP 4

6904-3. Do-it-yourself maintenance

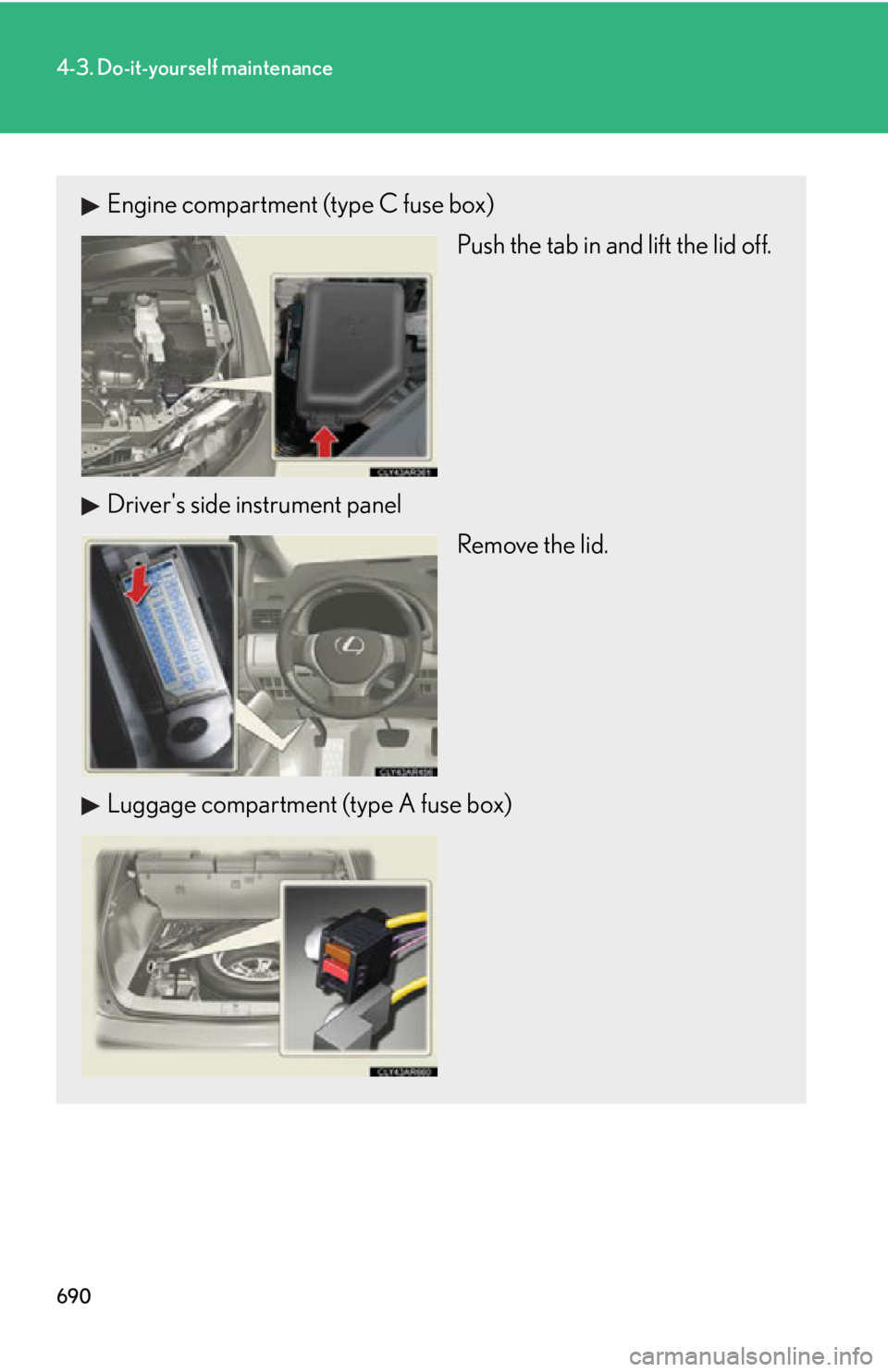

Engine compartment (type C fuse box)
Push the tab in and lift the lid off.
Driver's side instrument panel
Remove the lid.
Luggage compartment (type A fuse box)
