7705-2. Steps to take in an emergency
Slightly loosen the wheel nuts (one
turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is in
contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.STEP 2
STEP 3
STEP 4
STEP 5

5
When trouble arises
7715-2. Steps to take in an emergency
Installing the spare tire
Remove any dirt or foreign matter
from the wheel contact surface. If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the spare tire and loosel y tighten each wheel nut by hand
by approximately the same amount.
Vehicles with a compact spare tire
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel seat.
Vehicles with a full-size spare tire
Turn the nuts until the washers
come into contact with the wheel.STEP 1
STEP 2
Disc wheel
seatTapered portion
Wheel nut
Disc wheelWa s h e r

7725-2. Steps to take in an emergency
Lower the vehicle.
Firmly tighten each wheel nut two
or three times in the order shown
in the illustration. Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.STEP 3
STEP 4
■
The compact spare tire ●
The compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.●
Make sure to check the tire inflatio n pressure of the compact spare tire.
(  P. 8 0 7 )■
When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning valve and
transmitter, low inflation pressure of the spare tire will not be indicated by the tire
pressure warning system. Also, if you repl ace the compact spare tire after the tire
pressure warning light comes on, the light remains on. STEP 5

5
When trouble arises
7735-2. Steps to take in an emergency
■
If you have a flat front tire on a road covered with snow or ice (vehicles with a
compact spare tire)
Install the compact spare tire on one of the rear wheels of the vehicle. Perform the
following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehi-
cle.
Fit tire chains to the front tires.■
After completing the tire change
The tire pressure warning system must be reset. (  P. 6 7 1 )
CAUTION■
Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack,
leading to death or serious injury. ●
Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.●
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do no t use other tire jacks for replacing tires
on this vehicle.●
Always check that the tire jack is securely set to the jack point.●
Do not put any part of your body under the vehicle while it is supported by the
jack.●
Do not start or run the hybrid system while your vehicle is supported by the jack.●
Do not raise the vehicle while someone is inside.●
When raising the vehicle, do not put an object on or under the jack.
●
Do not raise the vehicle to a height greate r than that required to replace the tire.
●
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working on or
near the vehicle may be injured. STEP 1
STEP 2
STEP 3

7745-2. Steps to take in an emergency
CAUTION■
Replacing a flat tire ●
Observe the following precautions.
Failure to do so may result in serious injury:
• Do not touch the disc wheels or the ar ea around the brakes immediately after
the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or other
body parts while changing a tire, etc. may result in burns.
• Do not attach a heavily damaged wheel ornament, as it may fly off the wheel
while the vehicle is moving.●
Failure to follow these precautions could cause the wheel nuts to loosen and the
tire to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened, leading
to bolt or disc wheel damage. In addition, the oil or grease can cause the
wheel nuts to loosen and the wheel may fall off, causing a serious accident.
Remove any oil or grease from the wheel bolts or wheel nuts.
• Have the wheel nuts tightened with a to rque wrench to 76 ft•lbf (103 N•m,
10.5 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use whee l nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt
holes of the wheel, have the vehicle inspected by your Lexus dealer.■
Replacing a flat tire for ve hicles with power back door
In cases such as when replacing tires, make sure to turn off the power back door
main switch (  P. 77). Failure to do so may cause the back door to operate uninten-
tionally if the power back door switch is accidentally touched, resulting in hands and
fingers being caught and injured.

5
When trouble arises
7755-2. Steps to take in an emergency
CAUTION■
When using the compact spare tire ●
Remember that the compact spare tire prov ided is specifically designed for use
with your vehicle. Do not use your compact spare tire on another vehicle.●
Do not use more than one compact spare tire simultaneously.●
Replace the compact spare tire with a standard tire as soon as possible.●
Avoid sudden acceleration, abrupt steeri ng, sudden braking and shifting opera-
tions that cause sudden engine braking.■
When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may
not operate correctly: ●
ABS & Brake assist●
VSC●
TRAC●
VDIM●
Intuitive parking assist (if equipped)●
Navigation system (if equipped)●
Cruise control (if equipped)●
Dynamic radar cruise control (if equipped)●
Pre-Collision System (if equipped)
Also, not only can the following system not be utilized fully, but it may even nega-
tively affect the drive-train components: ●
AWD system (if equipped)■
Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe
this precaution may lead to an accident causing death or serious injury.

7765-2. Steps to take in an emergency
NOTICE■
Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair.■
Be careful when driving over bumps with the compact spare tire installed on the
vehicle.
The vehicle becomes lower when driving with the compact spare tire compared to
when driving with standard tires. Be careful when driving over uneven road sur-
faces.■
Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving performance.■
When replacing the tires
When removing or fitting the wheels, tire s or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and trans-
mitter may be damaged if not handled correctly.■
To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid seal ants, the tire pressure warning valve and
transmitter may not operate properly. If a liquid sealant is used, contact your Lexus
dealer or other qualified service shop as so on as possible. Make sure to replace the
tire pressure warning valve and transmitter when replacing the tire. (  P. 6 7 1 )

5
When trouble arises
7775-2. Steps to take in an emergency

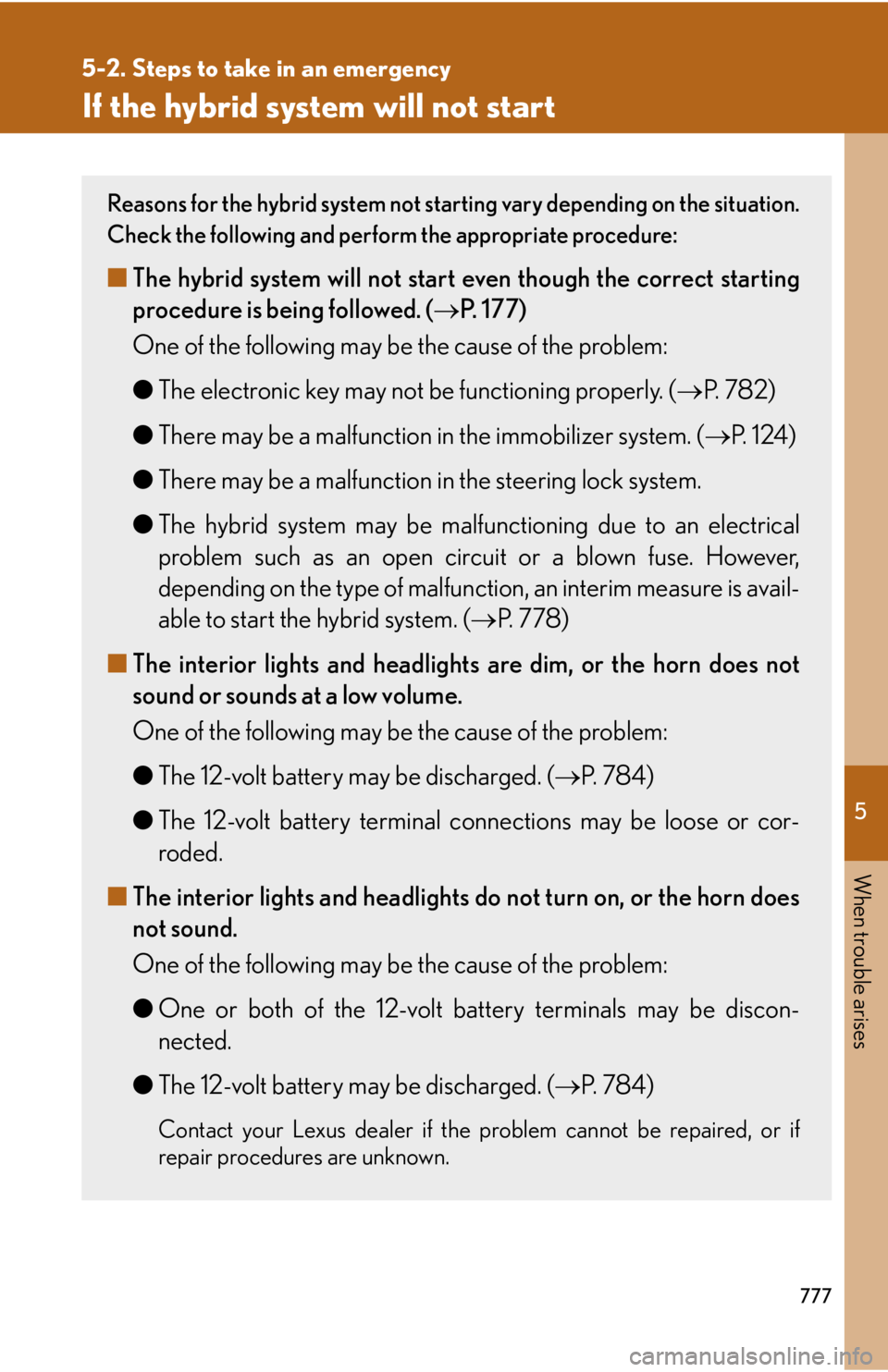

If the hybrid system will not start Reasons for the hybrid system not starting vary depending on the situation.
Check the following and perform the appropriate procedure:
■ The hybrid system will not start even though the correct starting
procedure is being followed. (  P. 1 7 7 )
One of the following may be the cause of the problem:
● The electronic key may not be functioning properly. (  P. 7 8 2 )
● There may be a malfunction in the immobilizer system. (  P. 1 2 4 )
● There may be a malfunction in the steering lock system.
● The hybrid system may be malfunc tioning due to an electrical
problem such as an open circ uit or a blown fuse. However,
depending on the type of malfunc tion, an interim measure is avail-
able to start the hybrid system. (  P. 7 7 8 )
■ The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.
One of the following may be the cause of the problem:
● The 12-volt battery may be discharged. (  P. 7 8 4 )
● The 12-volt battery terminal co nnections may be loose or cor-
roded.
■ The interior lights and headlights do not turn on, or the horn does
not sound.
One of the following may be the cause of the problem:
● One or both of the 12-volt battery terminals may be discon-
nected.
● The 12-volt battery may be discharged. (  P. 7 8 4 )
Contact your Lexus dealer if the problem cannot be repaired, or if
repair procedures are unknown.

7785-2. Steps to take in an emergency
Emergency start function
When the hybrid system does not start, the following steps can be used as
an interim measure to start the hybr id system if the “POWER” switch is
functioning normally:
Set the parking brake.
Shift the shift lever to P.
Turn the “POWER” switch to ACCESSORY mode.
Press and hold the “POWER” swit ch for about 15 seconds while
depressing the brake pedal firmly.
Even if the hybrid system can be star ted using the above steps, the system
may be malfunctioning. Have the vehi cle inspected by your Lexus dealer.STEP 1
STEP 2
STEP 3
STEP 4

5
When trouble arises
7795-2. Steps to take in an emergency

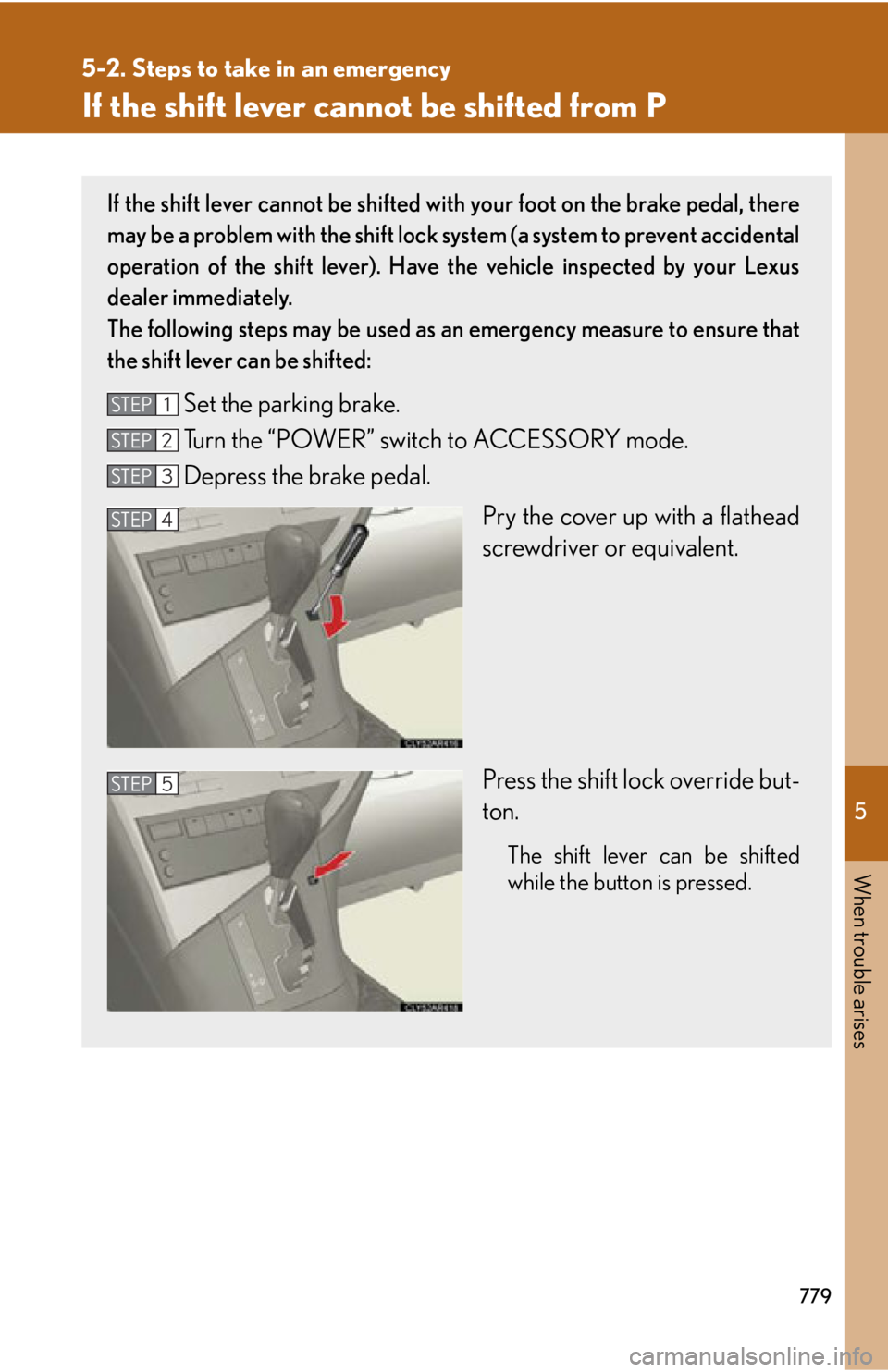

If the shift lever cannot be shifted from P If the shift lever cannot be shifted with your foot on the brake pedal, there
may be a problem with the shift lock system (a system to prevent accidental
operation of the shift lever). Have the vehicle inspected by your Lexus
dealer immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted:
Set the parking brake.
Turn the “POWER” switch to ACCESSORY mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent.
Press the shift lock override but-
ton. The shift lever can be shifted
while the button is pressed.STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
