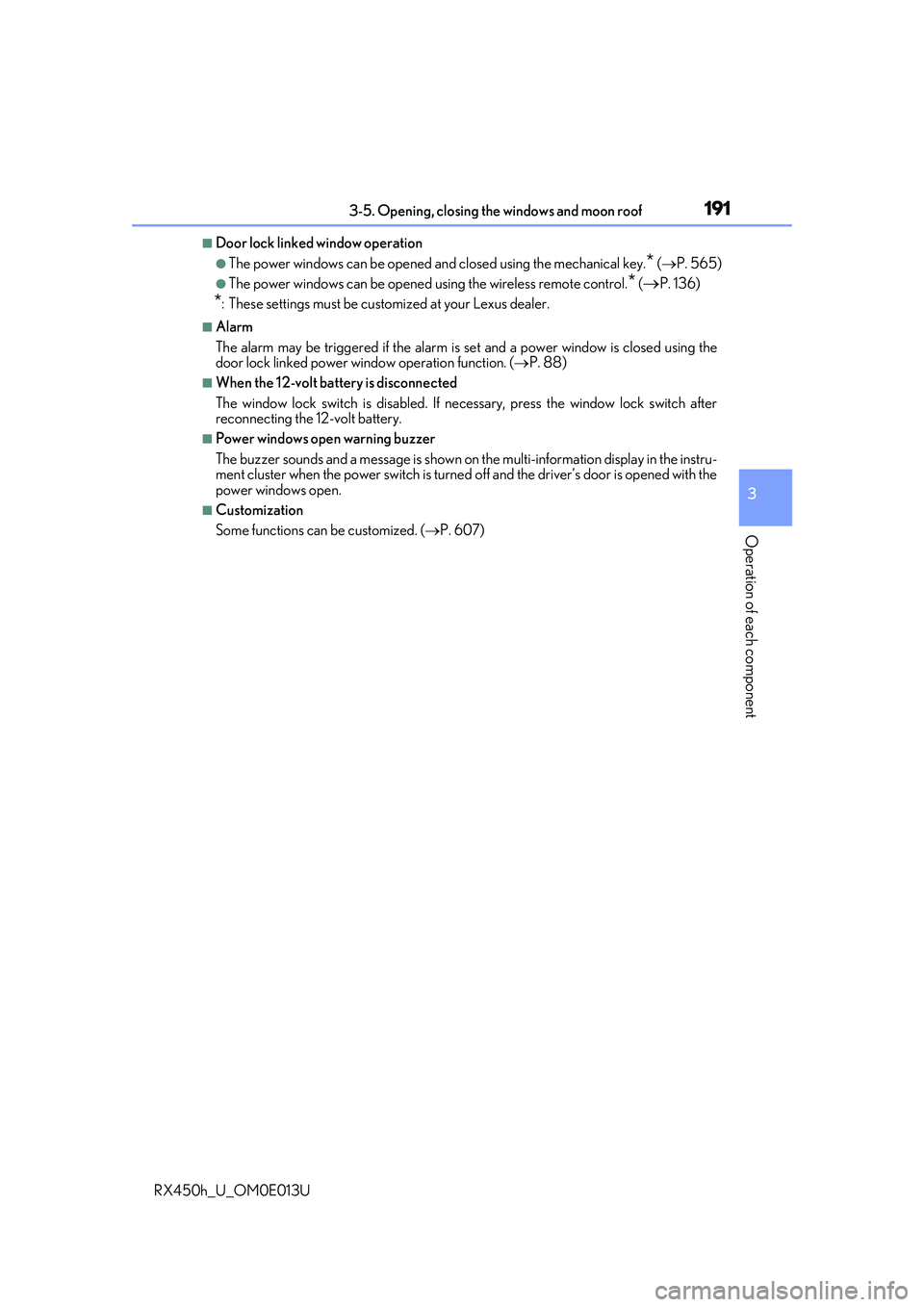

LEXUS RX450H 2016 Owners Manual

1913-5. Opening, closing the windows and moon roof
3
Operation of each component
RX450h_U_OM0E013U
■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key.* ( P. 565)
●The power windows can be opened using the wireless remote control.* (P. 136)
*: These settings must be cust omized at your Lexus dealer.
■Alarm
The alarm may be triggered if the alarm is set and a power window is closed using the
door lock linked power window operation function. ( P. 88)
■When the 12-volt battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch after
reconnecting the 12-volt battery.
■Power windows open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the instru-
ment cluster when the power switch is turned off and the driver’s door is opened with the
power windows open.
■Customization
Some functions can be customized. ( P. 607)

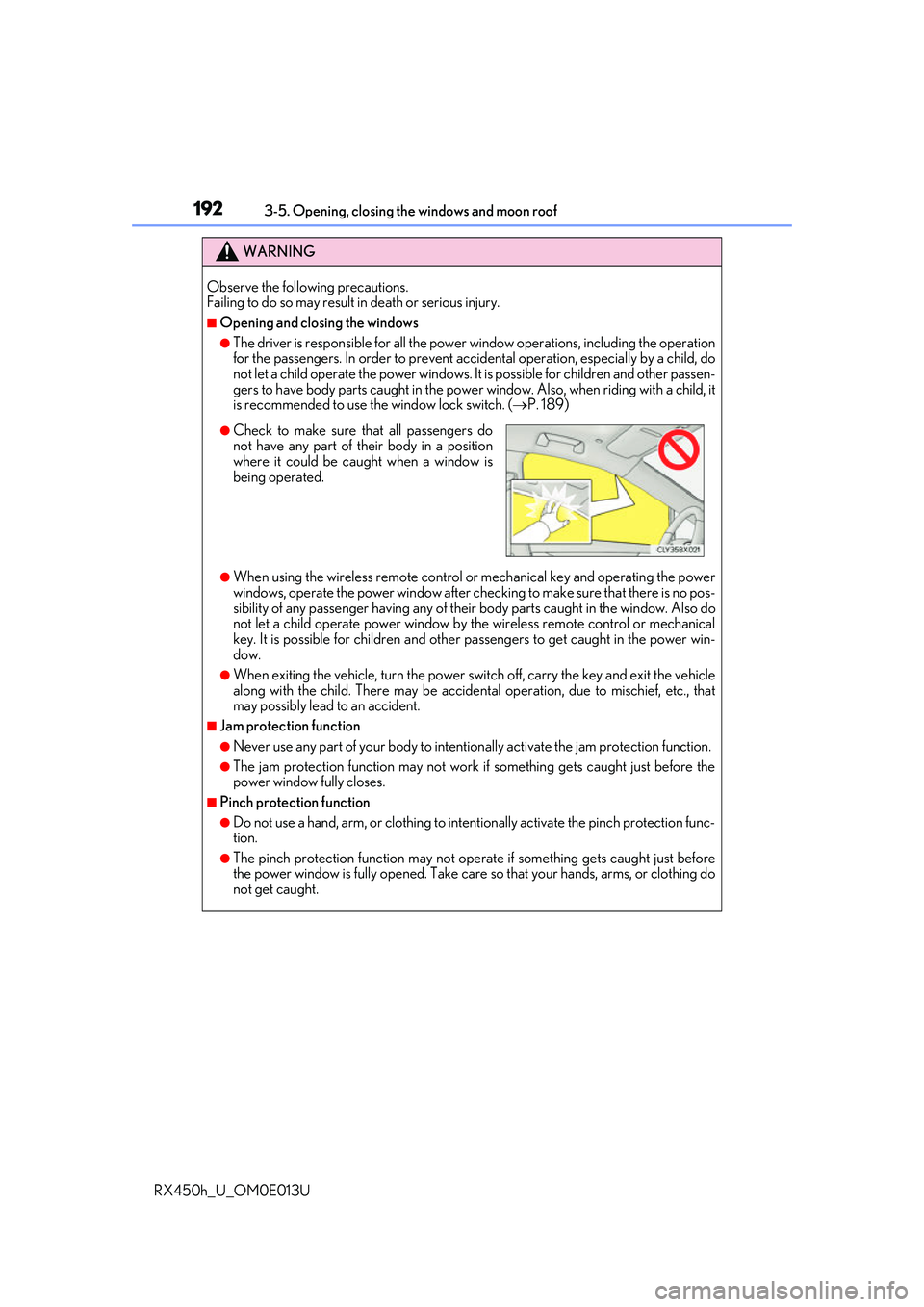

1923-5. Opening, closing the windows and moon roof
RX450h_U_OM0E013U
WARNING
Observe the following precautions.
Failing to do so may result in death or serious injury.
■Opening and closing the windows
●The driver is responsible for all the power window operations, including the operation
for the passengers. In order to prevent acci dental operation, especially by a child, do
not let a child operate the power windows. It is possible for children and other passen-
gers to have body parts caught in the powe r window. Also, when riding with a child, it
is recommended to use the window lock switch. ( P. 189)
●When using the wireless remote control or mechanical key and operating the power
windows, operate the power window after checking to make sure that there is no pos-
sibility of any passenger having any of their body parts caught in the window. Also do
not let a child operate power window by the wireless remote control or mechanical
key. It is possible for children and other passengers to get caught in the power win-
dow.
●When exiting the vehicle, turn the power switch off, carry the key and exit the vehicle
along with the child. There may be accidental operation, due to mischief, etc., that
may possibly lead to an accident.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection function.
●The jam protection function may not work if something gets caught just before the
power window fully closes.
■Pinch protection function
●Do not use a hand, arm, or clothing to inte ntionally activate the pinch protection func-
tion.
●The pinch protection function may not oper ate if something gets caught just before
the power window is fully opened. Take care so that your hands, arms, or clothing do
not get caught.
●Check to make sure th at all passengers donot have any part of their body in a position
where it could be caught when a window is
being operated.

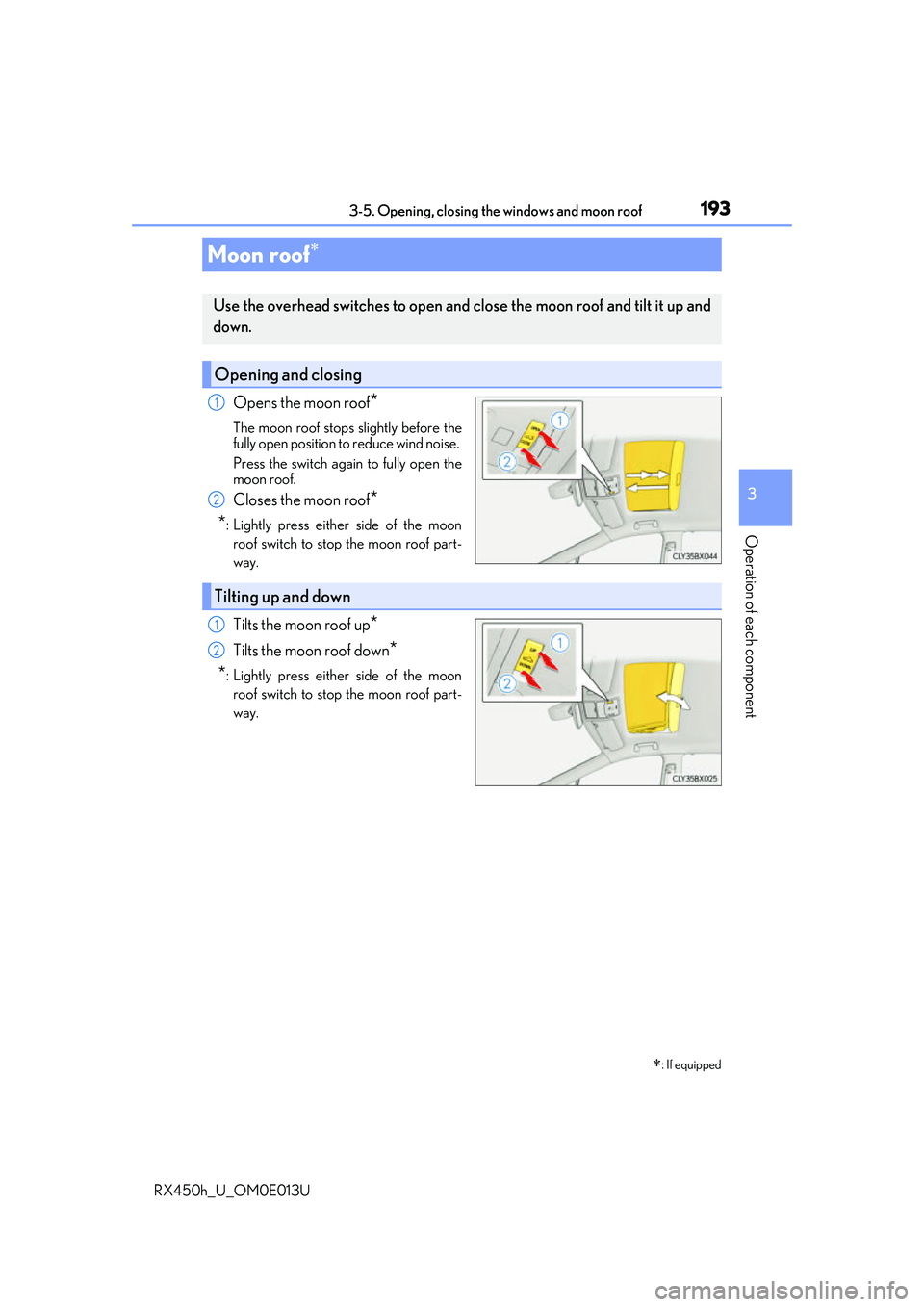

1933-5. Opening, closing the windows and moon roof
3
Operation of each component
RX450h_U_OM0E013U
Opens the moon roof*
The moon roof stops slightly before the
fully open position to reduce wind noise.
Press the switch again to fully open the
moon roof.
Closes the moon roof*
*
: Lightly press either side of the moon roof switch to stop the moon roof part-
way.
Tilts the moon roof up*
Tilts the moon roof down*
*
: Lightly press either side of the moon roof switch to stop the moon roof part-
way.
Moon roof

: If equipped
Use the overhead switches to open and close the moon roof and tilt it up and
down.
Opening and closing
1
2
Tilting up and down
1
2

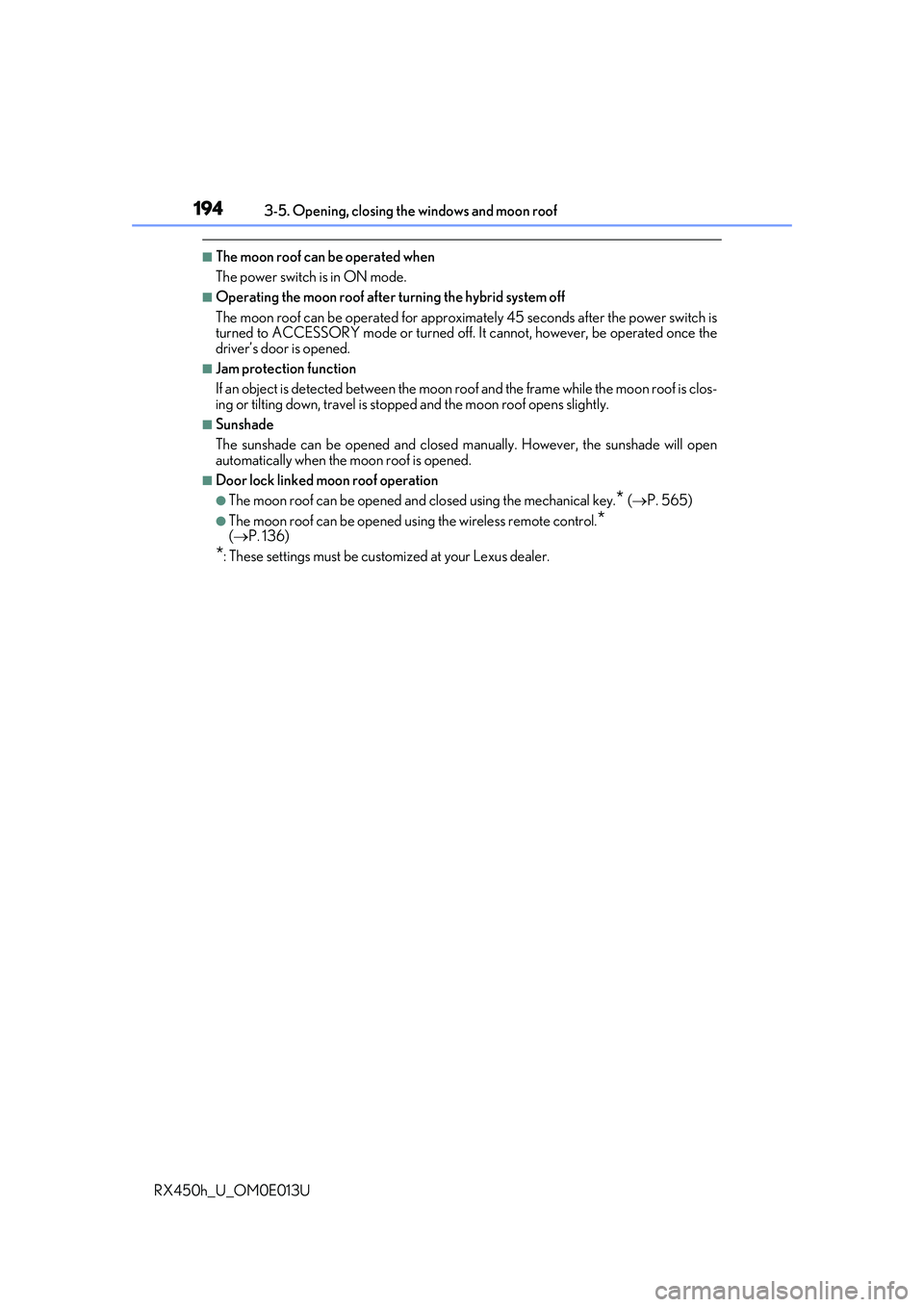

1943-5. Opening, closing the windows and moon roof
RX450h_U_OM0E013U
■The moon roof can be operated when
The power switch is in ON mode.
■Operating the moon roof after turning the hybrid system off
The moon roof can be operated for approximately 45 seconds after the power switch is
turned to ACCESSORY mode or turned off. It cannot, however, be operated once the
driver’s door is opened.
■Jam protection function
If an object is detected between the moon r oof and the frame while the moon roof is clos-
ing or tilting down, travel is stopped and the moon roof opens slightly.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will open
automatically when the moon roof is opened.
■Door lock linked moon roof operation
●The moon roof can be opened and closed using the mechanical key.* ( P. 565)
●The moon roof can be opened us ing the wireless remote control.* ( P. 136)
*: These settings must be customized at your Lexus dealer.

1953-5. Opening, closing the windows and moon roof
3
Operation of each component
RX450h_U_OM0E013U

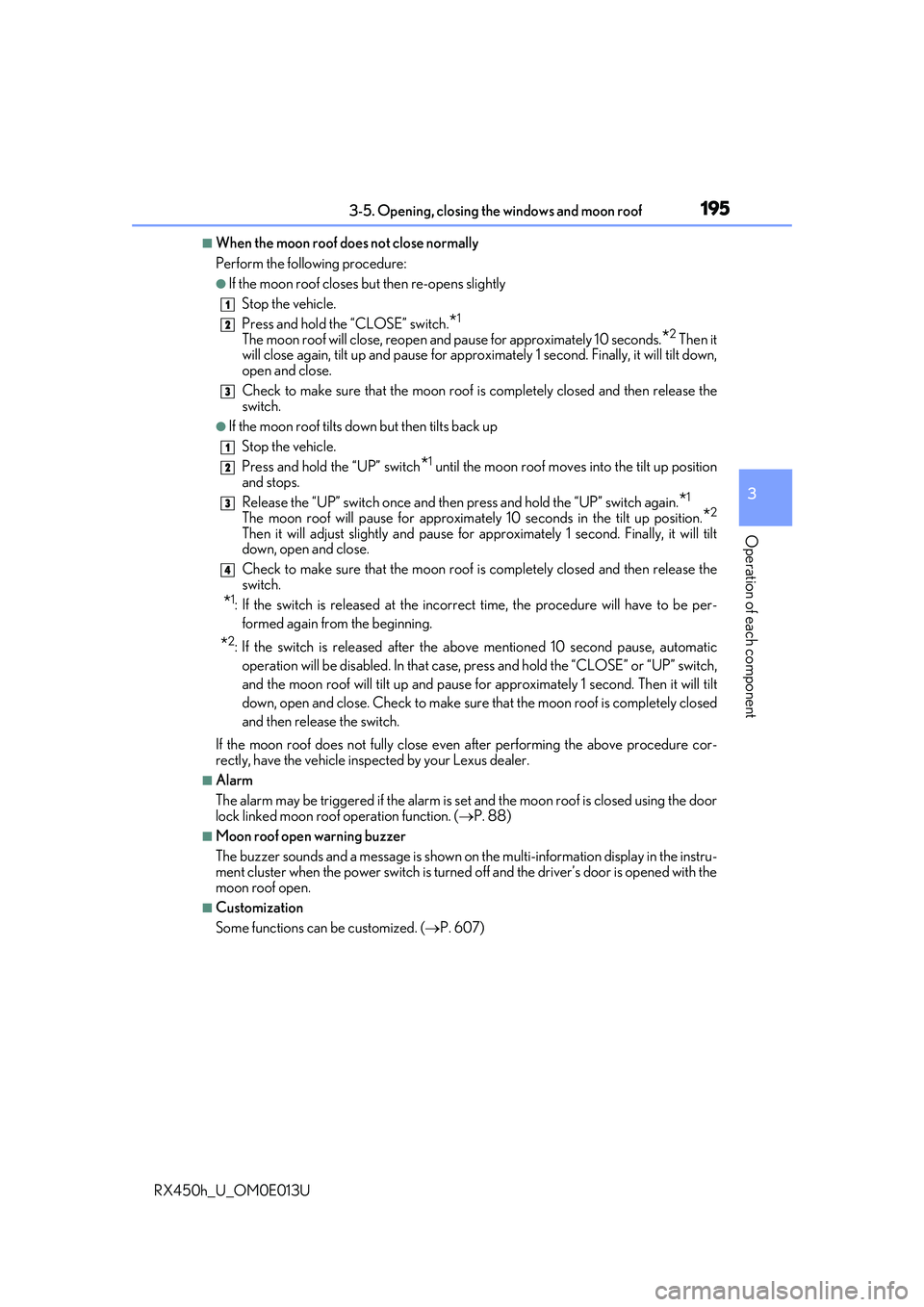

■When the moon roof does not close normally
Perform the following procedure:
●If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “CLOSE” switch.
*1
The moon roof will close, reopen an d pause for approximately 10 seconds.*2 Then it
will close again, tilt up and pause for approx imately 1 second. Finally, it will tilt down,
open and close.
Check to make sure that the moon roof is completely closed and then release the
switch.
●If the moon roof tilts down but then tilts back up
Stop the vehicle.
Press and hold the “UP” switch
*1 until the moon roof moves into the tilt up position
and stops.
Release the “UP” switch once and then press and hold the “UP” switch again.
*1
The moon roof will pause fo r approximately 10 seconds in the tilt up position.*2
Then it will adjust slightly and pause for approximately 1 second. Finally, it will tilt
down, open and close.
Check to make sure that the moon roof is completely closed and then release the
switch.
*1: If the switch is released at the incorrect time, the pr ocedure will have to be per-
formed again from the beginning.
*2: If the switch is released after the above mentioned 10 second pause, automatic operation will be disabled. In that case, press and hold the “CLOSE” or “UP” switch,
and the moon roof will tilt up and pause for approximately 1 second. Then it will tilt
down, open and close. Check to make sure that the moon roof is completely closed
and then release the switch.
If the moon roof does not fully close even after performing the above procedure cor-
rectly, have the vehicle inspected by your Lexus dealer.
■Alarm
The alarm may be triggered if the alarm is se t and the moon roof is closed using the door
lock linked moon roof operation function. ( P. 88)
■Moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the instru-
ment cluster when the power switch is turned off and the driver’s door is opened with the
moon roof open.
■Customization
Some functions can be customized. ( P. 607)
1
2
3
1
2
3
4

1963-5. Opening, closing the windows and moon roof
RX450h_U_OM0E013U
WARNING
Observe the following precautions.
Failing to do so may cause death or serious injury.
■Opening the moon roof
●Do not allow any passengers to put their hands or heads outside the vehicle while it is
moving.
●Do not sit on top of the moon roof.
■Opening and closing the moon roof
●The driver is responsible for moon roof opening and closing operations.
In order to prevent accidental operation, especially by a child, do not let a child oper-
ate the moon roof. It is possible for child ren and other passengers to have body parts
caught in the moon roof.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection function.
●The jam protection function may not work if something gets caught just before the
moon roof is fully closed. Also, the jam prot ection function is not designed to operate
while the switch is being pressed. Take care so that your fingers, etc. do not get
caught.
●Check to make sure th at all passengers donot have any part of their body in a position
where it could be caught when the moon roof
is being operated.
●When using the wireless remote control or
mechanical key and operating the moon roof,
operate the moon roof after checking to
make sure that there is no possibility of any
passenger having any of their body parts
caught in the moon roof. Also, do not let a
child operate moon roof by the wireless
remote control or mechanical key. It is possi-
ble for children and other passengers to get
caught in the moon roof.
●When exiting the vehicle, turn the power
switch off, carry the key and exit the vehicle
along with the child. There may be accidental
operation, due to mischief, etc., that may pos-
sibly lead to an accident.

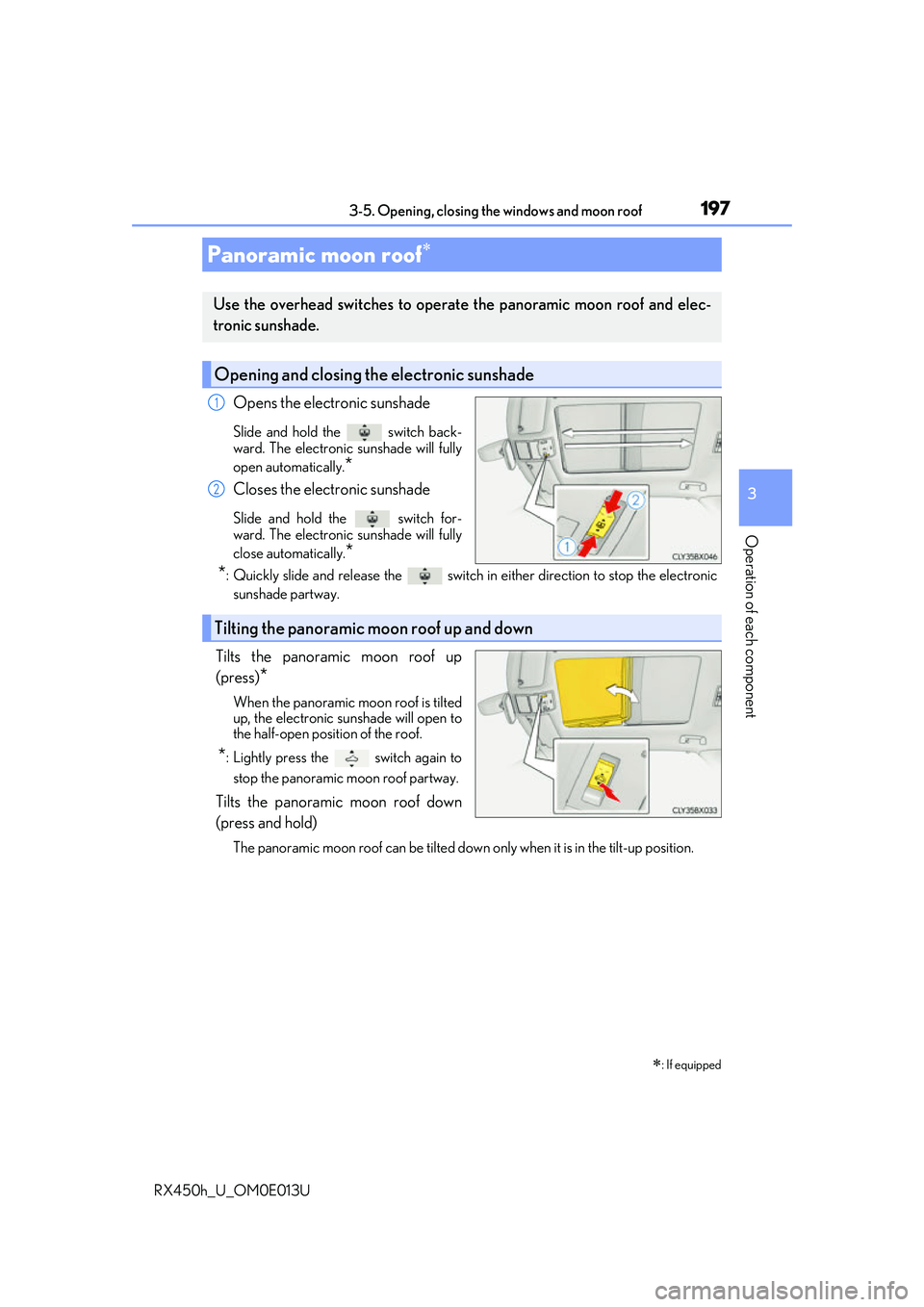

1973-5. Opening, closing the windows and moon roof
3
Operation of each component
RX450h_U_OM0E013U
Opens the electronic sunshade
Slide and hold the switch back-
ward. The electronic sunshade will fully
open automatically.
*
Closes the electronic sunshade
Slide and hold the switch for-
ward. The electronic sunshade will fully
close automatically.
*
*
: Quickly slide and release th e switch in either direct ion to stop the electronic
sunshade partway.
Tilts the panoramic moon roof up
(press)
*
When the panoramic moon roof is tilted
up, the electronic su nshade will open to
the half-open position of the roof.
*: Lightly press the switch again to
stop the panoramic moon roof partway.
Tilts the panoramic moon roof down
(press and hold)
The panoramic moon roof can be tilted down only when it is in the tilt-up position.
Panoramic moon roof

: If equipped
Use the overhead switches to operat e the panoramic moon roof and elec-
tronic sunshade.
Opening and closing the electronic sunshade
1
2
Tilting the panoramic moon roof up and down

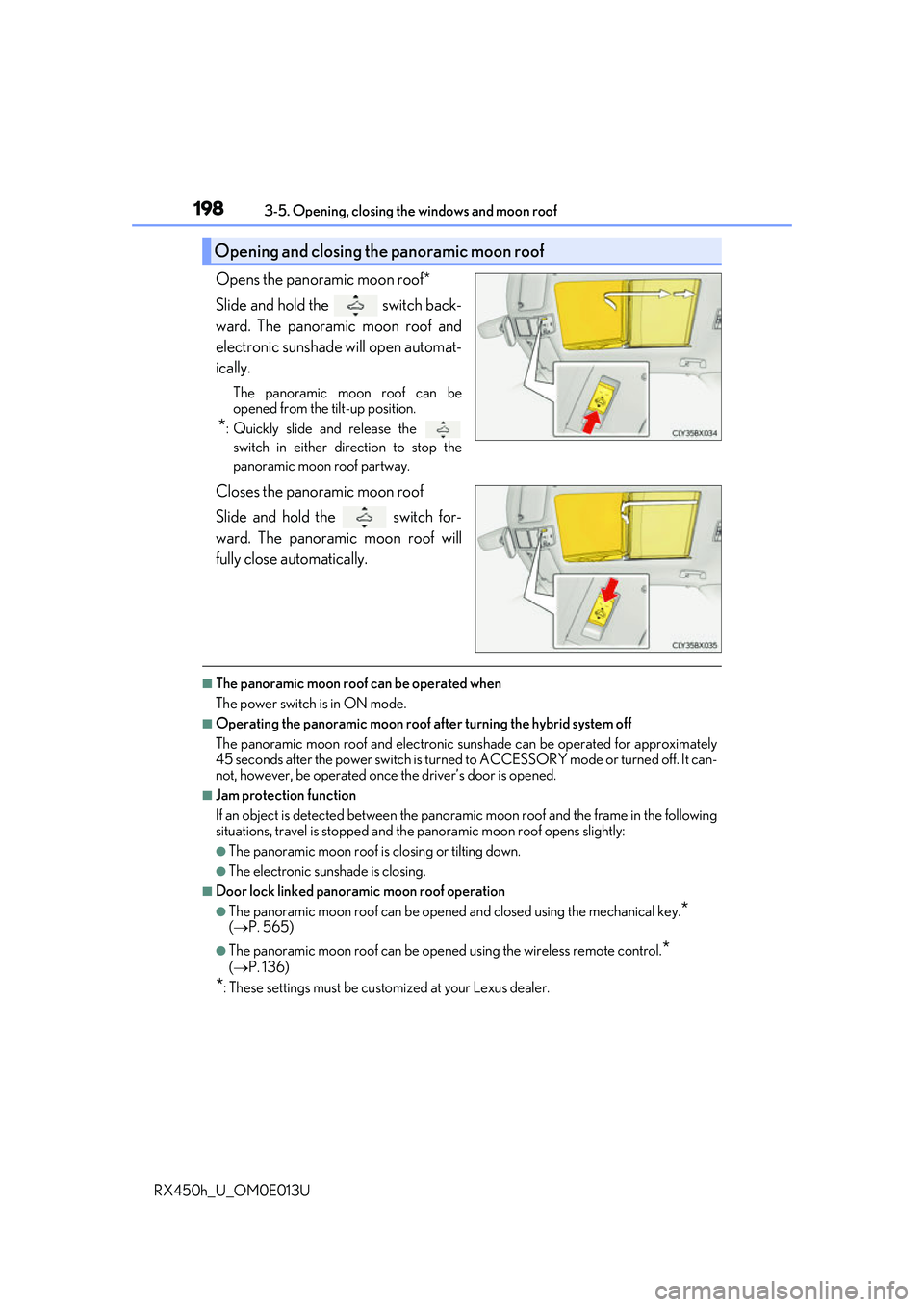

1983-5. Opening, closing the windows and moon roof
RX450h_U_OM0E013U
Opens the panoramic moon roof*
Slide and hold the switch back-
ward. The panoramic moon roof and
electronic sunshade will open automat-
ically.
The panoramic moon roof can be
opened from the tilt-up position.
*: Quickly slide and release the switch in either direction to stop the
panoramic moon roof partway.
Closes the panoramic moon roof
Slide and hold the switch for-
ward. The panoramic moon roof will
fully close automatically.
■The panoramic moon roof can be operated when
The power switch is in ON mode.
■Operating the panoramic moon roof af ter turning the hybrid system off
The panoramic moon roof and electronic su nshade can be operated for approximately
45 seconds after the power switch is turned to ACCESSORY mode or turned off. It can-
not, however, be operated once the driver’s door is opened.
■Jam protection function
If an object is detected be tween the panoramic moon roof and the frame in the following
situations, travel is stopped and the panoramic moon roof opens slightly:
●The panoramic moon roof is closing or tilting down.
●The electronic sunshade is closing.
■Door lock linked panoramic moon roof operation
●The panoramic moon roof can be opened and closed using the mechanical key.*
(  P. 565)
●The panoramic moon roof can be open ed using the wireless remote control.*
( P. 136)
*: These settings must be customized at your Lexus dealer.
Opening and closing the panoramic moon roof

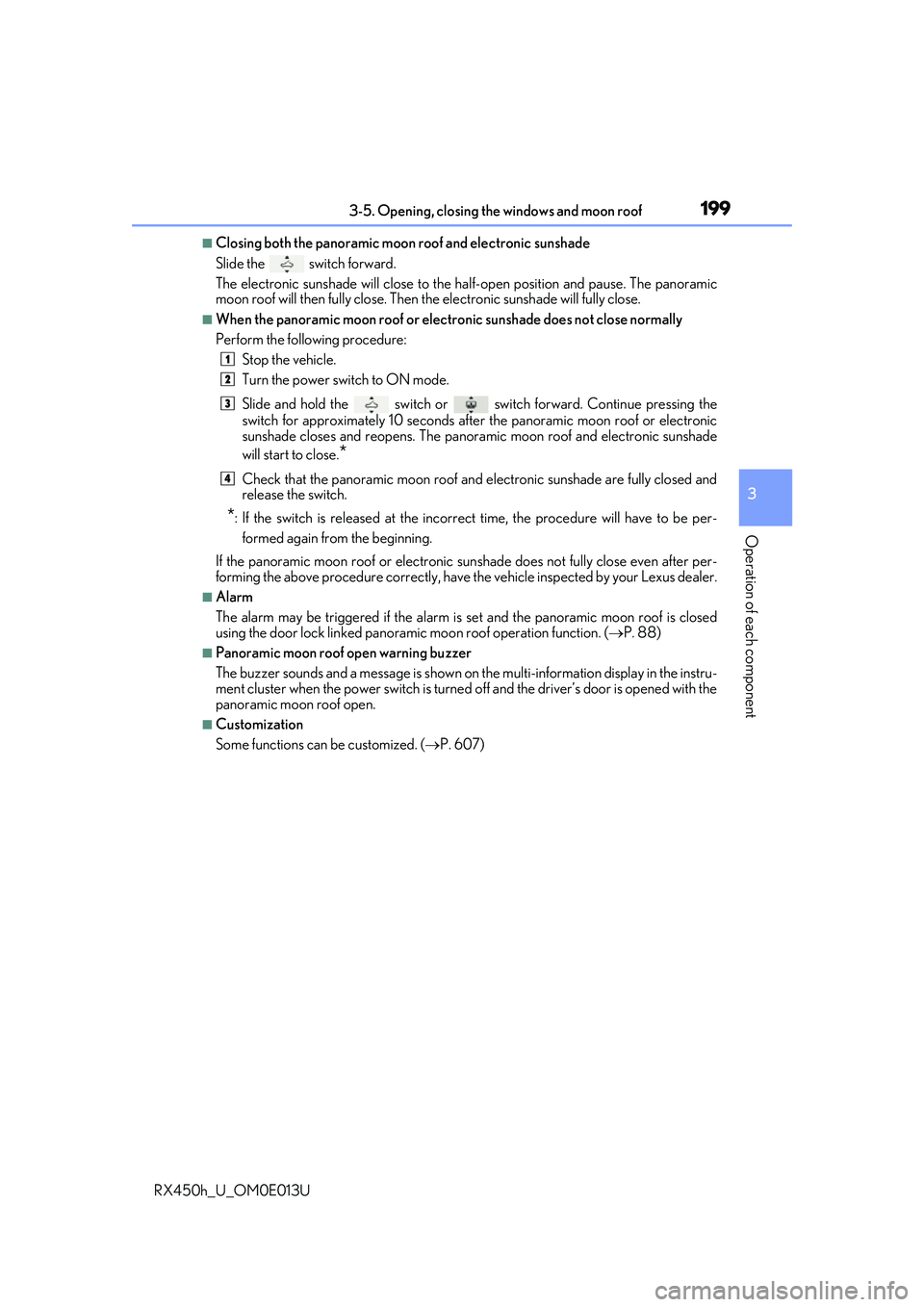

1993-5. Opening, closing the windows and moon roof
3
Operation of each component
RX450h_U_OM0E013U
■Closing both the panoramic moon roof and electronic sunshade
Slide the
switch forward.
The electronic sunshade will close to the half-open position and pause. The panoramic
moon roof will then fully close. Then the electronic sunshade will fully close.
■When the panoramic moon roof or electronic sunshade does not close normally
Perform the following procedure:
Stop the vehicle.
Turn the power switch to ON mode.
Slide and hold the switch or switch forward. Continue pressing the
switch for approximately 10 seconds afte r the panoramic moon roof or electronic
sunshade closes and reopens. The panora mic moon roof and electronic sunshade
will start to close.
*
Check that the panoramic moon roof and electronic sunshade are fully closed and
release the switch.
*: If the switch is released at the incorrect time, the pr ocedure will have to be per-
formed again from the beginning.
If the panoramic moon roof or electronic sunshade does not fully close even after per-
forming the above procedure correctly, have the vehicle inspected by your Lexus dealer.
■Alarm
The alarm may be triggered if the alarm is set and the panoramic moon roof is closed
using the door lock linked panorami c moon roof operation function. (P. 88)
■Panoramic moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the instru-
ment cluster when the power switch is turned off and the driver’s door is opened with the
panoramic moon roof open.
■Customization
Some functions can be customized. ( P. 607)
1
2
3
4

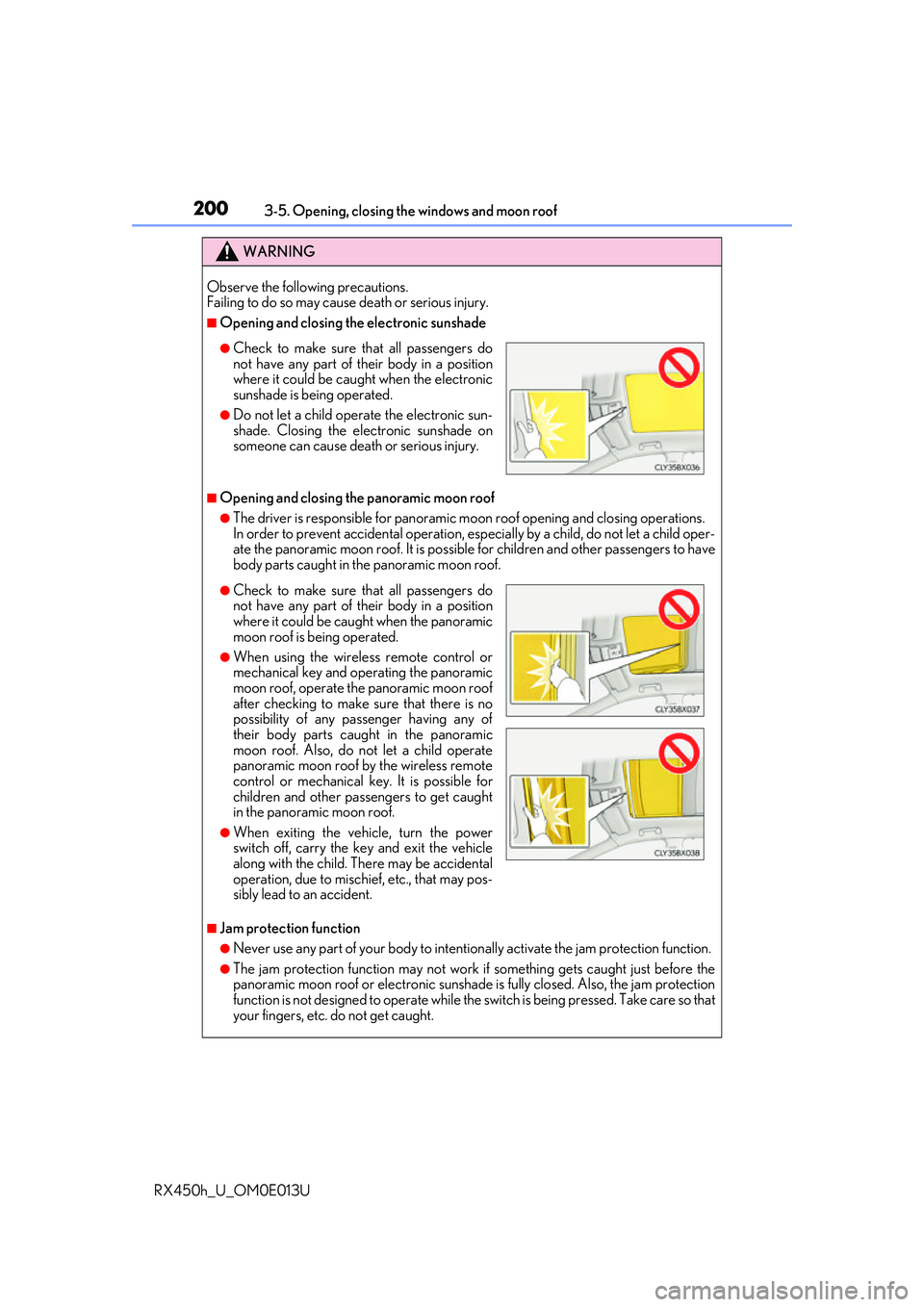

2003-5. Opening, closing the windows and moon roof
RX450h_U_OM0E013U
WARNING
Observe the following precautions.
Failing to do so may cause death or serious injury.
■Opening and closing the electronic sunshade
■Opening and closing the panoramic moon roof
●The driver is responsible for panoramic moon roof opening and closing operations.
In order to prevent accidental operation, especially by a child, do not let a child oper-
ate the panoramic moon roof. It is possibl e for children and other passengers to have
body parts caught in the panoramic moon roof.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection function.
●The jam protection function may not work if something gets caught just before the
panoramic moon roof or electronic sunshade is fully closed. Also, the jam protection
function is not designed to operate while the switch is being pressed. Take care so that
your fingers, etc. do not get caught.
●Check to make sure th at all passengers do
not have any part of their body in a position
where it could be caught when the electronic
sunshade is being operated.
●Do not let a child operate the electronic sun-
shade. Closing the electronic sunshade on
someone can cause death or serious injury.
●Check to make sure that all passengers donot have any part of their body in a position
where it could be caught when the panoramic
moon roof is being operated.
●When using the wireless remote control or
mechanical key and operating the panoramic
moon roof, operate the panoramic moon roof
after checking to make sure that there is no
possibility of any passenger having any of
their body parts caught in the panoramic
moon roof. Also, do not let a child operate
panoramic moon roof by the wireless remote
control or mechanical key. It is possible for
children and other passengers to get caught
in the panoramic moon roof.
●When exiting the vehicle, turn the power
switch off, carry the ke y and exit the vehicle
along with the child. There may be accidental
operation, due to mischief, etc., that may pos-
sibly lead to an accident.
