LEXUS RX450H 2016 Owners Manual

1613-2. Opening, closing and locking the doors
3
Operation of each component
RX450h_U_OM0E013U
■Note for the entry function
●Even when the electronic key is within the effective range (detection areas), the system
may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear
bumper center when the back door is opened.
• The electronic key is on th e instrument panel, luggage co mpartment, floor, or in the
door pockets or glove box when the hybrid system is started or power switch modes
are changed.
●Do not leave the electronic key on top of th e instrument panel or near the door pockets
when exiting the vehicle. Depending on the radio wave reception conditions, it may be
detected by the antenna outs ide the cabin and the door will become lockable from the
outside, possibly trapping the electronic key inside the vehicle.
●As long as the electronic key is within th e effective range, the doors may be locked or
unlocked by anyone.
●Even if the electronic key is not inside the vehicle, it may be possible to start the hybrid
system if the electronic key is near the window.
●The doors may unlock if a large amount of wa ter splashes on the door handle, such as in
the rain or in a car wash when the electronic key is within the effective range. (The door
will automatically be locked after approx imately 60 seconds if the doors are not
opened and closed.)
●If the wireless remote control is used to lo ck the doors when the electronic key is near
the vehicle, there is a possibility that the d oor may not be unlocked by the entry func-
tion. (Use the wireless remote control to unlock the doors.)
●Touching the door lock sensor while wearin g gloves may delay or prevent lock opera-
tion. Remove the gloves and touch the lock sensor again.
●When the lock operation is performed using the lock sensor, recognition signals will be
shown up to two consecutive times. After this, no recognition signals will be given.*
●If the door handle becomes wet while the el ectronic key is within the effective range,
the door may lock and unlock repeatedly. In that case, follow the following correction
procedures to wash the vehicle:
• Place the electronic key in a location 6 ft. (2 m) or more away from the vehicle. (Take care to ensure that the key is not stolen.)
• Set the electronic key to battery-saving mode to disable the smart access system with push-button start. ( P. 160)
●If the electronic key is inside the vehicle and a door handle becomes wet during a car
wash, a message may be shown on the mult i-information display and a buzzer will
sound outside the vehicle. To turn off the alarm, lock all the doors.
●The lock sensor may not work properly if it comes into contact with ice, snow, mud, etc.
Clean the lock sensor and attempt to operate it again.
●A sudden approach to the effective range or door handle may prevent the doors from
being unlocked. In this case, return the door handle to the original position and check
that the doors unlock before pulling the door handle again.
●If there is another electronic key in the de tection area, it may take slightly longer to
unlock the doors after the door handle is gripped.

1623-2. Opening, closing and locking the doors
RX450h_U_OM0E013U

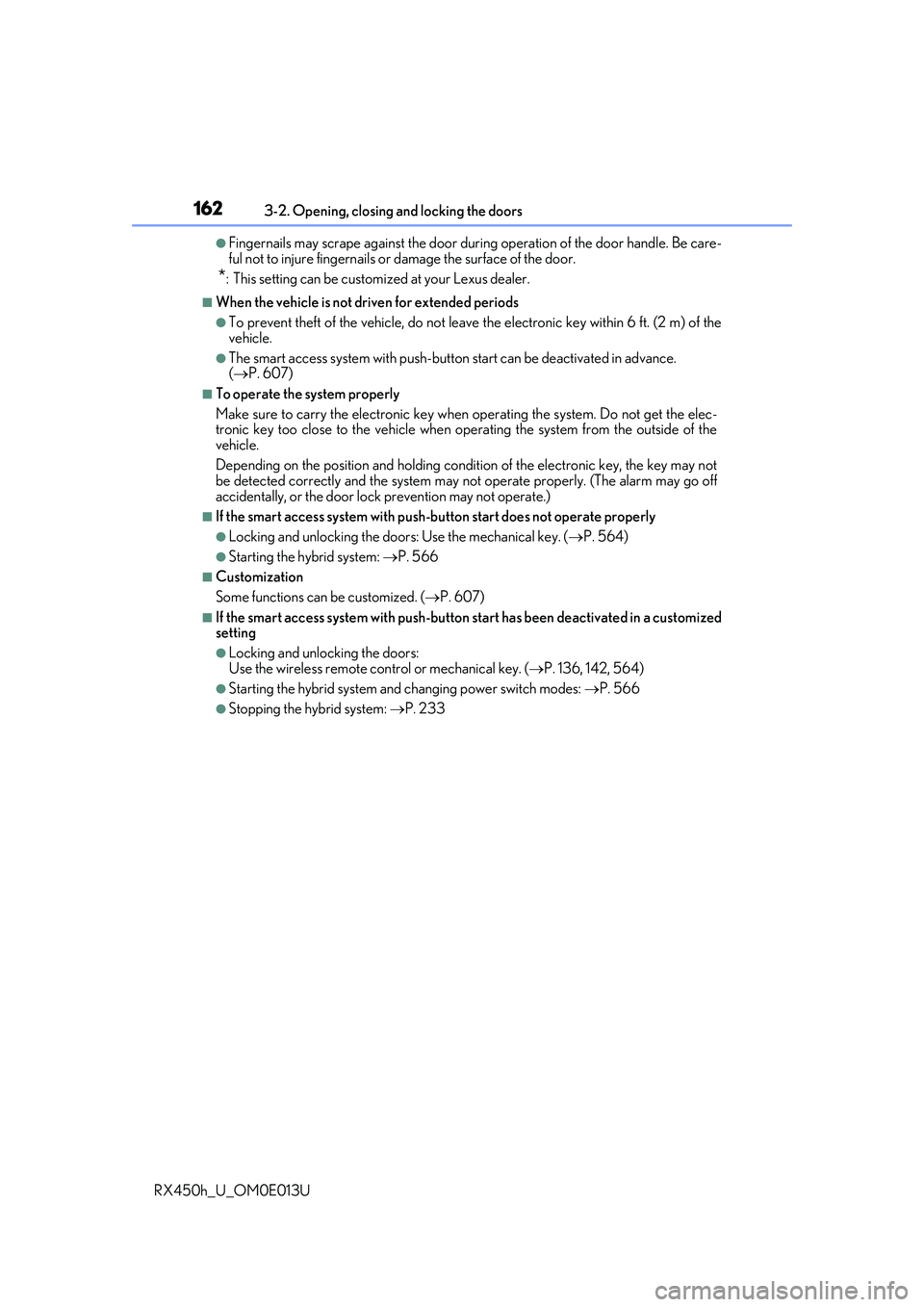

●Fingernails may scrape against the door duri ng operation of the door handle. Be care-
ful not to injure fingernails or damage the surface of the door.
*: This setting can be customiz ed at your Lexus dealer.
■When the vehicle is not driven for extended periods
●To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of the
vehicle.
●The smart access system with push-button start can be deactivated in advance.
(  P. 607)
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the elec-
tronic key too close to the vehicle when operating the system from the outside of the
vehicle.
Depending on the position and holding condition of the electronic key, the key may not
be detected correctly and the system may not operate properly. (The alarm may go off
accidentally, or the door lock prevention may not operate.)
■If the smart access system with push-button start does not operate properly
●Locking and unlocking the doors: Use the mechanical key. (P. 564)
●Starting the hybrid system: P. 566
■Customization
Some functions can be customized. ( P. 607)
■If the smart access system with push-button start has been deactivated in a customized
setting
●Locking and unlocking the doors:
Use the wireless remote cont rol or mechanical key. (P. 136, 142, 564)
●Starting the hybrid system and changing power switch modes: P. 566
●Stopping the hybrid system: P. 233

1633-2. Opening, closing and locking the doors
3
Operation of each component
RX450h_U_OM0E013U

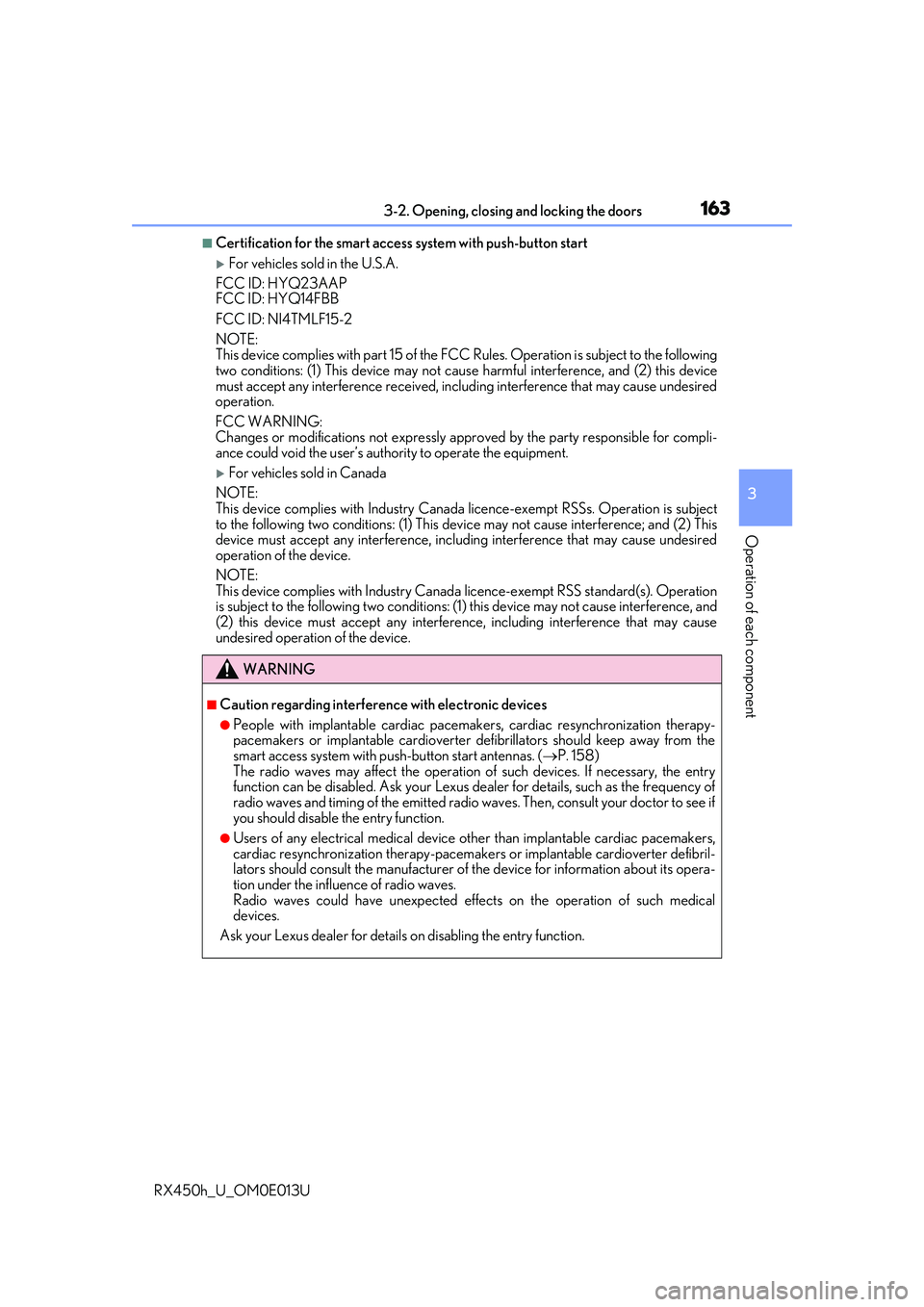

■Certification for the smart access system with push-button start
For vehicles sold in the U.S.A.
FCC ID: HYQ23AAP
FCC ID: HYQ14FBB
FCC ID: NI4TMLF15-2
NOTE:
This device complies with part 15 of the FC C Rules. Operation is subject to the following
two conditions: (1) This device may not caus e harmful interference, and (2) this device
must accept any interference received, includ ing interference that may cause undesired
operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
This device complies with Industry Canada licence-exempt RSSs. Operation is subject
to the following two conditions: (1) This devi ce may not cause interference; and (2) This
device must accept any interference, includ ing interference that may cause undesired
operation of the device.
NOTE:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
WARNING
■Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization therapy-
pacemakers or implantable cardioverter de fibrillators should keep away from the
smart access system with push-button start antennas. ( P. 158)
The radio waves may affect the operation of such devices. If necessary, the entry
function can be disabled. Ask your Lexus dealer for details, such as the frequency of
radio waves and timing of the emitted radio waves. Then, consult your doctor to see if
you should disable the entry function.
●Users of any electrical medical device ot her than implantable cardiac pacemakers,
cardiac resynchronization th erapy-pacemakers or implantable cardioverter defibril-
lators should consult the manufacturer of the device for information about its opera-
tion under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical
devices.
Ask your Lexus dealer for details on disabling the entry function.

164

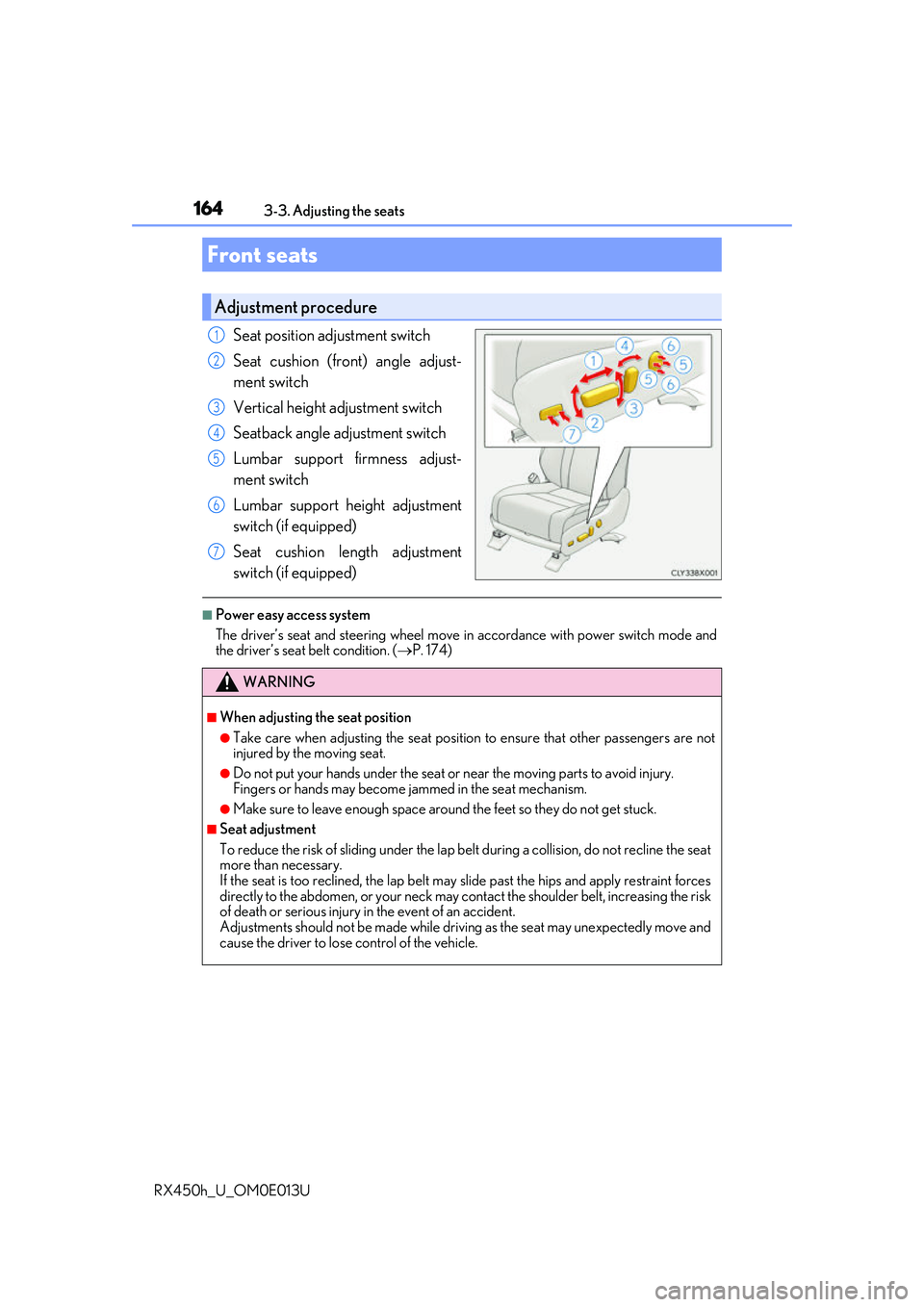

RX450h_U_OM0E013U3-3. Adjusting the seats
Seat position adjustment switch
Seat cushion (front) angle adjust-
ment switch
Vertical height adjustment switch
Seatback angle adjustment switch
Lumbar support firmness adjust-
ment switch
Lumbar support height adjustment
switch (if equipped)
Seat cushion length adjustment
switch (if equipped)
■Power easy access system
The driver’s seat and steering wheel move
in accordance with power switch mode and
the driver’s seat belt condition. ( P. 174)
Front seats
Adjustment procedure
1
2
3
4
5
6
7
WARNING
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are not
injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.
●Make sure to leave enough space around the feet so they do not get stuck.
■Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not recline the seat
more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces
directly to the abdomen, or your neck may contact the shoulder belt, increasing the risk
of death or serious injury in the event of an accident.
Adjustments should not be made while drivin g as the seat may unexpectedly move and
cause the driver to lose control of the vehicle.

1653-3. Adjusting the seats
3
Operation of each component
RX450h_U_OM0E013U

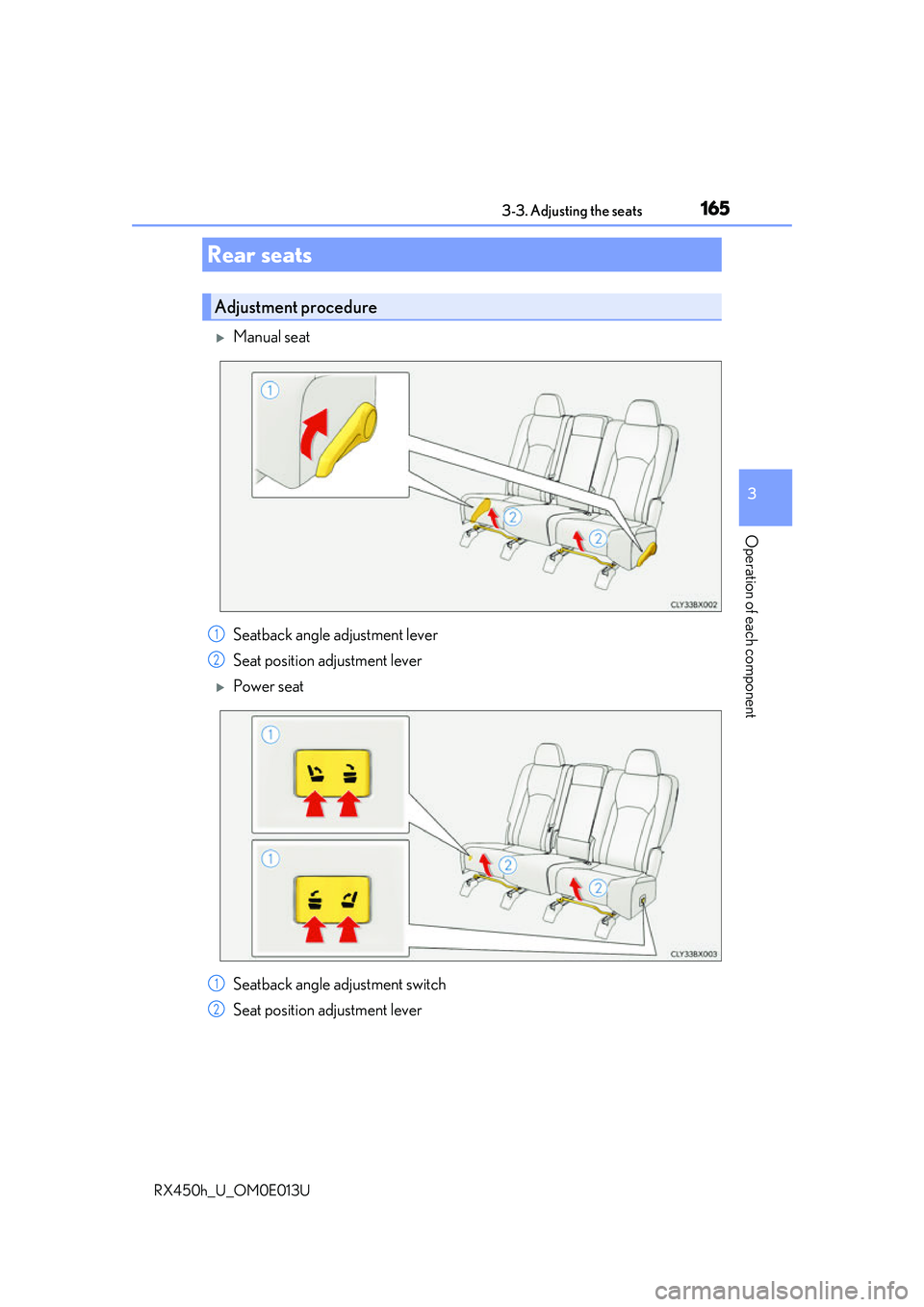

Manual seat
Seatback angle adjustment lever
Seat position adjustment lever
Power seat
Seatback angle adjustment switch
Seat position adjustment lever
Rear seats
Adjustment procedure
1
2
1
2

1663-3. Adjusting the seats
RX450h_U_OM0E013U

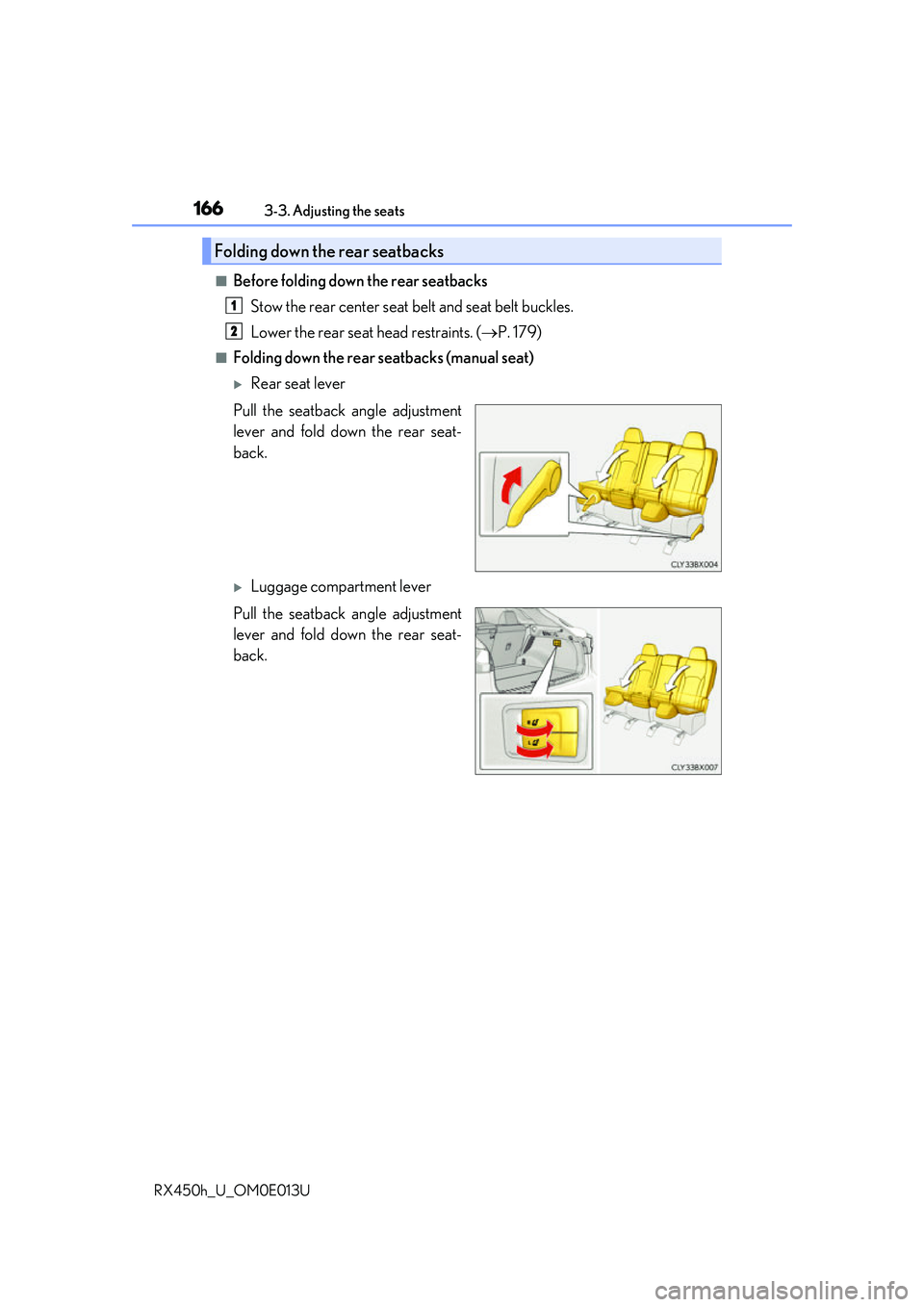

■Before folding down the rear seatbacks Stow the rear center seat belt and seat belt buckles.
Lower the rear seat head restraints. ( P. 179)
■Folding down the rear seatbacks (manual seat)
Rear seat lever
Pull the seatback angle adjustment
lever and fold down the rear seat-
back.
Luggage compartment lever
Pull the seatback angle adjustment
lever and fold down the rear seat-
back.
Folding down the rear seatbacks
1
2

1673-3. Adjusting the seats
3
Operation of each component
RX450h_U_OM0E013U

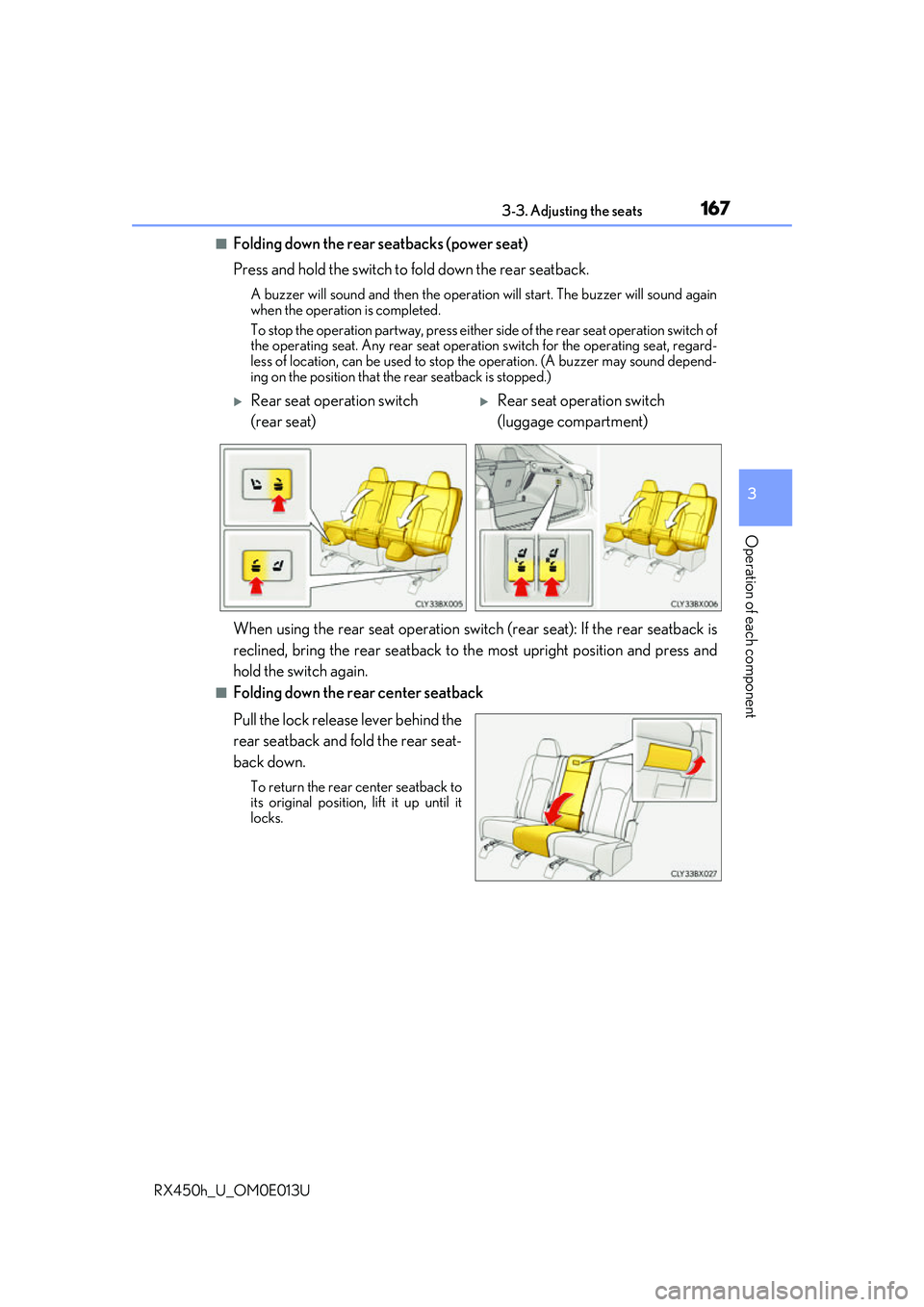

■Folding down the rear seatbacks (power seat)
Press and hold the switch to fold down the rear seatback.
A buzzer will sound and then the operation will start. The buzzer will sound again
when the operation is completed.
To stop the operation partway, press either side of the rear seat operation switch of
the operating seat. Any rear seat operatio n switch for the operating seat, regard-
less of location, can be used to stop the operation. (A buzzer may sound depend-
ing on the position that the rear seatback is stopped.)
■Folding down the rear center seatback
Pull the lock release lever behind the
rear seatback and fold the rear seat-
back down.
To return the rear center seatback to
its original position, lift it up until it
locks.
Rear seat operation switch
(rear seat)Rear seat operation switch
(luggage compartment)
When using the rear seat operation switch (rear seat): If the rear seatback is
reclined, bring the rear seatback to th e most upright position and press and
hold the switch again.

1683-3. Adjusting the seats
RX450h_U_OM0E013U

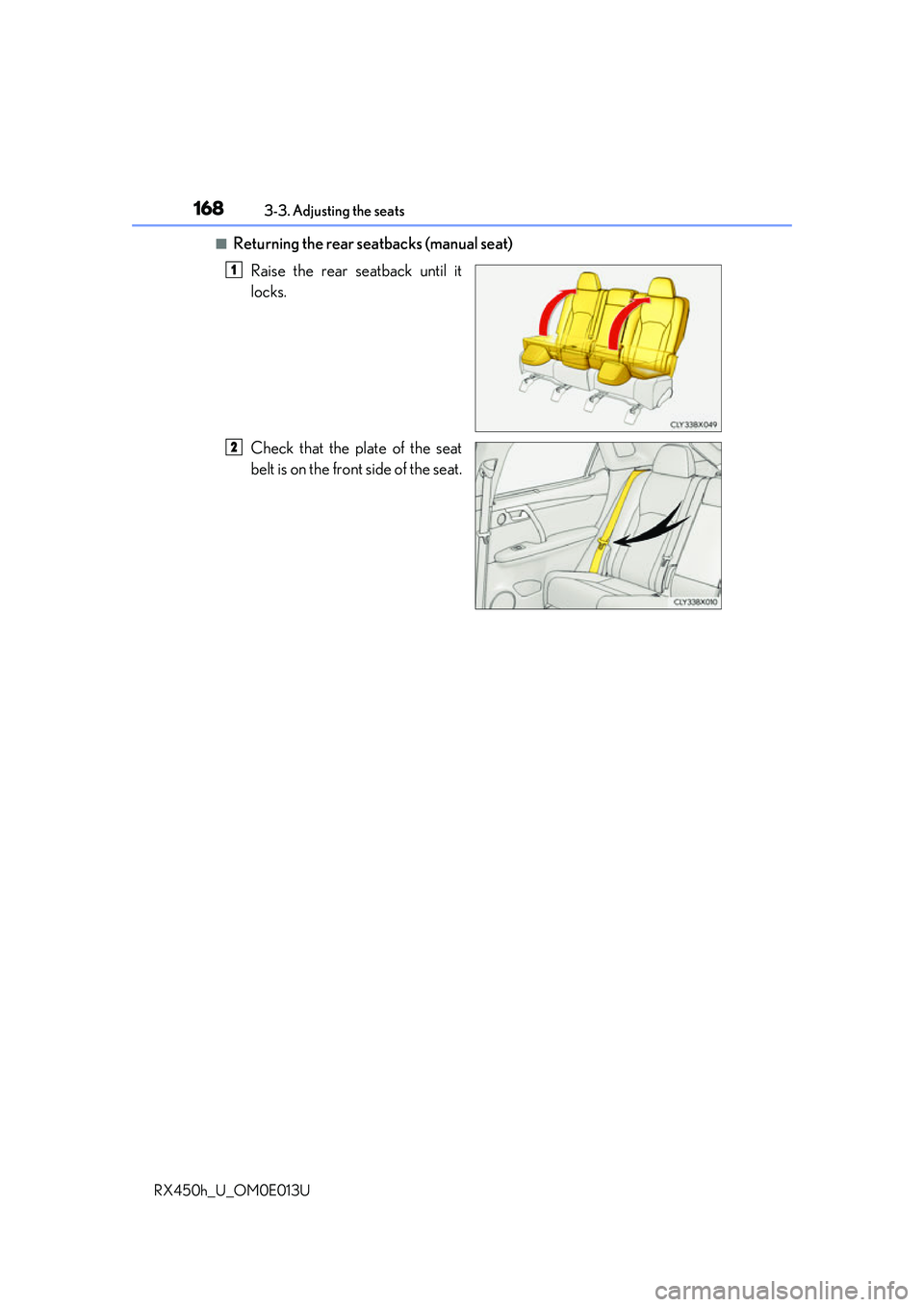

■Returning the rear seatbacks (manual seat) Raise the rear seatback until it
locks.
Check that the plate of the seat
belt is on the front side of the seat.
1
2

1693-3. Adjusting the seats
3
Operation of each component
RX450h_U_OM0E013U

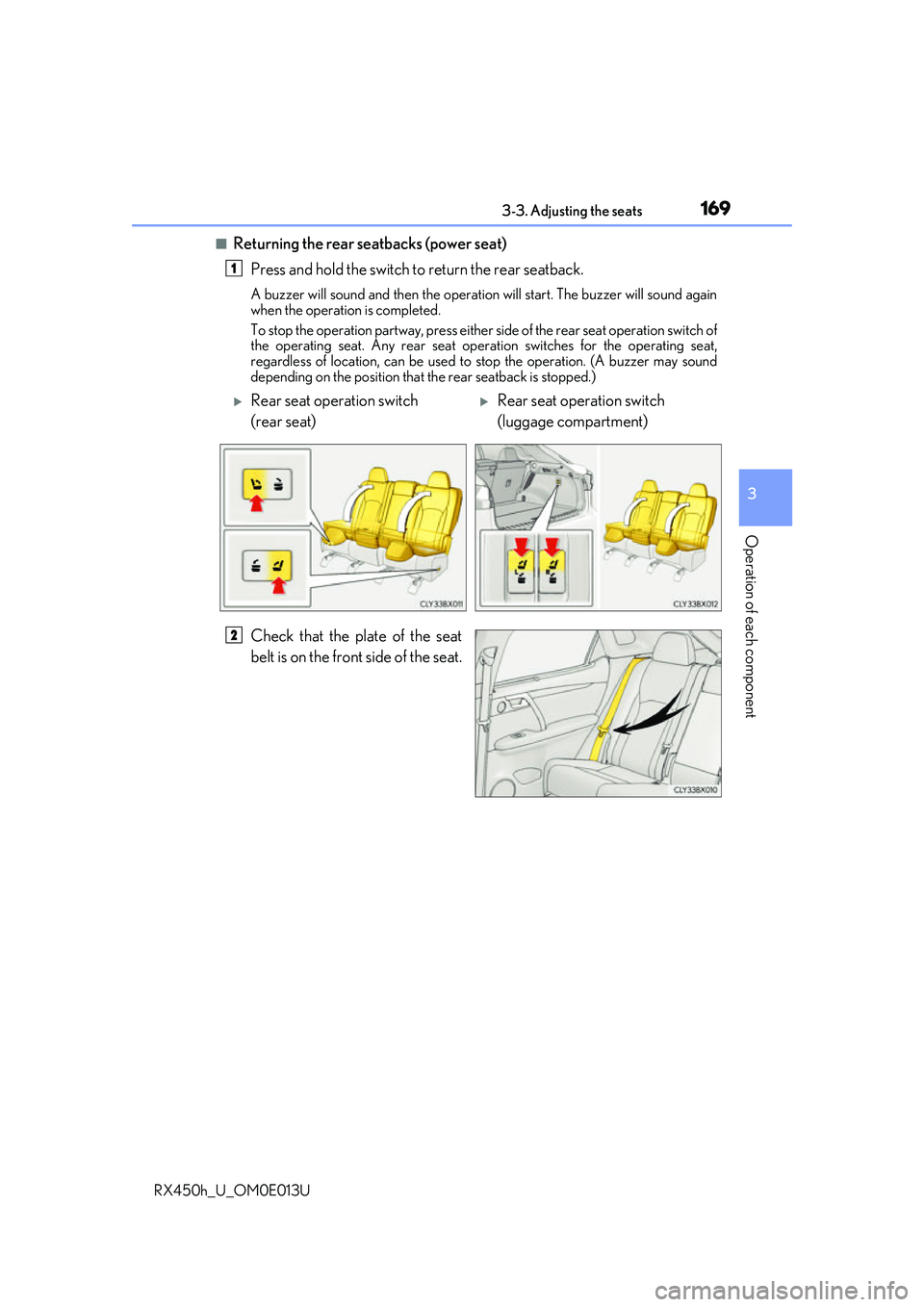

■Returning the rear seatbacks (power seat)Press and hold the switch to return the rear seatback.
A buzzer will sound and then the operation will start. The buzzer will sound again
when the operation is completed.
To stop the operation partway, press either side of the rear seat operation switch of
the operating seat. Any rear seat operation switches for the operating seat,
regardless of location , can be used to stop the operation. (A buzzer may sound
depending on the position that the rear seatback is stopped.)
Check that the plate of the seat
belt is on the front side of the seat.
1
Rear seat operation switch
(rear seat)Rear seat operation switch
(luggage compartment)
2

1703-3. Adjusting the seats
RX450h_U_OM0E013U

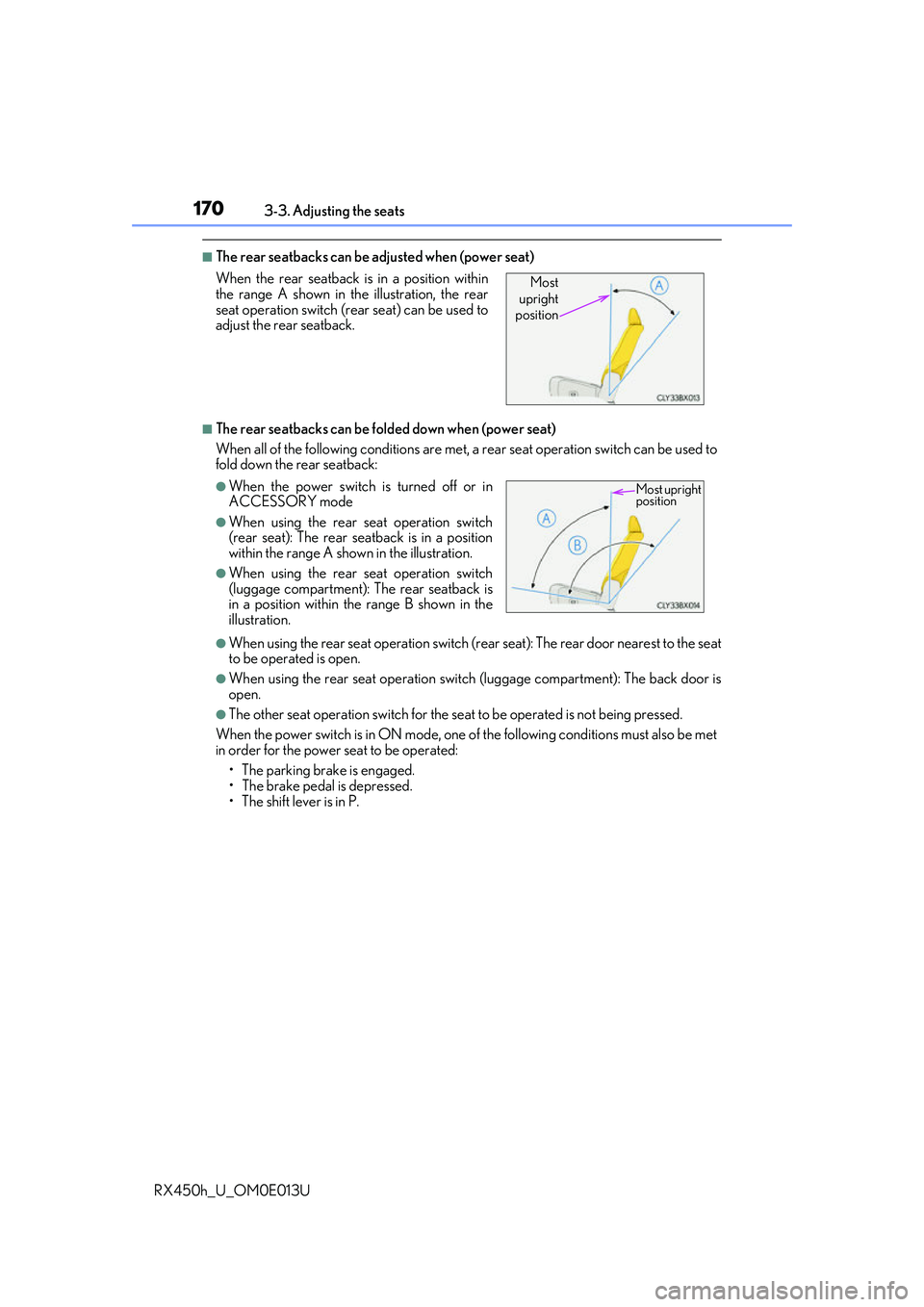

■The rear seatbacks can be adjusted when (power seat)
■The rear seatbacks can be fold ed down when (power seat)
When all of the following conditions are met, a rear seat operation switch can be used to
fold down the rear seatback:
●When using the rear seat operation switch (rear seat): The rear door nearest to the seat
to be operated is open.
●When using the rear seat operation switch (luggage compartment): The back door is
open.
●The other seat operation switch for the se at to be operated is not being pressed.
When the power switch is in ON mode, one of the following conditions must also be met
in order for the power seat to be operated:
• The parking brake is engaged.
• The brake pedal is depressed.
• The shift lever is in P.
When the rear seatback is in a position within
the range A shown in th
e illustration, the rear
seat operation switch (r ear seat) can be used to
adjust the rear seatback.
●When the power switch is turned off or in
ACCESSORY mode
●When using the rear seat operation switch
(rear seat): The rear seatback is in a position
within the range A shown in the illustration.
●When using the rear seat operation switch
(luggage compartment): The rear seatback is
in a position within the range B shown in the
illustration.
Most
upright
position
Most upright
position
