LEXUS RX450H 2016 Owners Manual

5116-3. Do-it-yourself maintenance
6
Maintenance and care
RX450h_U_OM0E013U

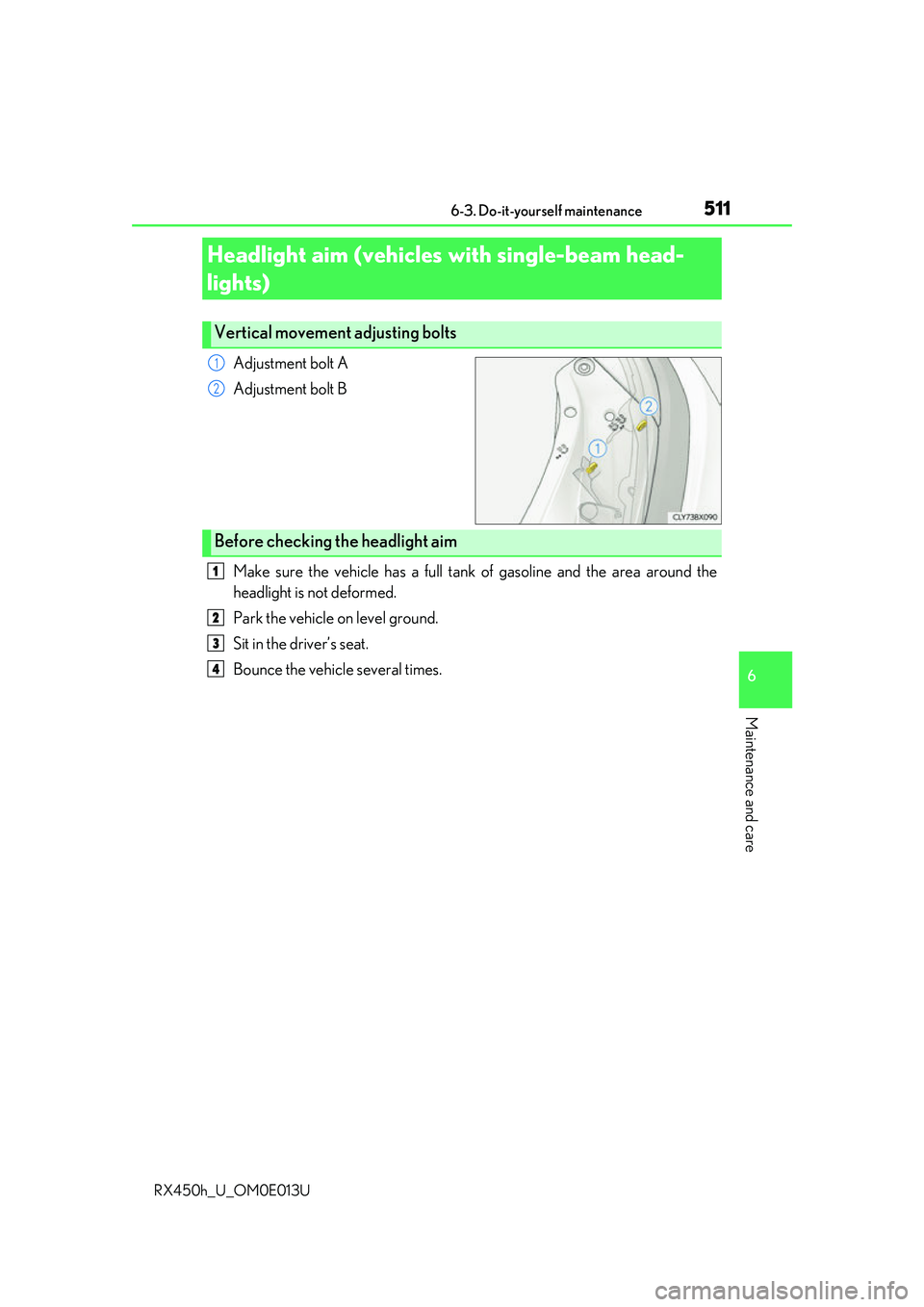

Adjustment bolt A
Adjustment bolt B
Make sure the vehicle has a full tank of gasoline and the area around the
headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
Headlight aim (vehicles with single-beam head-
lights)
Vertical movement adjusting bolts
1
2
Before checking the headlight aim
1
2
3
4

5126-3. Do-it-yourself maintenance
RX450h_U_OM0E013U

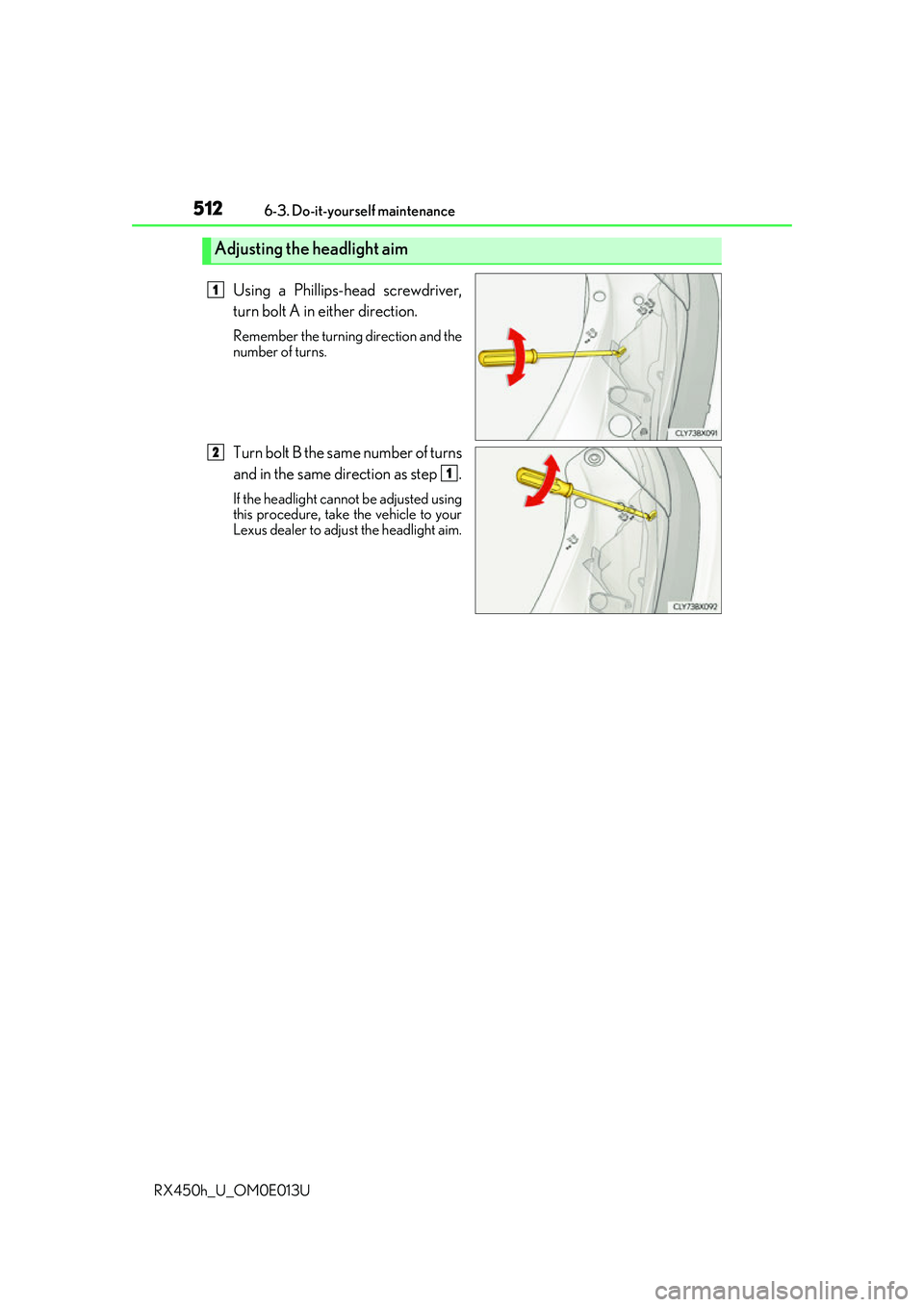

Using a Phillips-head screwdriver,
turn bolt A in either direction.
Remember the turning direction and the
number of turns.
Turn bolt B the same number of turns
and in the same direction as step .
If the headlight cannot be adjusted using
this procedure, take the vehicle to your
Lexus dealer to adjust the headlight aim.
Adjusting the headlight aim
1
2
1

5136-3. Do-it-yourself maintenance
6
Maintenance and care
RX450h_U_OM0E013U

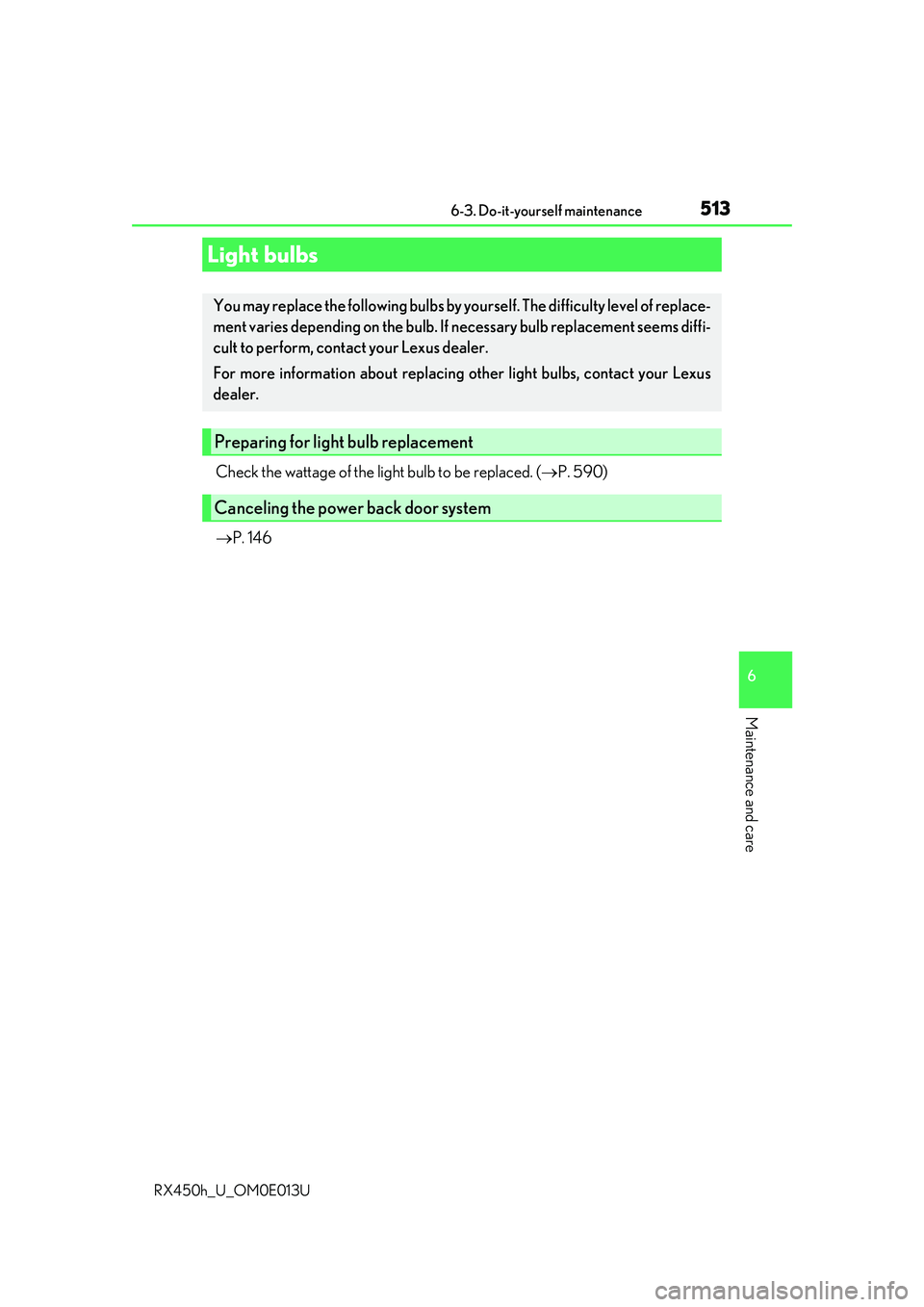

Check the wattage of the light bulb to be replaced. (P. 590)
 P. 146
Light bulbs
You may replace the following bulbs by yo urself. The difficulty level of replace-
ment varies depending on the bulb. If necessary bulb replacement seems diffi-
cult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
Preparing for light bulb replacement
Canceling the power back door system

5146-3. Do-it-yourself maintenance
RX450h_U_OM0E013U

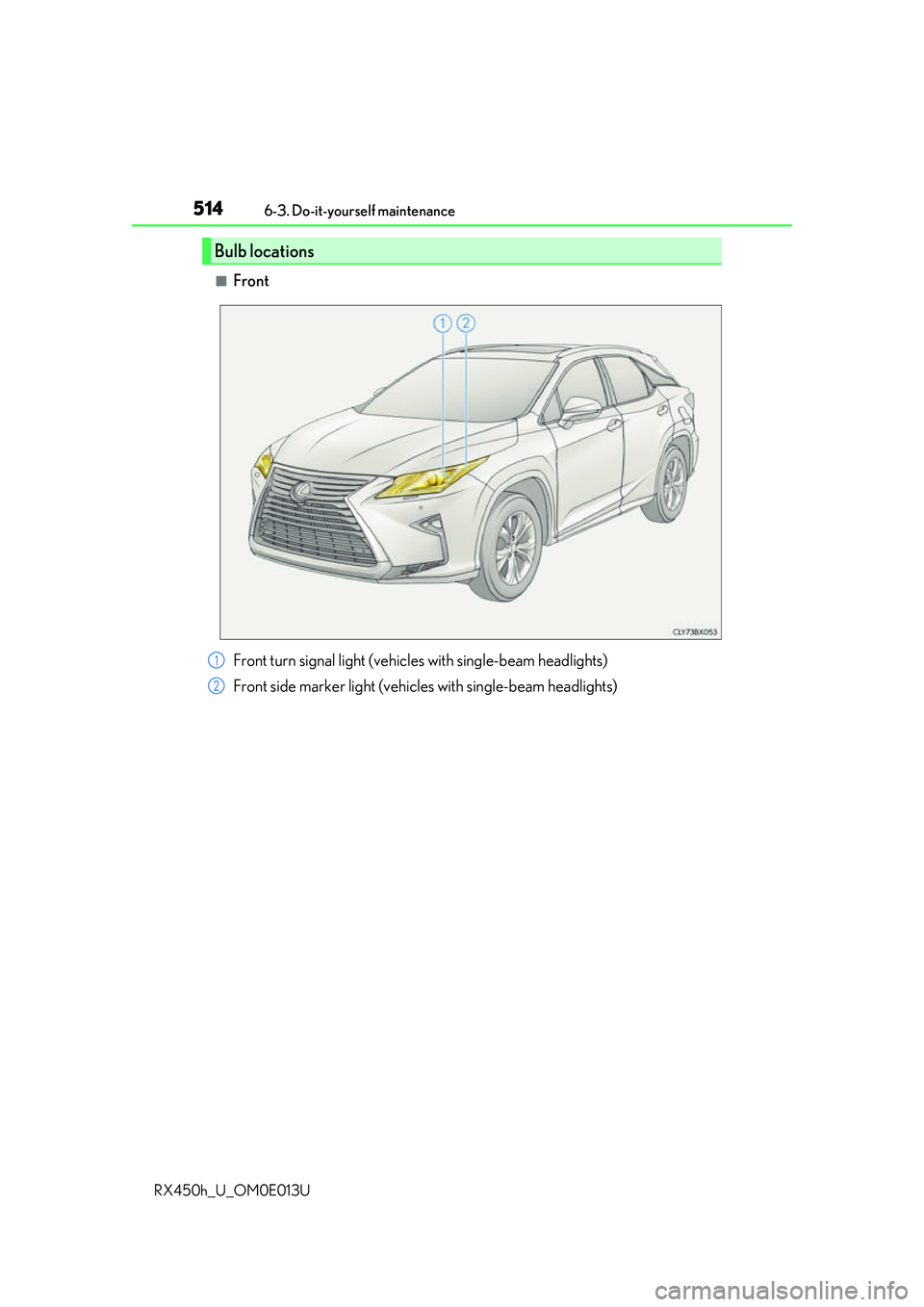

■Front
Bulb locations
Front turn signal light (vehic les with single-beam headlights)
Front side marker light (vehic les with single-beam headlights)1
2

5156-3. Do-it-yourself maintenance
6
Maintenance and care
RX450h_U_OM0E013U

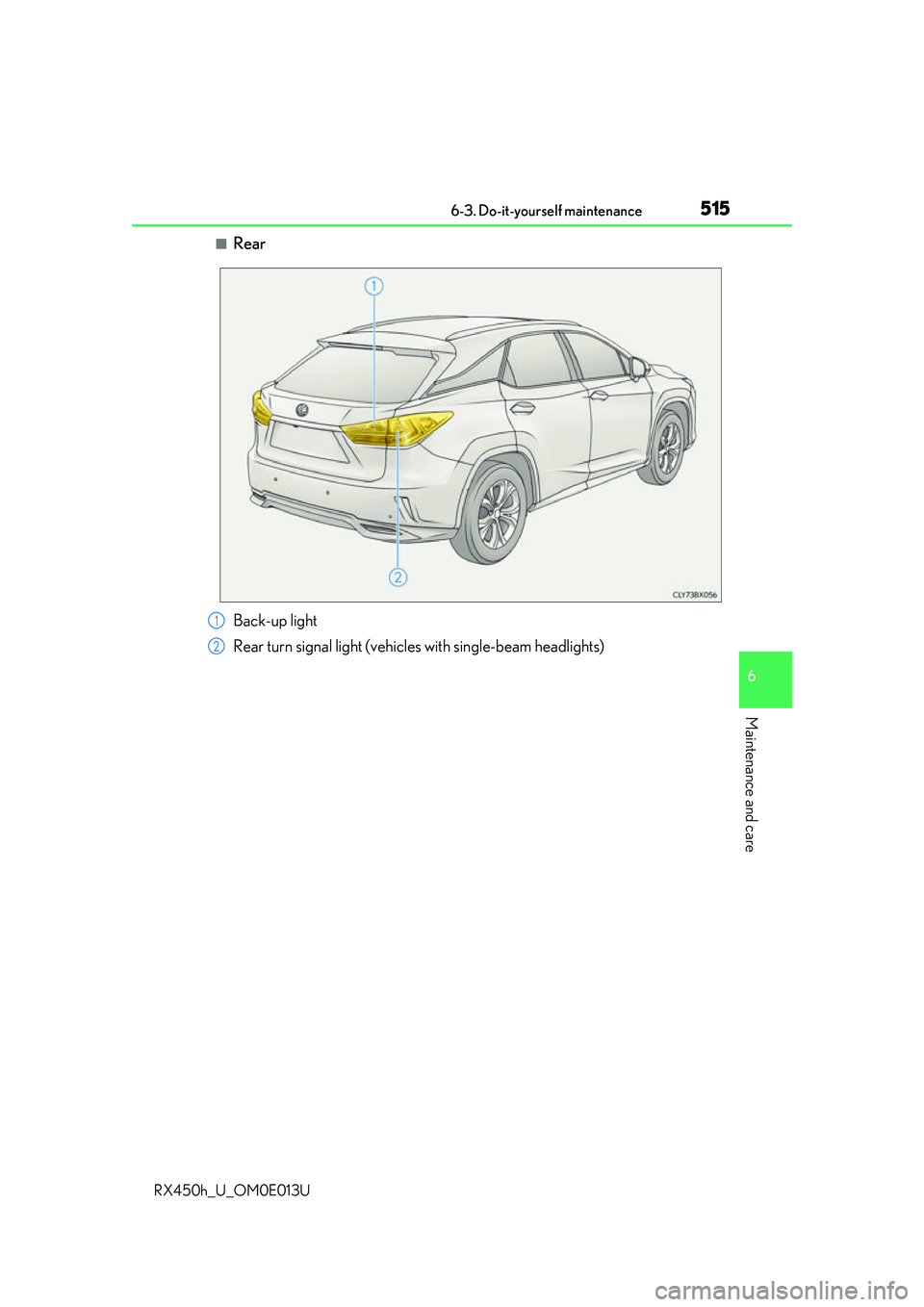

■Rear
Back-up light
Rear turn signal light (vehicles with single-beam headlights)1
2

5166-3. Do-it-yourself maintenance
RX450h_U_OM0E013U

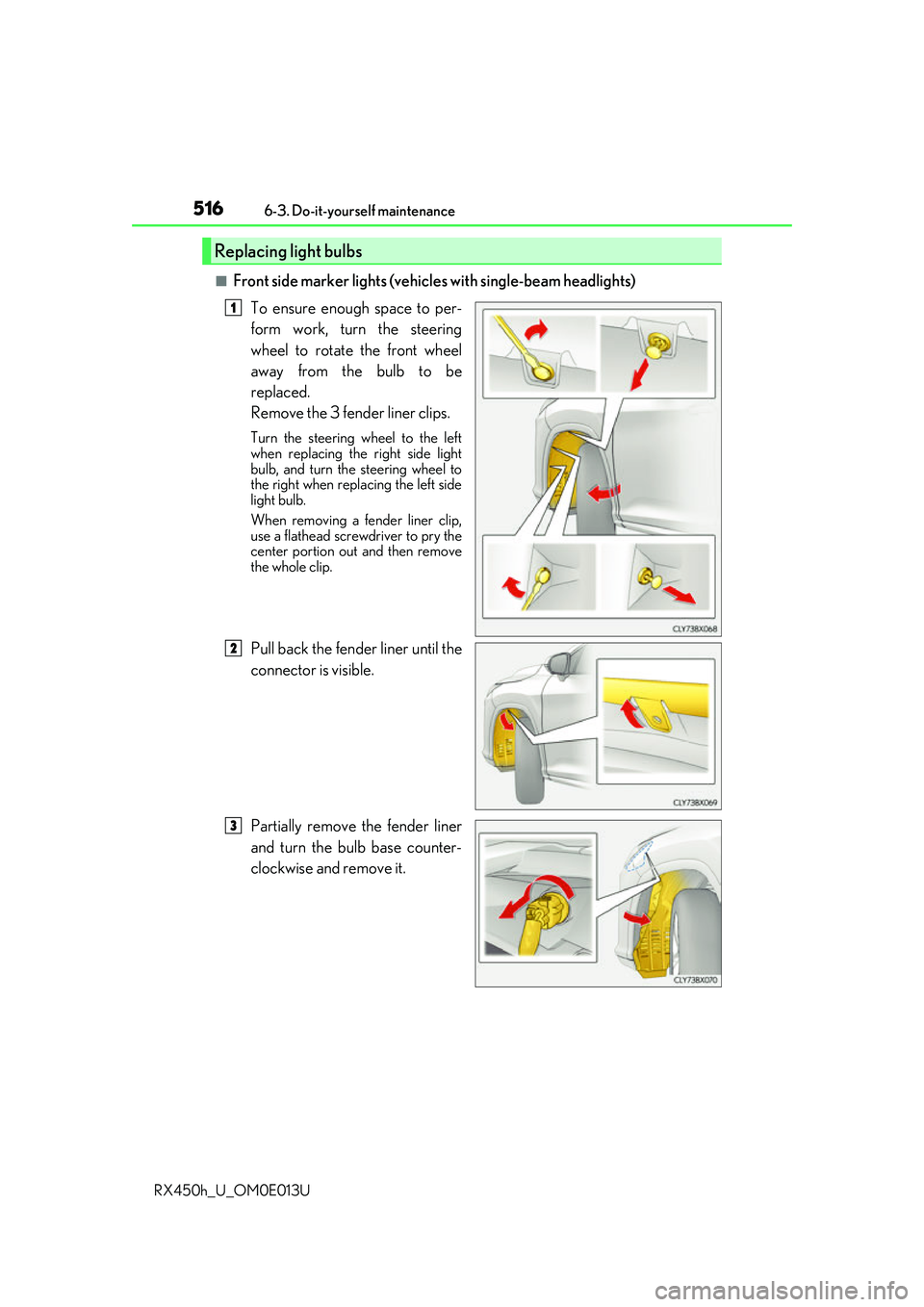

■Front side marker lights (vehicle s with single-beam headlights)
To ensure enough space to per-
form work, turn the steering
wheel to rotate the front wheel
away from the bulb to be
replaced.
Remove the 3 fender liner clips.
Turn the steering wheel to the left
when replacing the right side light
bulb, and turn the steering wheel to
the right when replacing the left side
light bulb.
When removing a fender liner clip,
use a flathead screwdriver to pry the
center portion out and then remove
the whole clip.
Pull back the fender liner until the
connector is visible.
Partially remove the fender liner
and turn the bulb base counter-
clockwise and remove it.
Replacing light bulbs
1
82
3

5176-3. Do-it-yourself maintenance
6
Maintenance and care
RX450h_U_OM0E013U

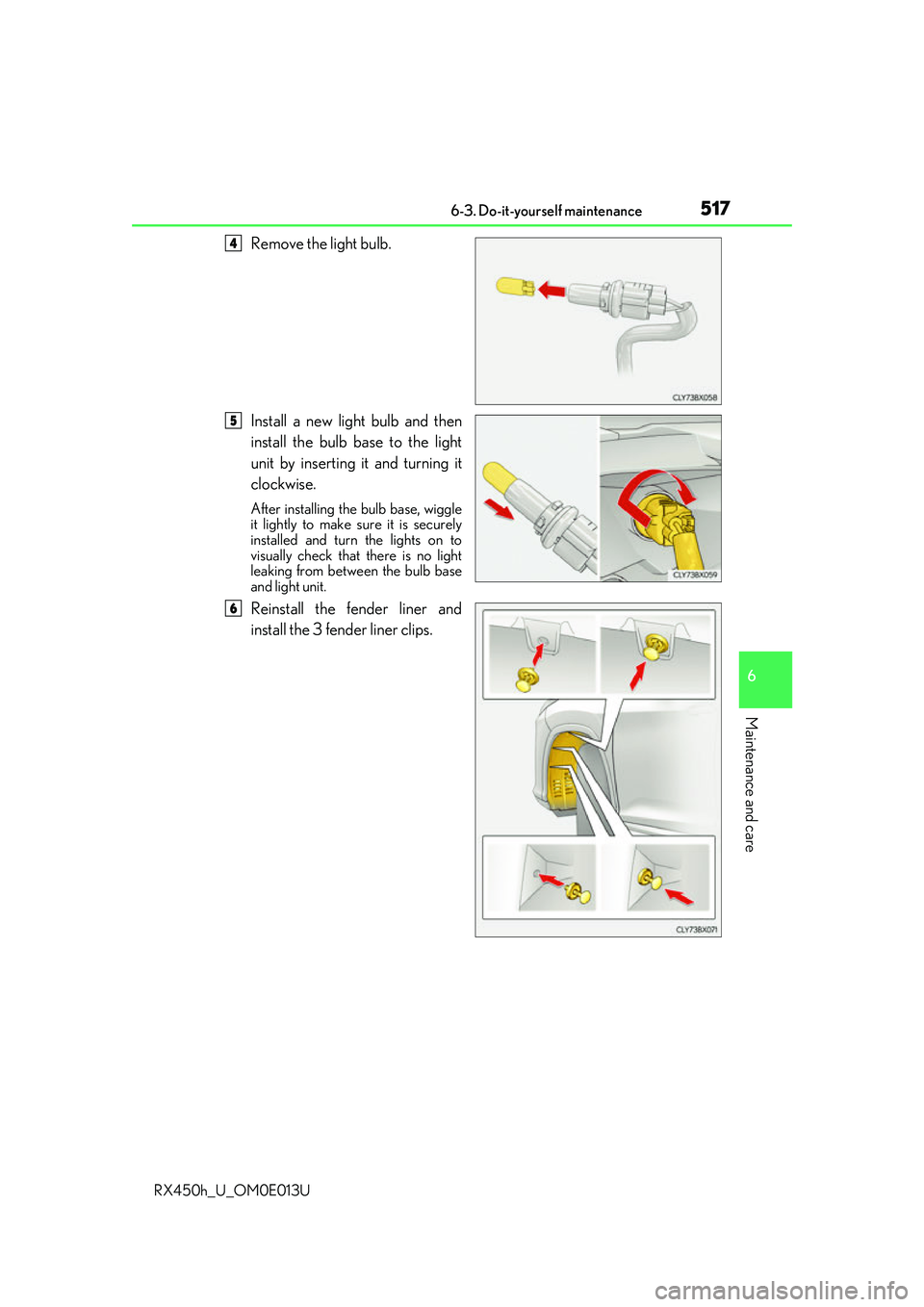

Remove the light bulb.
Install a new light bulb and then
install the bulb base to the light
unit by inserting it and turning it
clockwise.
After installing the bulb base, wiggle
it lightly to make sure it is securely
installed and turn the lights on to
visually check that there is no light
leaking from betw een the bulb base
and light unit.
Reinstall the fender liner and
install the 3 fender liner clips.
4
5
6

5186-3. Do-it-yourself maintenance
RX450h_U_OM0E013U

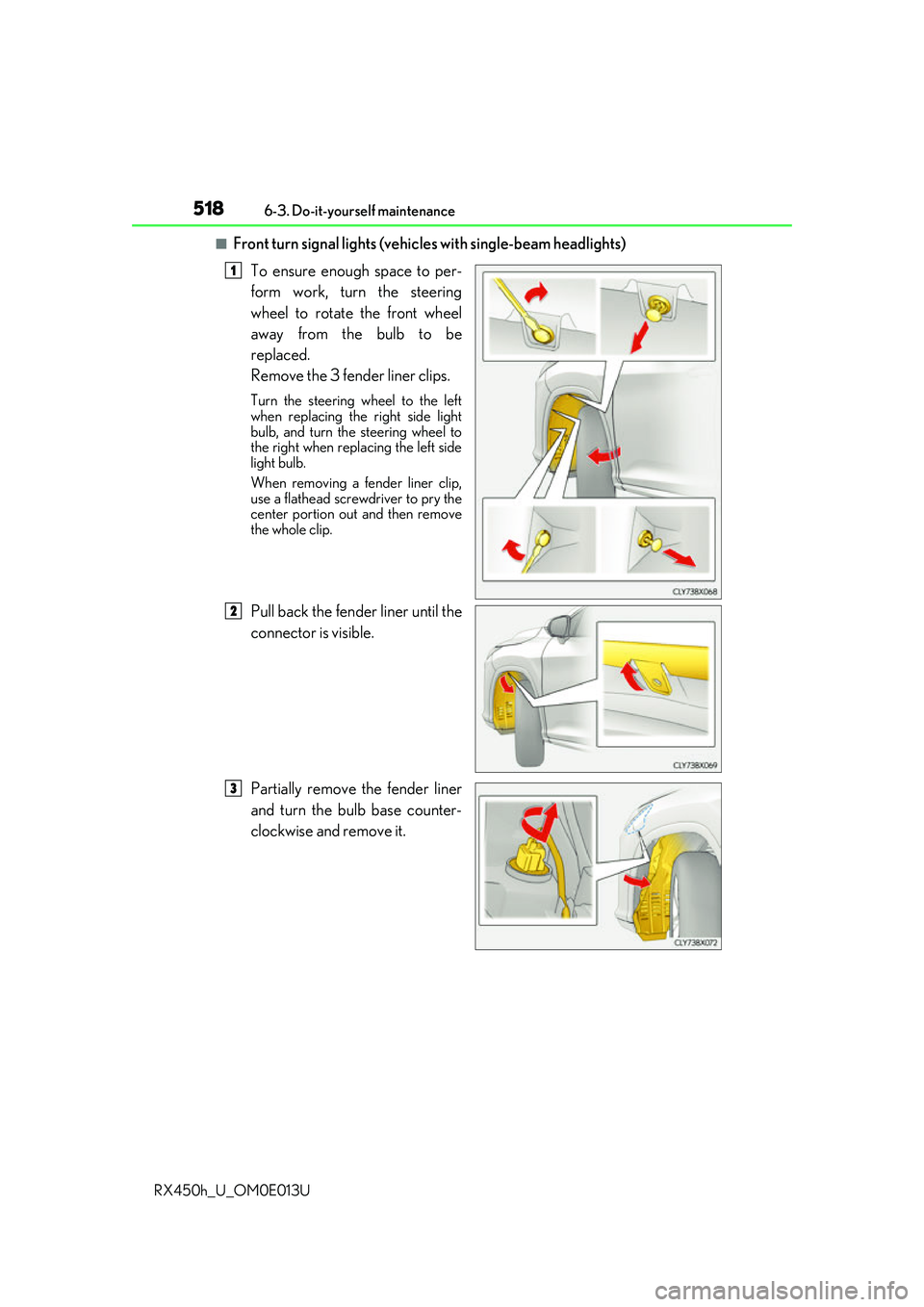

■Front turn signal lights (vehic les with single-beam headlights)
To ensure enough space to per-
form work, turn the steering
wheel to rotate the front wheel
away from the bulb to be
replaced.
Remove the 3 fender liner clips.
Turn the steering wheel to the left
when replacing the right side light
bulb, and turn the steering wheel to
the right when replacing the left side
light bulb.
When removing a fender liner clip,
use a flathead screwdriver to pry the
center portion out and then remove
the whole clip.
Pull back the fender liner until the
connector is visible.
Partially remove the fender liner
and turn the bulb base counter-
clockwise and remove it.
1
82
3

5196-3. Do-it-yourself maintenance
6
Maintenance and care
RX450h_U_OM0E013U

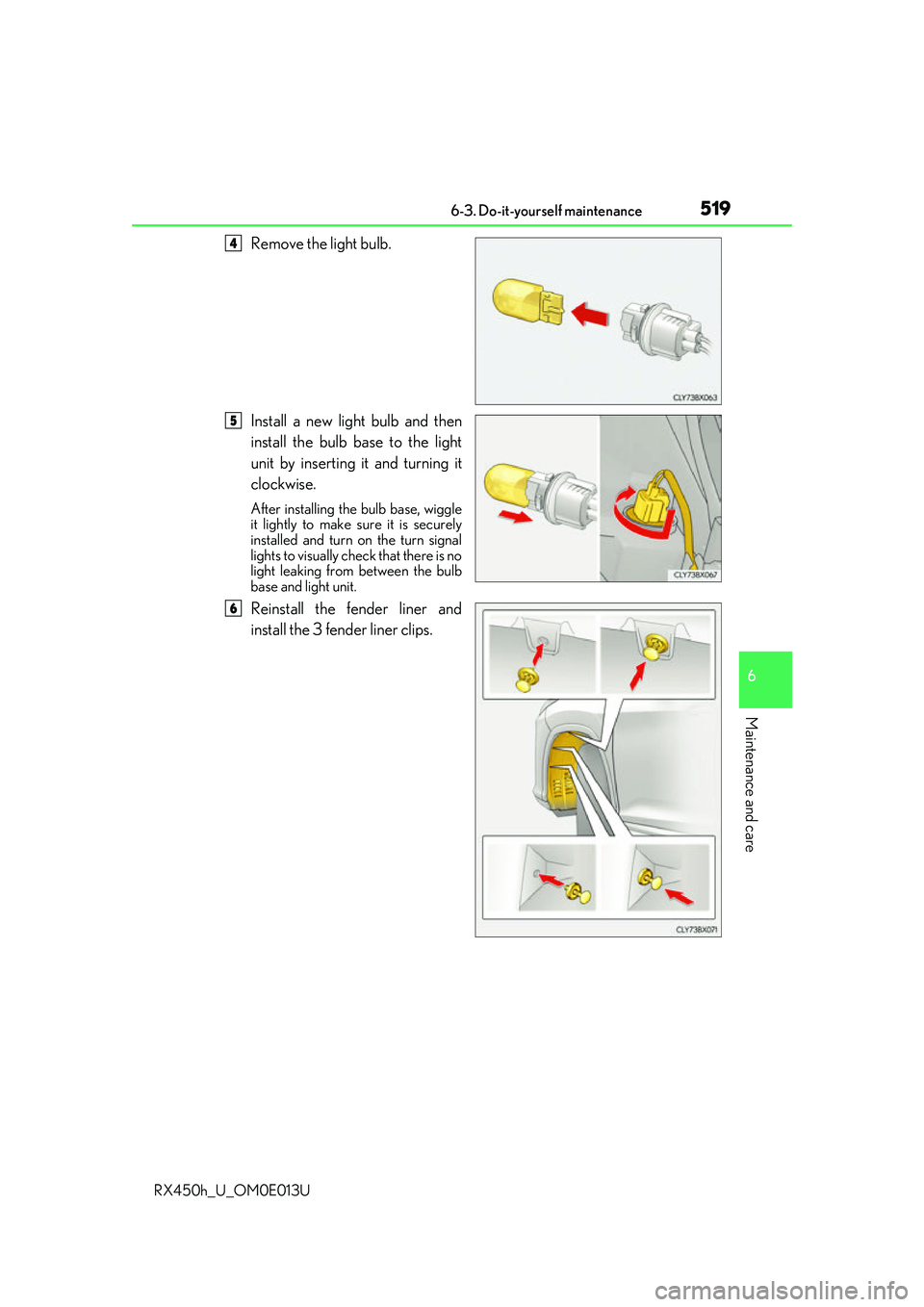

Remove the light bulb.
Install a new light bulb and then
install the bulb base to the light
unit by inserting it and turning it
clockwise.
After installing the bulb base, wiggle
it lightly to make sure it is securely
installed and turn on the turn signal
lights to visually check that there is no
light leaking from between the bulb
base and light unit.
Reinstall the fender liner and
install the 3 fender liner clips.
4
5
6

5206-3. Do-it-yourself maintenance
RX450h_U_OM0E013U

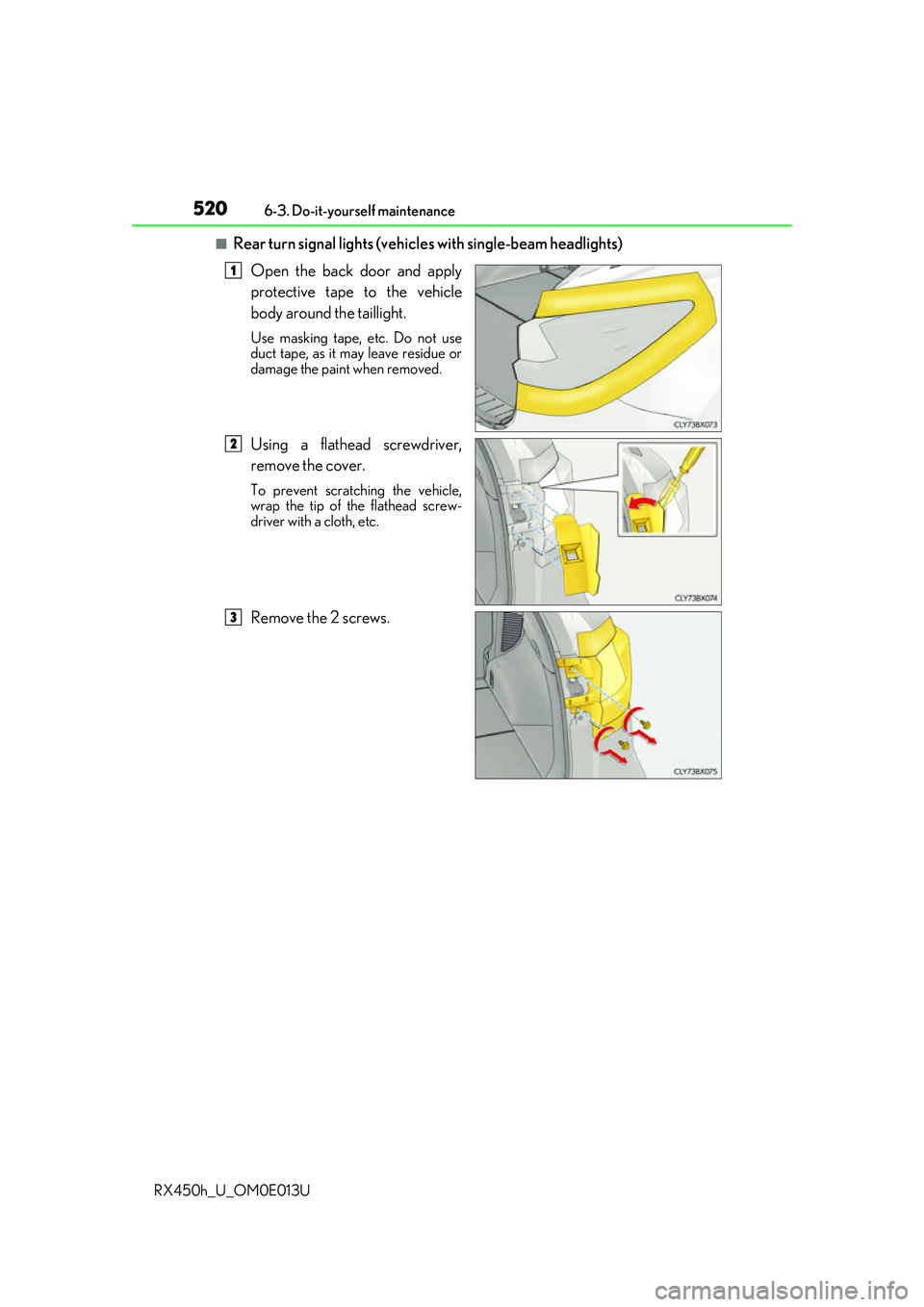

■Rear turn signal lights (vehic les with single-beam headlights)
Open the back door and apply
protective tape to the vehicle
body around the taillight.
Use masking tape, etc. Do not use
duct tape, as it may leave residue or
damage the paint when removed.
Using a flathead screwdriver,
remove the cover.
To prevent scratching the vehicle,
wrap the tip of the flathead screw-
driver with a cloth, etc.
Remove the 2 screws.
1
2
3
