LEXUS RX450h 2018 Owners Manual

7119-1. Specifications
9
Vehicle specifications
RX450h_RX450hL _U_OM48F85U■
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.
This number is also on the Certifica-
tion Label.
On some models, this number is also
stamped under the right-hand front
seat.Vehicle identification

712 9-1. Specifications
RX450h_RX450hL _U_OM48F85U■

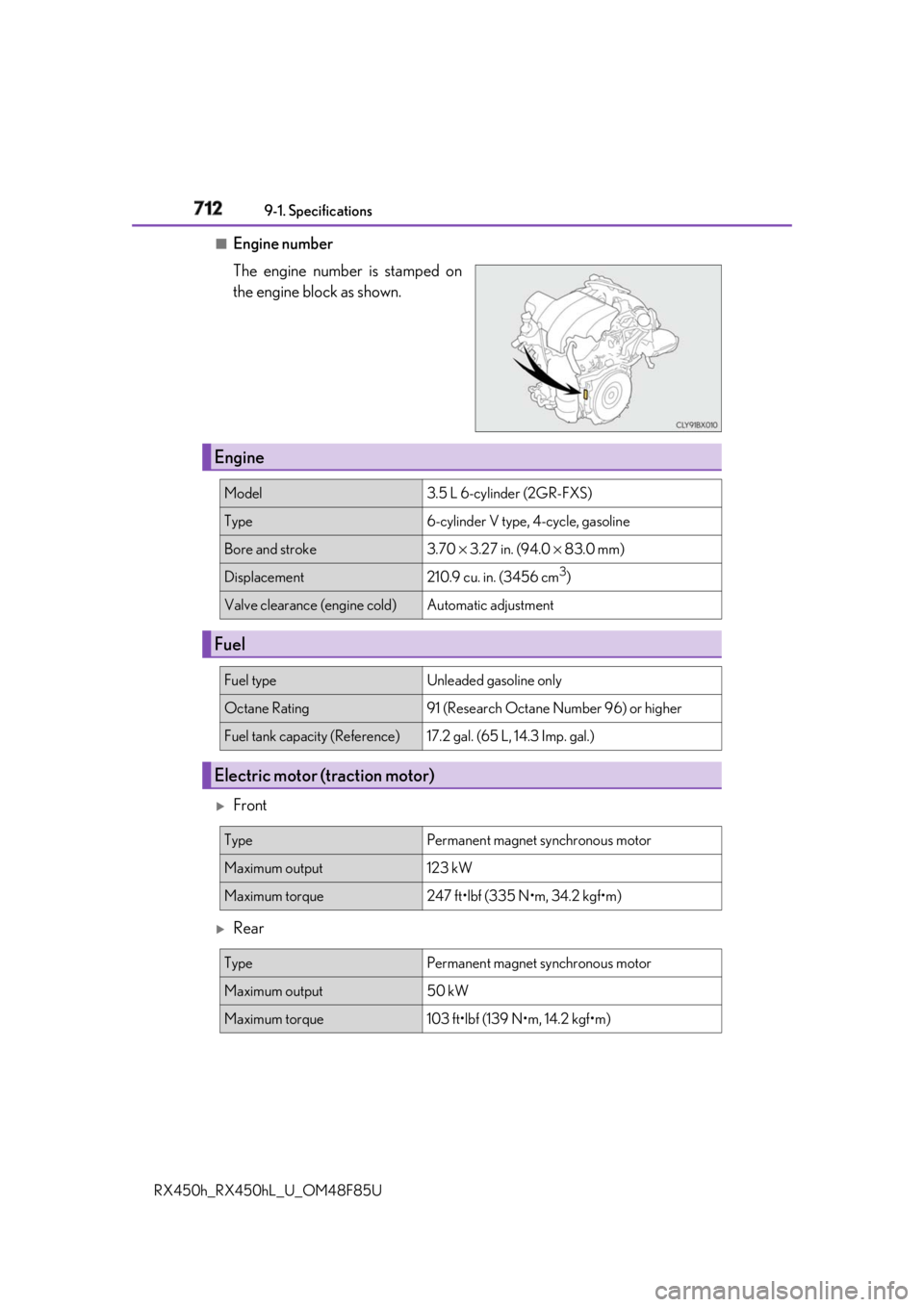

Engine number
The engine number is stamped on
the engine block as shown.

Front 
RearEngine Model 3.5 L 6-cylinder (2GR-FXS)
Type 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement 210.9 cu. in. (3456 cm 3
)
Valve clearance (engine cold) Automatic adjustment
Fuel Fuel type Unleaded gasoline only
Octane Rating 91 (Research Octane Number 96) or higher
Fuel tank capacity (Reference) 17.2 gal. (65 L, 14.3 Imp. gal.)
Electric motor (traction motor) Type Permanent magnet synchronous motor
Maximum output 123 kW
Maximum torque 247 ft•lbf (335 N•m, 34.2 kgf•m)
Type Permanent magnet synchronous motor
Maximum output 50 kW
Maximum torque 103 ft•lbf (139 N•m, 14.2 kgf•m)

7139-1. Specifications
9
Vehicle specifications
RX450h_RX450hL _U_OM48F85U* : The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.Hybrid battery (traction battery) Type Nickel-Metal hydride battery
Voltage 9.6 V/module
Capacity 6.5 Ah (3HR)
Quantity 30 modules
Overall voltage 288 V
Lubrication system Oil capacity
(Drain and refill — reference
* )
With filter 
Vehicles with towing package
5.8 qt. (5.5 L, 4.8 Imp. qt.) 
Vehicles without towing package
5.7 qt. (5.4 L, 4.8 Imp. qt.)
Without filter 5.6 qt. (5.3 L, 4.7 Imp. qt.)

714 9-1. Specifications
RX450h_RX450hL _U_OM48F85U■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value be fore the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the ve hicle is operated at high speeds, or
under extreme lo ad conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use. Outside temperature

7159-1. Specifications
9
Vehicle specifications

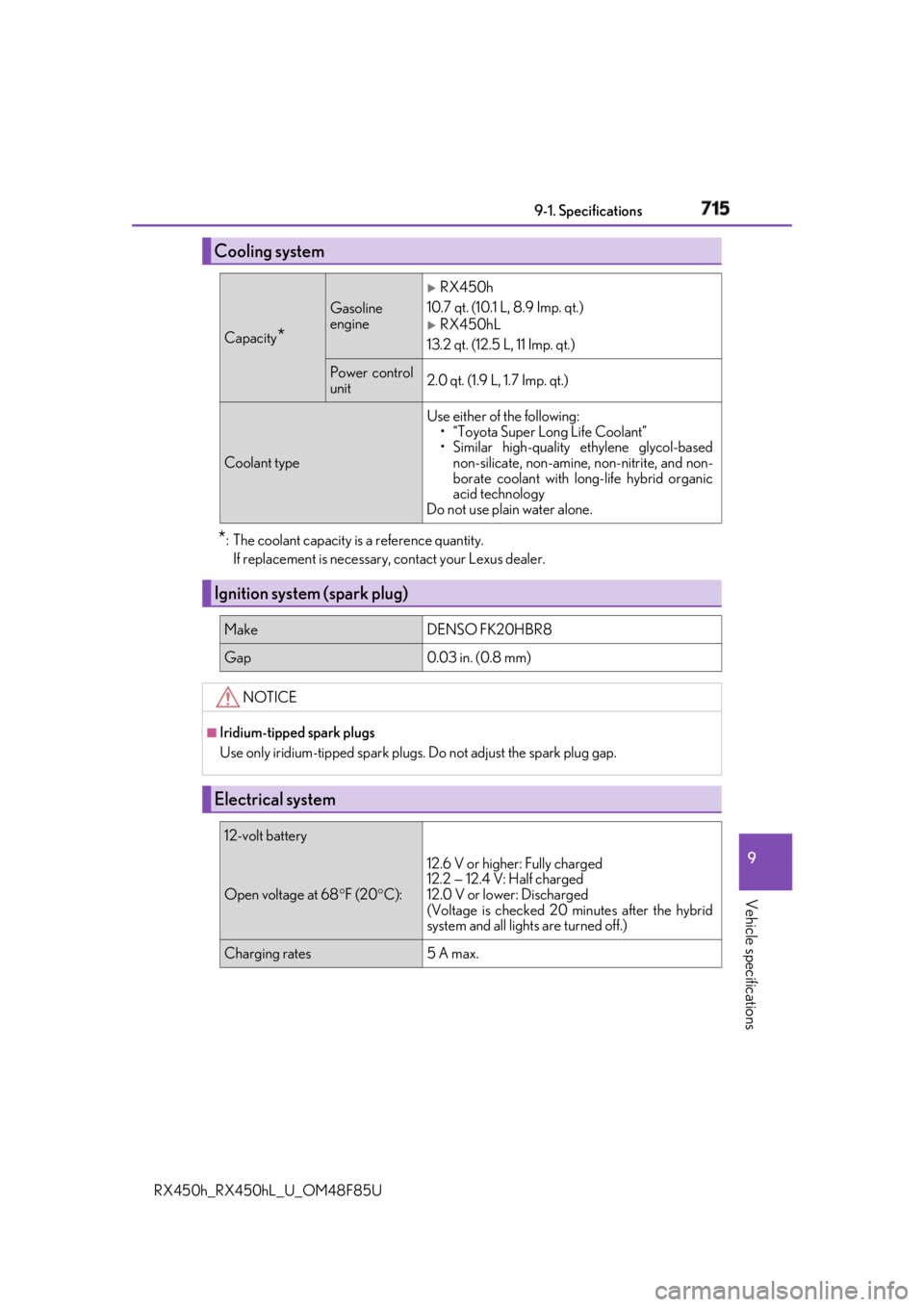

RX450h_RX450hL _U_OM48F85U* : The coolant capacity is a reference quantity.
If replacement is necessary, contact your Lexus dealer.Cooling system Capacity
* Gasoline
engine 
RX450h
10.7 qt. (10.1 L, 8.9 Imp. qt.) 
RX450hL
13.2 qt. (12.5 L, 11 Imp. qt.)
Power control
unit 2.0 qt. (1.9 L, 1.7 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system (spark plug) Make DENSO FK20HBR8
Gap 0.03 in. (0.8 mm)
NOTICE ■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system 12-volt battery
Open voltage at 68 ° F (20 ° C): 12.6 V or higher: Fully charged
12.2 — 12.4 V: Half charged
12.0 V or lower: Discharged
(Voltage is checked 20 minutes after the hybrid
system and all lights are turned off.)
Charging rates 5 A max.

716 9-1. Specifications
RX450h_RX450hL _U_OM48F85U* : The fluid capacity is a reference quantity.
If replacement is necessary, contact your Lexus dealer.
* : The fluid capacity is a reference quantity.
If replacement is necessary, contact your Lexus dealer.
* : Minimum pedal clearance when depressed wi th a force of 110 lbf (490 N, 50.0 kgf)
while the hybrid system is operating.Hybrid transmission Fluid capacity
* 5.1 qt. (4.8 L, 4.2 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE ■
Hybrid transmission fluid type
Using transmission fluid ot her than “Toyota Genuine ATF WS” may ultimately damage
the hybrid transmission of your vehicle.
Rear differential (Rear electric motor) Fluid capacity
* 1.9 qt. (1.8 L, 1.6 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE ■
Hybrid transmission fluid type
Using transmission fluid ot her than “Toyota Genuine ATF WS” may ultimately damage
the hybrid transmission of your vehicle.
Brakes Pedal clearance
* 3.7 in. (95 mm) Min.
Brake pad wear limit 0.04 in. (1.0 mm)
Pedal free play 0.04 — 0.24 in. (1.0 — 6.0 mm)
Fluid type FMVSS No. 116 DOT 3 or SAE J1703

7179-1. Specifications
9
Vehicle specifications
RX450h_RX450hL _U_OM48F85U 

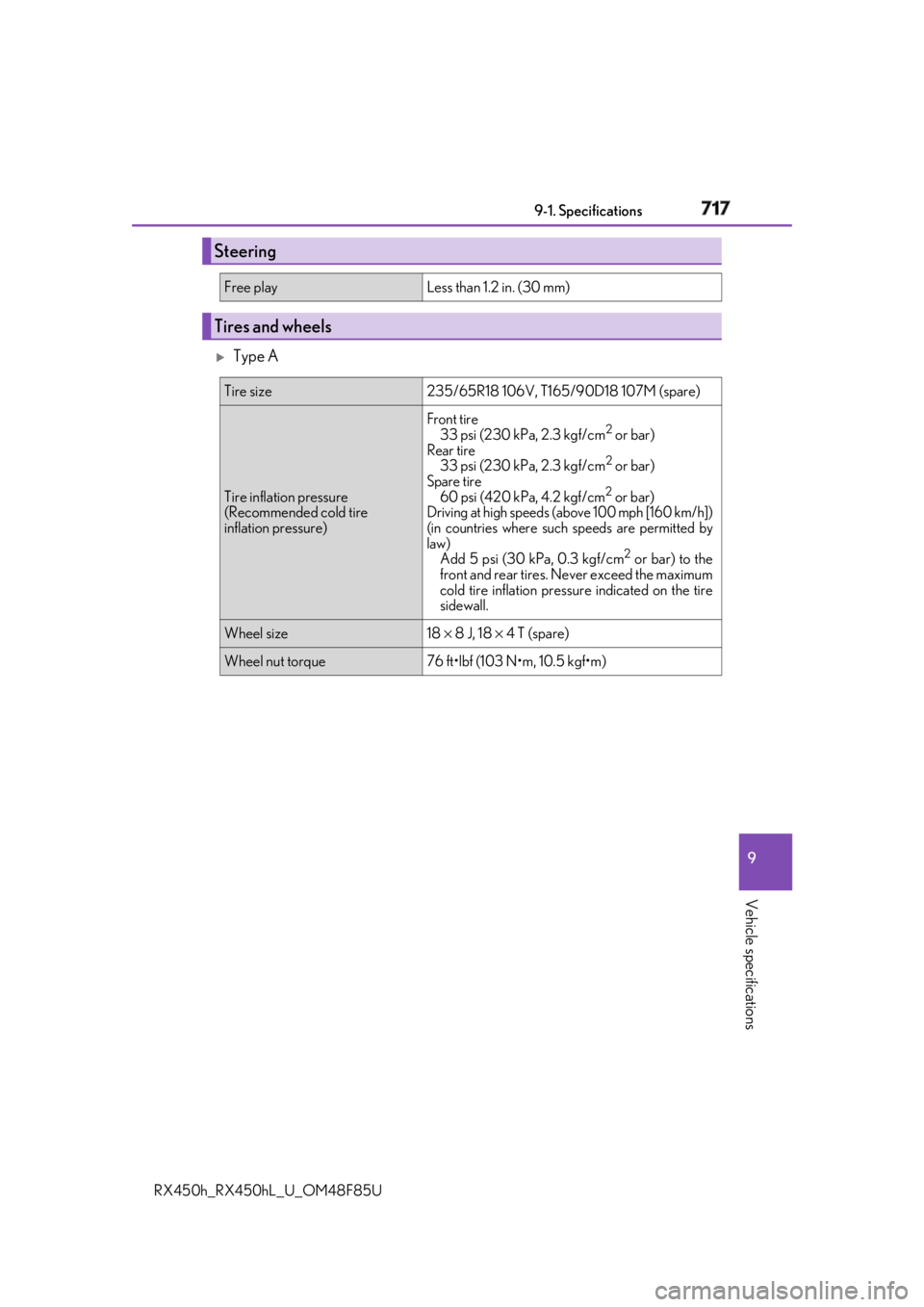

Type ASteering Free play Less than 1.2 in. (30 mm)
Tires and wheels Tire size 235/65R18 106V, T165/90D18 107M (spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure) Front tire
33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Rear tire
33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Spare tire
60 psi (420 kPa, 4.2 kgf/cm 2
or bar)
Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law)
Add 5 psi (30 kPa, 0.3 kgf/cm 2
or bar) to the
front and rear tires. Never exceed the maximum
cold tire inflation pressu re indicated on the tire
sidewall.
Wheel size 18 × 8 J, 18 × 4 T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

718 9-1. Specifications
RX450h_RX450hL _U_OM48F85U 

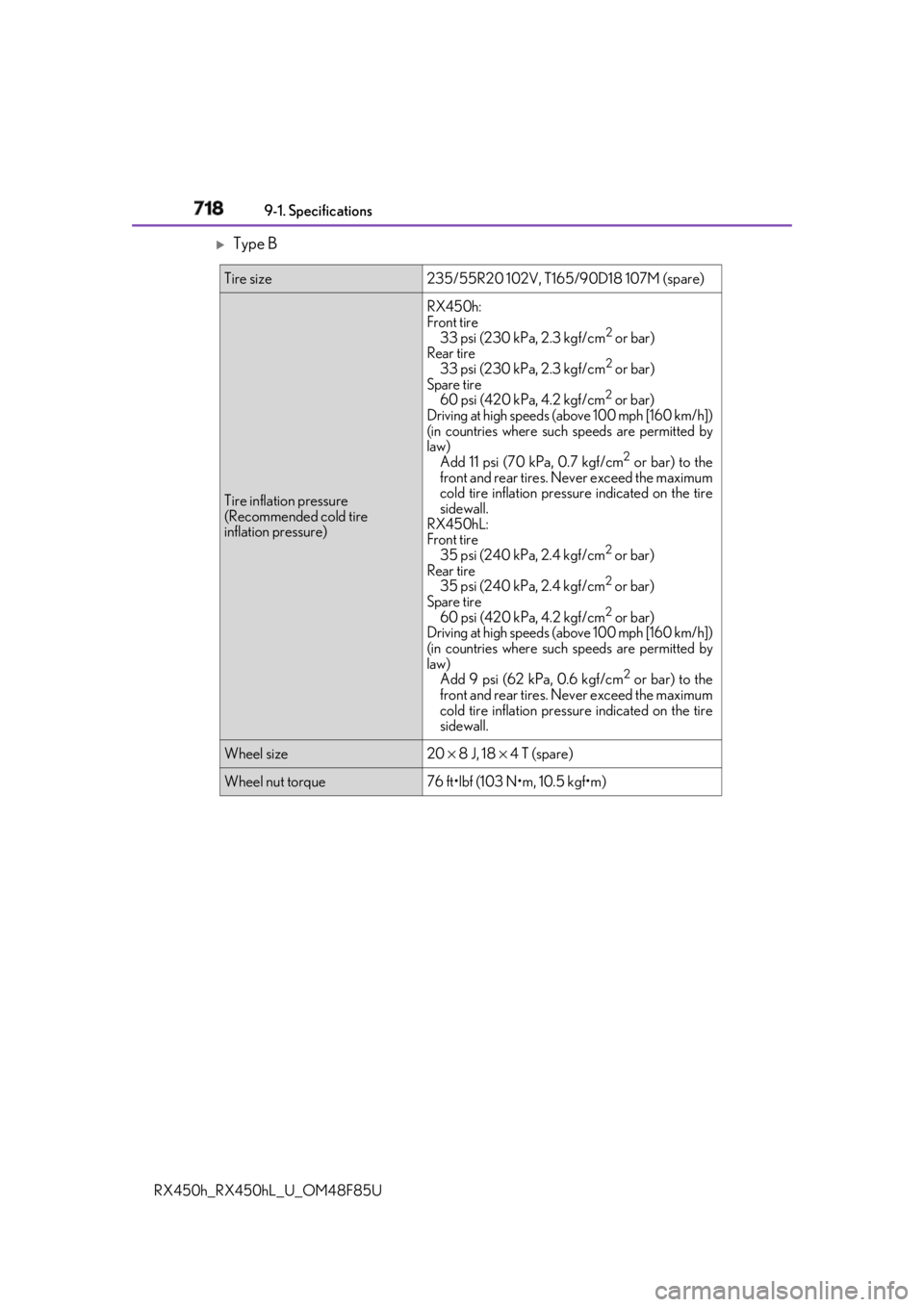

Type B Tire size 235/55R20 102V, T165/90D18 107M (spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure) RX450h:
Front tire
33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Rear tire
33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Spare tire
60 psi (420 kPa, 4.2 kgf/cm 2
or bar)
Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law)
Add 11 psi (70 kPa, 0.7 kgf/cm 2
or bar) to the
front and rear tires. Never exceed the maximum
cold tire inflation pressu re indicated on the tire
sidewall.
RX450hL:
Front tire
35 psi (240 kPa, 2.4 kgf/cm 2
or bar)
Rear tire
35 psi (240 kPa, 2.4 kgf/cm 2
or bar)
Spare tire
60 psi (420 kPa, 4.2 kgf/cm 2
or bar)
Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law)
Add 9 psi (62 kPa, 0.6 kgf/cm 2
or bar) to the
front and rear tires. Never exceed the maximum
cold tire inflation pressu re indicated on the tire
sidewall.
Wheel size 20 × 8 J, 18 × 4 T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

7199-1. Specifications
9
Vehicle specifications

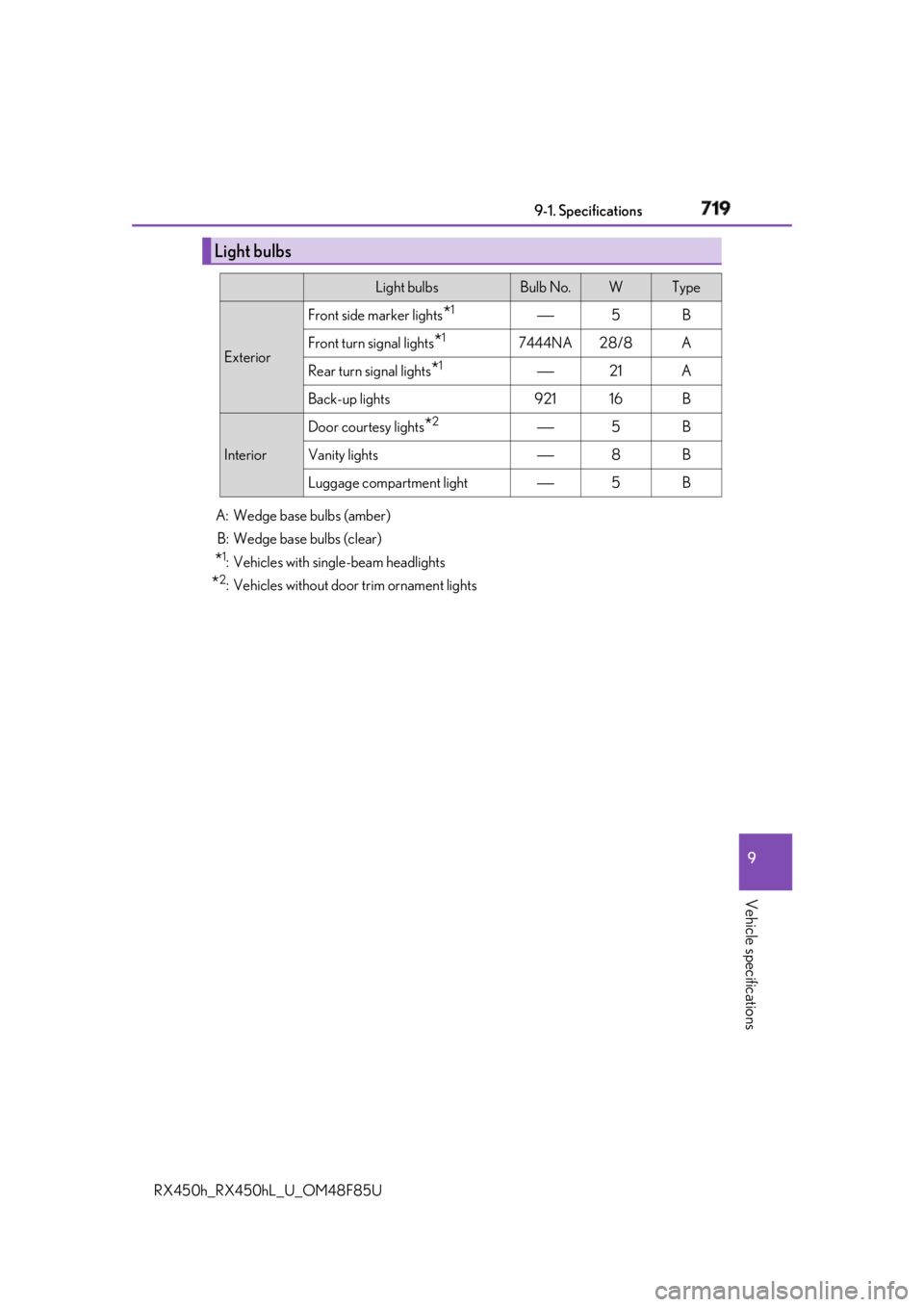

RX450h_RX450hL _U_OM48F85ULight bulbs Light bulbs Bulb No. W Type
Exterior Front side marker lights
* 1
⎯ 5 B
Front turn signal lights
* 1
7444NA 28/8 A
Rear turn signal lights
* 1
⎯ 21 A
Back-up lights 921 16 B
Interior Door courtesy lights
* 2
⎯ 5 B
Vanity lights ⎯ 8 B
Luggage compartment light ⎯ 5 B
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
* 1
: Vehicles with single-beam headlights
* 2
: Vehicles without door trim ornament lights

720 9-1. Specifications
RX450h_RX450hL _U_OM48F85U■
Gasoline quality
In very few cases, driveabilit y problems may be caused by th e brand of gasoline you are
using. If driveability problems persist, try ch anging the brand of gasoline. If this does not
correct the problem, consult your Lexus dealer. ■
Gasoline quality standards ●
Automotive manufacturers in the U.S.A., Europe and Japan have developed a specifi-
cation for fuel quality calle d the World-Wide Fuel Charte r (WWFC), which is expected
to be applied worldwide. ●
The WWFC improves air quality by lowering emissions in vehicle fleets, and improves
customer satisfaction th rough better performance.■
Recommendation of the use of gasoline containing detergent additives ●
Lexus recommends the use of gasoline that contains detergent additives to avoid the
build-up of engine deposits. ●
All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or
keep clean intake systems, per EPA’s lowest additives concentration program.●
Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more informa-
tion on Top Tier Detergent Gasoline and a lis t of marketers, please go to the official
website www.toptiergas.com.Fuel information You must only use unleaded gasoline.
Select premium unleaded gasoline with an octane rating of 91 (Research
Octane Number 96) or higher requir ed for optimum engine performance
and fuel economy.
If the octane rating is less than 91, damage to the engine may occur and may
void the vehicle warranty.
At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A.
