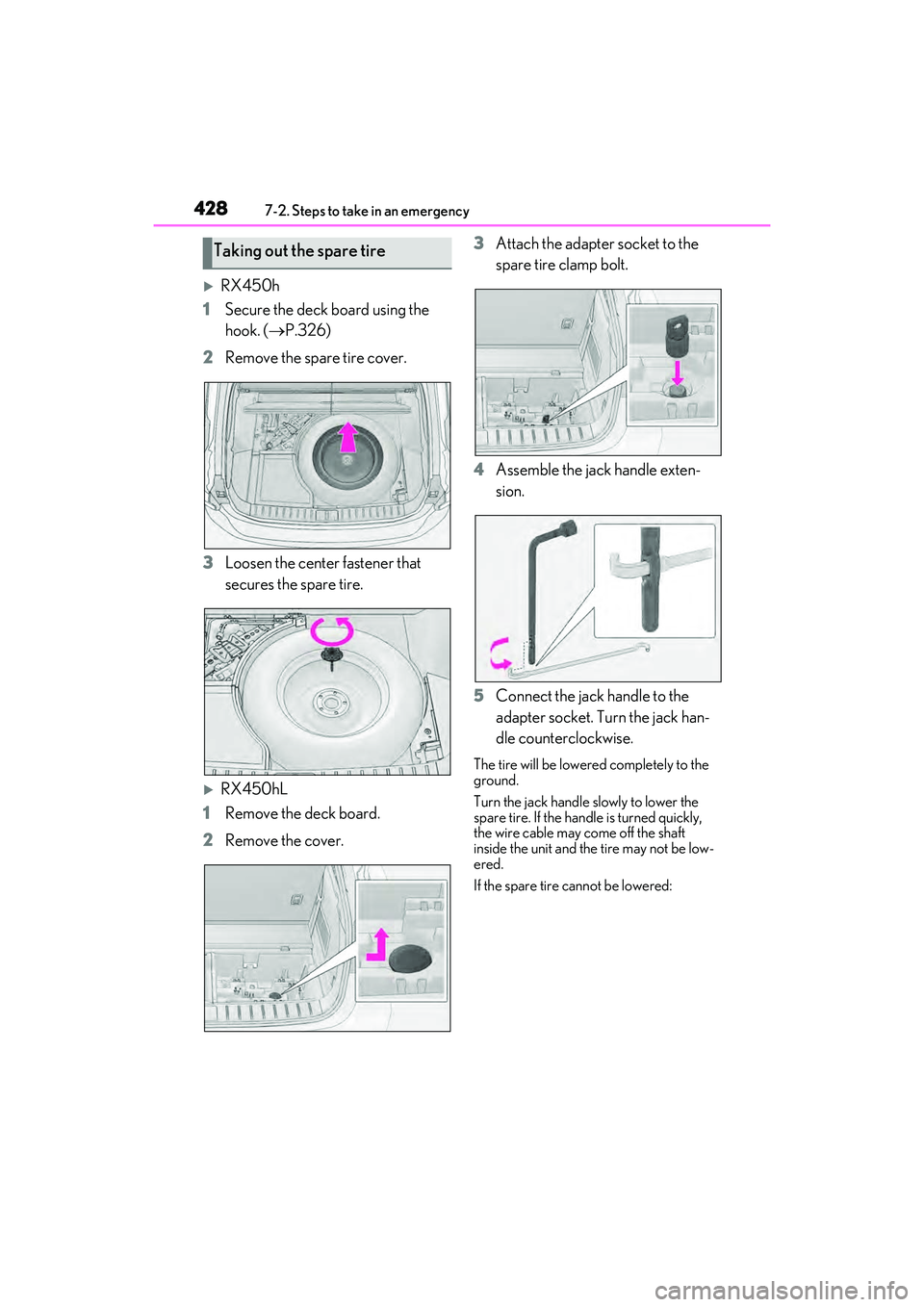

4287-2. Steps to take in an emergency
RX450h
1 Secure the deck board using the
hook. ( P.326)
2 Remove the spare tire cover.
3 Loosen the center fastener that
secures the spare tire.
RX450hL
1 Remove the deck board.
2 Remove the cover. 3
Attach the adapter socket to the
spare tire clamp bolt.
4 Assemble the jack handle exten-
sion.
5 Connect the jack handle to the
adapter socket. Turn the jack han-
dle counterclockwise.
The tire will be lowered completely to the
ground.
Turn the jack handle slowly to lower the
spare tire. If the handle is turned quickly,
the wire cable may come off the shaft
inside the unit and the tire may not be low-
ered.
If the spare tire cannot be lowered:
Taking out the spare tire

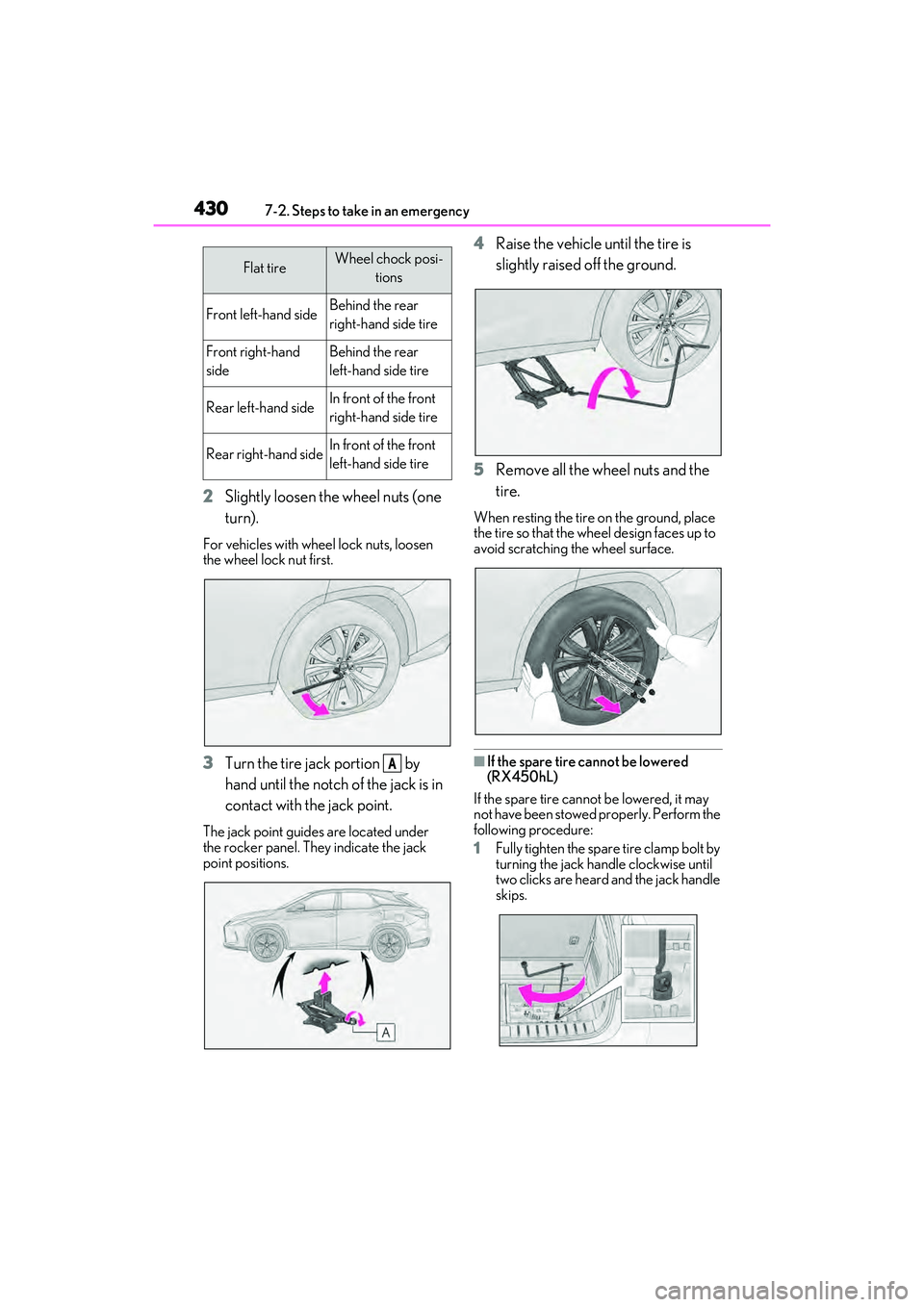

4307-2. Steps to take in an emergency
2Slightly loosen the wheel nuts (one
turn).
For vehicles with wheel lock nuts, loosen
the wheel lock nut first.
3Turn the tire jack portion by
hand until the notch of the jack is in
contact with the jack point.
The jack point guides are located under
the rocker panel. They indicate the jack
point positions.
4Raise the vehicle until the tire is
slightly raised off the ground.
5 Remove all the wheel nuts and the
tire.
When resting the tire on the ground, place
the tire so that the wheel design faces up to
avoid scratching the wheel surface.
■If the spare tire cannot be lowered
(RX450hL)
If the spare tire cannot be lowered, it may
not have been stowed properly. Perform the
following procedure:
1 Fully tighten the spare tire clamp bolt by
turning the jack handle clockwise until
two clicks are heard and the jack handle
skips.
Flat tireWheel chock posi-
tions
Front left-hand sideBehind the rear
right-hand side tire
Front right-hand
sideBehind the rear
left-hand side tire
Rear left-hand sideIn front of the front
right-hand side tire
Rear right-hand sideIn front of the front
left-hand side tire
A

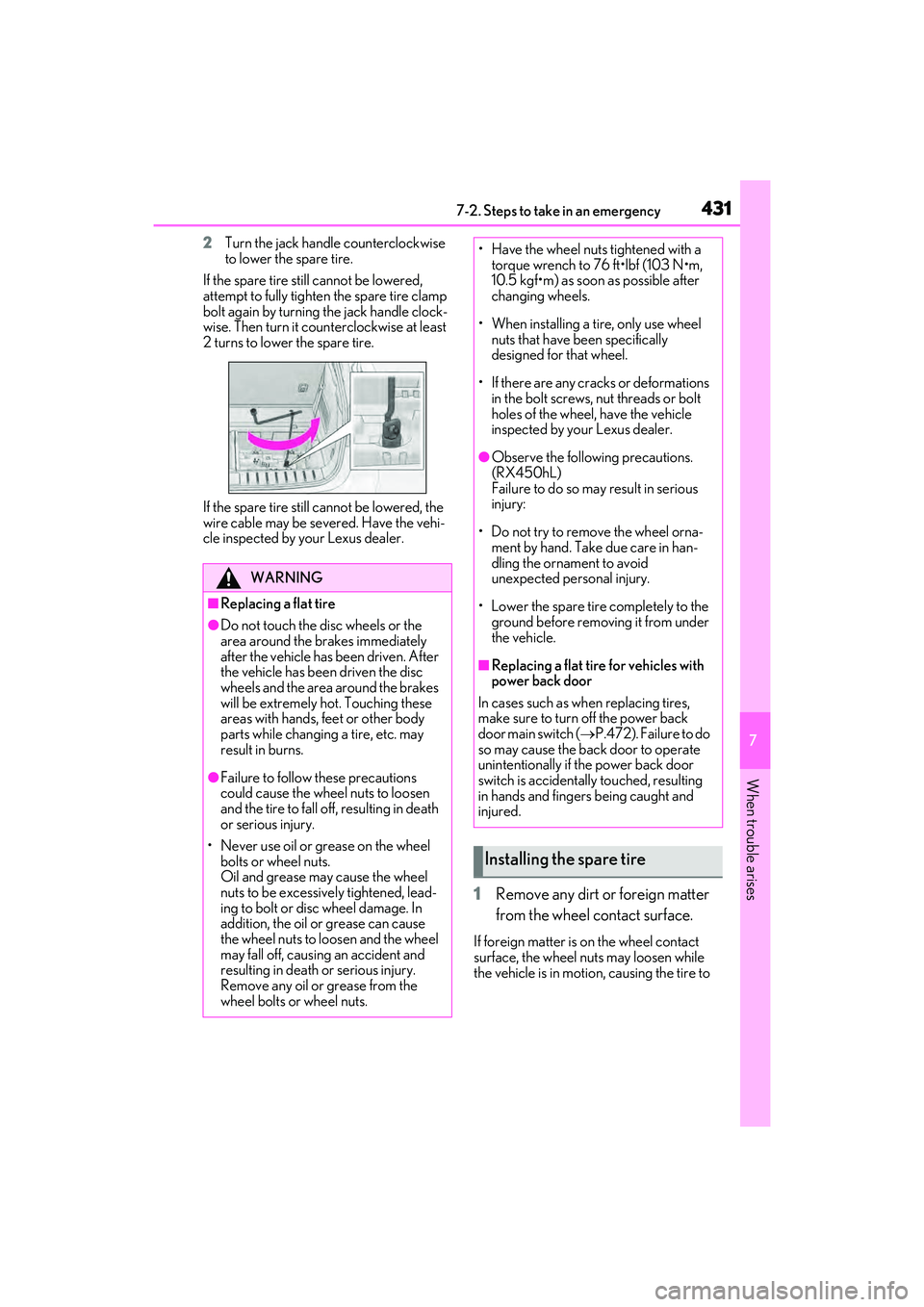

4317-2. Steps to take in an emergency
7
When trouble arises
2Turn the jack handle counterclockwise
to lower the spare tire.
If the spare tire still cannot be lowered,
attempt to fully tighten the spare tire clamp
bolt again by turning the jack handle clock-
wise. Then turn it coun terclockwise at least
2 turns to lower the spare tire.
If the spare tire still cannot be lowered, the
wire cable may be seve red. Have the vehi-
cle inspected by your Lexus dealer.
1 Remove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel contact
surface, the wheel nuts may loosen while
the vehicle is in motion, causing the tire to
WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the
area around the brakes immediately
after the vehicle has been driven. After
the vehicle has been driven the disc
wheels and the area around the brakes
will be extremely hot. Touching these
areas with hands, feet or other body
parts while changing a tire, etc. may
result in burns.
●Failure to follow these precautions
could cause the wheel nuts to loosen
and the tire to fall of f, resulting in death
or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel
nuts to be excessively tightened, lead-
ing to bolt or disc wheel damage. In
addition, the oil or grease can cause
the wheel nuts to loosen and the wheel
may fall off, causing an accident and
resulting in death or serious injury.
Remove any oil or grease from the
wheel bolts or wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m,
10.5 kgf•m) as soon as possible after
changing wheels.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt
holes of the wheel, have the vehicle
inspected by your Lexus dealer.
●Observe the following precautions.
(RX450hL)
Failure to do so may result in serious
injury:
• Do not try to remove the wheel orna- ment by hand. Take due care in han-
dling the orname nt to avoid
unexpected personal injury.
• Lower the spare tire completely to the ground before removing it from under
the vehicle.
■Replacing a flat tire for vehicles with
power back door
In cases such as when replacing tires,
make sure to turn off the power back
door main switch ( P.472). Failure to do
so may cause the back door to operate
unintentionally if th e power back door
switch is accidentally touched, resulting
in hands and fingers being caught and
injured.
Installing the spare tire

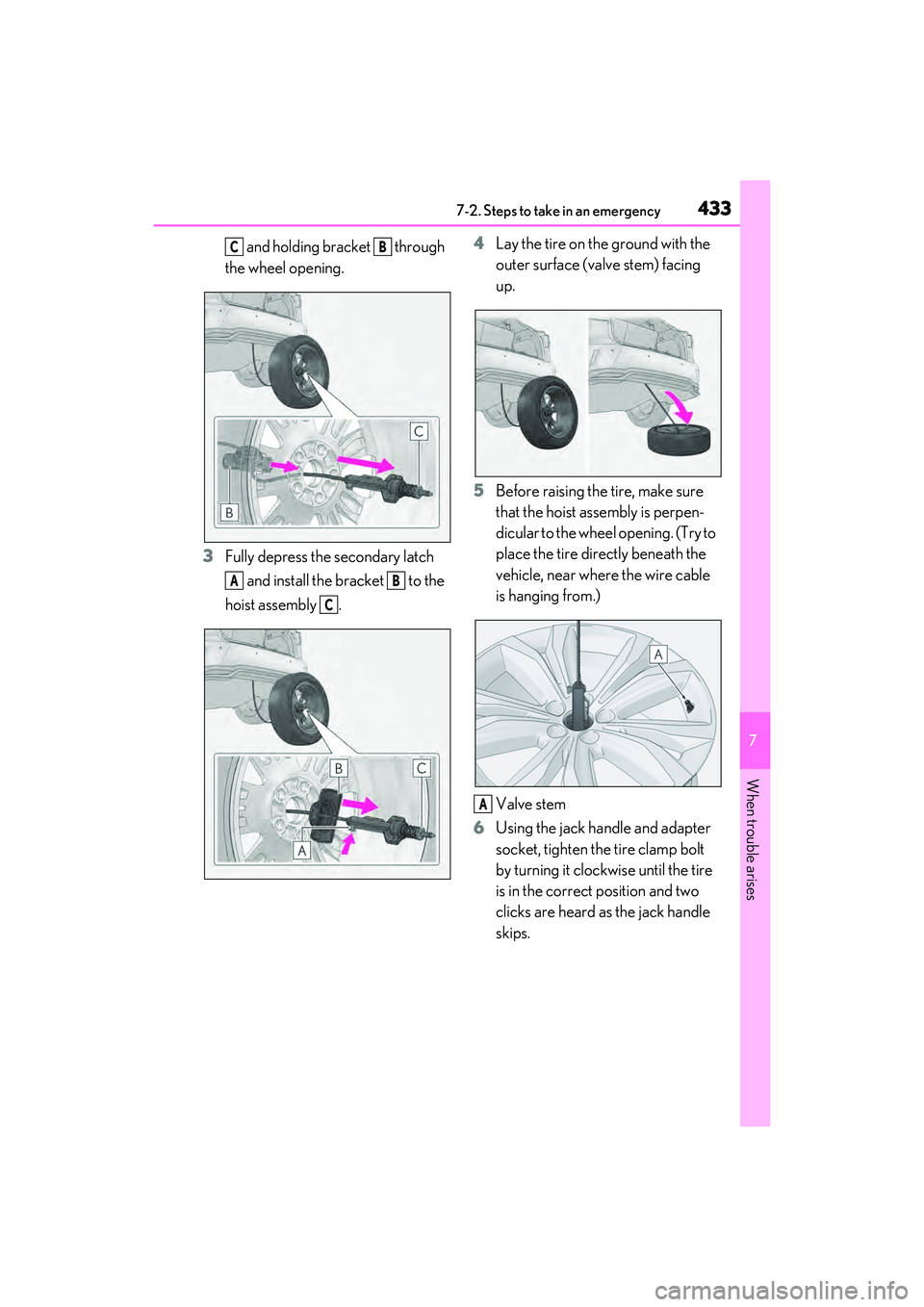

4337-2. Steps to take in an emergency
7
When trouble arises
and holding bracket through
the wheel opening.
3 Fully depress the secondary latch
and install the bracket to the
hoist assembly . 4
Lay the tire on the ground with the
outer surface (valve stem) facing
up.
5 Before raising the tire, make sure
that the hoist assembly is perpen-
dicular to the wheel opening. (Try to
place the tire directly beneath the
vehicle, near where the wire cable
is hanging from.)
Valve stem
6 Using the jack handle and adapter
socket, tighten the tire clamp bolt
by turning it clockwise until the tire
is in the correct position and two
clicks are heard as the jack handle
skips.CB
AB
C
A

4738-2. Customization
8
Vehicle specifications
■Gauges, meters and multi-information display (P.78, 83, 88)
Function*1Default settingCustomized setting
LanguageEnglishFrenchOO—Spanish
Units*2miles (MPG)
km (km/L)
OO—km (L/100km)
miles (MPG Impe-
rial)
Drive information 1
Current fuel con-sumption
Customizable items: P.90—O—
Average fuel econ-omy (after reset)
Drive information 2
Distance (driving range)
Average vehicle
speed (after reset)
Drive information 3
Average fuel econ- omy (after refuel)
Elapsed time (after start)
Clock12-hour display24-hour display—O—
Pop-up displayOnOff—O—
Accent color*3Color 1Color 2OO—
Needle*4Color 1Color 2—O—Color 3
Tachometer settingChange according to driving modeAlways tachometer
—O—Always Hybrid Sys- tem Indicator
Rev indicator*44000 r/min.
2000 - 6000 r/min.
—O—
Off
Rev peak*4OnOff—O—
ABC

4848-2. Customization
■Seat belt reminder (P.410)
■Vehicle customization
●When the smart access system with
push-button start is off, the entry unlock
function cannot be customized.
●When the doors rema in closed after
unlocking the doors and the timer acti-
vated automatic door lock function acti-
vates, signals will be generated in
accordance with the operation buzzer
volume and operational signal (Emer-
gency flashers) function settings.
●Some settings can be changed using a
switch or the Remote Touch. If a setting is
changed using a switch, the changed set-
ting will not be reflected on the Remote
Touch until the power switch is turned off
and then to ON mode.
■Clock settings screen
If the clock adjustment screen is displayed
continuously when attempting to change
the clock settings, the system may be mal-
functioning. Have the vehicle inspected by
your Lexus dealer.
FunctionDefault settingCustomized setting
Vehicle speed linked seat belt
reminder buzzerOnOff——O
ABC

506Alphabetical Index
Fluid ......................................................369, 457
Parking brake ................................................193
Regenerative braking ................................. 67
Warning light ................................................ 410
Brake assist .................................................... 278
Break-in tips.....................................................163
Brightness control Instrument panel light control ................ 87
BSM (Blind Spot Monitor)....................... 246
Buzzer Hands off steering wheel warning (LTA)......................................................................... 232
C
Care Exterior .......................................................... 350
Interior ............................................................. 353
Seat belts........................................................ 353
Wheels and wheel ornaments........... 350
Cargo capacity..................................... 167, 170
Cargo hooks ................................................. 324
Cargo net hooks .......................................... 324
Center Display ............................................. 294
Chains .............................................................. 287
Child restraint system Fixed with a LATCH system .................. 54
Fixed with a seat belt...................................50
Front passenger occupant classification system ............................................................. 39
Points to remember .................................... 45
Riding with children ..................................... 45
Types of child restraint system installation method ........................................................... 46
Using an anchor bracket .......................... 57
Child safety 12-volt battery precautions ....... 372, 445
Airbag precautions...................................... 36
Child restraint system................................. 46
Heated steering wheel and seat heater precautions.................................................. 312
How your child should wear the seat belt .............................................................................27 Moon roof precautions............................ 155
Panoramic moon roof precautions ... 158
Power back door precautions ............... 113
Power window lock switch .................... 153
Power window precautions .................. 152
Rear door child-protectors ..................... 112
Seat belt extender prec
autions.............. 27
Seat belt precautions .................................. 45
Child-protectors............................................. 112
Cleaning Exterior........................................................... 350
Interior .............................................................353
Radar sensor .................................................. 212
Seat belts ........................................................353
Wheels and wheel ornaments ........... 350
Clock ....................................................... 83, 338
Coat hooks..................................................... 338
Coin box.......................................................... 322
Compass ......................................................... 346
Condenser ..................................................... 368
Console box .................................................. 320
Cooling system............................................. 367 Engine overheating...................................446
Hybrid system overheating ................. 448
Cornering lights ...........................................200 Replacing light bulbs................................393
Cruise control Dynamic radar cruise control with full-speed range ......................................236
Cup holders .....................................................321
Current fuel consumption .......................... 90
Curtain shield airbags .................................. 30
Customizable features ...............................472
D
Daytime running light system .................. 198
Defogger Outside rear view mirrors.................... 300
Rear window ............................................... 300
Windshield ................................................... 300
Differential Rear differential oil.....................................457

511Alphabetical Index
LeverAuxiliary catch lever ................................. 363
Hood lock release lever......................... 363
Shift lever......................................................... 189
Turn signal lever ........................................... 192
Wiper lever................................................... 204
Lexus climate concierge .......................... 297
Lexus Enform Safety Connect.................. 60
Lexus Safety System + 2.0 AHB (Automatic High Beam)..............201
Dynamic radar cruise control with full-speed range ...................................... 236
LTA (Lane Tracing Assist).................... 225
PCS (Pre-Collision System)..................218
RSA (Road Sign Assist) ......................... 234
License plate lights Light switch .................................................... 198
Replacing light bulbs................................ 393
Light bulbs Replacing ....................................................... 392
Lights Automatic High Beam system..............201
Fog light switch ........................................... 204
Front interior lights ......................................315
Front personal lights...................................316
Headlight switch ......................................... 198
Interior lights...................................................315
Interior lights list............................................315
Rear interior lights .......................................315
Rear personal lights....................................316
Replacing light bulbs................................ 393
Turn signal lever ........................................... 192
Vanity lights ..................................................340
Wattage..........................................................460
Lock steering column ................................. 183
LTA (Lane Tracing Assist) Operation...................................................... 225
Warning messages .................................. 233
Luggage cover ............................................. 325M
Maintenance Do-it-yourself maintenance .................. 361
General maintenance .............................357
Maintenance data ......................................452
Maintenance requirements ................. 356
Malfunction indicator lamp ........................ 411
Master warning light .................................... 417
Menu icons........................................................ 89
Meter Clock...................................................................83
Hybrid System Indicator ...........................85
Indicators.......................................................... 80
Instrument panel light control................. 87
Meter control switches ..............................89
Meters.................................................................83
Multi-information display ......................... 88
Settings............................................................... 92
Units.......................................................................91
Warning lights .............................................. 410
Warning message .....................................420
Mirrors Inside rear view mirror ..............................147
Outside rear view mirror defoggers300
Outside rear view mirrors...................... 148
Vanity mirrors ............................................. 340
Moon roof Door lock linked moon roof operation........................................................................... 154
Door lock linked panoramic moon roof operation ......................................................157
Jam protection function ........................... 154
Operation ....................................................... 153
Multi-information display ............................ 88 Audio system-linked display ................... 92
AWD Control ..................................................91
Drive information ..........................................90
Driving assist system information ......... 92
Driving information display ......................90
Dynamic radar cruise control with full-speed range ......................................236
