LEXUS SC300 1999 Owners Manual

IN CASE OF AN EMERGENCY
293

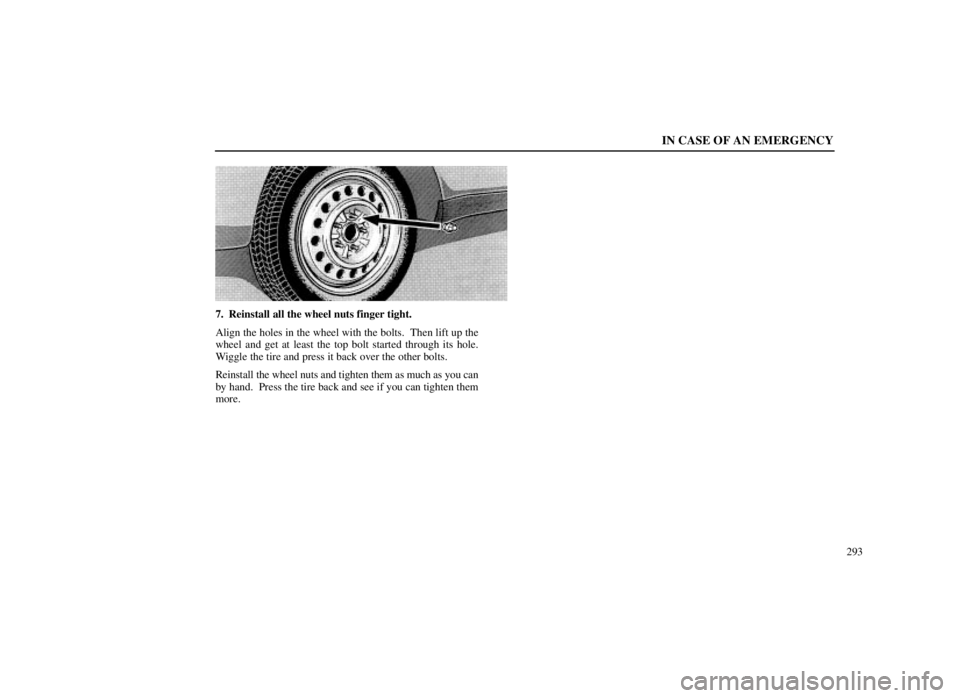

7. Reinstall all the wheel nuts finger tight.
Align the holes in the wheel with the bolts. Then lift up the
wheel and get at least the top bolt started through its hole.
Wiggle the tire and press it back over the other bolts.
Reinstall the wheel nuts and tighten them as much as you can
by hand. Press the tire back and see if you can tighten them
more.

IN CASE OF AN EMERGENCY
294

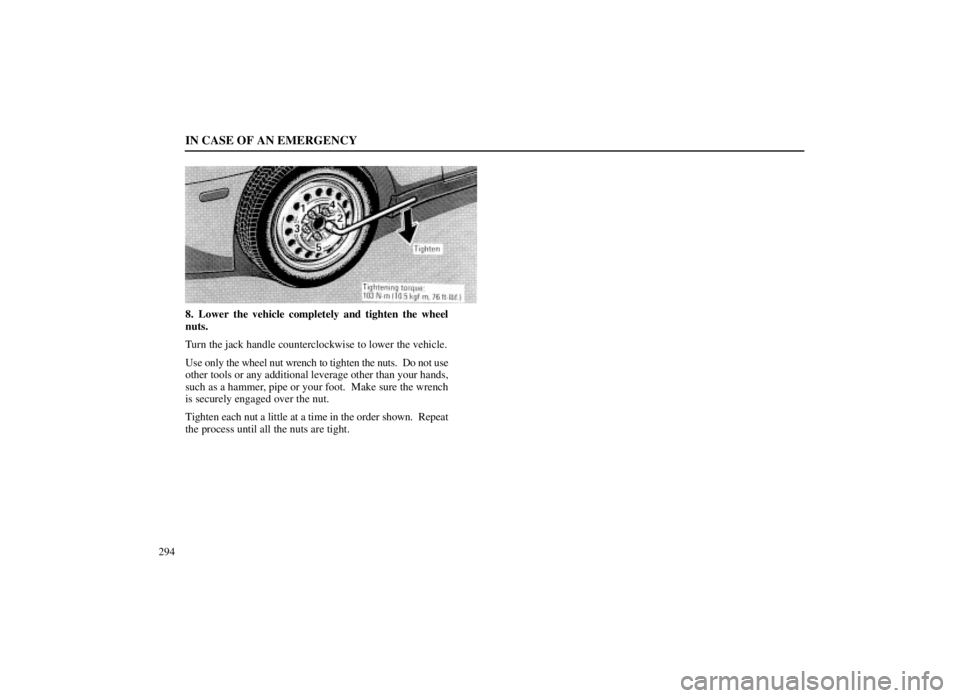

8. Lower the vehicle completely and tighten the wheel
nuts.
Turn the jack handle counterclockwise to lower the vehicle.
Use only the wheel nut wrench to tighten the nuts. Do not use
other tools or any additional leverage other than your hands,
such as a hammer, pipe or your foot. Make sure the wrench
is securely engaged over the nut.
Tighten each nut a little at a time in the order shown. Repeat
the process until all the nuts are tight.

IN CASE OF AN EMERGENCY
295

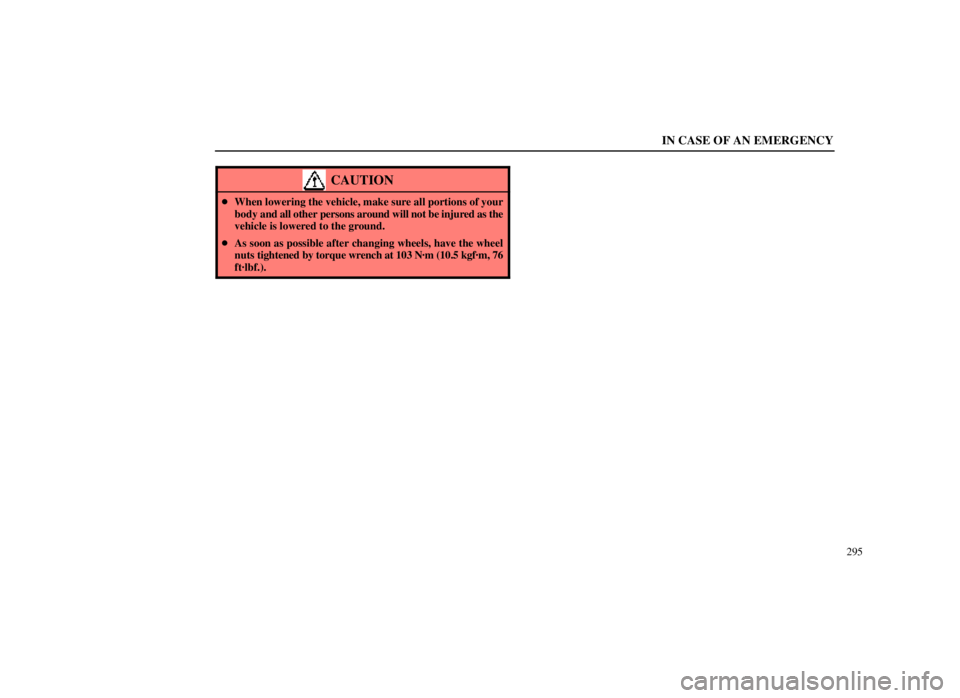

CAUTION

When lowering the vehicle, make sure all portions of your
body and all other persons around will not be injured as the
vehicle is lowered to the ground.

As soon as possible after changing wheels, have the wheel
nuts tightened by torque wrench at 103 N´m (10.5 kgf´m, 76
ft´lbf.).

IN CASE OF AN EMERGENCY
2969. After
changing the wheel, check the air pr essure of the
replaced tire. Stow all the tools, jack and flat tire securely.
If the pressure of the replaced tire is low, drive slowly to the
nearest service station and fill to the correct pressure.
Do not forget to reinstall the tire valve cap as dirt and moisture
could get into the valve core and possible cause air leakage.
If the cap is missing, put a new one on as soon as possible.
This is the same procedure for changing or rotating your tires.

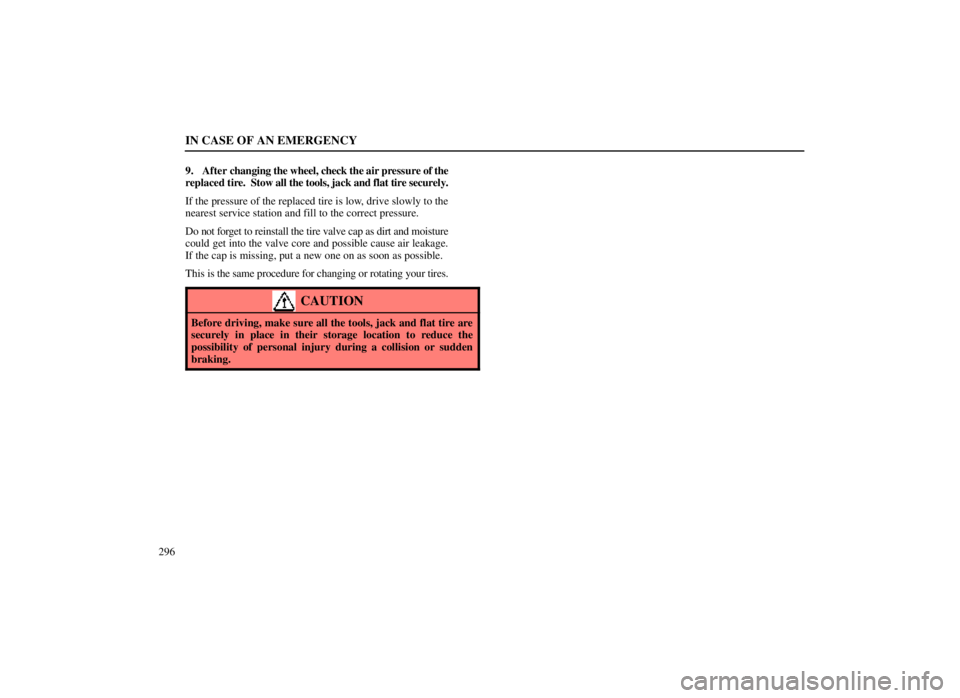

CAUTION
Before driving, make sure all the tools, jack and flat tire are
securely in place in their storage location to reduce the
possibility of personal injury during a collision or sudden
braking.

IN CASE OF AN EMERGENCY
297
IF YOUR VEHICLE NEEDS TOBE TOWED
If towing is necessary, we recommend you to have it done
by your Lexus dealer or a commercial tow truck service.
In consultation with them, have your vehicle towed using
either (a) or (b).
(a) Towing with a wheel lift type truck
(b) Using a flat bed truck
(c) Never tow with a sling type truck
Only when you cannot receive a towing service from a
Lexus dealer or commercial tow truck service, tow your
vehicle car efully in accordance with the instructions given
in º(d) Emergency towingº on page 303.
Proper equipment will help ensure that your vehicle is not
damaged while being towed. Commercial operators are
generally aware of the state/provincial and local laws
pertaining to towing.
Your vehicle can be damaged if it is towed incorrectly.
Although most operators know the correct procedure, it is
possible to make a mistake. To avoid damage to your vehicle,
make sure the following few precautions are observed. If
necessary, show this page to the tow truck driver.
TOWING PRECAUTIONS:
Use a safety chain system for all towing, and abide by the
state/provincial and local laws. The wheels and axle on the ground must be in good condition. If they are damaged, use
a towing dolly.

IN CASE OF AN EMERGENCY
298
(a) Towing with a wheel lift type truck

From front
Use a towing dolly under the rear wheels.
NOTICE
Never tow a vehicle with an automatic transmission from
the front with rear wheels on the ground, as this may
cause serious damage to the transmission.

From rear

IN CASE OF AN EMERGENCY
299
Place the ignition key in the ºACCº position.
NOTICE

Do not tow with the key removed or in the ºLOCKº
position, as the steering lock mechanism is not strong
enough to hold the front wheels straight.

When lifting wheels, take care to ensure adequate
ground clearance for towing at the opposite end of the
raised vehicle. Otherwise, the bumper and/or
underbody of the towed vehicle will be damaged
during towing.

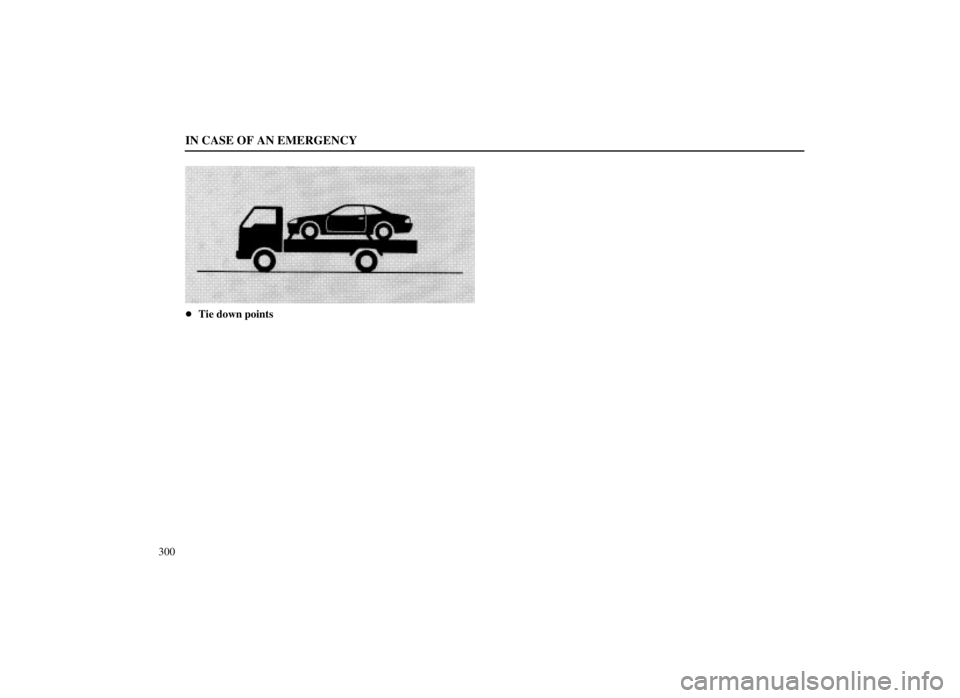

(b) Using a flat bed truck

IN CASE OF AN EMERGENCY
300

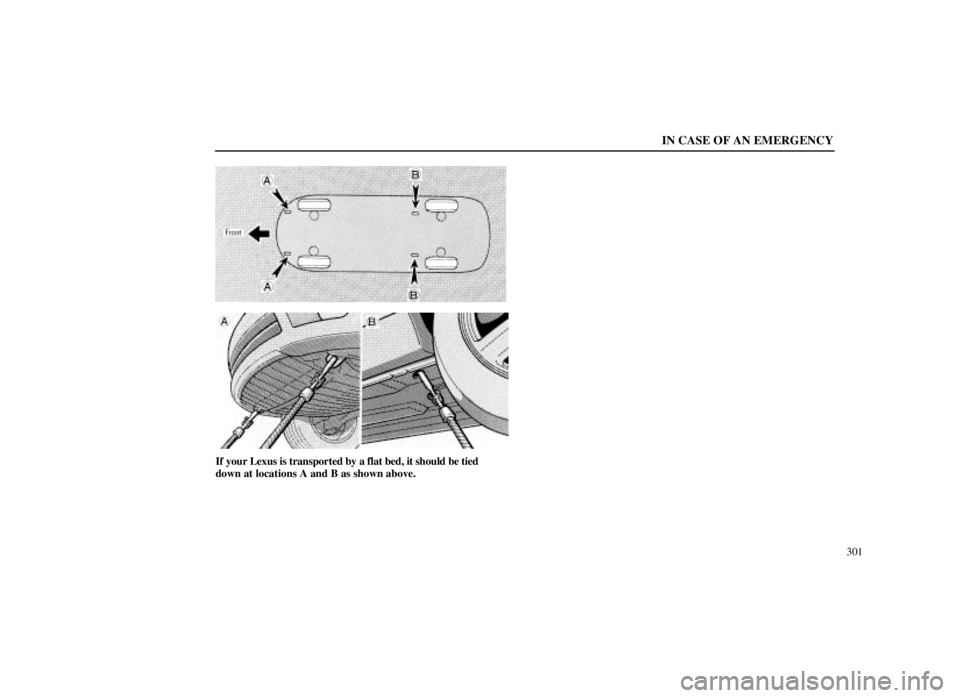

Tie down points

IN CASE OF AN EMERGENCY
301
If your Lexus is transported by a flat bed, it should be tied
down at locations A and B as shown above.

IN CASE OF AN EMERGENCY
302

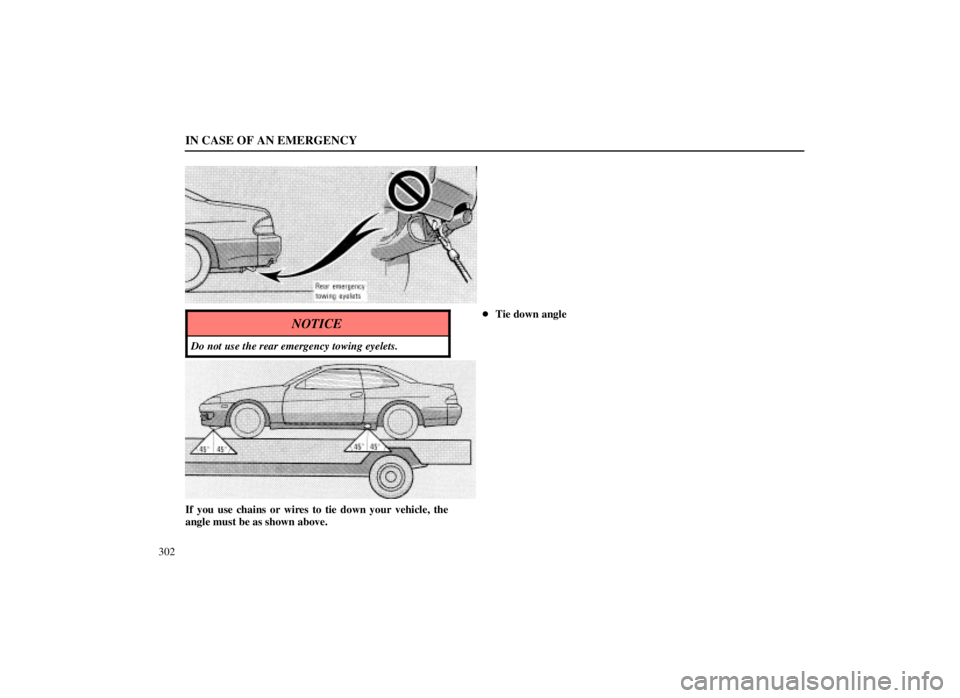

NOTICE
Do not use the rear emergency towing eyelets.

Tie down angle
If you use chains or wires to tie down your vehicle, the
angle must be as shown above.
