SERVICE SPECIFICATIONS
SERVICE DATA
VSVResistance30±34
for EVAP
VSVResistance33±39
for EGR
EGR valveResistance19.9±23.4
(CALIF. only)
TORQUE SPECIFICATIONS
Part tightenedNVmkgf Vcmft Vlbf
V

Page 1332 of 4087

LEXUS SC400 1991  Service Repair Manual
EMISSION CONTROL SYSTEM
NOTE: The specification descriptions ºUSA Spec.º and
º Exc. USA Spec. º used in this section indicate the following
specifications.
USA Spec .: USA (50 States) Specificati

Page 1333 of 4087

LEXUS SC400 1991  Service Repair Manual
DESCRIPTION
The emission control systems are installed to reduce the amount of HC, CO, \
and NOx emitted from the en-
gine, and to also prevent the release of evaporated fuel from the gasoline ta\
nk

Page 1334 of 4087

LEXUS SC400 1991  Service Repair Manual

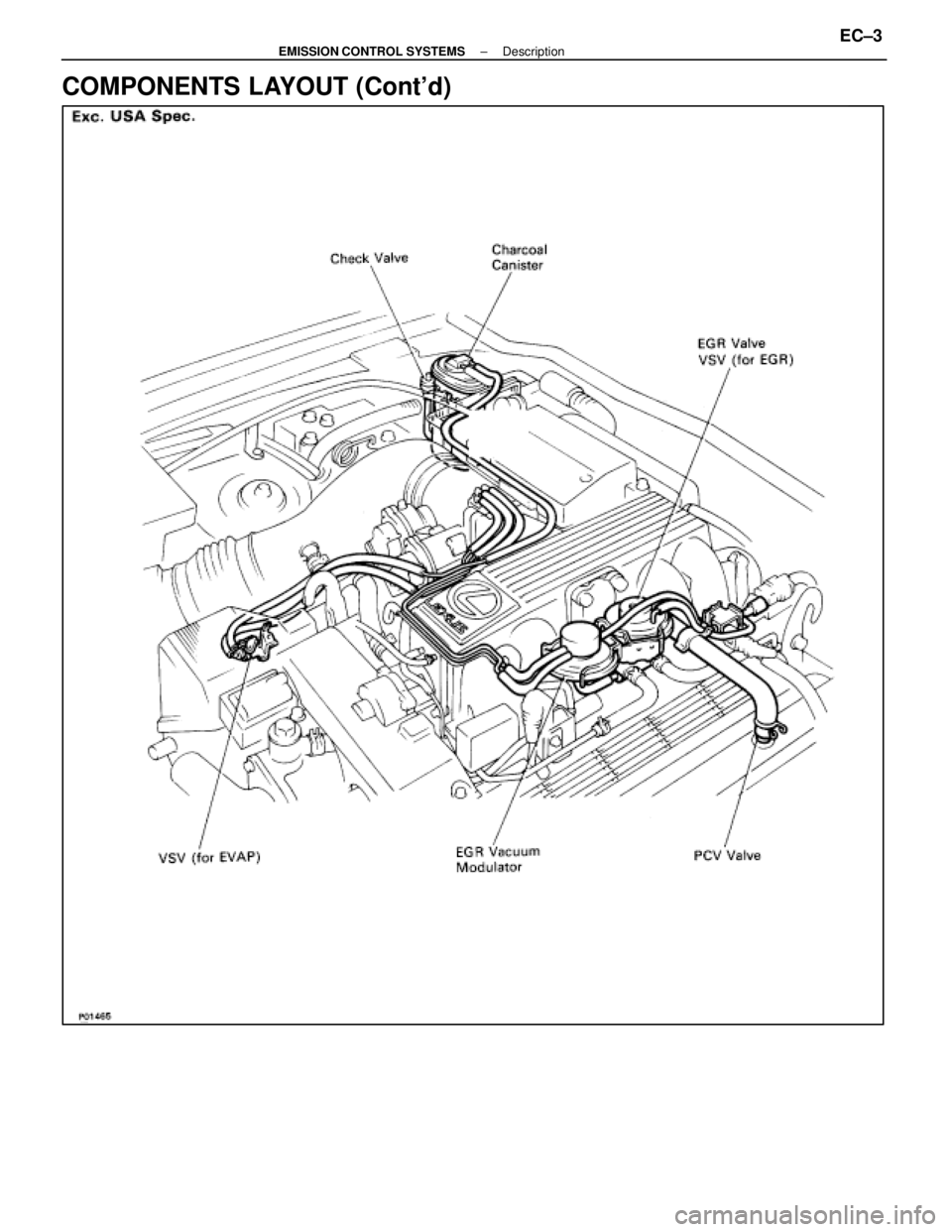

COMPONENTS LAYOUT (Contd)
±
EMISSION CONTROL SYSTEMS DescriptionEC±3
WhereEverybodyKnowsYourName

Page 1335 of 4087

LEXUS SC400 1991  Service Repair Manual

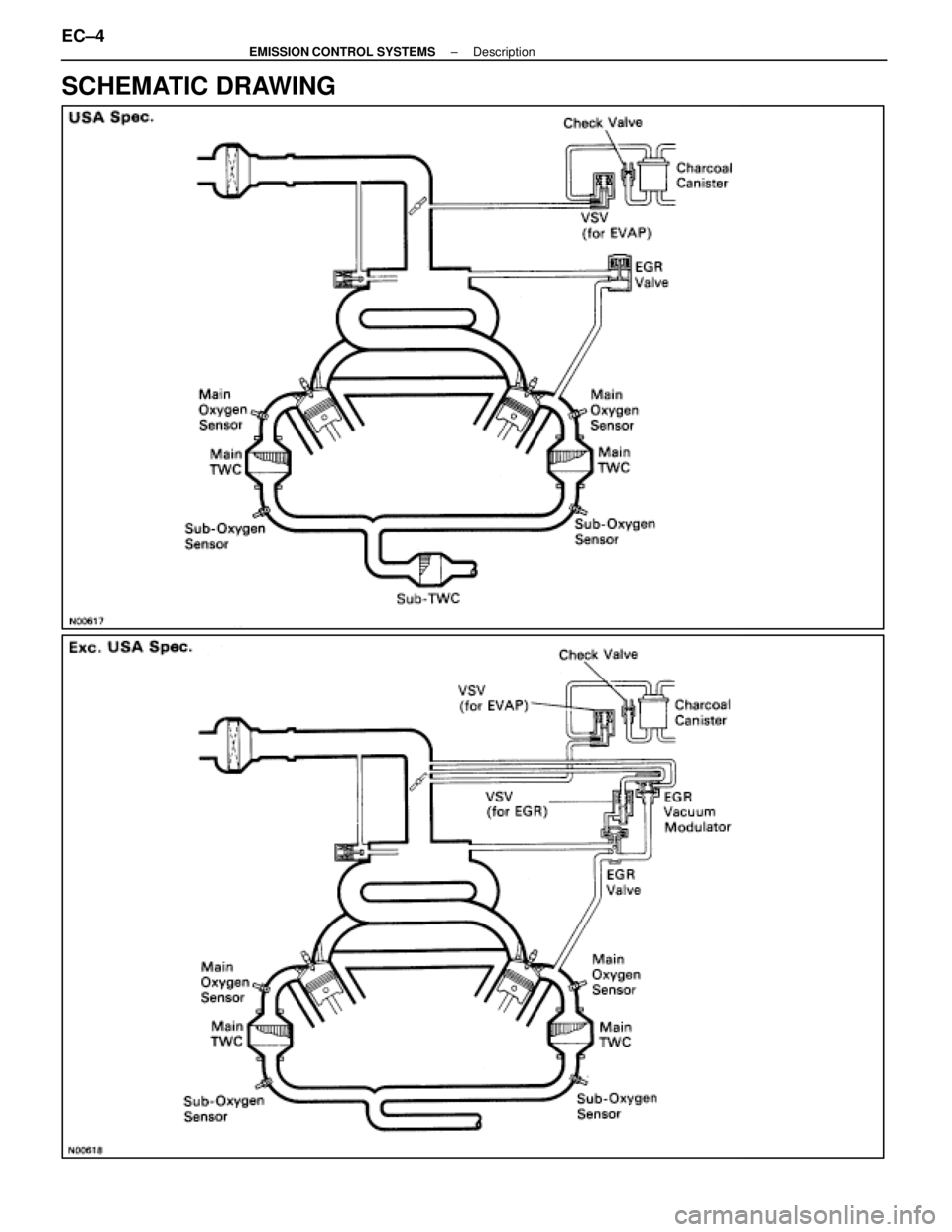

SCHEMATIC DRAWING
EC±4±
EMISSION CONTROL SYSTEMS Description
WhereEverybodyKnowsYourName

Page 1336 of 4087

LEXUS SC400 1991  Service Repair Manual

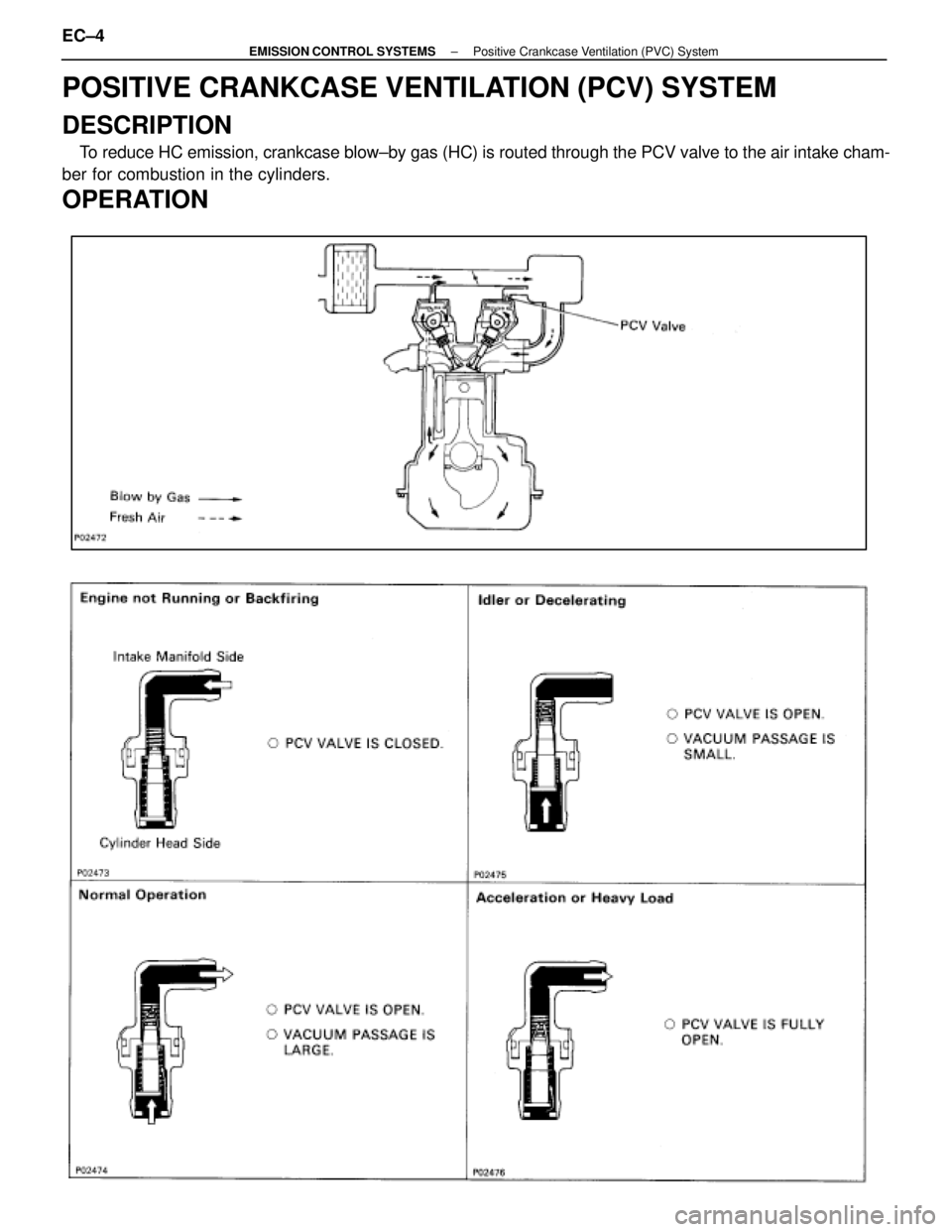

POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM
DESCRIPTION
To reduce HC emission, crankcase blow±by gas (HC) is routed through t\
he PCV valve to the air intake cham-
ber for combustion in the cylinder

Page 1337 of 4087

LEXUS SC400 1991  Service Repair Manual

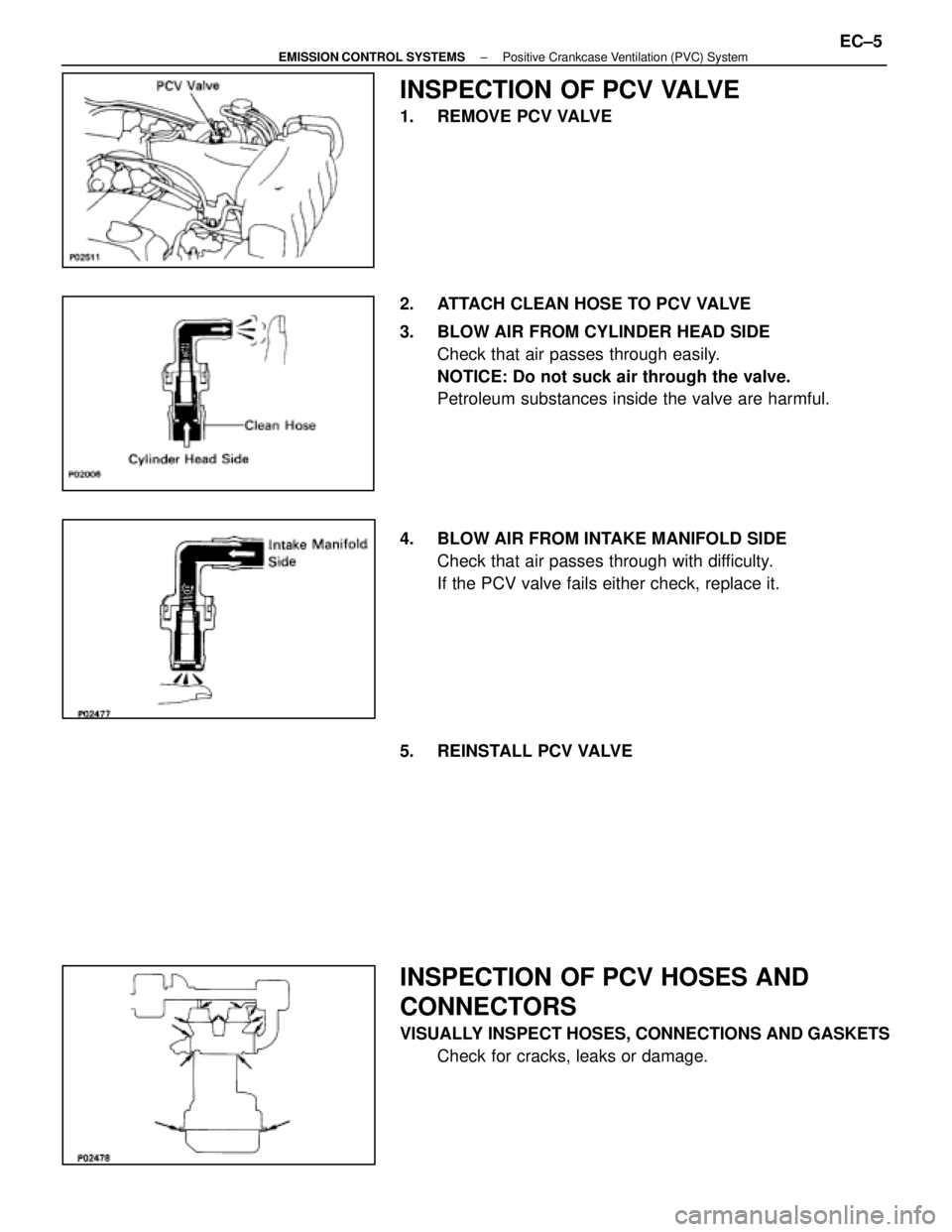

INSPECTION OF PCV VALVE
1.  REMOVE PCV VALVE
2.  ATTACH CLEAN HOSE TO PCV VALVE
3.  BLOW AIR FROM CYLINDER HEAD SIDECheck that air passes through easily.
NOTICE: Do not suck air through the valve.
Pe

Page 1338 of 4087

LEXUS SC400 1991  Service Repair Manual

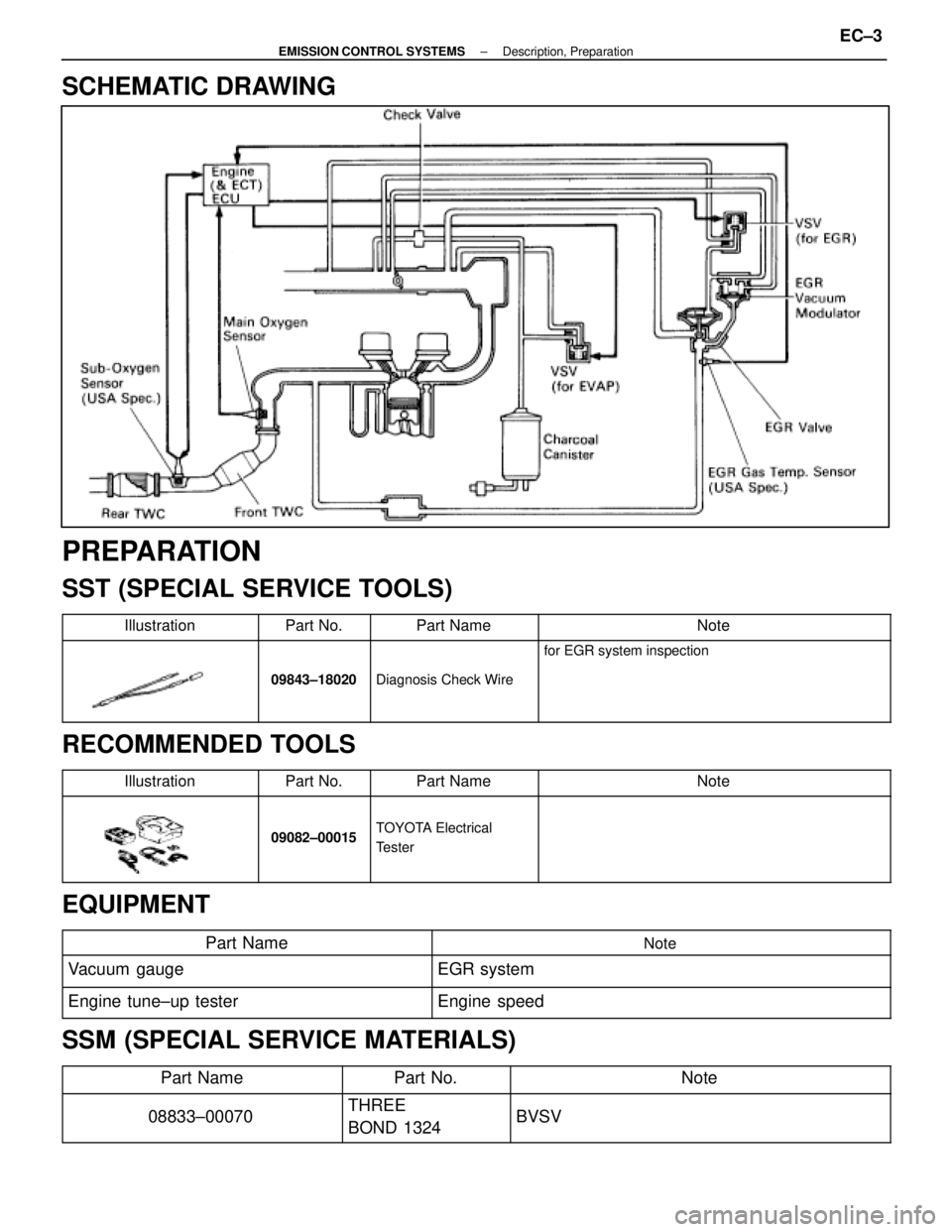

SCHEMATIC DRAWING
PREPARATION
SST (SPECIAL SERVICE TOOLS)

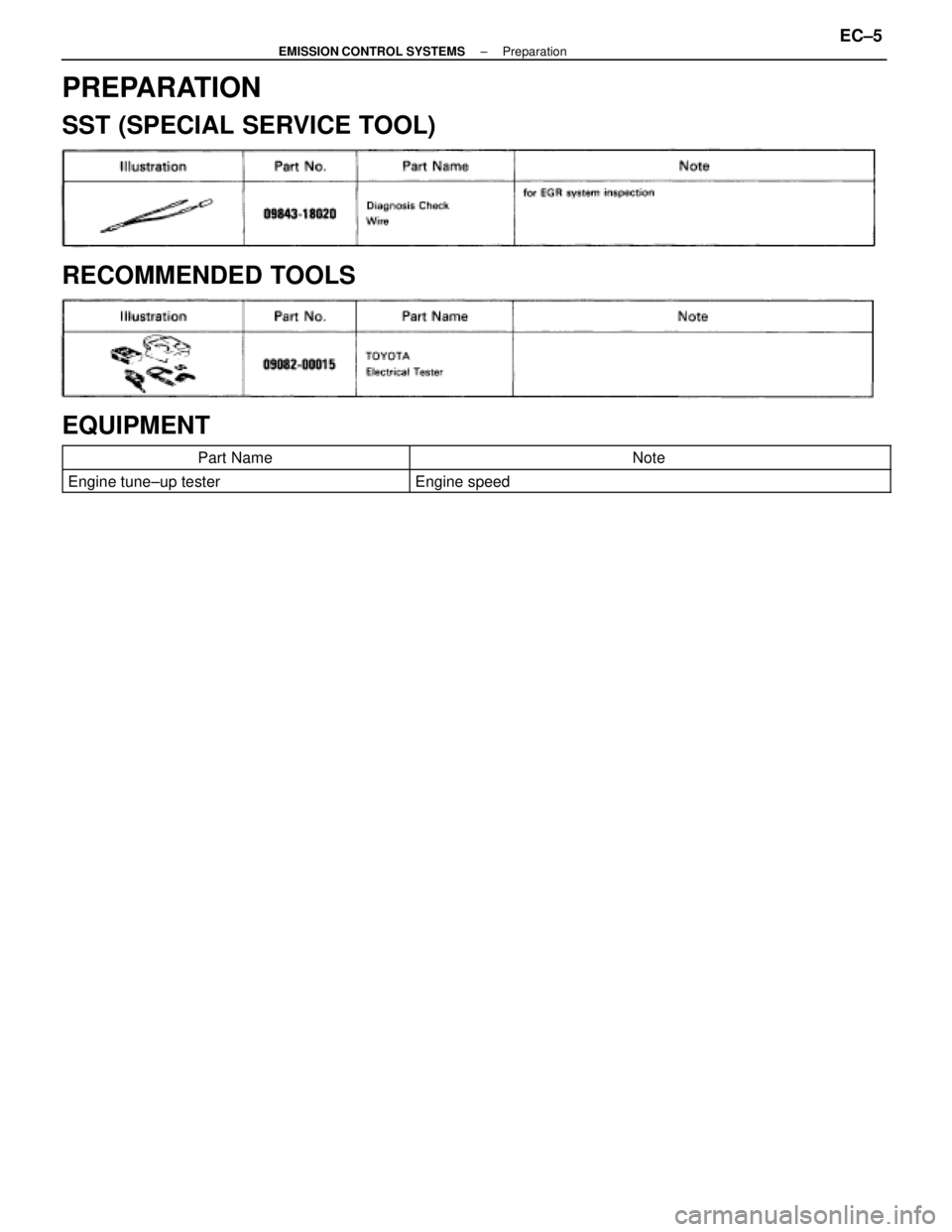

IllustrationPart No.Part NameNote
09843±18020Diagnosis Check Wire
for EGR system inspection
RECOMMENDED TOOLS
IllustrationPart No.Part NameN

Page 1339 of 4087

LEXUS SC400 1991  Service Repair Manual
PREPARATION
SST (SPECIAL SERVICE TOOL)
RECOMMENDED TOOLS
EQUIPMENT
Part NameNote
Engine tune±up testerEngine speed
±
EMISSION CONTROL SYSTEMS PreparationEC±5
WhereEverybodyKnowsYourName

Page 1340 of 4087

LEXUS SC400 1991  Service Repair Manual

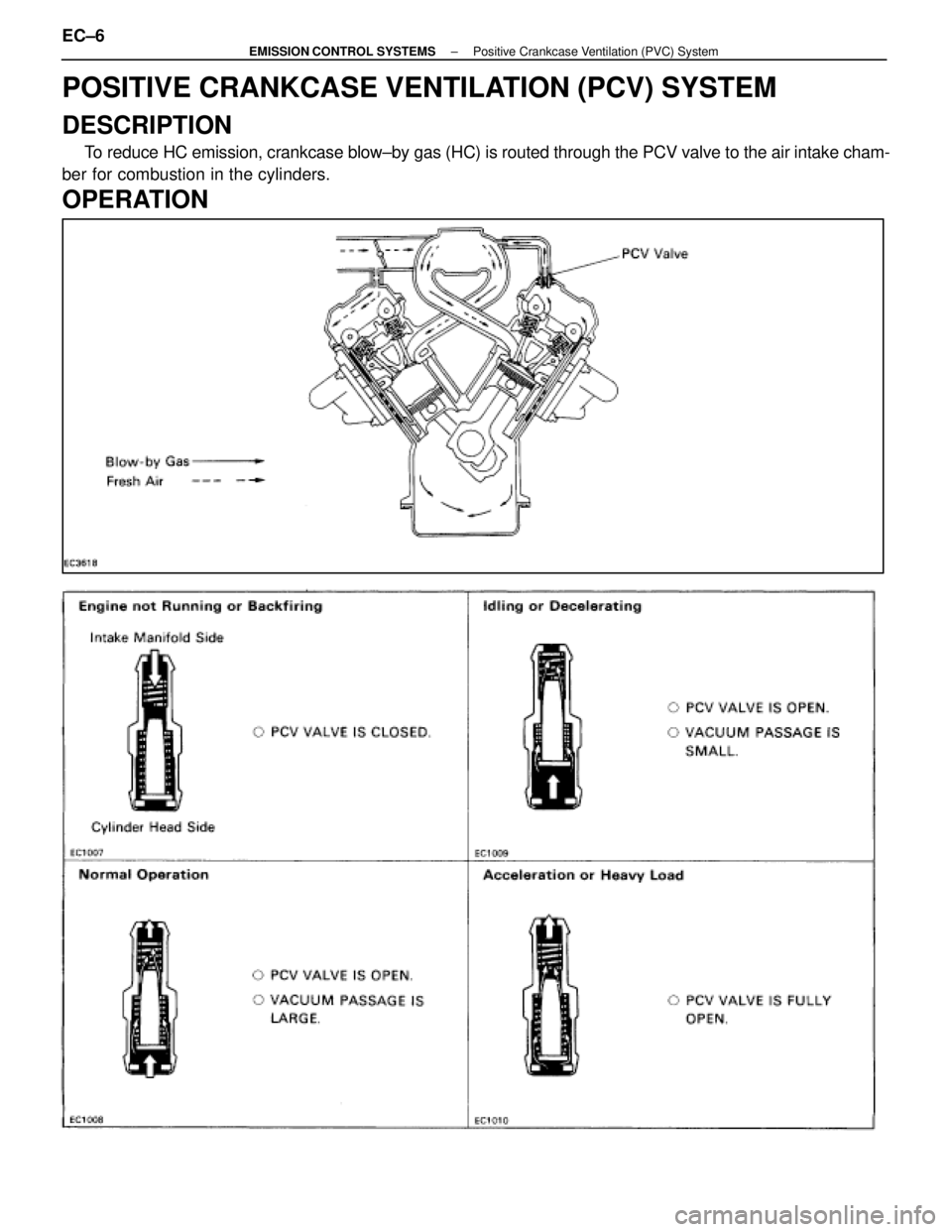

POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM
DESCRIPTION
To reduce HC emission, crankcase blow±by gas (HC) is routed through the PCV valve to the air intake cham-
ber for combustion in the cylinders.
