LEXUS SC400 1991 Service Repair Manual

(c) Check the ignition timing.
Ignition timing: 8±125 BTDC @ idle
(Transmission in neutral range)
If the ignition timing is not as specified, check that following
conditions are normal: w Throttle valve fully closed
w Continuity between terminals IDL1 and E2 of the
throttle position sensor (See page FI±73)
w Valve timing (See page EM±51)
(e) Remove the SST from the check connector.
SST 09843±18020
17. DISCONNECT TACHOMETER AND TIMING LIGHT FROM ENGINE
18. INSTALL UPPER HIGH±TENSION CORD COVER (See step 10 on pages IG±18 and 19)
±
IGNITION SYSTEM DistributorIG±29
WhereEverybodyKnowsYourName

ENGINE SPEED SENSOR
COMPONENTS FOR REMOVAL AND
INSTALLATION

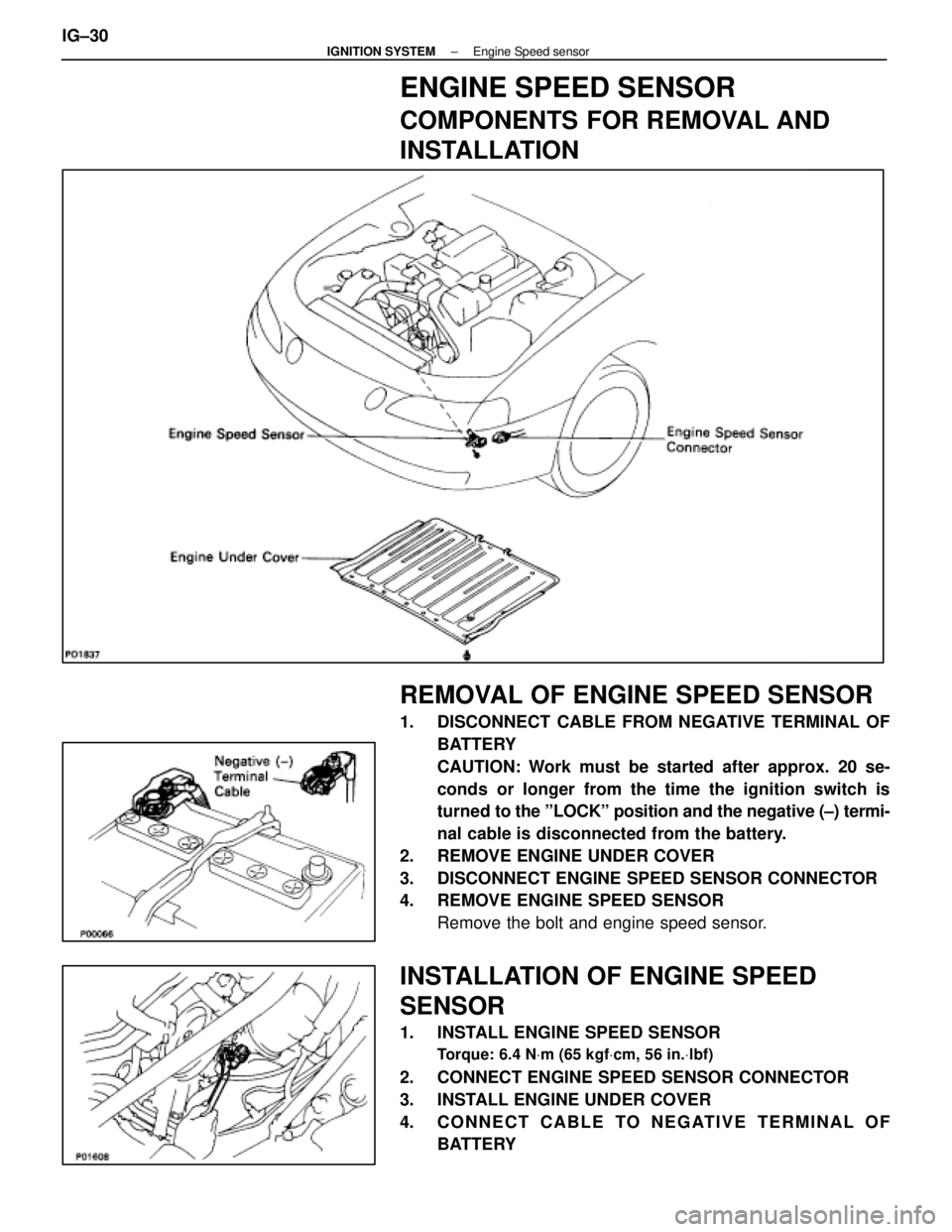

REMOVAL OF ENGINE SPEED SENSOR
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OFBATTERY
CAUTION: Work must be started after approx. 20 se-
conds or longer from the time the ignition switch is
turned to the ºLOCKº position and the negative (±) termi-
nal cable is disconnected from the battery.
2. REMOVE ENGINE UNDER COVER
3. DISCONNECT ENGINE SPEED SENSOR CONNECTOR
4. REMOVE ENGINE SPEED SENSOR Remove the bolt and engine speed sensor.
INSTALLATION OF ENGINE SPEED
SENSOR
1. INSTALL ENGINE SPEED SENSOR
Torque: 6.4 N Vm (65 kgf Vcm, 56 in. Vlbf)
2. CONNECT ENGINE SPEED SENSOR CONNECTOR
3. INSTALL ENGINE UNDER COVER
4. CONNECT CABLE TO NEGATIVE TERMINAL OF
BATTERY
IG±30
±
IGNITION SYSTEM Engine Speed sensor
WhereEverybodyKnowsYourName

IGNITION MAIN RELAY
INSPECTION OF IGNITION MAIN RELAY
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OFBATTERY
CAUTION: Work must be started after approx. 20 se-
conds or longer from the time the ignition switch is
turned to the ºLOCKº position and the negative (±) termi-
nal cable is disconnected from the battery.
2. REMOVE IGNITION MAIN RELAY LOCATION: In the engine compartment relay box.

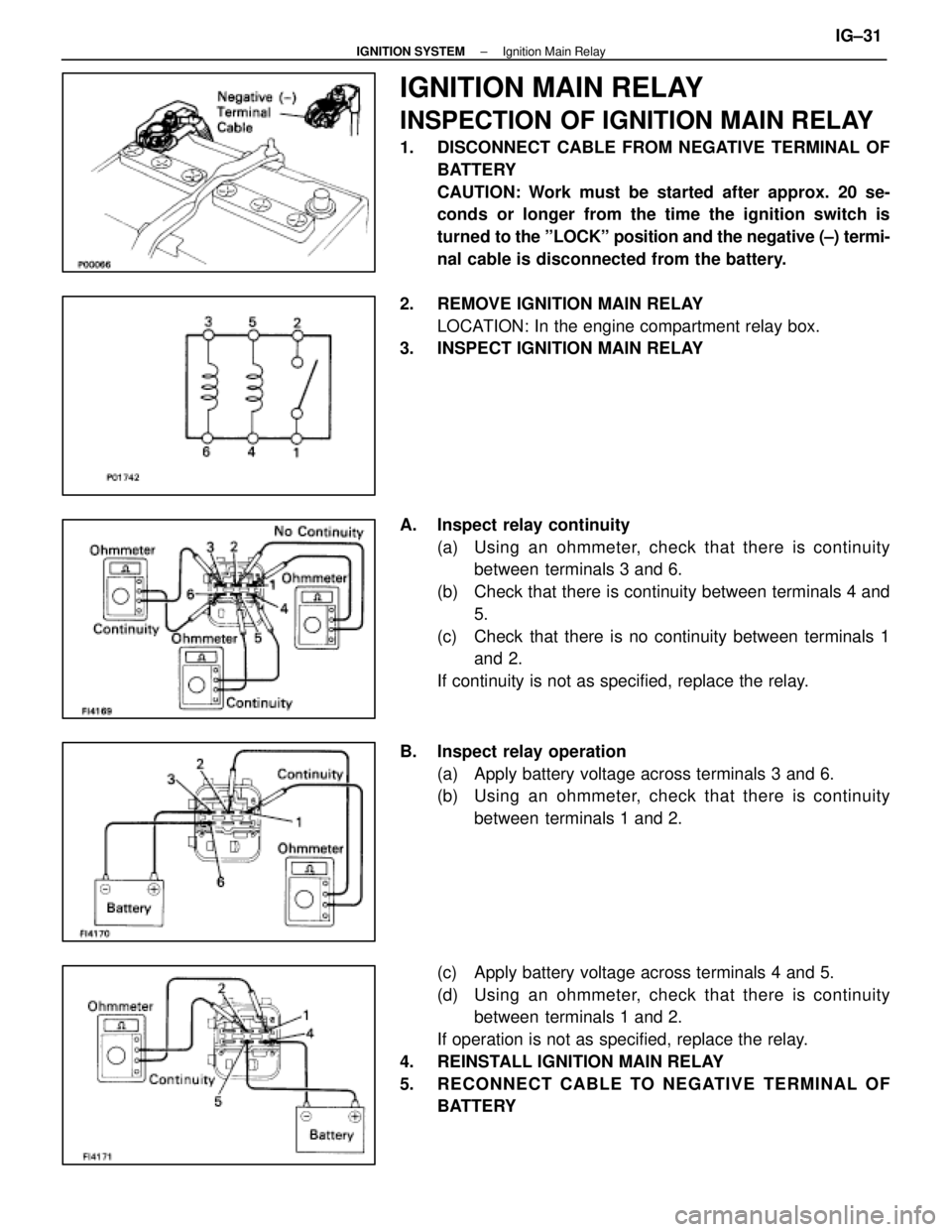

3. INSPECT IGNITION MAIN RELAY
A. Inspect relay continuity
(a) Using an ohmmeter, check that there is continuitybetween terminals 3 and 6.
(b) Check that there is continuity between terminals 4 and 5.
(c) Check that there is no continuity between terminals 1 and 2.
If continuity is not as specified, replace the relay.
B. Inspect relay operation (a) Apply battery voltage across terminals 3 and 6.
(b) Using an ohmmeter, check that there is continuitybetween terminals 1 and 2.
(c) Apply battery voltage across terminals 4 and 5.
(d) Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If operation is not as specified, replace the relay.
4. REINSTALL IGNITION MAIN RELAY
5. RECONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY
±
IGNITION SYSTEM Ignition Main RelayIG±31
WhereEverybodyKnowsYourName

SERVICE SPECIFICATIONS
SERVICE DATA
Ignition timing8±125 BTDC @ idlegg
(w/ Terminals TE1 and E1 connected)
Firing order1±8±4±3±6±5±7±2
Spark plugTypeNDPK20R11g
NGK BKR6EP11
Electrode gapNew plug STD 1.1 mm 0.043 in.
Used plug Limit 1.3 mm 0.051 in.
High±tensionResistance25 k
per cordg
cord
Ignition coilPrimary coil resistance0.40±0.50
gy
Secondary coil resistance10.0±14.0 k

Cam positionResistanceat ±10± +40 5C (14±104 5F)835±1,350

sensor
Engine speedResistanceat ±10± +40 5C (14±104 5F)835±1,350

sensor
TORQUE SPECIFICATIONS
Part tightenedNVmkgf Vcmft Vlbf
Spark plug X Cylinder head1818013
Cam position sensor X Distributor housing18185 13
Distributor cap X Distributor housing3.839 34 in. Vlbf
Distributor rotor X Camshaft timing pulley3.839 34 in. Vlbf
RH No.2 timing belt cover X Cylinder block (for 12 mm head)16160 12
Drive belt idler pulley X Hydraulic pump37380 27
Engine speed sensor X Oil pump6.46556 in. Vlbf
IG±32±
IGNITION SYSTEM Service Specifications
WhereEverybodyKnowsYourName

LUBRICATION SYSTEM
LU±1LUBRICATION SYSTEM
WhereEverybodyKnowsYourName

DESCRIPTION
A fully pressurized, fully filtered lubrication system has been adopted f\
or this engine.
OPERATION
LU±2±
LUBRICATION SYSTEM Description, Operation
WhereEverybodyKnowsYourName

DESCRIPTION
A fully pressurized, fully filtered lubrication system has been adopted \
for this engine.
OPERATION
LU±2±
LUBRICATION SYSTEM Description, Operation
WhereEverybodyKnowsYourName

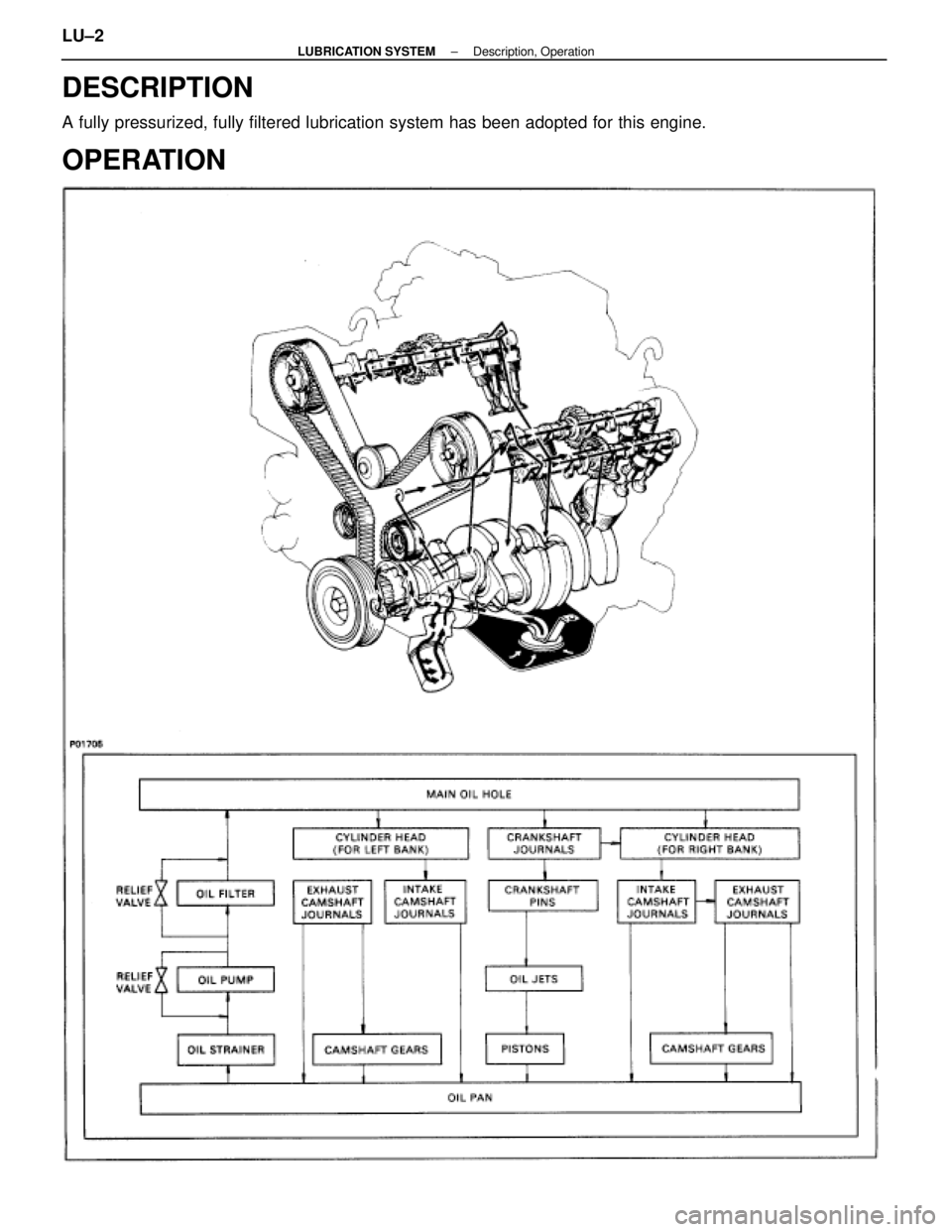

A pressure feeding lubrication system has been adopted to supply oil to \
the moving parts of this engine. The
lubrication system consists of an oil pan, oil pump, oil filter and other external p\
arts which supply oil to the moving
parts in the engine block. The oil circuit is shown in the illustration at th\
e top of the previous page. Oil from the
oil pan is pumped up by the oil pump. After it passes through the oil fi\
lter, it is fed through the various oil holes
in the crankshaft and cylinder block. After passing through the cylinder b\
lock and performing its lubricating func-
tion, the oil is returned by gravity to the oil pan. A dipstick on the center\
left side of the cylinder block is provided
to check the oil level.
OIL PUMP The oil pump pumps up oil from the oil pan and sends it under pressure to t\
he various parts of the engine.
An oil strainer is mounted in front of the inlet to the oil pump. The oil \
pump itself is a trochoid type pump, inside
of which there is a drive rotor and a driven rotor. When the drive rotor rotates, the driven rotor rotates in the same
direction, and since the axis of the driven rotor shaft is different from the center of the driven rotor, the space
between the two rotors is changed as they rotate. Oil is drawn in when the space\
is wide and is discharged when
the space in narrow.
OIL PRESSURE REGULATOR At high engine speeds, the engine oil supplied by the oil pump exceeds the\
capacity of the engine to utilize
it. For that reason, the oil pressure regulator works to prevent an over\
supply of oil. During normal oil supply, a
coil spring and valve keep the bypass closed, but when too much oil is being \
fed, the pressure become extremely
high, overpowering the force of the spring and opening the valves. This allow\
s the excess oil to flow through
the valve and return to the oil pump inlet.
OIL FILTER The oil filter is a full flow type filter with a built±in paper filter e\
lement. Particles of metal from wear, airborne
dirt, carbon and other impurities can get into the oil during use and co\
uld cause accelerated wear or seizing if
allowed to circulate through the engine. The oil filter, integrated into the oil line, removes these impurities as the
oil passes through it. The filter is mounted outside the engine to simplify\
replacement of the filter element. A relief
valve is also included ahead of the filter element to relieve the high oil pr\
essure in case the filter element be-
comes clogged with impurities. The relief valve opens when the oil pressure o\
verpowers the force of the spring.
Oil passing through the relief valve by±passes the oil filter and flo\
ws directly into the main oil hole in the engine.
±
LUBRICATION SYSTEM PrecautionsLU±3
WhereEverybodyKnowsYourName

PREPARATION

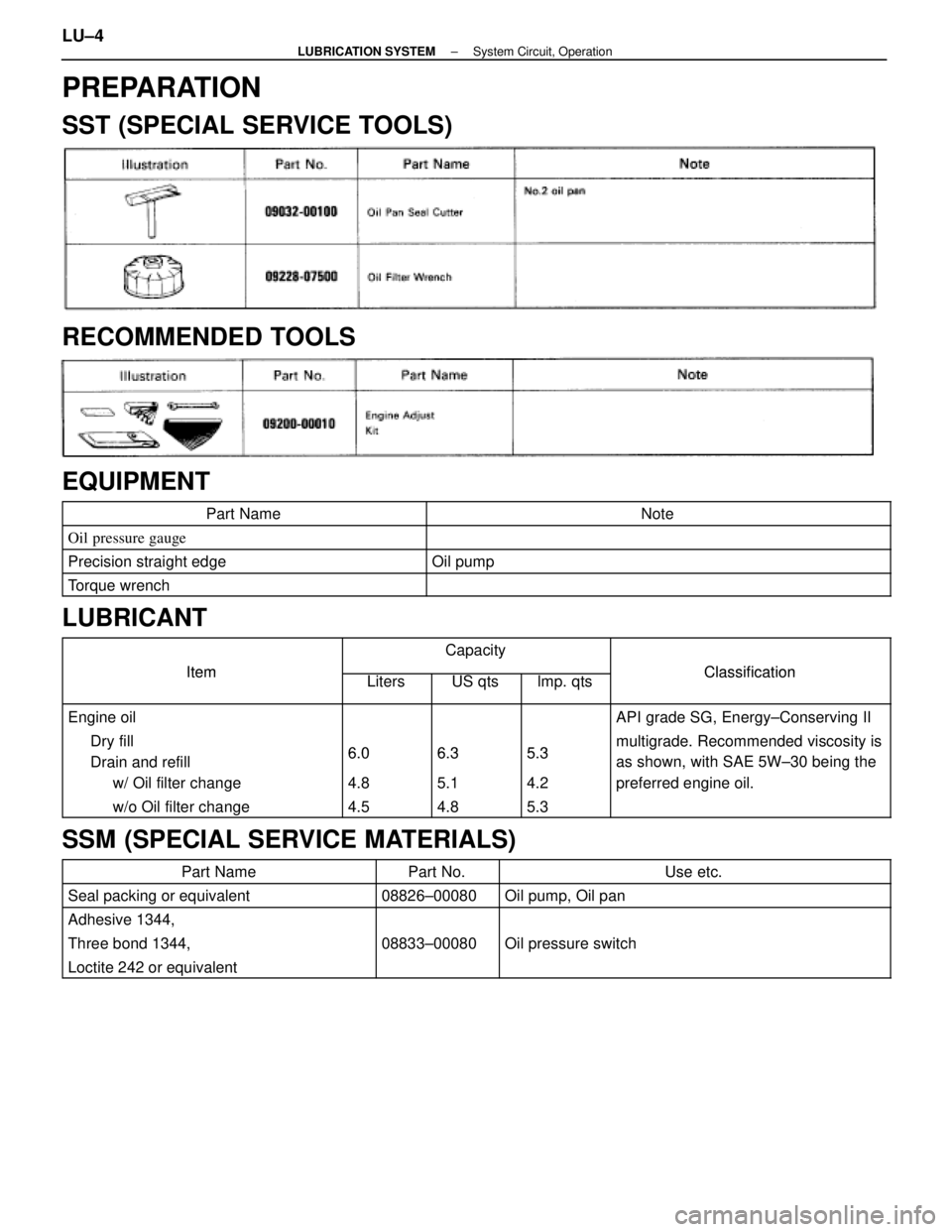

SST (SPECIAL SERVICE TOOLS)
RECOMMENDED TOOLS
EQUIPMENT
Part NameNote
Oil pressure gauge
Precision straight edgeOil pump
Torque wrench
LUBRICANT
Item
Capacity
ClassificationItemLitersUS qtslmp. qtsClassification
Engine oilAPI grade SG, Energy±Conserving II
Dry fill606353multigrade. Recommended viscosity is
Drain and refill6.06.35.3gy
as shown, with SAE 5W±30 being the
w/ Oil filter change 4.85.14.2preferred engine oil.
w/o Oil filter change4.54.85.3
g
SSM (SPECIAL SERVICE MATERIALS)
Part NamePart No.Use etc.
Seal packing or equivalent08826±00080Oil pump, Oil pan
Adhesive 1344,
Three bond 1344,08833±00080Oil pressure switch
Loctite 242 or equivalent
LU±4±
LUBRICATION SYSTEM System Circuit, Operation
WhereEverybodyKnowsYourName

OIL PRESSURE CHECK
1. CHECK ENGINE OIL QUALITYCheck the oil for deterioration, entry of water, discoloring or
thinning.
If the quality is poor, replace the oil.
Oil grade: API grade SG, Energy±Conserving II multi- grade. Recommended viscosity is as shown,
with SAE 5W±30 being the preferred engine
oil.
2. CHECK ENGINE OIL LEVEL The oil level should be between the ºLº and ºFº marks on the
dipstick.
If low, check for the leakage and add oil up to ºFº mark.
3. REMOVE ENGINE UNDER COVER
4. REMOVE OIL PRESSURE SWITCH, AND INSTALL OIL PRESSURE GAUGE
5. WARM UP ENGINE
Allow the engine to warm up to normal operating tempera-
ture.
6. CHECK OIL PRESSURE
Oil pressure:
At idling 29 kPa (0.3 kgf/cm
2, 4.3 psi)
or more
At 3,000 rpm 294±588 kPa (3.0±6.0 kg/cm
2, 43±85 psi)
7. REMOVE OIL PRESSURE GAUGE AND REINSTALL OILPRESSURE SWITCH
Apply adhesive to two or three threads of the oil pressure
switch.
Adhesive: Part No. 08833±00080, THREE BOND 1344,
LOCTITE 242 or equivalent
8. START ENGINE AND CHECK FOR LEAKS
9. REINSTALL ENGINE UNDER COVER
±
LUBRICATION SYSTEM Oil Pressure CheckLU±5
